Zamel exta PBM-07 User manual

BISTABLE RELAY PBM-07 MANUAL INSTRUCTION
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. [phone], fax [phone]
www.zamel.com, e-mail: [email protected]
plik: inst_ext_en_pbm-07 | modykacja: 25.01.2016

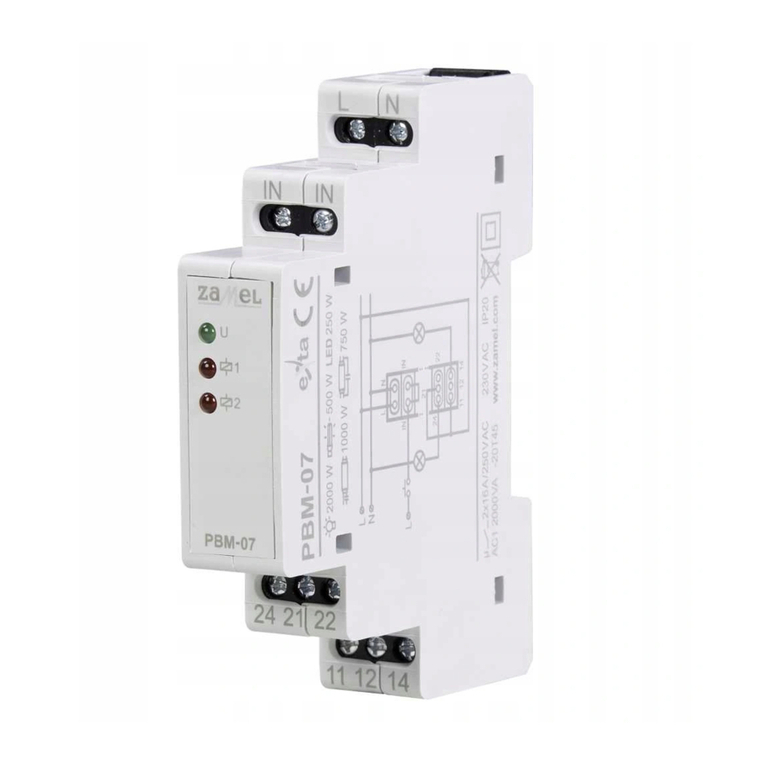

APPEARANCE
FEATURES
DESCRIPTION
● control of lighting and other devices
according to a defined sequence,
● output status indicated by red LEDs (2
x red LED),
● power supply indication (1 x green LED),
● system release only from the “L” line,
● possibility of cooperation with unipolar
backlit push buttons,
● two-wire control installation,
● two independent relay outputs – (dry
contacts) 2 NO /NC contacts with a
maximum load of 16 A,
● mounting in distribution boards
(TH35 rail).
The PBM-07 bistable relay is used to con-
trol lighting or any other device by means
of unipolar push buttons connected in a
parallel way. The relay is equipped with
two outputs activated by means of impuls-
es given to the (IN) input. It allows to con-
trol two circuits / branches simultaneously.
The control impulse must be the “L” line
signal. The trigger input structure enables
cooperation with backlit push buttons (in-
cluding LED backlight). The total current
of backlight for the (IN) input can not ex-
ceed 1,5 mA. The device is designed to be
mounted in distribution boards (TH35 rail).
LEDs on the front panel indicate power
supply (green LED) and the output status
(2 x red LED).
TECHNICAL DATA
PBM-07
Input (supply) terminals: L, N
Nominal supply voltage: 230 V AC
Nominal supply voltage tolerance: -15 ÷ +10 %
Nominal frequency: 50 Hz
Nominal power consumption: stand-by: 0,4 W
2 active outputs: 1,1 W
Optical signalling of relay status:
2x red LED
Release terminals: IN, IN
Release control current: 7,5 mA
Cooperation with backlit push buttons: yes
Total current of the push button backlight: < 1,5 mA
Minimum impulse release time: 70 ms
Output devices: 2 x relays
Relay contact parameters: NO/NC – 16 A / 250 VAC
Number of connection terminals: 10
Cross-section of connection cables: 0,2 ÷ 2,5 mm2
Operating temperature range: -20 ÷ +45 oC
Operating position: free
Casing mounting: TH35 rail
Casing protection degree: IP20
Protection class: II
Overvoltage category: II
Pollution degree: 2
Dimensions: 90 x 17,5 x 66 mm
Weight: 0,090 kg
Reference standard: PN-EN 60669-1, PN-EN 60669-2-1
PN-EN 61000-4-2,3,4,5,6,11
The device is designed for sin-
gle-phase installation and must
be installed in accordance with
standards valid in a particular
country. The device should be
connected according to the details inc-
luded in this manual instruction. Instal-
lation, connection and control should be
carried out by a qualied electrician staff,
who act in accordance with the service
manual and the device functions. In case
of casing dismantling, the guarantee is
lost and an electric shock may occur.
Before installation make sure the con-
nection cables are not under voltage. Im-
proper transport, storage, and use of the
device inuence its wrong functioning.
It is not advisable to install the device in
the following cases: if any device part is
missing or the device is damaged or de-
formed. In case of improper functioning
of the device contact the producer.
CAUTION!
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste.
Input (supply) terminal (L)
PK1 (11,14,12) output relay
terminals
PK2 (21,24,22) output relay
terminals
Input (supply) terminal (N)
Release terminals (IN)
Power supply indicator
PK1 status indicator
PK2 status indicator

OPERATION MODES
MOUNTING, FUNCTIONING
CASING DIMENSIONS
1. Disconnect power supply by the phase
fuse, the circuit-breaker or the switch-dis-
connector combined to the proper circuit.
2. Check if there is no voltage on the connec-
tion cables by means of a special measur-
ing equipment.
3. Install PBM-07 on a TH35 rail in the distri-
bution board.
4. Connect the device cables with the ter-
minals in accordance with the installing
diagram.
5. Switch on the power supply from the mains.
6. Press a push button connected to the (IN)
release input a few times to check if the
device operates properly.
After supply voltage has been applied,
the device is ready to operate. Correct oper-
ation of the PBM-07 relay can be checked by
pressing a push button connected to the re-
lease terminal (IN) a few times. The system
should switch on / switch off loadings con-
nected to its output terminals (PK1-11,12,14
and PK2-21,22,24). Unipolar push buttons
can be connected in a parallel way and pro-
vide lighting control of several places. These
push buttons are available with backlight.
CAUTION:
PBM-07 can cooperate with backlit push
buttons. The total current consumption
before backlight can not exceed 1,5 mA.
The (IN) release input structure is used to
a continuous triggering.
CONNECTION
After supply voltage has been applied or after its decay both relays PK1 and PK2 are switched off.
In case the subsequent impulses are given to the (IN) input, the device will:
• switch on both output relays,
• switch off both output relays.
General impulse release requirements:
• The PBM-07 relay reacts to the falling edge of the release impulse (reaction to the button release
connected to the (IN) input).
• Minimum duration of impulse release – 70 ms.
• Minimum time interval between subsequent impulses – 250 ms.
CAPACITY
The above values are only indicative. They
depend, to a large extent, on a particular
capacity (mainly it refers to LED bulbs, ener-
gy-saving lamps and switched-mode power
supplies), switching on frequency and operat-
ing conditions.
WARRANTY CARD
There is a 24 month guarantee on the product
Salesman stamp and signature, date of sale
1. ZAMEL Sp. z o.o. assures a 24 month guarantee for the product.
2. The manufacturer’s guarantee does not cover any of the following actions:
a) mechanical damage during transport, loading / unloading or under other circumstances,
b) damage caused by incorrect product mounting or misuse,
c) damage caused by unauthorised modications made by the PURCHASER or any third parties to the product or any other devices
required for the product functioning,
d) damage caused by Act of God or any other incidents independent of the manufacturer – ZAMEL Sp z o.o.
3. The PURCHASER shall lay any claims in writing in the place of purchase or to ZAMEL Sp. z o.o.
4. ZAMEL Sp. z o.o. is liable for processing any claim according to current Polish legislation.
5. ZAMEL Sp. z o.o. shall process the claim at its own discretion: product repair, replacement or money return.
6. The manufacturer’s guarantee is valid in the Republic of Poland.
7. The PURCHASER’s statutory rights in any applicable legislation whether against the retailer arising from the purchase contract or otherwise
are not affected by this warranty.
2000 W
1000 W
500 W
750 W
250 W
LED
t
IN
PK1
PK2
t
t
t
U
>70 ms >250 ms
< 1,5 mA
