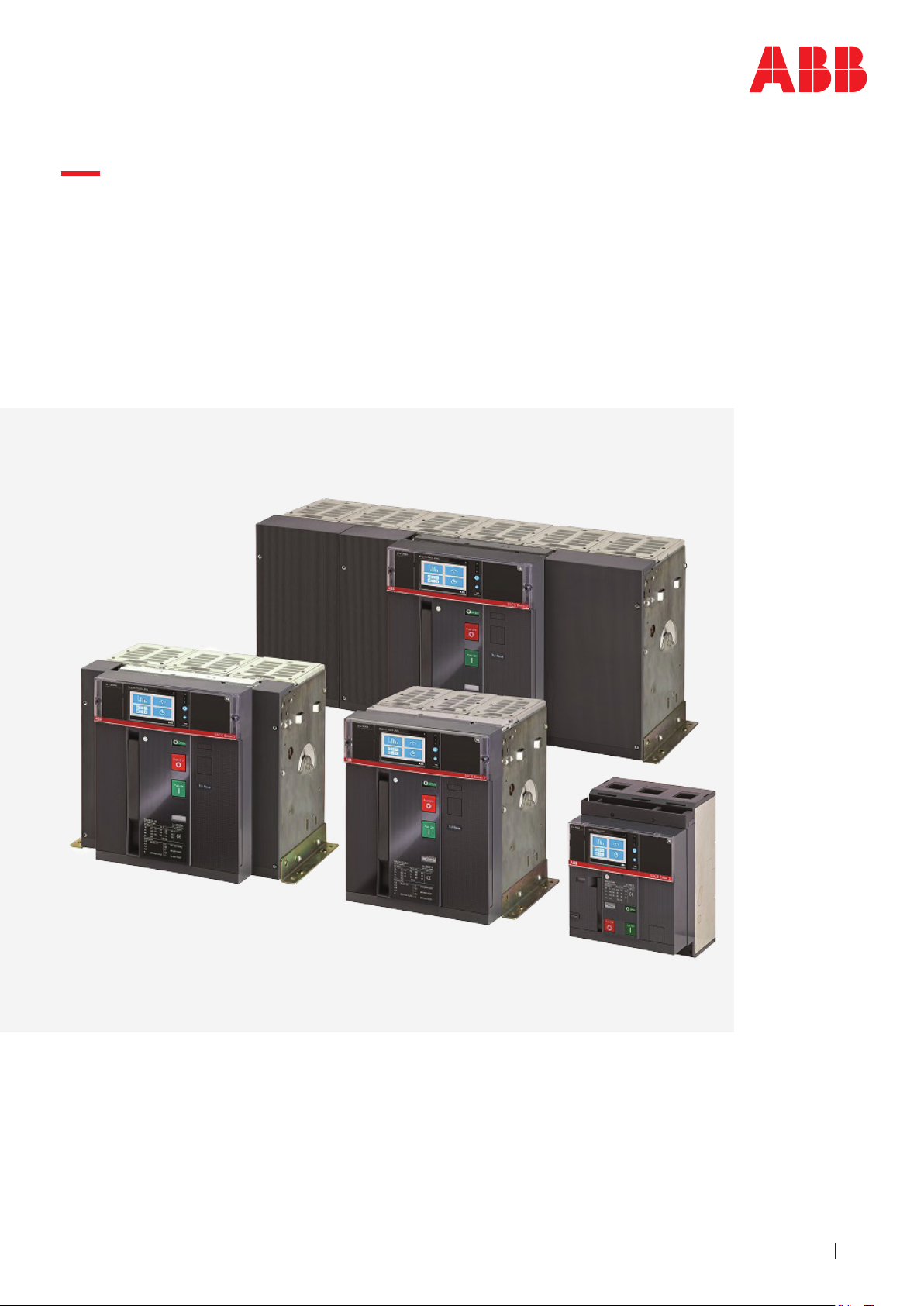

ABB SACE Emax 2 User manual

SACE Emax 2
DOC. N° 1SDH001316R1002 - ECN000297030
EN
EMAX LOW VOLTAGE AIR CIRCUIT-BREAKERS E1.2-E2.2-E4.2-E6.2
SACE Emax 2
Instructions for using Ekip Touch protection trip units and Acces-
sories.
SACE Emax 2 DOC. N° 1SDH001316R1002 - ECN000297030

ABB | SACE Emax 2ABB | SACE Emax 2
© 2023 ABB | 1SDH001316R1002 - ECN000297030

1SDH001316R1002 - ECN0002970301 | © 2023 ABB | SACE Emax 2
Contents
Glossary .................................................................................................3
Introduction ......................................................................................... 4
1 - Contents......................................................................................4
2 - Safety...........................................................................................5
Trip unit Overview ............................................................................... 6
1 - General characteristics ............................................................6
Ekip Touch - Interface and menus...................................................... 8

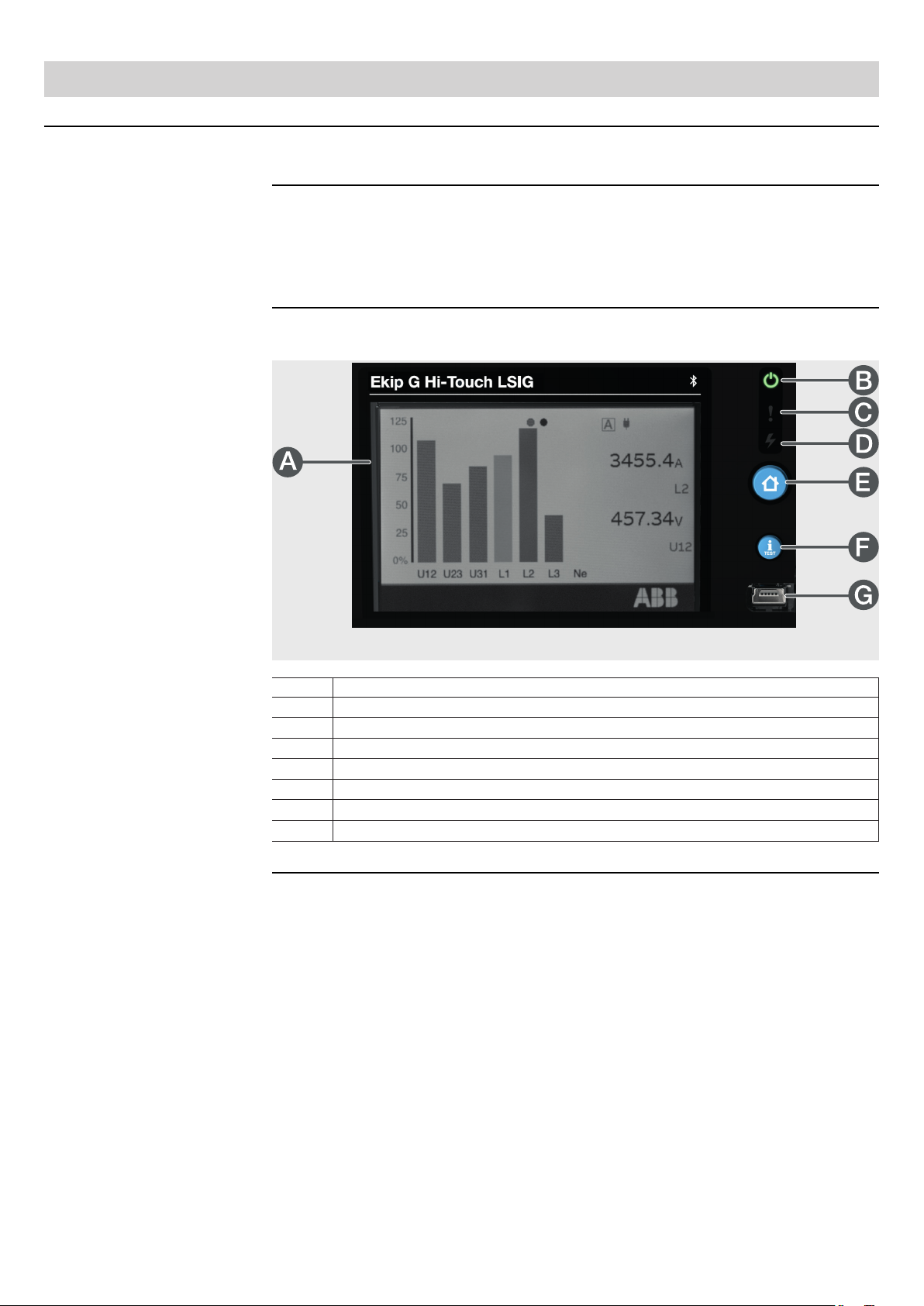

1 - Presentation of interface.........................................................8
2 - Navigation ................................................................................10
3 - Changing parameters and commands ............................... 11

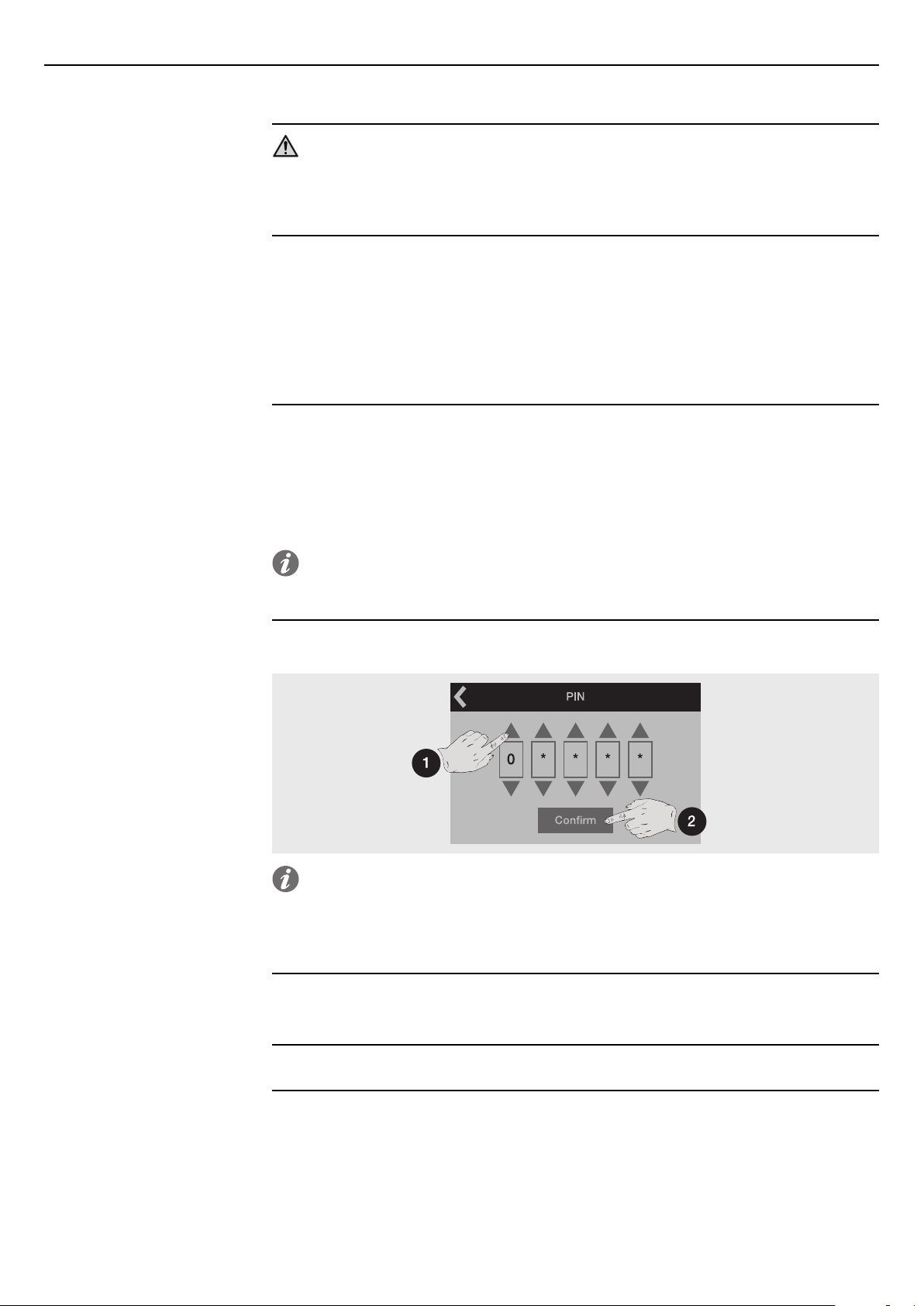

4 - PIN and security ......................................................................13
Protections......................................................................................... 14
1 - Protections - Introduction.....................................................14
2 - Standard Protections.............................................................15
3 - Voltage protections................................................................19
4 - Voltage Advanced protections............................................ 20
5 - Frequency protections...........................................................21
6 - Power protections ..................................................................22
7 - ROCOF protections.................................................................23
8 - Adaptive protections .............................................................23
9 - Additional protections and functions ............................... 24
Ekip Touch - Measurements ............................................................. 25
1 - Class 1 Power & Energy Metering .........................................25
Ekip Touch - Settings ........................................................................ 26
1 - Main settings .......................................................................... 26
Accessories......................................................................................... 29
1 - Measurement .......................................................................... 29
Ekip Touch - Default .......................................................................... 30
1 - Ekip TOUCH default parameters......................................... 30
Management operations ...................................................................31
1 - Ekip Touch maintenance and troubleshooting .................31

2 | © 2023 ABB | SACE Emax 2 1SDH001316R1002 - ECN000297030

ABB | SACE Emax 2ABB | SACE Emax 2
Glossary3 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Glossary
Term Description
SACE Emax 2 New series of ABB SACE air circuit-breakers
CB Circuit-breaker
Trip unit Electronic unit connected to the CB, which provides measuring, monitoring and protection functions for the
CB if faulty operating conditions occur. In the event of an alarm, it commands a TRIP
Ekip Touch Trip unit for SACE Emax 2 CBs, equipped with touchscreen display and available in four different versions
Trip coil CB opening actuator controlled directly by Trip unit
TRIP
Concluding action of protection timing or a test command which, except in special configurations applicable
to the trip unit, coincides with activation of the trip coil, which instantly opens the bars of each pole and
interrupts the circulating current
Vaux Auxiliary power supply
4P / 3P / 3P + N CB configuration: four-pole (4P), three-pole (3P) and three-pole with external neutral (3P + N)
If Fault current measured by Trip unit, useful for calculating the trip time t t

ABB | SACE Emax 2
Introduction
1 - Contents
4 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Introduction
1 - Contents
Overview
This manual describes the characteristics of the Ekip Touch Trip units installed on SACE Emax 2 CBs,
among which:
1. general overview:
2. operating conditions
3. consultation of menus for changing parameters and displaying measurements
4. overview of protections, measurements, parameters and main accessories
5. management operations: maintenance, troubleshooting
Integrated informations
A full description of Ekip Touch is available in document 1SDH001330R1002 (Emax 2 engineering manual)
available on the website ABB library.
recipients
This manual refers to two user profiles, as defined by standard IEC 60050:
• skilled person, in the electrical field (IEV 195-04-01): person with sufficient training and experience
to enable him or her to perceive risks and avoid the dangers potentially created by electricity)
• instructed person, in the electrical field (IEV 195-04-02): person adequately advised or supervised
by electrically skilled persons to enjable him or her to perceive risks and to avoid danger which
electricity can create
IMPORTANT: operations which can be performed by persons trained on the subject of
electricity are specifically indicated in this manual. All the remaining operations described
in this manual must be performed by skilled persons, in the field of electricity. ABB
declines all liability for damage to persons or property caused by failure to comply with
the instructions in this document.
Specifications and supporting
documents
To ensure that Ekip Touch is installed and configured correctly, please read the information in this manual
and in the technical documentation of the product, supplied with the circuit-breaker or available in the
website ABB liBRARy
Document Description
1SDH000999R0002 Installation, operation and maintenance instructions for Sace Emax E1.2
CBs and Ekip Dip Trip units
1SDH001000R0002 Installation, operation and maintenance instructions for Sace Emax E2.2-
E4.2-E6.2 CBs and Ekip Dip Trip units
1SDH001330R1002 Manual for design engineers with full information about the trip units and
accessories for Emax 2
1SDH001140R0001 Communication System Interface for Emax 2 CBs
1SDC200023D0906 Sace Emax 2 CBs General catalog
1SDM000091R0001 Sace Emax 2 CBs Circuit diagrams
WARNING! carefully read the instructions for putting into service and maintenance given
in the manual 1SDH001330R1002.
Design notes
The information in this manual was written in Italian and then translated into other languages to conform
to the laws and/or commercial requirements concerning the product.

ABB | SACE Emax 2
Introduction
2 - Safety
5 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
2 - Safety
Safety requirements
HAZARD
ACCIDENTAL CONTACT WITH LIVE POINTS
CAN CAUSE SHOCK, BURNS AND RESULT
IN DEATH.
Do not try to use the product in any way, before having
read this instruction manual
Figure 1
WARNING!
• detailed descriptions of the standard installation, operation, maintenance procedures and
principles for working safely are not included; it is important to note that this document
contains indications about safety and caution, against certain methods (concerning
installation, operation and maintenance) which could cause imjuries to the personnel,
damage devices or make them unsafe
• these warnings and alarms do not include all the conceivable methods of performing the
installation, operation and maintenance operations recommended by ABB and others, which
could be performed, or the possible consequences and complications of each conceivable
method, neither will ABB investigate all those methods
• anyone who is implementing procedures or using maintenance devices recommended by
ABB or not must check carefully that neither their personal safety nor the safety devices are
endangered by the installation, operation, maintenance method or by the tools used; contact
your nearest ABB representative for further information, explanations or specific problems
• this manual is written for qualified personnel only and is not intended to replace an adequate
training course or experience concerning the safety procedures of this device
• regarding products equipped with communication systems, the purchaser, installer or end
customer are responsible for applying all the IT security measures to prevent risks deriving
from connection to communication networks; among others, these risks include use of
the product by unauthorized persons, alteration of its normal operation, access to and
modification of the information
• the purchaser, installer or end customer are responsible for ensuring that safety warnings
and notices are affixed and moreover, that all points of access and operating devices are
securely blocked when the switchgear is left even momentarily unattended
• all information in this document is based on the latest product data available at the time of
printing. We reserve the right to make changes to the document at any time and without
prior notice
Warnings
WARNING! READ THIS MANUAL WITH CARE BEFORE INSTALLING, OPERATING OR REPAIRING
THE CIRCUIT-BREAKER
• file this manual with all the other available documents concerning the circuit-breaker
• to facilitate the work, these documents must be readily available when the CB is installed,
operated and serviced
• the unit must be installed in accordance with the environmental, electrical and mechanical
limitations described in the product documentation
• this circuit-breaker has been designed to operate with voltage and current values within the
rating plate limits: do not install in systems that operate at values exceeding these rated
limits
• comply with the safety procedures required by your Company.
• do not open covers or doors, do not work on devices before having disconnected all circuits
from the electricity sources and after having made sure of this with a measuring instrument

ABB | SACE Emax 2
Trip unit Overview
1 - General characteristics
6 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Trip unit Overview
1 - General characteristics
Main functions
SACE Emax 2 can be configured using the Ekip Touch trip unit, which is available in several versions and
able to provide, protection, measurement and signalling functionalities.
Emax 2 can be provided with mechanical, electronic and testing accessories, and is supported by many
different types of software and applications enabling the functions of the Trip unit and circuit-breaker to
be expanded.
Detailed information is available in manual 1SDH001330R1001. 1SDH001330R1002.
Default functions and
extensions
Every Ekip Touch module has default measurement and protection functions, which can be extended with
the aid of additional software packages.
The extensions (additional SW packages) can be pre-engineered when the circuit-breaker is ordered or at
a later date (in this case, via ABB Ability MarketplaceTM
Overview
Model Ekip Touch Ekip Hi-
Touch
Ekip G
Touch
Ekip G Hi-
Touch
Versions LSI, LSIG LSI, LSIG LSIG LSIG
Standard protections XXXX
Voltage protections O(1) X X (3) X
Voltage advanced protections O(1) O X (3) X
Frequency protections O(1) X X (3) X
Power protections O(1) X(3) X(3) X
ROCOF protections O(1) OOX
Adaptive protections O X O X
Standard Measurements XXXX
Measuring Measurements O X X X
Class 1 Power & Energy Metering O(2) X O X
Datalogger O(1) XXX
Network Analyzer O(1) X O X
X = Available by default; O = Optional
(1)
Configurable if Measuring Measurements package is present
(2)
Only available at the time circuit-breaker is ordered
(3)
Certain protections of the complete package are available by default; the remaining ones can be
activated on request
Description
Lists of the main characteristics of the protections and measurements of each package are given in the
next chapters.
A description of the Datalogger and Network Analyzer functions is available in manual 1SDH001330R1002.

ABB | SACE Emax 2
Trip unit Overview
1 - General characteristics
7 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Internal and external
accessories
The functions of Ekip Touch can be expanded by further internal and external accessories, which differ as
to function and assembly position; certain accessories can also be configured with Ekip Dip.
In manual 1SDH001330R1002 Contains the lists and descriptions of all the available accessories, the
support software and all the additional functions.
Electrical characteristics
The Ekip Touch measurement and protection functions described in this document are provided with
primary voltage and current values within the following nominal ranges:
Parameter Rated operating range
Primary current 0,004 ÷ 16 In (1)
Primary voltage 5 ÷ 690 V AC (2)
Rated frequency 45 ... 55 Hz (with fn= 50 Hz) / 54 ... 66 Hz (with fn= 60 Hz)
Peak factor Complying with standard IEC 60947-2
(1)
range with reference to each phase; In refers to the rated size defined by the Rating plug installed
on the Trip unit, available in models from 100 A to 6300 A, depending on the circuit-breaker model
used
(2)
for Ekip Touch rated highest line-to-line voltage connected directly to Trip unit, also to sockets
inside the CB; external transformers must be used for higher voltage values, consult the chapter
dedicated to the Measurement modules
Self-supply
The internal current sensors are able to supply the Trip unit directly; Ekip Touch versions Hi-, G, G Hi- are
also fitted with the
Measurement enabler with voltage sockets module, which allows the Trip unit to be
supplied by the installation voltages as well:
Parameter Operating limits
Minimum three-phase turn-on current
> 30 A (E1.2-E2-2-E4.2 with Rating Plug < 400 A)
> 80 A (E1.2-E2-2-E4.2 with Rating Plug ≥ 400 A)
> 160 A (E6.2)
Minimum three-phase turn-on voltage > 80 V
Auxiliary power supply
Ekip Touch can be connected to an external auxiliary supply source, which is useful when certain functions
such as communication via Local Bus, recording manual operations, certain measurements and the
datalogger must if available.
Auxiliary power supply can be provided by modules from the || Ekip Supply|ii| range or by direct
connection to the terminal box; a direct connection can also be made. Details are available in the manual
1SDH001330R1002.

ABB | SACE Emax 2
Ekip Touch - Interface and menus
1 - Presentation of interface
8 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Ekip Touch - Interface and menus
1 - Presentation of interface
Functions
The Ekip Touch operator interface allows you to:
• display signals and measurements of the functions in progress or recorded events
• configure the parameters, the protections present and other functions of the unit
• Set parameters for the connected accessory modules
• perform tests
Components
The Ekip Touch interface includes a touchscreen, short-cut push-buttons, status leds and a service
connector for certain external accessories:
Figure 2
Pos. Description
ASingle-touch color touchscreen display
BLED Power
CLED Warning
DLED Alarm
EHOME push-button
FiTEST push-button
GService connector

ABB | SACE Emax 2
Ekip Touch - Interface and menus
1 - Presentation of interface
9 | © 2023 ABB | 1SDH001316R1002 - ECN000297030

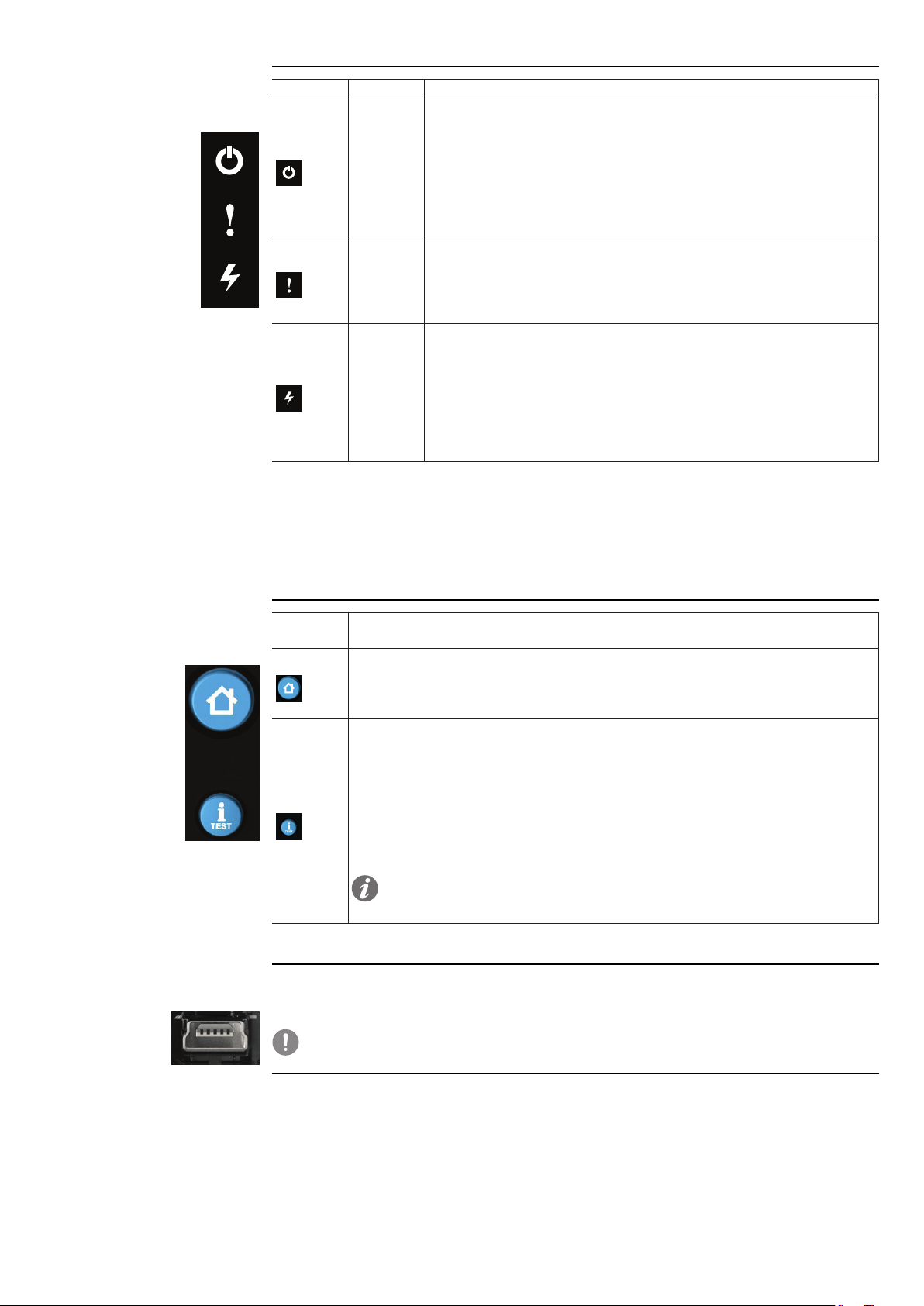

LED
LED Colour Description
Power
Green
Indicates the on status of Ekip Touch:
• off: no power and unit off
• on, steady ( Power mode ) or flashing ( Alive mode ): unit on and self-
supplied by external Vaux or service connector
The Power mode or Alive mode can be selected via Ekip Connect: if the
Alive mode has been selected and external modules are connected, the
Power leds of Ekip Touch and the modules flash in the synchronized
mode.
Warnings
Yellow
Signals that certain alarms are present:
• off: no alarm
• on: steady prealarm of an active protection or status contacts error
• two flast flashes every 0.5 s: trip unit parameter configuration error
• fast flash:
Rating Plug or Measurement module installation error
Alarm
Red
Signals that an alarm is present:
• off: no alarm
• on and steady: TRIP signalling due to protection or internal error; check
message on diagnosis bar to find out which
• fast flash: one or more of the following signals: protection timing
active, disconnection of a current sensor, trip coil disconnected, failed
trip command
• two flast flashes every 2 seconds: Rating Plug error
If on at the same time, the Warning and Alarm leds provide further signals:
• LEDs on and flashing fast: absence of communication between Trip unit and Mainboard or T
protection timing
• leds on with slow flashing: internal error
These cases need assistance from ABB.
Push-buttons
Push-
button Description
HOME Allows different areas of the menu to be accessed:
• from pages HOME, Histograms, Measuring instruments, Measurements, Main
measurements open the page Main page ;
• from pages Main page, Alarm list , at any point of the menu area open: HOME page.
iTest
Allows certain pages of information about the unit to be rapidly consulted; press the
button in succession to display the following pages:
• Alarm list , if messages are present;
• Info , if Customer Page option is active;
•
Protection unit , with information about Ekip Touch;
•
Circuit breaker , with information about the CB;
• Last trip , with information about the last trip, if available.
Consultation is active from pages: HOME, Histograms, Measuring instruments,
Measurements, Main measurements
NOTE: with Ekip Touch off and the internal battery charged, press iTEST to
temporarily switch on the Power led and, in the case of a trip, the display with
information about the trip protection and the Alarm led
Service connector
The service connector enables Ekip Touch to be connected to Ekip TT , Ekip T&P and Ekip Programming ,
allowing the unit to be temporarily supplied, parameter configuration prior to putting into service, tests
and extension of the configuration functions.
IMPORTANT: only use cables supplied by ABB or with ABB accessories

ABB | SACE Emax 2
Ekip Touch - Interface and menus
2 - Navigation
10 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
2 - Navigation
Levels and pages
The Ekip Touch menu is divided into several levels, all accessible using the touchscreen display and
buttons available in the units:
Level 1 (HOME)
Page shown on power up; appears when push-button of the same name appears, as described on page
9; from here you can:
1. access the
MAIN PAGE (level 2), by pressing the HOME button
2. access the
Alarm list , by selecting the diagnostic bar at the bottom
3. access the
Summary pages of some of the measurements by pressing on the edges
Level 2 (MAIN PAGE)
This page allows you to:
4. access one of the graphic pages:
Histograms , Measuring instruments and Measurements
5. access the MENU AREA (level 3)
Level 3 (MENU AREA):
You can access all the configuration menus and consult the parameters in this page
6.
Protections and Advanced
7. Measures
8. Settings
9. Test
10. About
Level 4 (MENUS and SUBMENUS)
Selection of one of the level 3 menus accesses a set of submenus with the list of available options, which
are organized into several levels through to details of the specific parameter.
Each submenu has a command for returning to the previous menu (11); if the list contains more than five
options, there is also a scroll bar (12) for full consultation.
L1evel
L2evel
L3evel
L4evel
Figure 3

ABB | SACE Emax 2
Ekip Touch - Interface and menus
3 - Changing parameters and commands
11 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
3 - Changing parameters and commands
Changing parameters
Comply with the following procedure to change one or more parameters:
IMPORTANT: parameters can be changed with Trip unit in the Local mode and in the
absence of timing alarms
1. select parameter and enter PIN, if required
2. select new value from list or with the aid of page commands
3. select Confirm command if present:
Figure 4
4. When the new value has been selected/confirmed, the menu of the parameter is accessed automatically,
the changed item presents the new value in light blue and a tick to confirm:
Figure 5
Now proceed by confirming the programming (Step 5) or access other parameters
and make further changes (Step 1).
5. Select the arrow at the top left to access the top menu until the
Programming page appears:
Figure 6
6. Various commands are enabled in the programming page:
•
Confirm to validate the new parameters and conclude the programming procedure
•
Abort to interrupt the save data process
•
Modify to go back to the menus and change the parameter or others
Figure 7

ABB | SACE Emax 2
Ekip Touch - Interface and menus
3 - Changing parameters and commands
12 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Commands
Selection of a command implies its immediate execution or opening of an intermediate confirm window.
Correct execution is indicated by a confirm window, which disappears automatically from the display.
Certain commands, selection of which immediately activates the respective test sequences without any
confirm window, are an exception to this rule:
•
Auto Test
• Ekip Signalling 2K module commands
IMPORTANT: confirmation on the display refers to launching the command, not to
verification of the operation required, which is at the user's charge whichever type of
command is concerned: reset parameters, display, open/close contacts
Exceptions
Before validating a change to a parameter, the Trip unit checks all its parameters to make sure there is no
conflict or incorrect condition:
• if the Trip unit detects an incorrect condition, the relative details appear on the display and
parameter modification is annulled.
Before executing a command, the Trip unit checks all its parameters to ensure there is no conflict or
incorrect condition:
• if the Trip unit detects an incorrect condition, the relative details appear on the display and
command execution is annulled.
WARNING! aborting the programming affects all the parameters modified during the
same session

ABB | SACE Emax 2
Ekip Touch - Interface and menus
4 - PIN and security
13 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
4 - PIN and security
Safety
WARNING! the user is responsible for security against unauthorized access and
modification: configure all Trip unit access points (display menu and, if present, Ekip
Connect and remote communication systems) using the access PIN and controlled and
authorized connection systems
Function
The PIN code enables access to certain areas of the Trip unit and prevents unintentional setting errors
from being entered via the display.
However, parameters can still be modified without having to enter the PIN via:
• service connector, using
Ekip T&P or Ekip Programming and the Ekip Connect application
• bus, in the presence of Ekip Com modules and with Trip unit configured as Remote (page 27).
To ensure your unit is in secure conditions, the Wizard window immediate asks you to change the PIN
code on first power up; this is strongly recommended by ABB.
Description
The PIN code is a number formed by five digits, each of which can be given a value from 0 to 9; the default
value is: 00001 and can be changed in the
Settings - New PIN menu.
The PIN code must be entered to:
• change a parameter (including the PIN code itself)
• access the
Test menu
Once the PIN code has been entered, all menus can be browsed for two minutes: once two minutes have
elapsed, the PIN code must be entered again (depending on the case in question).
NOTE: the PIN code must also be entered again if a programming session has been annulled
(page
11 ).
Entry
The following page will appear when the PIN code is requested: change (1) and confirm (2) each digit to
complete the entry process.
Figure 8
NOTE:
•
if the PIN is wrong, “Wrong PIN” will appear for three seconds after which the entry page will
be displayed again; use the command at the top left to quit
• there is no limit to the number of wrong PIN that can be entered
Disabling
The PIN code can be disabled by entering its value as: 00000; In this case, the PIN is only required to
change the PIN itself in the
Settings menu.
Recovery
Contact ABB directly if PIN code is lost.

ABB | SACE Emax 2
Protections
1 - Protections - Introduction
14 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Protections
1 - Protections - Introduction
Operating principle
The protection functions are available with all Ekip Touch models and versions.
Each protection is associated with a different signal (current, voltages, frequencies, powers, etc) but the
operating principle is the same:
1. If the signal measured exceeds the set threshold, the specific protection activates (prealarm and/
or alarm condition).
2. The alarm appears on the display and, after a period of time (timing t t), depending on the
protection parameters set, can convert into a trip command (TRIP) transmitted to the internal
Trip Coil of the CB.
NOTE:
• if the signal measured drops below the set threshold before the trip time has elapsed, Ekip
Touch quits the alarm and/or timing status and returns to the normal operating condition
• all protections have a default configuration: check the parameters and change to suit the
installation requirements before putting into service
• to allow circuit-breaker tripping to be controlled by a specific protection, the protection
itself must be enabled
References
Many of the protection thresholds are displayed in two different quantities: absolute value and relative
value.
The relative value depends on the type of measurement:
Type of protection Reference Description
Current In Nominal current of the Rating plug
Voltage Un Line-to-line voltage setting
Frequency fn Frequency setting
Power Sn √3 x In x Un

ABB | SACE Emax 2ABB | SACE Emax 2
Protections15 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
2 - Standard Protections
List
The Standard protections available for all Ekip Touch models, are:
Name Type of protection Th-
reshold Time Fun- ction Additional functions
(6)
LOverloads with inverse long-time delay Thermal memory, Pre-alarm threshold
SShort-circuit with adjustable delay Trip enable, Zone Selectivity, Thermal
Memory, Startup enable, Lock
S2 Short-circuit with adjustable delay Trip Enable, Zone Selectivity, Startup
enable, Lock
I(3) Instantaneous short-circuit Startup enable, Lock
G(2)(5) Earth fault with adjustable delay Trip enable, Zone Selectivity, Startup
enable, Locking, Pre-alarm threshold
MCR (4) Instantaneous short-circuit on circuit-
breaker closing Monitoring period, Locking
2I Instantaneous short-circuit
programmable Zone selectivity, activation function and
mode, Delay ON/OFF
IU Current unbalance Trip enable, Algorithm
Neutral Different protection on neutral phase
TAbnormal temperatures Trip enable
Iinst (1) Instantaneous short-circuit
Harmonic
distortion (7) Distorted waveforms
Hardware Trip Internal connection errors
Current thresholds
(7) Control thresholds exceeded Direction of current flow
Further details about the protections are given in document 1SDH001330R1002.
(1)
protection cannot be deactivated; its trip parameters are set by ABB and cannot be edited
(2)
not available with LSI version of Trip unit
(3)
can be activated with protection MCR = Disable
(4)
can be activated with protection I = Disable
(5)
if the presence of sensor S.G.R. is activated, the submenu of protection G will be replaced by that of protection Gext, in the Advanced
menu; with Trip unit models Ekip Hi-Touch and Ekip G Hi-Touch, the two protections are available at the same time
(6)
Thermal memory available with curve t=k/I
2
; Zone selectivity available with curve t=k; Block configuration available via Ekip Connect
(7)
the protections do not handle the TRIP, just signaling

ABB | SACE Emax 2
Protections
2 - Standard Protections
16 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Neutral Protection
Neutral protection is used to characterize protections L, S and I differently on the neutral phase.
Represented as a percentage, it defines the multiplication factor applied to the tripping thresholds of the
protections (example: 50% = the tripping threshold of the neutral is half the phase threshold).
The protection is available with the 4P and 3P + N configuration; the configuration parameters can be
accessed via the
Settings menu
NOTE: the Trip unit will not accept changes to the thresholds of protection L (I1) and of the
Neutral (InN) unless the following limtation is complied with: (I1 x InN) ≤ Iu; Iu is the size of
the circuit-breaker
WARNING! With 150% and 200% threshold; if the measured neutral current exceeds 16In,
the Trip unit resets the protection to 100% by itself
T Protection
T protection protects against abnormal temperatures measured and transmitted to the sensor inside the
unit; temperature verification is always active and includes three operating states:
State Temperature range [°C] Ekip Touch actions
Standard -25 < t < 70 Normal operation; display state depending on type (1)
Warnings -40 < t < -25 or 70 < t < 85 Warning led @ 0.5 Hz; display state depending on type
(1)
Alarm t < -40 or t > 85 Display off; Alarm and Warning leds @ 2 Hz; TRIP if
Trip enable is activated
(1)
with Ekip Touch, the display remains on within range: -20°C / +70°C; with Ekip LCD, the display
remains on within range: -30°C / +80°C
All protections enabled in the unit are active in all operating states.
Other protections
The Iinst, Harmonic distortion, Hardware trip and Current threshold protections are described in detail in
the manual 1SDH001330R1002.
Continued on the next page

ABB | SACE Emax 2ABB | SACE Emax 2
Protections17 | © 2023 ABB | 1SDH001316R1002 - ECN000297030
Continued from the previous page
Summary table Standard Protections
ABB ANSI
(1)
Threshold Threshold
tolerance
(3)
Time
Calculation
formula t
t
(2)(9)
(10)(11)
Calculation
example t
t
(2)
Tolerance t
t
(3)
L
(60947-2) 49 I1 = 0.4…1 In step = 0.001 In
Activation for
If in the range
(1.05...1.2) x I1
t1 = 3…144 s
step = 1 s
tt =
(9 t1) / (If / I1) 2
tt = 6.75 s with:
I1 = 0.4 In; t1 = 3
s; If = 0.8 In
± 10 % with If ≤
6 In
± 20 % with If
> 6 In
L
(60255-
151)
49 I1 = 0.4…1 In
step = 0.001 In
Activation for
If in the range
(1.05...1.2) x I1
t1 = 3…144 s
step = 1 s
tt = (t1 x k x b)
/ ((If / I1) a-1)
See the table
below
± 10 % with If ≤
6 In
± 20 % with If
> 6 In
S
(t = k) (13) 50 TD I2 = 0.6...10 In
step = 0.1 In
± 7 % with If ≤
6 In
± 10 % with If >
6 In
t2 = 0.05…0.8 s
step = 0.01 s tt = t2 -
The better of
the two values:
± 10 % or ± 40
ms
S
(t = k / I
2)(13)
51 I2 = 0.6...10 In
step = 0.1 In
± 7 % with If ≤
6 In
± 10 % with If >
6 In
t2 = 0.05…0.8 s
step = 0.01 s
tt =
(100 t2) / (If) 2
tt = 5 s con:
I2 = 1 In; t2 = 0.8
s; If = 4 In
± 15 % with If ≤
6 In
± 20 % with If
> 6 In
S2
(t = k) (13) 50 TD I5 = 0.6...10 In
step = 0.1 In
± 7 % with If ≤
6 In
± 10 % with If >
6 In
t5 = 0,05…0,8 s
step = 0.01 s tt = t5 -
The better of
the two values:
± 10 % or ± 40
ms
I50 I3 = 1.5...15 In
step = 0.1 In ± 10 % Not adjustable tt ≤ 30 ms - -
G
(t = k) (12)(13) 50N TD I4 (4)= 0.1...1 In
step = 0.001 In ± 7 %
t4 =
Instantaneous…1
s, 0.1...1s
step = 0.05 s
tt = t4 -
The better of
the two values:
± 10 % or ± 40
ms (8)
G
(t = k / I 2)
(12)(13)
51N I4 (4)= 0.1...1 In
step = 0.001 In ± 7 % t4 = 0.1…1 s step = 0.05 s
tt =
2 / (If / I4) 2
tt = 0.32 s with:
I4 = 0.8 In; t4 =
0.2 s; If = 2 In
± 15 %
2I 50 I31 = 1.5...15 In
step = 0.1 In ± 10 % Not adjustable tt ≤ 30 ms - -
MCR -I3 = 1.5...15 In
step = 0.1 In ± 10 % 0,04…0,5 s (5)
step = 0.01 s tt ≤ 30 ms - -
IU 46 I6 = 2…90 %
step = 1 % ± 10 % t6 = 0.5…60 s step = 0.5 s tt = t6 -
the better of the
two values:
± 10 % or ± 40
ms (for a time
set < 5 s) / ± 100
ms (for a time
set ≥ 5 s)
Continued on the next page

ABB | SACE Emax 2ABB | SACE Emax 2
18 | © 2023 ABB | 1SDH001316R1002 - ECN000297030 Protections
Continued from the previous page
Details of protection according to standard IEC 60255-151:
Protection Curve parameters Calculation formula t
t
(3)(9)
Calculation example t
t
(3)
L
(60255-151 SI)
a = 0.02; b = 0.15873;
k = 0.16 tt = (t1 x k x b) / ((If / I1) a -1) tt = 4.78 s with: I1 = 0.4 In; t1 = 3 s; If = 0.8 In
L
(60255-151 VI)
a = 1; b = 0.148148;
k = 13.7 tt = (t1 x k x b) / ((If / I1) a -1) tt = 6 s with:
I1 = 0.4 In; t1 = 3 s; If = 0.8 In
L
(60255-151 EI)
a = 2; b = 0.1;
k = 82 tt = (t1 x k x b) / ((If / I1) a -1) tt = 8 s with:
I1 = 0.4 In; t1 = 3 s; If = 0.8 In
L
(60255-151 I 4)
a = 4; b = 1;
k = 82 tt = (t1 x k x b) / ((If / I1) a -1) tt = 16 s with: I1 = 0.4 In; t1 = 3 s; If = 0.8 In
NOTE: the performance of the additional Startup and Zone selectivity functions is described in the manual 1SDH001330R1002.
(1)
ANSI / IEEE C37-2 codification
(2)
t
t
calculation is valid for If values that have exceeded the trip threshold of the protection. Use fault current and threshold values
expressed in In to calculate t
t
, as shown in the example.
(3)
Tolerance values valid with Trip unit supplied at full rate or by auxiliary power supply, trip time ≥ 100 ms, temperature and current values
within operating limits. The tolerance values of the table after the notes apply if the conditions are not guaranteed
(4)
All thresholds can be selected in the presence of auxiliary power supply. In self-supply conditions, the minimum threshold is limited to:
0.3 In (with In = 100 A), 0.25 In (with In = 400 A) or 0.2 In (for all the other sizes)
(5)
Time MCR is the time for which the protection remains active after the circuit-breaker has closed. Similarly to protection I, the trip time
cannot be adjusted
(6)
Startup can only be activated with function set at fixed time
(7)
For the startup functions, the time indicated is the period during which the protection remains active with the different threshold,
calculated from the point in which the startup threshold is exceeded
(8)
With t4 = instantaneous, the maximum tolerance is 50 ms
(9)
L protection: the trip time of the protection is forcibly set at 1 s if the calculation results give a lower theoretical tt value and/or if the
current reading is more than 12 In
(10)
G protection: the protection deactivates automatically if disconnection of one or more sensors is detected or if current If is more than
8 In (with I4 ≥ 0.8 In), 6 In (with 0.5 In ≤ I4 < 0.8 In), 4 In (with 0.2 In ≤ I4 < 0.5 In) or 2 In (with I4 < 0.2 In)
(11)
S and G protection: with curve t= k/I
2
, the protection trip time is forced to the set value if the calculation results give a theoretical tt
value lower than the parameter itself
(12)
A maximum value of I4= 1200 A is allowed for UL versions; if an attempt is made to set a higher value, the trip unit signals an alarm and
interrupts the modification
(13)
For UL versions, t2 and t4 can be set at 0.4 s maximum
Protection Tolerance threshold Tolerance t
t
LActivation for If in the range 1.05...1.2 I1 ± 20 %
S± 10 % ± 20 %
I± 15 % ≤ 60 ms
G± 15 % ± 20 % (60 ms with t4 = instantaneous)
2I ± 15 % ≤ 60 ms
Other -± 20 %
