Abus TVAC16000B User manual

TVAC16000B
User guide
Instrukcja obsługi
Betjeningsvejledning
Manual de instrucciones
You can find important information and FAQs about
this and other products on the website
www.abus.com/plug-and-play
Version 11/2013

This user guide contains important information on starting operation and using the
device.
Make sure that this user guide is handed over when the product is given to other
persons.
Keep this user guide to consult later!
For a list of contents with the corresponding page numbers, see page 5.
Niniejsza instrukcja obsługi zawiera ważne wskazówki dotyczące uruchamiania i
obsługi.
Pamiętaj o tym, także przekazując produkt osobie trzeciej.
Zachowaj instrukcję do wykorzystania w przyszłości!
Wykaz treści znajdziesz w spisie treści z podaniem odpowiednich liczb stron na
stronie 39.
Denne betjeningsvejledning indeholder vigtige henvisninger til idriftsættelse og
håndtering.
Vær også opmærksom på dette, hvis produktet gives videre til en tredje person.
Opbevar derfor denne betjeningsvejledning til senere brug!
I indholdsfortegnelsen på side 72 findes der en liste over indholdet med angivelse af de
pågældende sidetal.
Este manual de instrucciones contiene indicaciones importantes para la puesta en
funcionamiento y para la utilización.
Tenga esto en cuenta, también cuando transfiera este aparato a terceras personas.
Por este motivo, guarde este manual para poder consultarlo cuando lo necesite.
El listado de los contenidos figura en el índice junto a las páginas correspondientes en la
página 106.
English
Polski
Dansk
Español

TVAC16000B
User guide
Version 11/2013
English translation of the original German user guide
Retain for future reference!

2
English
Introduction
Dear customer,
Thank you for purchasing this product.
This device complies with the requirements of the applicable EU directives. The declaration of conformity can
be ordered from:
ABUS Security-Center GmbH & Co. KG
Linker Kreuthweg 5
86444 Affing
GERMANY
To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe
these operating instructions!
Read the entire user guide carefully before starting operation of the product, and pay attention to all operating
instructions and safety information!
All company names and product descriptions are trademarks of the corresponding owner. All rights
reserved.
In the event of questions, please contact your local maintenance specialist or dealer.
Data storage is subject to national data privacy guidelines.
Warning as required by §201 StGB (German Criminal Code):
Whosoever unlawfully makes an audio recording of the privately spoken words of another; or uses, or makes
a recording thus produced accessible to a third party, shall be liable to imprisonment or a fine.
Whosoever unlawfully overhears with an eavesdropping device the privately spoken words of another not
intended for his attention; or publicly communicates, verbatim or the essential content of, the privately spoken
words of another, recorded or overheard, shall incur the same penalty.
Disclaimer
This user guide has been produced with the greatest of care. Should you discover any missing information or
inaccuracies, please contact us under the address shown on the back of the manual.
ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and
reserves the right to make changes to the product and user guide at any time and without prior warning.
ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the
equipment, performance and use of this product. No forms of guarantee are accepted for the contents of this
document.

3
English
Explanation of symbols
The triangular high voltage symbol is used to warn of the risk of
injury or health hazards (e.g. caused by electric shock).
The triangular warning symbol indicates important notes in these operating instructions
which must be observed.
This symbol indicates special tips and notes on the operation of the unit.
Important safety information
All guarantee claims are invalid in the event of damage caused by non-compliance with
this user guide. We cannot be held liable for resulting damages.
In the event of material or personal damage caused by improper operation or non-
compliance with the safety information, we cannot be held liable. All guarantee claims
are voided in such cases.
This device has been manufactured in accordance with international safety standards.
Please read the following safety instructions carefully.
Safety information
1. Power supply
100 - 240 V AC voltage, 50 - 60 Hz (using a power supply unit for 5 V DC)
Only operate this device using a power source which supplies the grid voltage specified on the type
plate. If you are unsure which voltage is supplied at the installation location, contact your power supply
company. Disconnect the device from the power supply before carrying out maintenance or installation
work.
2. Overloading
Avoid overloading electrical sockets, extension cables and adapters, as this can result in fires or electric
shocks.
3. Liquids
Make sure that no liquids of any type are able to enter the device.
4. Cleaning
Only use a damp cloth to clean the device. Do not use corrosive cleaning materials.
Disconnect the device from the power supply while doing so.
5. Accessories
Only connect devices that are suitable for the intended purpose. Otherwise, hazardous situations or
damage to the device can occur.
6. Installation position
This device is suitable both for operation in protected outdoor areas as well as indoors. The product may
be damaged if it is dropped, even from a low height.
Install the device so that no direct sunlight can shine on the image sensor. Pay attention to the
installation instructions in the corresponding section of this user guide.
Never place the device close to heaters, stoves, other sources of heat, or in direct sunlight.
Only operate the device at locations where temperatures within the permitted ambient temperature range
of -10 °C to 50 °C prevail.

4
English
7. Wireless transmission
The wireless range depends on a variety of environmental factors. The local conditions at the installation
site may have a negative impact on the range. When there are no obstructions between the receiver and
transmitter, a range of up to 150m is possible, but this range will be considerably less within buildings.
The following environmental conditions compromise both the range as well as the frame rate:
Mobile communication masts, high-tension pylons, electrical wires, ceilings and walls, devices with the
same or an adjacent wireless frequency.
Warnings
Observe all safety and operating instructions before putting the device into operation for the first time.
1. Observe the following information to avoid damage to the mains cable and plug:
Do not modify or manipulate the power cable or plug.
Do not pull the cable when disconnecting the device from the mains power –always hold of the plug.
Ensure that the mains cable is positioned as far away as possible from any heating equipment, as this
could otherwise melt the plastic coating.
The power supply unit for the door station must be protected from damp and moisture.
2. Follow these instructions. Non-compliance with these instructions could lead to an electric shock.
1. Never open the housing or power supply unit.
2. Do not insert any metallic or flammable objects into the device.
3. Use overvoltage protection to prevent damage caused by overvoltage (e.g. electrical storms).
3. Disconnect defective devices from the power immediately and contact your specialist dealer.
When installing the device in an existing video surveillance system, ensure that all devices have
been disconnected from the power supply and low-voltage circuit.
If in doubt, have a specialist technician carry out assembly, installation, and connection of the
device. Improper or unprofessional work on the power supply or domestic installation puts both
you and other persons at risk.
Connect the installations so that the power supply circuit and low-voltage circuit always run
separately from each other. They should not be connected at any point or be able to become
connected as a result of a malfunction.
Avoid the following adverse conditions during operation:
Moisture or excess humidity
Extreme heat or cold
Direct sunlight
Dust or flammable gases, vapors, or solvents
Strong vibrations
Strong magnetic fields (e.g. next to machines or loudspeakers)
The camera for the door station must not be directed toward the sun, as otherwise the sensor may be
destroyed.
The camera must not be installed on unstable surfaces
Unpacking the device
Handle the device with extreme care when unpacking it.
If the original packaging has been damaged, inspect the device. If the device shows signs of
damage, return it in the original packaging and inform the delivery service.

5
English
Contents
1. Intended use...............................................................................................................................................6
2. Scope of delivery .......................................................................................................................................6
3. Features and functions..............................................................................................................................6
4. Information and FAQs ...............................................................................................................................7
5. Device description .....................................................................................................................................7
5.1 Monitordescription.............................................................................................................................7
5.2 Docking station description..............................................................................................................7
5.3 Camera description............................................................................................................................8
6. Installation ..................................................................................................................................................9

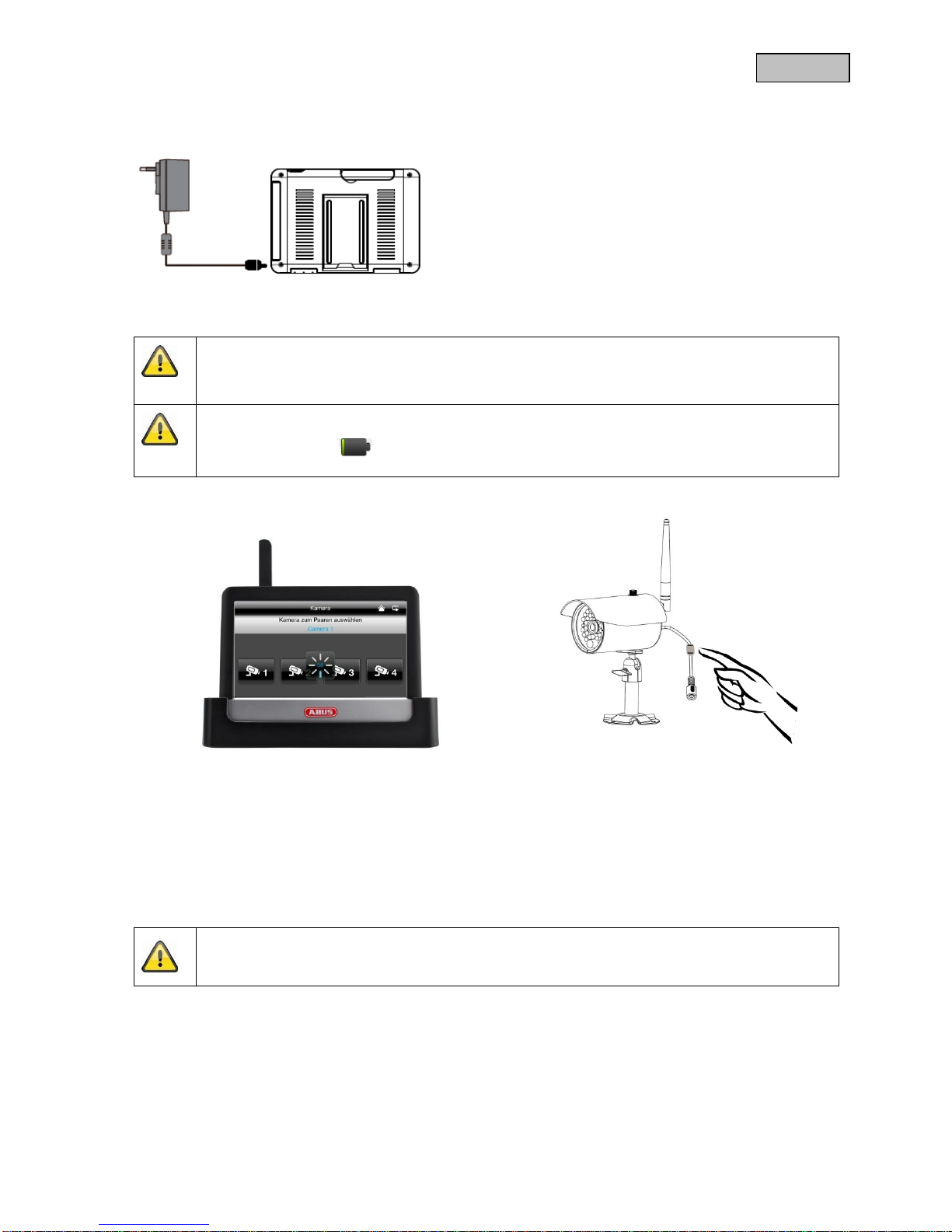

6.1 Installing the monitor.........................................................................................................................9
6.2 Pairing the camera and the monitor.................................................................................................9
6.3 Connecting the docking station to the network............................................................................10

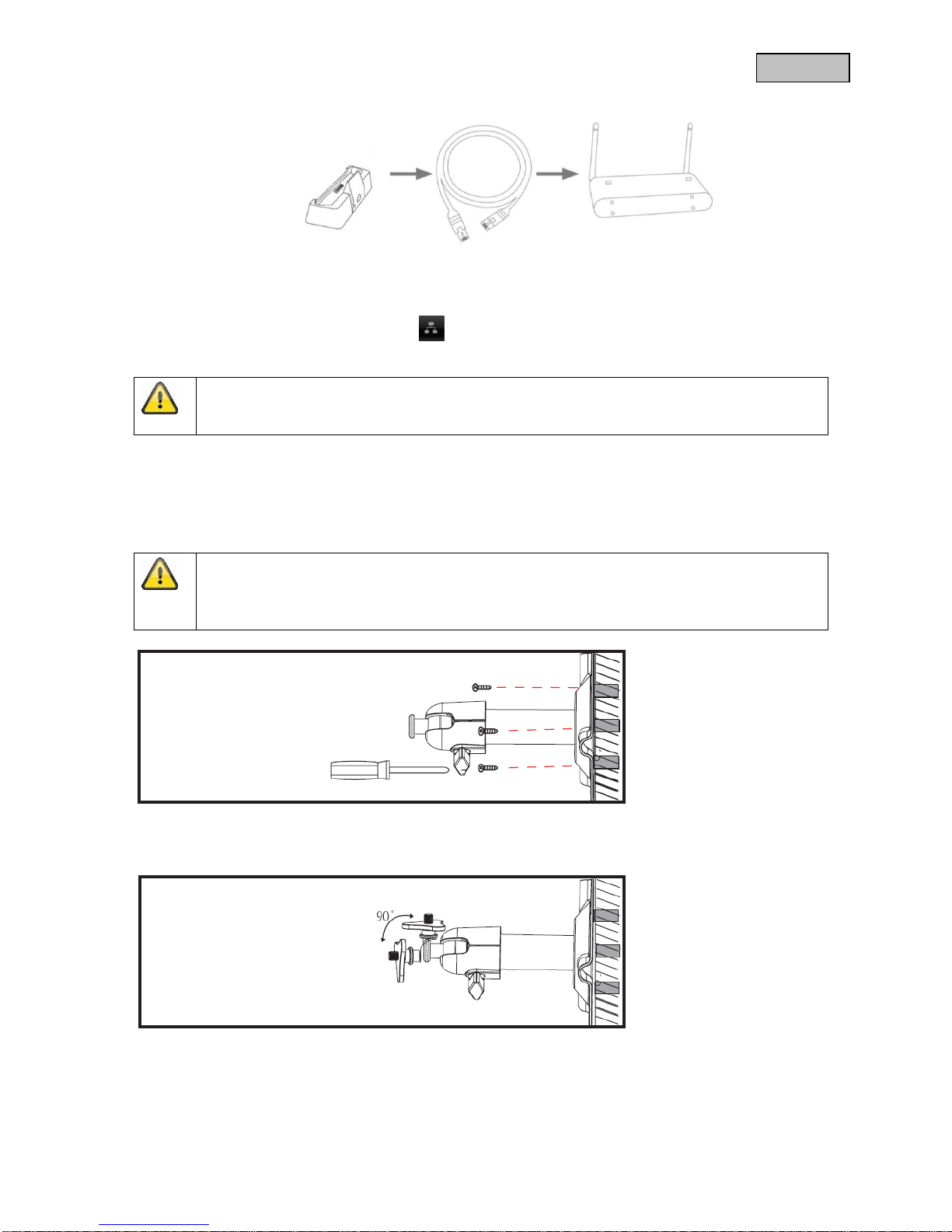

6.4 Mounting the camera.......................................................................................................................10
7. Operation ..................................................................................................................................................11

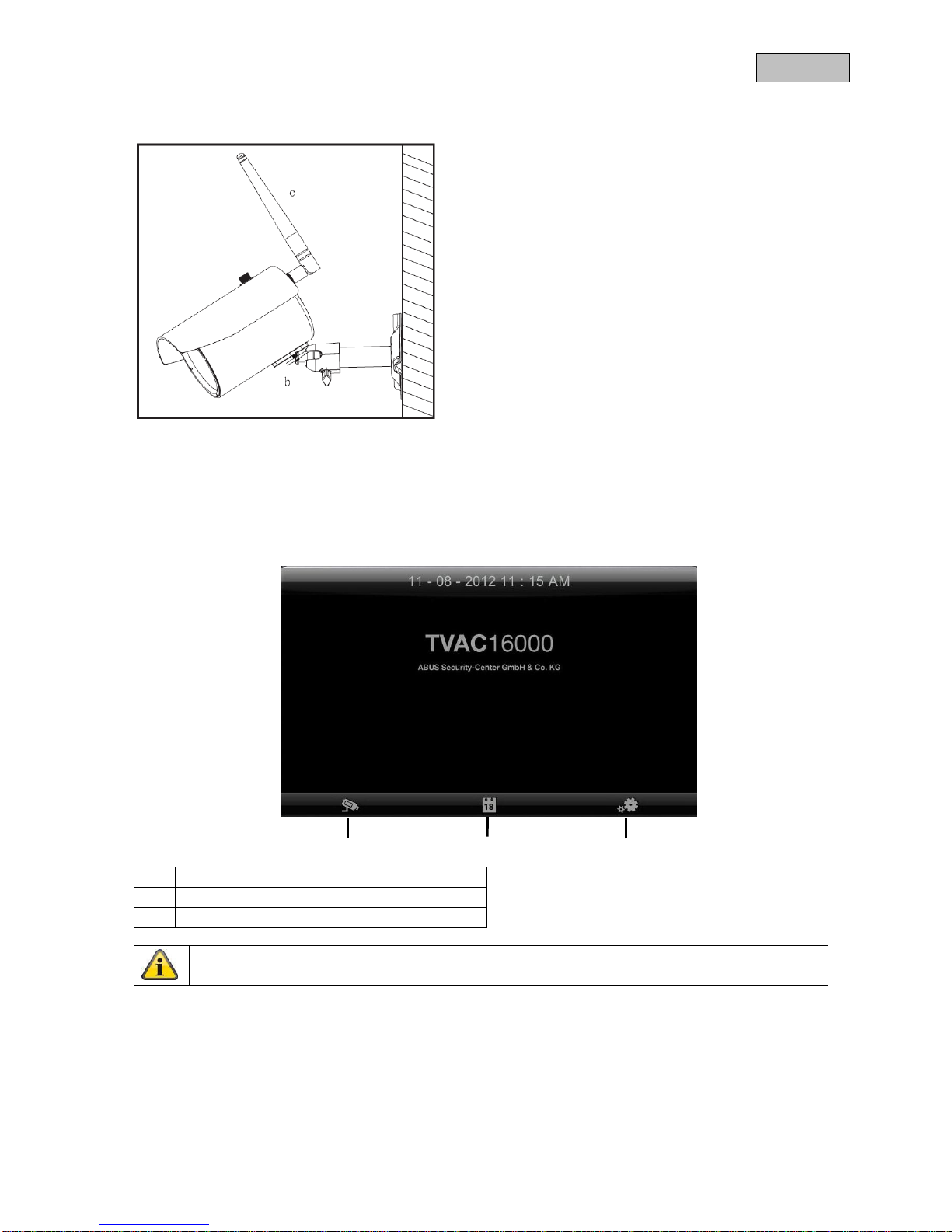

7.1 Main menu.........................................................................................................................................11

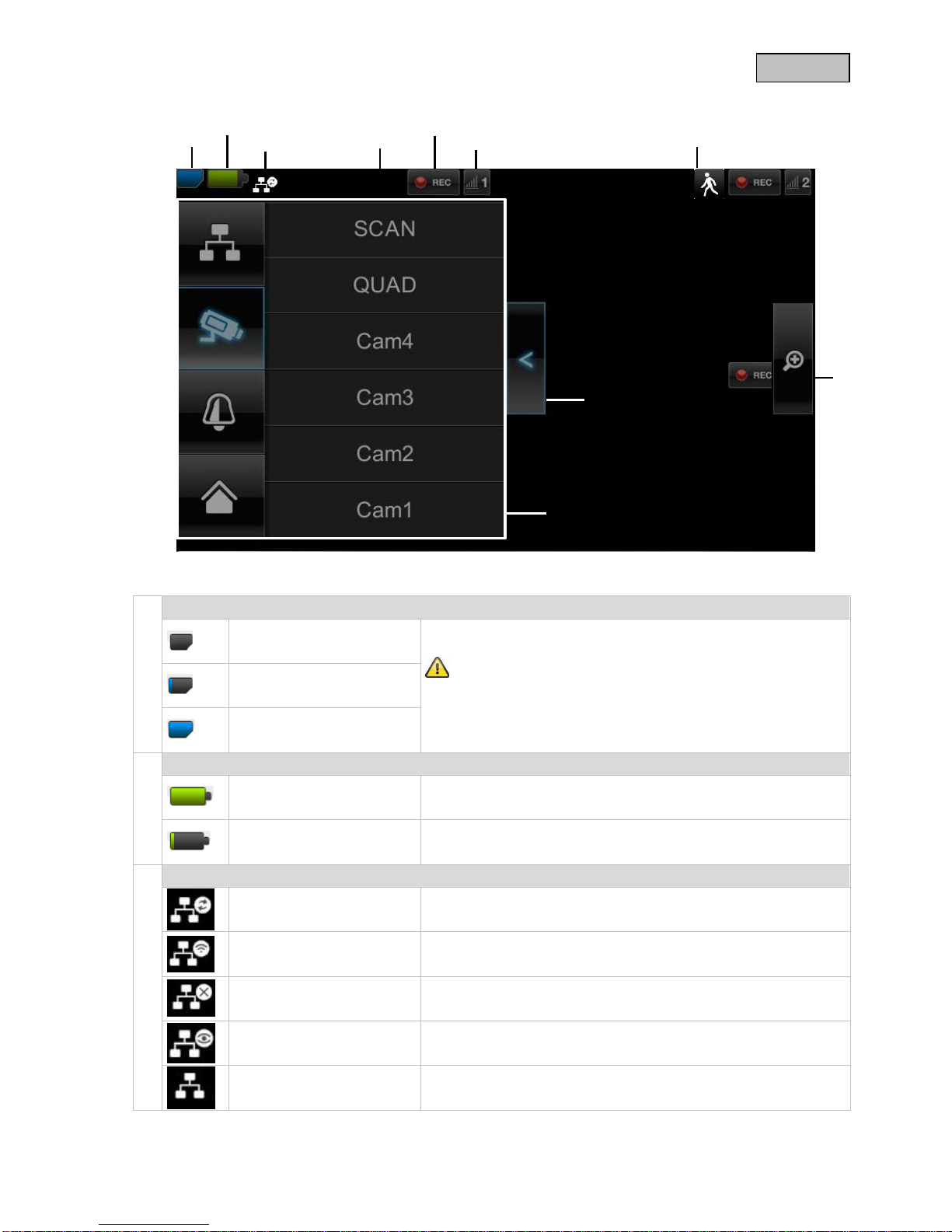

7.2 Live view ...........................................................................................................................................12
7.3 Event list ...........................................................................................................................................15

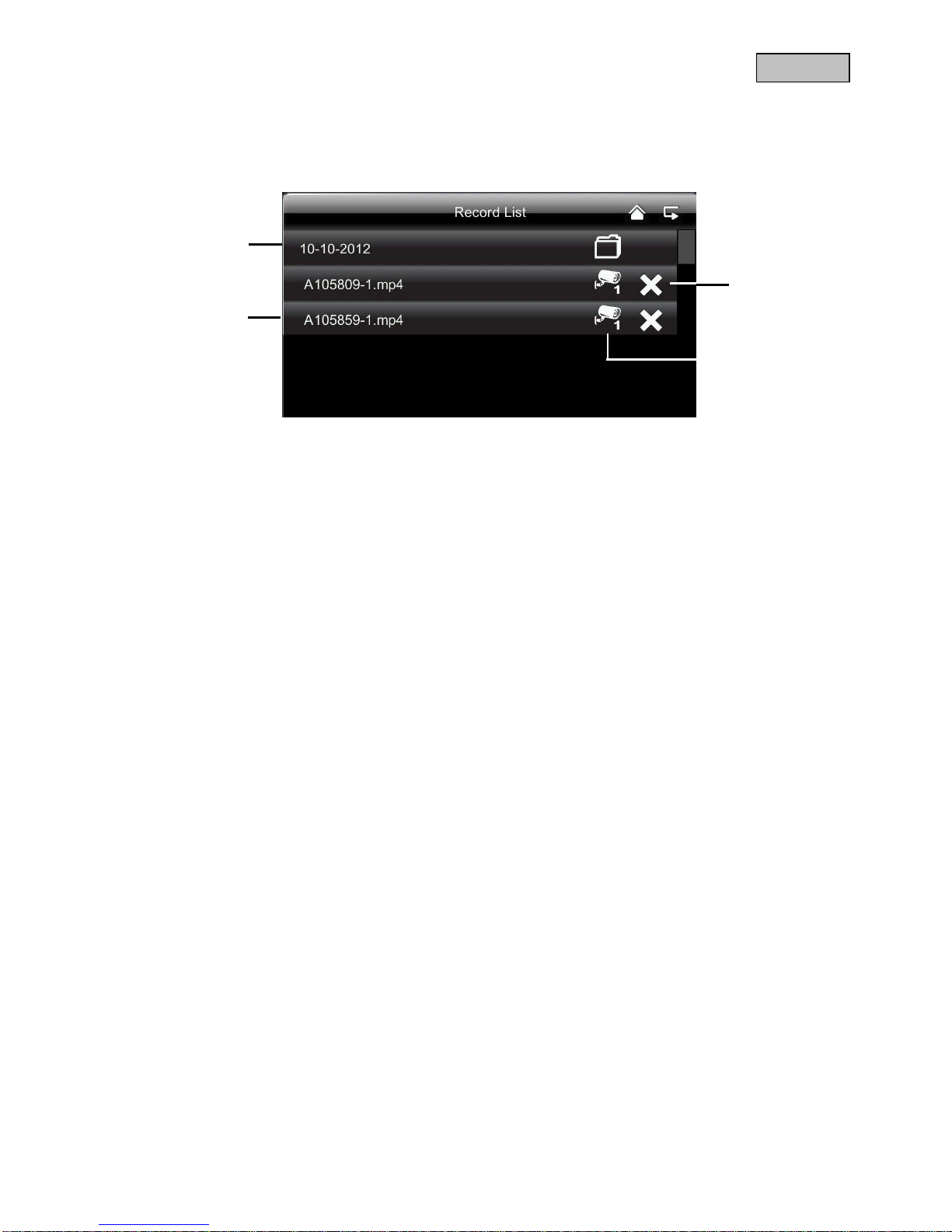

7.3.1 List of recordings.....................................................................................................................16

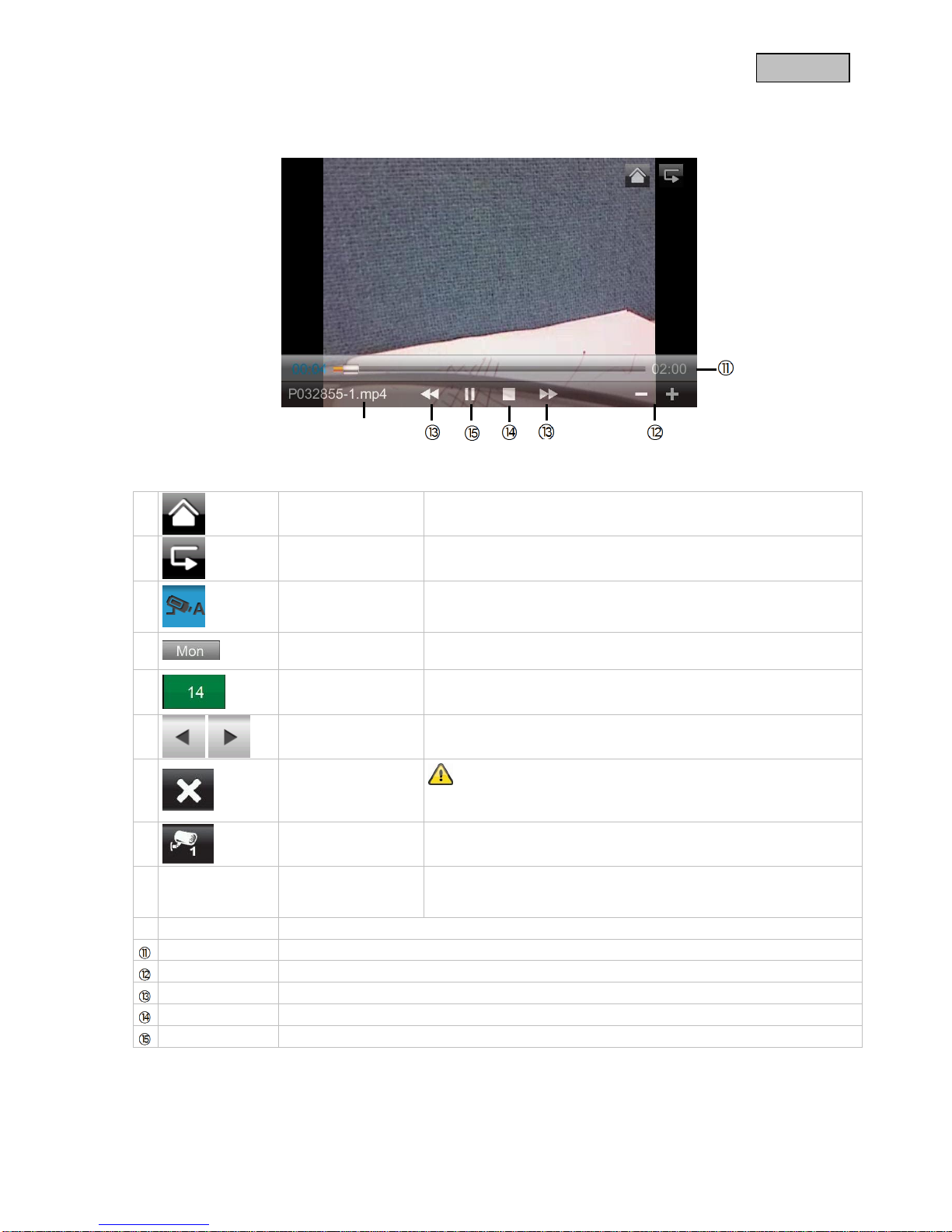

7.3.2 Viewing recordings..................................................................................................................17
7.3.3 Deleting recordings .................................................................................................................18
7.4 Settings.............................................................................................................................................18

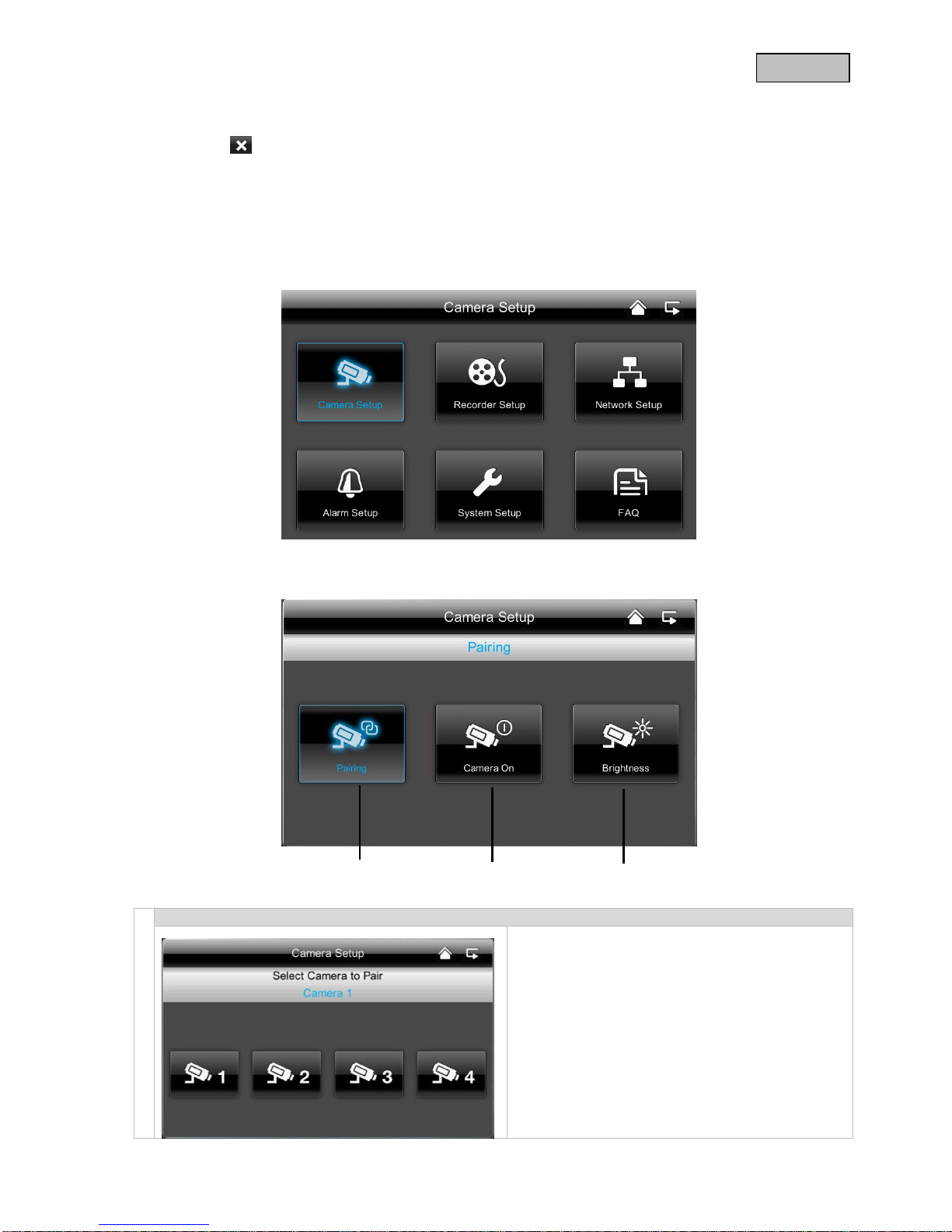

7.4.1 Camera settings .......................................................................................................................18
7.4.2 Recording settings...................................................................................................................19
7.4.3 Network settings ......................................................................................................................21
7.4.4 Alarm settings ..........................................................................................................................23
7.4.5 System settings........................................................................................................................24
7.4.6 Troubleshooting (FAQ)............................................................................................................27
8. Remote access via app............................................................................................................................27
9. Maintenance and cleaning ......................................................................................................................32
9.1 Maintenance .....................................................................................................................................32
9.2 Cleaning............................................................................................................................................32
10. Disposal ....................................................................................................................................................32
11. Tips for troubleshooting..........................................................................................................................33
12. Technical data ..........................................................................................................................................34

6
English
1. Intended use
This 7" touchscreen wireless monitor and the IR wireless outdoor camera enable you to easily transmit
and display video signals wirelessly across moderate and large distances.
Wireless signal transmission is an advantage everywhere cables are not able to be laid: the camera
transmits the video signal wirelessly to the wireless monitor. The conversion to digital signals means that
malfunctions and interference can be reduced.
As soon as the camera's sensor detects motion, the recording starts on the SD card.
You have the option of connecting up to four cameras (TVAC16010) to the monitor and displaying them in
the 4x camera view, as well as recording with QVGA resolution at the same time. To get a recording in full-
screen view at full resolution with sound, activate just one camera in the menu.
You can also view the live images from the camera via smartphone using the ABUS “TVAC16000” app
and playback recorded data, provided the monitor is in the docking station and connected to the internet.
For a detailed description of functions, refer to Section 3, “Features and functions”.
2. Scope of delivery
7" LCD monitor with docking
station
1x IR wireless outdoor camera
2.4 GHz incl. camera mount and
mounting material
Network cable
2 x power supply units incl. EU,
AU and UK 5 VDC/ 1A adapter
3. Features and functions
Complete set consisting of an IR wireless outdoor camera, monitor and docking station
Compact IP66 outdoor camera with infrared night vision function and 640 x 480 pixel resolution
Mobile access via app
Remote access via LAN using the docking station (battery for monitor charged at the same time)
7" color LCD monitor with integrated loudspeakers (battery operated)
Video and audio transmitted using encrypted digital radio
Can be extended to include up to four wireless cameras
Easy to operate with intuitive touchscreen

7
English

4. Information and FAQs
You can find important information and FAQs about this and other products on the website
www.abus.com/plug-and-play. You will find information for troubleshooting under item 11 of these
instructions.
5. Device description
5.1 Monitordescription
5.2 Docking station description

Power button

Antenna

Fold-up stand

SD card slot

Reset button

5VDC/1A power supply

Docking interface
monitor

LAN interface

Power supply
5VDC/1A












8
English
5.3 Camera description
Meaning of the LEDs:
LED
Status
Meaning
Power LED 
On (red)
Camera on
Off
Camera off
Link LED 
Flashing
The camera is in the “Pairing Mode”.
On (green)
Camera is connected to the monitor
Off
Camera is in standby

Antenna

Fixed lens

Power LED

Link LED

IR LED

Photo sensor

Camera mount

Microphone

Pairing button

Power supply connection
5 VDC / 1A












