ACME Stage Blinder P4 User manual

Stage Blinder P4
LED-BL4/LED-BL4 CW
User Guide
Please read these instructions carefully before use

1D
Contents
1. Safety Instructions .........................................................................2
2. Technical Specifications .................................................................3
3. Installation.....................................................................................4
4. How to set the unit.........................................................................5
4.1 Rear Panel.................................................................................5
4.2 Main Function ...........................................................................6
5. How To Control The Unit................................................................9
6. DMX Channel Mode......................................................................11
7. DMX512 Connections...................................................................12
8. Troubleshooting ..........................................................................12
9. Fixture Cleaning...........................................................................13

2D
1. Safety Instructions
WARNING
Please keep this User Manual for future consultation. If you sell the
fixture to another user, be sure that they also receive this instruction booklet.
Please unpack and check carefully there is no transportation damage before
using the fixture.
Please disconnect main power before servicing and maintenance.
The unit must be installed in a location with adequate ventilation, at least 50cm
from adjacent surfaces. Be sure that no ventilation slots are blocked.
The maximum ambient temperature is Ta: 40℃. DO NOT operate it where the
temperature is higher than this.
DO NOT connect the device to any dimmer pack.
The housing must be replaced if they are visibly damaged.
Unit surface temperature may reach up to 85℃. Don’t touch the housing
bare-hand during its operation. Turn off the power and allow about 15 minutes
for the unit to cool down before replacing or serving.
There are no user serviceable parts inside the fixture. Do not open the housing
or attempt any repairs by yourself. In the unlikely event your fixture may require
service, please contact your nearest dealer.
Please read the instructions carefully which includes important

3D
In the event of serious operating problem, stop using the fixture immediately.
Never try to repair the fixture by yourself. Repairs carried out by unskilled
people can lead to damage or malfunction. Please contact the nearest
authorized technical assistance center. Always use the same type spare parts.
It’s important to ground the yellow/green conductor to earth in order
to avoid electric shock.
DO NOT touch any wire during operation and there might be a hazard of electric
shock.
DO NOT expose the fixture to rain or moisture, in order too prevent
or reduce the risk of electrical shock or fire.
Do not look directly at the LED light beam while the fixture is on.
2. Technical Specifications
DMX 1/2/4/5 channels switchable.
Smooth 0~100% dimming and variable strobe speeds.
Two operation modes: DMX, Manual mode.
For AC 230V 50Hz power supply, the maximum fixtures that can be connected on one power cable is
12;

4D
Ideal for discotheques, clubs, bars, parties, Mobile DJs, etc.
Input Voltage: AC 100V~240V 50/60Hz
Total Power consumption: 380W
Fuse: T6.3A
LED: 4 x 65W LED
Color temperature: 2700K 100K (LED-BL4) 5700K 200K(LED-BL4 CW)

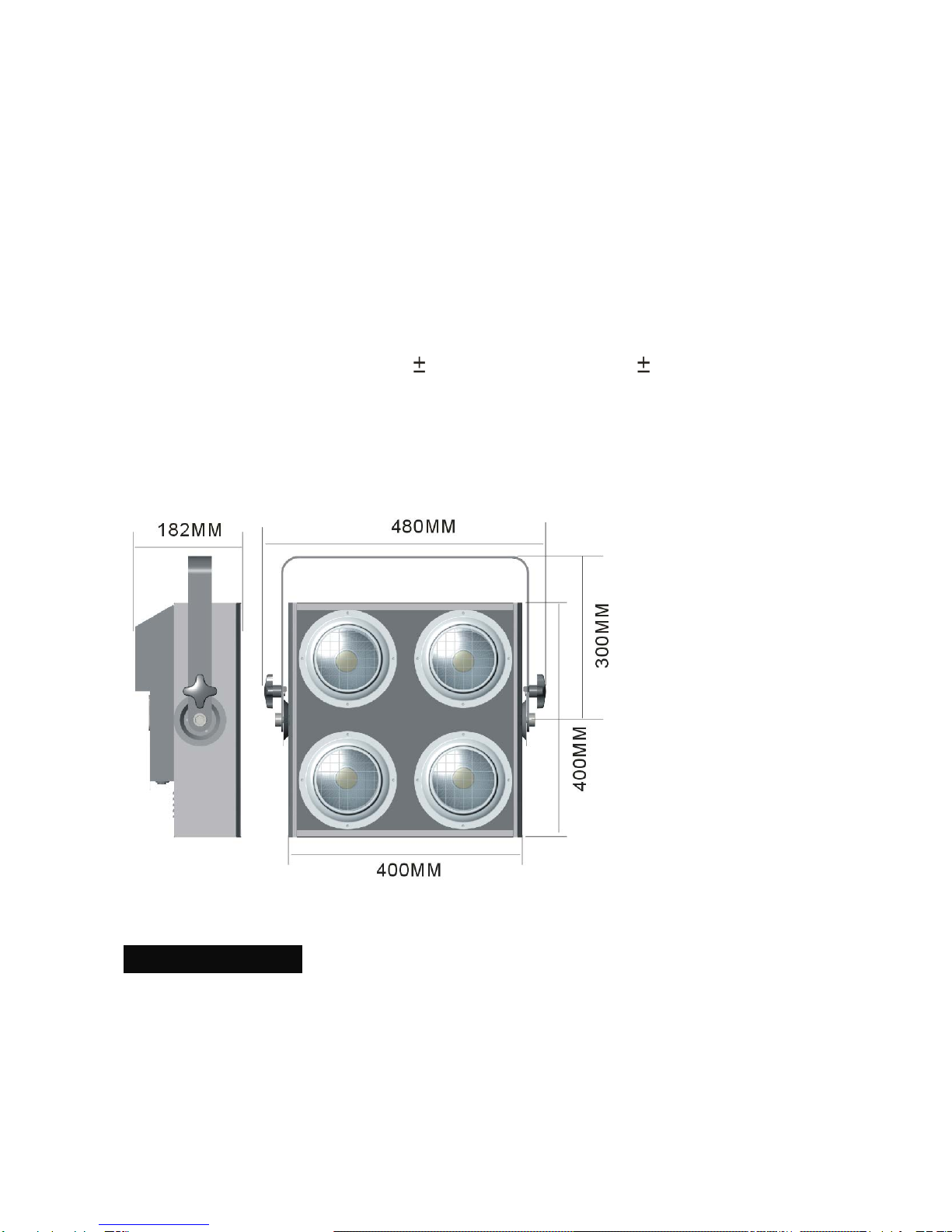

Dimension: 500x 400 x 182 mm
Weight: 9.5Kgs
3. Installation
The unit should be mounted via its screw holes on the bracket. Always ensure
that the unit is firmly fixed to avoid vibration and slipping while operating. Always
ensure that the structure to which you are attaching the unit is secure and is able to

5D
support a weight of 10 times of the unit’s weight. Also always use a safety cable
that can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place
where is out of the touch of people and has no one pass by or under it.
4. How to set the unit
4.1 Rear Panel

6D
○
1 Display: Show the various menus and the selected functions
○
2 LED:
DMX On DMX input present
○
3 Button:
MENU To select the programming functions
DOWN
To go backward in the selected
functions
UP
To go forward in the selected
functions
ENTER To confirm the selected functions
○
4 Mains input/output:
Connect to supply mains power, and Connect to supply mains power for the next
unit.
○
5Fuse holder: 6.3A
○
6DMX input/output:
For DMX512 link, use 3/5-pin XLR plug cable to input DMX signal, and to link the
next unit.

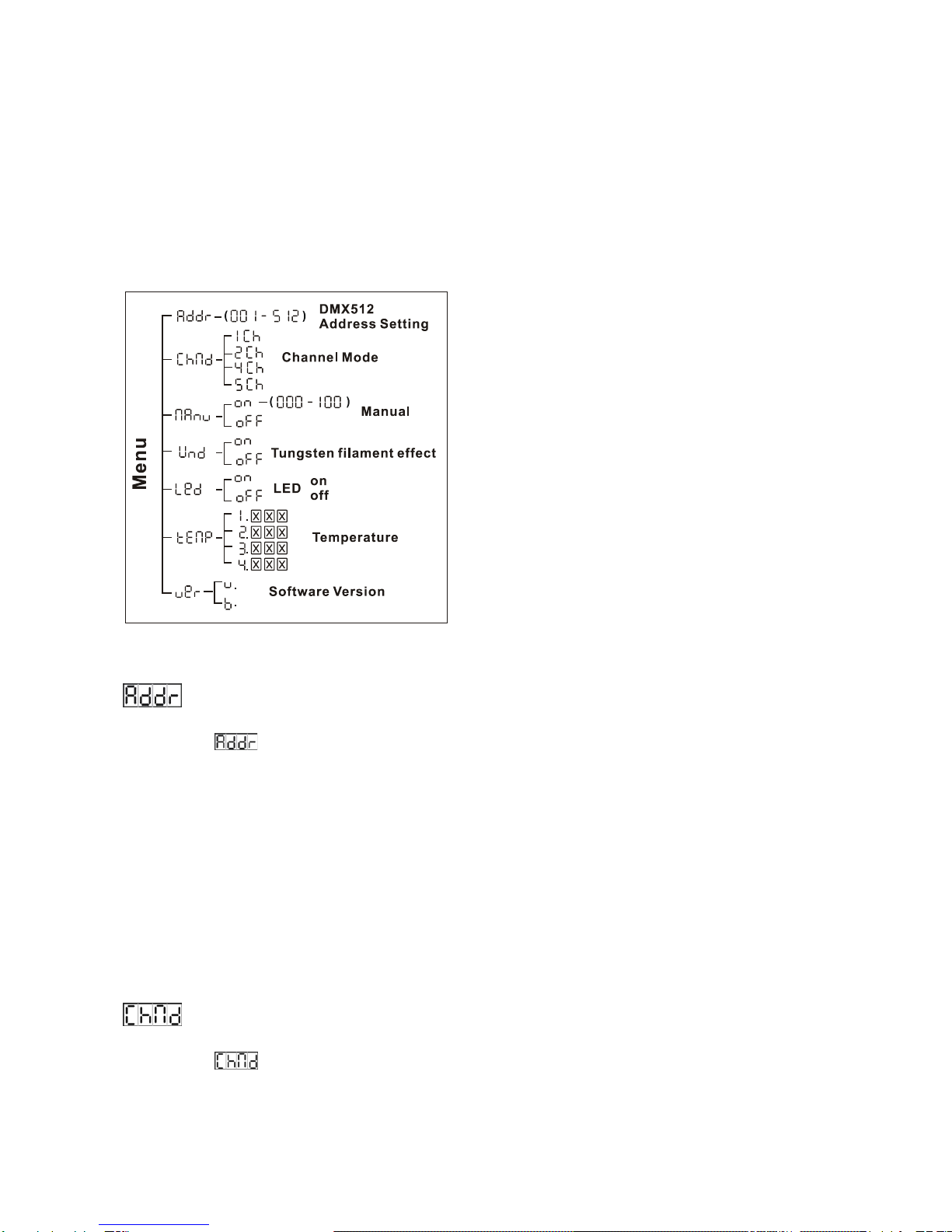

4.2 Main Function
To select any functions, press MENU button until the required one is shown on the
display. Select the function by ENTER button. Use DOWN and UP button to change

7D
the mode. Once the required mode has been selected, press ENTER button to setup
or it will automatically return to the main functions without any change after idling
8 seconds. Back to the functions without any change press MENU button. The main
functions are shown below:
DMX 512 Address
Select the , press the ENTER button and the display will blink. Use the DOWN
and UP button to change the DMX 512 address. Once the address has been selected,
press the ENTER button to setup or automatically exit menu mode without any
change after 8 seconds. Back to the previous functions without any change press
the MENU button.
Channel Mode
Select the , press the ENTER button. Use the DOWN and UP button to select
the channel mode (1 /2/4/5). Once selected, press the ENTER button to setup or

8D
automatically exit menu mode without any change after 8 seconds. To go back to
the functions without any change press the MENU button
Manual Mode
Select the , press the ENTER button. Use the DOWN and UP button to select
ON /OFF , after selected, press the ENTER button. If you select the ON,
press the ENTER button, use the DOWN and UP button to select 000-100, and press
the ENTER button to setup or automatically exit menu mode without any change
after 8 seconds. To go back to the functions without any change press the MENU
button
Tungsten Filament Effect
Select the , press the ENTER button. Use the DOWN and UP button to select
(the effect will display when the light turn off or move) or (the effect
won’t display when the light turn off or move). Once selected, press the ENTER
button to setup or exit menu mode without any change after 8 seconds. Back to the
functions without any change press the MENU button again.
LED display
Select the , press the ENTER button. Use the DOWN and UP button to select
(LED display on) or (LED display off). Once selected, press the ENTER
button to setup or exit menu mode without any change after 8 seconds. Back to the

9D
functions without any change press the MENU button again.
Temperature Display
Select the , press ENTER button and the display will show the temperature of
each unit ， ， ， . To go back to the functions press the
MENU button.
Firmware version
Select the , press ENTER button and the display will show the version of
software of the unit. To go back to the functions press the MENU button.
5. How To Control The Unit
You can operate the unit in two ways:
1. By manual controller
2. By DMX controller
No need to turn the unit off when you change the DMX address, as new DMX
address setting will be affected at once. Turn on the unit, if there is DMX or without
DMX and manual mode turn off, the LED will display the saved channel address
（001-512）; If there isn’t DMX and manual mode turn on, the LED will display
saved manual address.（D000-D100）。
