OPERATOR’S MANUAL
GLEANER®
Model 3000 Corn Header
F0204e73
SERVICE MANUAL

Find manuals at https://best-manuals.com

79023084 A Rev. 1-i
CONTENTS
GLEANER®
Model 3000 Corn Header
79023084 A Rev.
CONTENTS
GENERAL INFORMATION ................................................................................................................................. 1-1
ADJUSTMENTS ................................................................................................................................................. 2-1
SERVICE GENERAL .......................................................................................................................................... 3-1
SERVICE - FRAME GROUP .............................................................................................................................. 4-1
SERVICE - ROW UNIT ....................................................................................................................................... 5-1
Find manuals at https://best-manuals.com

1-ii 79023084 A Rev.
CONTENTS
Find manuals at https://best-manuals.com

79023084 A Rev. 1-1
GENERAL INFORMATION
GENERAL INFORMATION
Contents
GENERAL INFORMATION ............................................................................................................................. 1-3
Safety Alert Symbol ................................................................................................................................... 1-3
Signal Words ............................................................................................................................................. 1-3
Safety Precautions .................................................................................................................................... 1-4
Road and Highway Operation ................................................................................................................... 1-6
Safety Decals, Lights, and Reflectors ....................................................................................................... 1-7
Right and Left Hand ................................................................................................................................ 1-12
Header Lift Cylinder Stop ........................................................................................................................ 1-12
SHIELDS ....................................................................................................................................................... 1-14
Attaching Corn Head to Combine ............................................................................................................ 1-21
Leveling Header ...................................................................................................................................... 1-26
Specifications .......................................................................................................................................... 1-27
Lubrication and Service ........................................................................................................................... 1-31
SETTING UP INSTRUCTIONS ..................................................................................................................... 1-39
General .................................................................................................................................................... 1-39
Shipping Angles ...................................................................................................................................... 1-40
Shipping Stands ...................................................................................................................................... 1-41
Preparation .............................................................................................................................................. 1-42
Inner Gathering Sheets ........................................................................................................................... 1-43
Inner Divider Points ................................................................................................................................. 1-45
Outer Fenders ......................................................................................................................................... 1-47
Extremity Lights ....................................................................................................................................... 1-50
Corn Head Hopper Bottom Deflector Plate ............................................................................................. 1-51
Setup to Fit Transverse Corn Head on Conventional or Axial Combine ................................................. 1-52
Setup to Fit Conventional or Axial Corn Head on Transverse Combine ................................................. 1-57
Find manuals at https://best-manuals.com

1-2 79023084 A Rev.
GENERAL INFORMATION
Find manuals at https://best-manuals.com

79023084 A Rev. 1-3
GENERAL INFORMATION
GENERAL INFORMATION
Safety Alert Symbol
FIG. 1: This is the safety alert symbol. It means
ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED! Look for it, both in this manual and on safety
signs on the machine. It will direct your attention to
information that involves your safety and the safety of
others.
Hazard control and accident prevention are dependent
upon the awareness, concern, and prudence of personnel
involved in the operation, transport, maintenance, use,
and storage of equipment.
mCAUTION: Shields have been removed in
some photos for clarification. DO NOT
OPERATE HEADER UNLESS ALL SHIELDS
ARE IN PLACE.
Signal Words
FIG. 2: The words DANGER, WARNING, or CAUTION
are used with safety alert symbol. Learn to recognize
these safety alerts, and follow the recommended
precautions and safe practices.
mDANGER: Indicates an imminently
hazardous situation that, if not avoided, will
cause DEATH OR VERY SERIOUS INJURY.
mWARNING: Indicates a potentially
hazardous situation that, if not avoided,
could cause DEATH OR SERIOUS INJURY.
mCAUTION: Indicates a potentially
hazardous situation that, if not avoided,
may cause a MINOR INJURY.
Replace any DANGER, WARNING, CAUTION or
instructional decal that is not readable or is missing. The
location and part number of these decals is identified later
in this section of the manual.
IMPORTANT: The word IMPORTANT is used to identify
special instructions or procedures which, if
not strictly observed could result in
damage to, or destruction of the machine,
process or its surroundings.
NOTE: The word NOTE is used to indicate points of
particular interest for more efficient and
convenient repair or operation.
FIG. 1
Saf
FIG. 2
WC1957
Find manuals at https://best-manuals.com

GENERAL INFORMATION
1-4 79023084 A Rev.
Safety Precautions
FIG. 3: Read and understand this section of your service
manual, the operator's manuals for the combine, and for
all the attachments before operating the combine.
Learn how to operate the combine and header and how
to use the controls properly.
Do not allow anyone to operate the combine without
proper instruction and training.
The Right Hand and Left Hand side is determined by
facing in the direction of forward travel.
IT IS TOO LATE TO REMEMBER WHAT SHOULD
HAVE BEEN DONE AFTER THE ACCIDENT HAS
HAPPENED.
For you safety and the safety of others, follow all the
safety precautions and instructions in the manuals and on
the decals affixed to the combine and its attachments.
Personal injury or death may result if these precautions
are not followed.
•READ the Operator's Manuals carefully to acquaint
yourself with the Corn Head and combine. Operating
unfamiliar equipment can cause accidents.
•ALWAYS shift transmission to neutral, stop engine,
set brake and remove start key before leaving the
operator's station, or before permitting anyone to
inspect, clean, lubricate, adjust or repair any part of
the combine or its attachments, unless otherwise
specifically recommended in the Operator's Manual.
•NEVER permit anyone to work under the Corn Head
or feeder housing or between the Corn Head and
combine UNLESS the header lift cylinder stop is fully
engaged on the lift ram, the engine is stopped, the
brake is set, the key is removed from the start switch,
and the Corn Head is latched securely to the feeder
housing.
•NEVER permit the operator or another person to
engage or disengage the header lift cylinder stop
UNLESS the combine engine is stopped, the brake
is set, and the key is removed from the start switch
while that person is between the Corn Head and the
combine or under the feeder housing to move the
header lift cylinder stop.
•BE SURE that everyone is clear of the combine
before starting the engine and mechanism or it's
attachments.
•ALWAYS be sure that all shields, guards and access
doors are in place when Corn Head is in operation.
•DO NOT try to clean, adjust, or service the Corn
Head while the Corn Head or combine is operating.
•KEEP all belts and chains in alignment and at the
proper tension.
•NEVER turn the Corn Head conveyor or drives
unless ALL parts of the body and articles of clothing
are well clear of the chains, gears, and other moving
parts.
FIG. 3
s-1123
Find manuals at https://best-manuals.com

79023084 A Rev. 1-5
GENERAL INFORMATION
•FOR YOUR SAFETY and the safety of others,
SAFETY AND OPERATIONAL DECALS that
become damaged, faded, or come off should be
replaced immediately.
•REMEMBER that safe operation is no accident.
•ALWAYS lower the Corn Head to the ground, or
block, or lock it up securely before disconnecting or
servicing any part of the system.
•ALWAYS keep the drives, moving parts, and shields
clean of chaff and build-up to reduce the possibility of
fire.
Find manuals at https://best-manuals.com

GENERAL INFORMATION
1-6 79023084 A Rev.
Road and Highway Operation
FIG. 4: COMPLY with your state and local LAWS and
REGULATIONS governing highway safety when moving
machinery on a highway.
•ALWAYS travel at a reasonable speed for road or
field conditions. Whenever possible, avoid traveling
near ditches, embankments and holes. Reduce
speed when turning, crossing slopes, and or rough,
slick or muddy surfaces.
•ALWAYS empty grain tank before transporting on
public roads.
•ALWAYS reduce speed GRADUALLY to maintain
adequate weight for stability on the rear (steering)
wheels whenever:
a. Slowing ENGINE speed.
b. Slowing HYDRO-TRACTION drive.
c. Applying BRAKES.
•NEVER apply turning assist individual wheel brakes
during road or highway operation. Brakes must be
locked together during road travel.
•TOWING of combine is NOT recommended!
ROTATE the Corn Head extremely lights so that the lights
are to the outside position of Corn Head when traveling
on a highway. USE SMV (slow moving vehicles) emblem
on the combine and flashing warning lights when
operating the combine and Corn Head on a highway,
unless prohibited by law.
CHECK clearance CAREFULLY before driving the
combine and Corn Head under electric lines, over
bridges, or other obstructions along the highway.
FIG. 4
s-1025
Find manuals at https://best-manuals.com

79023084 A Rev. 1-7
GENERAL INFORMATION
Safety Decals, Lights, and Reflectors
mCAUTION: The following warning signs,
lights, and reflectors are placed at strategic
positions on the Corn Head and or combine
to provide the operator with a continual
reminder of correct operating practices. If
they become damaged or lost, replace them
immediately. They may be obtained from
your local AGCO dealer. The part number
and location on the combine or Corn Head
are listed under each safety sign.

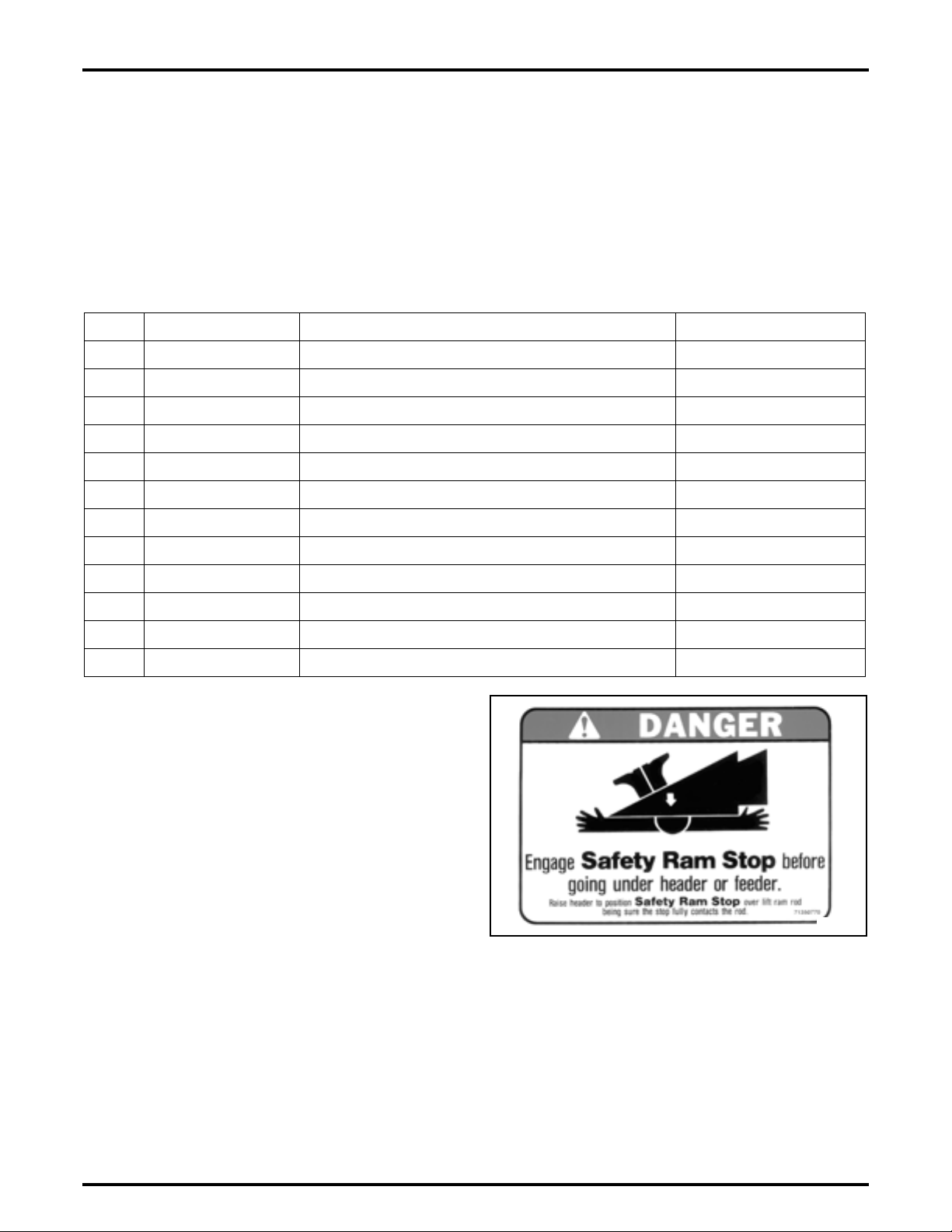

FIG. 5: Safety sign, 1.
Item Part Number Description Quantity
1 71350770 Decal, Danger Ram Stop 1
2 71350365 Decal, Danger Snapping Rolls 2
3 71192887 Decal, Warning Drive Shieldp 1
4 70596071 Decal, Warning Shipping 1
5 71389339 Decal, Warning Lift Hook 2
6 70591362 Decal, Warning Speed (8, 10, 12 row units only) 1
7 71359170 Decal, Danger Drive Line 2
8 71359119 Decal, Danger Drive Line (under shield) 2
9 700722000b Decal, Informational Lubrication 1
10 528934 Reflector Strip, Yellow 2
11 528933 Reflector Strip, Red 2 (4 on 12-Row units)
12 528938 Reflector Strip, Orange 2 (4 on 12-Row units)
FIG. 5
71350770

GENERAL INFORMATION
1-8 79023084 A Rev.

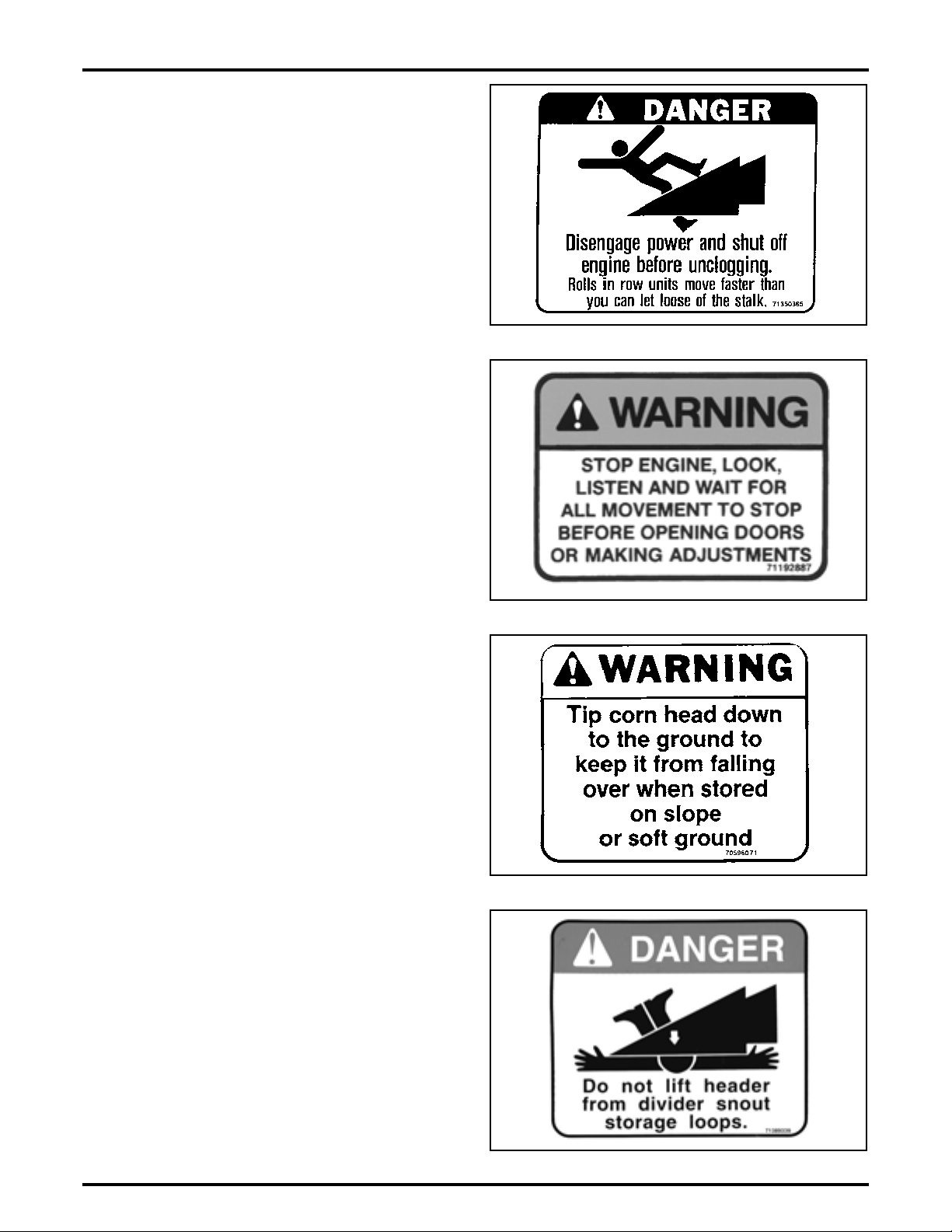

FIG. 6: Safety sign, 2.
FIG. 7: Safety sign, 3.
FIG. 8: Safety sign, 4.
FIG. 9: Safety sign, 5.
FIG. 6
71350365
FIG. 7
71192887
FIG. 8
70596071
FIG. 9
71389339

79023084 A Rev. 1-9
GENERAL INFORMATION

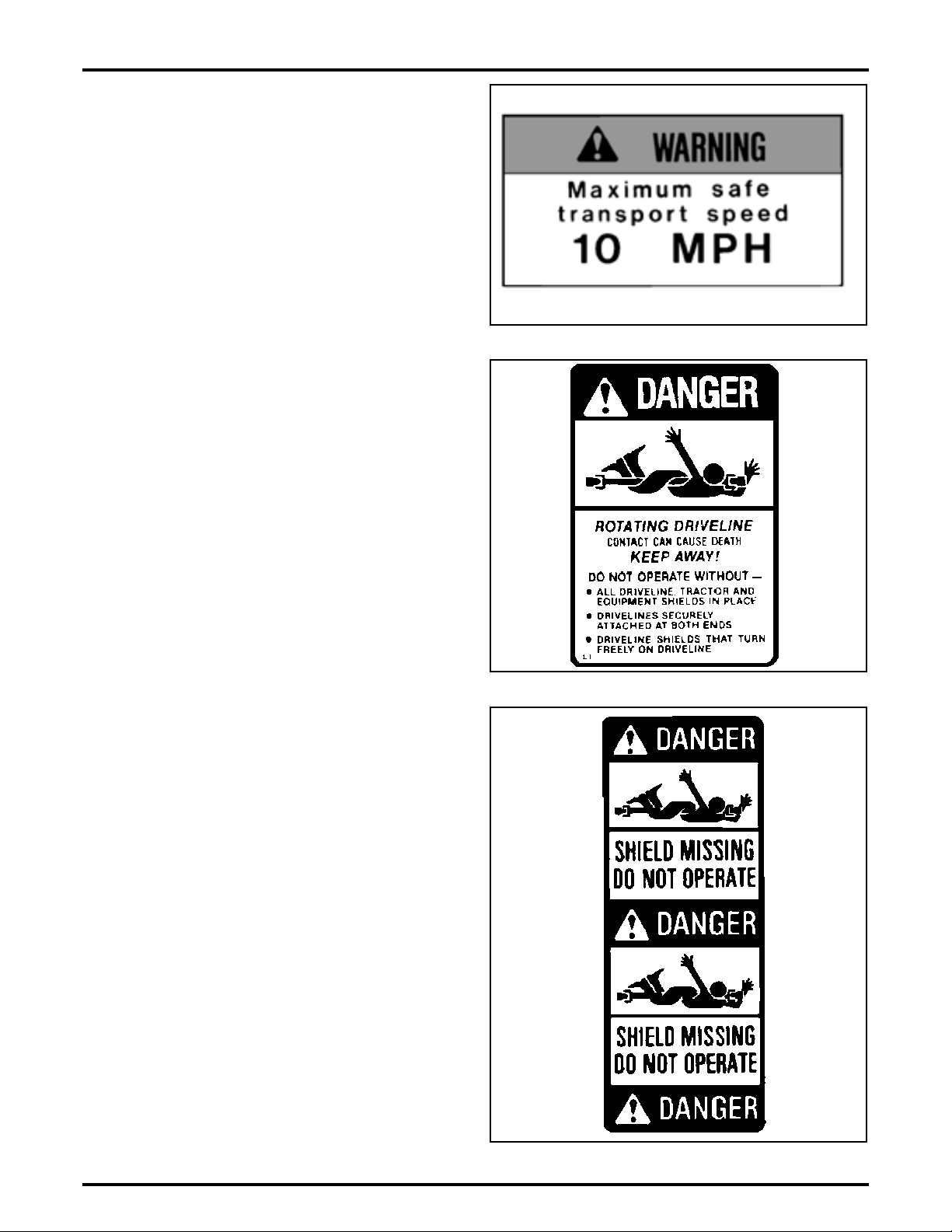

FIG. 10: Safety sign, 6.
FIG. 11: Safety sign, 7.
FIG. 12: Safety sign, 8.
FIG. 10
70591362a
FIG. 11
71359170
FIG. 12
71359119

GENERAL INFORMATION
1-10 79023084 A Rev.

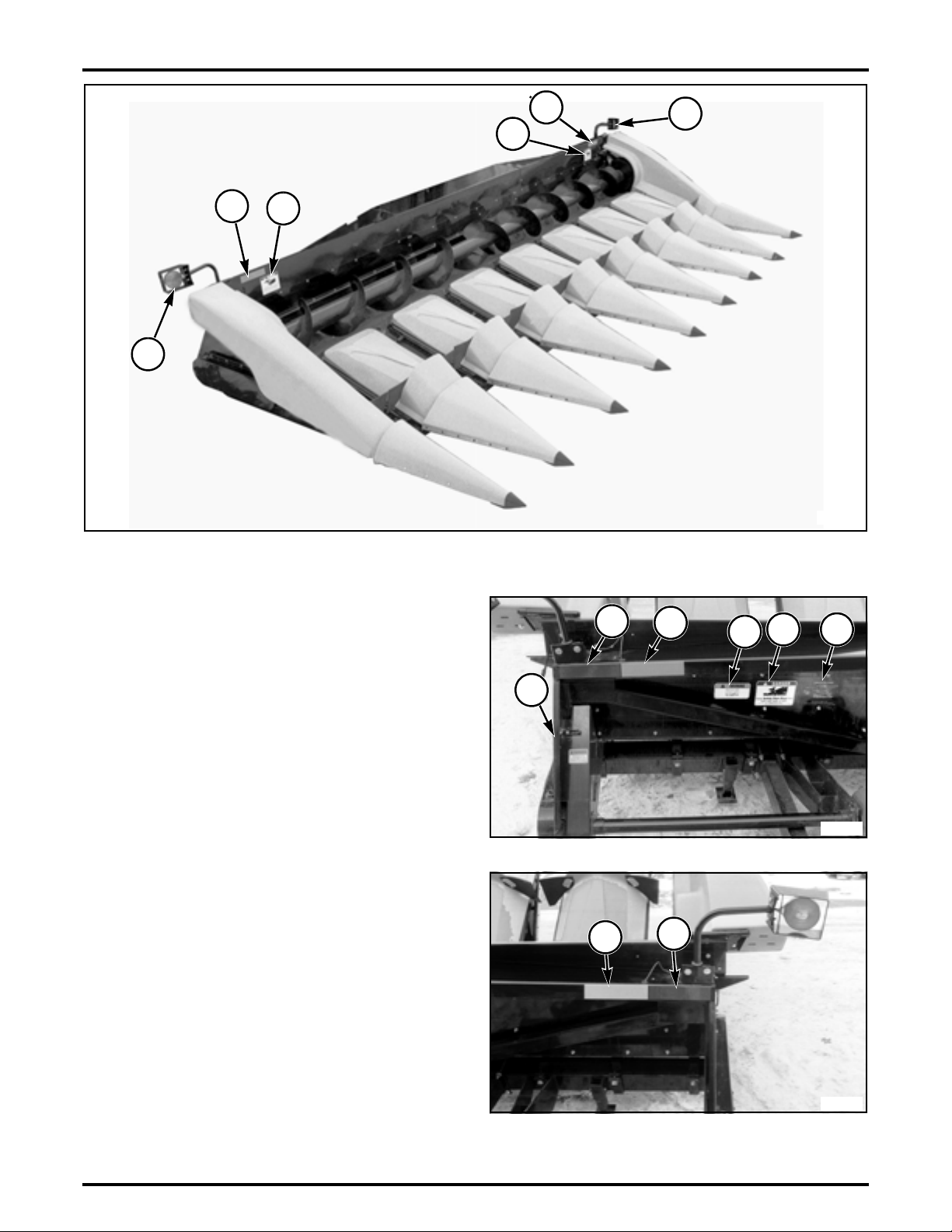

FIG. 13: Safety sign locations. Corn Head Lights (A).
Front & Rear Lens, Amber.
FIG. 14: Reflector & Safety sign locations.
FIG. 15: Reflector locations.
FIG. 13
f0204e73
A
10 2
2
10 A
FIG. 14
f0204b30
3
11 12 61 9
FIG. 15
f0204b35
12 11

79023084 A Rev. 1-11
GENERAL INFORMATION
FIG. 16: Safety sign & reflector locations. 12-Row
models only.
FIG. 17: Safety sign locations.
FIG. 18: Safety sign locations.
FIG. 19: Safety sign locations.
mWARNING: DO NOT operate the combine
or Corn Head unless all shields are in place.
mWARNING: Shields have been removed in
some photos for clarification. DO NOT
OPERATE Corn Head UNLESS ALL
SHIELDS ARE IN PLACE.
FIG. 16
f320001
11
12
12
11
FIG. 17
F0204i07
5
FIG. 18
f316002
5
4
FIG. 19
c-2344
8
7

GENERAL INFORMATION
1-12 79023084 A Rev.
Right and Left Hand
FIG. 20: Throughout this manual when reference is
made to Left Hand and Right Hand, it is determined by
standing behind the machine and facing the direction of
forward travel.
Header Lift Cylinder Stop
FIGS. 21–22: Disengaged Lift Ram Stop: A header lift
cylinder stop (1) is located on the Left Hand feeder
housing lift cylinder on the combine.
A "U" shaped piece of heavy metal called a Header Lift
Cylinder Stop (1) is pivoted on a pin near the outer end of
the lift cylinder rod (2). When the lift rams are fully
extended, the cylinder stop (1) can be pivoted upward.
The cylinder stop support hook (3) can be engaged into
the slot in the feeder housing side where the stop (1) is
carried while the combine is in operation.
mDANGER: NEVER permit anyone to get
under any part of header or feeder housing,
or between raised header and combine to
work, unless header lift cylinder stop is
engaged, and fully contacts the cylinder
rod, engine is stopped, brakes are set, and
the start key is removed. Be sure the Corn
Head is latched securely to the feeder
housing.
mDANGER: ALSO, to prevent any possible
accidental lowering of header and possible
injury, ALWAYS stop the engine, set brakes
and remove the start key during the time
operator or other person is between the
back of the raised header and combine and
reaches under the side of feeder housing to
engage or disengage the header lift cylinder
stop.
FIG. 20
e0830b15
FIG. 21
FIG. 22
c-2961
1
2
h101081
3
1

79023084 A Rev. 1-13
GENERAL INFORMATION
FIG. 23: Engaged Lift Ram Stop: When the lift rams
are fully extended the cylinder stop support hook can be
released from the slot in the feeder housing side and
pivoted downward until it fully contacts and surrounds
three sides of the lift cylinder rod (2). In this position the
rear end of the cylinder stop (1) is aligned with the front
end of the lift cylinder barrel (3). When the feeder housing
is lowered slightly, the end of the header lift cylinder stop
contacts the outer end of the lift ram barrel and makes
solid contact which holds the feeder housing and the
header attached to it, properly in the raised position.
With header lift cylinder stop properly in place, the header
cannot be lowered except by starting the engine and
actuating lift ram to release the header lift cylinder stop.
FIG. 23
c-2962
2
13

GENERAL INFORMATION
1-14 79023084 A Rev.
SHIELDS
NOTE: Some pictures in this manual may show shields
removed for visibility or access to parts of the
header. Numerous shields must be opened and
or removed to perform normal service and
adjustment procedures.
mWARNING: NEVER operate the combine or
allow others to operate it unless ALL
SHIELDS supplied with the combine and its
attachments are PROPERLY IN PLACE.
mWARNING: Do NOT leave the operator's
platform UNLESS the brake is set, the
engine is stopped, and the key is removed.
mDANGER: NEVER permit anyone to
examine, clean, lubricate, or adjust any part
of the row units, the header automatic lift
and tilt option, or the header itself UNLESS:
The header is lowered until the corn head is resting on the
ground, the combine engine is stopped, the brake is set
and the key is removed from the start switch.
OR
The corn head is raised, the ram stop is fully engaged on
the header lift ram, the engine is stopped, the brake is set
and the key is removed from the start switch.
mDANGER: When operating with optional
automatic header lift and tilt in muddy
conditions or where trash may occur, the
drag rod sensors may become jammed in
the raised position and not permit the
header to drop in automatic operation.
When this or any malfunction occurs, DO NOT
ATTEMPT TO FREE OR MOVE THE DRAG RODS
UNLESS THE HEADER LIFT CYLINDER STOP IS
ENGAGED AS INSTRUCTED ON THE DANGER
DECAL FOR THE LIFT CYLINDER STOP. TO DO SO
CAN CAUSE THE HEADER TO DROP SUDDENLY
AND CAUSE SERIOUS INJURY.
FIG. 24: Left Hand auger drive shield (1) shown in the
open position on all models. And Right Hand auger drive
shield is used on 12-Row 30 inch units only.
To open, unlatch (2) and swing shield downward. To
close, reverse the process.
FIG. 24
C0331A02
1
2

79023084 A Rev. 1-15
GENERAL INFORMATION
FIG. 25: For 4-Row and 6-Row Corn Heads, Right Hand
feeder house countershaft shield (1) shown in the open
position.
To open, unlatch (2) and swing shield upward. To close,
reverse the process.
Raise drive shield (1) at rear of head before driving
combine in for hooking up. Lower shield after hooking up
is complete.

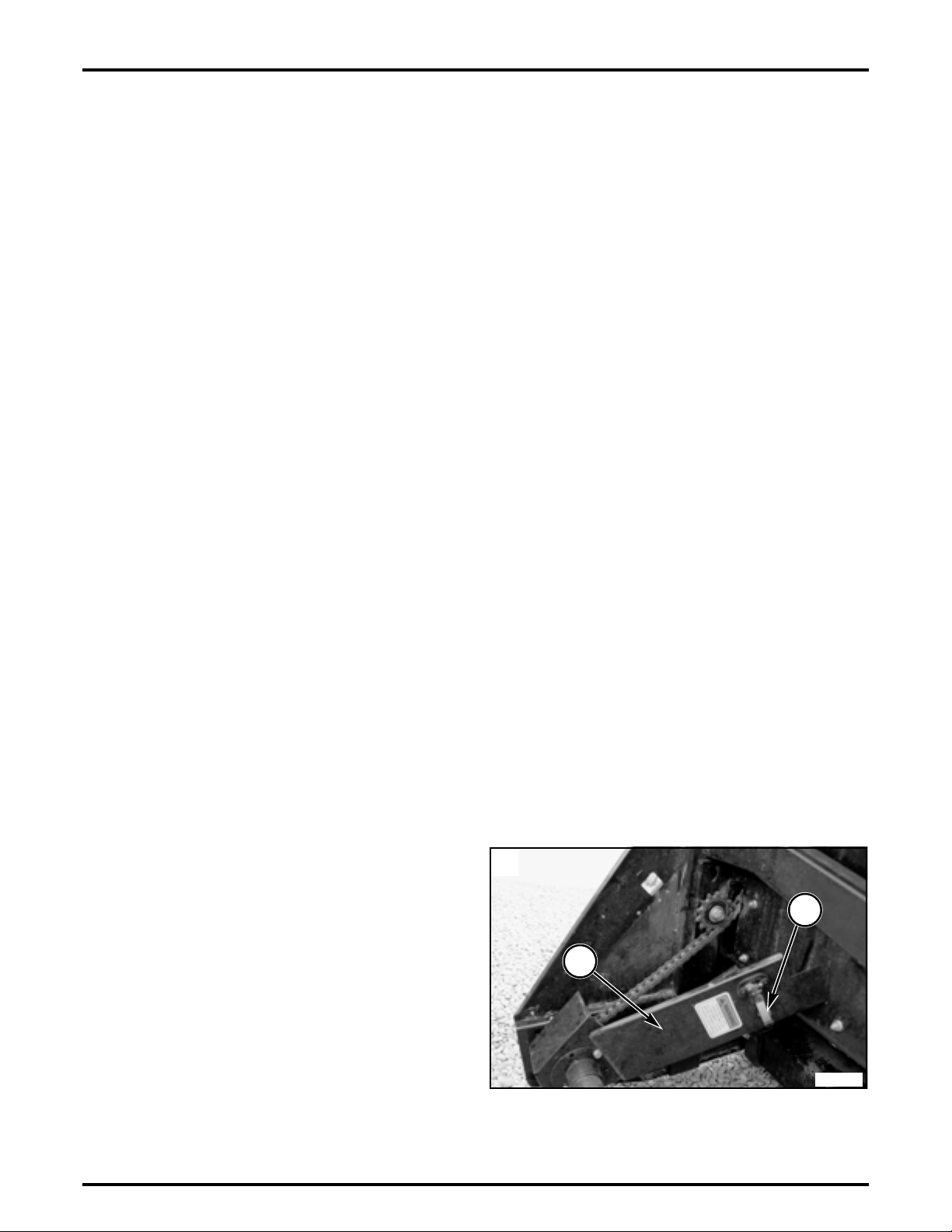

FIG. 26: Left Hand PTO shaft shields (1) shown on all
models. Right Hand PTO shaft shields used on 8-Row
and 12-Row units only.
FIG. 25
C-2458
1
2
FIG. 26
C-2344
1

GENERAL INFORMATION
1-16 79023084 A Rev.
FIGS. 27–30: Open Inner Gather Assembly: Raise
Corn Head and set header lift cylinder stop. Reach under
divider point, then pull pin (1) and lift gather assembly.
Remove prop rod (2) from the prop rod keeper (4) and
then remove quick pin (3) from storage hole (A).
Use prop rod (2) to support gather assembly in latch plate
(5) and install quick pin (3) in end of prop rod.
NOTE: Inner gather assemblies may be raised with or
without divider point adjusting chain connected.
mWARNING: ALWAYS install quick pin (3) in
the prop rod (2) when fenders and inner
gathers are raised into the service position.
FIG. 27
FIG. 28
FIG. 29
FIG. 30
F0204E06
1
F0204J35
1
A
24
3
F0204J37
2
F0204B25A
3 2
5
