Installation Instructions
CL33600 TCRNE1 Series
M802 125kHz Reader Option
Cylindrical Lockset
For Technical Assistance call Corbin Russwin at 1-800-810-WIRE (9473)
FM290 10/18
Attention Installer
Please read these instructions carefully to prevent missing important steps.
Please Note: Improper installations may result in damage to the lock and void the factory warranty.
Important: The accuracy of the door preparation is critical for proper functioning and security of this lock.
Misalignment can cause premature wear and a lessening of security.
WARNING
This product can expose
you to lead which is
known to the state of
California to cause cancer
and birth defects or other
reproductive harm. For
more information go to
www.P65warnings.ca.gov.
08/2018

CL33600 Series Cylindrical Lock
1) Warning
Table of Contents
2
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
1) Warning................................................................................2
2) General Description.............................................................3
3) Specifications / Features ....................................................3
4) Product Illustration .............................................................4
5) Installation Instructions......................................................5
6) Wiring Diagrams................................................................11
7) Door Status Switch Installation ........................................15
8) Mechanical Operational Check.........................................15
9) Electrical Operational Check.............................................15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa-
tion.
This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced TV technician for help
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme avec la norme NMB-003 du Canada.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Observe precautions for handling electrostatic sensitive devices.
!

CL33600 Series Cylindrical Lock
3
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.

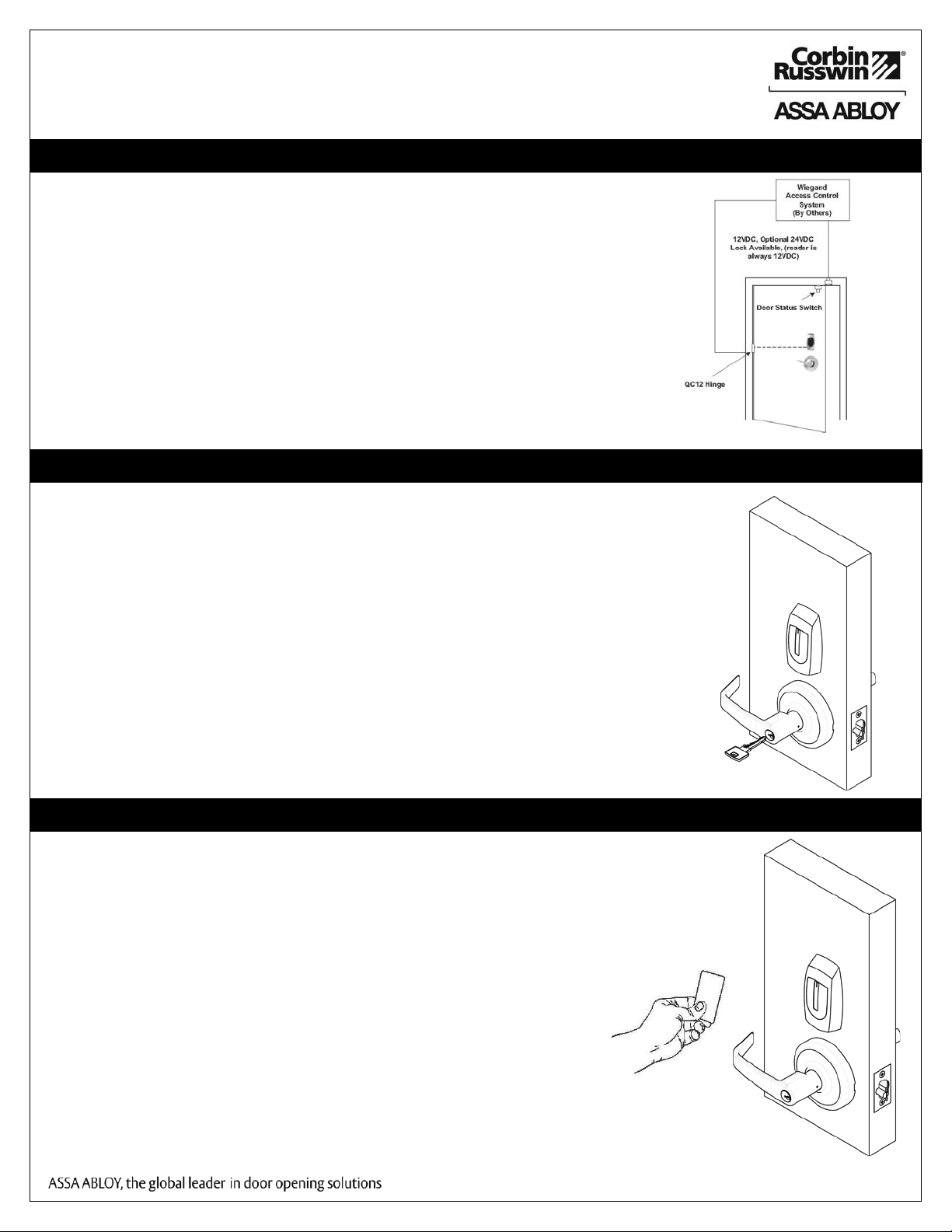

The Corbin Russwin Access 600 TCRNE1 Series cylindrical lock is designed to interface with existing Wiegand
Electrical Access Control (EAC) panels. The reader requires 12VDC for power and is available with 125kHz HID
proximity technology. The Access 600 technology is designed around Corbin Russwin’s Grade 1 hardware. The
cylindrical lock comes with complete inside REX (request to exit) monitoring and is available in 12VDC or 24VDC
(Requires External DPS – Door Position Switch). Weather seal gaskets are also included for outdoor applications.
The Access 600 reader provides visual (LED) and audible indication of lock state (locked/unlocked).
• Latch: Stainless steel, ½” (13mm) throw
Optional: 3/4” (19mm) throw deadlocking fire latch
for pairs of doors
• Deadlocking latch prevents manipulation when door closed
• Door thickness: 1-3/4” (44mm) to 2” (50mm) standard
2” (50mm) to 2-1/4” (57mm) optional
• Outside lever controlled by reader or key retracts latch
• Inside lever produces REX (request to exit) signal
• Fail safe or fail secure operation (must specify)
• UL fire listed
• Wire from EAC panel to door must be shielded with a drain.
Drain terminated at EAC panel controller
• Complete monitoring of door (external DPS supplied)
• Wires directly to EAC panels
• Accepts all HID 125kHz bit formats
• QC12 Hinge with ElectroLynx plug and play
2) General Description
3) Features
DPS (Door
Position Switch)
McKinney
Electronic
Transfer
Hinge
Wiegand Access
Control System
CL33600
Series Lock
Patent Pending
4) Regulatory Specifications
• UL 294 Access Control Performance Ratings: Destructive Attack Level I
Line Security Level I
Endurance Level IV
Standby Power Level I
• ANSI/BHMA A156.25 Listed Grade 1 Compliant
• UL and CUL listed for use on Fire Doors
• This product meets the requirements of CAN/ULC-S319-05 Equipment Class I
Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), CSA 22.1, Canadian Electrical
Code (CEC), Part I, Safety Standard for Electrical Installations, local codes, and the authorities having jurisdiction.
12VDC System
• Reader Draw = 125mA (maximum)
• 12VDC Solenoid Draw =250mA (normal state)
• Total System Draw = 375mA
24VDC System
• Reader Draw = 125mA (maximum)
• 24VDC Solenoid Draw = 150mA (normal state)
• Total System Draw = 275mA

4
CL33600 Series Cylindrical Lock
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.

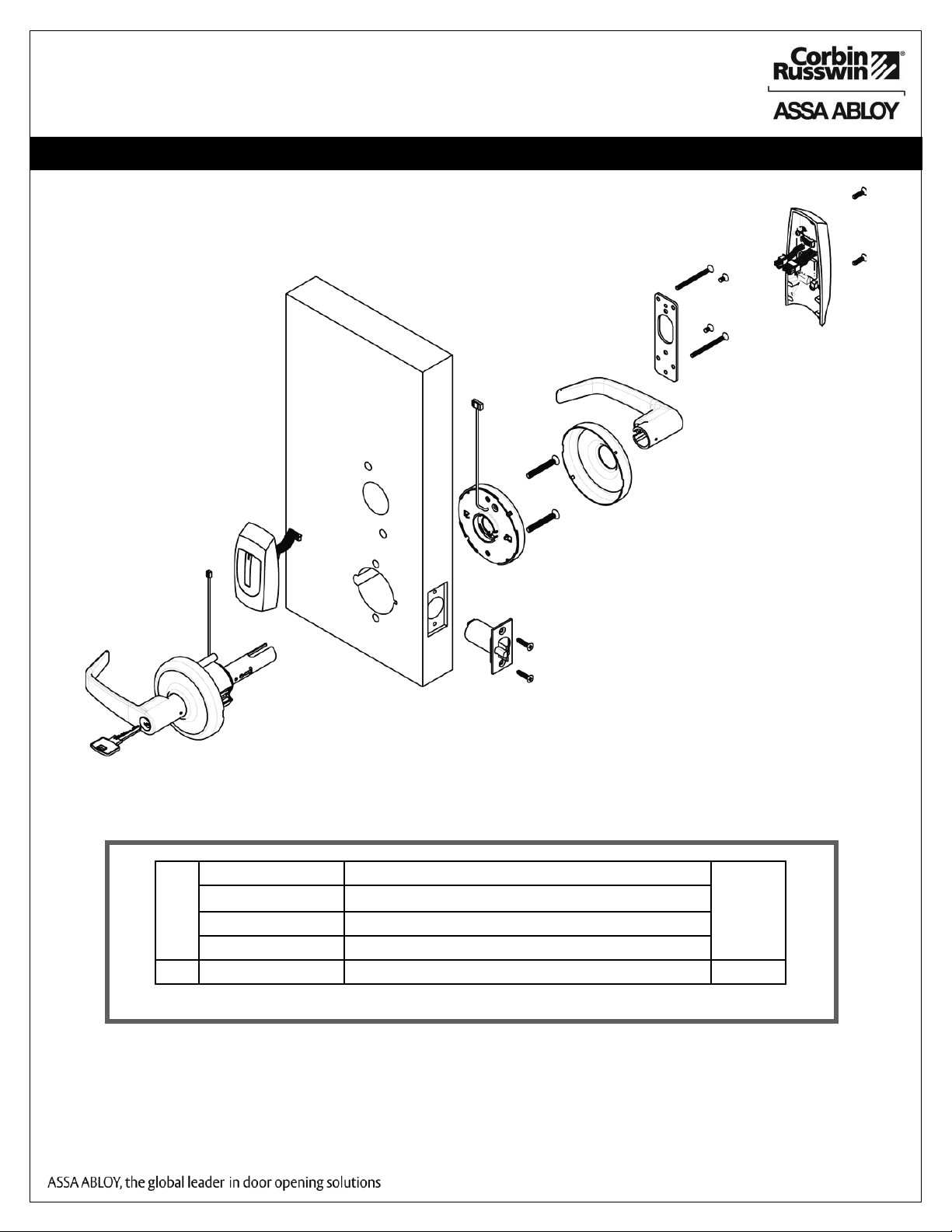

4) Product Illustration
1 1
2 1

CL33600 Series Cylindrical Lock
5
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.

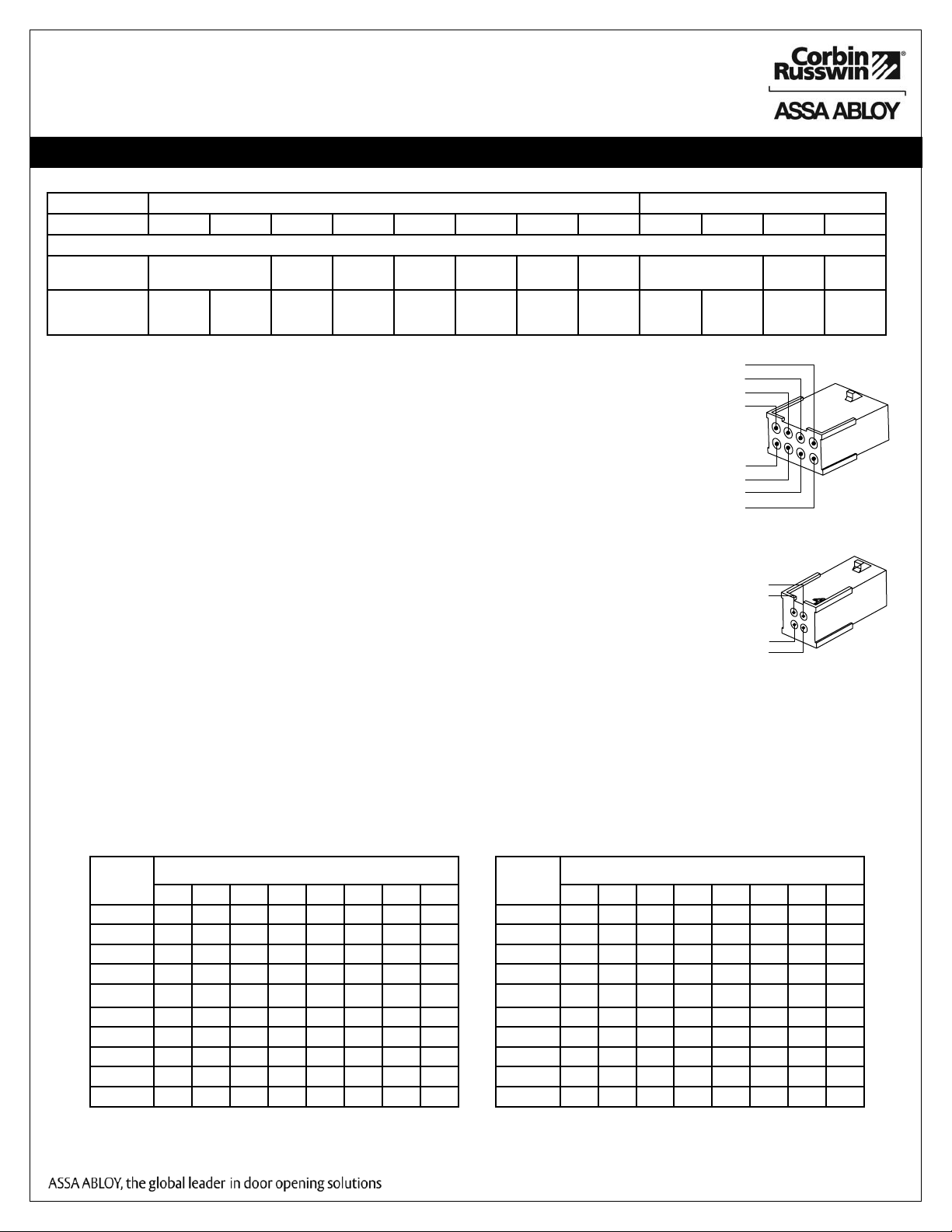

Product 8 PIN CONNECTION 4 PIN CONNECTOR
1-Black 2-Red 3-White 4-Green 5-Orange 6-Blue 7-Brown 8-Yellow 9-Violet 10-Gray 11-Pink 12-Tan
ACCESS CONTROL DEVICES: ML20600 x M802, ElectroLynx wire Color / Function assignments
12VDC
Reader Power
WIE-
GAND
WIE-
GAND
RX (NO) RX (COM) EGND LED 12 OR 24 VDC
(LOCK RELAY
DPS (NC) DPS
(COM)
Corbin Russwin
Access 600
ML20600 x M802
NEG POS DATA_1 DATA_0 RX RX EGND REF.
DIA-
GRAMS
NEG POS DPS DPS
PIN8 (Yellow – LED)
PIN 6 (Blue – RX COM)
PIN 4 (Green – Data 0)
PIN 2 (Red – Reader POS)
PIN 1 (Black – Reader NEG)
PIN 3 (White – Data 1)
PIN 5 (Orange – RX NO)
PIN 7 (Brown - EGND)
PIN 4 (Tan – DPS)
PIN 2 (Gray – Lock POS)
PIN 1 (Violet – Lock NEG)
PIN 3 (Pink – DPS)
6) Wiring Diagrams
Reader LED Configuration
The Access 600 Series reader can be configured for (3) modes of LED
operation. Call 1-800-810-WIRE for details.
Mode 1:
• Red LED ‘ON’ when powered.
• Presenting a valid credential causes LED to ‘FLICKER’
green and return to red state.
Mode 2:
• Green LED “ON” when powered.
• No Flicker after presenting valid valid credential.
Mode 3:
• EAC Panel controls LED operation.
Note: Control of LED is a function of the EAC panel equipment (i.e. relay) to toggle between
green and red.
Note: When LED wire is tied directly into EAC panel relay, no AC signals should be applied on
wire or door reader performance will be impacted.
Note: LED wire must be connected to circuit GROUND of
the system’s power supply.
Wire from EAC panel to door must be shielded with drain terminated at EAC panel controller
Total
One-Way
Length of
Wire Run (ft)
Load Current @ 12VDC
1/4A 1/2A 3/4A 1A 1-1/4A 1-1/2A 2A 3A
100 20 18 16 14 14 12 12 10
150 18 16 14 12 12 12 10 —
200 16 14 12 12 10 10 — —
250 16 14 12 10 10 10 — —
300 16 12 12 10 10 — — —
400 14 12 10 — — — — —
500 14 10 10 — — — — —
7501210——————
1,000 10 — — — — — — —
1,500 10 — — — — — — —
Wire Gauge Charts
Total
One-Way
Length of
Wire Run (ft)
Load Current @ 24VDC
1/4A 1/2A 3/4A 1A 1-1/4A 1-1/2A 2A 3A
100 24 20 18 18 16 16 14 12
150 22 18 16 16 14 14 12 10
200 20 18 16 14 14 12 12 10
250 18 16 14 14 12 12 12 10
300 18 16 14 12 12 12 10 —
400 18 14 12 12 10 10 — —
500 16 14 12 10 10 — — —
750 14 12 10 10 — — — —
1,000 14 10 10 — — — — —
1,500 12 10 — — — — — —

6
CL33600 Series Cylindrical Lock
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
Typlcal CL33600 X M802 Series Lock Application Diagram (12/24VDC Lock)
MODE 1: LED WIRE NOT USED = RED LED ON WHEN POWERED
6) Wiring Diagrams
12VDC System with 12VDC Solenoid
Reader Draw = 150mA
12VDC Solenoid Draw = 250mA
Total System Draw = 400mA
*IMPORTANT: Pin 7 must be tied to earth ground in the access control panel.
Failure to follow proper ESD safe grounding procedures could lead to equipment failure.
CL33600
Series Lock
Patent Pending
Standard Application Shown - For Alternative Applications Contact 1-800-810-WIRE (9473)
- Reader Electronics Requires 12VDC Filtered and Regulated -
READER NEG - Black, 1
READER POS - Red, 2
DATA 1 - White, 3
DATA 0 - Green, 4
RX (NO) - Orange, 5
RX (COM) - Blue, 6
*EARTH GROUND - Brown, 7
LED - Yellow, 8
LOCK NEG - Violet, 9
LOCK POS - Gray, 10
DPS (NC) - Pink, 11
DPS (COM) - Tan, 12
Not Used
12/24VDC
H N G
- +
120 VAC
Input
(-)
12VDC
(+)
DATA 1
DATA 0
RX
RX
Electrical Access
Control Panel
(By Others)
Use (NC) for
Fail Safe
Operation
Lock Relay
(NO) Fail
Secure
Operation
DPS
DPS
Black (Hot)
White (Neutral)
Green (Gnd)
12 Conductor
ElectroLynx Harness
From McKinney
QC12 Electric
Hinge From
McKinney
12VDC System with 24VDC Solenoid
Reader Draw = 150mA
24VDC Solenoid Draw = 150mA
Total System Draw = 300mA
Lockbody
Power Supply
(By Others)

CL33600 Series Cylindrical Lock
7
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions
Left Hand
Hinges Left.
Open Inward.
“LH”
Left Hand
Reverse Bevel
Hinges Left.
Open Outward
“LHRB”
Right Hand
Hinges Right.
Open Inward.
“RH”
Right Hand
Reverse Bevel
Hinges Right.
Open Outward
“RHRB”
1. Verify Hand and Bevel of door. Illustrations shown are as viewed from the outside or secure
side of opening.
2. Prep door according to supplied door marker (FM291). For door manufacture templates
visit www.corbinrusswin.com and reference template # T31071.
Outside Face of Door Inside Face of Door

8
CL33600 Series Cylindrical Lock
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
3. Install Latch Bolt with beveled bolt facing the strike using two #8 x 3/4” combination screws:
Optional Strike Box
4. Install Latch Bolt with beveled bolt facing the strike
using two #8 x 3/4” combination screws:
Centerline of latch
front and strike
Fig. 3
Fig. 4

CL33600 Series Cylindrical Lock
9
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)

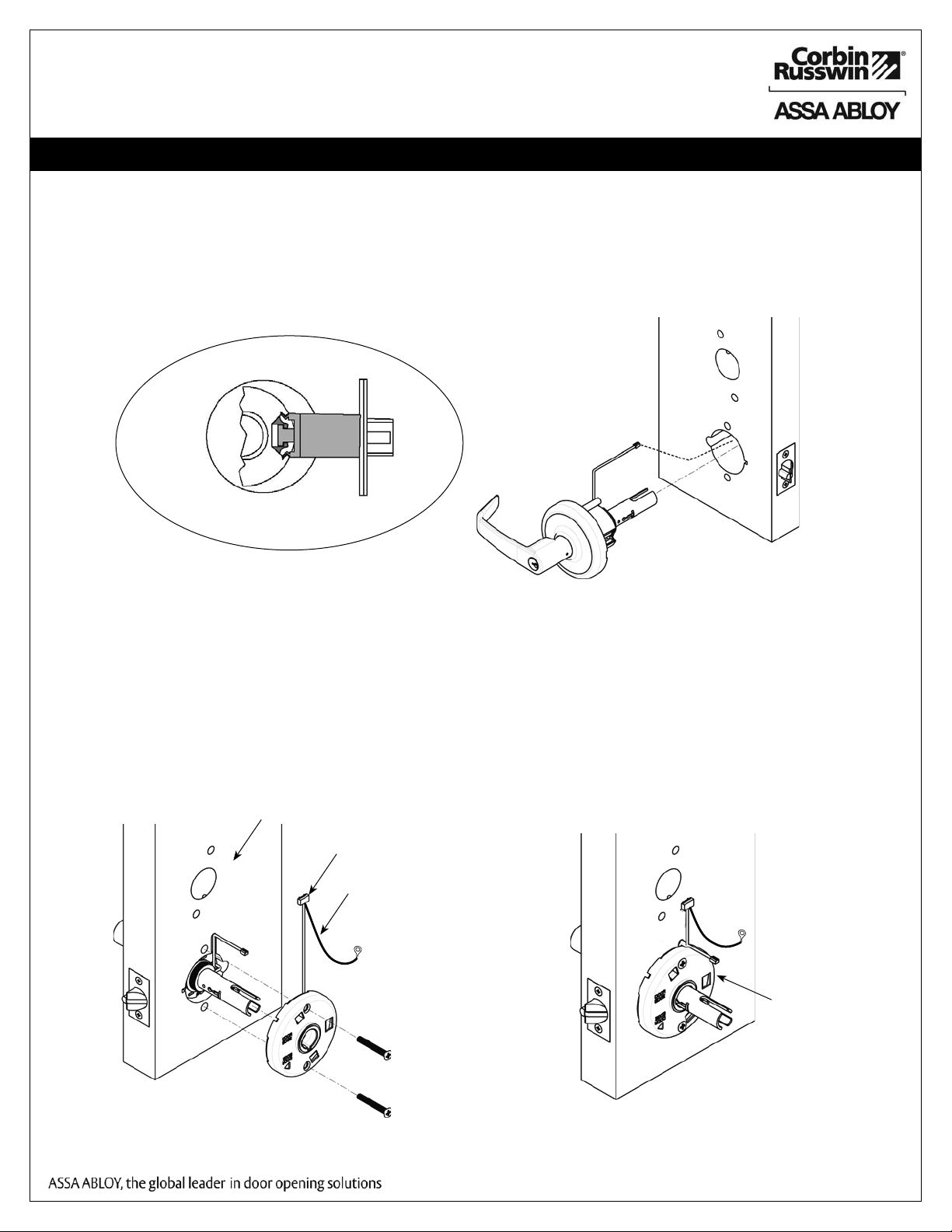

5. Install Lock:
Feed lock body and wire through 2-1/8” diameter hole from outside of door.
Be sure latch engages lock body as shown (Fig. 5).
IMPORTANT: Door must remain open during installation. Use door stop.
Fig. 5a Detail
Outside Face of Door
6. Install Inside Spring Cassette:
a. Feed lock body wires and cassette (REX) wires in slot on face of door (Fig. 6a)
Note: Be careful to keep wires in slot cut into door.
b. Tightening using two #12-24 screws.
Note: DO NOT PINCH wires when tightening.
Fig. 6a Fig. 6b
Inside Face of Door
Fig. 5
Keep wires in slot:
DO NOT pinch under
Spring Cassette
Lock Body Wires
REX Wires
Ground Wire
Spring Cassette

10
CL33600 Series Cylindrical Lock
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
7. Installation and Removal of Lever and Standard Cylinder:
Fig. 7b
Fig. 7a

CL33600 Series Cylindrical Lock
11
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
8. Installing Outside (Reader) Escutcheon:
a. Install exterior gasket if this is an exterior door (Fig. 8a).
b. Insert reader assembly and route wires through door.
c. Install two #8-32 x 1-3/4” flat head screws through mounting
plate (Fig. 8b and 8c).
d. Connect pin-5 green/yellow ground wire ring terminal to top right screw.
Fig. 8a Fig. 8b
P5
P5
Ground Ring Terminal
P3
P4
9. Secure mounting plate using two #8 x 3/4”
combination surface mount screws.
Inside Face of Door
Fig. 9
Fig. 8c Detail

12
CL33600 Series Cylindrical Lock
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
5) Installation Instructions (Continued)
10. Connector Attachment (Interior PCB Assembly):
Fig. 11
a. Connect P3 (2-pin connector) from lockbody to J3
on interior PCB assembly.
b. Connect P4 (6-pin connector) from lockbody to J4
on interior PCB assembly.
c. Connect P5 (7-pin connector) from Reader board to J5
on interior PCB assembly.
d. Connect ElectroLynx harness (4 and 8-pin) from
door harness to ElectroLynx harness on
interior PCB assembly.
NOTE: Connectors go on only one way.
Do not offset connector and be sure
they are completely seated. Fig. 10
From Reader
Board P5 to J5
From Lock
Body P3 to J3
From Lock
Body P4 to J4
To ElectroLynx Harness
J5
J3
J4
J2
J1
PCB Layout - Wire Assignments - ElectroLynx Assembly (Molex)
J2 J1
1-Violet Lock Neg
(Solenoid, neg)
3-Pink
N/A
1- Black
PWR NEG
3-White
DATA 1
5-Orange
RX (NO)
7-Brown
EGND
2-Gray Lock Pos
(Solenoid, pos)
4-Tan
N/A
2-Red
PWR POS
4-Green
DATA 0
6-Blue
RX (COM)
8-Yellow
LED
11. Install Inside Escutcheon, Lever, and Rose:
a. Plug in connectors according to instructions
in previous instruction.
b. Feed excess wires into door prep.
c. If this is an outside opening: Remove adhesive
backing and apply gasket to escutcheon.
d. Install two #8-32 x 5/8” oval head screws
through escutcheon.
Note: Be careful not to pinch wires under
escutcheon when tightening screws).
e. Attach inside rose to inside spring cassette.
f. Slide lever handle onto lock body and
be sure it snaps into place.
Inside Face of Door
Notes:
Please follow these steps prior to installing inside escutcheon assembly.
1. Insert the ElectroLynx® connectors (8 and 4 Pin) and establish their position inside of the door prep.
2. Fold the wires onto themselves and into the space left inside the door preparation.
3. Be sure to neatly fold the wires into available space inside
the door after placing the ElectroLynx connectors
to prevent pinching of wires when mounting escutcheon.
8-pin
ElectroLynx
4-pin
ElectroLynx

CL33600 Series Cylindrical Lock
13
Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
Before closing door test for cylinder function of lock cylinder and Inside lever:
a. Insert key into cylinder and rotate.
b. The key will retract the latch. Key should rotate freely.
c. Inside lever retracts latch.
d. Close door, ensure latch fully extends into strike and does not bind.
Once electrical wiring has been successfully completed according to proper application:
a. Turn power ON.
b. Verify LED located on reader is ON (red or green
depending on reader configuration (refer to reader
LED configuration).
c. Present proximity credential and verify LED and
sounder activity.
d. Verify valid card read at EAC panel.
e. Verify system operation; i.e., when prox credential
is presented to reader that the door unlocks.
9) Electrical Operational Check
7) Door Status Switch Installation
1. Install Door Status Switch supplied with product:
a. Drill 1” hole in door for magnet.
b. Drill 1” hole in frame for switch.
2. Wire to ElectroLynx® frame harness as shown in wiring diagrams on
previous pages.
8) Mechanical Operational Check

Copyright © 2017 Corbin Russwin, Inc. All rights reserved.
Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
