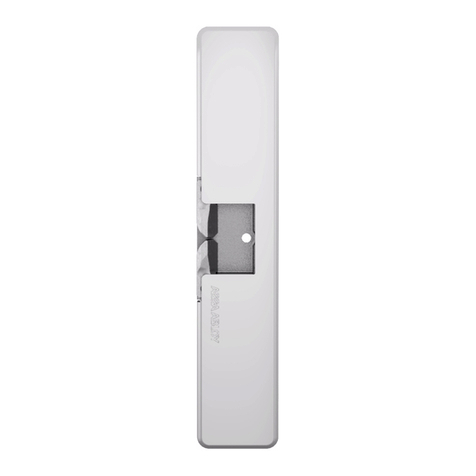

Assa Abloy HES 9400 Operating instructions

1
HES 9400/9500/9600
Electric Strike
Installation Instructions and Frame Preparation
Product Components
A 9400/9500/9600 Strike Body
B 9400/9500/9600 Cover
C 1/4"-20 x 1" Mounting Screws
D #10-32 & 10-24 Lockdown Screws (optional)
E #6-32 x 1/4" Cover Screws
F 5/64" Hex Key
G 12-Volt and 24-Volt Pigtails
Electrical Specifications
Electrical Ratings for Solenoid
Continuous Duty 12 VDC 24 VDC
Resistance in Ohms 24 96
Amps .50 .25
Solenoids are rated at +/- 10% indicated value.
Minimum Wire Gauge
Requirements
(Based on Round Trip)
Solenoid Voltage
12 VDC 24 VDC
200 feet or less 18 gauge 22 gauge
200 – 300 feet 16 gauge 22 gauge
300 – 400 feet 16 gauge 20 gauge
A
B
C
D
E
F
G
Diagram 1: Product Components

2
Installation
CAUTION Before connecting any device at the installation site, verify input voltage using a multimeter.
Many power supplies and low voltage transformers operate at higher levels than listed. Any input voltage
exceeding 10% of the solenoid rating may cause severe damage to the unit and will void the warranty.
Preparing the Strike
NOTE: For 12 VDC, the Plug In Connector (pigtail)
marked “12 VDC” should be used; for 24 VDC,
the pigtail marked “24 VDC should be used.
1 SELECT the appropriate pigtail that
matches system power and electrically
CONNECT as illustrated in Diagram 2.
2 IF no connector is present,
THEN CONFIGURE the wires
as shown in Diagram 2.
3 IF using the Latchbolt Monitor (LBM)
or Latchbolt Strike Monitor (LBSM),
THEN REFER to Diagrams 3 and 4
on Page 3 to complete wiring.
NOTE 1: The 9400/9500/9600 ships in
FAIL SECURE OPERATION mode.
NOTE 2: FAIL SAFE OPERATION mode should not
be used in fire or windstorm-rated applications.
4 CONVERT the 9400/9500/9600 to
FAIL SAFE OPERATION, if needed, using
Diagrams 5 and 6 on Page 3 as a guide.
Preparing the Frame
NOTE: When using a Corbin Russwin Series
5000 or Yale 7000 series equipped with an
offset deadlatch, the deadlatch is located just
above the Vertical Alignment line, as shown
on the Installation Template on Page 4.
1 PREPARE the door jamb using
the Installation Template located
on Page 4 (with the exception of
the hole for final lockdown).
Red
Red/green
Black
Violet
Red
Black
Violet
Red/green
(+ 12 VDC)
(-NEG)
(+ 24 VDC)
(-NEG)
or
Electric
Strike
Electric
Strike
Connect
Together
Connect
Together
Connect
Together
Diagram 2: 12V to 24V Conversion
If Connector Is Missing

3
Finishing the Installation
1 Electrically CONNECT the 9400/9500/9600
to the Plug In Connector, and ATTACH
the electric strike to the jamb using the
1/4"-20 x 1"mounting screws provided.
2 CHECK latchbolt interaction to determine
if horizontal adjustment is needed, and
ADJUST as needed; then LOCK DOWN the
horizontal adjustment using the
#10-32 set screws as illustrated on Page 4.
3 OPTIONAL LOCKDOWN FEATURE:
INSTALL the #10-24 UNC or 10-32
UNF lockdown screw if additional
security is required; however, REMOVE
the strike before drilling hole.
4 INSTALL the cover plate, and SECURE
in place using the #6-32 x 1/4"Cover
Screws as illustrated on Page 4.
Converting the
Operation Mode
NOTE 1: The 9400/9500/9600 series
Electric Strikes are pre-set for FAIL SECURE
OPERATION as shown in Diagram 5.
NOTE 2: There are Selector Stop Pins, one on
the left side and one on the right side. Both
Selector Stop Pins must be repositioned to
convert the strike to FAIL SAFE OPERATION.
1 To convert to FAIL SAFE OPERATION,
REMOVE the Selector Stop Pins on
each side of the strike body using
the provided 5/64" hex key.
2 MOVE the Selector Stop Pins to the FAIL SAFE
OPERATION position (towards the center
of the strike) as pictured in Diagram 6.
3 TIGHTEN both Selector Stop Pins after
they have been moved to the FAIL SAFE
OPERATION position using the 5/64" hex key.
Verifying the
Operation Mode
NOTE: Both keepers should be unlocked without
power, but lock when power is applied.
1 VERIFY that both keepers are
in FAIL SAFE OPERATION.
Diagram 3
Latchbolt Monitor
White Common
Orange Normally Open
Green Normally Closed
Diagram 5: Fail Secure Operation
If Connector Is Missing
Diagram 6: Fail Safe Operation
Diagram 4
Latchbolt Strike Monitor
Brown Common
Blue Normally Open
Yellow Normally Closed
White Brown
Selector Stop
Pin Location
Selector Stop
Pin Location
Orange Blue
Green Yellow

4
Lockdown
Screw
(optional)
Set Screw
Location
Set Screw
Location
Mounting
Screw
Mounting
Screw
9"
[228.6mm]
7/8"
[22.5mm]
1-3/4"
[44.5mm]
1-1/16"
[27mm]
4X
7/8"
[22.5mm]
1-5/16"
[33.3mm]
1-5/16"
[33.3mm]
4-1/8"
[104.8mm]
4-1/8"
[104.8mm]
1/2"
[12.7mm]
Clearance
for
LBM/LBSM
Wiring
Centerline
of Latchbolt
This edge
toward
door
Deadlatch Vertical Alignment.
USE this line as a reference to center deadlatch**
2X
Mounting
Hole
Locations
for
1/4-20 UNC
Mounting
Screws
** See note prior to
Step 5 on Page 2
Final Lockdown Feature 10-32 UNF or
10-24 UNC Screw (optional)
3/4"
[19mm]
Clearance
for Power
Wiring
Frame Preparation
3026006.002 rev D
Copyright © 2018, Hanchett Entry Systems, Inc., an ASSA ABLOY Group
company. All rights reserved. Reproduction in whole or in part without the
express written permission of Hanchett Entry Systems, Inc. is prohibited.
[e-mail] | assaabloyesh.com
800.626.7590 | 10027 S. 51st Street Phoenix, AZ 85044 USA
Adjusting Horizontal and Lockdown
1 LOOSEN the two 1/4"-20 x 1"mounting screws.
2 ADJUST strike to appropriate horizontal position
3 TIGHTEN the two 1/4"-20 x 1"mounting screws
4 SECURE the adjustment by tightening the set screws
5 INSTALL the #10-32 UNF or 10-24 UNC lockdown screw (optional).
Installing the Cover
1 ATTACH the cover using the
#6-32 x 1/4" Cover Screws
Template
NOTE: May not be to scale. For easy installation,
the template should be ordered.
