Important

The latches, rods, and cassette are pre-installed.

This product must be installed by a factory trained technician.

Multi-Point Lock

FM7300 Series and BL7300 Series

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

TOC Table of Contents

1 Package Contents ...............................................................4

2 Tools Required ..................................................................5

a Tools Required for Electronic Access Control (EAC) Shield ........................5

b Tools Required for Dogging Indicator Option.....................................5

3 Installation ......................................................................6

a Check Door......................................................................6

b Door Installation ................................................................6

c Install Top Strike into Door Frame................................................6

d Install Center Strike into Door Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

e Remove Retractor Inserts........................................................7

f Check Latches (uninstalled)......................................................7

g Install Bottom Strike.............................................................8

h Top and Bottom Latch Adjustment............................................. 10

i Mortise Lock Install ............................................................ 12

j Final Mortise Lock and Trim Installation ........................................ 13

k Electronic Access Control (EAC) Reader and Controller Installation ............. 13

l Deadbolt Label Installation (FM7300 Only) .................................... 13

m Key Override with Deadbolt Function Operation Check ........................ 13

n Electronic Access Control (EAC) Shield (if applicable)........................... 14

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

4 Optional Installation........................................................... 14

a Dogging Indicator Installation ................................................. 14

5 Addendum .................................................................... 17

a Check Door.................................................................... 17

b Place Door Horizontal on Sawhorse............................................ 17

c Install Lockbody Cassette (LBC) ................................................ 18

d Latch Rod Guides .............................................................. 18

e Feed Top Rod into Door........................................................ 19

f Align with Lockbody Cassette (LBC) ............................................ 19

g Troubleshoot Latch Installation ................................................ 20

h Correct Rod Installation Check................................................. 20

i Secure Top Latch .............................................................. 21

j Tighten Set Screw ............................................................. 21

k Bottom Latch Installation...................................................... 22

l Check Latch ................................................................... 22

m Mortise Reinforcer and Mortise Lock Installation ............................... 23

n Final Installation............................................................... 23

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

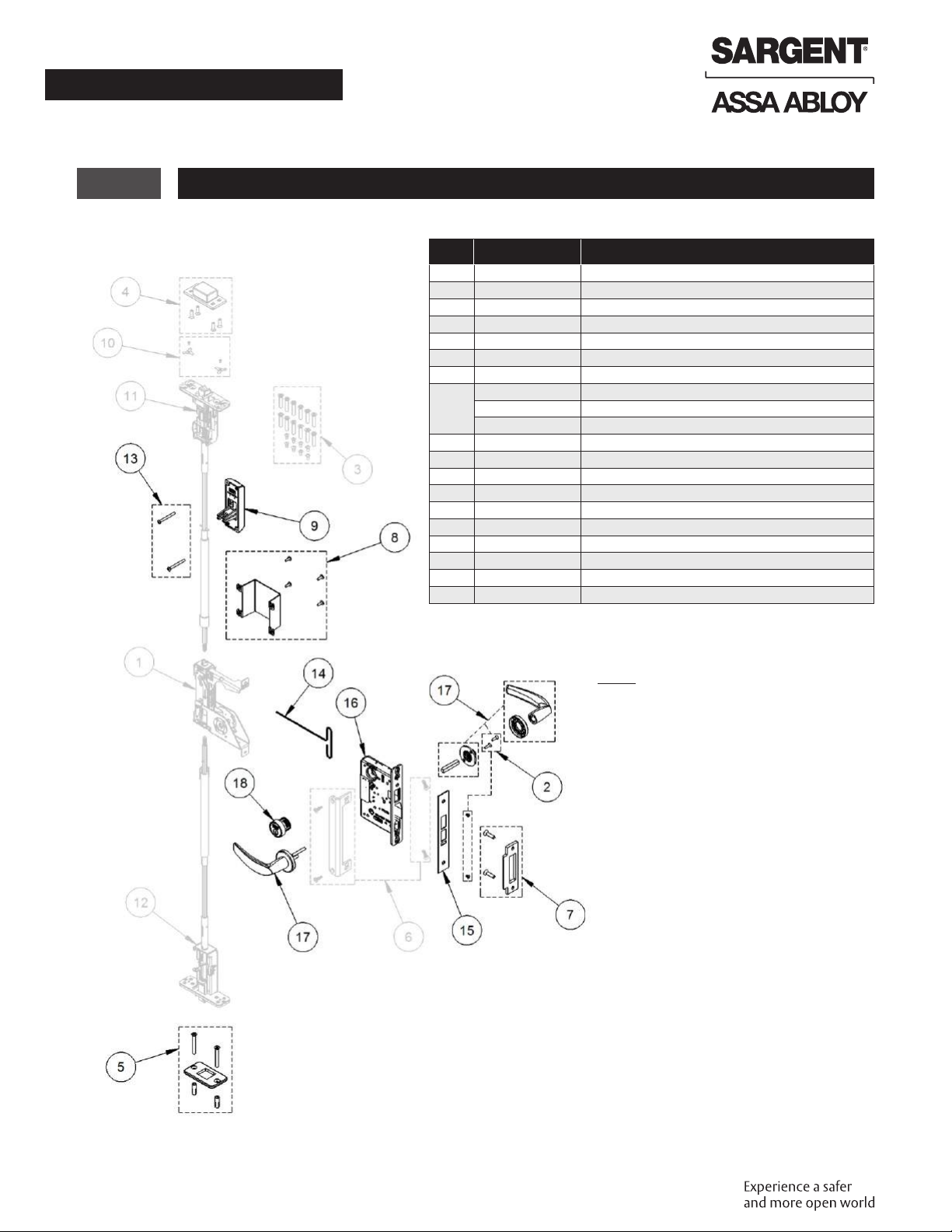

1 Package Contents

Part Number Description

1 82-5342 Multipoint cassette

2 82-5345 Trim mounting screw pack

3 82-5346 Top/bottom case mounting screw pack

4 82-5347 Top strike pack

5 82-5348 Bottom strike pack

6 82-5349 Mortise mounting/reinforcement pack

7 82-5350 Center strike pack

82-5351 IN/PN Inside cover shield pack

82-5352 Harmony inside cover shield pack

82-5353 Passport inside cover shield pack

9 188 Dogging indicator (includes item 13) (specify finish)

10 82-5383 Screw retainer pack

11 82-5386 Top case and rod assembly (specify door size)

12 82-5387 Bottom case and rod assembly (specify door size)

13 82-5400 Dogging indicator screw pack (specify finish)

14 01-4597 T-wrench, adjustment

15 Consult factory Outside armor front

16 Consult factory Mortise lock

17 Consult factory Mortise trim

18 Consult factory Cylinder

Note:

The grayed parts are preinstalled by the

door manufacturer and relate to the

Addendum section beginning on page 16.

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

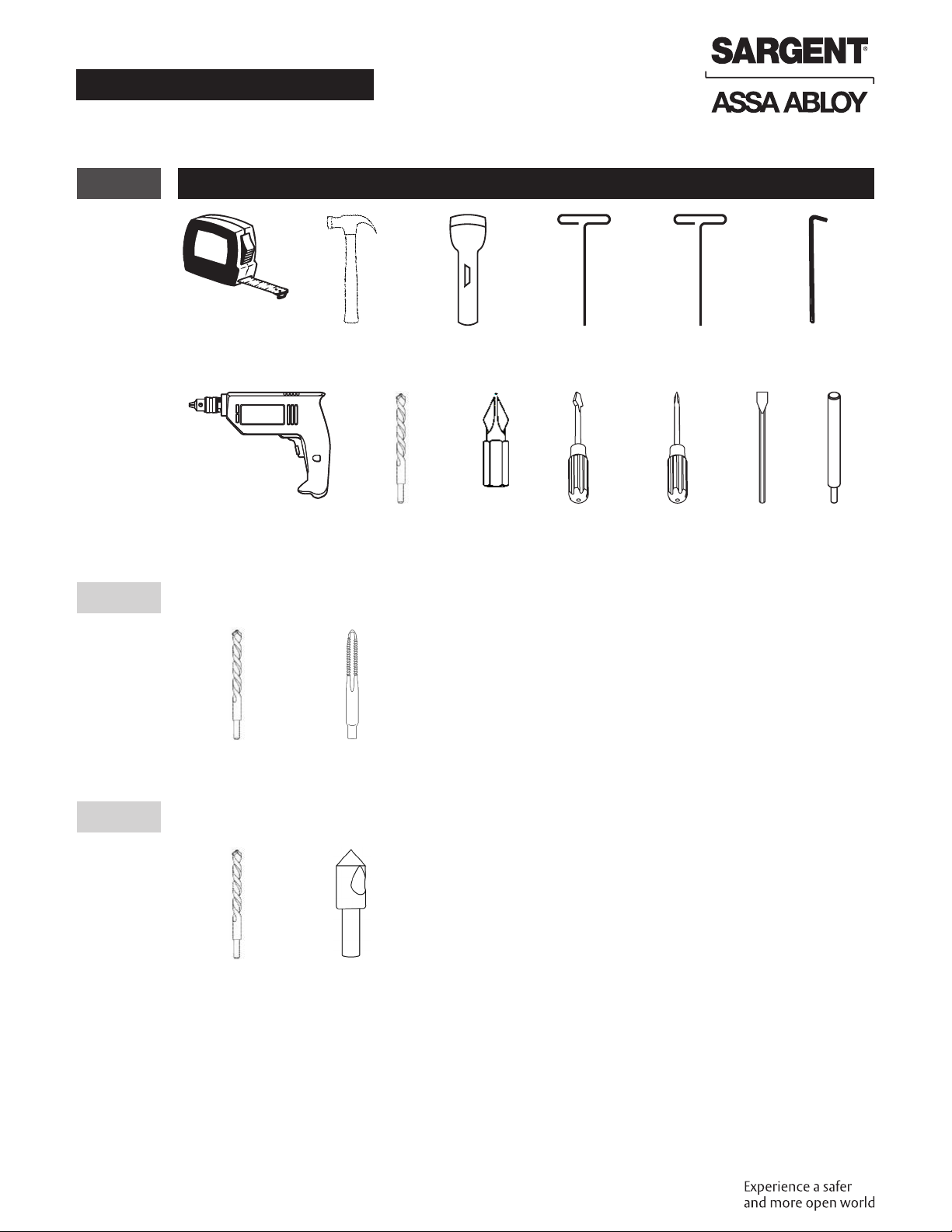

2 Tools Required

Tape measure Hammer Flashlight 1/8" Allen

(supplied)

3/32" Allen

(supplied)

5/32" Allen

Drill 1/8" Masonry

drill bit

#3 Phillips

bit

Slotted

screwdriver

#1, #2, #3

Phillips head

screwdrivers

Chisel 3/8"

Anchor set

a Tools Required for Electronic Access Control (EAC) Shield

#29 Drill bit

(.136")

#8-32 Tap

b Tools Required for Dogging Indicator Option

#7 Drill bit

(.201")

82° Countersink

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation

a Check Door

Verify the door is:

• Correct size and hand for opening.

• Correctly prepared to Template 4740.

IMPORTANT

If measurement is incorrect, DO NOT PROCEED

WITH INSTALLATION. Contact door manufacturer.

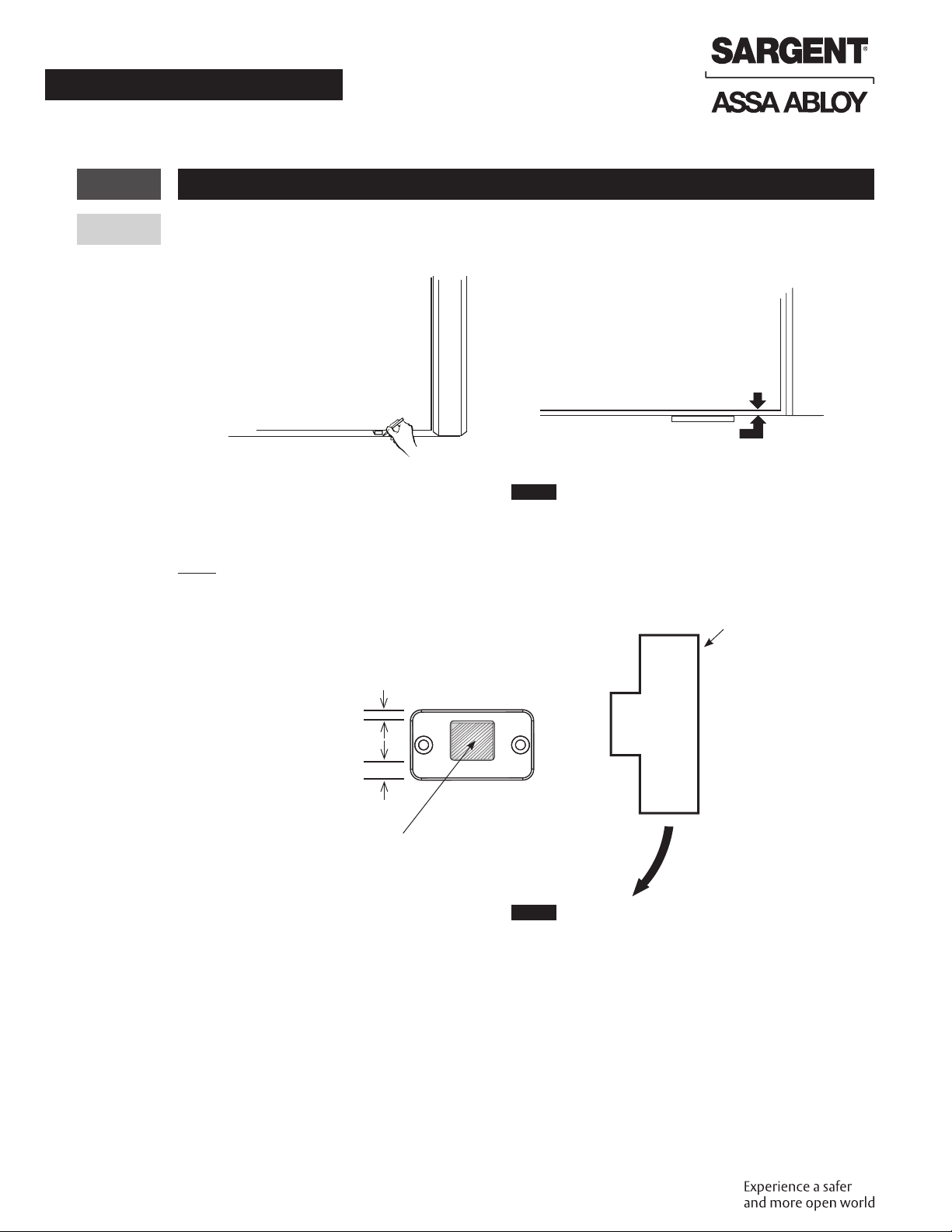

(Figure1)

b Door Installation

Hang the door on the frame.

IMPORTANT

If the door rubs along the floor, do not complete

this installation! Contact door manufacturer.

c Install Top Strike into Door Frame

• Remove plastic strike filler and discard.

Figure1

Door Height

Door Width

of Lockbody

Outswing Door

Shown

± 5/64"

39-9/16"

(101.4 cm)

Figure2

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

d Install Center Strike into Door Frame

• Install two (2) ¼-20 socket cap flat head screws.

(Figure3)

e Remove Retractor Inserts

WARNING

The door now has the ability to latch.

(Figure4)

f Check Latches (uninstalled)

• Insert the uninstalled outside mortise trim and

rotate to verify the top and bottom latches

retract flush with the door. Do not install

mortise trim at this time. (Figure5)

• Move the top strike back and forth until the top latch engages the strike. (Figure6)

Figure3

Figure4

Figure5

TOP OF DOOR FRAME

Figure6

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

g Install Bottom Strike

• Close the door and mark the location of the bottom bolt.

3/8" MAX

Bottom of door

to floor.

✓

Figure7

• Open the door and place the strike over the bottom bolt location. Mark the location of the bottom

strike pocket and hole locations. (Figure7)

Note:

The strike is not symetric. Install as shown. If needed, the strike can later be rotated to increase bolt

clearance. (Figure8)

Door Swing

Jamb

Narrow

Wide

Bottom Strike Pocket

Figure8

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

g Install Bottom Strike (cont.)

Flush Mount (Figure9)

Mortise the strike into the floor 1/4" deep.

(Optional for 3/8" door to floor gap.)

IMPORTANT

Use a vacuum or compressed air to

clear holes ofdebris. (Figure10)

Cross Sectional View

Flush Mount (Figure11)

Surface Mount (Figure12)

Drill two (2) 3/8"

diameter holes

by 2-1/4" deep.

Chisel the bottom strike pocket

1" deep to ensure the bolt has

full projection.

Figure12

IMPORTANT

Use a vacuum or compressed air to

clear holes ofdebris. (Figure13)

Cross Sectional View

Surface Mount (Figure14)

2 1/4"

Figure14

Drill two (2) 3/8"

diameter holes

by 2-1/4" deep.

Chisel the bottom strike

pocket 1" deep to ensure

bolt has full projection.

1/4" D EEP

Figure9

Use the anchor tool

to set anchors.

Figure10

2 1/4

Figure11

Use the anchor tool

to set anchors

Figure13

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

h Top and Bottom Latch Adjustment

• With the door hung, measure the clearance

between the top and bottom bolts and strikes.

(Figure15)

Note:

If both measurements equal 1/16" proceed to Step

3i, otherwise proceed with Step 3h as follows:

• Remove the mortise filler cap and discard.

(Figure16)

• Retract the latches by roting the lever and

opening the door. (Figure17)

Figure17

• Using the supplied 1/8" Allen wrench, loosen

the set screw 1/4 turn maximum. This allows

hex rods to rotate during the latch bolt

adjustment. (Figure18)

Figure15

1/16" Bolt to strike clearance.

TOP OF DOOR

1/16" Bolt to strike clearance.

BOTTOM OF DOOR

Figure16

Note location

of set screws.

Figure18

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

h Top and Bottom Latch Adjustment (cont.)

Using the supplied 3/32" Allen wrench, rotate the top

or bottom worm gears according to the directions

below (Figure19). Bolt to strike clearance should

equal 1/16". This sets the bolt projection. (Figure20)

Note:

Ten (10) turns equals approximately 1/16".

Rotate the top:

counterclockwise to

project the bolt;

clockwise to retract

the bolt.

Rotate the bottom:

counterclockwise to

retract the bolt;

clockwise to project

the bolt.

Note:

Latches have bottomed

if worm gears click.

Tighten set screws. (Figure21)

Figure21

IMPORTANT

Set screws must be fully

tightened after adjustment.

Figure19

TOP OF DOOR

1/16" Bolt to strike clearance.

BOTTOM OF DOOR

Worm Gear

Figure20

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

i Mortise Lock Install

• Remove the two (2) #12-24 x1" flat head

mounting screws. (Figure22)

• Remove the mortise lock filler and discard.

(Figure23)

• Install the mortise lock, two (2) #12-24 x1" flat

head mounting screws, outside front, and two

(2) #8-32 x1/4" flat head screws. (Figure24)

Figure24

Figure22

Mortise Lock Filler

Figure23

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

j Final Mortise Lock and Trim Installation

Follow the supplied mortise lock installation instructions for trim and other function related hardware.

k Electronic Access Control (EAC) Reader and Controller Installation

Follow supplied EAC Installation Instructions (if applicable).

l Deadbolt Label Installation (FM7300 Only)

Install the deadbolt label on the inside of the door. (Figure25)

m Key Override with Deadbolt Function Operation Check

Verify hand and bevel of door to determine direction to rotate key and lever. Stand on outside of locked

door when determining door hand. (Figure26)

Left Hand

Hinges Left.

Open Inward.

(LH)

Right Hand

Hinges Right.

Open Inward.

(RH)

Left Hand

Reverse Bevel

Hinges Left.

Open Outward.

(LHRB)

Right Hand

Reverse Bevel

Hinges Right.

Open Outward.

(RHRB)

Figure26

1. Rotate key to retract latch and hold. (Do not touch lever).

2. Continue holding key, rotate lever with other hand and open door. (Figure27)

Note:

Graphic is for reference only;

it does not represent all

door hand options.

Figure25

Figure27

1 1

RH LH

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

3 Installation (cont.)

n Electronic Access Control (EAC) Shield (if applicable)

• Install the EAC shield (provided) over the inside controller. (Figure28)

• Drill and tap the door for #8-32 machine screws (provided).

IMPORTANT

EAC shield MUST be centered on controller.

4 Optional Installation

a Dogging Indicator Installation

• Ensure the door is latched and all bolts are projected.

• Place the plastic field template on the pin in the top rod through the oval cut-out in the door.

(Figure29)

Figure29

Front View Side View

Note:

Slots face up.

Figure28

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

4 Optional Installation (cont.)

a Dogging Indicator Installation (cont.)

• Using a #7 drill bit, drill two (2) holes completely through the door, making sure

the drill remains square to the face of the door. (Figure30)

Figure30

• Countersink holes on the opposite face of the door

to fit the supplied oval head screws. (Figure31)

Figure31

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

4 Optional Installation (cont.)

a Dogging Indicator Installation (cont.)

Install the indicator on the inside of the door using supplied 10-24 x 2" oval head screws. Make sure the

control fingers grab the top rod pin as shown. (Figure32)

Figure32

Side View

Control Fingers

Check for proper operation. Rotate the lever until the indicator window shows a single latch point.

(Figure33)

Figure33

Single Latch

Point

3-Latch

Points

Indicator

Window

Note:

To dog the top and bottom latches in a retracted state, fully rotate the lever and move the slider on the

indicator to the left.

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

5 Addendum

This addendum is to be used as a reference for pre-installed hardware (latches and cassette). The

following steps are for ease of reference as they have been completed in advance by the door

manufacturer.

a Check Door

Verify the door is:

• Correct size and hand for opening.

• Correctly prepared to Template 4740.

(Figure34)

IMPORTANT

If measurement is incorrect, DO NOT PROCEED

WITH INSTALLATION. Contact door manufacturer.

b Place Door Horizontal on Sawhorse

(Figure35)

Note:

Orient the door face holes on top.

Figure34

of Lockbody

Outswing Door

Shown

± 5/64"

39-9/16"

(101.4 cm)

Door Height

Door Width

Figure35

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

5 Addendum (cont.)

c Install Lockbody Cassette (LBC)

• Using the supplied 3/32" Allen wrench, rotate both

LBC worm gears to align

slots in the LBC gears to the orientation shown.

(Figure36)

Alignment is needed for

proper installation of the

rod guide. (Step 3h)

• Slide the LBC into the door case and secure with

two (2) #12-24x1" flat head screws.

(Figure37)

d Latch Rod Guides

• Rod guides help installation by directing the rod

into location in the LBC within the door cavity.

• Pull rod guides away from latches on both

rods until they stop. (Figure38)

LBC Gear

Worm Gear

Slot

Figure36

Top Edge

Figure37

Before

After

Retainer Clip

Note:

Bolt retainer clips

must remain attached

until step 5g.

Guide

Figure38

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

5 Addendum (cont.)

e Feed Top Rod into Door

• Orient the latch chassis as shown. Rotate the

rod and rod guide so the rod guide tab faces

up. Slide the rod assembly into the door. Make

sure the rod guide remains in the correct

orientation with the guide tab facing up.

(Figure39)

f Align with Lockbody Cassette (LBC)

• When approaching the LBC, slightly elevate the rod and slide the guide tab on outer diameter of the

LBC gear. (Figure40)

Figure40

• To align the hex of rod with the hex of the LBC gear, fit the rod guide tab into the LBC gear slot. Once

aligned, push the rod assembly in until fully seated. (Figure41)

Figure41

Figure39

guide tab

Latch chassis holes

to mate with door

face holes.

Top Edge

LBC

Gear

Rod Guide

Multi-Point Lock

Installation Instructions

FM7300 Series and BL7300 Series

A8220D 10/19

or in part without the express written permission ofSARGENT Manufacturing Company is prohibited.

1-800-727-5477 • www.sargentlock.com

5 Addendum (cont.)

g Troubleshoot Latch Installation

• If the latch will not fully seat in

the door, rod or rod guide is

not aligned properly with

LBC gear. (Figure42)

h Correct Rod Installation Check

• Be certain a portion of the red end of the rod can be seen in the LBC viewing window and set screw is

in the location shown. (Figure43)

Figure42

REPEAT:

Step 6E to align.

REPEAT:

Step 6E to align.

Rod GuideRod Guide

✓

Aligned

Rod Guide

Misaligned

✓

Figure43

Set Screw

Rod

Viewing

Window

✓

✓x x x x

This manual suits for next models

Table of contents

Other Assa Abloy Door Lock manuals

Assa Abloy

Assa Abloy Yale Real Living Assure Lock YRD216 Technical specifications

Assa Abloy

Assa Abloy 332 E91 Series User manual

Assa Abloy

Assa Abloy Yale Pro SL Technical specifications

Assa Abloy

Assa Abloy Emtek Modern Keypad Entryset Operating instructions

Assa Abloy

Assa Abloy Corbin Russwin Access 600 CL33600 TCRNE1... User manual

Assa Abloy

Assa Abloy Corbin Russwin Access 800 Series User manual

Assa Abloy

Assa Abloy Corbin Russwin SE LP10 CL3360 User manual

Assa Abloy

Assa Abloy Yale YMI70A User manual

Assa Abloy

Assa Abloy Sargent 7800 Series User manual

Assa Abloy

Assa Abloy 179E User guide

Assa Abloy

Assa Abloy Yale Assure Lock YRD620 Technical specifications

Assa Abloy

Assa Abloy Lockwood CAVITY LOCK User manual

Assa Abloy

Assa Abloy ML55 PA User manual

Assa Abloy

Assa Abloy SARGENT 5300 Series User manual

Assa Abloy

Assa Abloy Lockwood Standalone Manual

Assa Abloy

Assa Abloy Yale YDME 50 Pro User manual

Assa Abloy

Assa Abloy CYE321 User manual

Assa Abloy

Assa Abloy SARGENT Profile Series User manual

Assa Abloy

Assa Abloy Arrow Revolution U4A-YRHCPZW0 Technical specifications

Assa Abloy

Assa Abloy SARGENT 2828 Series User manual

Assa Abloy

Assa Abloy ZI IKON eCLIQ N109 User manual

Assa Abloy

Assa Abloy SARGENT Profile Series User manual

Assa Abloy

Assa Abloy Yale Assure Technical specifications

Assa Abloy

Assa Abloy HES 9400 Operating instructions

Popular Door Lock manuals by other brands

PERCo

PERCo LB-72.1 Certificate and Operation Manual

Alarm Lock

Alarm Lock Trilogy ET-PDL Sargent 8812 Instructions & template

Philips

Philips EasyKey DDL702 user manual

danalock

danalock V3 SCANDI quick guide

WOOX

WOOX R7056 quick start guide

M&C

M&C DCE43M2M Assembly manual

Cielsa Dawn

Cielsa Dawn E021 Installation and user guide

Samsung

Samsung SHS-2320 user guide

G-U

G-U BKS B-2193 Series installation instructions

Paxton

Paxton PaxLock Pro manual

Simplex

Simplex 3000 Series Assembly instructions

Bauma

Bauma BM600 installation manual

LSDA

LSDA R/V installation instructions

ABH

ABH 6800 installation instructions

WALDIS

WALDIS CAWI SMARTCAM operating instructions

U-tec

U-tec Ultraloq UL3 user guide

PDQ

PDQ KMS pdqSMART Installation instruction

iLoq

iLoq F50S.211.HZ Mounting and care instructions

Assa Abloy SARGENT BL7300 Series User manual

Popular Door Lock manuals by other brands
