Assa Abloy Yale Delayed Egress User manual

Exit Device
Delayed Egress
Attention Installer
Any retrofit or other field modification to a fire rated opening
can potentially impact the fire rating of the opening, and
Yale Locks & Hardware makes no representations or
warranties concerning what such impact may be in any
specific situation. When retrofitting any portion of an
existing fire rated opening, or specifying and installing a new
fire-rated opening, please consult with a code specialist or
local code official (Authority Having Jurisdiction) to ensure
compliance with all applicable codes and ratings.
Installation Instructions
For technical support contact Yale®at 800.438.1951 or [e-mail]
80-9470-0162-000 10/18
An ASSA ABLOY Group brand
Available on the following devices:
Rim
Mortise
SquareBolt®
Concealed Vertical Rod
*Surface Vertical Rod
*Rod Guards Required (made by other manufacturers)
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
WARNING
This product can expose you to lead
which is known to the state of California
to cause cancer and birth defects or other
reproductive harm. For more information
go to www.P65warnings.ca.gov.

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 2
80-9470-0162-000 10/18
Delayed Egress
Installation Instructions
Exit Device
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
1
3
2
4
TOC Table of Contents
Panic and Fire Rated Devices ...................................3
End Cover and P.C. Board Assembly...............................4
Installation of End Cover Assembly to Device ........................5
ElectroLynx Connector System for All Electrical Installation ..............6
Device Mounting ............................................7

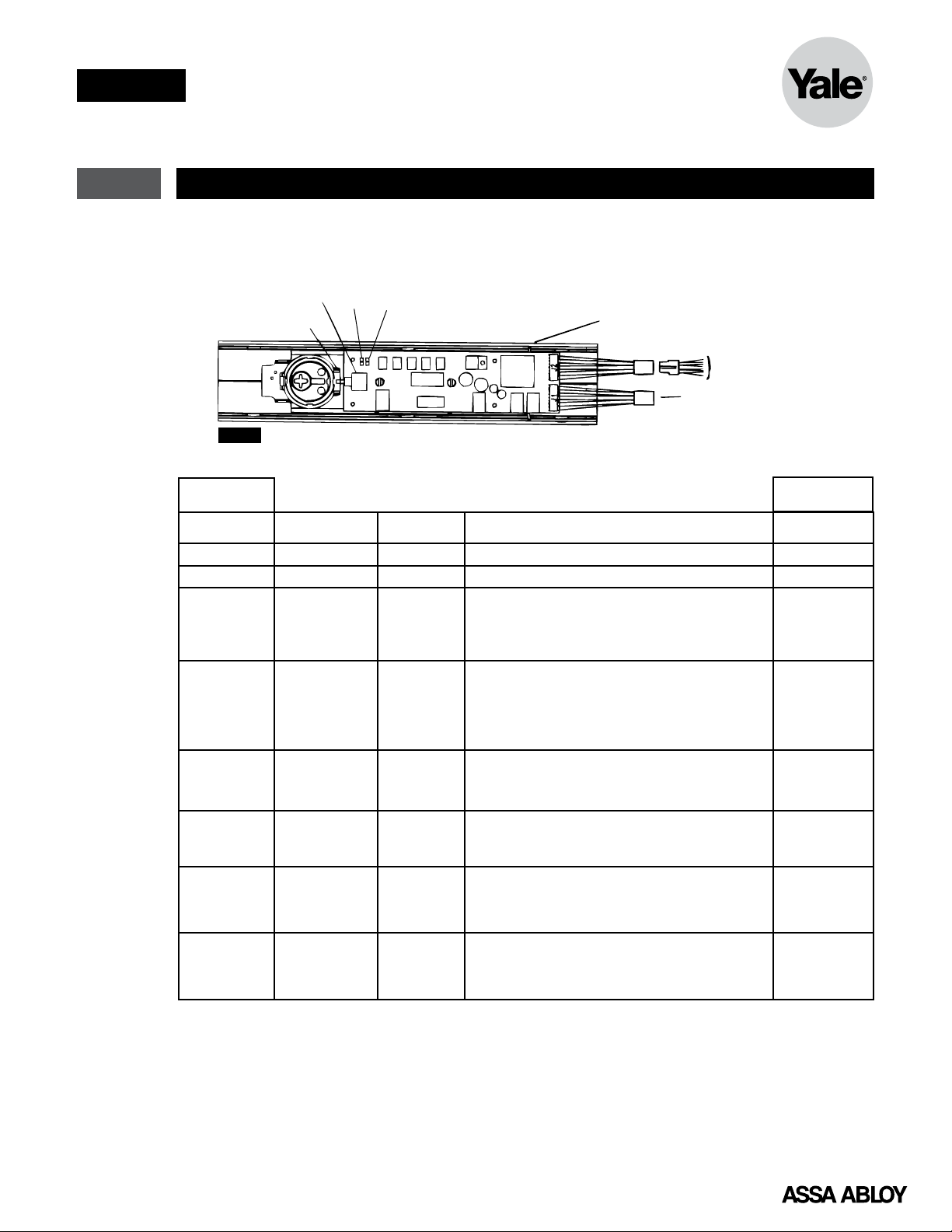

Wiring Layout and Jumper Settings ...............................8

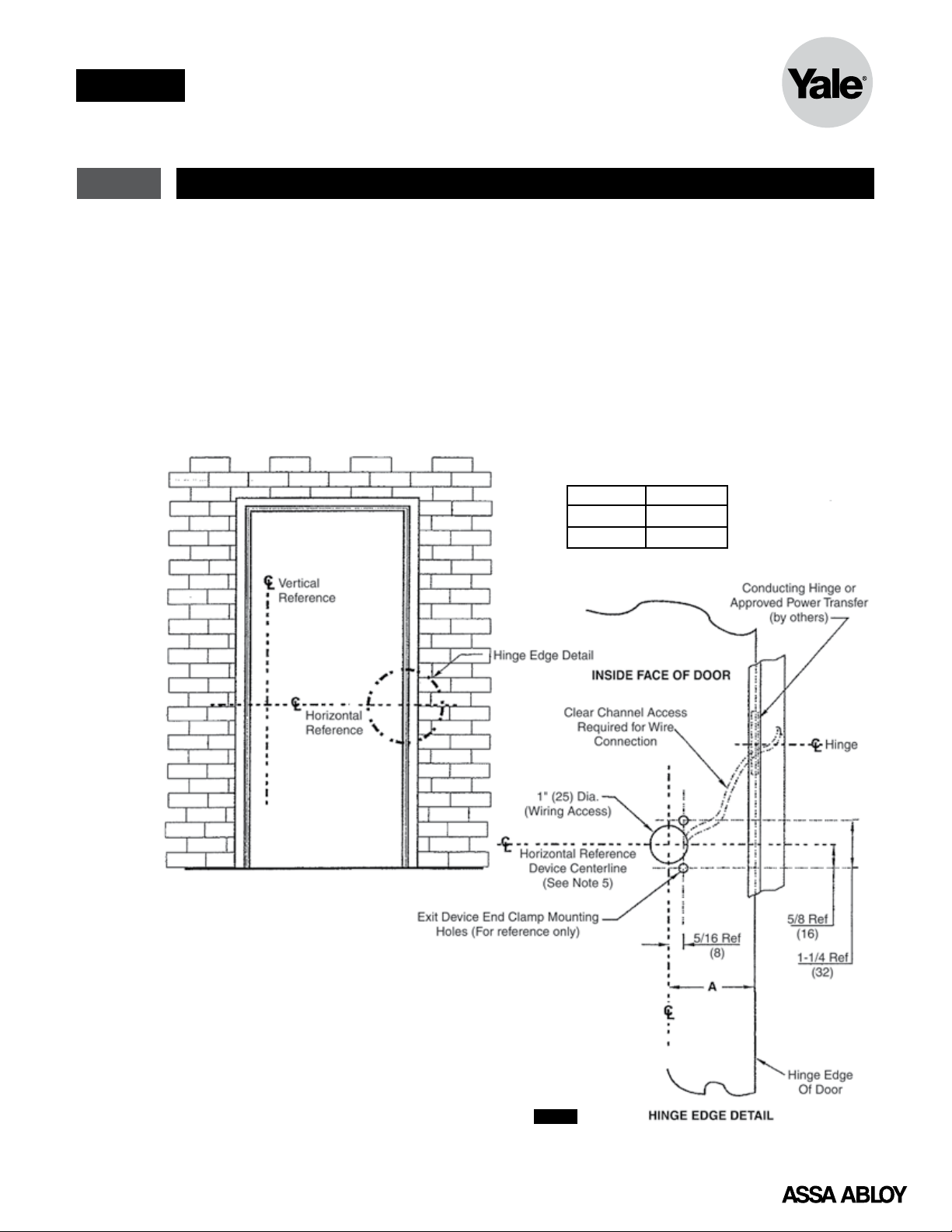

Non-ElectroLynx Door Prep.....................................9

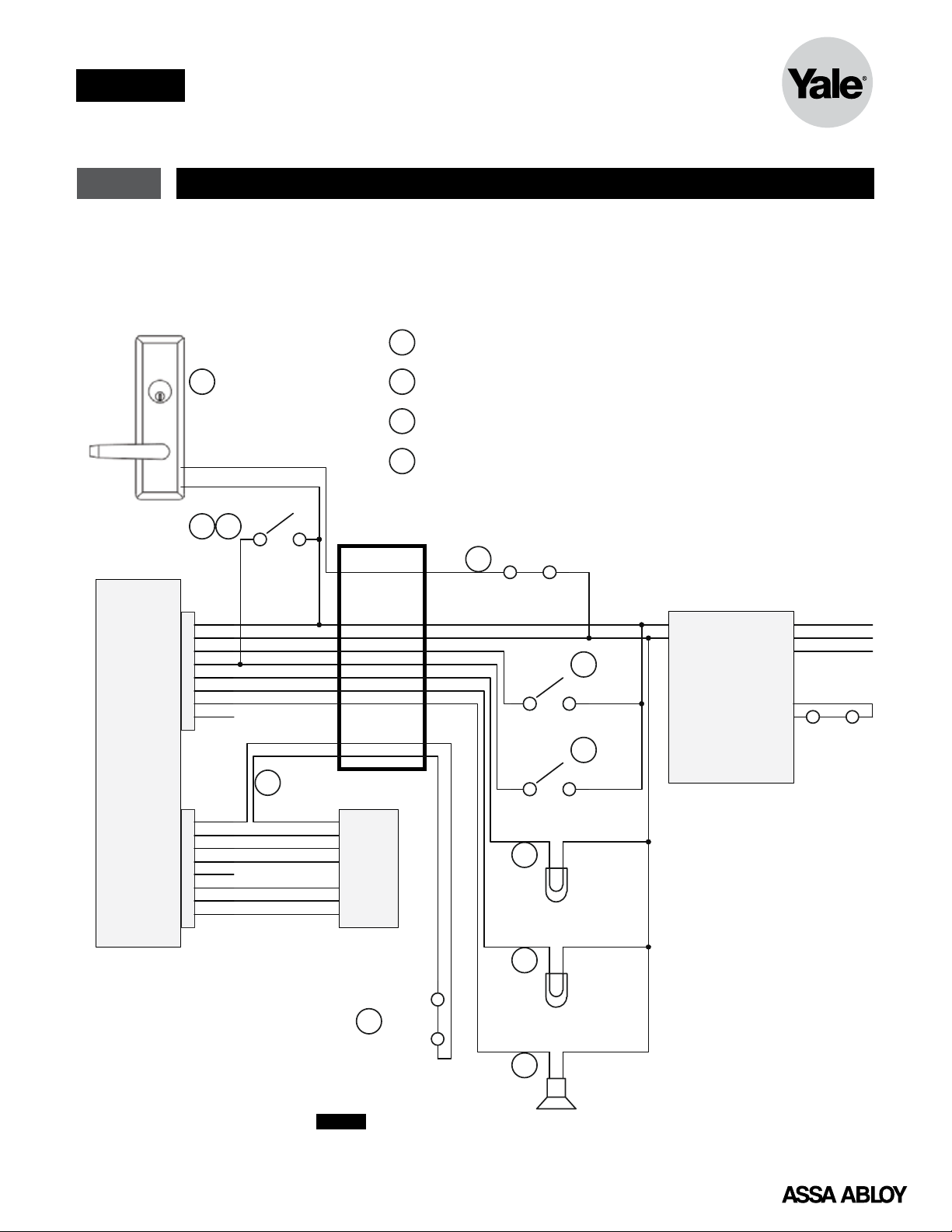

Wiring Diagram - Single Door Exit Only ...........................10
Wiring Options ............................................11
Operating Instructions .......................................12
Additional Options..........................................13
Troubleshooting ...........................................14
5
6
7
8
9
10
11
12

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 3
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

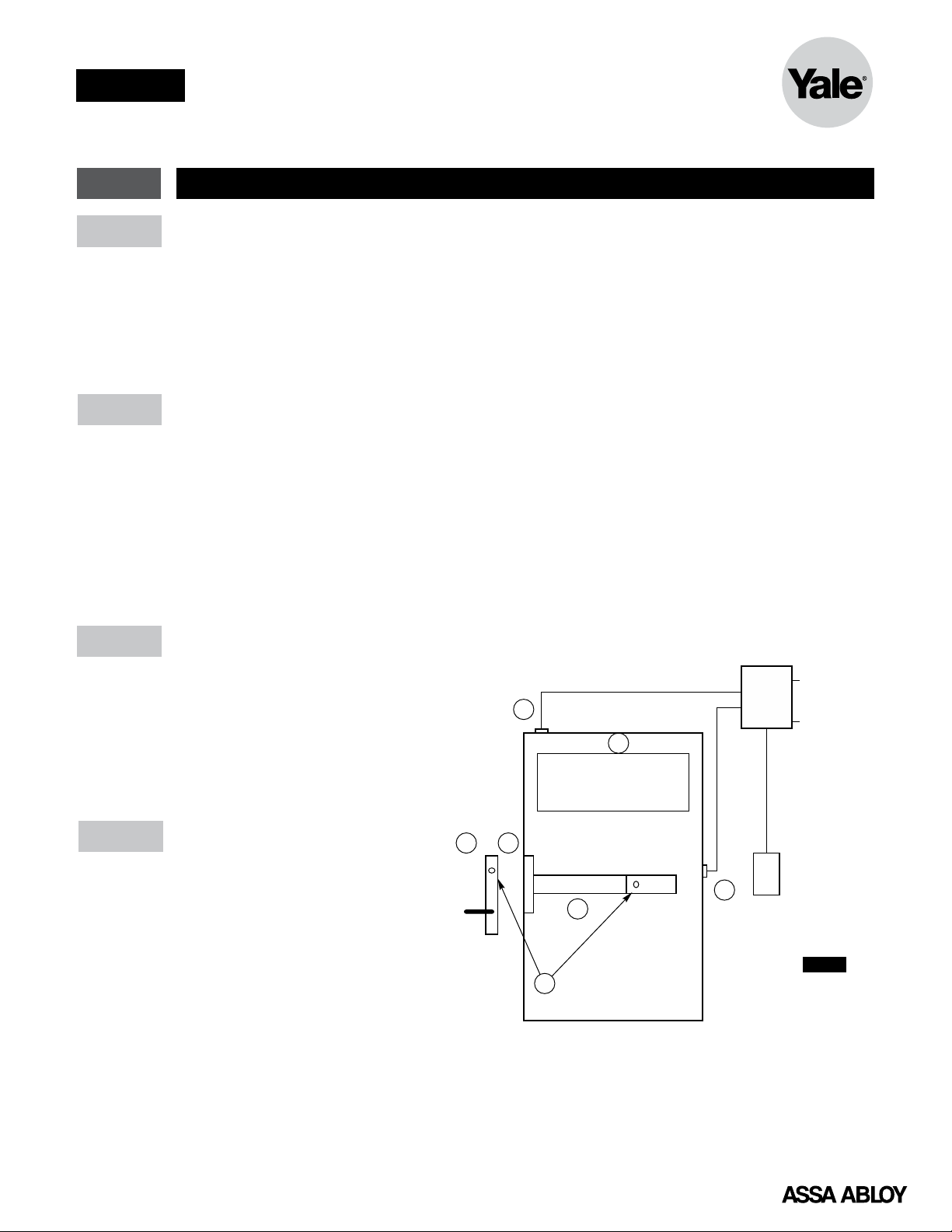

1 Panic and Fire Rated Devices
1. Check device for shipping damage prior to installation and make sure all parts are on hand.
2. Identify options provided with device.
3. Identify model, type and hand of trim if applicable (see exit device and trim instructions for reversing
hands).
4. Contact your hardware supplier if your device is damaged or missing any parts.
A. Checklist
B. Required Components (Numbered list correlates with numbers in Figure 1)
C. Optional Components (Numbered list correlates with numbers in Figure 1)
1. Delayed Egress Exit Device
2. 24VDC UL Listed Regulated and filtered Power Supply with Fire Alarm Interface. (Recommend
Securitron BPS 24-1 or 24-2 (UL294 Listed), depending on your requirements). Power supply is
NOT to be used in UL603 Burglar Alarm System.
3. Power transfer UL or Ulc listed (2-10 wire depending on system)-Securitron (EPT) or equivalent.
4. Sign (MUST BE INSTALLED ON DOOR ABOVE DEVICE).
NOTE: The delayed egress system is to be installed in accordance with NFPA 101.
5. Remote Annunciator
6. Door Position Switch (DPS)
7. Standard Trim
8. Electrified Trim
9. Device and Trim Cylinder
D. Electrical Specifications*
Input Voltage 24VDC (+/-10%)
Wire Size:
18 AWG Min (up to 100')
Signal or Control 22AWG Min
Power Consumption:
Standard Device - 500mA
Device with Security Package - 750 mA
Device with Electric Trim - 1.25 amps
*Follow Local Electrical Codes for Wiring.
NOTE: Components shown do not reflect all possible applications. Consult manufacturer for
special applications.
6.
4.
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
3.
5.
1.
8.
7.
9.
115 VAC
800 mA
60 Hz
Fire
Alarm
Circuit
Req’d
Or
2.
Figure 1

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 4
80-9470-0162-000 10/18
Delayed Egress
Installation Instructions
Exit Device
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
2 End Cover and P.C. Board Assembly
1. Trim device to proper length as required.
36" Exit Device - 1" maximum can be
trimmed
48" Exit Device - 6" maximum can be
trimmed
2. Carefully slide circuit board assembly into end
Cover to ensure indicator light (LED) is not
bent.
3. Insert mortise cylinder into end cover with
keyway horizontal, as shown.
4. Slide arming switch activator over mortise
cylinder so activator legs are on each side of
switch.
Figure 2
5. Insert flange of cylinder nut into arming
switch activator to allow rotation of
activator.
6. Tighten cylinder nut on mortise cylinder and
to secure circuit board assembly.
7. Verify assembly by rotating key counter
clockwise and clockwise. Key should move
freely and arming switch should trip for
both rotation directions. If key does not
rotate freely, verify cylinder nut was placed
in correct orientation. If arming switch does
not trip, activator legs on arming switch
activator can be bent to reduce or increase
rotational travel.
Rear Cover End Cap
1-1/8" (29)
Mortise Cylinder
with Ya le 2160 Ca
m
®
(Order Separately)
1765 Series
Cylinder Collar
(Order separately
when required)
End Cover
Circuit Board Assembly
Indicator Light ()LED
Lens Cover
Arming Switch Activator
Tabs
NOTE:Factory keyed orders will
be shipped assembled.
Cylinder Nut
Activator Legs
1765 Series
Cylinder Collar
1-1/8"
(29)
1-1/2"
(38)
2160 Cam
Dia
.742"
(18.9
mm)
Order Separately
®
NOTE: • Use Ya le®2153 x 2160 cam,
1-1/8" mortise cylinder
• For cylinders over 1-1/8",
use Yale® 1765 Series cylinder ring.
Typical Mortise Cylinder

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 5
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

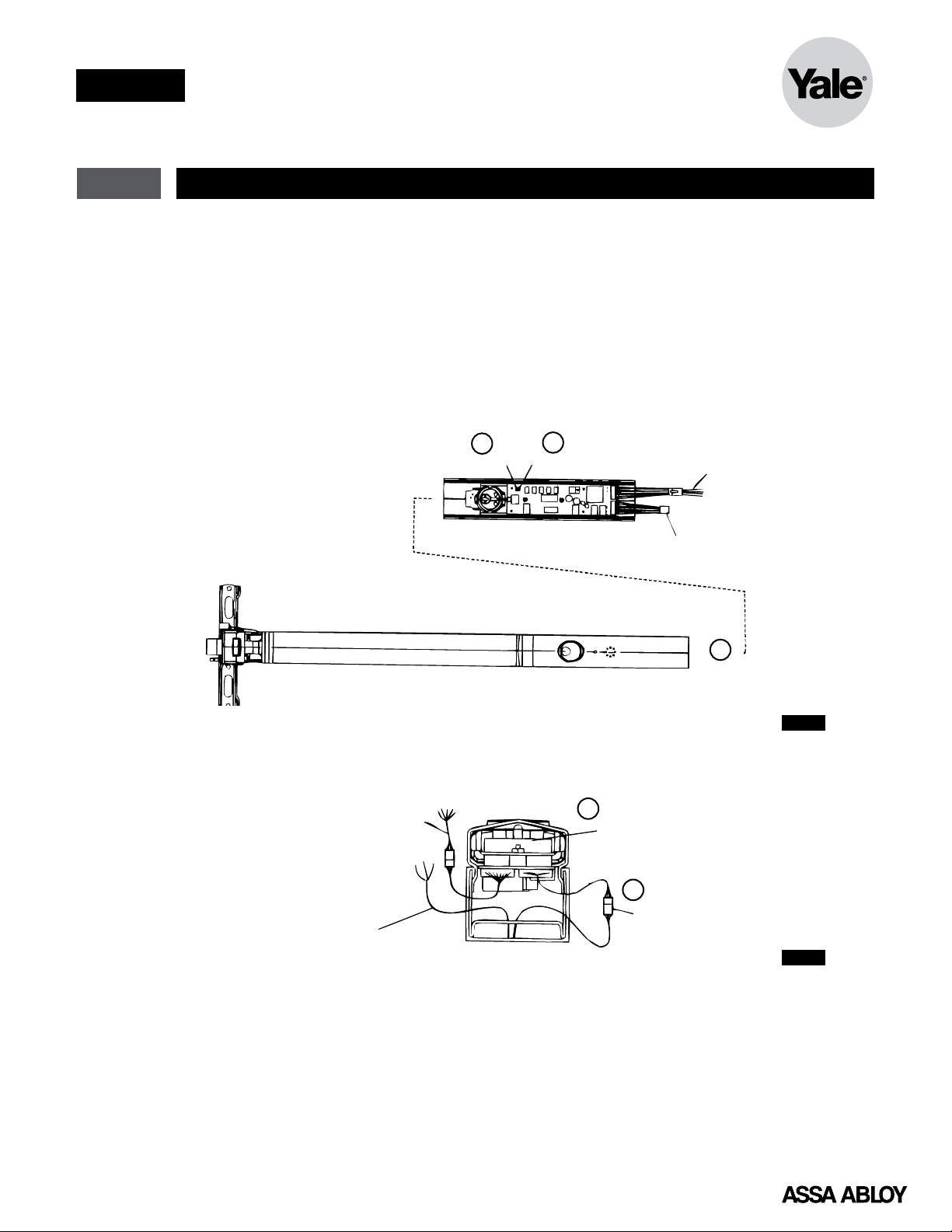

3 Installation of End Cover Assembly to Device
1. (J5) Nuisance Delay (Figure 3)
Jumper on - 3 seconds (Default)
Jumper off - immediate alarm
2. (J8) Reset Delay (Figure 3)
Jumper on - 10 seconds (Default)
Jumper off - 20 seconds
3. Slide end cover assembly into exit device.
(Figure 3) Do NOT pinch or crimp wires!
Figure 3
4. Connect device lock assembly to Connector
J1. (Figure 4)
5. Place wire connectors and excess wire
between end cover and circuit board.
(Figure 4) Check all connections before
proceeding.
J5 J8 Connector J2
To Power Transfer Hinge
Connector J1
Plugs into Device Lock Assembly
End Cover Assembly
Optional Wires
To Power Transfer
Lock Assembly Harness
Exit Device
12
3
Connector J2
To PowerTransfer Hinge
Optional "O", "S" or
Saf
e/Secure wire
(Ref
er to wiring diagram
for wiring)
Place Connector
and ExcessWire
in this Area
J1 Connector
Plugs into Device Lock Assembly
4
5
Figure 4

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 6
80-9470-0162-000 10/18
Delayed Egress
Installation Instructions
Exit Device
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
4 ElectroLynx Connector System for All Electrical Installation
1. Mount exit device per instruction sheet provided.
2. Plug exit device connector into raceway connector in door and feed through 1" (25mm) hole in door.
Install rail mounting end clamp bracket with two (2) screws supplied. Install end cap.
3. Plug raceway connector from edge of door into electric hinge connector and feed feed wires back
through door prep. Mount electric hinge to door.
A. If wiring now, wire frame side wires to wires on pigtail harness on hinge as required by using
connectors allowed by local code. Plug pigtail harness connector into electric hinge connector.
Feed harness through frame prep and mount electric hinge.
B. If wiring later, plug pigtail harness connector into electric hinge connector. Feed harness through
frame prep and mount electric hinge.
NOTE:
1. Wiring to pigtail harness is per facility wiring requirement.
2. For an ElectroLynx system, go to “function” or “monitor” page(s) with your device.
3. Combinations of certain monitors can be used in each device. These instructions detail installation
of each monitor separately.
ElectroLynx Connector System Notes:
System is designed to be installation friendly, with plug connectors from electric hinge through door
to device. The only wiring required is loose wires on pigtail harness assembly on frame side of electric
hinge (included with QC Hinge). Combinations of certain switches and monitors can be used.
The plug and receptacle connectors are designed to mate and lock together. Plug connectors into each
other with locking mechanism aligned. Do NOT force connectors together any other way.

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 7
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

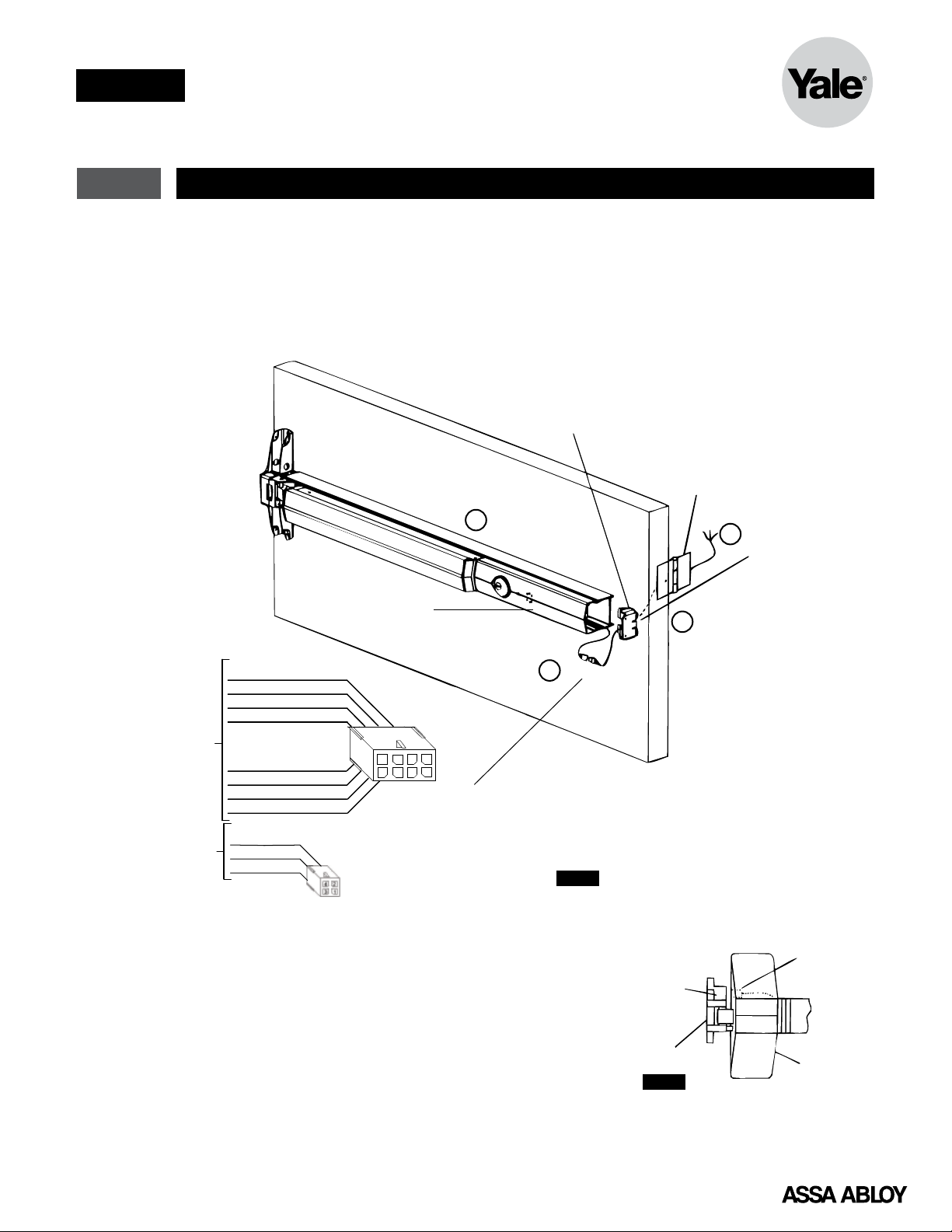

5 Device Mounting
Figure 5
1. For ElectroLynx Hinge Connector System:
Follow Section 4 wiring instructions.
2. For non-ElectroLynx door: Remove connector
at end of exit device and connect to incoming
wires from power source using wire nuts, butt
splices, etc.
NOTE:
• Switch contact rating: 5A @28VDC.
• Wire must be protected from abrasion.
• For use with Class II circuits only.
LHR Installation with O Monitor Shown
End Clamp
PowerTransfer
Hinge
Wire Access
3/4" Dia. hole on sam
e
centerline as device.
Inside face only.
End Cover
Installed
4()TA NNC
3()PNK NO
2(C)GRY
OMonitor
Connections
Pigtail harness
with 4-pin connector
Pigtail harness
with 8-pin connector
1
75
64
3
2
8
2(+)RED
8(Remote )YEL BYP
6(Secure )BLU NO
7(Remote)BRN RES
3(Alarm)WHT NC
5(Secure )ORG NC
1 (-)BLK
4(Alarm)GRN NO
D
Function
Connections
1
2
4
3
Figure 6
Security Package H Strike Magnet Installation
1. Mount strike to frame.
2. Line up magnet to strike.
3. Mark screw hole.
4. For security package, prep hole for one (1)
10-24 machine screw.
NOTE: LHR device magnet position shown. RHR
device will be located on bottom of strike.
Door Position
Switch
Device
Magnet
Strike

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 8
80-9470-0162-000 10/18
Delayed Egress
Installation Instructions
Exit Device
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
6 Wiring Layout and Jumper Settings
Pin Number Input/Output Wire Color Description Pin Number
1 Input Black 24VDC Power Supply (-Circuit Ground) 1
2 Input Red 24VDC Power Supply (+Positive) 2
3 Input Brown
Remote Reset Input - Momentary input from
key switch, pushbutton, etc. Will release device
for 20 seconds for egress or ingress and also
reset device when in bypass or alarmed state.
7
4 Input Yellow
Remote Bypass Input - Momentary input from
key switch, pushbutton, etc. Will maintain device
in an unlocked state for normal device operation.
Device must be rearmed by resetting from
remote reset on device.
8
5Output Orange
Secure Relay Output - Normally closed (NC)
contact that changes to normally open (NO)
when device has released.
5
6 Output Blue
Secure Relay Output - Normally open (NO)
contact that changes to normally closed (NC)
when device has released.
6
7Output Green
Alarm Relay Output - Normally open (NO)
contact that changes to normally closed (NC)
when device alarm cycle has been activated.
4
8Output White
Alarm Relay Output - Normally closed (NC)
contact that changes to normally open (NO)
when device alarm cycle has been activated.
3
J2
Connector
ElectroLynx
Connector
NOTE: • Pins 5-8 are negative (-) outputs. Use with LEDs and audibles (horns, sirens, etc.).
See wiring diagrams for details.
• Cap all unused wires with enclosed wire nuts.
Figure 7
1. (J5) Nuisance Delay (Figure 7)
Jumper on - 3 seconds (Default)
Jumper off - immediate alarm
2. (J8) Reset Delay (Figure 7)
Jumper on - 10 seconds (Default)
Jumper off - 20 seconds
Activating Legs
Arming Switch
Circuit Board
End Cover
J2: To PowerTransfer
J1: To Device Connections
J5 J8

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 9
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
7 Non-ElectroLynx Door Prep
Figure 8
NOTE:
1. Do not scale drawing.
2. Dimensions are in inches (mm).
3. LHR H.M. opening shown. Details are
typical for all opening materials (both
hands).
4. This preparation is an addition to
preparation shown on device template.
5. See device template to locate
centerline of device template.
6. Shields for wring access
recommended for insulated and
composite doors.
7. Locate and prepare wiring access
holes when installing device.
Exit Device
7100 Series
7200 Series
Dim. A
2-5/16 (59)
1-11/16 (43)

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 10
80-9470-0162-000 10/18
Delayed Egress
Installation Instructions
Exit Device
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

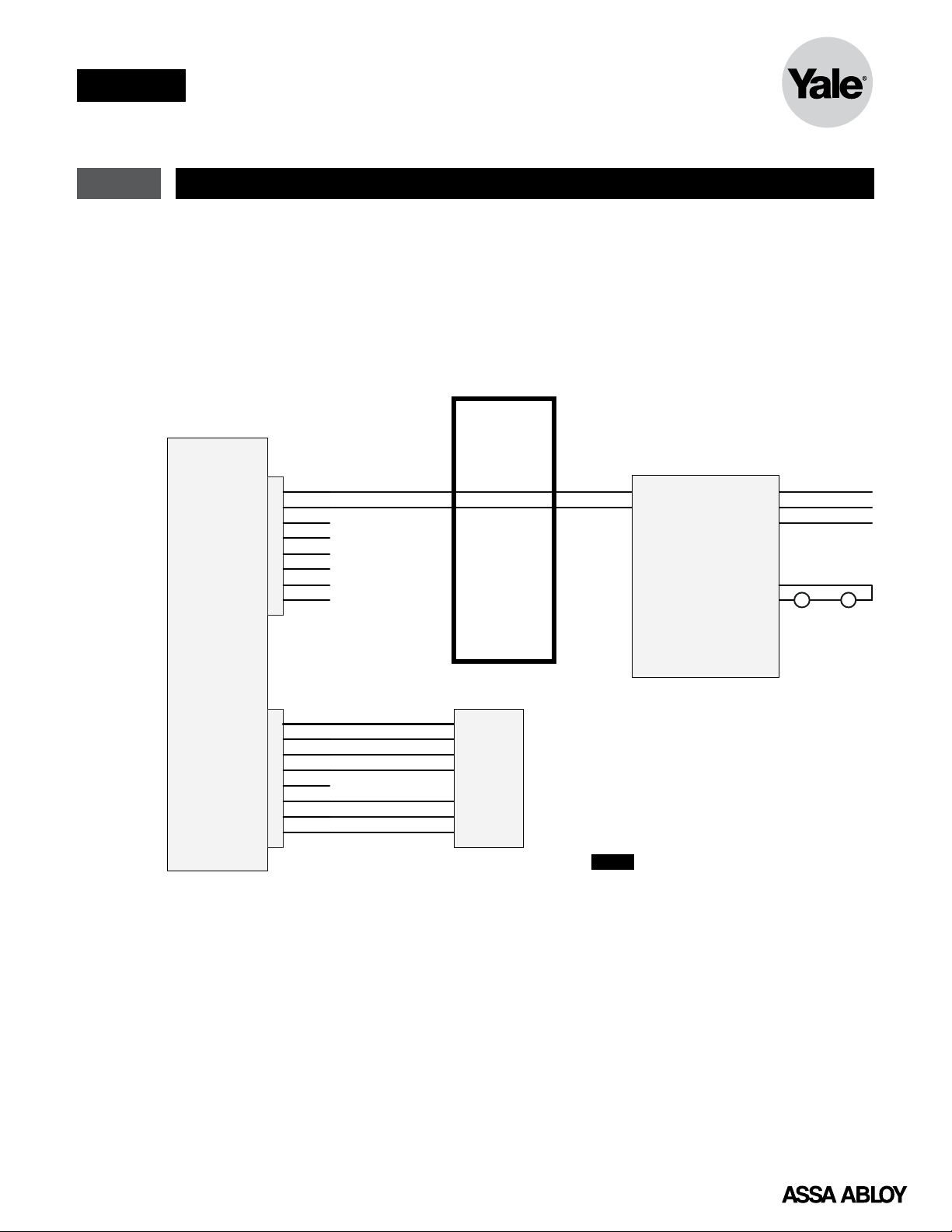

8 Wiring Diagram - Single Door Exit Only
Operation Monitoring
Red LED indicates device is armed and secure.
Activating device will sound horn. Green LED will
illuminate after 15 seconds. Device will release for
exit (unsecure).
Figure 9
CNC
FIRE ALARM
Delayed
Egress
Device
GND (-)
24V(+)
ALRN/C WHT
ALRN/O GRN
SECN/O BLU
SECN/C ORN
BYPASS YEL
RESETBRN
24V(+) RED
GND (-)BLK
Connector2
GND (-)BLK
DPS BLU
POWER(+) RED
NC NC
LOCK WHT RED/
LOCK WHT
TRIGGER SW YELWHT/
TRIGGER SW YEL
Connector1 ConnectorJ1
Wire Transfer
Hinge
SECURITRONBPS
POWERSUPPLY
24V(+)
GND(-)
NEUTRAL
EARTH
ALARM
ALARM
120 VAC

For technical support contact Yale®at 800.438.1951 or [e-mail]
An ASSA ABLOY Group brand 11
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
RED(24VDC)
GREEN(24VDC)
HORN (24V DC)
REMOTE RESET
REMOTE BYPASS
SECN/C
SECN/O
ALRN/O
BYPASS
GND(-)
24V(+)
24V(+)
GND (-)
CNC
FIRE ALARMTRIGGER SW
Delayed
Egress
Device
TRIGGER SW
RESET
BYPASS
SECN/C
SECN/O
ALRN/O
TRIGGER SW
GND (-)
24V(+)
1
24V(+)
WHITE(+)
WHITE(-)
24V(+)Electrified
RELAY
DPS "H"
ELECTRIFIED TRIM
SAF OR SEC
1
2
3
3
3
4
4
4
4
4
1
2
3
4
ELECTRICTRIMCONTROL
MECHANICALTRIMENTRY WITH SECURITY PACKAGE
MECHANICALTRIMENTRY WITH EXTERNALDOOR POSITIONSWITCH
SINGLE DOOR WITH REMOTE INPUTS ANDMONITORINGOUTPUTS
Foradded security cutthe YELLOWwireonCONNECTOR J1 andattach it
ALRN/C WHT
ALRN/O GRN
SECN/O BLU
SECN/C ORN
BYPASS YEL
RESETBRN
24V(+) RED
GND (-)BLK
Connector2
GND (-)BLK
DPS BLU
POWER(+) RED
NC NC
LOCK WHT/RED
LOCK WHT
TRIGGER SW YEL/WHT
TRIGGER SW YEL
Connector1
GND(-)
ConnectorJ1
Trim (+)
DelayedEgress
CircuitBoard
Wire Transfer
Hinge
SECURITRON BPS
POWERSUPPLY
24V(+)
GND(-)
NEUTRAL
EARTH
ALARM
ALARM
CARD READER
RI MAND SQUAREBOLT
FAIL SAFE (SAF) OR FAIL SECURE (SEC)
to theDPS switch. The DPS will be in series with the trigger input.
C
NC
NO
CNO
CNC
CNO
C
120VAC
Lorem ipsum
9 Wiring Options
Figure 10
Operation
Security Package is used to activate alarm when
door has been forced open. It also prevents
device from being armed when door is propped
open.
When activated, “O” trim monitor switch will
bypass unit and allow entry.
Unit must be manually reset for rearming.

For technical support contact Yale®at 800.438.1951 or [email protected]
An ASSA ABLOY Group brand 12
80-9470-0162-000 10/18
Delayed Egress
Installation Instructions
Exit Device
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
10 Operating Instructions
Figure 11
There are three (3) modes of operation:
• Delayed Egress
• Momentary Egress
• Bypass (Maintained) Egress
Delayed Egress Mode
1. Apply power to device.
2. Solid red LED will illuminate.
3. Device is now armed, which will not allow touchpad to retract latchbolt for immediate egress.
4. If device is not functioning, refer to Troubleshooting Guide.
Momentary Egress Mode (Figure 16)
1. With device armed, rotate key counter clockwise and return to center position (remove key).
2. Red LED will flash quickly. Device will release for momentary egress for 10 seconds (factory set).
This can be set to 20 seconds by removing J8 jumper.
3. After 10 (or 20) seconds has elapsed, device will rearm itself.
4. Device will now be back in delayed egress mode.
Bypass (Maintained) Egress Mode (Figure 16)
1. Rotate key clockwise, return key to center position and remove.
2. Red LED will flash slowly.
3. Device is disarmed, acting as a standard exit device which allows free egress.
Resetting device from Bypass Mode to Delayed Egress Mode (Figure 16)
1. Rotate key counter clockwise, return to center position and remove.
2. Solid red LED will illuminate.
3. Device will be in delayed egress mode.
Delayed Egress Operation When Armed
Exit door is normally closed and latched. Delayed Egress device secures door in locked mode with solid
red LED indicating locked mode status. Depressing pushpad for two (2) seconds or less will sound
device nuisance beep without initiating alarm. Depressing pushpad longer than three (3) seconds will
initiate an irreversible local audible beeping tone and a visual amber indicator. After delay time (15 or
30 seconds) releases LED changes to green and siren changes to a steady tone which continues to
alarm until reset. Remote monitoring contact outputs can be used to alert security personnel. Person
depressing exit bar is denied egress for 15 or 30 seconds (depending upon setup) and security
personnel are alerted.
NOTE: For 30 second delay and auto rest, BOCA option is required. Consult authority having
jurisdiction for local code requirements.
Momentary/
Reset
Bypass/
Maintained
LHR
Sho
wn

For technical support contact Yale®at 800.438.1951 or [email protected]
An ASSA ABLOY Group brand 13
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

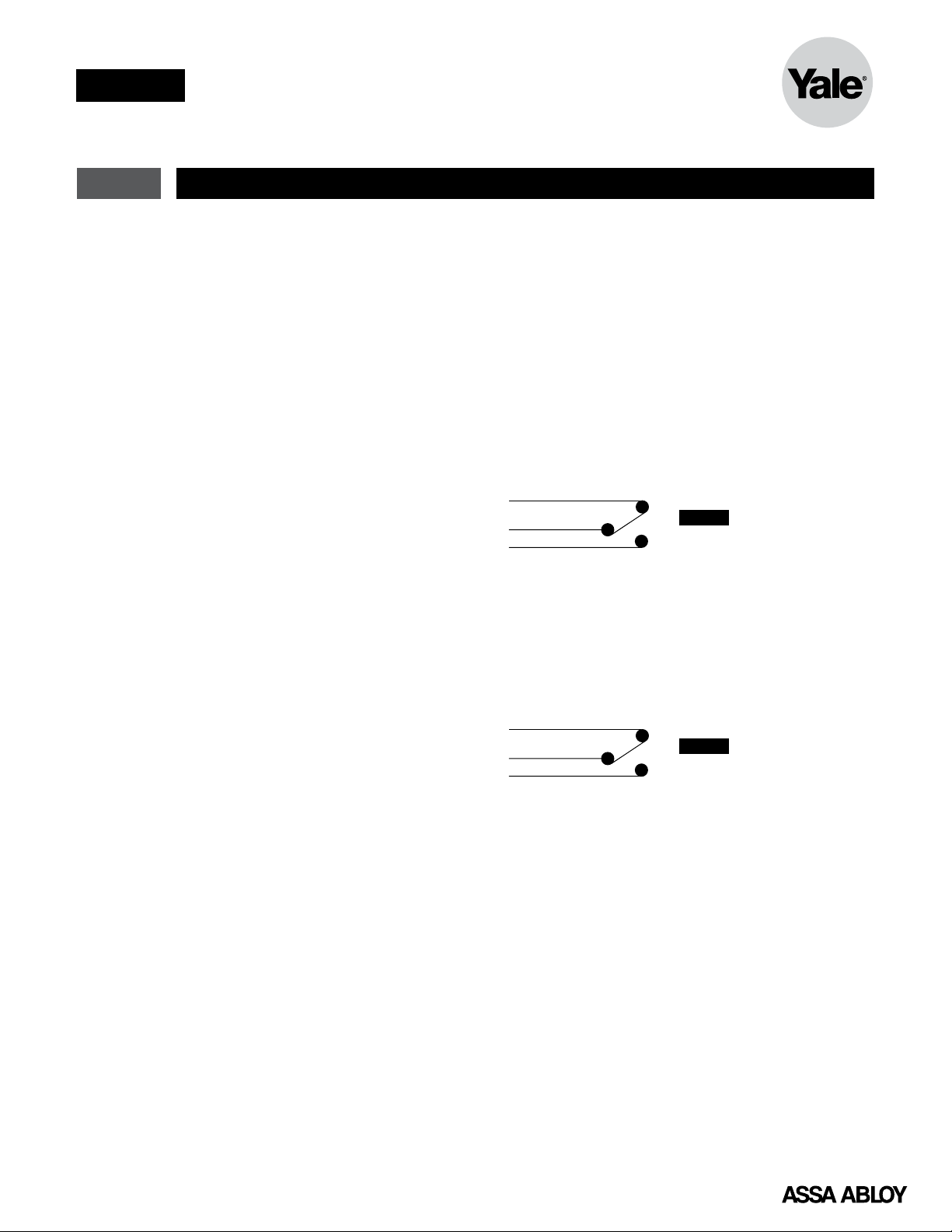

11 Additional Options
Security Package (7100 Rim and SquareBolt only)
H Suffix
Includes a door position switch in active case head assembly. Device cannot be armed until door is both
closed and latched. Alarm relay will activate if device is tampered with or door is forced open.
Electric Trim (Mortise Device) Safe/Secure
Delayed Egress Exit Device is available with Fail Safe (SAF) or Fail Secure (SEC) outside trim operation.
In a fire condition, SAF trim will release for entry. When Access control is used, SEC trim allows entry by
means of a remote card reader, keyswitch, pushbutton, etc.
NOTE: If a Door Position Switch is not used, trim will open door without affecting device in an
armed condition (refer to wiring diagrams for wiring).
Outside Trim Monitor Switch
O Suffix
This option is used when outside trim is desired to be used with security package or an external Door
Position Switch (made by other manufacturers). This switch will allow bypass (disarm device) when trim
is used for ingress. Device will need to be reset upon entry by means of keyswitch on device or a remote
Single Pole Double Throw (SPDT) switch. Refer to wiring diagrams for wiring.
NOTE: If security package or an external DPS is not used, Standard trim and Safe/Secure trim
will allow entry without affecting device in an armed mode. Device will only be affected when
pushpad is depressed.
Latchbolt Monitor Switch
S Suffix
Latchbolt monitor switch is a SPDT switch that monitors security of latchbolt or vertical rods.
BOCA Option
C Suffix
Allows device to release after 30 seconds whenever a force is applied to pushpad. Device will provide
visible and audible indication that delayed egress cycle has been activated. After device has been
released, device will automatically re-lock and rearm after door has been opened (factory programmed).
Orange
White
Green
NC
NO
C
Ta n
Gray
Pink
NC
NO
CFigure 12
Figure 13

For technical support contact Yale®at 800.438.1951 or [email protected]
An ASSA ABLOY Group brand 14
80-9470-0162-000 10/18
Delayed Egress
Installation Instructions
Exit Device
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
12 Troubleshooting
Problem Solution
Power is applied, but unit will not arm.
(No red LED)
• Check all connections on circuit board and wire harness.
• Check for power 24VDC at power inputs (-black) and (+red) and
check polarity.
• Check wire transfer for any bad connections or broken wires.
• Check power output at power supply.
• Must be 24VDC regulated.
Device alarms continuously when
power is applied.
Rim and SquareBolt - Units with
Security Package
CVR or Mortise - Units with Door
Position Switch
• Check trigger mechanism wire harness on circuit board and all
other connections.
• Check pushpad activating switch in device.
• Make sure strike magnet is installed and aligned. Check by
removing device latchcase cover, close door and align magnet until
unit arms.
• Make sure DPS is wired (normally closed - with doors closed) into
trigger wire harness. Make sure DPS is working properly by using a
meter to check continuity when door is opened and closed.
Device allows mechanical latchbolt
retraction with power applied and LED
shows armed.
• Check for correct power, 24VDC regulated.
• Check for correct amperage on power supply (must be rated equal
or greater than device, 500mA minimum).
Exit device latchbolt/rods will not latch
properly.
• Refer to standard exit device installation instructions
troubleshooting guide.
NOTE: If device is not working properly after troubleshooting, contact your local hardware
distributor or local Yale representative, or contact Yale.

For technical support contact Yale®at 800.438.1951 or [email protected]
An ASSA ABLOY Group brand 15
80-9470-0162-000 10/18
Delayed Egress
Exit Device
Installation Instructions
Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written
permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
NOTES:

Yale®Commercial is a business associated with ASSA ABLOY Access and Egress Hardware Group, Inc.,
an ASSA ABLOY Group company. Copyright © 2018, ASSA ABLOY Access and Egress Hardware Group, Inc.
All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY
Access and Egress Hardware Group, Inc. is prohibited.
For technical support contact Yale®at 800.438.1951 or [email protected]
80-9470-0162-000 10/18
An ASSA ABLOY Group brand
Yale Locks & Hardware
Product Support Tel [phone] • www.yalelocks.com
