ATEQ F5800 Instruction manual

QUICK START MANUAL
ATEQ F5800
(Photo no contractual)
Reference: MR-F5800C-U

REVISIONS OF THE ATEQ F5800 USER MANUAL
Due to continuing improvements, the information contained in this user manual, the features and design of
this device are subject to be changed without prior notice.
Edition/Revision Reference Date
Week/Year Chapters up dating
First edition MR-F5800A-U 04/2011 -----
Second edition MR-F5800B-U 05/2012 Up-dating the connectors in the
"Installation" chapter.
Third edition MR-F5800C-U 46/2015 Remove RS485 connection (never
exists).

SAV-Uc/0650
ATEQ, THE ASSURANCE OF A COMPETENT AFTER SALES
SERVICE
THE ATEQ AFTER SALES SERVICE IS :
•a team of qualified technicians,
•a permanent telephone assistance,
•agencies close to you for faster reaction,
•a stock of spare parts available immediately,
•a car fleet for rapid intervention,
•a commitment to quality ...
THE OVERHAUL
ATEQ carries out the overhaul of your instruments at interesting prices.
The overhaul corresponds to the maintenance of the instrument (checking, cleaning, replacing of used
parts) as part of preventive maintenance.
Preventive maintenance is the best way to guarantee reliability and efficiency. It allows the
maintenance of a group of instruments in good operational order and prevent eventual break-downs.
MAINTENANCE KITS
The ATEQ After Sales Service proposes, two kits destined for the preventive maintenance of the
pneumatic circuits of instruments.
CALIBRATION
This may be carried out on site or in our offices.
ATEQ is attached to the COFRAC and delivers a certificate following a calibration.
TRAINING COURSES
In the framework of partnership with our customers, ATEQ offers two types of training in order to
optimise the usage and knowledge of our instruments. They are aimed at different levels of technician:
•method / control training,
•maintenance / upkeep training.
A TARGETED TECHNICAL DOCUMENTATION
A number of technical documents are at your disposal to allow you to intervene rapidly in the event
minor breakdowns:
•problem sheets describing and offering solutions to the main pneumatic and electronic
problems,
•several maintenance manuals.
A QUALITY GUARANTEE
The instruments are guaranteed for parts and labour in our offices:
•2 years for leak detection equipment,
•1 year for electrical tests to norms instruments,
•1 year for the accessories.
Our After Sales Service is capable of rapidly answering all your needs and queries.
We strongly recommend to send the instrument
back to ATEQ once a year for re-calibration

0650/PREFd-U
PREFACE
Dear Customer,
You have just purchased an ATEQ instrument, we thank you for the trust you have
placed on our brand. This instrument has been designed to ensure a long and
unparalleled life expectancy, and we are convinced that it will give you complete
satisfaction during many long years of operation.
In order to maximise the life expectancy and reliability of your ATEQ instrument, we
recommend that you install this instrument on a secured workbench and advise you to
consult this manual in order to familiarise yourself with the functions and capabilities of
the instrument.
Our ATEQ After Sales Service centre can give you recommendations based on your
specific operation requirements.
ATEQ

Quick start manual - F5800
MR-F5800C-U Quick start manual ATEQ F5800 Page 1/17
Quick start manual
TABLE OF CONTENTS
TABLE OF CONTENTS..................................................................................................1
PREAMBLE ....................................................................................................................2
1. DEFINITION OF THE ATEQ F5800 ....................................................................................................2
2. MEASUREMENT CHARACTERISTICS..............................................................................................2
3. THE MAIN TYPES OF MEASUREMENT............................................................................................3
4. THE THREE TYPES OF TEST............................................................................................................3
5. MEASUREMENT CYCLE....................................................................................................................3
INSTALLATION..............................................................................................................4

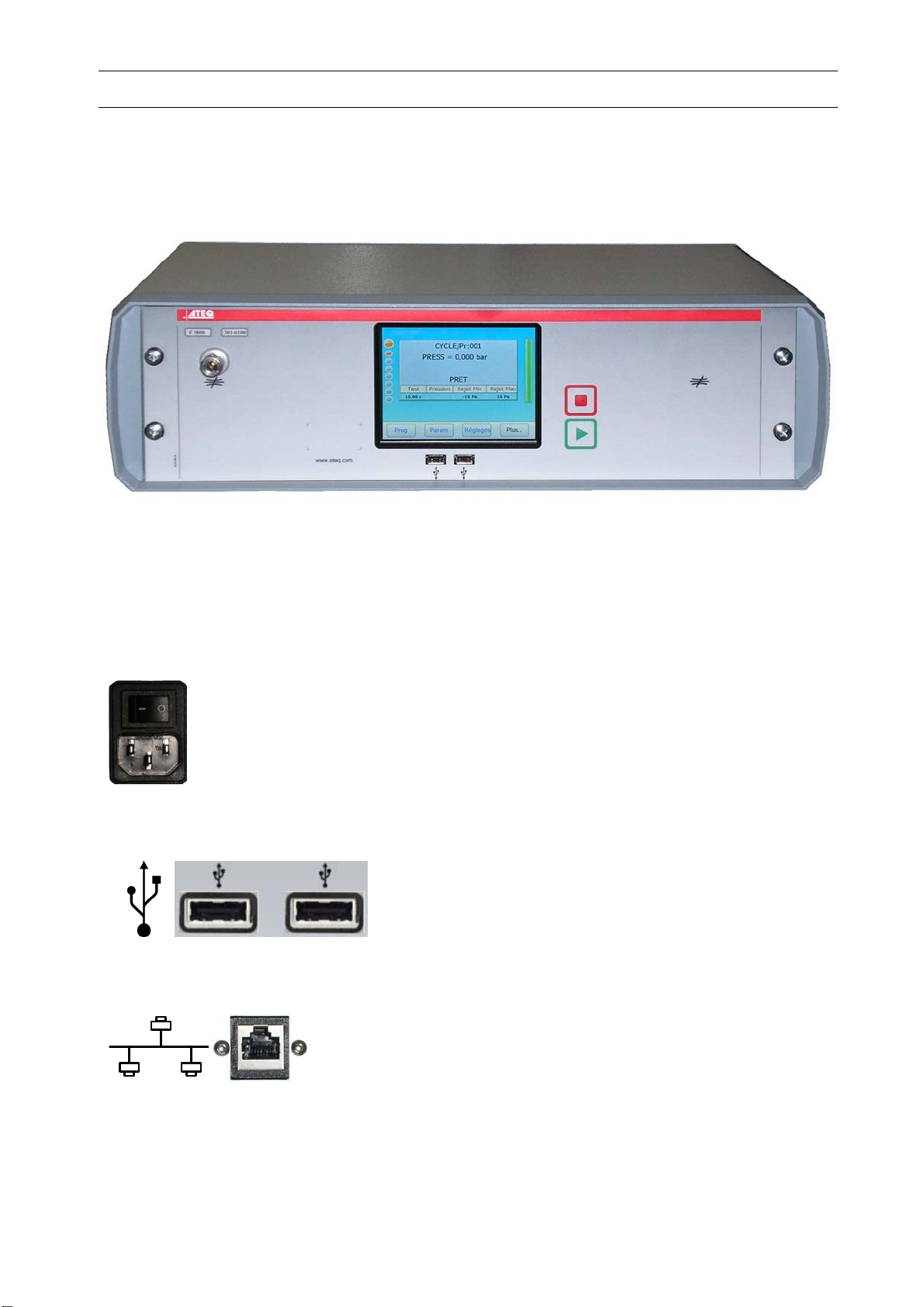

1. APPEARANCE OF THE ATEQ F5800................................................................................................4

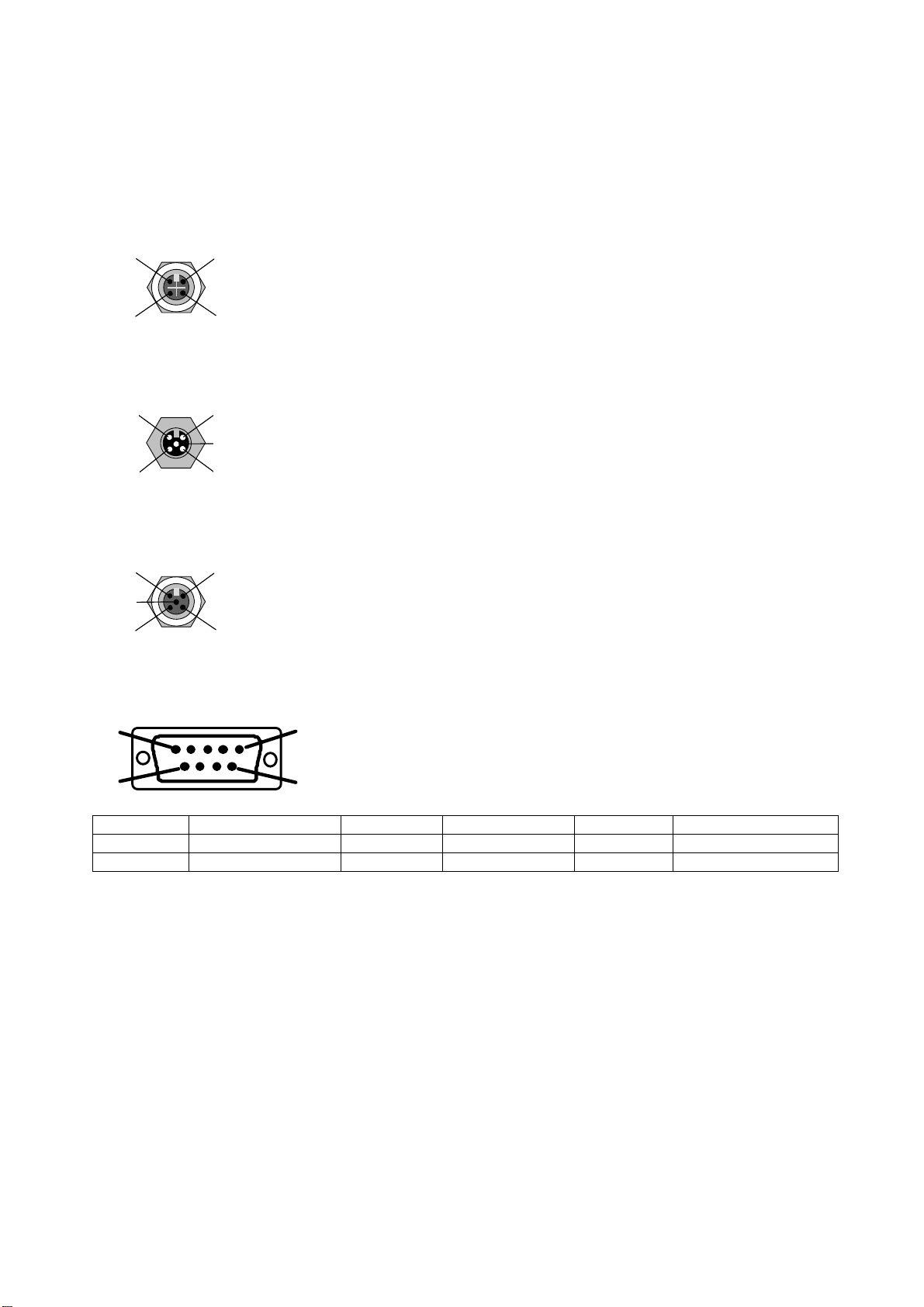

2. ELECTRICS CONNECTORS ..............................................................................................................4

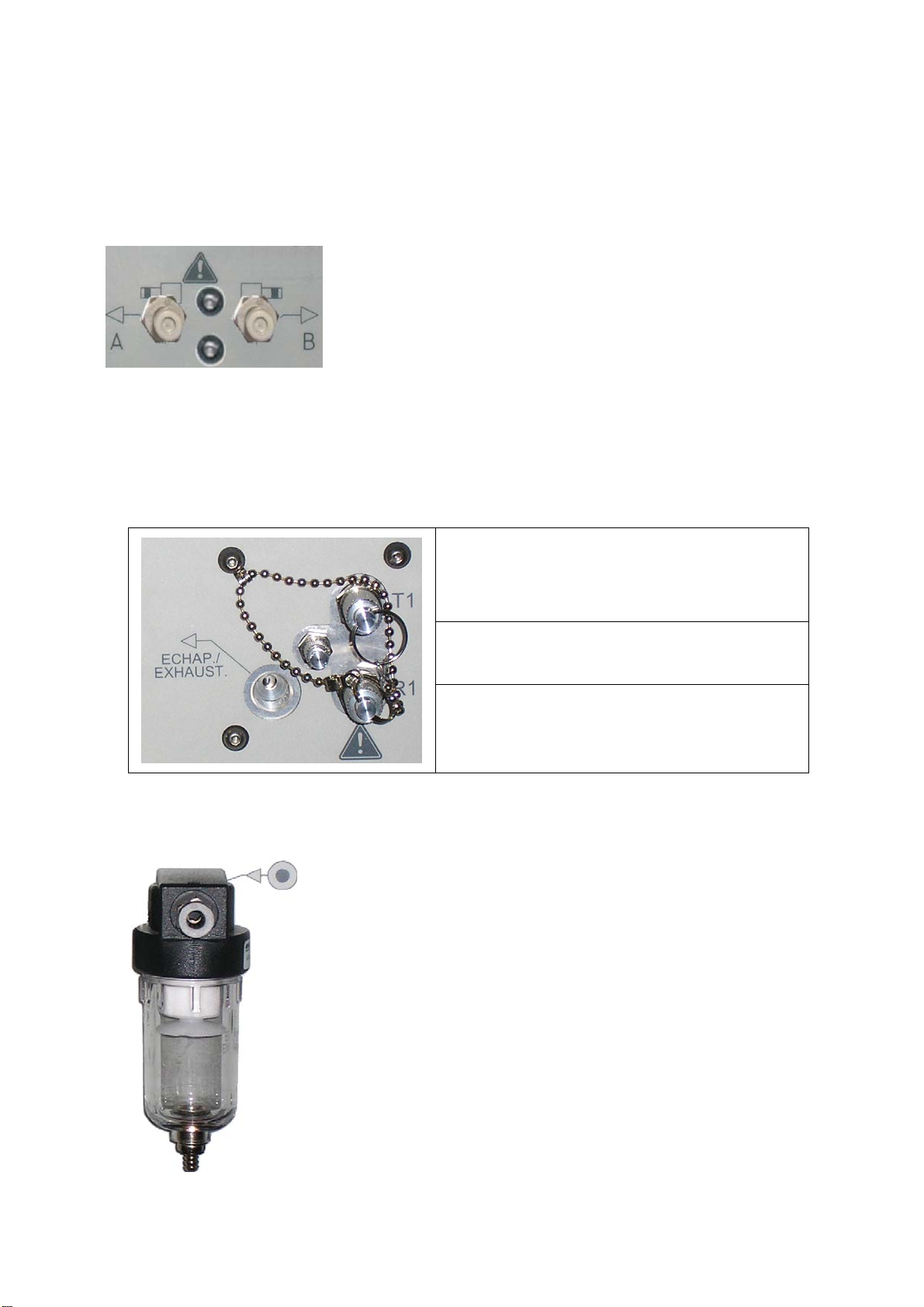

3. PNEUMATICS CONNECTORS...........................................................................................................7
4. PNEUMATIC SUPPLY.........................................................................................................................7
USER INTERFACES.......................................................................................................8

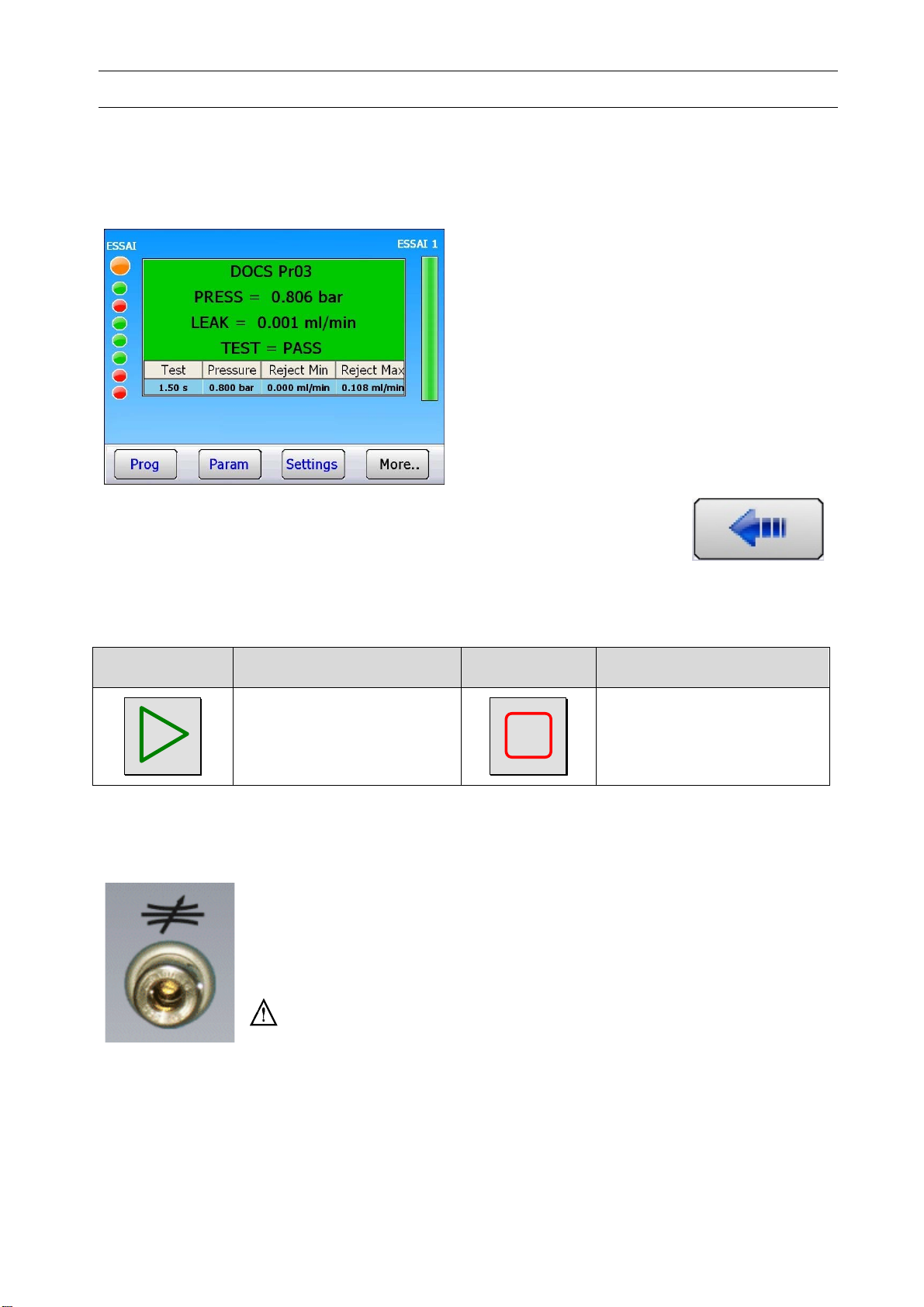

1. LCD DISPLAY AND NAVIGATION.....................................................................................................8
2. CYCLE KEYS ......................................................................................................................................8
3. QUICK CONNECTORS.......................................................................................................................8
STARTING UP AND ADJUSTMENTS............................................................................9

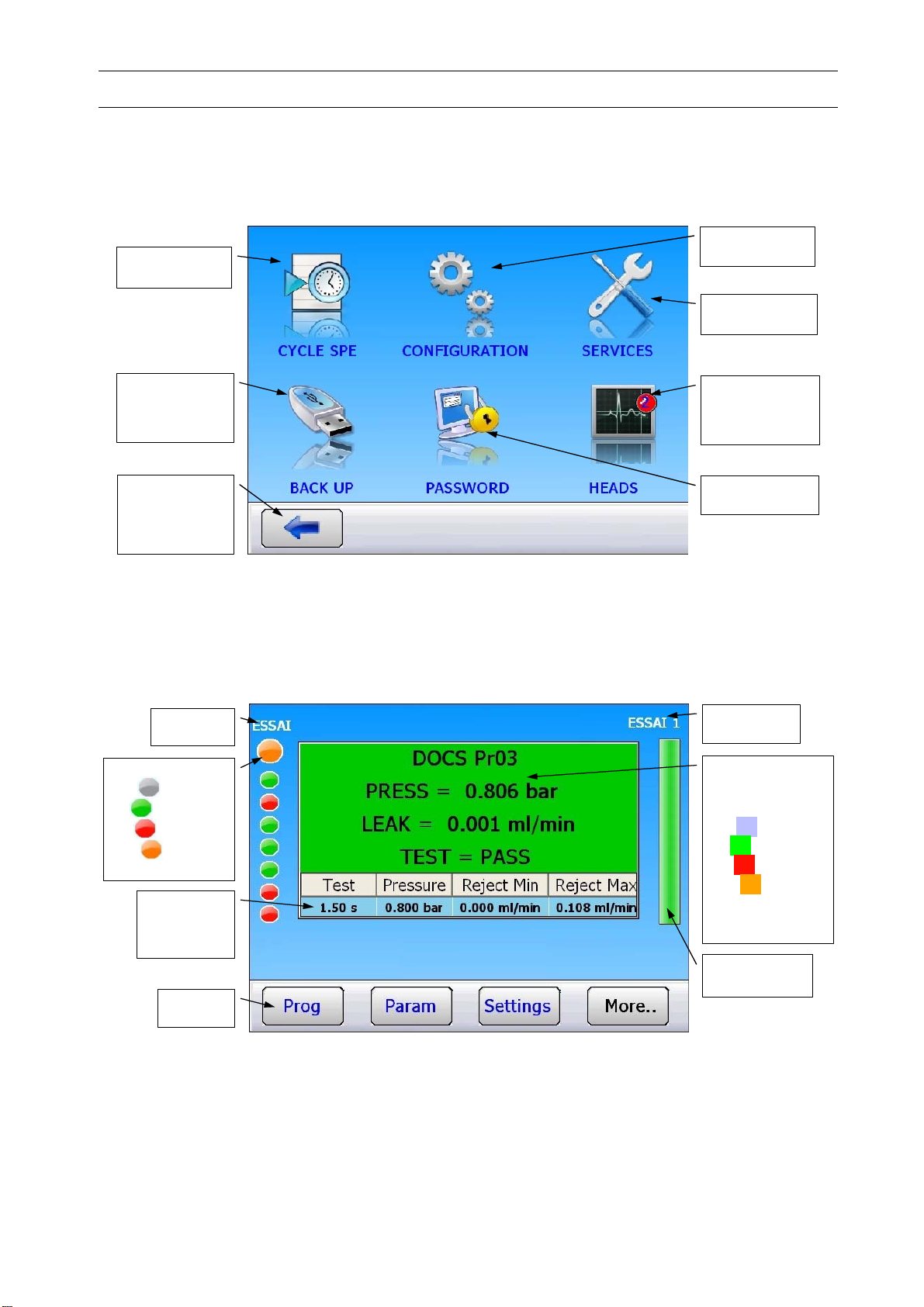

1. MAIN MENU.........................................................................................................................................9
2. TEST MENU.........................................................................................................................................9
3. TEST TYPE........................................................................................................................................10
4. PROGRAMS MANAGEMENT...........................................................................................................10
5. PARAMETERS ..................................................................................................................................11
6. START AND STOP A MEASUREMENT CYCLE..............................................................................12

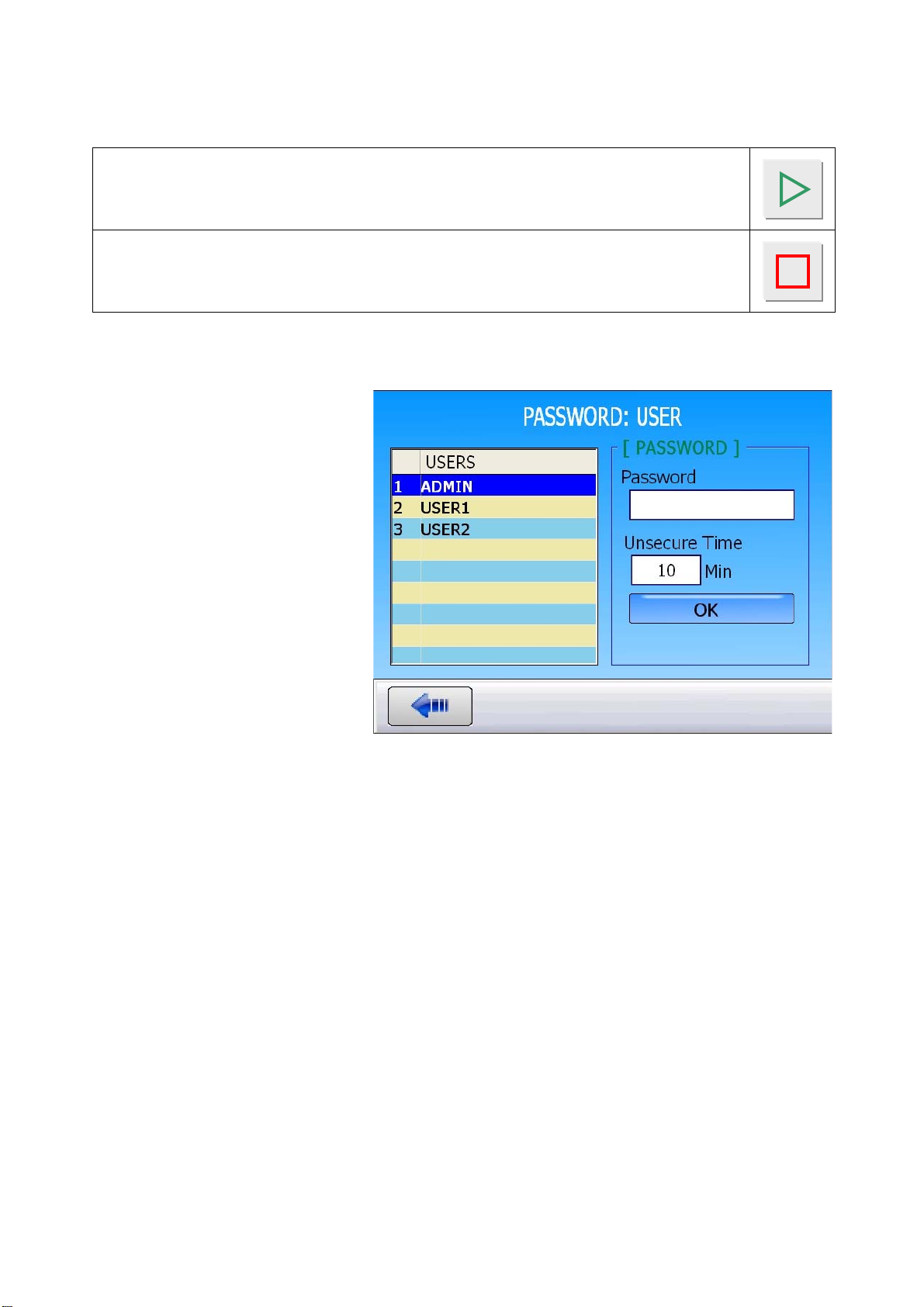

7. PASSWORD ......................................................................................................................................12
CONFIGURATION MENU.............................................................................................13
1. EXTENDED MENUS..........................................................................................................................13
2. SPECIAL CYCLES............................................................................................................................14
3. OTHERS MENUS ..............................................................................................................................14
ACCESSORIES AND CHARACTERISTICS.................................................................15
1. ACCESSORIES FITTED WITH THE DEVICE...................................................................................15
2. ACCESSORIES IN OPTION..............................................................................................................15
3. TECHNICAL CHARACTERISTIC OF THE F5800............................................................................15
ERRORS AND FAULTS ...............................................................................................16
1. ERROR MESSAGES.........................................................................................................................16
2. IN CASE OF OPERATION DOUBT ..................................................................................................16
INDEX ...........................................................................................................................17
Due to continuing improvements, the information contained in this user manual,
the features and design of this device are subject to be changed without prior
notice.

Quick start manual - F5800
MR-F5800C-U Quick start manual ATEQ F5800 Page 2/17
PREAMBLE
1. DEFINITION OF THE ATEQ F5800
The ATEQ F5800 is a compact
air/air leak detector used to test the
air-tightness of parts. The method
used is based on the measurement
of a small variation or drop in
differential pressure between the test
and reference parts, when both are
filled to an identical pressure.
TEST
PART REFERENCE
PART
DIFFERENTIAL
SENSOR
PIEZO
SENSOR
TEST
PRESSURE
2. MEASUREMENT CHARACTERISTICS
2.1. PRESSURE DROP MEASUREMENT
RANGE ACCURACY RESOLUTION
Maximum
0 – 50 Pa +/- (2,5% of the pressure + 1 Pa) 0,01 Pa
0 – 500 Pa +/- (2,5% of the pressure + 1 Pa) 0,1 Pa
0 – 5000 Pa +/- (2,5% of the pressure + 10 Pa) 1 Pa
2.2. TEST PRESSURE MEASUREMENT
RANGE ACCURACY RESOLUTION
Maximum
F.S. = 75 mbar* +/- (1,5% of the pressure+ 0,2 hPa) 0,1 % F.S.
F.S. < 0,3 bar +/- (1,5% of the pressure + 1 hPa) 0,1 % F.S.
0,3 ≤F.S. ≤1 bar +/- (1,5% of the pressure + 3 hPa) 0,1 % F.S.
1 < F.S. ≤5 bar +/- (1,5% of the pressure + 7.5 hPa) 0,1 % F.S.
5 < F.S. ≤10 bar +/- (1,5% of the pressure + 15 hPa) 0,1 % F.S.
10 < F.S. ≤20 bar +/- (1,5% of the pressure + 30 hPa) 0,1 % F.S.
* Specific (relative)
F.S. = Full scale.
