ATEQ F6 Profinet Series User manual

F6 Series – Profinet
Manual

1 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
Table of Contents
Safety advisory / Warranty
Good practices and safety instructions..........................................................................................3
Preamble
Introduction .................................................................................................................................4
Basic notions................................................................................................................................5
Hardware installation
Hardware configuration................................................................................................................7
Cabling.........................................................................................................................................8
Configuration of the ATEQ device (slave)
Setup of the station name ............................................................................................................9
Setup of the Profinet configuration mode................................................................................... 10
Setup of the IP address...............................................................................................................11
Configuration of the master
Installation of the Profinet module .............................................................................................12
Configuration files ...................................................................................................................... 13
Selection of the master card.......................................................................................................14
Setup of the station name .......................................................................................................... 15
Setup of the IP address...............................................................................................................16
Setup of the Profinet configuration modes..................................................................................18
Functional description of an ATEQ device
Introduction ...............................................................................................................................23
Configuration .............................................................................................................................32
Cycle .......................................................................................................................................... 61
Results ....................................................................................................................................... 66

FG_F6_PROFINET_EN_04 / 2020-06-17
2 / 75
ATEQ Manufacturer Plants –Measurement Solution, Global Leader
ATEQ
15, rue des Dames, Z.I.
78340 LES CLAYES-SOUS-BOIS
FRANCE
[e-mail]
ateq.com
T.: [phone]
F.: [phone]
ATEQ K.K.
3 –41 ATEQ Building, Ikehata
Chiryu-city, Aichi-pref
JAPAN
[e-mail]
ateq.co.jp
T.: [phone]
F.: [phone]
ATEQ China
98 Jian Peng Lu
Shanghai
CHINA
[e-mail]
ateq.com.cn
T.: [phone]
F.: [phone]
ATEQ SYSTEMS ANALYSIS TAIWAN CO.,
LTD.
NO. 3, LAN 223, San Jia Dong Street
40642, TAICHUNG
TAIWAN
[e-mail]
ateq.com.tw
T.: [phone]
F.: [phone]
ATEQ CORP.
35980 Industrial Road Suite L
Livonia MI 48150
UNITED STATES
[e-mail]
atequsa.com
T.: [phone]
F.: [phone]
We continuously work on improving our products. This is why inforamtion contained in this manual,
the device and the technical specifications may be modified without prior notification.
Pictures and figures in this manual are non contractual

3 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
Safety advisory / Warranty
GOOD PRACTICES AND SAFETY INSTRUCTIONS
Safety recommendations
If the device is supplied with 100 / 240 V AC, it is mandatory to connect it to the ground with a good
link to the ground, to protect against electric hazard or electrocution.
It is dangerous to change the status of the outputs.
They can control power actuators or other equipment (mechanical, pneumatic, hydraulic, electrical or
other) which can cause serious personal injury and damage to surrounding material.
For safety and quality measurement reasons, it is important, before powering on the device, to ensure
that it is air supplied with a minimum operating pressure (0.6 MPa ± 15%).
Recommendations for the test environment
Keep the test area as clean as possible.
Recommendations for operators
ATEQ recommends that the operators who use the devices have training and a level of qualification
that correspond to the job to perform.
General recommendations
— Read the user manual before using the device.
— All electrical connections to the device must be equipped with safety systems (fuses, circuit
breakers, etc.) adapted to the needs and in accordance with the applicable standards and rules.
— To avoid electromagnetic interference, electrical connections to the device must be shorter than 2
meters.
— Power supply plug must be grounded.
— Disconnect the device from the mains before performing any maintenance work.
— Shut off the compressed air supply when working on the pneumatic assembly.
— Do not open a connected device.
— Avoid splashing water on the device.
ATEQ is at your disposal for any information concerning the use of the device under maximum safety
conditions.
We draw your attention to the fact that ATEQ cannot be held responsible for any accident related to
a misuse of the measuring instrument, the workstation or non-compliance of the installation with
safety rules.
In addition, ATEQ declines any responsibility for the calibration or the fitting of their instruments that
is not done by ATEQ.
ATEQ also declines any responsibility for any modification (program, mechanical or electrical) of the
device done without their written consent.

FG_F6_PROFINET_EN_04 / 2020-06-17
4 / 75
Preamble
INTRODUCTION
This manual intends to help you for the configuration and the use of your ATEQ F6 device on the
Profinet network.
For more information on your ATEQ equipment, refer to the Quick Start Manual.

5 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
BASIC NOTIONS
The numerical values used in the ATEQ device are coded on a Long format.
ATEQ devices are configured in Little Endian format. It means that the Least Significant Byte is sent
first on the network.
Word
A word is a 16-bit data. It is coded with two bytes (8bits):
— The first byte is the Least Significant Byte ( LSB )
— The second byte is the Most Significant Byte ( MSB )
Example of a word:
Reminder: “h” indicates a hexadecimal code, “(d)” indicates a decimal code.
Long format (Signed Double word)
A Long format data is coded with two words (of 16 bits).
In the memory range of the ATEQ device or when they are transmitted, both words are coming in the
following order:
— The first word is the least significant word
— The second word is the most significant word
— Example of a Long format:
Address value
All address values are treated with the Long format.
Example –address of the “millibar” unit in the Unit table (see Unit table):

FG_F6_PROFINET_EN_04 / 2020-06-17
6 / 75
Numerical value
All the numerical values are treated with the Long format with fixed comma (10-3).
Thus, their value is expressed in thousandths of unit. So, this value must be multiplied by 1000 to get
the value in units.
For example, a value of 207055 represents 207.055. So, any numerical value must be divided by 1000
to get the real value:
— 207.055 = 207055 ÷ 1000
Example –Pressure:
Negative numerical value
All the negative numerical values are treated with Signed long format with fixed comma (10-3).
Thus, they must be multiplied by 1000 to get the value in units.
Example –Leak value (signed long):

7 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
Hardware installation
HARDWARE CONFIGURATION
Connect your ATEQ equipment to the Profinet fieldbus using its Profinet connectors and compatible
cables.
Your device has a Profinet internal board and two Profinet connectors.
The Profinet internal board is located inside your device. Two versions are available:
— COMX 100
— COMX 51
You can see the version installed using your user interface (see Identification of the version of the
Profinet module).
Your device has two M12 D coded type connector - 4 pins female connector.
For more information on your ATEQ equipment, refer to the Quick Start Manual.
M12 D coded type connector - 4 pins female connector
Pin number
Signal
1
Ethernet Tx + (Transmit Data +)
2
Ethernet Rx + (Receive Data +)
3
Ethernet Tx - (Transmit Data -)
4
Ethernet Rx - (Receive Data -)

FG_F6_PROFINET_EN_04 / 2020-06-17
8 / 75
CABLING
M12 - RJ45 cable
Cable with male M12 D coded type connector and an RJ45 connector (4 or 8 pins)
Male M12 Pin
number
Wire color
Signal
RJ45 - 4 pins Pin
number
RJ45 - 8 pins Pin
number
1
White/orange
Ethernet Tx + (Transmit Data +)
1
1
2
White/green
Ethernet Rx + (Receive Data +)
3
3
3
Orange
Ethernet Tx - (Transmit Data -)
2
2
4
Green
Ethernet Rx - (Receive Data -)
4
6

9 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
Configuration of the ATEQ device
(slave)
Use this procedure to set the name and the configuration mode of your device.
This configuration can be done with the front panel of your ATEQ device or with the ATEQ Fieldbus
Configurator software.
SETUP OF THE STATION NAME
The station name must be the same on slave and master.
Use the prefix ateqf6 and a suffix number using three digits (eg. ateqf6001).
From the ATEQ device
From the MAIN MENU screen of your ATEQ
device:
➢CONFIGURATION
➢AUTOMATISM
➢FIELDBUS
➢ADDRESS

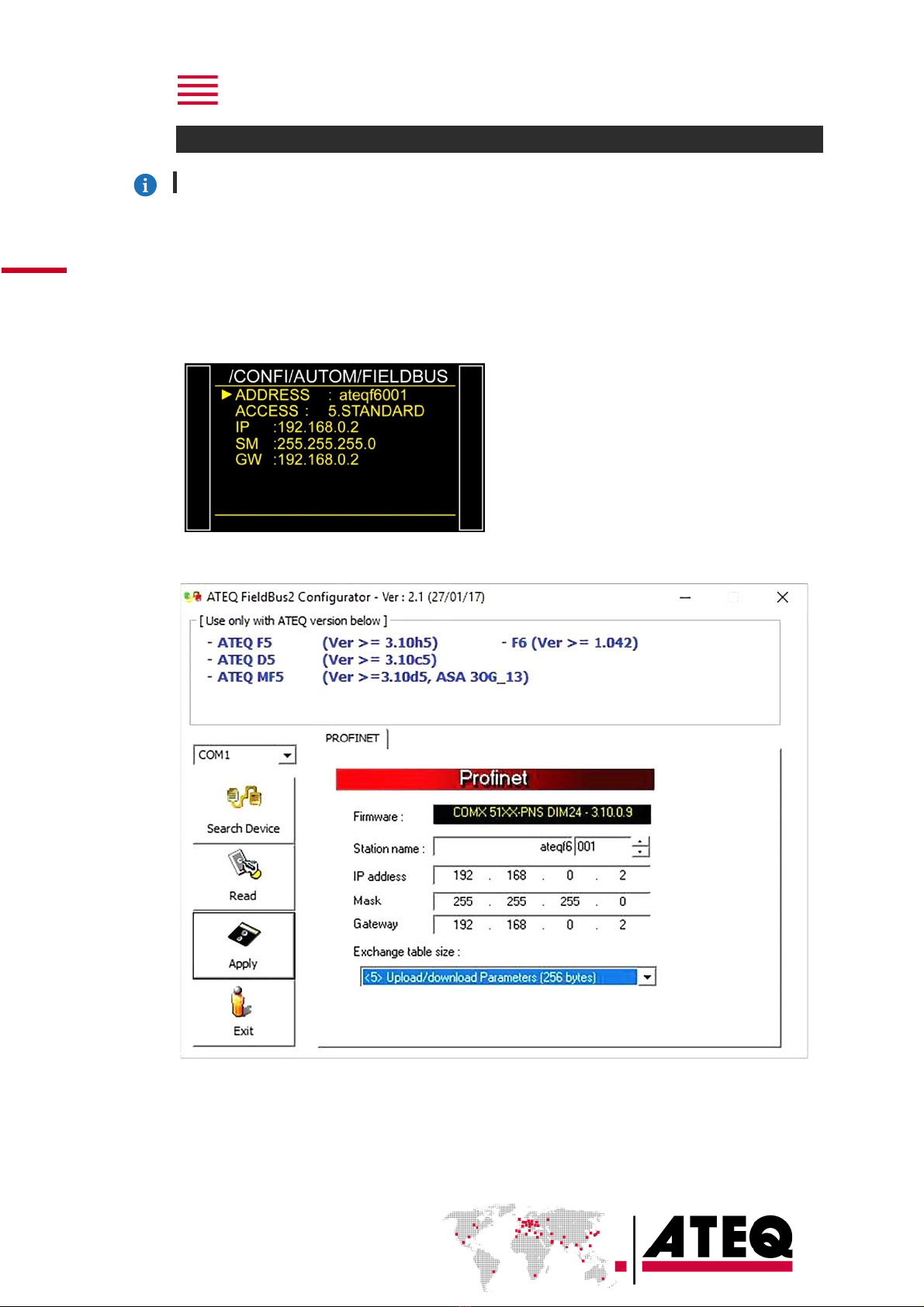

From the ATEQ Fieldbus Configurator software

FG_F6_PROFINET_EN_04 / 2020-06-17
10 / 75
SETUP OF THE PROFINET CONFIGURATION MODE
Five configuration modes are available according to the bytes number available:
Mode number
Configuration mode
Use
5
Standard mode (normal)
For the inputs/outputs, real time measurements, the
live cycle results and parameters management
4
Standard less mode
For the inputs/outputs, real time measurements, the
live cycle results and parameters management
3
Medium more mode
For the inputs/outputs, the real time measurements,
the live cycle results and parameters management
2
Medium mode
For the inputs/outputs and the real time
measurements
1
Light mode
For the digital inputs/outputs
Configuration modes according to bytes number available
Memory range
Mode number and bytes available
Functions available
(5)
255
bytes
(4)
96
bytes
(3)
64
bytes
(2)
32
bytes
(1)
16
bytes
00h-0Fh
X
X
X
X
X
Inputs/outputs
10h-1Fh
X
X
X
X
Real time measurements
20h-3Fh
X
X
X
Exchange zone: cycle result reading or 5
parameters management
40h-5Fh
X
X
Exchange zone: cycle result reading or 10
parameters management
60h-FFh
X
Exchange zone: cycle result reading or 20
parameters management
From the MAIN MENU screen of your ATEQ device:
➢CONFIGURATION
➢AUTOMATISM
➢FIELDBUS
➢ACCESS

11 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
SETUP OF THE IP ADDRESS
The IP addresses must be the same on slave and master.
The complete IP address of the slave instrument will beautomatically given by the master using your
device station name:
— IP:IP address
— SM: Network mask
— GW: Gateway address
From the ATEQ device
From the MAIN MENU screen of your ATEQ
device:
➢ CONFIGURATION
➢ AUTOMATISM
➢ FIELDBUS
From the ATEQ Fieldbus Configurator software

FG_F6_PROFINET_EN_04 / 2020-06-17
12 / 75
Configuration of the master
INSTALLATION OF THE PROFINET MODULE
Identification of the version of the Profinet module
You can identify the hardware configuration using your ATEQ device or using a fieldbus configuration
software.
For the installation and configuration of the Profinet module, you have to select the component that
corresponds to the firmware (see Configuration files).
From the ATEQ device
From the MAIN MENU screen of your ATEQ
device:
➢SERVICE
➢FIELDBUS
The Hilscher firmware version is displayed in
the FIRMWARE parameter

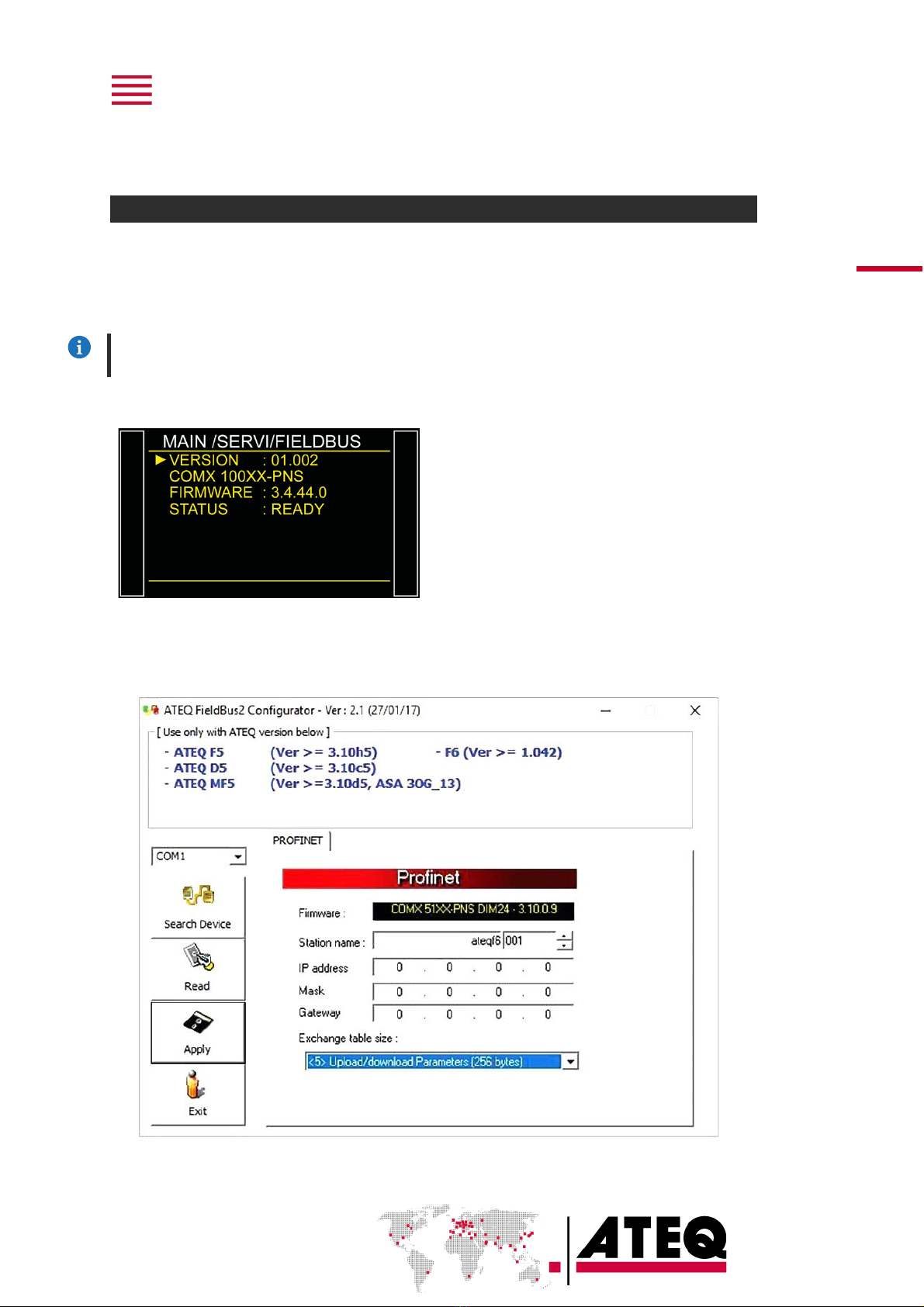

From the ATEQ Fieldbus Configurator software
Connectyour PCtothe RS232connector of your ATEQdevice.
Run the ATEQFieldbus Configurator software:
The Hilscher firmware version is displayed in the FIRMWARE parameter.

13 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
CONFIGURATION FILES
Configuration files to use for the configuration of the master instrument.
Profinet hardware and software compatibilities
The table below gives the configuration file to use according the hardware reference of the Profinet
internal board of your ATEQ device (Hilscher hardware reference).
Profinet
Specs
F6
F6
Fieldbus
Software
Hilscher
Firmware
Config Files
Hilscher
Hardware Ref
V2.3
> 1.060
(14/10/14)
> 1.05
3.4.44.0
=> (DIM3)
GSDML-V2.3-HILSCHER- COMX
100XX-RE PNS-20130806.xml
COMX 100
V2.31
≥1.318
> 2.103
3.10.0.9
=> (DIM24)
GSDML-V2.32-HILSCHER- COMX
51XX-RE PNS-20160502.xml
COMX 51

FG_F6_PROFINET_EN_04 / 2020-06-17
14 / 75
SELECTION OF THE MASTER CARD
The screenshots used in this manual correspond to the ATEQ Fieldbus Configurator software.
Nevertheless, you may use your own software to configure the master.
From the Device Assignment screen, select the master card:

15 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
SETUP OF THE STATION NAME
The screenshots used in this manual correspond to the ATEQ Fieldbus Configurator software.
Nevertheless, you may use your own software to configure the master.

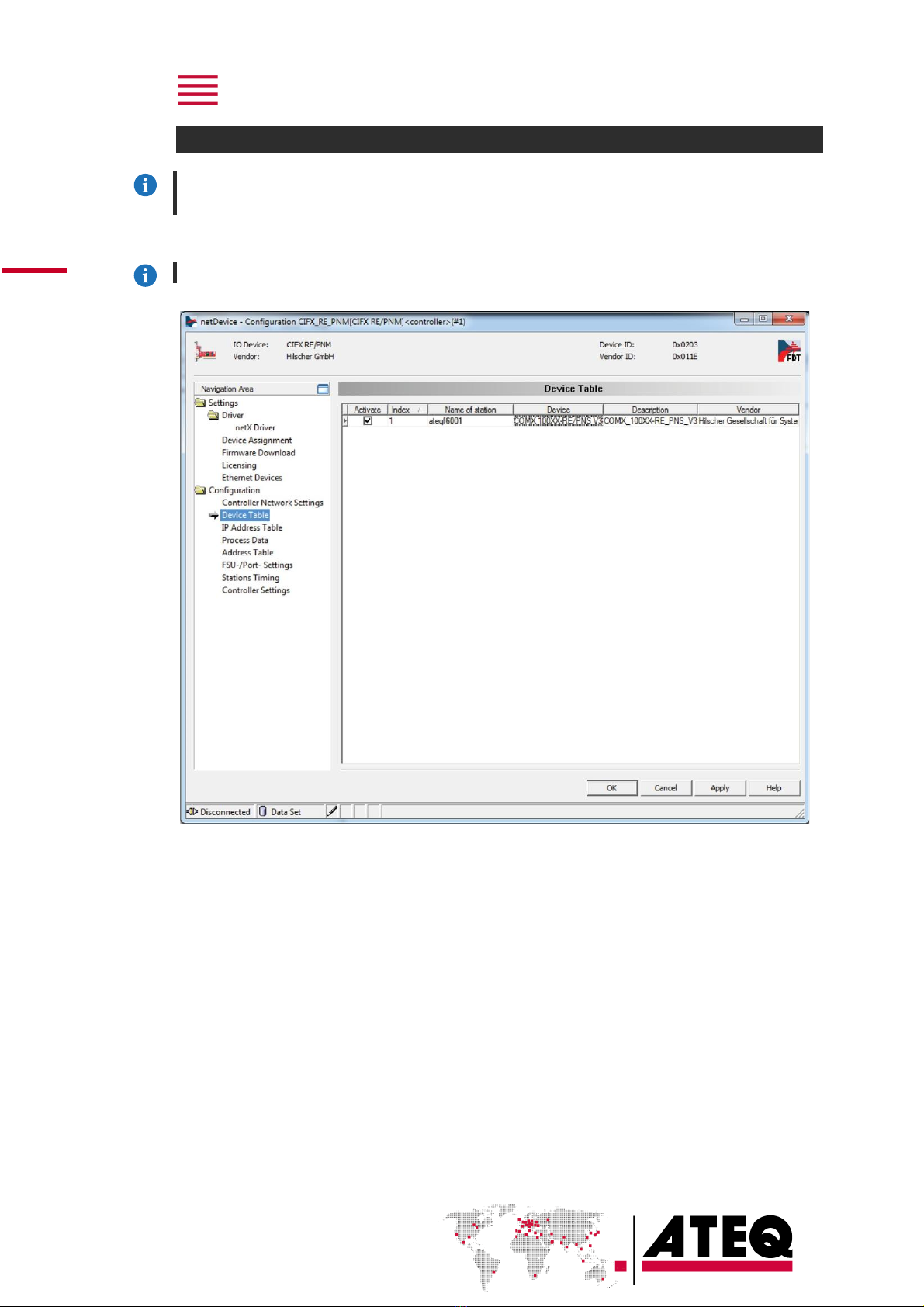

Select the Device Table screen to set up the station name of the slave instrument:
The station name must be the same on slave and master.

FG_F6_PROFINET_EN_04 / 2020-06-17
16 / 75
SETUP OF THE IP ADDRESS
The screenshots used in this manual correspond to the ATEQ Fieldbus Configurator software.
Nevertheless, you may use your own software to configure the master.
Setup of the IP address of the master

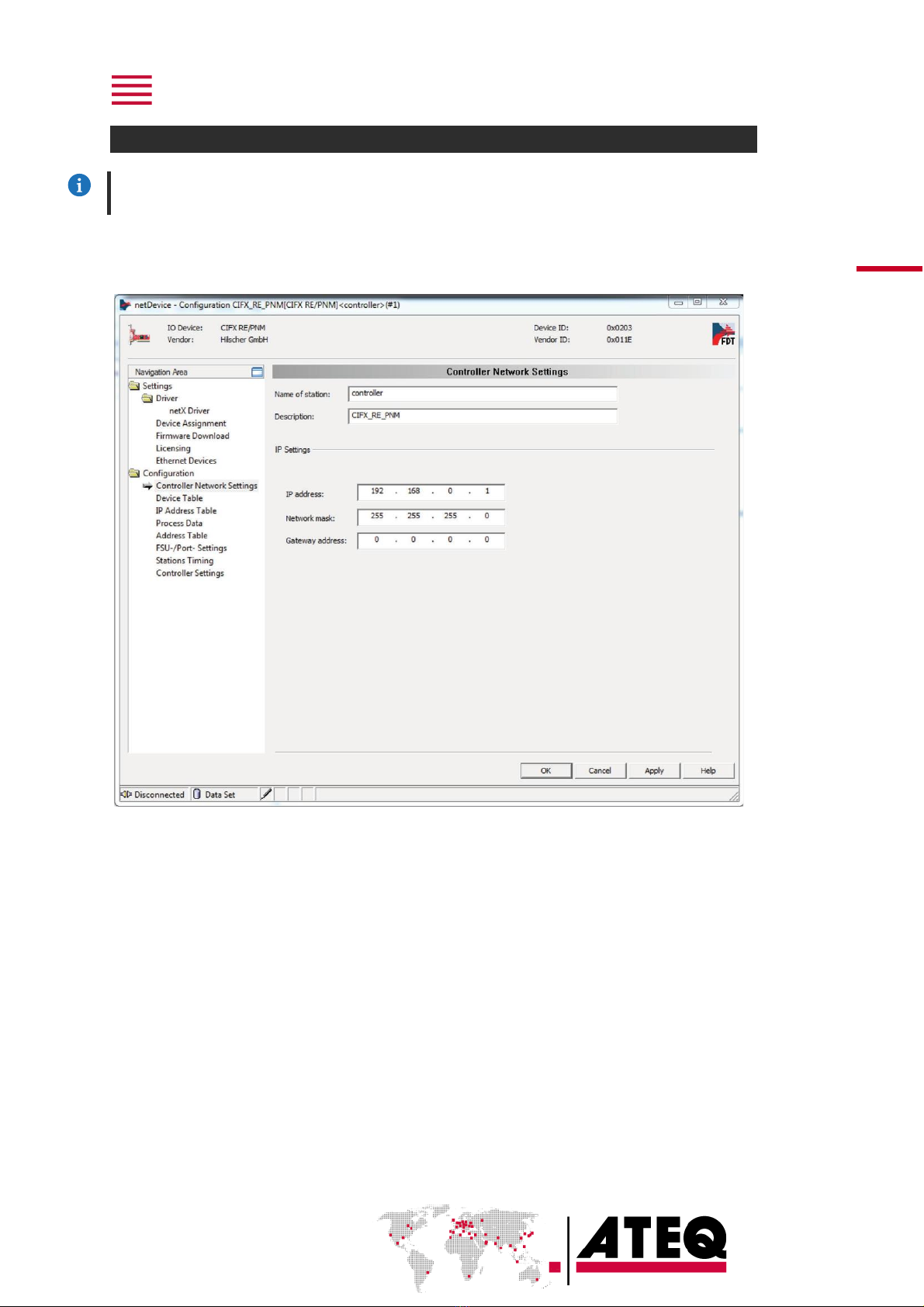

Select the Network Settings screen to set up the IP address of the master:

17 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
Setup of the IP address of the slave
Select the Scanlist screen to set up the IP address of the slave instrument:

FG_F6_PROFINET_EN_04 / 2020-06-17
18 / 75
SETUP OF THE PROFINET CONFIGURATION MODES

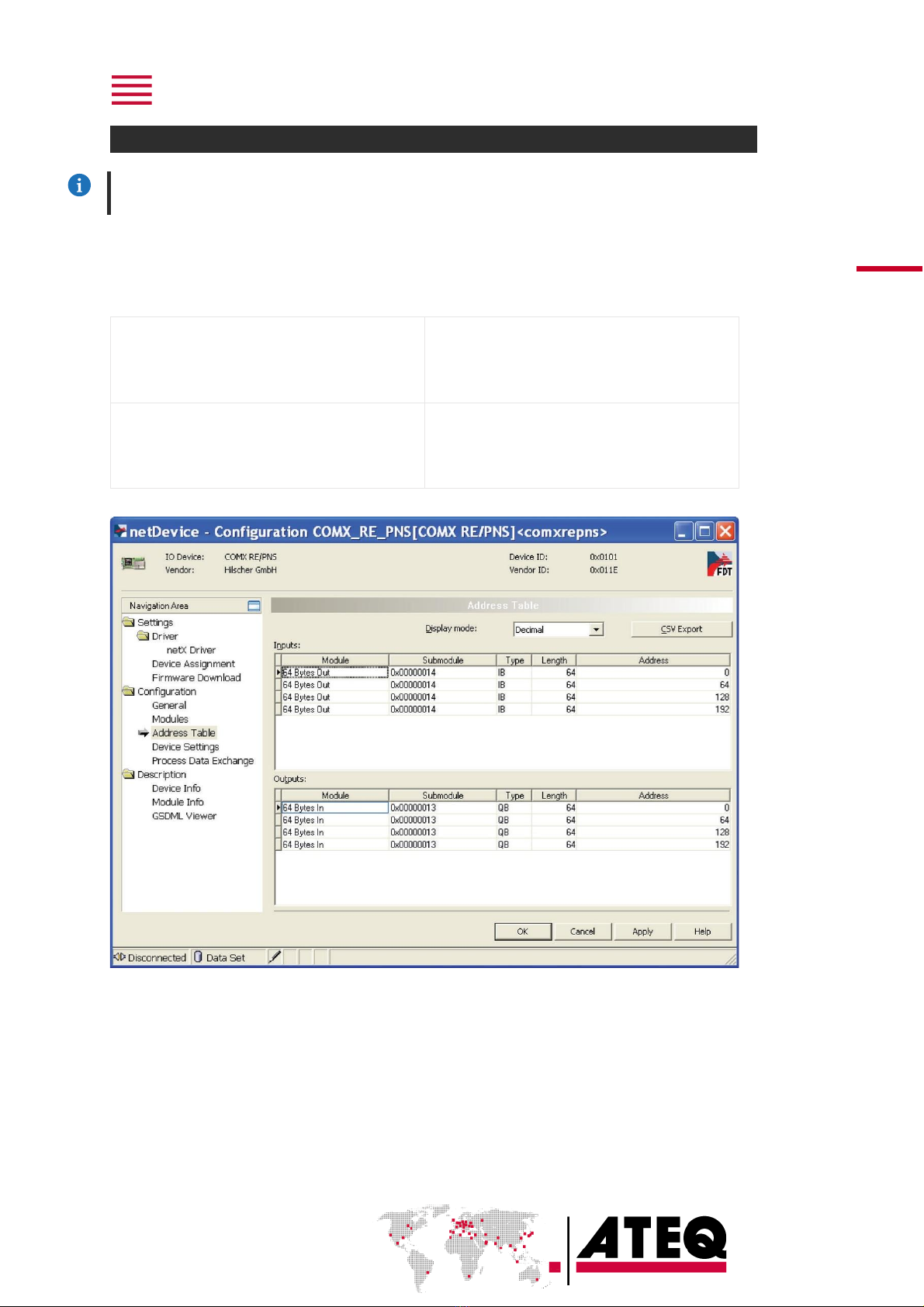

Five configuration modes are available according to the bytes number available (see Configuration of
the ATEQ device (slave)).
Setup of the Standard mode (normal)
The parameters configuration must be like the following ones:
Input_Data (IB) 256 bytes total:
IB= 64 bytes (module 1)
IB= 64 bytes (module 2)
IB= 64 bytes (module 3)
IB= 64 bytes (module 4)
Output_Data (QB) 256 bytes total:
QB = 64 bytes (module 1)
QB = 64 bytes (module 2)
QB = 64 bytes (module 3)
QB = 64 bytes (module 4)

19 / 75
FG_F6_PROFINET_EN_04 / 2020-06-17
Setup of the Standard less mode
The parameters configuration must be like the following ones:
Input_Data (IB) 96 bytes total:
IB = 32 bytes
IB = 64 bytes
Output_Data (QB) 96 bytes total:
QB = 32 bytes
QB = 64 bytes
