I n s t r u c t i o n M a n u a l
Hydro-Pneumatic Power Tool
Pass onto user to read and keep for reference
07391
07391

AVDEL policy is one of continuous development. Specifications shown in this document may be subject to changes which
may be introduced after publication. For the latest information always consult Avdel.
AIR PRESSURE Minimum - Maximum 5 - 7 bar 70 - 100 lbf/in2
FREE AIR VOLUME REQUIRED @ 5.5 bar / 80 lbf/in21.59 litres .056 ft3
STROKE Minimum 16 mm .625 in
PULL FORCE @ 4.8 bar / 70 lbf/in26.05 kN 1360 lbf
CYCLE TIME Approximately 1.5 seconds
NOISE LEVEL 71.4 dB(A)
WEIGHT Without nose equipment 1.4 kg 3.1 lb
VIBRATION Less than 2.5 m/s28 ft/s2
S P E C I F I C A T I O N S F O R 0 7 3 9 1 T O O L
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■

CO N T E N T S
1
S A F E T Y
I N T E N T O F U S E
P U T T I N G I N T O S E R V I C E
N O S E A S S E M B L I E S
S E R V I C I N G
P R I M I N G
F A U L T D I A G N O S I S
General 2
Specific to 07391 Tool 3
General 4
Tool Dimensions / Selection 4-5
Air Supply 6
Operating Procedure 6
Accessories 7
Fitting/Servicing/Components 8
Regular Servicing - Service Kit 9-10
Maintenance 10-11
General Assembly & Parts List 12-13
Priming Oil Details 14
Priming Procedure 15
Fault Diagnosis Table 16

SA F E T Y
2
This instruction manual must be read with particular attention to the following safety rules,
by any person installing, operating, or servicing this tool.
DO NOT USE OUTSIDE THE DESIGN INTENT.
DO NOT USE EQUIPMENT WITH THIS TOOL/MACHINE OTHER THAN THAT
RECOMMENDED AND SUPPLIED BY AVDEL.
ANY MODIFICATION UNDERTAKEN BY THE CUSTOMER TO THE TOOL/MACHINE,
NOSE ASSEMBLIES, ACCESSORIES OR ANY EQUIPMENT SUPPLIED BY AVDEL OR THEIR
REPRESENTATIVES, SHALL BE THE CUSTOMER'S ENTIRE RESPONSIBILITY. AVDEL WILL BE
PLEASED TO ADVISE UPON ANY PROPOSED MODIFICATION.
THE TOOL/MACHINE MUST BE MAINTAINED IN A SAFE WORKING CONDITION AT
ALL TIMES AND EXAMINED AT REGULAR INTERVALS FOR DAMAGE AND FUNCTION BY
TRAINED COMPETENT PERSONNEL. ANY DISMANTLING PROCEDURE SHALL BE
UNDERTAKEN ONLY BY PERSONNEL TRAINED IN AVDEL PROCEDURES. DO NOT DISMANTLE
THIS TOOL/MACHINE WITHOUT PRIOR REFERENCE TO THE MAINTENANCE INSTRUCTIONS.
CONTACT AVDEL WITH YOUR TRAINING REQUIREMENTS.
THE TOOL/MACHINE SHALL AT ALL TIMES BE OPERATED IN ACCORDANCE WITH
RELEVANT HEALTH AND SAFETY LEGISLATION. IN THE U.K. THE “HEALTH AND SAFETY AT
WORK ETC. ACT 1974” APPLIES. ANY QUESTION REGARDING THE CORRECT OPERATION
OF THE TOOL/MACHINE AND OPERATOR SAFETY SHOULD BE DIRECTED TO AVDEL.
THE PRECAUTIONS TO BE OBSERVED WHEN USING THIS TOOL/MACHINE MUST BE
EXPLAINED BY THE CUSTOMER TO ALL OPERATORS.
ALWAYS DISCONNECT THE AIRLINE FROM THE TOOL/MACHINE INLET BEFORE
ATTEMPTING TO ADJUST, FIT OR REMOVE A NOSE ASSEMBLY.
DO NOT OPERATE A TOOL/MACHINE THAT IS DIRECTED TOWARDS ANY PERSON(S).
ALWAYS ADOPT A FIRM FOOTING OR A STABLE POSITION BEFORE OPERATING THE
TOOL/MACHINE.
ENSURE THAT VENT HOLES DO NOT BECOME BLOCKED OR COVERED AND THAT
HOSES ARE ALWAYS IN GOOD CONDITION.

3
In addition to the general safety rules opposite, the following specific safety points must also
be observed:
THE OPERATING PRESSURE SHALL NOT EXCEED 7 BAR - 100 LBF/IN2.
DO NOT OPERATE THE TOOL WITHOUT FULL NOSE EQUIPMENT IN PLACE.
CARE SHALL BE TAKEN TO ENSURE THAT SPENT STEMS ARE NOT ALLOWED TO
CREATE A HAZARD.
WHEN USING THE TOOL, THE WEARING OF SAFETY GLASSES IS REQUIRED BOTH BY
THE OPERATOR AND OTHERS IN THE VICINITY TO PROTECT AGAINST RIVET EJECTION,
SHOULD A FASTENER BE PLACED ‘IN AIR’. WE RECOMMEND WEARING GLOVES IF THERE
ARE SHARP EDGES OR CORNERS ON THE APPLICATION.
TAKE CARE TO AVOID ENTANGLEMENT OF LOOSE CLOTHES, TIES, LONG HAIR,
CLEANING RAGS ETC… IN THE MOVING PARTS OF THE TOOL WHICH SHOULD BE KEPT
DRY AND CLEAN FOR BEST POSSIBLE GRIP.
WHEN CARRYING THE TOOL FROM PLACE TO PLACE KEEP HANDS AWAY FROM THE
TRIGGER/LEVER TO AVOID INADVERTENT START UP.
EXCESSIVE CONTACT WITH HYDRAULIC OIL SHOULD BE AVOIDED. TO MINIMIZE THE
POSSIBILITY OF RASHES, CARE SHOULD BE TAKEN TO WASH THOROUGHLY.

4
IN T E N T O F U S E
The hydro-pneumatic 07391 tool is designed to place Avdel breakstem rivets at high speed making it ideal for batch or flow-line
assembly in a wide variety of applications throughout all industries.
The tool is designed to be operated with forward stem release nose assemblies. A complete tool will always be fitted with one of two
assemblies which includes a nose tip. One or two nose tips will be screwed into the base of the tool. To select a complete tool use both
tables opposite. In the first table identify your fastener and read the part number of the nose tip required to place this fastener.
`A’ and `B’ dimensions will help you assess the accessibility of your application. By finding the nose tip part numbers in the second
table you will be able to read the complete tool part number. There may be two complete tools which contain the nose tip, you may
select either.
It is also possible to order the base tool only part number 07391-00200.
Dimensions shown in bold are millimetres.
Other dimensions are in inches.

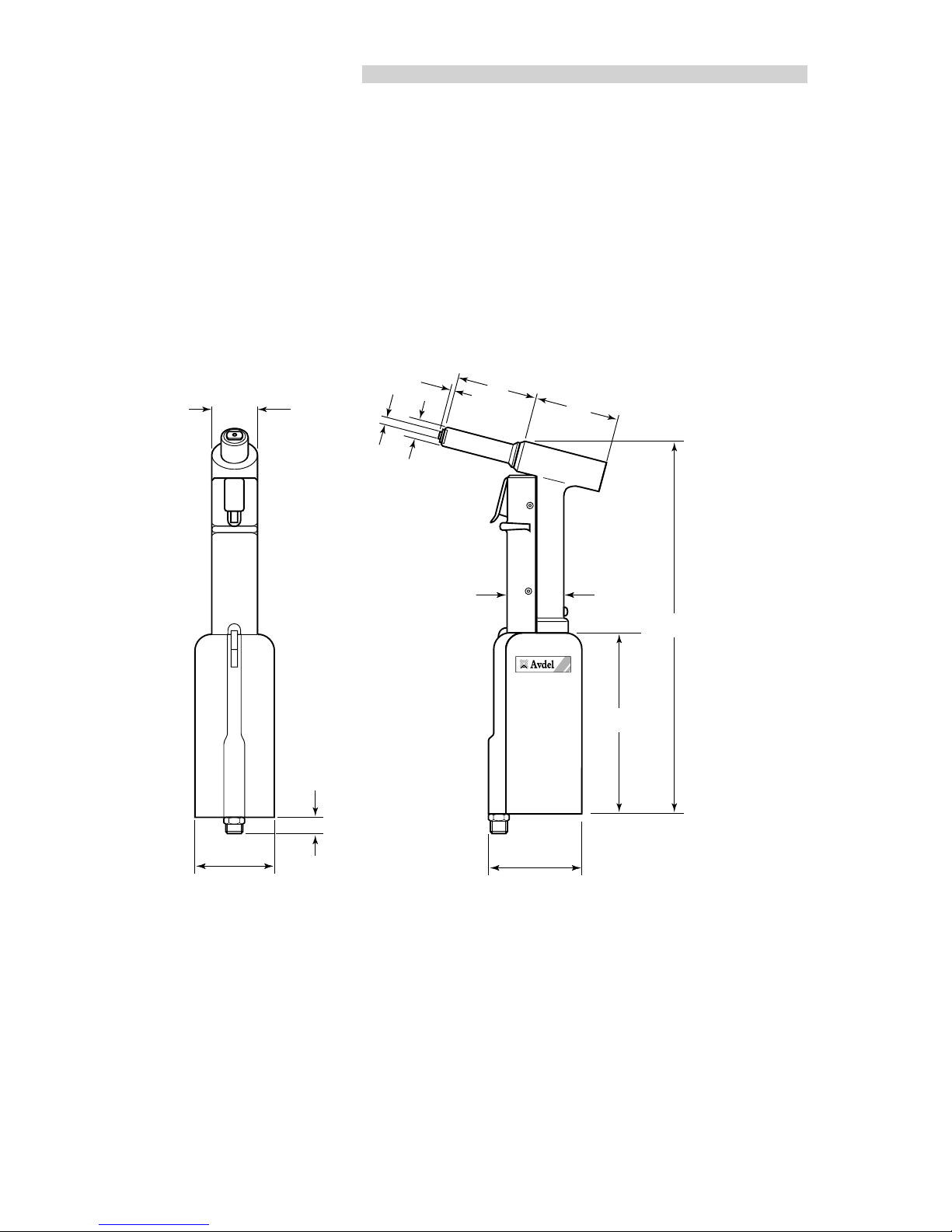

1.25
32
.75
19
2.50
64
07391
3.20
81
5.90
150
12.40
31
4
1.90
48
76
3.00
AB
61
2.40
23
.90

5
07391 TOOL SELECTION
07391-00001
07391-00002
07391-00003
COMPLETE TOOL
part Nº
07391-03000
07391-03100
07391-03000
NOSE ASSEMBLY
part Nº
07381-04701
-
07348-07001
NOSE TIP 2
part Nº
(in base)
07381-04601
07381-04701
07381-04601
NOSE TIP 1
part Nº
(in base)
07381-04501
07340-06101
07381-04501
NOSE TIP
Part Nº
(in nose assembly)
Al. Alloy
Steel
Al. Alloy
Steel
Al. Alloy
Al. Alloy
Copper
Copper/Nickel
Al. Alloy
Copper
Copper/Nickel
Al. Alloy
Copper
Copper/Nickel
Stainless Steel
Stainless Steel
Steel
Steel
Al. Alloy
Al. Alloy
Steel
Steel
AVEX
Snap head
& 120°csk head
AVDEL SR
(except those of
04821 Grip Length)
AVINOX
BE11 & BE61
AVIBULB
Low Profile
BULBEX
T-LOK
Snap Head
1 /
8
"
5
/
32
"
3
/
16
"
1 /
8
"
5
/
32
"
3
/
16
"
1 /
8
"
5
/
32
"
1 /
8
"
5
/
32
"
5
/
32
"
3
/
16
"
4.3mm
3
/
16
"
07391 NOSE TIP SELECTION
FASTENER NOSE (see drawing opposite for A & B)
MATERIALØ
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
12.7
A (mm)NAME & HEAD
07381-04501
07340-04601
07381-04601
07381-04701
07381-04701
07381-04501
07381-04501
07381-04501
07381-04601
07381-04601
07381-04601
07348-07001
07348-07001
07348-07001
07340-06101
07381-04701
07340-06101
07381-04701
07381-04601
07381-04701
07381-04601
07381-04701
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.2
3.3
3.3
3.3
3.3
3.3
B (mm)
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
.500
A (in)
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.130
.125
.130
.130
.130
.130
.130
B (in
)
NOSE TIP part Nº

O P E R A T I N G P R O C E D U R E
OPTION 1
Ensure that the correct nose equipment is fitted.
Connect the tool to the air supply.
Insert the fastener body squarely into the prepared hole of the
application.
Apply the tool to the protruding rivet stem.
Fully operate the trigger. The tool cycle will ensure the rivet is
placed.
6
PU T T I N G I N T O S E R V I C E
A I R S U P P L Y
All tools are operated with compressed air at an optimum pressure of 5.5 bar. We recommend the use of pressure regulators and
automatic oiling/filtering systems on the main air supply. These should be fitted within 3 metres of the tool (see diagram below) to ensure
maximum tool life and minimum tool maintenance.
Air supply hoses should have a minimum working effective pressure rating of 150% of the maximum pressure produced in the system
or 10 bar, whichever is the highest. Air hoses should be oil resistant, have an abrasion resistant exterior and should be armoured where
operating conditions may result in hoses being damaged. All air hoses MUST have a minimum bore diameter of 6.4 millimetres or
1
/
4
inch.
Read servicing daily details page 9.
07391
8
6
4
2
0
10
12
14
16

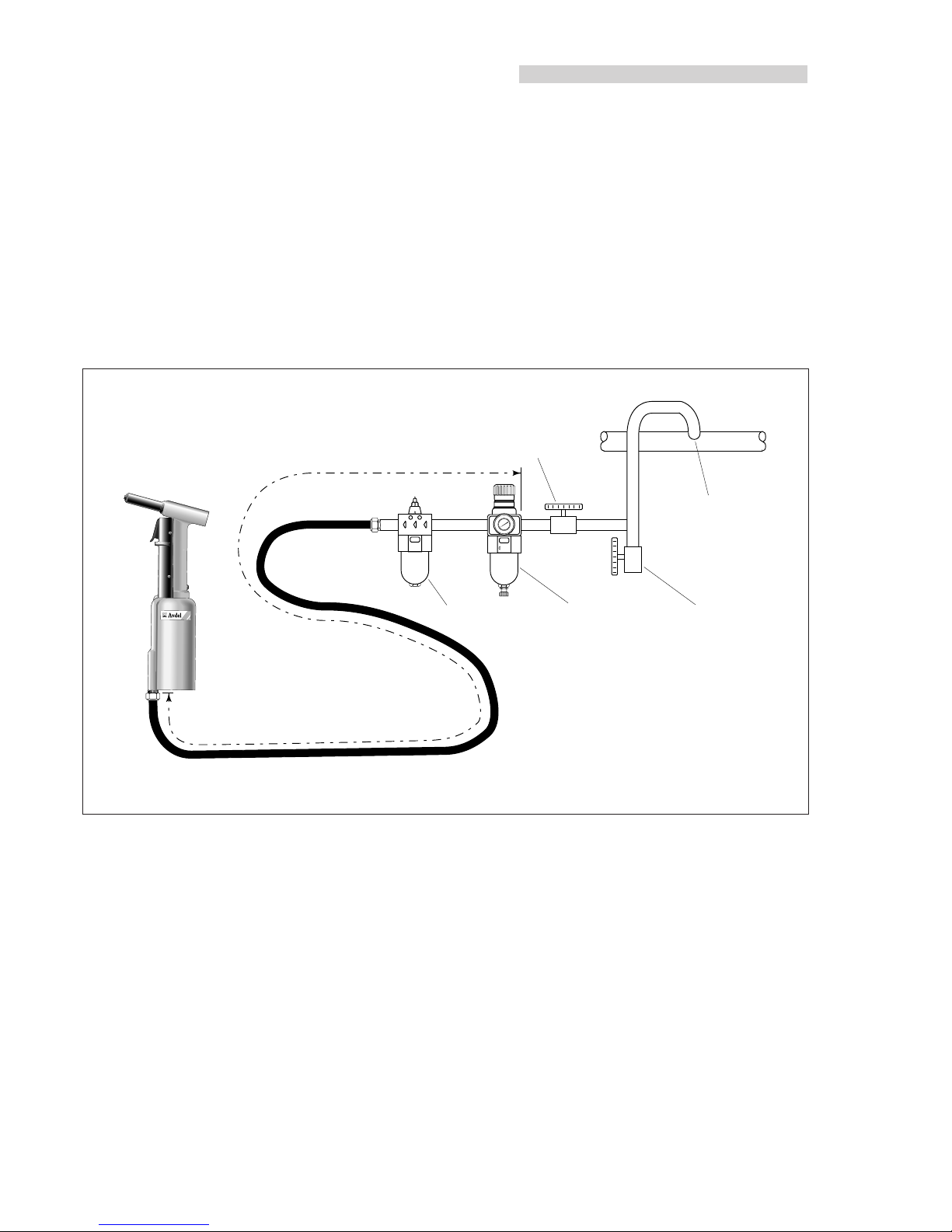

TAKE OFF POINT
FROM MAIN SUPPLY
STOP COCK
(USED DURING MAINTENANCE
OF FILTER/REGULATOR
OR LUBRICATION UNITS)
MAIN SUPPLY
DRAIN POINT
PRESSURE REGULATOR
AND FILTER
(DRAIN DAILY)
LUBRICATOR
3
M
E
T
R
E
S
M
A
X
I
M
U
M
■
■
■
■
■
OPTION 2
Ensure that the correct nose equipment is fitted.
Connect the tool to the air supply.
Insert the fastener stem into the nose of the tool.
Insert the tool with the fastener squarely into the prepared
hole of the application.
Fully operate the trigger. The tool cycle will ensure the rivet is
placed.
■
■
■
■
■

Hose Connector
part nº 07005-00276
7
A C C E S S O R I E S
Two different accessories are available to make the connection to your air supply:
Double Male Connector
part nº 07005-00041
TO FIT 6.4 mm (1/4”) BORE PIPE 1/4” BSP
1/4” BSP

8
NO S E A S S E M B L I E S
There are two nose assemblies available for the 07391 tool with only the nose tip varying. See nose assembly component table below
for part numbers. If you have purchased a complete tool, it will be fitted with one of these two nose assemblies.
It is essential that the correct nose tip is fitted prior to operating the tool. One or two extra nose tips are supplied screwed into the base
of the tool. For nose tip part numbers refer to the table on page 5. It is essential to use whichever nose tip has the smallest diameter
hole fitting over the fastener stem.
FITTING INSTRUCTIONS
I M P O R T A N T
The air supply must be disconnected when fitting or removing nose assemblies unless specifically instructed otherwise.
Lightly coat the jaws with Moly lithium grease.
Drop jaws 4into jaw housing 3.
Insert jaw spreader 5into jaw housing 3(locating in the ‘V’ shape formed by the jaws).
Locate buffer 6on jaw spreader 5.
Locate spring 7into jaw spreader 5.
Fit locking ring 8onto the jaw spreader housing assembly of the tool.
Holding tool pointing down, screw on the assembled jaw housing onto the jaw spreader housing assembly of tool and tighten with
spanner.
Screw nose tip 1into nose casing 2.
Place nose casing 2over jaw housing 3 and screw onto tool, tightening with spanner.
NOSE ASSEMBLY COMPONENTS
The table lists component part numbers for
both nose assemblies. Item numbers refer to
the text and illustration above. We recommend
some stock as items will need regular
replacement. Read nose assemblies servicing
instructions above carefully.
SERVICING INSTRUCTIONS
Nose assemblies should serviced at weekly intervals.
Remove the complete nose assembly using the reverse procedure to the ‘Fitting instructions’.
Any worn or damaged part should be replaced by a new part.
Particularly check wear on jaws.
Check spring 7is not distorted.
Assemble according to fitting instructions.
■
■
■
■
■
12 3 4 56 7
8
■
■
■
■
■
■
■
■
■
Nose assembly
07391-03000
NOSE ASSEMBLY COMPONENTS
Components
Item
NoNose Assembly 07391-03100
1Nose Tip 07381-04501 07340-06101
2Nose Casing 07340-00306
3Jaw Housing 07340-00304
4Jaws 07340-00213
5Jaw Spreader 07340-01501
6Buffer 07340-01503
7Spring 07498-06801
8Locking Ring 07340-00327

9
Regular servicing should be carried out and a comprehensive inspection performed annually or every 500000 cycles, whichever is
sooner.
I M P O R T A N T
The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel.
The operator should not be involved in maintenance or repair of the tool unless properly trained.
D A I L Y
Daily, before use or when first putting the tool into service, pour a few drops of clean, light lubricating oil into the air inlet of the
tool if no lubricator is fitted on air supply. If the tool is in continuous use, the air hose should be disconnected from the main air
supply and the tool lubricated every two to three hours.
Check for air leaks. If damaged, hoses and couplings should be replaced by new items.
If there is no filter on the pressure regulator, bleed the air line to clear it of accumulated dirt or water before connecting the air
hose to the tool. If there is a filter, drain it.
Check that the nose equipment is correct.
Check the stroke of the tool meets the minimum specification (inside front page). It is the difference in the measurement between
the front face of the jaw spreader housing assembly and the front face of the handle top bore before the trigger is operated and
once it is fully pressed.
W E E K L Y
Dismantle and clean the nose assembly with special attention to the jaws. Lubricate with Moly lithium grease before assembling.
Check for oil leaks and air leaks in the air supply hose and fittings.
Grease can be ordered as a single item, the part number is shown in the service kit overleaf.
SE R V I C I N G T H E T O O L
FIRST AID
SKIN: As the grease is completely water resistant it is best
removed with an approved emulsifying skin cleaner.
INGESTION: Make the individual drink 30ml Milk of
Magnesia, preferably in a cup of milk.
EYES: Irritant but not harmful. Irrigate with water and
seek medical attention.
ENVIRONMENT
Scrape up for burning or disposal on approved site.
M O L Y L I T H I U M G R E A S E E P 3 7 5 3 S A F E T Y D A T A
FIRE
FLASH POINT: Above 220°C.
Not classified as flammable.
Suitable extinguishing media: CO2, Halon or water spray
if applied by an experienced operator.
HANDLING
Use barrier cream or oil resistant gloves
STORAGE
Away from heat and oxidising agent.
■
■
■
■
■
■
■

10
For all servicing we recommend the use of the service kit below (part number 07900-03400) supplied in its own plastic case.
M A I N T E N A N C E
Every 500000 cycles the tool should be completely dismantled and new components should be used where worn, damaged or
recommended. All ‘O’ rings and seals should be renewed and lubricated with Moly Lithium grease EP 3753 before assembling.
I M P O R T A N T
Safety Instructions appear on pages 2 & 3.
The employer is responsible for ensuring that tool maintenance instructions are given to the appropriate personnel.
The operator should not be involved in maintenance or repair of the tool unless properly trained.
The airline must be disconnected before any servicing or dismantling is attempted unless specifically instructed otherwise.
It is recommended that any dismantling operation be carried out in clean conditions.
Item numbers in bold refer to the general assembly and parts list page 12 and 13.
Before proceeding with dismantling, empty the oil from the tool by removing handle plug 4and bonded seal 5. Empty oil into a suitable
container.
Prior to dismantling the tool it is necessary to remove the nose assembly. For simple removal instructions see the nose assemblies section, page 8.
For total tool servicing we advise that you proceed with dismantling of sub-assemblies in the order shown opposite.
ITEM PART Nº DESCRIPTION Nº OFF
SERVICE KIT
ITEM PART Nº DESCRIPTION Nº OFF
SERVICE KIT (Continued)
07900-00001 SPRING COMPRESSOR 1
07900-00002 SPANNER FOR HEAD PISTON 1
07900-00004 CIRCLIP PLIERS 1
07900-00005 PLUG 1
07900-00006 'O' RING ASSEMBLING TOOL 1
07900-00008 7/16" x 1/2" SPANNER 1
07900-00009 3/32" SPANNER 1
07900-00010 PIN PUNCH 1
07900-00012 9/16" x 5/8" SPANNER 1
07900-00013 1/8" ALLEN KEY 1
07900-00015 5/8" x 11/16" SPANNER 1
07900-00018 PISTON EXTRACTOR 1
07900-00427 SLIDING OFFSET HANDLE 1
07900-00087 SOCKET ASSEMBLY 1
07900-00092 3/4" x 7/8" SPANNER 1
07992-00020 80g TIN MOLYLITHIUM GREASE EP 3753 1
07900-00151 'T' HANDLE EXTENSION 1
07900-00192 PRIMING PUMP 1
07900-00078 5/32"ALLEN KEY 1
07900-00203 TORQUE WRENCH 1
07900-00401 ADAPTOR 1
07340-00306 NOSE CASING 1
07900-00421 13/16" SPANNER 1
07900-00422 3/4" SPANNER 1
07900-00638 PRIMING SPACER 1

11
I M P O R T A N T
Check the tool against daily and weekly servicing.
Priming is ALWAYS necessary after the tool has been dismantled and prior to operating.
* refers to items included in the Avdel service kit. For complete list see page 10.
HYDRAULIC PISTON ASSEMBLY
With spring compressor* held in vice, compress spring 17, applying clamp screw ball-end to head piston plug 2.
Using circlip pliers* remove circlip 3.
Unscrew clamp and remove the head piston plug 2and spring 17.
Using spanner assembly for head piston* and a spanner* unscrew jaw spreader housing assembly 10 and withdraw piston 16.
Assemble in reverse order to dismantling.
Use ‘O’ ring assembly tool* and plug* when renewing ‘O’ rings.
If for any reason jaw spreader housing assembly 10 is removed from piston 16, a new jaw spreader housing assembly must be fitted
onto the piston and tightened with a torque of 20 lb.ft./9.1 kg.m. to the dimension shown on th general assembly drawing for the
tool in question.
AIR PISTON ASSEMBLY
Remove internal circlip 33 and pull out base plate 34.
Engage piston extractor* with piston rod 26 and pull out piston assembly 25.
Unscrew piston rod nut 31 and remove washer 30, air piston cup 29, washer 28 and buffer 27.
Assemble in reverse order to dismantling.
AIR VALVE
Using a spanner* unscrew female adaptor 36.
Remove valve spring 39, valve 40, spring 41, valve plunger 44 and valve operating rod 45.
Assemble in reverse order to dismantling, paying particular attention to sealing face of valve 40 and seal diameter of valve plunger
44 for marks and scratching.
ADAPTOR ASSEMBLY
Grip tool lightly in a vice fitted with soft jaws.
Remove piston assembly 25 as described earlier.
Using socket assembly*, ‘T’ handle extension*, lift out adaptor assembly 19 and washer 23.
Remove ‘O’ rings 20 & 18, back up rings 21 & 52.
Assemble in reverse order to dismantling, ensuring ‘O’ rings and back up rings are replaced in correct positions.
TRIGGER TIE REPLACEMENT
Using pin punch* drift out pin 55.
Remove screws 53 and pull off trigger guard 56.
Unbend trigger tie loop at trigger cam lever 51 and disengage.
Assemble in reverse order to dismantling.
Introduce free end of trigger tie into slot in trigger mounting and insert angled end of trigger tie into trigger cam lever 51.
Bend trigger tie over cam lever 51, making sure it pivots freely.
Position trigger guard 56 on handle 1, insert screws 53 and tighten.
Line up trigger assembly 54 with trigger guard 56 and insert new pin 55. Check free movement of trigger assembly.
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■

12
GENERAL ASSEMBLY OF BASE TOOL 07391-00200
A
A
SECTION A -
A
11
6mm MAX
.25" MAX
12 13
10
9
14
15 16 17
1
2
4
5
3
67
8
18
19
20
21
22
23
24
25
26
28
29
27
30
31
32
3334
35
36
49
48
4
4
4
3
4
2
4
1
4
0
3
9
3
8
3
7
5
6
5
4
4
7
5
3
4
6
5
0
4
5
5
1
5
2
5
5

13
ITEM PART Nº DESCRIPTION QTY SPARES
1 07391-00300 HANDLE ASSEMBLY ( 2 - 17 ) 1 -
2 07391-00302
● PLUG 1 -
3 07004-00019
● CIRCLIP 1 1
4 07003-00033
● BONDED SEAL 1 2
5 07001-00114
● SCREW 1 1
6 07340-00302
● HANDLE 1 -
7 07003-00099
● BONDED SEAL 1 2
8 07001-00394
● SCREW 1 1
9 07340-00329
● BUFFER 1 -
10 07391-00400
● JAW SPREADER HOUSING ASSY 1 -
11 07340-00330
● WASHER 1 1
12 07003-00034
● BACK UP RING 1 1
13 07003-00036
● 'O' RING 1 1
14 07003-00015
● 'O' RING 1 1
15 07003-00035
● BACK UP RING 1 1
16 07391-00301
● PISTON 1 -
17 07340-00324
● SPRING 1 1
18 07003-00032 'O' RING 1 1
19 07340-00700 ADAPTOR ASSEMBLY ( 20 - 23 ) 1 -
20 07003-00036
● 'O' RING 1 1
21 07003-00034
● BACK UP RING 1 1
22 07340-00701
● ADAPTOR 1 -
23 07340-00204 WASHER 1-
24 07391-00203 COVER 1 -
25 07340-00500 PISTON ASSEMBLY ( 26 - 31 ) 1 -
26 07340-00505
● PISTON ROD 1 -
27 07340-00506
● BUFFER 1 -
28 07340-00510
● WASHER 1 -
29 07003-00038
● AIR PISTON CUP 1 -
30 07340-00502
● WASHER 1 -
31 07002-00011
● NUT 1 1
32 07003-00031 'O' RING 1 1
33 07340-00230 CIRCLIP 1 1
34 07391-00201 BASE PLATE 1 -
35 07340-00400 CYLINDER ASSEMBLY (36 - 47 ) 1 -
36 07340-00412
● FEMALE ADAPTOR 1 -
37 07330-01302
● FILTER 1 1
38 07003-00065
● WASHER 1 1
39 07340-00401
● VALVE SPRING 1 -
40 07340-00413
● VALVE 1 -
41 07340-00403
● SPRING 1 1
42 07340-00407
● CYLINDER 1 -
43 07003-00040
● 'O' RING 1 2
44 07340-00417
● VALVE PLUNGER 1 -
45 07340-00416
● VALVE OPERATING ROD 1 1
46 07340-00414
● FILTER 1 -
47 07007-00016
● PIN 1 -
48 07005-00015 WASHER 1 -
49 07005-00041 CONNECTOR 1 -
50 07007-00014 PIN 1 -
51 07340-00208 TRIGGER CAM LEVER 1 -
52 07340-00217 BACK UP RING 2 2
53 07001-00393 SCREW 4 -
54 07340-04900 TRIGGER ASSEMBLY 1 -
55 07007-00439 PIN 1 1
56 07340-04600 TRIGGER GUARD
1-
ITEM PART Nº DESCRIPTION QTY SPARES
07391-00200 PARTS LIST

14
Priming is ALWAYS necessary after the tool has been dismantled and prior to operating. It may also be necessary to restore the full
stroke after considerable use, when the stroke may be reduced and rivets are not fully placed by one operation of the trigger.
O I L D E T A I L S
The recommended oil for priming is Hyspin VG32 available in 0.5l (part number 07992-00025) or one gallon containers (part number
07992-00026). Please find specific table and safety data below.
PR I M I N G
FIRST AID
SKIN: Wash thoroughly with soap and water as soon as
possible. Casual contact requires no immediate attention.
Short term contact requires no immediate attention.
INGESTION: Seek medical attention immediately.
DO NOT induce vomiting.
EYES: Irrigate immediately with water for several minutes.
Although NOT a primary irritant, minor irritation may occur
following contact.
FIRE
Suitable extinguishing media: CO2, dry powder, foam or
water fog. DO NOT use water jets.
PROPERTIES RESULT
ISO oil type HL
ISO viscosity grade 32
Kinematic viscosity
cS @ 40°C32
@ 100°C5.3
Relative density at 20°C0.875
Viscosity Index 95
Pour point °C-30
Open Flash point °C232
Neutralisation value mg KOH/g 1.5
H Y S P I N V G 32 O I L S A F E T Y D A T A
ENVIRONMENT
WASTE DISPOSAL: Through authorised contractor to a
licensed site. May be incinerated.
Used product may be sent for reclamation.
SPILLAGE: Prevent entry into drains, sewers and water courses.
Soak up with absorbent material.
HANDLING
Wear eye protection, impervious gloves (e.g. of PVC) and a
plastic apron. Use in well ventilated area.
STORAGE
No special precautions.
PROPERTIES RESULT
Foaming tendency/stability
ml @ 24°CTrace/Nil
ml @ 93.5°C20/Nil
ml @ 24°C after test @ 93.5°CTrace/Nil
Air release value minutes to
0.2% air content @ 50°C4
Seal compatability index 10
Water separation time
in minutes to 40-40-0 @54°C15
@83°C15

15
* refers to items included in the priming kit above.
P R O C E D U R E
Item numbers in bold refer to the general assembly and parts list pages 12 and 13.
I M P O R T A N T
CONNECT AIR SUPPLY (this causes the piston to bottom, allowing more priming oil into the tool).
DO NOT OPERATE THE TRIGGER WHILE THE BLEED SCREW IS REMOVED.
All operations should be carried out on a clean bench, with clean hands in a clean area.
Ensure that the priming pump is free from foreign matter
and that the oil is perfectly clean and free from air bubbles.
Care MUST be taken at all times, to ensure that no foreign matter enters the tool, or serious damage may result.
The use of a priming kit is necessary to implement the priming procedure. The part number to be used with the 07391 tool is 7900-03401.
Item numbers in bold refer to the general assembly and parts lists pages 12 to 13.
First remove the complete nose assembly off the tool.
Insert priming spacer into the nose casing, ensuring that the spacer sits at the bottom.
Fit the nose casing to the tool.
Fill the priming pump with priming oil.
Using a vice with a soft jaw place tool at a 45°incline.
Remove screw 8and bonded seal 7from the bottom of the handle using allen key*.
Screw priming pump into handle, complete with bonded seal 7.
Remove upper screw 5and bonded seal 4from the handle using allen key*.
Pump oil through the tool until non-aerated oil flows freely from the upper screwhole.
Fit screw 5and bonded seal 4, paying particular attention to the bonded seal which, if worn or damaged MUST be replaced.
Remove priming pump and fit lower screw 8and bonded seal 7checking seal - as above.
Remove the tool from the vice.
Remove the priming spacer from the nose casing and fit the nose casing to the tool.
Lay the tool horizontally on the bench with screw 5uppermost.
Remove screw 5and allow excess oil to flow out.
Replace screw 5.
Remove nose casing and priming spacer.
Fit nose assembly.
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
07900-00013 1/8" ALLEN KEY 1
07900-00076 5/32" ALLEN KEY 1
07900-00192 PRIMING PUMP 1
07900-00638 PRIMING SPACER 1
ITEM PART Nº DESCRIPTION Nº OF
F
PRIMING KIT

F A U L T D I A G N O S I S T A B L E
SYMPTOM POSSIBLE CAUSE REMEDY
Several pulls ➝Low air pressure. ➝Increase air pressure.
required to set rivet ➝Lack of lubrication. ➝Lubricate tool at air inlet point.
➝Worn or broken jaws. ➝New jaws.
➝Oil level in tool low or air in oil. ➝Prime tool. (see page 15)
Jaws will not grip ➝Worn or dirty jaws. ➝Clean or renew as necessary.
rivet stem ➝Jaw housing loose. ➝Tighten against nylon locking ring.
➝Weak or broken nose assembly spring. ➝Replace spring.
➝Incorrect nose equipment fitted. ➝Replace as necessary.
Jaws will not release ➝ Dirty jaws or jaw housing. ➝Clean.
spent rivet stem. ➝Jaw housing, nose tip or nose casing not properly seated. ➝Tighten nose equipment.
➝Weak or broken spring around jaw spreader assembly. ➝New spring.
FA U L T D I A G N O S I S
16

® © ™ Products mentioned and /or illustrated within this publication are subject to patent, design or copyright protection in many countries.
Engineered Fastening and Assembly Systems
Declaration of Conformity
We, Avdel UK Limited, Mundells, Welwyn Garden City, Herts, AL7 1EZ
declare under our sole responsibility that the product
type 07391
Serial Nº ..............................................
to which this declaration relates is in conformity with the following standards or other formative documents
EN292 part 1 and part 2
ISO 8662 part 1
ISO 3744
ISO PREN792 part 14
following the provisions of the Machine Directive 98/37/EC
This box contains a power tool which is in conformity with Machines Directive
98/37/EC. The ‘Declaration of Conformity’ is contained within.
Welwyn Garden City - date of issue A. Seewraj
Product Engineering Manager - Automation Tools

Manual No. Issue Change Note No.
07900-00582
B07/325
© Avdel UK Limited 2007
AUSTRALIA
Acument Australia Pty Ltd.
891 Wellington Road
Rowville, Victoria 3178
Tel: [phone]
Fax: [phone]
Email: [email protected]
CANADA
Avdel Canada, a Division of Acument
Canada Limited
87 Disco Road
Rexdale
Ontario M9W 1M3
Tel: [phone]
Fax: [phone]
Email: [email protected]
CHINA
Acument China Ltd.
RM 1708, 17/F., Nanyang Plaza,
57 Hung To Rd., Kwun Tong
Hong Kong
Tel: [phone]
Fax: [phone]
Email: [email protected]
FRANCE
Avdel France S.A.S.
33 bis, rue des Ardennes
BP4
75921 Paris Cedex 19
Tel: [phone]
Fax: [phone]
Email: [email protected]
GERMANY
Avdel Deutschland GmbH
Klusriede 24
30851 Langenhagen
Tel: [phone]
Fax: [phone]
Email: [email protected]
ITALY
Avdel Italia S.r.l.
Viale Lombardia 51/53
20047 Brugherio (MI)
Tel: [phone]
Fax: [phone]
Email: [email protected]
JAPAN
Acument Japan Kabushiki Kaisha
Center Minami SKY,
3-1 Chigasaki-Chuo, Tsuzuki-ku,
Yokohama-city, Kanagawa Prefecture
Japan 224-0032
Tel: [phone]
Fax: [phone]
Email: [email protected]
SINGAPORE
Acument Asia Pacific (Pte) Ltd.
#05-03/06 Techlink
31 Kaki Bukit Road 3
Singapore, 417818
Tel: [phone]
Fax: [phone]
Email: [email protected]
SOUTH KOREA
Acument Korea Ltd.
212-4, Suyang-Ri,
Silchon-Eup, Kwangju-City,
Kyunggi-Do, Korea, 464-874
Tel: [phone]
Fax: [phone]
Email: [email protected]
SPAIN
Avdel Spain S.A.
C/ Puerto de la Morcuera, 14
Poligono Industrial Prado Overa
Ctra. de Toledo, km 7,8
28919 Leganés (Madrid)
Tel: [phone]
Fax: [phone]
Email: [email protected]
UNITED KINGDOM
Avdel UK Limited
Pacific House
2 Swiftfields
Watchmead Industrial Estate
Welwyn Garden City
Hertfordshire
AL7 1LY
Tel: [phone]
Fax: [phone]
Email: [email protected]
USA
Avdel USA LLC
614 NC Highway 200 South
Stanfield,
North Carolina 28163
Tel: [phone]
Fax: [phone]
Email: [email protected]
www.avdel-global.com
