Avdel Avbolt 07220 User manual

5
Intent of Use
Tool Specification
Tool Dimensions
Specifications
The T10 Installation Tool is basically a Piston and Cylinder Assembly. When coupled Hydraulically and Electrically to a compatible
Hydraulic Power Source and the relevant Nose Assembly is attached, it is then used to install 3/8” Avdelok®, 5/16” to 3/8” Avbolt®and
16mm to 20mm Avseal®in Industrial Environments.
Refer to the table below for the list of applicable fasteners and associated nose equipment.
Refer to the datasheets listed in the table for the relevant nose assembly insructions.
158 mmA
118 mm
98 mm
60 mm
176 mm
B
Length 158 mm 6.25 in
Body Diameter 60 mm 2.36 in
Height 176 mm 6.93 in
Weight 3.5 kg 7.7 lbs
Stroke 25 mm 1 in
Pull-Force 58kN 13040 lbf
Pull pressure 55.2 mPa 8000 PSI
Return Pressure 20.7 mPa 3000 PSI
Hydraulic Oil ISO VG 46 OR EQUIVALENT
Fastener Range 5 to 10 mm incl. M.G. & Blind Fasteners
Noise Level Below reportable levels
Sound Power Below reportable levels
Vibration Below reportable levels
FASTENER
TYPE SIZE
NOSE ASSEMBLY
PART Nº HAT REF. DIM. ‘A’
NOSE ASSEMBLY
DATASHEET
DIM. ‘B’ PART Nº
®
07900-00919
07900-00905
07900-00905
07900-00840
07900-00840
07900-00840
07900-00840
73411-03100
73411-05200
73411-05400
16mm
16mm flanged
18mm
20mm
73411-03300
73411-03200
73411-05000
73411-05000
-
-
-
-
-
N11
Avbolt
Avseal
Avdelok 3/8î (10mm)
3/8”
5/16”
28mm89mm
27mm86mm
29mm86mm
27mm89mm
27mm89mm
27mm89mm
27mm89mm
N10
®
®

This technical datasheet must be read with particular attention to the safety rules and operating instructions
listed in the 07220 (07900-00648), T10 (07900-00820) and T30 (07900-00821) Instruction Manuals, by any
person fitting or operating the Avbolt®nose assemblies and hand tools.
The Avbolt®nose assemblies in combination with the 07220, T10 and T30 tools are designed for placing Avdel®Avbolt®
structural fasteners only. The correct placing tool and nose assembly must be selected for each fastener size as shown in
Table 1 below.
I M P O R T A N T
The tools and nose assemblies must be used in accordance with the safety rules and fitting instructions
contained within this datasheet and the tool instruction manual. The placing of fasteners not included in this
datasheet could have a detrimental impact on the working life of the tool and nose assemblies and could
invalidate the warranty.
The Table 1 below provides a full list of part numbers, nose assemblies and base tools required to place each Avbolt®size.
This table should be used to select and order the correct placing equipment.
Please note that there are two variants of nose equipment available to fit either Avdel®or Huck®hand tools.
For the fitting and servicing instructions for each nose assembly refer to the page number provided in Table 1.
1
Avbolt®Nose Assembly Instructions
07220, T10 and T30 Tools
Safety Rules
Intent of Use
SIZE
1/4”
5/16”
3/8”
1/2”
5/8”
PART No REF. PAGE
NOSE ASSEMBLY
MODEL PART No
BASE TOOL
PART No
JAWS
07220-07500
07220-07600
07220-07700*
73411-03200
73411-03500
-
-
73412-03400
73412-03500
07220-07502
07220-07502
73411-03203
73411-03203
73412-03403
73412-03403
7220
HUCK®256
HUCK®256
HUCK®2600
T10
HUCK®2600
T30
HUCK®585
-
-
-
07220-00200
73411-02000
-
-
--
-
--
--
73412-02000
-
2
2
73411-03303 7220*07220-00200*4
07220-07800 73411-033034
T10 73411-02000
73411-03300 73411-033036
73411-03400 73411-033036
10
8
8
10
*Please note: The 7220 tool is not suitable for high volume placement of 5/16”Avbolt
®
. The tool is only
to be used for demonstration and/or low volume trial purposes.
-
AVBOLT
®
Table 1: Nose Equipment Part Numbers

2
1/4” Avbolt®Nose Assemblies - 07220-07500 and 07220-07600
I M P O R T A N T
The air supply must be disconnected when fitting or removing nose assemblies.

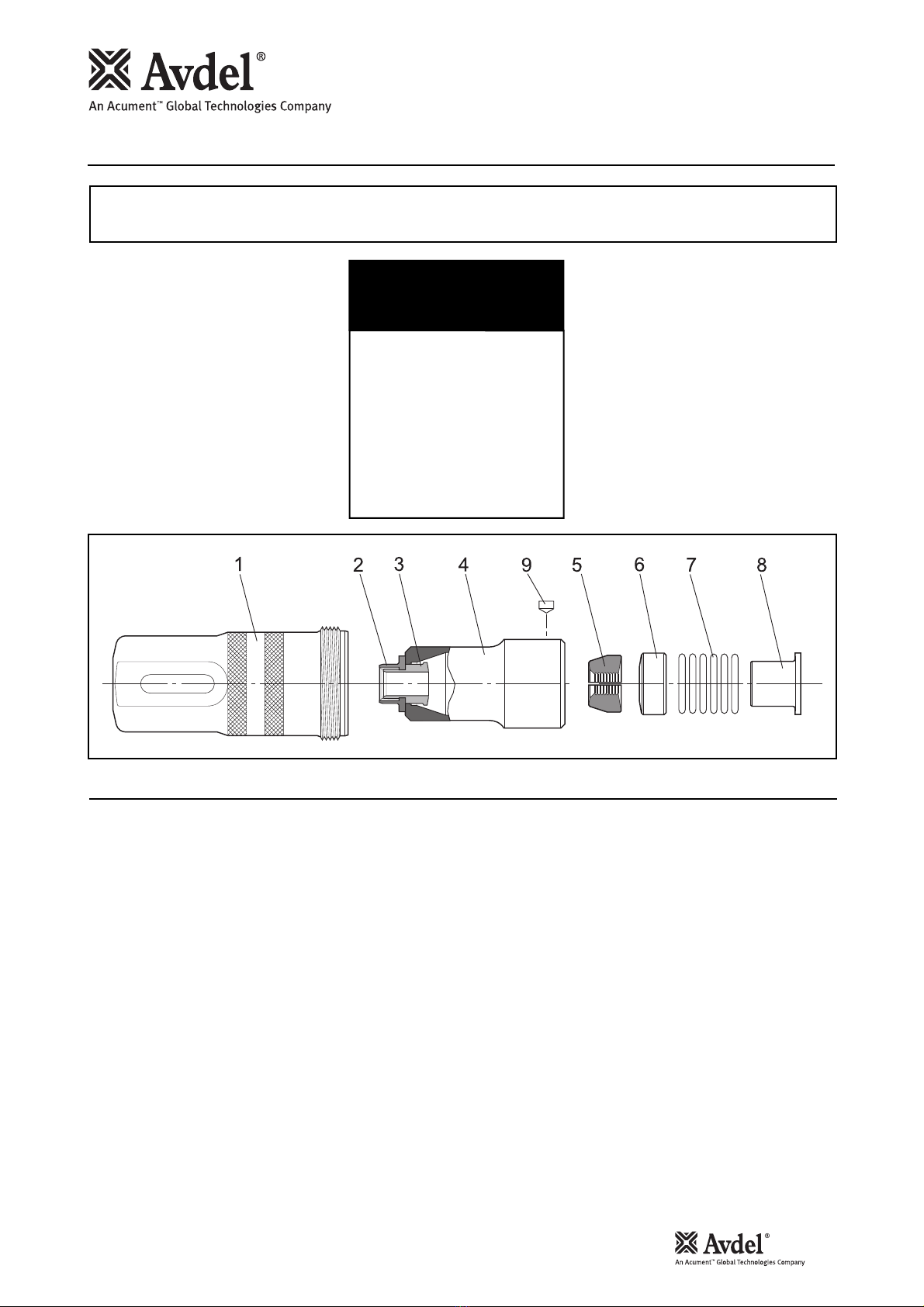

NOSE ASSEMBLY
for Avdel®07220 tool
part nº 07220-07500

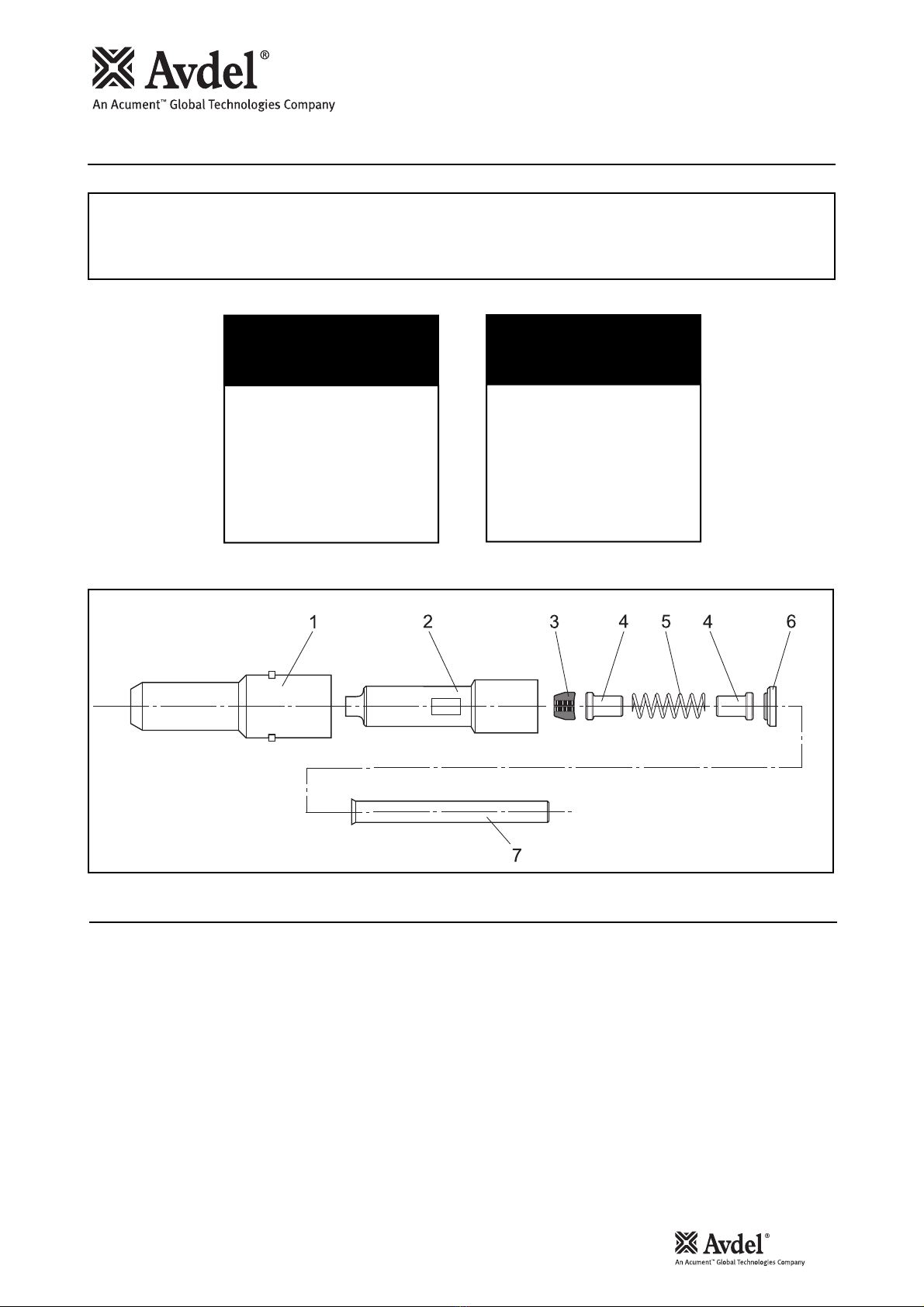

ITEM DESCRIPTION PART Nº
1 ANVIL 07220-07501
2 COLLET 07220-07503
3 JAWS 07220-07502
4 SPRING GUIDE 07220-02104
5 SPRING 07220-02103
6 SPACER 07220-07504
7 PINTAIL TUBE 07220-07505
NOSE ASSEMBLY
for Huck®256 tool
part nº 07220-07600
ITEM DESCRIPTION PART Nº
1 ANVIL 07220-07501
2 COLLET 07220-07503
3 JAWS 07220-07502
4 SPRING GUIDE 07220-02104
5 SPRING 07220-02103
6 SPACER - HUCK
®
07220-07601
7 PINTAIL TUBE 07220-07505
Item numbers in bold refer to nose assembly components in the tables and illustration above.
•Lightly coat Jaws 3with Moly Lithium grease.
•Assemble Spring Guide 4and Spring 5and stand on end on a flat even surface.
•Balance the three Jaws 3on the upper Spring Guide 4.
•Carefully lower Collet 2over the assembled components.
•Holding the assembled collet pointing downwards insert Spacer 6behind the rear Spring Guide 4.
•Insert Pintail Tube 7into the tool head piston bore.
•Holding the tool pointing down, screw the assembled collet fully onto the tool head piston and tighten with a suitable
spanner.
Fitting Instructions

3
1/4” Avbolt®Nose Assemblies - 07220-07500 and 07220-07600
07220 Tool:
•Place Anvil 1over Collet 2and onto the tool, ensuring that the lugs on the body enter the slots in the
head extension of the tool.
•Turn the reducing adaptor body through 90° then turn the head extension ring until it springs into its position
in the slots of the head extension.
Huck®256 Tool:
•Place Anvil 1over Collet 2and into the tool. Slide the retainer nut over Anvil 1, screw fully onto the
tool and tighten by hand.
Servicing Instructions
Nose assemblies should be serviced at weekly intervals. You should hold some stock of all internal components
of the nose assembly as they will need regular replacement.
•Remove the nose assembly using the reverse procedure to the ‘Fitting Instructions’.
•Any worn or damaged part should be replaced.
•Clean and check wear on Jaws 3.
•Check that Spring 5and Spring Guides 4are not distorted.
•Clean and inspect components, renewing worn or damaged items.
•Assemble according to the ‘Fitting Instructions’.
Fitting Instructions

4
5/16”Avbolt®Nose Assemblies - 07220-07700 and 07220-07800
I M P O R T A N T
The air supply must be disconnected when fitting or removing nose assemblies.
78
Please note: The 7220 tool is not suitable for high volume placement of 5/16”Avbolt®. The tool is only to be used
for the demonstration and/or low volume trial purposes.
NOSE ASSEMBLY
for Avdel®07220 tool
part nº 07220-07700
ITEM DESCRIPTION PART Nº
1 ANVIL 07220-07701
2 COLLET 07220-07702
3 JAWS 73411-03303
4 FOLLOWER 07220-07703
5 SPRING 07220-06305
6 SPRING GUIDE 07220-07704 SPRING GUIDE 07220-07704
NOSE ASSEMBLY
for Huck®256 tool
part nº 07220-07800
ITEM DESCRIPTION PART Nº
1 ANVIL 07220-07701
2 COLLET 07220-07702
3 JAWS 73411-03303
4 FOLLOWER 07220-07703
5 SPRING 07220-06305
6
8
SHIM 07220-078017
SHIM 07220-07802
Item numbers in bold refer to nose assembly components in the tables and illustration above.
07220 Tool:
•Lightly coat Jaws 3with Moly Lithium grease.
•Assemble Spring Guide 6, Spring 5and Follower 4and stand on end on a flat even surface.
•Balance the three Jaws 3on Follower 4.
•Carefully lower Collet 2over the assembled components.
•Holding the tool pointing down, screw the assembled collet fully onto the tool head piston and tighten with a suitable
spanner.
•Place Anvil 1over Collet 2and onto the tool, ensuring that the lugs on the body enter the slots in the head extension of
the tool.
•Turn the reducing adaptor body through 90° then turn the head extension ring until it springs into its position
in the slots of the head extension.
Fitting Instructions

5
5/16”Avbolt®Nose Assemblies - 07220-07700 and 07220-07800
Huck®256 Tool:
•Lightly coat Jaws 3with Moly Lithium grease.
•Assemble Spring Guide 6, Shim 7, Sping 5and Follower 4and stand on end on a flat even surface.
•Balance the three Jaws 3on Follower 4.
•Carefully lower Collet 2over the assembled components.
•Holding the assembled collet pointing downwards, insert the Shim 8behind the Spring Guide 6.
•Holding the tool pointing down, screw the assembled collet fully onto the tool head piston and tighten with a suitable
spanner.
•Place Anvil 1over Collet 2and into the tool. Slide the retainer nut over Anvil 1, screw fully onto the
tool and tighten by hand.
Servicing Instructions
Nose assemblies should be serviced at weekly intervals. You should hold some stock of all internal components
of the nose assembly as they will need regular replacement.
•Remove the nose assembly using the reverse procedure to the ‘Fitting Instructions’.
•Any worn or damaged part should be replaced.
•Clean and check wear on Jaws 3.
•Check that Spring 5, Follower 4and Spring Guide 6are not distorted.
•Clean and inspect components, renewing worn or damaged items.
•Assemble according to the ‘Fitting Instructions’.
Fitting Instructions

6
5/16”Avbolt®Nose Assemblies - 73411-03300 and 73411-03400
I M P O R T A N T
Be sure the tool power supply is turned off before fitting or removing the nose assembly.
10 off
NOSE ASSEMBLY
for Avdel T10 tool
part nº 73411-03300
ITEM DESCRIPTION PART Nº
1 ANVIL 73411-03301
2 COLLET 73411-03302
3 JAWS 73411-03303
4 FOLLOWER 73411-03304
5
6
‘O’ RINGS 07003-00426
7 COLLET LOCK 73411-05004
SLEEVE 73411-03305
NOSE ASSEMBLY
for Huck 2600 tool
part nº 773411-03400
ITEM DESCRIPTION PART Nº
1 ANVIL-HUCK 73411-03401
2 COLLET-HUCK 73411-03402
3 JAWS 73411-03303
4 FOLLOWER 73411-03304
5 ‘O’ RINGS 07003-00426
6 SLEEVE 73411-03305
7 COLLET LOCK 73411-05004
Item numbers in bold refer to nose assembly components in the tables and illustration above.
•Lightly coat Jaws 3with Moly Lithium grease.
•On a flat work surface, assemble the Sleeve 6, ‘O’ Rings 5, Follower 4and Jaws 3by stacking vertically in that order.
•Place the Collet 2over the assembled stack, slide to the end of the work surface and with a finger, push the stack fully
inside the Collet.
T10 Tool:
•Holding the tool pointing down, screw the assembled collet fully onto the piston rod until it is flush with the end of the
collet adaptor.
•Insert Collet Lock 7into Collet 2. Rotate Collet 2on the piston rod in either direction until Collet Lock 7slots into the
nearest groove in the collet adaptor. The Collet Lock 7should be flush with the exterior of Collet 2.
•Slide Anvil 1over the collet and screw into the anvil adaptor until it is firm.
•There is a locking ‘O’ Ring which will create a resistance to the final few turns of the nose casing. It is imperative that the
nose casing be hand tightened up against the rear locking face.
Huck®2600 Tool:
•Holding the tool pointing downwards, screw the assembled collet onto the piston rod until it bottoms out.
•Insert Collet Lock 7into Collet 2. Rotate Collet 2 on the piston rod in either direction until Collet Lock 7slots into the
nearest groove on the piston rod. The Collet Lock 7should be flush with the exterior of Collet 2.
•Place Anvil 1over Collet 2and into the tool. Slide the retainer nut over Anvil 1, screw fully onto the tool and tighten by
hand.
Fitting Instructions

7
5/16”Avbolt®Nose Assemblies - 73411-03300 and 73411-03400
Servicing Instructions
Nose assemblies should be serviced at weekly intervals. You should hold some stock of all internal components
of the nose assembly as they will need regular replacement.
•Remove the nose assembly using the reverse procedure to the ‘Fitting Instructions’.
•Any worn or damaged part should be replaced.
•Clean and check wear on Jaws 3.
•Check that Follower 4, Sleeve 6and ‘O’ Rings 5are not distorted.
•Assemble according to the ‘Fitting Instructions’.

8
3/8”Avbolt®Nose Assemblies - 73411-03200 and 73411-03500
IMPORTANT
Be sure the tool power supply is turned off before fitting or removing the nose assembly.
NOSE ASSEMBLY
for Avdel®T10 tool
part nº 73411-03200
ITEM DESCRIPTION PART Nº
1 ANVIL 73411-03201
2 COLLET 73411-03202
3 JAWS 73411-03203
4 FOLLOWER 73411-03204
5
6
‘O’ RINGS 07003-00426
7 COLLET LOCK 73411-05004
SLEEVE 73411-03205
NOSE ASSEMBLY
for Huck®2600 tool
part nº 73411-03500
ITEM DESCRIPTION PART Nº
1 ANVIL-HUCK
®
73411-03501
2 COLLET-HUCK
®
73411-03502
3 JAWS 73411-03203
4 FOLLOWER 73411-03204
5 ‘O’ RINGS 07003-00426
6 SLEEVE 73411-03205
7 COLLET LOCK 73411-05004
10 off
Fitting Instructions
Item numbers in bold refer to nose assembly components in the tables and illustration above.
•Lightly coat Jaws 3 with Moly Lithium grease.
•On a flat work surface, assemble Sleeve 6, ‘O’ Rings 5, Follower 4and Jaws 3by stacking vertically in that order.
•Place Collet 2over the assembly stack, slide to the end of the work surface and with a finger, push the stack fully into
Collet 2.
T10 Tool:
•Holding the tool pointing down, screw the assembled collet onto the piston rod until it is flush with the end of the
collet adaptor.
•Insert Collet Lock 7into Collet 2. Rotate Collet 2on the piston rod in either direction until Collet Lock 7slots into the
nearest groove on the collet adapter. The Collet Lock 7should be flush with the exterior of Collet 2.
•Slide Anvil 1over Collet 2and screw into the anvil adaptor until it is firm.
•There is a locking 'O' ring which will create a resistance to the final few turns of the nose casing. It is imperative that the
nose casing be hand tightened up against the rear locking face.
Huck®2600 Tool:
•Holding the tool pointing down, screw the assembled collet onto the piston rod until it bottoms out.
•Insert Collet Lock 7into Collet 2. Rotate Collet 2on the piston rod in either direction until Collet Lock 7slots into the
nearest groove on the piston rod. The Collet Lock 7should be flush with the exterior of Collet 2.
•Place Anvil 1over Collet 2and into the tool. Slide the retainer nut over the Anvil 1, screw fully onto the tool and tighten by
hand.

9
3/8”Avbolt®Nose Assemblies - 73411-03200 and 73411-03500
Nose assemblies should be serviced at weekly intervals. You should hold some stock of all internal components of the nose
assembly as they will need regular replacement.
•Remove the nose assembly using the reverse procedure to the ‘Fitting Instructions’.
•Any worn or damaged part should be replaced.
•Clean and check wear on Jaws 3.
•Check that Follower 4, Sleeve 6and ‘O’ Rings 5are not distorted.
•Assemble according to the ‘Fitting Instructions’.
Servicing Instructions

10
5/8”Avbolt®Nose Assembly - 73412-03400 for Avdel®T30
IMPORTANT
Be sure the tool power supply is turned off before fitting or removing the nose assembly.
NOSE ASSEMBLY
for Avdel®T30 tool
part nº 73412-03400
ITEM DESCRIPTION PART Nº
1 ANVIL 73412-03401
2 COLLAR EJECTOR 73412-03408
3 JAW RELEASE 73412-03406
4 COLLET 73412-03402
5 JAWS 73412-03403
6 FOLLOWER 73412-03404
7
8 SLEEVE 73412-03405
9 COLLET LOCK 73412-03407
‘O’ RINGS 07003-00427
6 off
Fitting Instructions
Item numbers in bold refer to nose assembly components in the table and illustration above.
•Lightly coat Jaws 5with Moly Lithium grease.
•On a flat work surface, assemble Sleeve 8, ‘O’ Rings 7, Follower 6and Jaws 5by stacking vertically in that order.
•The Collet 4will be supplied pre-assembled with Collar Ejector 2and Jaw Release 3as shown.
•Place Collet 4over the assembled stack, slide to the end of the work surface and with a finger, push the stack fully
inside Collet 4.
•Holding the tool pointing down, screw the assembled collet onto the piston rod until it is flush with the end of the collet
adaptor.
•Insert Collet Lock 9into Collet 4. Rotate Collet 4 on the piston rod in either direction until Collet Lock 9 slots into the
nearest groove on the collet adapter. The Collet Lock 9 should be flush with the exterior of Collet 4.
•Slide Anvil 1over Collet 4 and screw into the anvil adaptor until it is firm.
•There is a locking 'O' ring which will create a resistance to the final few turns of the nose casing. It is imperative that the
nose casing be hand tightened up against the rear locking face.
•Correct installation of the nose assembly can be gauged by the free movement of the correct size pintail through the
assembled jaws in the nose.

11
5/8”Avbolt®Nose Assembly - 73412-03400 for Avdel®T30
Nose assemblies should be serviced at weekly intervals. You should hold some stock of all internal components
of the nose assembly as they will need regular replacement.
•Remove the nose assembly using the reverse procedure to the ‘Fitting Instructions’.
•Any worn or damaged part should be replaced.
•Clean and check wear on Jaws 5.
•Check that Collar Ejector 2, Follower 6, Sleeve and ‘O’ Rings 7are not distorted.
•To remove a damaged or worn Collar Ejector 2cut at a point between the flange of the ejector and the end of Collet 4.
The Collar Ejector 2 and Jaw Release 3can then be separated and removed from Collet 4.
•When assembling a new Collar Ejector 2and Jaw Release 3in Collet 4, first ensure that the threads are clean, before
applying Loctite®243 and screwing the two parts together within Collet 4.
•Assemble according to the ‘Fitting Instructions’.
Servicing Instructions

12
5/8”Avbolt®Nose Assembly - 73412-03500 for Huck®585
IMPORTANT
Be sure the tool power supply is turned off before fitting or removing the nose assembly.
NOSE ASSEMBLY
for Huck®585 tool
part nº 73412-03500
ITEM DESCRIPTION PART Nº
1 ANVIL-HUCK
®
73412-03501
2 COLLAR EJECTOR 73412-03408
3 JAW RELEASE 73412-03406
4 COLLET- HUCK
®
73412-03502
5 JAWS 73412-03403
6 FOLLOWER 73412-03404
7
8 SLEEVE 73412-03405
9 COLLET LOCK 73412-03507
10 COLLET ADAPTOR 73412-03508
11 LOCKING SCREW 07001-00481
12 CIRCLIP 07004-00107
ëO ’RINGS 07003-00427
6 off
Fitting Instructions
Item numbers in bold refer to nose assembly components in the table and illustration above.
•Lightly coat Jaws 5with Moly Lithium grease.
•On a flat work surface, assemble Sleeve 8, ‘O’ Rings 7, Follower 6and Jaws 5by stacking vertically in that order.
•The Collet 4will be supplied pre-assembled with Collar Ejector 2and Jaw Release 3positioned as shown.
•Place Collet 4over the assembled stack, slide to the end of the work surface and with a finger, push the stack fully
inside Collet 4.
•Screw Collet Adaptor 10 fully into the collet assembly. The shoulder of Collet Adaptor 10 should come ito contact with
the rear of Collet 4.
•Insert Collet Lock 9into Collet 4. Unscrew Collet Adaptor 10 until Collet Lock 9 slots into the nearest groove. The
Collet Lock 9 should be flush with the exterior of Collet 4.
•Screw the assembled Collet Adaptor 10 onto the piston rod until the rear face of Collet Adaptor 10 extends
approximately 5mm beyond the front face of the tool adapter.
•Apply Loctite®243 to Locking Screw 11 and insert into Collet Adapter 10. Rotate Collet 4 on the piston rod in either
direction until Locking Screw 11 can slot into the nearest groove on the piston rod. The Locking Screw 11 should then
be inserted so it is flush with the exterior of Collet Adapter 10.

13
5/8”Avbolt®Nose Assembly - 73412-03500 for Huck®585
Nose assemblies should be serviced at weekly intervals. You should hold some stock of all internal components
of the nose assembly as they will need regular replacement.
•Remove the nose assembly using the reverse procedure to the ‘Fitting Instructions’.
•Any worn or damaged part should be replaced.
•Clean and check wear on Jaws 5.
•Check that Collar Ejector 2, Follower 6, Sleeve 8and ‘O’ Rings 7are not distorted.
•To remove a damaged or worn Collar Ejector 2cut at a point between the flange of the ejector and the end of Collet 4.
The Collar Ejector 2and Jaw Release 3can then be separated and removed from Collet 4.
•When assembling a new Collar Ejector 2and Jaw Release 3in Collet 4, first ensure that the threads are clean, before
applying Loctite®243 and screwing the two parts together within Collet 4.
•Assemble according to the ‘Fitting Instructions’.
Servicing Instructions
Fitting Instructions
•Place the split rings over Anvil 1and adapter of the tool. Push Anvil 1over Collet 4and into the tool to assist in seating
the split rings.
•Slide the sleeve or retainer over the split rings and then install Circlip 12 on Anvil 1.
•Correct installation of the nose assembly can be gauged by the free movement of the correct size pintail through the
assembled jaws in the nose.

14
Notes

15
Notes

16
Avdel UK Limited
Pacific House, 2 Swiftfields, Watchmead Industrial Estate,
Welwyn Garden City, Herts, AL7 1LY United Kingdom
Tel: [phone] Facsimile: [phone]
www.avdel-global.com
Notes
Data Sheet No. Issue Change Note No.
A 08/007
B 08/094
07900-00905
© 2008 Acument intellectual Properties, LLC
Avdel®and Avbolt®are trademarks of Avdel UK Limited. Huck®is a trademark of Alcoa Inc. Loctite®is a trademark of Henkel Corporation.

This technical datasheet must be read with particular attention to the safety rules and operating instructions
listed in the T10 (07900-00820), T30 (07900-00821), T40 (07900-00909) and T51 (07900-00819) Instruction
Manuals, by any person fitting or operating the Avdelok®nose assemblies and hand tools.
The LD Avdelok®nose assemblies in combination with the T10, T30, T40 and T51 tools are designed for placing Avdel®LD
Avdelok®structural fasteners only. The correct placing tool and nose assembly must be selected for each fastener size as
shown in the table below.
I M P O R T A N T
The tools and nose assemblies must be used in accordance with the safety rules and fitting instructions
contained within this datasheet and the tool instruction manual. The placing of fasteners not included in this
datasheet could have a detrimental impact on the working life of the tool and nose assemblies and could
invalidate the warranty.
The table below provides a full list of part numbers, nose assemblies and base tools required to place each LD Avdelok®size.
This table should be used to select and order the correct placing equipment.
For the fitting and servicing instructions for each nose assembly refer to the page number provided in the table below.
1
Large Diameter Avdelok®Nose Assembly
Instructions T10, T30, T40 and T51 Tools
Safety Rules
Intent of Use
PRODUCT SIZE
AVDEL REF. HAT REF.
NOSE ASSEMBLY
PART Nº HAT REF. PAGE
BASE TOOL
MODEL PART Nº
®
73411-02000
73412-02000
73414-02000
73412-02000
73414-02000
73412-02000
73414-02000
73410-02000
73410-02000
73410-02000
73411-03100
73410-03200
73410-03100
73410-03300
-
No 22 Hydraloc
No 25 Hydraloc
No 28 Hydraloc
No 13 Hydraloc
No 16 Hydraloc
No 19 Hydraloc
73412-03100
73412-03200
73412-03300
N32
N31
N30
4
4
4
1/2” LD Avdelok
5/8” LD Avdelok
3/4” LD Avdelok
3/8” Avdelok
7/8” LD Avdelok
1” LD Avdelok
11/8” LD Avdelok
T10
T30
T40
T30
T40
T30
T40
T51
T51
T51
2
7
7
7
N10
N53
N50
N52
®
®
®
®
®
®
Nose Equipment Part Numbers

2
3/8”Avdelok®Nose Assembly - 73411-03100 for T10 Tool
I M P O R T A N T
Be sure the power supply is turned off before fitting or removing the nose assembly.
ITEM HAT REF.DESCRIPTION PART NUMBER QTY
part no 73411-03100
3/8”
AVDELOK NOSE ASSEMBLY - N10
1 N101ANVIL 73411-03101
2 N102COLLET 73411-03102
3 JS01JAWSET 73411-03103
4 N107FOLLOWER 73411-03104
5 R113'O' RING 73411-03105
6 N108SLEEVE 73411-03106
7 MS23COLLET LOCK 73411-03107
1
1
1
1
10
1
1
®
3
4
5
6
7
2
1
3
4
5
6
STACKING
Important: Nose Assembly parts must be assembled clean and dry. Do not lubricate with oil or grease.
Item numbers in bold refer to nose assembly components in the table and illustration above.
•Ensure the installation tool piston is in the fully forward position.
•On a flat work surface, assemble Sleeve 6, ‘O’ Rings 5, Follower 4and Jaws 3by stacking vertically in that order.
•Carefully lower Collet 2over the assembled components, slide to the edge of the work surface and with a finger, push
the assembled components fully inside the collet.
•Holding the tool pointing down, screw the assembled collet fully onto the piston rod until it is flush with end of the collet
adaptor.
Fitting Instructions

3
3/8”Avdelok®Nose Assembly - 73411-03100 for T10 Tool
Item numbers in bold refer to nose assembly components in the table and illustration on page 2.
•Insert Collet Lock 7into Collet 2. Rotate Collet 2on the piston rod in either direction until Collet Lock 7slots into the
nearest groove in the collet adaptor. The Collet Lock 7should be flush with the exterior of Collet 2.
•Slide Anvil 1over the collet and screw into the anvil adaptor until it is firm.
•There is a locking ‘O’ Ring which will create a resistance to the final few turns of the nose casing. It is imperative that the
nose casing be hand tightened up against the rear locking face.
Fitting Instructions
Servicing Instructions
Nose assemblies should be serviced at weekly intervals. You should hold some stock of all internal components
of the nose assembly as they will need regular replacement.
•Remove the nose assembly using the reverse procedure to the ‘Fitting Instructions’.
•Any worn or damaged part should be replaced.
•Clean and check wear on Jaws 3.
•Check that Follower 4, Sleeve 6and ‘O’ Rings 5are not distorted.
•Assemble according to the ‘Fitting Instructions’.
