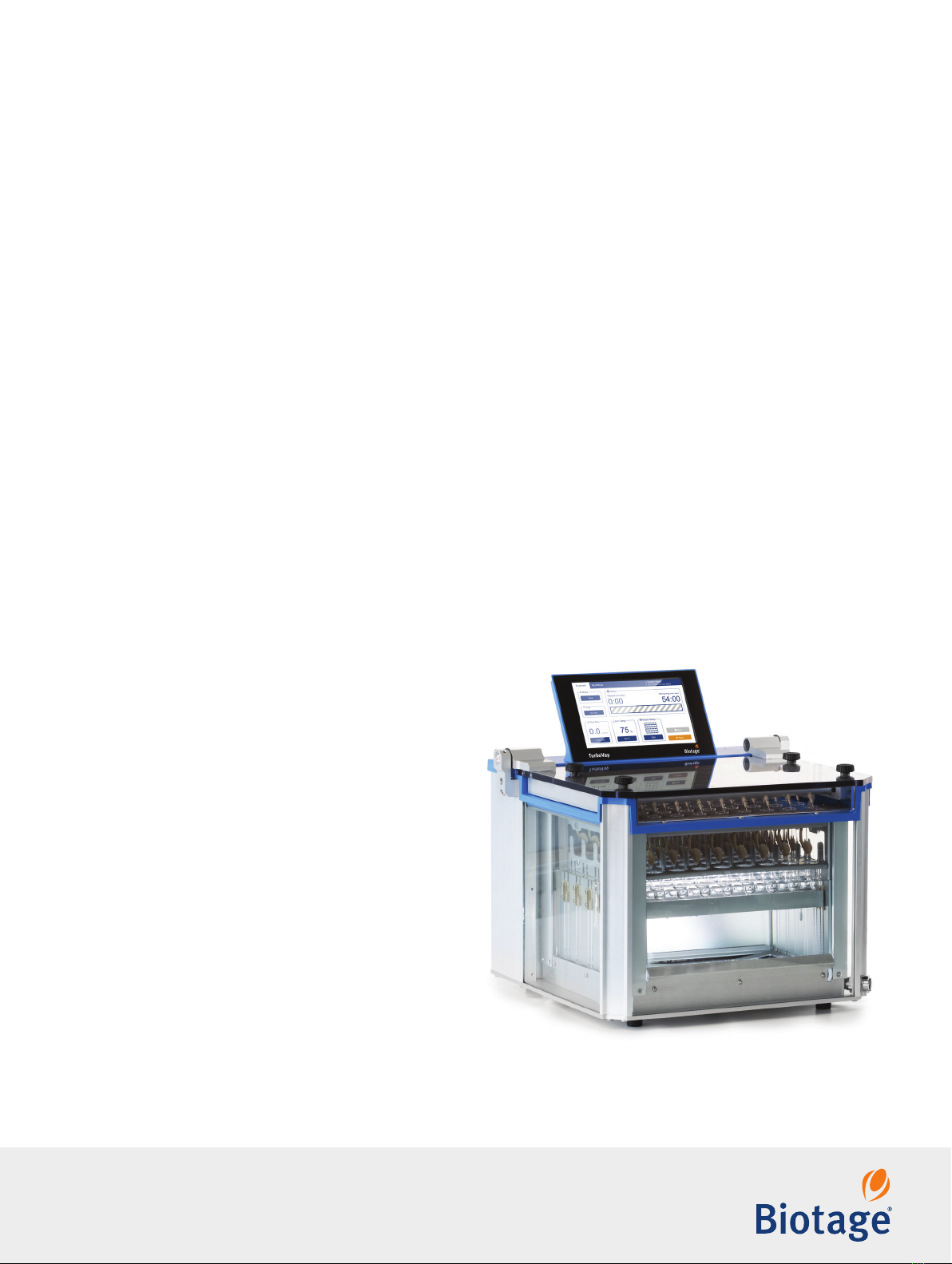

Biotage TurboVap LV User manual

© Biotage 2020
Quick Start Guide to TurboVap®LV | Page 
For detailed instructions, see the TurboVap®User Manual.
Mode ()
Display shows the current operation mode. Mode is controlled
by pressing the blue button. There are three evaporation modes
available on TurboVap LV:
» Manual: Evaporate until the user presses the Stop button.
» Time: Evaporate for a set period of time.
» Method: There are several options. For more information,
see “Define Methods” in the TurboVap®User Manual.
Evaporate Settings System Ready
12:13 Wed 22 Jan 2020
Start
Stop
Edit
Time
Mode
Nozzle Setup
1.2 L/min
L/min
0.0
54 min
Time
Status
Gas Flow
75 °C
°C
75
Bath Temp
54:00
Remaining (min:sec)
0:00
Elapsed (min:sec)
1
2
6
9
3 4 5
8
7
Time ()
Display shows the set evaporation time in minutes for the
current evaporation method. Time is controlled by pressing the
blue button. (Only shown in Time mode.)
Gas Flow ()
Display shows the current and set gas flow in L/min. Gas flow is
controlled by pressing the blue button.
Bath Temperature ()
Display shows the current and set water bath temperature in °C
or °F. Bath temperature is controlled by pressing the blue button.
Nozzle Setup ()
Display shows which nozzle rows are currently enabled.
Rows are selected ON or OFF by pressing the blue button.
Status ()
Display shows the remaining and/or elapsed time of the
current evaporation.
Quick Start Guide to TurboVap®LV
Start/Pause ()
Press to start or pause the evaporation in progress.
Stop ()
Press to stop the evaporation in progress.
Settings ()
Press to define system settings. Displays an alternative screen.
Evaporate Settings System Ready
16:48 Wed 22 Jan 2020
Manifold Setup
48 Positions
Sound Level
Medium
Sleep Mode
Edit
Temp Unit
°C
Brightness
- +
Change
Time & Date
16 48
:
2020
Jan22
Bath Light
OFF ON
More »
Lid Sleep
OFF ON
Cont End-Point
OFF ON
10 11
14 15 18
12 13
19
17
16
Sound Level ()
Display shows the current sound level. Sound level is controlled
by pressing the blue button. The sound level can be set to Low,
Medium, High, or OFF.
Brightness ()
Display shows the brightness of the touch screen. Brightness
is controlled by pressing either +or –.
Manifold Setup ()
Display shows the selected/installed manifold. For more
information, see “Manifolds” in the TurboVap®User Manual.
Sleep Mode ()
Display shows the sleep mode settings. For more information,
see “Sleep Mode and Automatic Wake-Up” in the TurboVap®
User Manual.
Temp Unit ()
Display shows the temperature unit used by the system.
Press Change to switch between °C or °F.

© Biotage 2020
Quick Start Guide to TurboVap®LV | Page 
Part Number: 415877-B
© 2020 Biotage. All rights reserved. No material may be reproduced or published without the written permission of Biotage.
Information in this document is subject to change without notice and does not represent any commitment from Biotage. E&OE.
A list of all trademarks owned by Biotage AB is available at www.biotage.com/legal. Other product and company names mentioned
herein may be trademarks or registered trademarks and/or service marks of their respective owners, and are used only for
explanation and to the owners’ benefit, without intent to infringe.
Time and Date ()
Display shows the current time and date. Time and date are set
by pressing the appropriate blue buttons.
Lid Sleep ()
With lid sleep turned ON, the system automatically enters
sleep mode if the lid is left open for more than 90 minutes.
Cont End-Point ()
Continuous end-point evaporation turned ON allows for
replacing a finished tube and restarting end-point detection for
that rack position without restarting the run. Only applicable
when the TurboVap II manifold and the end-point rack are used.
Bath Light ()
The bath light can be turned ON or OFF.
More ()
Display shows system and software information, and gives
access to calibration features. For more information, see the
TurboVap®User Manual.
Daily Operation
Follow the steps below to operate the system. For detailed
instructions, see the TurboVap®User Manual.
Prepare the System
The system should always be turned on when a sample tube is
inserted so that the exhaust fan can remove solvent vapors.
1. Check the incoming gas supply for sufficient reserve.
2. Ensure that the water in the bath is at an appropriate level.
3. Check/set the mode of operation.
4. Check/set the water bath temperature. Red indicator in the
Bath Temp field indicates bath heating. When the target
water bath temperature has been reached, the user will be
notified by a dialog on the touch screen.
5. Check/set the gas flow.
6. If using the TurboVap LV Multi Rack with 24 positions
(P/N 415129), ensure that half the nozzles are plugged using
the supplied nozzle plugs and that the appropriate manifold
is selected in the Settings view. For more information, see
the TurboVap®User Manual.
Note: In a partially filled row, nozzles can be plugged.
7. Open the lid and place the rack with the sample tubes into
the water bath.
8. If necessary, adjust the nozzle row position so that the
nozzles are as far to the right as possible without touching
the side of the tubes. For more information, see the
TurboVap®User Manual.
9. Close the lid.
Start the Evaporation Process
1. Check/set the evaporation time.
2. Select the rows that contain sample tubes by pressing the
Edit button in the Nozzle Setup field.
3. Press the Start button.
Stop/Pause the Evaporation Process
To pause the evaporation (stop and continue) for all tubes,
press Pause or open the lid. To continue operation, press
Resume or close the lid.
To stop the evaporation, press the Stop button.
To stop the evaporation process for an individual row, press Edit
in the Nozzle Setup field and disable the nozzles for that row.
Remove the Sample
Quick removal of a completed tube is necessary since highly
volatile compounds can be lost if allowed to sit for an extended
period.
Shut Down
When the system is no longer in use, leave the lid open to keep
moisture from accumulating on the inside cover. Turn off the
power (unless using sleep mode) and the gas supply (if desired).
