Bosch CP799B How to use

CP799B
Service Keypad Installer Tool
Security System
Installer Reference Guide
EN
Security Systems

CP799B Installer Reference Guide
2Bosch Security Systems 09/14 CP799BIRG FTR1.0
Introduction
The CP799B Service Keypad has been designed to assist the installer or
service technician when working on selected Solution control panels.
The keypad can be temporarily plugged onto any module on the system
that has a service port header via it’s built in 1.5m lead.
Once connected it allows the installer to easily log into programming
mode, interrogate zone or output status, review the history log and
perform other functions as if they were using the main keypad.
This is particularly useful in large installations where a number modules
are dispersed around the building or in separate buildings and the main
system keypads are located some distance away.
Module Addressing
Unlike other keypads, the service keypad does not need to be addressed
which means there is no need to scan the LAN for the system to
recognise it. Built in security means that the system will only respond
to the service keypad if the panel has been placed in service mode
from one of the main keypads or if the panel cabinet tamper input is
unsealed. Service keypad operation will cease when service mode ends
or the cabinet tamper is sealed.
CP799B Compatibility
Panel Supported
Solution 6000 2.16
Table 1: CP799B Compatibility
CP799B
Service Keypad Installer Tool
The CP799B keypad includes a built in DF smart card reader allowing RFID cards and tokens to be easily enrolled
directly at the keypad if required. Alpha text characters have also been included on the keypad buttons which will can
help to speed up text entry at the keypad.
i
Note
You should always exit programming mode via the
service keypad before disconnecting it from the sys-
tem. Failure to do this may prevent the system from
arming because programming mode is still active.
Features
Plug On Connection To Modules With Service Ports Allows Programming At The Panel During Install
No Need To Assign A Keypad Address Flexible 2 Metre Connection Lead
Alpha Characters On Keys To Aid Text Programming Leads Can Be Easily Replaced When Needed
Operates When System In Service Mode Built In Smart Card Reader Simplifies Enrolment
Operates When Cabinet Tamper Is Unsealed 3 Year Factory Warranty (Return To Base)
Figure 1: Service Keypad Installer Tool

CP799B Installer Reference Guide
3
Bosch Security Systems 09/14 CP799BIRG FTR1.0
N12138
N12138
VISION
Powered by
P/Nº:
MFG:
CM704
01-Jan-14
8/16 LAN Zone Expander
D IGIFLE X
VER: 2.00
EARTH
E
L
E
C
T
R
O
N
I
C
S
DIGIFLEX
S
E
C
U
R
I
T
Y
TM
N12138
N12138
P/Nº:
MFG:
CC704B
12 November 2012
8/16 Zone Expander
RS485
VER: 2.12
RoHS

Default Language Setting
The Service Keypad can be configured for a number of
differerent languages using the address switch. This setting
only affects the service keypad and not the language in the
panel. At factory default the language is set to English. The
following table shows the available options.
Default Language Setting
Language S1 S2 S3 S4
English OFF OFF OFF OFF
Italian ON OFF OFF OFF
Greek OFF ON OFF OFF
Table 2: Default Language Setting
The connection cable on
the service keypad can be
connected to any module
with a service port as shown.
The cable is designed to only
connect in one direction and the
keypad can be connected and
disconnected while the system is
powered up.
It is to be expected that over
time the connection lead and
plugs will wear and replacement
will be necessary.
If you begin experiencing
intermittent connections then
you should replace the leads with
a new set which are available on
request.
Connect Cable Here
CP799 Specifications
CP799B Service Keypad Installer Tool
Format RS485 LAN with DF Smart Card Prox Reader Built In
Operating Voltage 10.0V DC - 14.5V DC @100mA
Lock Output Not Currently Used - Do not connect
Egress Input Not Currently Used - Do not connect
Environment -30° to 55°C Operating - 5% to 85% at 30°C non-condensing
Warranty 3 Years from Date of Manufacture (Return To Base)
Dimensions 89mm (W), 27mm (D), 140mm (H)
CP799BIRG Installation Reference Guide
N12138
N12138
RoHS


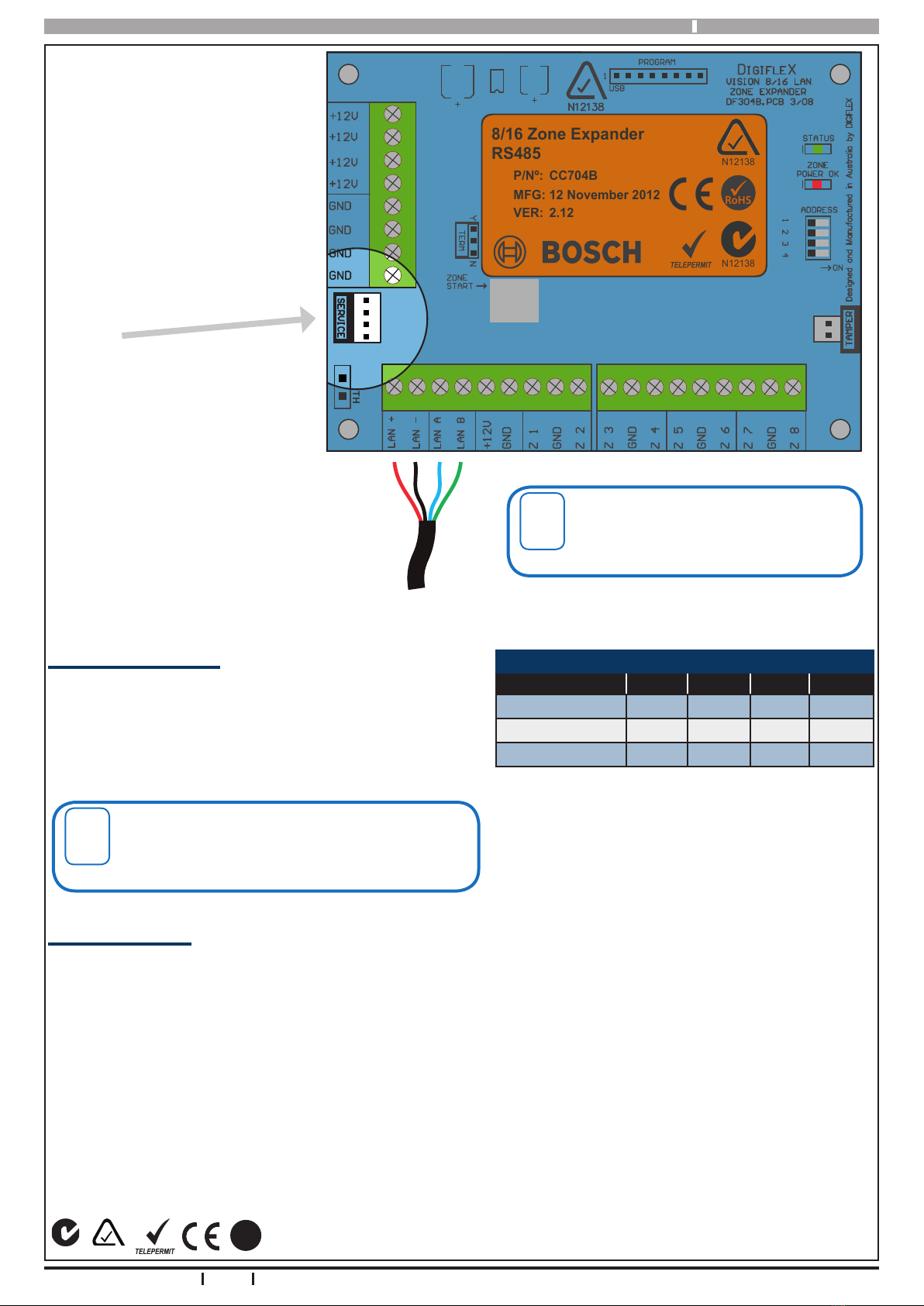

Figure 2: Showing Service Keypad Connection To Zone Expander Module
i
Note
To prolong the cable’s serviceability you
should hold the plug rather than
pulling on the wire when removing the
lead from the service port.
In the interest of ongoing product development this
document is subject to change without notice.
i
Note
Panels with firmware V2.15 and earlier are not able
to display the service keypad inactive message alert
when the system is not in service mode or the control
panel tamper is sealed.

Bosch Security Systems
25 Huntingwood Drive
Huntingwood, NSW 2148
Australia
Phone: [phone]
Facsimile: [phone]
© 2014 Bosch Security Systems
CP799BIRG
Issue FTR1.0
