Bradley 400 Series User manual

Installation
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
[phone]
bradleycorp.com
HDWC-INSTR-041 Rev. A: ECO 20-14-002S
© 2021 Bradley
Page 1 of 33 6/25/2021
Phenolic Privacy Restroom Partitions
Floor-Mounted with Overhead Brace –
Series 400
For 69", 72" & 69"/72" Tall
Doors and Panels Only
*HDWC-INSTR-041*
Read the instructions in this manual before beginning installation. Save these instructions
and refer to them for inspection, maintenance, and troubleshooting information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com
or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found on our website at bradleycorp.com.
Table of Contents
Safety Information ..............................2
Supplies Required ..............................3
Hardware Provided .............................3
Example of Submittal Drawing.....................3
Door Descriptions & Part Numbers .................4
Pilaster Descriptions & Part Numbers ...............5
Pilaster Configurations & Part Numbers .............6
Pilaster Configurations & Part Numbers – 69"/72" .....7
Pilaster Configurations & Wall Hung Part Numbers ....8
Layout Dimensions for Brackets ...................9
Mounting Brackets to Wall .......................10
Leveling Screws to Pilaster ......................11
Mounting Brackets to Pilaster .................12–13
Pilaster Mounting Hardware .....................13
Pilasters and Panels ........................14–17
Wall-Hung Pilasters .........................18–21
Pilaster Shoes ................................22
Headrail .....................................23
Hinges ...................................24–25
Door Hardware.............................26–31
Urinal Screens .............................32–33

2
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
Safety Information
Warning
Before beginning installation, make sure that the wall and floor backing are adequate to support the secure mounting
of the toilet compartment units.
Partitions are extremely heavy and may require more than one person to position and install.
Failure to comply with these instructions may result in personal injury and/or property damage and will void the
partition warranty.
Caution
Personal protective equipment (PPE) is required during the installation and maintenance of this product.
Notice
To prevent warping, always lay the material flat. Do not lean the material against the wall or stack unevenly.
Make sure all floors and walls are clean and smooth. Remove loose impediments, such as protruding nails and other
debris which could affect installation.
To minimize break-out, always use a support block when drilling through the material.
Carefully remove components from skid, do not drag.
Important
Review your partition layout drawings and verify the number of stalls and components before beginning installation.
All components are labeled with their corresponding part number. Descriptions and part numbers for doors, pilasters,
and pilaster configurations are listed on pages 4–8 for easy identification.
Read this installation manual completely to ensure proper installation, then file it with the owner or maintenance
department. This installation manual provides instruction for the assembly of normal partition configurations and
standard components. Non-standard configurations or components including but not limited to curved or angled walls,
partial walls, oversized panels, or modified hardware are not covered in this manual. Compliance and conformity to
local codes and ordinances is the responsibility of the installer.
Separate parts from packaging and make sure all parts are accounted for before discarding packaging material. If
any parts are missing, do not begin installation until you obtain the missing parts.

3
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021

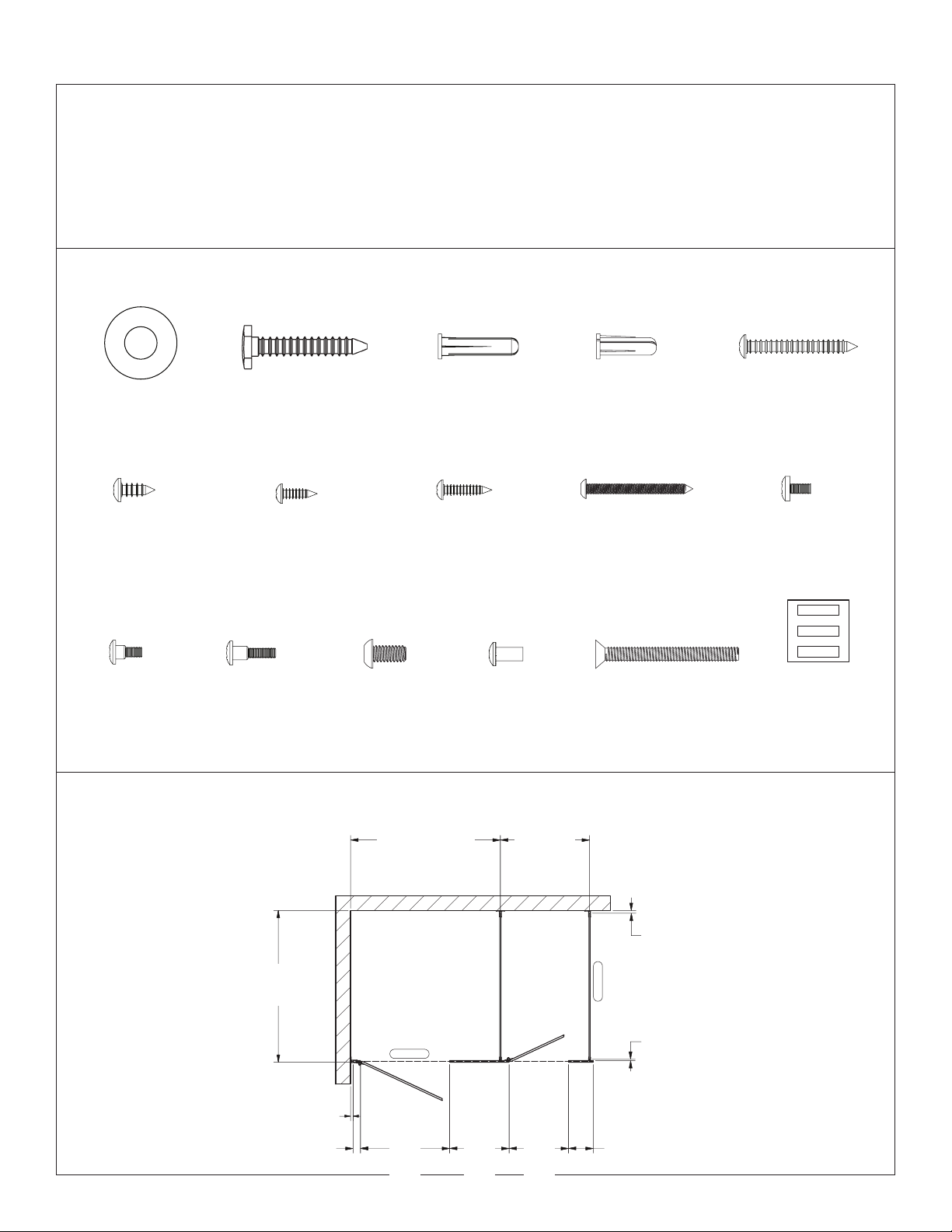

Supplies Required
Hardware Provided
Example of Submittal Drawing (mm)
• Chalk line and pencil
• Tape measure and 4' level
• Jigsaw (or hacksaw) and circular saw
• Two spring clamps
• 9/64", 11/64", 7/32", 15/64", 1/4", and 17/64" drill bits
• Power drill or screw gun with drill bit extension
• 5/16" ceramic tile and masonry drill bit
• Hammer drill
• Spacers, 6" (152) and 9" (229) high and strong enough to
support weight of panel, and 1/8" (3) for gap between door
and pilaster
• Isopropyl alcohol
HR062
HR120
61-1/4"
(1556)
to Face
60-1/2" (1537)
Wall to
Centerline
36" (914)
Center to
Center
36"
(914)
24"
(610)
24"
(610)
10"
(254)
3" (76)
1" (25)
Gap
1" (25)
gap
1/2" (13)
gap
3"
3-1/2"
1-1/2"
20-1/2"
8-1/2"
59" (1499) 59" (1499)
#14-16 Plastic
Anchor
FAST-T373
#10-12 x 1"
Plastic Anchor
FAST-T381
#14 x 2"
Button-Head
Sheet Metal Screw
Torx-T27 Drive
FAST-P002
#10 x 5/8"
Button-Head
Sheet Metal Screw
Torx-T27 Drive
FAST-S0019
#14 x 5/8"
Button-Head
Sheet Metal Screw
Torx-T27 Drive
FAST-S0016
#10 x 1"
Button-Head
Sheet Metal Screw
Torx-T27 Drive
FAST-S0028
#10-24 x 3/8"
Button-Head
Machine Screw
Torx-T27 Drive
FAST-S0015
#10 x 2"
Flat-Head
Sheet Metal Screw
Torx-T25 Drive
FAST-S0046
#10-24 x 1/2"
Button-Head
Barrel Nut
Torx-T27 Drive
FAST-S0017
#10-24 x 1/2"
Button-Head
Shoulder Screw
Torx-T27 Drive
FAST-S0018
#10-24 x 3/4"
Button-Head
Shoulder Screw
Torx-T27 Drive
FAST-P004
#10 x 1½"
Button-Head
Cap Screw
Torx-T27 Drive
FAST-S0045
#10-24 x 2"
Flat-Head
Machine Screw
Torx-T25 Drive
FAST-S0027
Vibration Dampening
Strip,
.065 x .250 x 1",
3 Strip Set
HDWC-00566-72
5/16" x 1-1/2"
Hex Head
Lag Screw
FAST-S008
9/32" x 5/8"
Washer Flat
P10-449

4
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
Door Descriptions & Part Numbers
DOOR HEI
I
GHT OPTIONS
C490-XXXXNSLH-XXXX
NOMINAL COLOR CODE
DOOR WIDTH
C490-XX72NSILH-XXXX
Left Hinge In / Right
Hinge Out, W/Latch Holes
C490-XX69NSIRH-XXXX
Right Hinge In /
Left Hinge Out, W/Latch Holes
Outside of Stall
C490-XX72NSIRH-XXXX
Right Hinge In / Left
Hinge Out, W/Latch Holes
C490-XX69NSILH-XXXX
Left Hinge In /
Right Hinge Out, W/Latch Holes
Part number logic and descriptions for doors are based on in-swinging doors. The door swing and handedness is determined by
facing the stall from the outside.
Phenolic privacy doors come with pre-installed inserts for attaching the hinges.
2 stall 69"/72" layouts are shown.
RH indicates right-hand inswing or left-hand outswing. LH indicates left-hand inswing or right-hand outswing.

5
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021
Pilaster Descriptions & Part Numbers
C480-XX6972NSIAH-XXXX
No-Site, Left Latch Out &
Left Hinge In /
Right Hinge Out &
Right Latch In
C480-XX69NIWRH-XXXX
No-Site Wall,
Right Hinge In /
Left Hinge Out
C480-XX72NSALH-XXXX
No-Site Alcove,
Left Latch In /
Right Latch Out
C480-XX72NSARH-XXXX
No-Site Alcove,
Right Latch In /
Left Latch Out
C480-XX69NIWLH-XXXX
No-Site Wall,
Left Hinge In /
Right Hinge Out
Outside of Stall
C480-XX6972NSIBH-XXXX
No-Site, Right Hinge In &
Right Latch Out /
Left Latch In &
Left Hinge Out

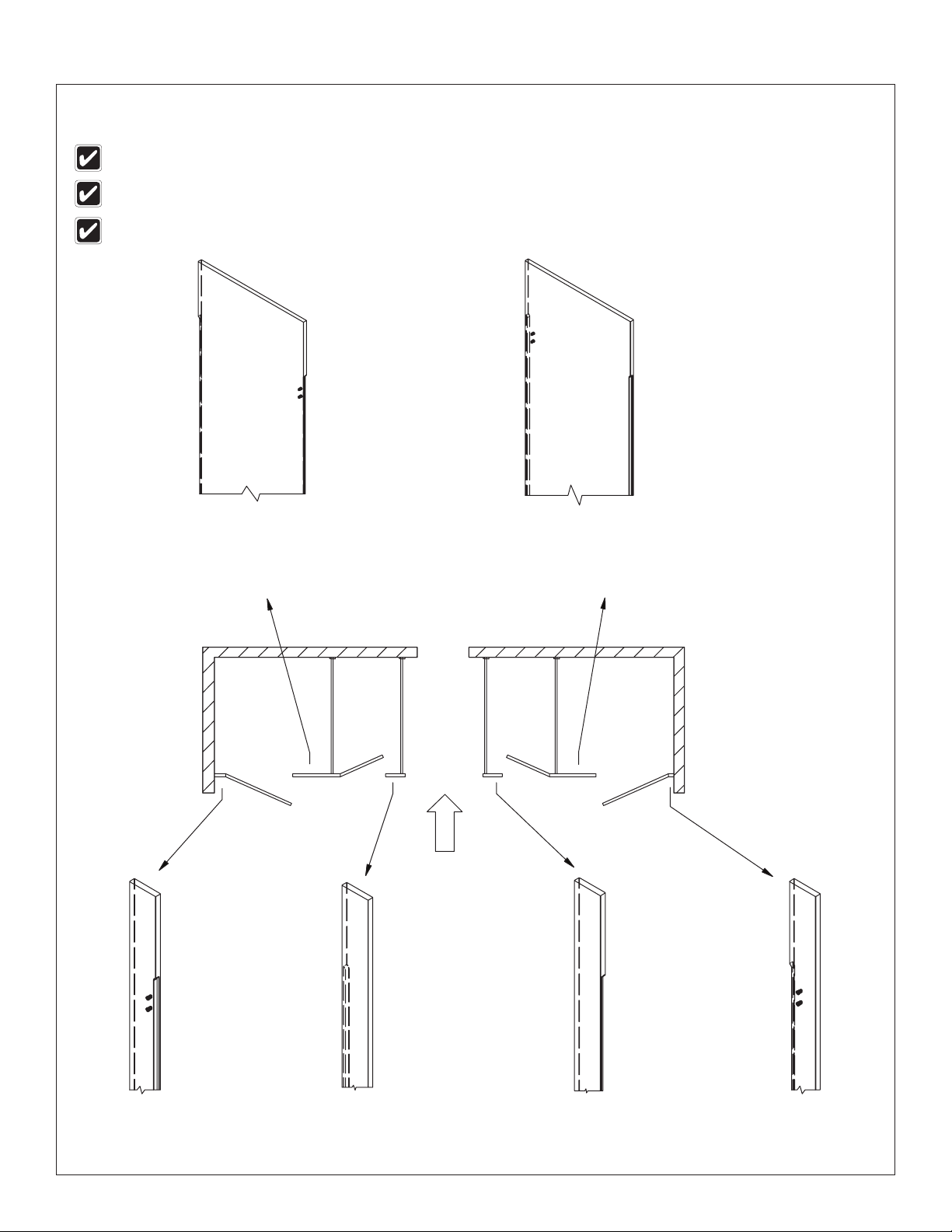

Part number logic and descriptions for pilasters are based on in-swinging doors. The pilaster handedness is based off of the door
hinge/latch, as determined by facing the stall from the outside.
Phenolic privacy pilasters come with pre-installed inserts for attaching the hinges (where applicable).
2 stall 69"/72" layouts are shown.

6
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
Pilaster Configurations & Part Numbers
DOOR HEIGHT OPTIONS
C480-XXXXNSARH-XXXX
PILASTER COLOR CODE
WIDTH
C480-XXXXNSIRH-XXXX
No-Site, Right Hinge In &
Right Latch In / Left Latch Out
& Left Hinge Out
C480-XXXXNI2RH-XXXX
No-Site, Right Hinge In &
Left Hinge Out
C480-XXXXNI2LH-XXXX
No-Site, Right Hinge Out &
Left Hinge In
C480-XXXXNI2CH-XXXX
No-Site, Right Hinge In &
Left Hinge In / Right Hinge
Out & Left Hinge Out
Part number logic and descriptions for pilasters are based on in-swinging doors. Pilaster orientation is shown as inswing in the
following illustration. The pilaster handedness is based off of the door hinge/latch, as determined by facing the stall from the outside.
Phenolic privacy pilasters come with pre-installed inserts for attaching the hinges (where applicable).
C480-XXXXNSALH-XXXX
No-Site Alcove,
Left Latch In /
Right Latch Out
C480-XXXXNIWRH-XXXX
No-Site Wall,
Right Hinge In /
Left Hinge Out
C480-XXXXNSARH-XXXX
No-Site Alcove,
Right Latch In /
Left Latch Out
C480-XXXXNIWLH-XXXX
No-Site Wall,
Left Hinge In /
Right Hinge Out
C480-XXXXNSRH-XXXX
No-Site, Left Latch
Out & Right Latch In
C480-XXXXNSIAH-XXXX
No-Site, Left Latch Out &
Left Hinge In / Right Hinge
Out & Right Latch In
C480-XXXXNSLH-XXXX
No-Site, Left Latch In /
Right Latch Out
C480-XXXXNSIBH-XXXX
No-Site, Right Hinge In &
Right Latch Out / Left Latch
In & Left Hinge Out
C480-XXXXNS-XXXX
No-Site, Left Latch In &
Right Latch In / Left Latch
Out & Right Latch Out
C480-XXXXNSILH-XXXX
No-Site, Left Latch In &
Left Hinge In / Right Hinge
Out & Right Latch Out

7
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021
Part number logic and descriptions for pilasters are based on in-swinging doors. Pilaster orientation is shown as inswing in the
following illustration. The pilaster handedness is based off of the door hinge/latch, as determined by facing the stall from the outside.
Phenolic privacy pilasters come with pre-installed inserts for attaching the hinges (where applicable).

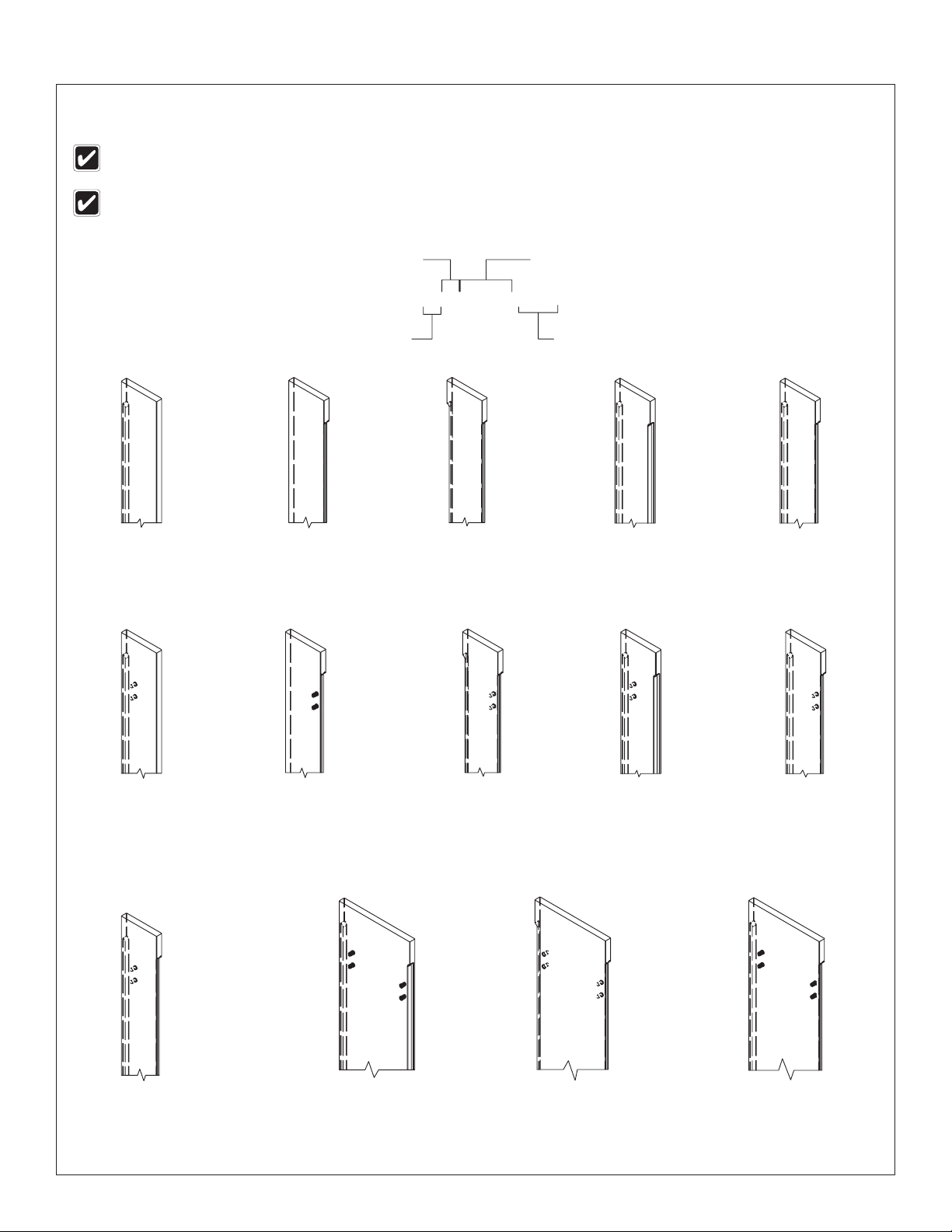

Pilaster Configurations & Part Numbers – 69"/72" Combo
OPTIONS
C480-XXNS3-XXXX
PILASTER COLOR CODE
WIDTH
C480-XXNS3-XXXX
No-Site 69/72,
Left Latch Out 69" &
Right Latch In 72" /
Left Latch Out 72" &
Right Latch In 69"
C480-XXNSI34A-XXXX
No-Site, Right Hinge Out 69"
& Right Latch Out 72" /
Left Latch In 72" &
Left Hinge In 69"
C480-XXNSI38-XXXX
No-Site, Right Hinge Out 72"
& Right Latch Out 69" /
Left Latch In 69" &
Left Hinge In 72"
C480-XXNS34-XXXX
No-Site 69/72,
Left Latch Out 69" &
Right Latch Out 72" /
Left Latch In 72" &
Right Latch In 69"
C480-XXNSI35-XXXX
No-Site, Left Latch In 69"
& Left Hinge Out 72" /
Right Hinge In 72" &
Right Latch Out 69"
C480-XXNI23-XXXX
No-Site, Right Hinge Out 69"
& Left Hinge Out 72" /
Right Hinge In 72" &
Left Hinge In 69"
C480-XXNS35-XXXX
No-Site 69/72,
Left Latch Out 72" &
Right Latch Out 69" /
Left Latch In 69" &
Right Latch In 72"
C480-XXNSI36-XXXX
No-Site, Right Hinge In 69"
& Right Latch Out 72" /
Left Latch In 72" &
Left Hinge Out 69"
C480-XXNI23A-XXXX
No-Site, Right Hinge Out 72"
& Left Hinge Out 69" /
Right Hinge In 69" &
Left Hinge In 72"
C480-XXNSI3-XXXX
No-Site, Left Latch Out 69"
& Left Hinge In 72" /
Right Hinge Out 72" &
Right Latch In 69"
C480-XXNSI36A-XXXX
No-Site, Right Hinge In 69"
& Right Latch In 72" /
Left Latch Out 72" &
Left Hinge Out 69"
C480-XXNI234-XXXX
No-Site, Right Hinge Out 69"
& Left Hinge In 72" /
Right Hinge Out 72" &
Left Hinge In 69"
C480-XXNSI34-XXXX
No-Site, Right Hinge Out 69"
& Right Latch In 72" /
Left Latch Out 72" &
Left Hinge In 69"
C480-XXNSI37-XXXX
No-Site, Left Latch Out 69"
& Left Hinge Out 72" /
Right Hinge In 72" &
Right Latch In 69"
C480-XXNI234A-XXXX
No-Site, Right Hinge In 69"
& Left Hinge Out 72" /
Right Hinge In 72" &
Left Hinge Out 69"

8
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
Pilaster Configurations & Wall Hung Part Numbers
DOOR HEIGHT OPTIONS
C758/770-XXXXNSARH-XXXX
PILASTER COLOR CODE
WIDTH
C758-XXXXNSALH-XXXX
No-Site Alcove,
Left Latch In /
Right Latch Out
C770-XXXXNSALH-XXXX
No-Site Alcove,
Left Latch In /
Right Latch Out
C758-XXXXNSARH-XXXX
No-Site Alcove,
Right Latch In /
Left Latch Out
C770-XXXXNSARH-XXXX
No-Site Alcove,
Right Latch In /
Left Latch Out
C758-XXXXNIWRH-XXXX
No-Site Wall,
Right Hinge In /
Left Hinge Out
C770-XXXXNIWRH-XXXX
No-Site Wall,
Right Hinge In /
Left Hinge Out
C758-XXXXNIWLH-XXXX
No-Site Wall,
Left Hinge In /
Right Hinge Out
C770-XXXXNIWLH-XXXX
No-Site Wall,
Left Hinge In /
Right Hinge Out
Part number logic and descriptions for pilasters are based on in-swinging doors. Pilaster orientation is shown as inswing in the
following illustration. The pilaster handedness is based off of the door hinge/latch, as determined by facing the stall from the outside.
RH indicates right-hand inswing or left-hand outswing. LH indicates left-hand inswing or right-hand outswing.
Phenolic privacy pilasters come with pre-installed inserts for attaching the hinges (where applicable).

9
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021
C
L
C
L
C
L
C
L
*
*
*
*
*
*
Panel
Plumb
Line
"C"
"C"
"C"
"D"
"A" "B"
"B1"
"A1"
"D"
Door Height A.F.F. Bracket Height
Dim "C" 69"
(1753)
9-1/2" ¹
(241)
68"
(1727)
Dim "C" 72"
(1829)
6-1/2"
(165)
71"
(1803)
Dim "C"
Dim "D"
72" (1829)
69" (1753)
6-1/2" (165)
9-1/2" (241) ¹
71" (1803)
68" (1727)
¹ ADA Stall
"D"
*
*
*
**
*
*
*
*
Pilaster Plumb Line
When installing the partition components, consult
the applicable Mills Partition submittal drawing
for compartment layout dimensions.
Pilaster Centerline: Measure from the back
wall forward to the face of the compartment,
subtract 3/8" (10) and mark this location on
the floor ("A"). Mark the same measurement
on the opposite end of your layout ("A1")
and draw a straight line connecting both
marks.
For Freestanding (FS) Partitions: Refer
to submittal drawings and determine the
approximate location of the outside panels.
Establish dimensions "A" and "A1" as
explained above.
A
Panel Centerline: Measure the stall width across the
back wall and place a mark at the base of the rear wall
("B"). Repeat this step for each panel, starting each
measurement from the last panel centerline ("B1").
B
Draw a plumb line on all walls from each pilaster
and panel centerline. From the highest point in
the room, measure 19" (483), 47" (1194), and
70" (1778) from the floor and place a mark on the
pilaster/panel plumb line. These marks represent
the hole centerline of the stirrup brackets. Use a
level to transfer that mark to all other plumb lines
("C").
C
Panel
Plumb Line
70"
(1778)
47"
(1194)
19"
(483)
"C" "C"
"C"
"C"
"C"
"C"
"C"
"C"
"C"
"B1"
"A1"
"B"
"A"

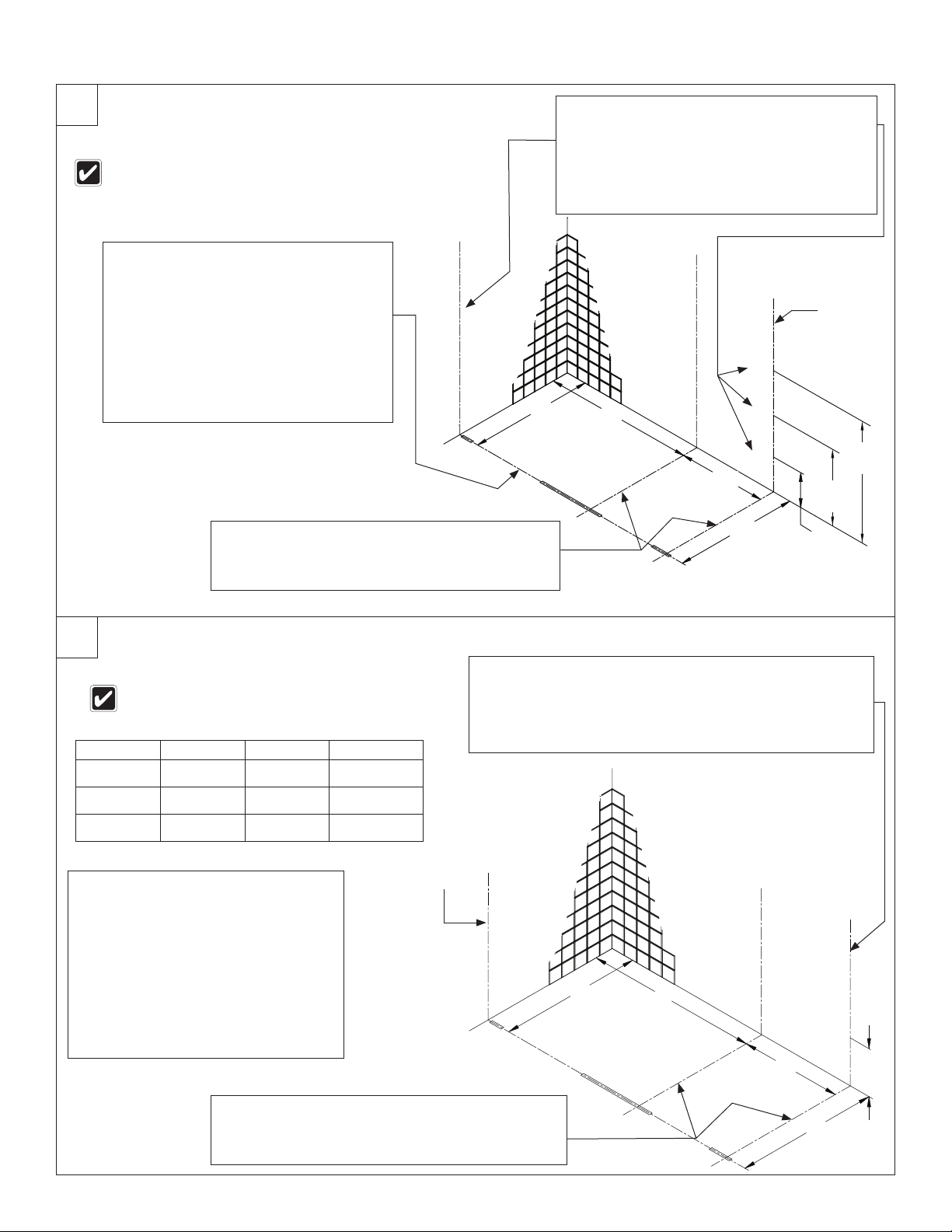

1Layout Dimensions - Stirrup Brackets (Standard)
When installing the partition components, consult
the applicable Mills Partition submittal drawing for
compartment layout dimensions.
1a Layout Dimensions - Continuous Brackets (Optional)
Pilaster Centerline: Measure from
the back wall forward to the face of the
compartment, subtract 3/8" (10 mm) and
mark this location on the floor ("A"). Mark
the same measurement on the opposite
end of your layout ("A1") and draw a
straight line connecting both marks.
For Freestanding (FS) Partitions: Refer
to submittal drawings and determine
the approximate location of the outside
panels. Establish dimensions "A" and
"A1" as explained above.
A
Panel Centerline: Measure the stall width across the
back wall and place a mark at the base of the rear wall
("B"). Repeat this step for each panel, starting each
measurement from the last panel centerline ("B1").
B
Draw a plumb line on all walls from each pilaster and panel
centerline. From the highest point in the room, measure from the
floor and place a mark on the pilaster/panel plumb line for the
respective door height (see table). Use a level to transfer that
mark to all other plumb lines ("C"). For ADA stalls, use "D" as a
reference point (see table).
C
C
L
C
L
C
L
C
L
C
L
C
L

10
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
Established Level Line
Pilaster
Plumb Line
Floor
C
L
'Ear'
Bracket
U-Bracket
2Stirrup Brackets to Wall (Standard)
2a Continuous Stainless Steel Brackets to Wall (Optional)
Established Level Line
Pilaster/Panel Plumb Line
Floor
Place the center of each stirrup bracket
at the established level line. Center the
bracket opening on the pilaster/panel
plumb line.
A
Insert the plastic anchors in all holes and
secure the brackets to the wall with the
#14 x 2" screws provided.
C
On end panel and pilaster applications, position the bracket
with the ear facing toward the inside of the stall.
Using the bracket as a template, mark
the hole locations on the wall. Remove
the bracket and drill a Ø5/16" hole (min.
2" [51] deep) at each hole location.
B
One-Eared
Bracket
Two-Eared
Bracket
Pilaster bracket is shown here. 3/4" (19) opening brackets are
for pilasters and 1/2" (13)opening brackets are for panels.
Place the bottom of each continuous
bracket at the established level line.
Center the bracket opening on the
pilaster/panel plumb line.
A
Insert the plastic anchors in all holes and
secure the brackets to the wall with the
#14 x 2" screws provided.
C
On pilaster applications, position the bracket with the ear
facing toward the inside of the stall.
Using the bracket as a template, mark
the hole locations on the wall. Remove
the bracket and drill a Ø5/16" hole (min.
2" [51] deep) at each hole location.
B
Brackets are used as templates, but since the hole patterns
may be different, the brackets may not be interchangeable.
Pilaster bracket shown here; 'Ear' brackets (3/4" (19) opening) are
for pilasters and U-brackets (1/2" (13) opening) are for panels.

11
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021
3Leveling Screws to Pilaster
3"–16" Pilaster: Center and drill a
Ø17/64" pilot hole, 1-1/2" (38) deep.
18"–24" Pilaster: Drill (2) Ø17/64"
pilot holes, 1-1/2" (38) deep. Holes
should be 2" (51) off each end of the
pilaster.
A
3"–16" Pilaster 18"–24" Pilaster
A notch will be present on one end
of the pilaster to indicate that it is the
bottom.
Use leveling screw(s) to adjust height
of pilaster.
B

12
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
Split Split
"A"
"B"
Dim.
"A"
Dim.
"B"
69"
Pilaster
(ADA)
4"
(102)
72"
(1829)
72"
Pilaster
(Standard)
4"
(102)
75"
(1905)
C
L
Bottom of
Bracket

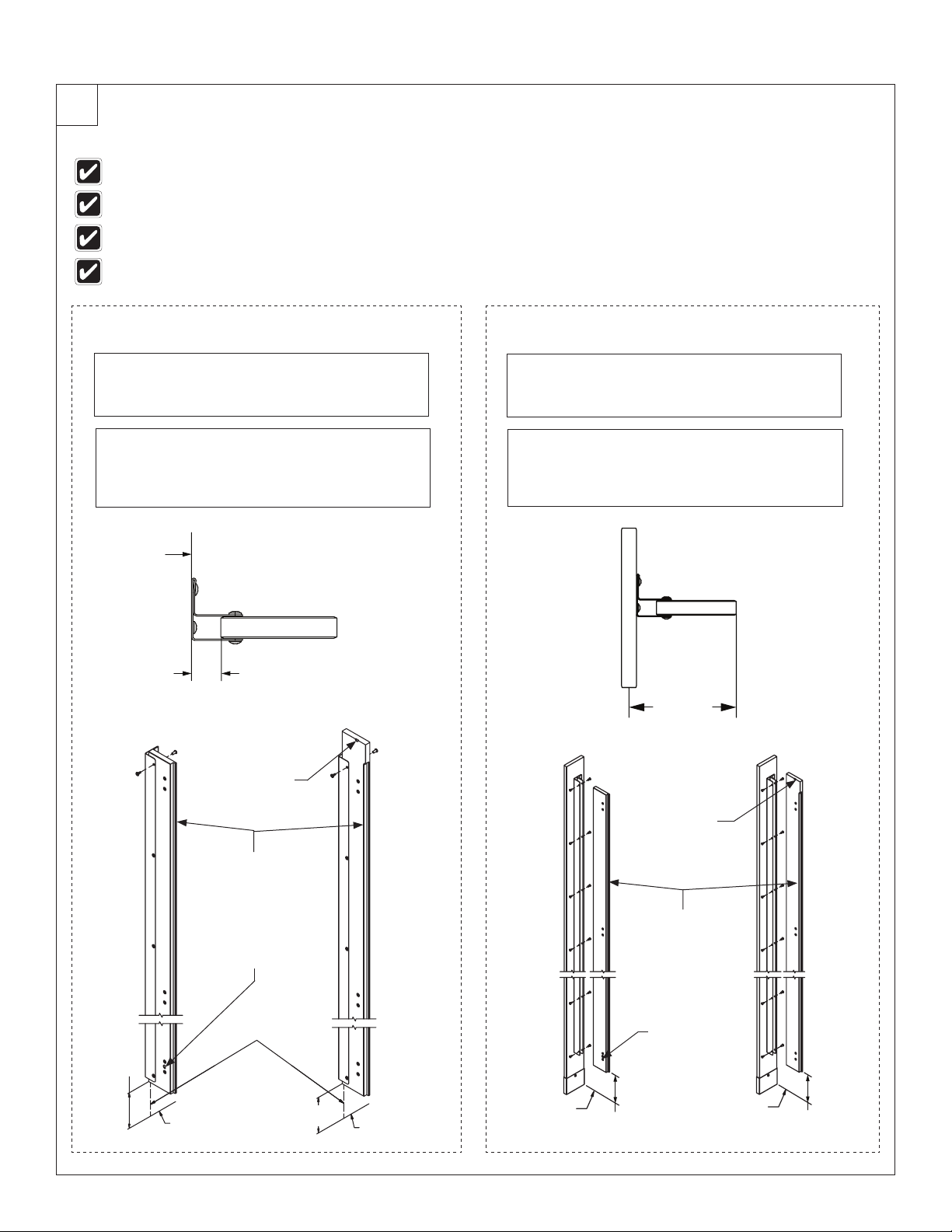

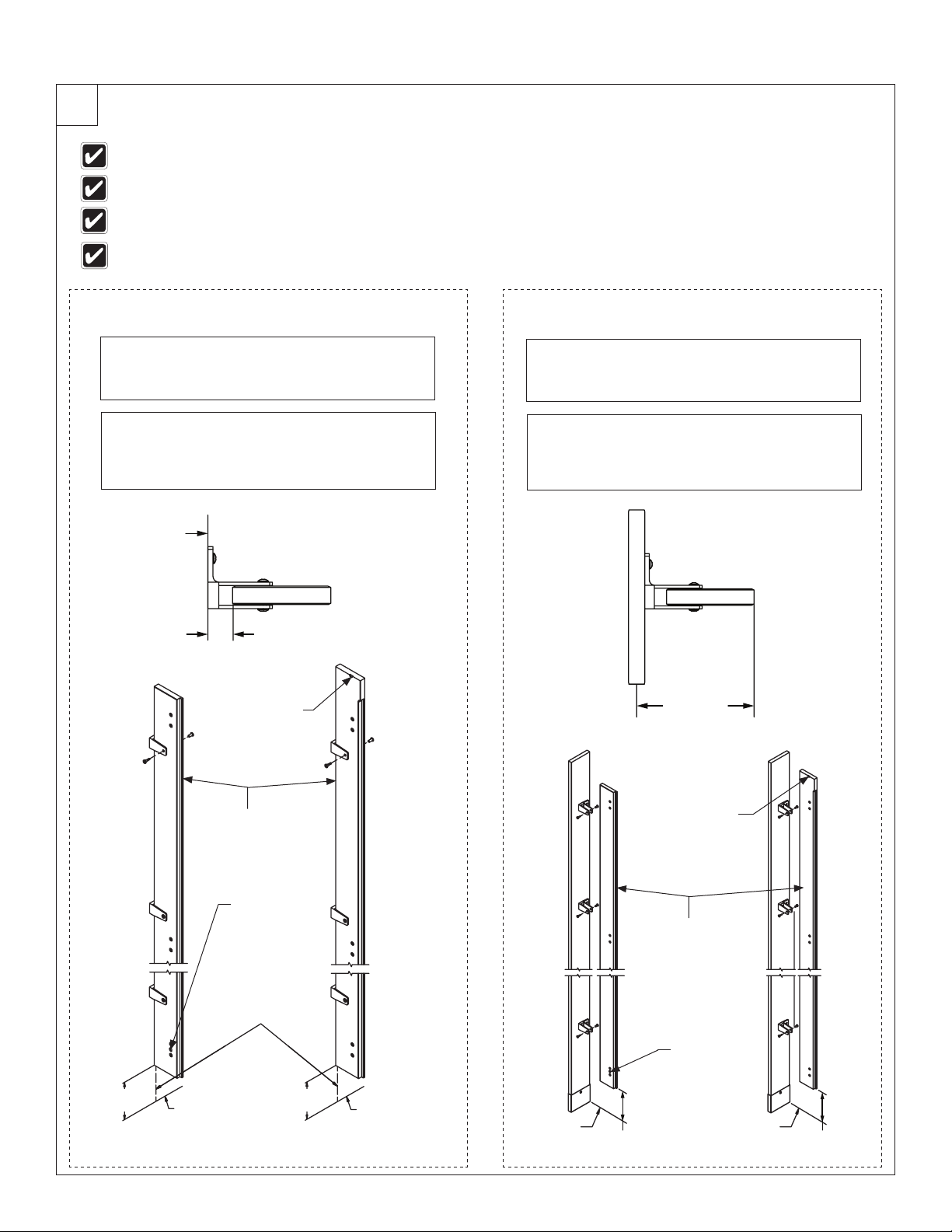

4Stirrup Brackets to Pilaster (Standard)
Refer to the submittal drawing to locate the split
dimension and layout location of each marked pilaster.
Measure down from the top of the pilaster and place a
mark on the pilaster split centerline at the dimensions
shown for the respective bracket.
A
Split
34-1/2"
(876)
11-1/2"
(292)
62-1/2"
(1588)
Place the center of each stirrup bracket at the marks
made in Step A. Center the bracket opening on the
pilaster split centerline. Using the bracket as a template,
mark the hole locations on the pilaster. Remove the
bracket and drill a Ø15/64" pilot hole, 5/8" (16) deep at
each location.
B
Secure the stirrup brackets to the pilasters using the
#14 x 5/8" screws provided.
C
Pilaster shown is for reference only. Actual pilaster
varies depending on application.
C
L
C
L
Split
4a Continuous Brackets to Pilaster (Optional)
Refer to the submittal drawing to locate the split
dimension and layout location of each marked pilaster.
Measure down from the top of the pilaster
and place a mark on the pilaster centerline
at dimensions "A" and "B" for the respective
bracket (see table).
A
Secure the continuous bracket to the pilasters
using the #14 x 5/8" screws provided.
C
Place the continuous bracket between each
established level line. Center the bracket
opening on the pilaster split centerline. Using
the bracket as a template, mark the hole
locations on the pilaster. Remove the bracket
and drill a Ø15/64" pilot hole, 5/8" (16) deep at
each location.
B
Brackets are used as templates, but since the hole patterns
may be different, the brackets may not be interchangeable. Pilaster shown is for reference only. Actual
pilaster varies depending on application.
Refer to the
submittal drawing
for the correct
orientation
of the pilaster.
Refer to the
submittal drawing
for the correct
orientation
of the pilaster.

13
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021

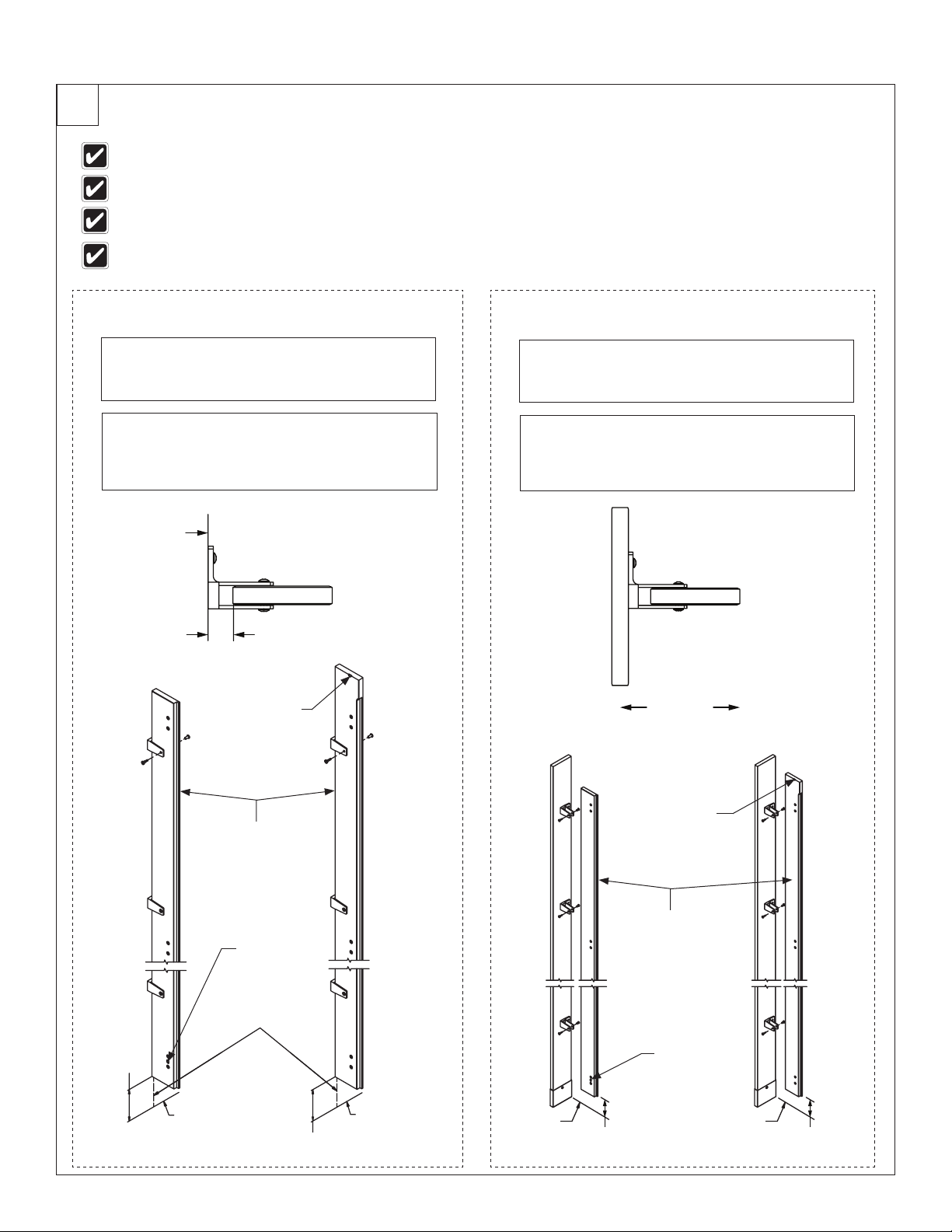

Dim. "A" Dim. "B"
69" Pilaster
(ADA) 4" (102) 72" (1829)
72" Pilaster
(Standard) 4" (102) 75" (1905)
Refer to the submittal drawing to locate the split dimension and
layout location of each marked pilaster.
Measure down from the top of
the pilaster and place a mark at
dimensions shown for the respective
bracket situation.
A
Stirrup: Position the center of each
bracket at the marks made in Step A.
Continuous: Center the bracket
between each mark made in Step A.
B
Using the bracket as a template,
mark the hole locations on the
pilaster. Remove the bracket and drill
Ø1/4" holes through the pilaster at
each location.
C
Stirrup: Secure the brackets to the
pilaster using the #10-24 x 1/2" barrel
nuts and #10-24 x 3/4" shoulder
screws provided.
Continuous: Secure the brackets to
the pilaster using the #10-24 x 1/2"
barrel nuts and #10-24 x 1/2" shoulder
screws provided.
D
62-1/2"
(1588)
34-1/2"
(876)
11-1/2"
(292)
Stirrup
Continuous
"B"
"A"

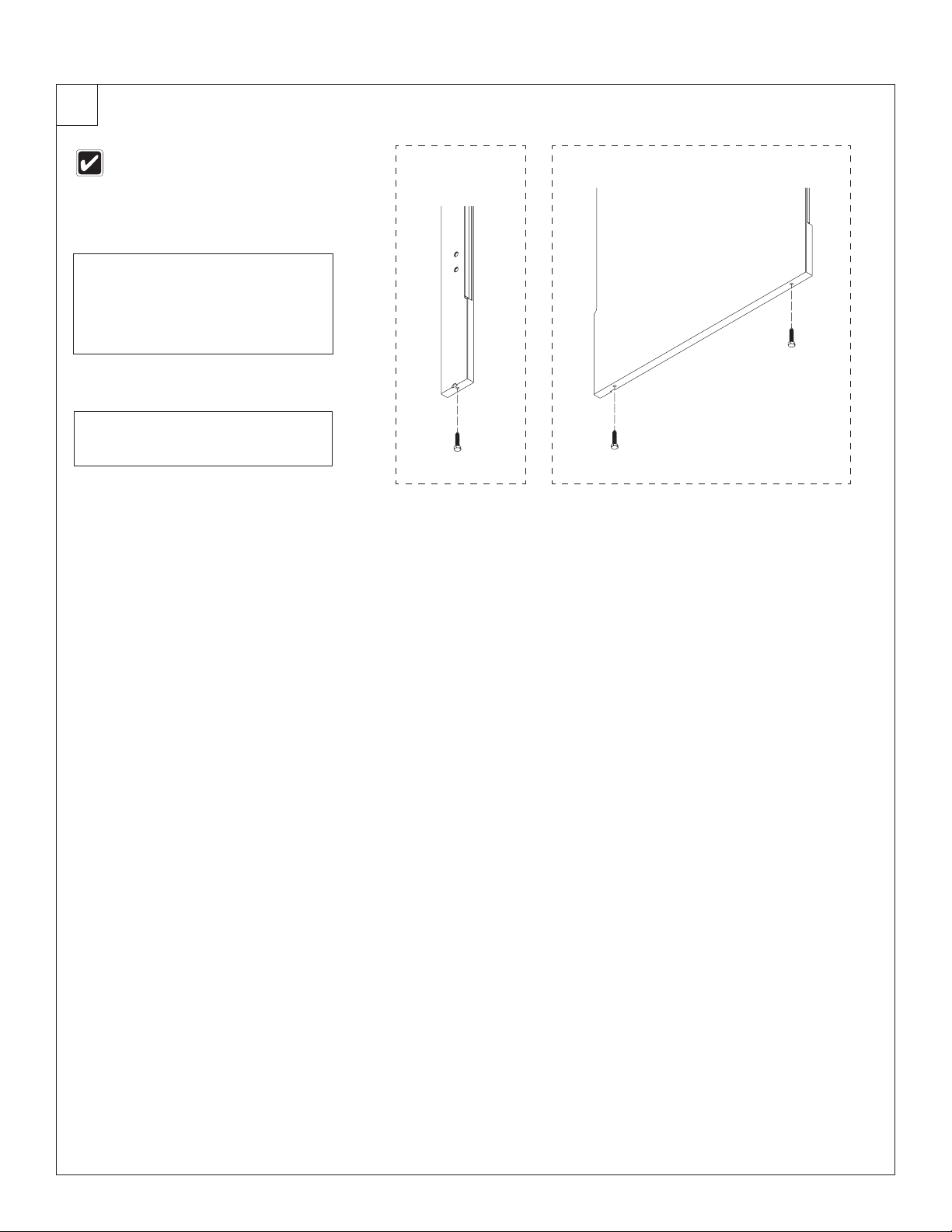

5Pilaster Mounting Hardware
Starting with the pilaster closest to the wall, measure and mark the pilaster and door widths on the pilaster centerline. Make
sure to leave the appropriate gap between the wall and the pilaster. Place corresponding shoe on the pilaster centerline
and center between the marks.
A
Insert plastic anchors into the holes and
secure the shoe to the anchors using
the 9/32" x 5/8" flat washer and #14 x 2"
screws provided.
C
Using the shoe as a template, mark the
hole locations on the floor. Remove the
shoe and drill Ø5/16" holes (min. 2" [51]
deep) into the floor. Make sure the holes
are free of dirt and debris.
B
36" (914)
Pilaster Centerline
24" (610)3" (76) 10"
(254)
24" (610)
This view is an example only; refer to your submittal drawings for actual sizes.
1" (25) Gap
4b Stirrup Alcove Brackets to Pilaster (Standard) and 3-Stirrup Alcove Brackets or
Continuous Alcove Brackets to Pilaster (Optional)
Refer to the
submittal drawing
for the correct
orientation
of the pilaster. Refer to the
submittal drawing
for the correct
orientation
of the pilaster.
Bottom
of
Bracket

14
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
6Pilasters & Panels with Stirrup Brackets – Single Panel (Standard)
Pilasters located at walls should be mounted first. Start at one end and install a panel, then a pilaster. Continue alternating until
installation is complete. When installing in an alcove or in-corner, use an alcove bracket to secure the pilaster to the panel.
Pilasters at Wall Pilasters with Panels
(Single Panel)
Check to make sure the pilasters are plumb and level to each other. The pilaster height can be adjusted with the leveling screw that
was placed at the bottom of the pilaster (see page 11 for attaching leveling screw).
When installing pilasters at walls, the gaps range
from 1/2" to 1-1/4" (13 to 32). Refer to your submittal
drawing for your gap sizes.
Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25) between the panel and wall
and 1/2" (13) between the panel and pilaster.
Spacer 6" (152) for 72" Tall Panels (72" Tall Option)
Spacer 9" (229) for 69" Tall Panels / ADA Stall (69" Tall Option)
Place the pilaster into the shoe secured to the floor
while at the same time placing it within the wall
brackets.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
Place the panel on the spacer and insert the panel into the
wall brackets.
A
Place the pilaster into the shoe secured to the floor while at
the same time placing the brackets around the panel.
B
Using the bracket as a template, drill Ø1/4" holes through
the panel at each panel bracket hole. Secure the panel to
the bracket using the #10-24 x 1/2" barrel nuts and
#10-24 x 1/2" shoulder screws provided.
C
Refer to the
submittal drawing
for the correct
orientation
of the pilaster.

15
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021
6a Pilasters & Panels with Stirrup Brackets – Stacked Panels (Standard)
Pilasters located at walls should be mounted first. Start at one end and install a panel, then a pilaster. Continue alternating until
installation is complete. When installing in an alcove or in-corner, use an alcove bracket to secure the pilaster to the panel.
Pilasters with Panels
(Stacked Panels – Top)
Pilasters with Panels
(Stacked Panels – Bottom)
Check to make sure the pilasters are plumb and level to each other. The pilaster height can be adjusted with the leveling screw that
was placed at the bottom of the pilaster (see page 11 for attaching leveling screw).
Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25) between the panel and wall
and 1/2" (13) between the panel and pilaster.
Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25) between the panel and wall
and 1/2" (13) between the panel and pilaster.
Spacer 6" (152) for 72" Tall Panels (72" Tall Option)
Spacer 9" (229) for 69" Tall Panels / ADA Stall (69" Tall Option)
Spacer 6" (152) for 72" Tall Panels (72" Tall Option)
Spacer 9" (229) for 69" Tall Panels / ADA Stall (69" Tall Option)
Place the panel on the spacer and insert the panel into the
wall brackets.
A
Place the pilaster into the shoe secured to the floor while at
the same time placing the brackets around the panel.
B
Cut the H-bracket to the same size as the panel and
place onto the bottom panel. Place the top panel into the
H-bracket and stirrup brackets as shown.
D
Using the bracket as a template, drill Ø1/4" holes through
the top panel at each panel bracket hole. Secure the panel
to the bracket using the #10-24 x 1/2" barrel nuts and
#10-24 x 1/2" shoulder screws provided.
E
Using the bracket as a template, drill Ø1/4" holes through
the bottom panel at each panel bracket hole. Secure the
panel to the bracket using the #10-24 x 1/2" barrel nuts and
#10-24 x 1/2" shoulder screws provided.
C

16
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
6b Pilasters & Panels with Stainless Steel Continuous Brackets – Single Panel (Optional)
Pilasters located at the walls should be mounted first. Start at one end and install a panel, then a pilaster. Continue alternating until
installation is complete. When installing in an alcove or in-corner, use an alcove bracket to secure the pilaster to the panel.
Check to make sure the pilasters are plumb and level to each other. The pilaster height can be adjusted with the leveling screw that
was placed at the bottom of the pilaster (see page 11 for attaching leveling screw).
Pilasters at Wall
Place the pilaster into the shoe secured to the floor
while at the same time placing it within the wall
bracket.
A
Place the pilaster into the shoe secured to the floor
while at the same time placing it within the wall
bracket.
B

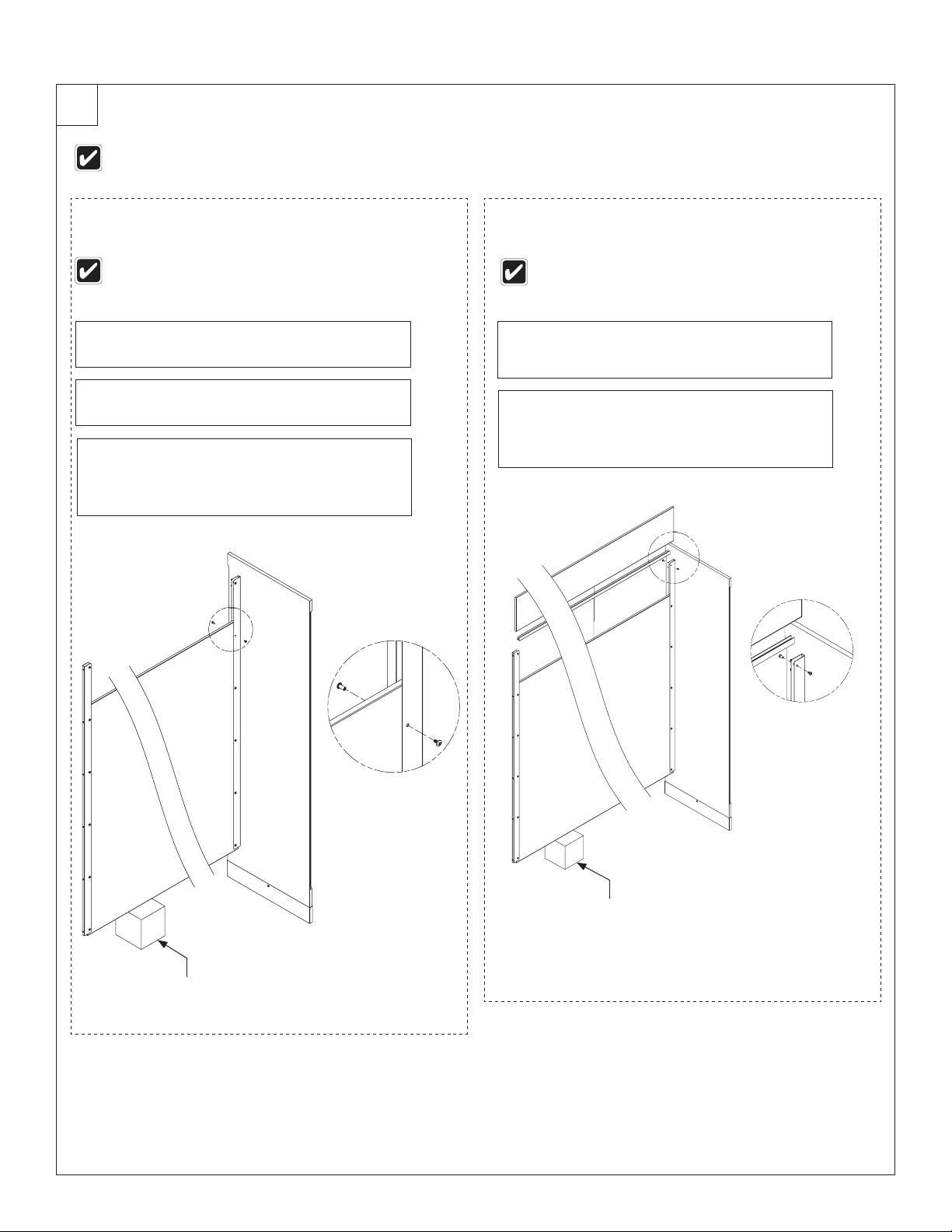

Place the panel on the spacer and insert the panel
into the wall bracket.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 1/2" shoulder
screws provided.
B
Using the bracket as a template, drill Ø1/4" holes
through the panel at each panel bracket hole.
Secure the panel to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/8" machine
screws provided.
C
When installing pilasters at walls, the gaps range
from 1/2" to 1-1/4" (13 to 32). Refer to your submittal
drawing for your gap sizes.
Pilasters with Panels
(Single Panel)
Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25) between the panel and wall
and 1/2" (13) between the panel and pilaster.
Spacer 6" (152) for 72" Tall Panels (72" Tall Option)
Spacer 9" (229) for 69" Tall Panels / ADA Stall (69" Tall Option)
Refer to the
submittal drawing
for the correct
orientation
of the pilaster.

17
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021
6c Pilasters & Panels with Stainless Steel Continuous Brackets – Stacked Panels (Optional)
Check to make sure the pilasters are plumb and level to each other. The pilaster height can be adjusted with the leveling screw that
was placed at the bottom of the pilaster (see page 11 for attaching leveling screw).
Place the pilaster into the shoe secured to the floor
while at the same time placing the bracket around
the panel.
B
Place the panel on the spacer and insert the panel
into the wall bracket.
ACut the H-bracket to fit between the U-brackets and
then place onto the bottom panel. Place the top
panel into the H-brackets and U-brackets as shown.
D
Using the bracket as a template, drill Ø1/4" holes
through the bottom panel at each panel bracket
hole. Secure the panel to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/8" machine
screws provided.
C
Using the bracket as a template, drill Ø1/4" holes
through the bottom panel at each panel bracket
hole. Secure the panel to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/8" machine
screws provided.
E
Pilasters with Panels
(Stacked Panels - Bottom)
Pilasters with Panels
(Stacked Panels - Top)
Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25) between the panel and wall
and 1/2" (13) between the panel and pilaster.
Refer to your submittal drawing and leave the appropriate
gaps. Standard gap is 1" (25) between the panel and wall
and 1/2" (13) between the panel and pilaster.
Spacer 6" (152) for 72" Tall Panels (72" Tall Option)
Spacer 9" (229) for 69" Tall Panels / ADA Stall (69" Tall Option)
Spacer 6" (152) for 72" Tall Panels (72" Tall Option)
Spacer 9" (229) for 69" Tall Panels / ADA Stall (69" Tall Option)

18
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
To establish level line, from the highest point in the room, measure 9" Ref. (229) from the floor. Use a level to transfer
this mark to the pilaster plumb line.
See Step 2 for instructions on mounting the stirrup brackets to a wall.
Wall
Specified Dimension
(Standard Gap 1" (25))
9" Ref.
(229)
9" Ref.
(229)
Pilaster
Plumb Line
Floor
Pilasters at Wall Pilasters at Pilasters
Specified
Dimension
See Step 4 for instructions on mounting the stirrup brackets to a pilaster.
Floor
Pilasters shown in (2) different lengths for visual reference.
Slide the wall-hung pilaster into the stirrup brackets
and align with the established level line. Refer to the
submittal drawing and adjust to meet the specified
dimension.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
Slide the wall-hung pilaster into the stirrup brackets
and align with the established level line. Refer to the
submittal drawing and adjust to meet the specified
dimension.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
C
L
Notch indicates
top of pilaster.
Notch indicates
top of pilaster.
Notch
indicates
bottom of
pilaster.
Notch
indicates
bottom of
pilaster.
6d Wall-Hung Pilasters (69" or 72-3/8") – Stirrup Brackets (Optional)
69" (1753)
Pilaster
72-3/8" (1829)
Pilaster
69" (1753)
Pilaster
72-3/8" (1829)
Pilaster
9" Ref.
(229)
9" Ref.
(229)
Refer to the
submittal drawing
for the correct
orientation of the
pilaster.
Refer to the
submittal drawing
for the correct
orientation of the
pilaster.
Floor Floor

19
Installation Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall
Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S 6/25/2021
To establish level line, from the highest point in the room, measure 6" Ref. (152) from the floor. Use a level to transfer
this mark to the pilaster plumb line.
See Step 2 for instructions on mounting the stirrup brackets to a wall.
Wall
Specified Dimension
(Standard Gap 1" (25))
6 Ref."
(152)
6" Ref.
(152)
Pilaster
Plumb Line
Floor
Pilasters at Wall Pilasters at Pilasters
Specified
Dimension
See Step 4 for instructions on mounting the stirrup brackets to a pilaster.
Floor
Pilasters shown in (2) different lengths for visual reference.
Slide the wall-hung pilaster into the stirrup brackets
and align with the established level line. Refer to the
submittal drawing and adjust to meet the specified
dimension.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
Slide the wall-hung pilaster into the stirrup brackets
and align with the established level line. Refer to the
submittal drawing and adjust to meet the specified
dimension.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 3/4" shoulder
screws provided.
B
C
L
Notch indicates
top of pilaster.
Notch indicates
top of pilaster.
Notch
indicates
bottom of
pilaster.
Notch
indicates
bottom of
pilaster.
6e Wall-Hung Pilasters (72" or 75-3/8") – Stirrup Brackets (Optional)
72" (1829)
Pilaster
75-3/8" (1915)
Pilaster
Refer to the
submittal drawing
for the correct
orientation of the
pilaster.
72" (1829)
Pilaster
75-3/8" (1915)
Pilaster
Refer to the
submittal drawing
for the correct
orientation of the
pilaster.
6" Ref.
(152)
Floor
Floor
6" Ref.
(152)

20
Phenolic Privacy Restroom Partitions, Floor-Mounted with Overhead Brace — 69", 72" & 69"/72" Tall Installation
6/25/2021 Bradley • HDWC-INSTR-041 Rev. A: ECO 20-14-002S
6f Wall-Hung Pilasters (69" or 72-3/8") – Continuous Stainless Steel Brackets
(Used with 69" Tall Door) (Optional)
To establish level line, from the highest point in the room, measure 9" Ref. (229) from the floor. Use a level to transfer
this mark to the pilaster plumb line.
See Step 2a for instructions on mounting the continuous stainless steel brackets to a wall.
Wall
Specified Dimension
(Standard Gap 1" (25))
Pilaster
Plumb Line
Floor
Pilasters at Wall Pilasters at Pilasters
Specified
Dimension
See Step 4a for instructions on mounting the continuous stainless steel brackets to a pilaster.
Floor
Hinged wall-hung pilasters shown in (2) different lengths for visual reference.
Slide the wall-hung pilaster into the continuous
bracket and align with the established level line.
Refer to the submittal drawing and adjust to meet
the specified dimension.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 1/2" shoulder
screws provided.
B
Slide the wall-hung pilaster into the continuous
bracket and align with the established level line.
Refer to the submittal drawing and adjust to meet
the specified dimension.
A
Using the bracket as a template, drill Ø1/4" holes
through the pilaster at each pilaster bracket hole.
Secure the pilaster to the bracket using the
#10-24 x 1/2" barrel nuts and #10-24 x 1/2" shoulder
screws provided.
B
9" Ref.
(229)
9" Ref.
(229)
C
L
Notch indicates
bottom of pilaster.
Notch indicates
top of pilaster.
Notch indicates
top of pilaster.
Notch
indicates
bottom of
pilaster.
69" (1753)
Pilaster
72-3/8" (1829)
Pilaster
Refer to the
submittal drawing
for the correct orientation
of the pilaster.
69" (1753)
Pilaster
72-3/8" (1829)
Pilaster
Refer to the
submittal drawing for the
correct orientation of the
pilaster.
Floor
9" Ref.
(229)
Floor
9" Ref.
(229)
