Clarion CMM-30 User manual

CMM-30
Marine Source Unit with Full-Color LCD
OWNER’S MANUAL
MANUEL D’UTILISATION
MANUAL DEL PROPIETARIO
BEDIENUNGSANLEITUNG
MANUALE DEL PROPRIETARIO

2

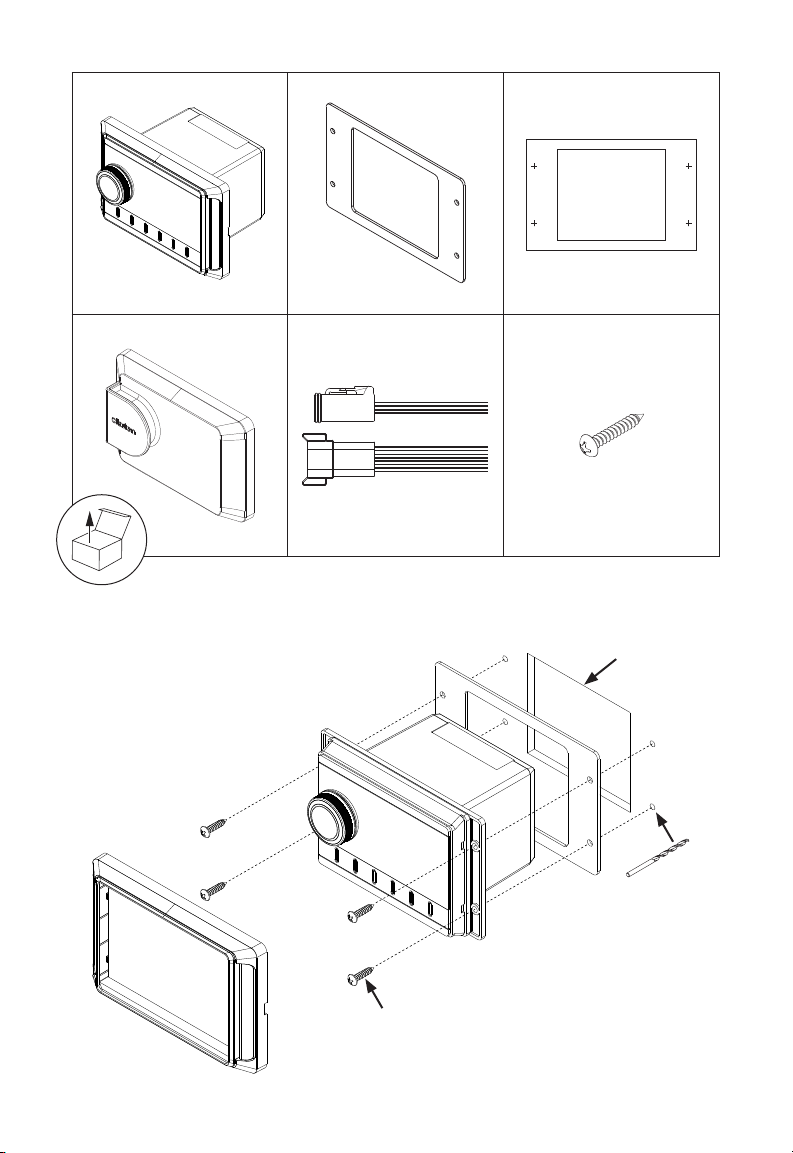

x1 x1 x1
x1 x1 #8 x 1 in (25 mm)
(x4)
#8 x 1 in (25 mm)
7/64 in
(2.78 mm)
3.68W in x 3.09H in
(94W mm x 79H mm)

3

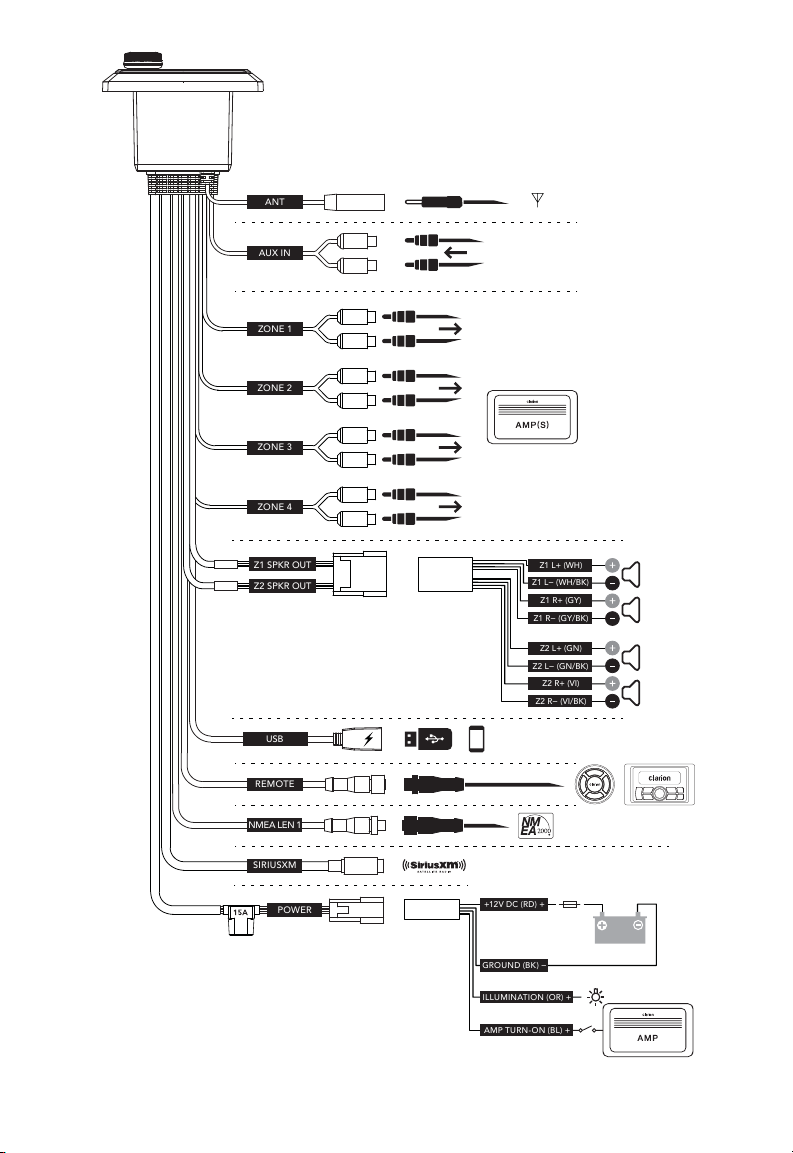

AM FM
AUX
2.1A
ILLUMINATION (OR) +
GROUND (BK) −
AMP TURN-ON (BL) +
+12V
(10 - 16V DC)
15A
+12V DC (RD) +
(≥iPhone SE)
L (BK)
R (RD)
L (BK)
R (RD)
Z1 SPKR OUT
Z2 SPKR OUT
Z1 L+ (WH)
Z1 L− (WH/BK)
Z1 R+ (GY)
Z1 R− (GY/BK)
Z2 L+ (GN)
Z2 L− (GN/BK)
Z2 R+ (VI)
Z2 R− (VI/BK)
L (BK)
R (RD)
L (BK)
R (RD)
L (BK)
R (RD)
CMM-30
REMOTE
NME A LEN 1
SIRIUSXM
POWER
USB
ANT
AUX IN
ZONE 4
ZONE 1
ZONE 2
ZONE 3

4
FCC COMPLIANCE STATEMENT
This device complies with Part 15 of
the FCC Rules. Operation is subject
to the following two conditions:
(1) this device may not cause harmful
interference, and (2) this device
must not accept any interference
received, including interference that
may cause undesired operation.
These limits are designed to
provide reasonable protection
against harmful interference
in a residential installation.
This equipment generates, uses and
can radiate radio frequency energy
and, if not installed in accordance
with the instructions, may cause
harmful interference to radio
communications. However, there is
no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, the user is encouraged to
try to correct the interference by one
or more of the following measures:
- Reorient or relocate the
receiving antenna.
- Increase separation between the
equipment and the receiver.
- Connect the equipment to an
outlet on a circuit different
from that to which the receiver
is connected.
- Consult the dealer or an
experienced radio/TV technician
for help.
Any changes or modifications
not expressly approved by the
party responsible for compliance
could void the user’s authority
to operate this equipment.
SAFETY CONSIDERATIONS
• Only use this product in vehicles with
12 volt, negative-ground electrical
systems. This product is not certified
or approved for use in aircraft.
• Mount this product securely to
prevent damage or injury in
severe conditions.
• Do not replace the power wire fuse
with one of a different value.
Never bypass the fuse.
• Listen to your audio system at
levels appropriate for operating
conditions and hearing safety.
INSTALLATION CONSIDERATIONS
• Installation requires appropriate
tools and safety equipment.
Professional installation
is recommended.
• This product is water-resistant. Do
not submerge or subject to high-
pressure water spray.
• Before installation, turn off the audio
system and disconnect the battery
system from the audio system.
• Install in a dry, well-ventilated
location that does not interfere with
your factory-installed systems. If a
dry environment is not available,
a location that is not exposed to
heavy splashing may be used.
• Before cutting or drilling, check
for potential obstacles behind
mounting surfaces.
• Carefully route all system wiring
away moving parts and sharp
edges; secure with cable ties or
wire clamps and use grommets
and loom where appropriate to
protect from sharp edges.

5

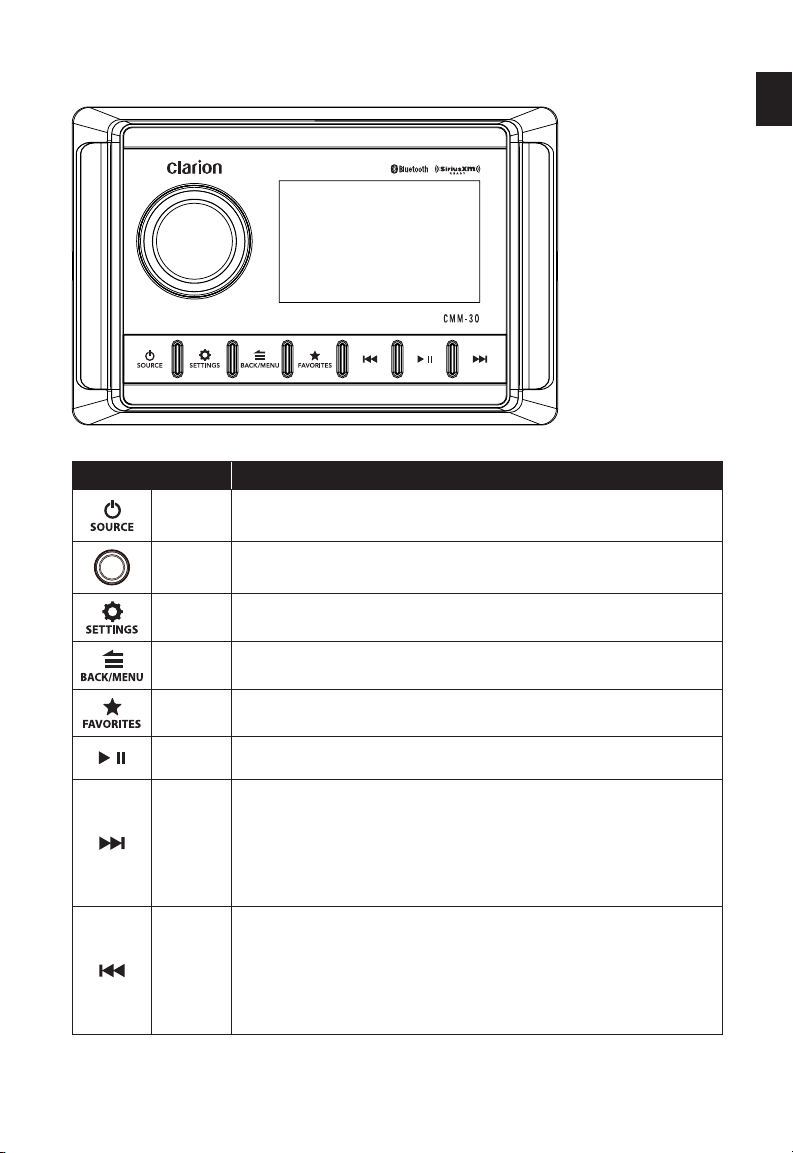

GENERAL CONTROL FUNCTIONS
Control Function
Source/
Power
• Short press to turn ON; Long press to turn OFF
• When on, short press to display the Source: Select menu
Volume/
Select
• Rotate to adjust volume
• Rotate/press for navigation and making selections
Settings • Short press to access Tone, Balance & EQ settings
• Long press to access Settings: Main Menu
Back/
Menu • Short press to go back one step or access source specific menus
Favorites • Short press to access stored presets
• Long press to store a frequency as a preset (up to 18)
Mute/
Pause
• Short press to mute/unmute audio (AM/FM/SiriusXM/WB/AUX) or
pause/resume the current selection (USB/Bluetooth)
Forward
Short press to:
• Manually adjust tuner forwards (AM/FM/SiriusXM/WB)
• Select the next track (USB/Bluetooth)
Long press to:
• Seek to the next channel (AM/FM/WB)
• Initiate Rapid Channel Browsing forward (SiriusXM)
• Fast-forward (USB/Bluetooth)
Backward
Short press to:
• Manually adjust tuner backwards (AM/FM/SiriusXM/WB)
• Restart track/select the previous track (USB/Bluetooth)
Long press to:
• Seek to the previous channel (AM/FM/WB)
• Initiate Rapid Channel Browsing backward (SiriusXM)
• Fast-rewind (USB/Bluetooth)
EN

6
FAVORITES MENU SETTINGS
• Short press to access settings/stored presets
• Long press to store a frequency as a preset (up to 18)
• Rotate to navigate
• Press to make selections
Setting Function
Edit Select to Move or Delete stored presets
SYSTEM MENU SETTINGS
• Long press to access the Settings: Main Menu
• Rotate to navigate
• Press to make selections
Setting Function
Audio Zone Setup Configures each set of audio zone outputs
Aux Input
Sensitivity Configures AUX input sensitivity: 2V or 1V RMS (default)
Diagnostic Displays hardware and software version info
Display Configures display and brightness settings
Scrolling text Enables continuous scrolling of available RDS/track text info
Tuner Region Configures AM/FM tuner range/scale for a specific region

7
TONE, BALANCE & EQ MENU SETTINGS
• Short press to access settings
• Rotate to navigate
• Press to make selections
Setting Function Note
Treble Treble level control from -10 to +10
EQ must be set
to Off
Mid Mid level control from -10 to +10
Bass Bass level control from -10 to +10
Balance Balance control from full left (-10) to full right (+10)
EQ 5-band equalizer control from -10 to +10 per band
AUDIO ZONE MENU SETTINGS
• Long press to access settings
• Rotate to navigate
• Press to make selections
Zone Function Setting 1
Z1: Zone 1
Z2: Zone 2
Z3: Zone 3
Z4: Zone 4
Level Control Mode
Variable (default)
Absolute
Sub (Zone 4 only)
Off
HP Xover
Off
80 Hz
100 Hz
120 Hz
Rename Zone
Bow, Bridge, Cabin, Cockpit, Galley, Helm,
Stateroom 1, Stateroom 2, Tower, Transom
Factory Default
Volume Limit Max Volume Limit
EN

8
BLUETOOTH MENU SETTINGS
• Short press to access settings
• Rotate to navigate
• Press to make selections
Setting Function
Now Playing Return to the Now Playing Screen
Connect Paired
Device Display all paired devices for connection
Pair New Device Initiates Pairing Mode (current connected devices will be disconnected)
Set Primary Device Assign priority to a paired device for automatic connection
Delete a Paired
Device Select from paired devices for removal
Delete All Paired
devices Removes all paired devices from memory

9
USB MENU SETTINGS
• Short press to access settings
• Rotate to navigate
• Press to make selections
Setting Function
Now Playing Return to the Now Playing Screen
Random Random playback of all tracks
Repeat Repeats playback of the current track or all tracks
Play All Plays all tracks within all folders
Folder list Displays list of folders/tracks
• Properly secure the connected device before driving to prevent
damage from dropping or sudden acceleration/braking.
• Control, functionality and display may vary depending
on the model and version of iPhone®connected.
• When connected via USB port, make sure to unpair or disable the
Bluetooth connection to avoid possible playback conflicts.
• If you experience abnormal performance during operation,
disconnect the iPhone®and check its condition. Restart
your iPhone®if performance does not improve.
• “Made for iPhone” means that an electronic accessory has been
designed to connect specifically to an iPhone®and has been certified
by the developer to meet Apple performance standards. Apple is
not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of
this accessory with an iPhone®may affect wireless performance.
• iPhone®and all related marks and logos are trademarks of
Apple Inc., registered in the U.S. and other countries.
EN

10
SIRIUSXM®SATELLITE RADIO
Only SiriusXM®brings you more of
what you love to listen to, all in one
place. Get over 140 channels, including
commercial-free music plus the
best sports, news, talk, comedy and
entertainment. Welcome to the world of
satellite radio. A SiriusXM Vehicle Tuner
and Subscription are required. For more
information, visit www.siriusxm.com.
(SiriusXM service is only available in the
continental US and Canada.)
Activating Your SiriusXM Subscription
After installing your SiriusXM Connect
tuner and antenna, power on your
CMM-30 and select SiriusXM mode.
You should be able to hear the
SiriusXM preview channel on Channel
1. If you cannot hear the preview
channel, please check the installation
instructions to make sure your SiriusXM
Connect tuner is properly installed.
After you can hear the preview channel,
tune to Channel 0 to find the Radio ID
of your tuner. In addition, the Radio
ID is located on the bottom of the
SiriusXM Connect Vehicle Tuner and its
packaging. You will need this number
to activate your subscription. Write the
number down for reference.
Note: the SiriusXM Radio ID does
not include the letters I, O, S or F.
In the USA, you can activate online or
by calling SiriusXM Listener care:
• Visit www.siriusxm.com/activatenow
• Call SiriusXM Listener Care
at 1-866-635-2349
For Canadian Subscriptions,
please contact:
• Visit www.siriusxm.ca/activate
• Call SiriusXM Customer Care
at 1-888-539-7474
As part of the activation process, the
SiriusXM satellites will send an activation
message to your tuner. When your radio
detects that the tuner has received the
activation message, your radio will
display: “Subscription Updated”.
Once subscribed, you can tune to
channels in your subscription plan.
Note: The activation process usually
takes 10 to 15 minutes, but may take up
to an hour. Your radio will need to be
powered on and receiving the SiriusXM
signal to receive the activation message.
Parental Controls
Some SiriusXM channels contain mature
content. When the Parental Controls
feature is enabled, channels with mature
content are restricted and will require a
4-digit lock code to access.
Enabling Parental Controls
1. Press to access the
SiriusXM: Main Menu.
2. Turn to Parental Controls
and press to enter.
3. Press to select Lock
Mature Channels. After, you must
enter a 4-digit lock code to lock
mature content channels. (Parental
Control default passcode: 0000)
4. Use to enter the 4-digit
lock code and select Save when
finished.
Changing the Lock Code
1. Press to access the
SiriusXM: Main Menu.
2. Turn to Parental Controls
and press to enter.
3. Turn to Edit Lock Code
and press enter.
4. Use to enter the current
4-digit lock code and select Enter
when finished.
5. Use to enter the new lock
code and select Enter to confirm.
Make sure to save your 4-digit
lock code for future reference.

11
Setting Function
Now Playing Return to the Now Playing Screen
Browse By Channel View list of available SiriusXM channels
Browse By Category View list of available SiriusXM channels by category
Direct Tune Allows entry for direct channel selection
My Account View your SiriusXM account status, Radio ID and
Reset SiriusXM command
Parental Controls Settings for access to Lock and Unlock Mature
SiriusXM channels
SIRIUSXM MAIN MENU
This allows access to the SiriusXM
operational menu options. Refer
to the table below for available
settings and functionality.
1. Press to access the
SiriusXM: Main Menu.
2. Turn to highlight one of
the menu settings listed in the
table below and press to enter.
3. Use to make selections.
Album Art
Album art can be displayed for most
of the SiriusXM music channels. When
album art is not available, the Channel
Default Logo image or the SiriusXM
Default Logo image will be displayed.
Resetting SiriusXM Settings
A reset will restore all presets and
settings, including parental controls,
back to their factory defaults.
1. Press to access the
SiriusXM: Main Menu.
2. Turn to My Account
and press to enter.
3. Turn to Reset SiriusXM
Tuner and press to enter.
4. Use to select Confirm.
Sirius, XM and all related marks and
logos are trademarks of Sirius XM
Radio Inc. All rights reserved.
EN

12
Advisory
Message Description
Check Antenna
The radio has detected a fault with the SiriusXM antenna. The antenna cable may
be either disconnected or damaged.
• Verify that the antenna cable is connected to the SiriusXM Connect Vehicle Tuner.
• Inspect the antenna cable for damage and kinks. Replace the antenna if the cable
is damaged.
• SiriusXM products are available at your local audio retailer or online
at www.shop.siriusxm.com.
Check Tuner
The radio is having difficulty communicating with the SiriusXM Connect Vehicle
Tuner. The tuner may be disconnected or damaged.
• Verify that the SiriusXM Connect Vehicle Tuner cable is securely connected to the
radio.
No Signal
The SiriusXM Connect Vehicle Tuner is having difficulty receiving the SiriusXM
satellite signal.
• Verify that your vehicle/vessel is outdoors with a clear view of the sky.
• Verify that the SiriusXM antenna is mount on the exterior.
• Move the SiriusXM antenna away from any obstructions.
• Inspect the antenna cable for damage and kinks.
• Consult the SiriusXM Connect Vehicle tuner installation manual for more infor-
mation on antenna installation. Replace the antenna if the cable is damaged.
SiriusXM products are available at your local audio retailer or online at www.shop.
siriusxm.com.
Subscription
Updated
The radio has detected a change in your SiriusXM subscription status.
Press VOL/SEL to clear the message.
In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions
about your subscription.
In Canada, visit www.siriusxm.ca or call 1-888-539-7474 if
you have questions about your subscription.
Channel
Unavailable
The channel that you have requested is not a valid SiriusXM channel or the channel
you were listening to is no longer available. You may also see this message briefly
when first connecting a new SiriusXM Connect Vehicle tuner.
Visit www.siriusxm.com for more information about the SiriusXM channel lineup.
Channel
Unsubscribed
The channel that you have requested is not included in your SiriusXM subscription
package of the channel that you were listening to is no longer included in your
SiriusXM subscription package.
In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you have questions
about your subscription package or would like to subscribe to this channel.
In Canada, visit www.siriusxm.ca or call 1-877-438-9677.
Channel
Locked
The channel that you have requested is Locked by the radio Parental Control fea-
ture. See Parental Controls, page 12 for more information on the Parental Control
feature and how to access locked channels.
SIRIUSXM TROUBLESHOOTING
Advisory messages may appear on the display when a SiriusXM-Connect
Vehicle Tuner is connected to the CMM-30. Refer to the table below for an
explanation and suggested corrective actions.

13
SPECIFICATIONS
Electrical
Operating Voltage 14.4V DC (10V – 16V)
Operating Temp Range -4° F to +140° F (-20° C to +60° C)
Current Draw / Fuse Value 15 A (max) / 33 mA (standby) / 15 A
NMEA 2000®LEN 1 (Micro-C connector)
Compatible MFDs Simrad, Lowrance, Garmin
(control functionality varies by MFD manufacturer)
Remote Turn-On Output 500 mA
Display 3 in. TFT LCD backlit / 360 x 640
Tuner
FM Tuner
USA: 87.9 MHz to 107.9 MHz (0.2 MHz step)
EUR: 87.50 MHz to 108.00 MHz (0.05 MHz step)
AUS: 87.50 MHz to 108.00 MHz (0.10 MHz step)
OTHER: 87.50 MHz to 108.00 MHz (0.05 MHz step)
AM Tuner
USA: 530 kHz to 1710 kHz (10 kHz step)
EUR: 531 kHz to 1602 kHz (9 kHz step)
AUS: 531 kHz to 1629 kHz (9 kHz step)
OTHER: 531 kHz to 1629 kHz (9 kHz step)
NOAA Weatherband USA: 162.400 MHz - 162.550 MHz (0.025 MHz step)
Favorites 18 presets across all bands
Bluetooth®
Profile / Spec 5.0 / A2DP, AVRCP
Connection Range Up to 35 ft / 11 m
USB
Interface / Charging Output USB 2.0 High Speed / 2.1 A
Supported Audio Formats MP3, WMA, FLAC, WAV
File Limits
Folders: 255
Files in a single folder: 3,000
Total Files: 9,999
Apple Compatibility iPhone SE (2nd generation) or beyond
(functionality contingent upon compatible iOS release)
Preamp Audio Outputs/Inputs
Output Channels Four stereo pairs of RCA plugs (3.5V RMS)
Output Configuration Variable, Absolute, Off (all zones) or Sub (Zone 4 only)
Auxiliary Input Channels One stereo pair of RCA plugs (1V / 2V RMS Input Sensitivity)
Amplied Audio Outputs
Rated RMS Power @ 14.4V 25W x 4 @ 4 Ω
Audio Control Options
Tone Treble, Mid, Bass, Balance or 5-band equalizer (all zones)
High-Pass Crossover Off, 80 Hz, 100 Hz & 120 Hz (all zones)
Dimensions
Unit W x H x D 5.94 in. x 3.90 in. x 2.95 in. (151 mm x 99 mm x 75 mm)
Mounting Hole W x H 3.68 in. x 3.09 in. (94 mm x 79 mm)
EN

REMOTE Connection
Permits direct connection of
wired controllers (sold separately)
using accessory controller cables
and splitters (sold separately).
Connect up to three controllers
to a single source unit, at up
to 75 ft (23m) away (cumulative
cable length). Each wired remote
connects directly using controller
cables and 2-way splitters (sold
separately). Refer to the supplied
Owner’s Manual for specific user and
installation instructions.
CMR-20
Wired Remote Controller
with LCD Display
Full-function, water-resistant
(IP67 rated) controller
CMR-10
Wired Remote Controller
Auxiliary, water-resistant
(IP67 rated) controller
NMEA 2000®Connection
NMEA 2000®, Micro-C connector
interfaces directly with NMEA
2000®networks using applicable
NMEA 2000®cables and
connectors (sold separately).
NMEA 2000®MFD Control
Achieve control capabilities from
compatible multi-function displays
(MFD). NMEA 2000®functionality
requires compatible NMEA 2000®
entertainment protocols (PGN) and
may require a software upgrade of
connected MFD devices. Refer to
your MFD’s manufacturer for device
compatibility info.
AUXILIARY CONTROL OPTIONS
Two connection types are included for adding control capabilities from
auxiliary locations. Refer to the supplied Owner’s Manual of each controller/
type (sold separately) for specific user and installation instructions.

15

©2022 Clarion Marine Audio
Printed in China CMM30-MAN 033022
