Clarion M4SSA User manual

Owner's manual
Manual de instrucciones
M4SSA
MARINE AM/FM/CD MULTIMEDIA CONTROLLER
__ IIIiI_'II"lI .... NAUTIQUE RADIO AM/FM .. lECTEUR CD
CONTROLADOR MULTIMEDIA MARINO
DE AM/FM/DISCOS CD
CONTROllO MUlTIMEDIAlE PER usa
MARITTIMO AM/FM/CD

M455A
Da'6NET
Thank you for purchasing this Clarion product.
*Please read this owner's manual in its entirety before operating this equipment.
*After reading this manual, be sure to keep it in ahandy place (e.g., glove compartment).
*Check the contents of the enclosed warranty card and keep it with this manual.
*This manual includes the operating procedures of the CD changer, Satellite Radio Receiver and
TV tuner connected via the CeNET cable. The CD changer, Satellite Radio Receiver and TV tuner
have their own manuals, but no explanations for operating them are described.
Contents
1. FEATURES 2
2.
PRECAuTIONS 3
Handling Compact Discs 4
3. CONTROLS 5
4. NOMENCLATURE 6
Names of the Buttons and their Functions 6
Major button operations when external equipment is connected to this unit 7
Display Items 9
Display Screen 9
5. DETACHABLE CONTROL PANEL 10
6. REMOTE CONTROL 11
Optional Wired Remote Control Unit Operations 11

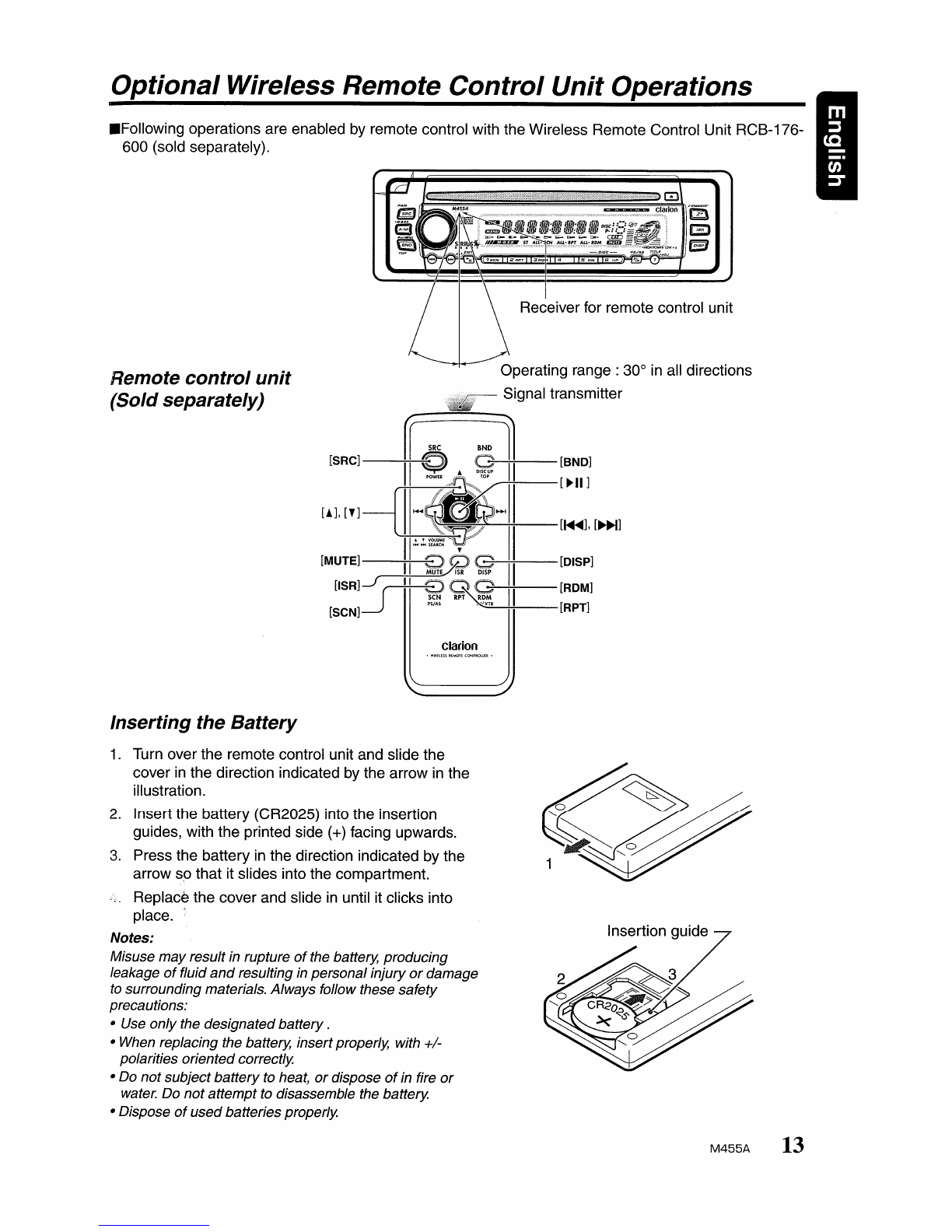

Optional Wireless Remote Control Unit Operations 13
7. OPERATIONS 15
Basic Operations
~.................................................................................................................. 15
Radio Operations.................................................................................................................... 17
CD Operations.................................................................................................................... 19
Operations Common to Each Mode 20
8. ACCESSORIES 22
Sirius Satellite Radio Operations 22
iPod Operations 25
CD Changer Operations 27
TV Operations 29
9. TROUBLESHOOTING 31
10. ERROR DISPLAYS 32
11. SPECIFICATIONS 33
[illD§~ SIRIUS~
DIGITAL AUDIO REA D Y
•Pelgan Z® Conformal Coated PCB and Microprocessor
•Rotary Volume Control
•High Definition Positive
LC Display
•Spring Loaded Silicon Oil Damped Suspension
•CD-R/CD-RW Compatible
•Z-Enhancer+ Equalizer
•Magna Bass EX
•Magi-Tune+® Tuner with 6AM/18FM Presets
•Detachable Control Panel
•2-Channel RCA Audio Auxiliary Input
•4-Channel RCA Audio Output (Front/Rear)
•4-Channel Speaker Output (52W x 4 Max)
2

When it is very cold in the boat and the unit is
used soon after switching on the heater, the
disc and the optical components may become
fogged and not operate properly. Wipe fogged
discs with asoft cloth. Fogged optical
components will naturally return to normal
when the unit is left for about one hour, after
which it will operate normally.
This equipment has been tested and found to
comply with the limits for aClass Bdigital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and
used
in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur
in aparticular
installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and on,
the user is encouraged to consult the dealer or
an experienced radiorrV technician for help.
(E: MODEL clarion
12Ve GROUND ~~~~~~:5~~~;~~~:a~:~~:~~~~~1~~~HZ
:::: 15A Load 4C AUSTRALIA: AM 531-1629kHzIFM 87.o-108MHz
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED
INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED'
OPERATION.
THIS PRODUCTION COMPLIES WITH DHHS RULES 21 CFR
SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE.
CLARION CO.,LTD. 50 KAMITODA, TODA-SHI, SAITAMA-KEN, JAPAN
I
CLASS 1 LASER PRODUCT ~
---------
C 051 722 877
CI~
[====:J
2. When the boat is underway in rough water the
CD may skip as aresult of intense vibrations
and shock.
3. This unit uses aprecision mechanism. Even
in the event that trouble arises, never open
the case, disassemble the unit, or lubricate
the rotating parts.
USE OF CONTROLS, ADJUSTMENTS, OR
PERFORMANCE
OF PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN, MAY
RESULT IN
HAZARDOUS RADIATION
EXPOSURE.
THE COMPACT DISC PLAYER
and MINI DISC
PLAYER
SHOULD NOT BE ADJUSTED OR
REPAIRED
BY ANYONE EXCEPT PROPERLY
QUALIFIED SERVICE PERSONNEL.
CHANGES OR MODIFICATIONS NOT
EXPRESSLY APPROVED
BYTHE
MANUFACTURER FOR COMPLIANCE COULD
VOID THE USER'S AUTHORITY TO OPERATE
THE EQUIPMENT.
16·'i·J;II~&'il.U'i·J;IUI.i#t;"'iI
CHANGES OR MODIFICATIONSTO THIS
PRODUCT NOT APPROVED
BY THE
MANUFACTURER
WILL VOID THE
WARRANTY
AND WILL VIOLATE FCC
APPROVAL.
Bottom View of Source Unit
M455A 3

Roughness
Ball-point pen
Storage
•Do not expose compact discs to direct sunlight
or any heat source.
•Do not expose compact discs to excess
humidity or dust.
•Do not expose compact discs to direct heat
from heaters.
the CD player.
•
Do not use compact discs that have large
scratches, are misshapen, cracked, etc. Use of
such discs may cause misoperation or damage.
•
To remove acompact disc from its storage case,
press down
on the center of the case and lift the
disc out, holding it carefully by the edges.
•Do not use commercially available CD
protection sheets or discs equipped with
stabilizers, etc. These may damage the disc or
cause breakdown of the internal mechanism.
Cleaning
• To remove fingermarks and dust, use asoft
cloth and wipe
in astraight line from the center
of the compact disc to the circumference.
•Do not use any solvents, such as commercially
available cleaners, anti-static spray, or thinner
to clean compact discs.
•After using special compact disc cleaner, let
the compact disc
dry off well before playing it.
Handling Compact Discs
Use only compact discs bearing the ~D~~
mark.
Do not play heart-shaped, octagonal, or other
specially shaped compact discs.
Some CDs recorded
in CD-R/CD-RW mode
may not be usable.
Handling
•Compared to ordinary music CDs, CD-R and
CD-RW discs are easily affected
by high
temperature and humidity. Prolonged exposure
to high heat and humidity may make the discs
unplayable. Therefore,
do not leave them for a
long time
in the
boat.
•New discs may
have rough
edges. If such
discs are used,
the player may
not work,
or the
sound may skip.
Use aball-point pen or the like to remove any
roughness from the edge of the disc.
•Never stick labels
on the surface of the compact
disc or mark the surface with apencil or pen.
•Never
playa compact disc with any
cellophane tape or other glue on it or with
peeling off marks. If you try to play such a
compact disc, you may not be able to get it
back out of the CD player or it may damage
Be sure to unfold and read the next page.
Veuillez deplier
et vous refererif la page suivante.
Cerciorese de desplegaryde leerla pagina siguiente.
Assicurarsi
di aprire eleggere la pagina successiva.
M455A 4

/Unidad fuente / Unita di fante
[CD SLOT]
~[~l
~~~::~~:~~~~,~Ol
-......-:---::~I~RCJJJ ~ canon -;;.---;.---[Z+]
~~--[ISR]
~~--[DISP]
Note: Be sure to unfold this page and refer to the front diagrams as you read each chapter.
Remarque: Veuillez deplier cette page et vous referer aux schemas quand vous lisez chaque chapitre.
Nota: Cuando lea los capftulos, despliegue esta pagina y consulte los diagramas.
Nota: Assicurarsi di aprire questa pagina e fare riferimento a questi diagrammi quando si legge ciascun capitola.
5 M455A

Note:
•Be sure to read this chapterreferring to the front diagrams of chapter "3. CONTROLS"on page 5
(unfold).
Names of the Buttons and their Functions
[RELEASE] button
•Deeply push in [RELEASE] button to release
the front panel.
[ROTARY] knob
•Adjust the volume by turning the knob
clockwise or counterclockwise.
•Use the knob to perform function
adjustments.
[CD SLOT]
•CD insertion slot.
[~] (Eject) button
•Eject aCD when it is loaded into the unit.
[Z+] (Z-Enhancer Plus) button
•Use the button to select one of the 3types of
sound characteristics already stored
in
memory, or a4th custom user programmed
setting.
[ISR] (Instant Station Recall) button
•Recall ISR radio station in memory.
•Press and hold for 2seconds or longer: Store
current station into ISR memory (radio mode
only).
[DISP] (Display) button
•Switch the display indication (Main display,
Sub display, Clock display).
[T] (Title) button
•Press and hold the button for 1second or
longer to enter the adjust mode.
[PIA] (Preset Scan/Auto Store) button
•Perform preset scan while in the radio mode.
When the button is pressed and held, auto
store is performed.
6 M455A
[DIRECT] (1-6) buttons
•Store astation into memory or recall it
directly while
in the radio, mode.
[ROM] (Random) button
•CD plays random track order.
[RPT] (Repeat) button
•Repeat play while in the CD mode.
[SCN] (Scan) button
•Plays 10 seconds of each track while in the
CD mode.
[~II ](Play/Pause) button
•Play or pause aCD while in the CD mode.
[~olllII], [~~] buttons
•Select astation while in the radio mode or
select atrack when listening to a
CD. The
buttons are also used to adjust function
settings.
•Press and hold the button for 1second or
longer to switch to fast-forward/fast-rewind.
[BND] (Band) button
•Switch the band.
•When the button is pressed and held, switch
between seek or manual tunings.
•Play the first track of the CD.
[A-M] (Audio-Mode) button
•Use the button to switch to the audio mode
(bass/treble, balance/fader Z-Enhancer Plus,
Magna Bass Extended adjustment)
[SRC] (Source) button
•Press the button to turn on the power.
Press and hold the button for 1second or
longer to turn the power off.
•Switches operation between Radio,
CD, Aux,
and CeNET modes.

Major button operations when external equipment is
connected to this unit
eWhen the Sirius Satellite
Radio
is connected
*For details, see the section "Sirius
Satellite Radio operations".
[DISP] (Display) button
•When held depressed for 1second or longer,
switches title.
[T] (Title) button
• Use to perform title scroll.
[PIA] (Category scan) button
•Performs category scan. When the button is
pressed and held, preset scan
is performed.
[DIRECT] (1-6) buttons
•Stores astation into memory or recall it
directly.
[~II] (Category selection) button
•Enter the category selection mode.
[~~], [~~] buttons
•Select astation.
[BND] (Band) button
•Switch the band.
•When the button is pressed and held, switch
between seek or manual tunings.
eWhen the CD changer is
connected
*For details, see the section "CD Changer
Operations".
[UP], [ON] (Up/Down) buttons
•Select the desired CD in the CD changer.
[ROM] (Random) button
Perform random play. Also perform disc
random play when the button is pressed and
held.
[RPT] (Repeat) button
•Perform repeat play. When this button is
pressed and held, single disc repeat play is
performed.
[SCN] (Scan) button
•Perform scan play for 10 seconds of each
track. Disc scan play is performed when the
button is pressed and held.
[~II ](Play/Pause) button
•Play or pause a CD.
[~~], [~~] buttons
•Select atrack when listening to adisc.
•Press and hold the button for 1second or
longer to switch to fast-forward/fast-rewind.
[BND] (Band) button
•Move to the next disc in increasing order.
eWhen the TV is connected
*For details, see the section "TV
Operations".
[PIA] (Preset Scan/Auto Store) button
•Perform preset scan. When the button is
pressed and held, auto store is performed.
[DIRECT] (1-6) buttons
•Store astation into memory or recall it
directly.
[~II ](Play/Pause) button
•Switch the TV picture mode or VTR (external)
pictu
re mode.
[~~], [~] buttons
•Select astation.
[BND] (Band) button
•Switch the band.
•When the button is pressed and held, switch
between seek or manual tunings.
_When the iPod is connected
*For details, see the section "iPod
Operations".
[ROTARY] knob
•Use to select menus in the iPod MENU
mode.
[DISP] (Display) button
•When held depressed for 1second or longer,
switches title.
[T] (Title) button
•Use to perform title scroll.
[SCN] (Scan)/[DIRECT] (1) button
• Use to select the PLAY LIST menu in the
iPod MENU mode.
M455A 7

Major button operations when external equipment is connected to this unit
[RPT] (Repeat)/[DIRECT] (2) button
•Perform repeat play. Also perform all-repeat
play when the button is held depre.ssed for 1
second or longer.
• Use to select the ARTISTS menu
in the iPod
MENU mode.
[RDM] (Random)/[DIRECT] (3) button
•Perform random play. Also perform all-random
play when the button is held depressed for 1
second or longer.
•Use to select the ALBUMS menu
in the iPod
MENU mode.
[DIRECT] (4) button
• Use to select the SONGS menu in the iPod
MENU mode.
[DIRECT] (5) button
• Use to select the GENRES menu in the iPod
MENU mode.
[DIRECT] (6) button
• Use to select the COMPOSERS menu in the
iPod MENU mode.
[~II ](Play/Pause) button
•Play or pause aMUSIC.
[~~] button
•Perform the Track up operation. Press and
hold the button for 1second or longer
to switch to fast-forward.
• Use to proceed to the next menu
in the iPod
MENU mode.
[~] button
•Perform the Track down operation. Press and
hold the button for 1second or longer to
switch to fast-rewind.
• Use to return to the previous menu
in the iPod
MENU mode.
[BND] (iPod MENU) button
• Use to switch to the iPod MENU mode.
•When held depressed for 1second or longer,
performs all
play.
8 M455A

Display Items
I ~ :Enter indication
r ~ :Manual indication
DISC! !==: :Preset channel indication (1 to 6)
p •• •__• Disc number indication (1 to 6)
~ :Satellite indication
Operation status indication
Titles, frequency,
clock, etc. are
displays.
~II=-==~~""'E::E=-~[:a=:>
\... (1"'11':'7,,' 51 ALL~5CN ALL~RP1 ALL~RDM
"I.j~O:'=t. : MAGNA BASS EXTEND indication
51 :Stereo indication
ALL ~ : Disc indication
5CN : Scan indication
RP1 :Repeat indication
; ! RDM : Random indication
II ( CAT): Category indication
~ Iillm :Mute indication
Disc In indications
-Lights when adisc is loaded
DisplayScreen
Z-Enhancer Plus indication
In extreme cold, the screen movement may slow down and the screen may darken, but this is normal.
'"he screen will recover when it returns to normal temperature.
M455A 9

Removing the DCP
1. Press the [SRC] button for 1second or
longer to switch off the power.
2. Press in the [RELEASE] button.
~ [RELEASE] button
f~
3. Remove the DCP.
Attaching the DCP
1. Insert the right side of the DCP into the
source unit.
2. Insert the left side of the DCP into the source
unit.
10 M455A
Storing the DCP in the DCP Case
Hold the DCR in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP
is in the correct
orientation.)
DCP
DCP case
•The DCP can be damaged by impact. After
removing it, be careful not to drop or
subject it to strong shocks.
•The connector connecting the source unit
and the DCP is an extremely important
part. Be careful not to damage it by
pressing on it with fingernails,
screwdrivers, etc.
DCP
connector
Note:
• If the DCP is dirty, wipe off the dirt with asoft, dry
cloth only.

Optional Wired Remote Control Unit Operations
•Following operations are enabled by remote control with the Wired Remote Control Unit CMRC1 or
CMRC2 (sold separately).
[~],[T]
Display Items
Operation status indication
*Frequency, clock, etc. are displayed.
Sf
Sf
:Stereo indication
~ :Satellite indication
~ :Mute indication
Preset channel indication
(1 to 6)
Disc number indication (1 to 6)
M455A 11

Optional Wired Remote Control Unit Operations
Lower the volume level before powering the
source unit off. The source unit stores the
last volume setting. If the source unit is
powered off with the volume up, when the
source unit is powered back on, the sudden
loud volume may harm your hearing and/or
damage the source unit.
[POWER/SOURCE] button
Turning on and off the power
Press the [SOURCE] button to turn the power
on and press and hold it for 1second or longer
to turn the power off.
Changing the operation mode
Each time the [SOURCE] button is pressed, the
mode switches
in the following order:
Radio mode'" Satellite mode'" CD mode
... iPod mode'" CD changer mode'" TV
mode'" AUX mode'" Radio mode .....
Notes:
• If the above equipment is not connected,
corresponding
mode cannot be selected.
•In
CD mode, if no CD is loaded in the unit, the
radio mode is selected.
[~], [T] Buttons
Adjusting the volume
Press the [~] button to increase the volume
and press the
[T] button to decrease the
volume.
[BAND/DISC] Button
Changing the band (in Radio mode)
Each time the [BAND] button is pressed, the
band switches
in the following order:
FM1 ... FM2 ... FM3'" AM ... FM1 .....
Top
function (in CD mode)
Press the [BAND] button, then the CD will start
from the first song (track number 1).
Changing the disc (in CD changer mode)
Each time the [BAND] button is pressed, the
disc switches
in the following order:
1 ... 2 ... 3 ... 4 ... 5 ... 6 ... 1.....
[MUTEJ~/II] Button
Press the [MUTE] button. The sound is muted
immediately.
To cancel, press the [MUTE] button again.
12 M455A
[<~], [~>] Buttons
Selecting tracks (in CD changer mode or CD
mode)
Press the [~>] button to start playback from the
beginning of the following track. Press the
[<~]
button to start playback from the beginning of
the current track. If pressed again, the track
moves to the previous one.
Fast-forward and fast-rewind (in CD changer
mode or CD mode)
Press and hold the [~>] button to fast-forward
the disc. Press and hold the
[<~] button to fast-
rewind the disc.
*Pressing and holding the [< .... ]or [~>] buttons for 1
second or longer will move forward or backward 3
times faster than normal
play, and pressing and
holding it
for 3seconds or longer will do the
operation 30 times faster.
Changing preset stations (in Radio mode)
Each time the [<~] or [~>] buttons are pressed,
the preset station switches
in the following
order:
1 ... 2 ... 3 ... 4 ... 5 ... 6 ... 1.....
or
6 ... 5 ... 4 ... 3 ... 2 ... 1 ... 6.....

Optional Wireless Remote Control Unit Operations
.Following operations are enabled by remote control with the Wireless Remote Control Unit RCB-176-
600 (sold separately).
Receiver for remote control unit
'ffl
S
~~~~~~~~~~~~ r=::J
Operating range: 30° in all directions
Signal transmitter
[SRC] ~ cO> G1[BND]
[!],['] [IIII_~[~II]
~ II [~],[~~]
11"VOlUM~
[MUTE] II 8 ~ G II [DISP]
[ISR]J II 8QG[ROM]
-~N RP~M II
[SeN] ---.J II PS/AS , '!VTR [RPT]
Remote control unit
(Sold separately)
clarion
Inserting the Battery
1. Turn over the remote control unit and slide the
cover
in the direction indicated by the arrow in the
illustration.
2. Insert the battery (CR2025) into the insertion
guides, with the printed side (+) facing upwards.
3. Press the battery in the direction indicated by the
arrow
s.o that it slides into the compartment.
Replace the cover and slide
in until it clicks into
place.
Notes:
Misuse mayresult in rupture of the battery, producing
leakage
of fluid and resulting in personal injury or damage
to surrounding materials. Always follow these safety
precautions:
•Use only the designated
battery.
•When replacing the battery, insertproperly, with +/-
polarities orientedcorrectly.
•Do notsubjectbattery to heat, or dispose of in fire or
water. Do not attempt to disassemble the battery.
•Dispose of usedbatteries properly.
M455A 13

Optional Wireless Remote Control Unit Operations
_dEl
......
._ ...
\iIIGI19CI
gy .......,11 ""s..
[SRC] Switches among radio, Satellite Radio Receiver, CD, iPod, CD changer, TV and AUX.
The power of this unit turns off by pressing and holding or 1second or longer when the
power is on.
[BND] Switches Returns to the Moves the next Switches When pressed
reception band. first track. disc
in increasing reception band. and held for 1
order. second or
10nger:AII play.
[A.],[T]
Increases and decreases volume (in all modes).
[~ .... ],[~]
Moves preset Moves tracks up and down. Moves preset Moves tracks up
channels up and When pressed and held for 1second channels up and and down.When
down. or longer: down. pressed and held
Fast-forward/fast-rewind. for 1second
or
longer:Fast-
forward/fast-
rewind.
[~II]
No function. Switches between playback and No function. Switches
pause. between
playback and
pause.
[MUTE] Turns mute on and off.
[ISR] Recalls ISR radio station in memory.
When pressed
and held for 2seconds or longer: Stores current station into ISR memory (radio
mode only).
[DISP] Switches among main display, sub display and clock display.
In the sub(title) display, press and hold for 1second or longer:
Switches the display.(Satellite/iPod mode only).
[SCN] Preset scan. Scan play. Scan play. Preset scan. No function.
When pressed When pressed When pressed
and held for 2and held for 1and held for 2
seconds or second
or longer: seconds or
longer: Disc scan play. longer:
Auto store. Auto store.
[RPT] No function Repeat play. Repeat play. No function. Repeat play.
When pressed When pressed
and held for 1and held for 1
second
or
second or
10nger:Disc 10nger:AII
repeat play. repeat play.
[ROM] No function. Random play. Random play. Switches Random play.
When pressed between
TV and When pressed
and held for 1VTR. and held for 1
second or longer: second or
Disc random 10nger:AII
play. random play.
*Some of the corresponding buttons on the main unit and remote control unit have different functions.
*When turning off the power of this unit, you cannot turn the power on from the wireless remote control unit.
Operate from this unit or the wired remote control unit.
14 M455A

Setting the Z-EnhancerPlus
This unit are provided with 3types of sound tone
effects stored
in memory. Select the one you prefer.
*The factory default setting is "Z+ OFF".
Each time you press the [Z+] button, the tone
effect changes in the following order:
"Z+ OFF" "B-BOOST" "IMPACT" ...
"EXCITE" "CUSTOM" "Z+ OFF" .
*Once selected, the preferred display becomes
the display default. When afunction
adjustment such as volume is made, the
screen will momentarily switch to that
function's display, then revert back to the
preferred display several seconds after the
adjustment.
Main display
:::ir1
Clock display
~
Sub display (Satellite mode only)
CiR 'n =, 4l,]
__ " __ ', It_' CH •• ' ,
~~
II"--,,r-
IIICIIII_J
Main display
SWitching the display
Press the [DISP] button to select the desired
display.
Each time you press the [DISP] button, the
display switches
in the following order:
Adjusting the volume
Turning the [ROTARY] knob clockwise
increases the volume; turning it
counterclockwise decreases the volume.
*The volume level is from 0(minimum) to 33
(maximum).
Note:Be sure to read this chapter referring to the front diagrams of
chapter "3. CONTROLS"on page 5(unfold).
Selecting a mode
Press the [SRC] button to change the
operation mode.
2. Each time you press the [SRC] button, the
operation mode changes
in the following
order:
Radio mode'" Satellite mode'" CD mode
... iPod mode'" CD changer mode'" TV
mode'" AUX mode'" Radio mode ...
*External equipment not connected with
CeNET is not displayed.
Basic Operations
Turning on/off the power
Note:
•Be careful aboutusing this unit for along time
without running the engine.
If you drain the boat's
battery too
far, you may notbe able to start the
engine, and this can reduce the service life of the
battery.
1. Press the [SRC] button.
2. The illumination and display on the unit light
up. The unit automatically remembers its last
operation mode and will automatically switch
to display that mode.
Press and hold the [SRC] button for 1
second or longer to turn off the power for the
unit.
Note:
•System check
During the initial
power up of this unit, it will go
through asystem checkprocedure. This
procedure verifies
any devices connected through
GeNET.
Any additional GeNETdevices plugged
into the unit afterthe initial
power up will initiate
the system checkprocedure. The system check
starts automatically within the unit.
Lower the volume level before powering the
source unit off. The source unit stores the
last volume setting. If the source unit is
powered off with the volume up, when the
source unit is powered back on, the sudden
loud volume may harm your hearing and/or
damage the source unit.
M455A 15

Basic Operations
Adjusting the Z-Enhancer Plus
1. Press the [Z+] button and select the Z-
Enhancer Plus mode to adjust.
2. Press the [A-M] button and turning the
[ROTARY] knob clockwise adjusts in the +
direction; turning it counterclockwise adjusts
in the -direction.
•When "B-BST 0" is selected, you can adjust
the bass in the range of -3 to 3.
•When "IMPACT 0" is selected, you can ad-
just the bass and treble in the range of -3 to
3.
•When "EXCITE 0" is selected, you can adjust
the bass and treble in the range of -3 to 3.
.When "CUSTOM" mode is selected, bass
gain, frequency and Q-curve, and treble gain
and frequency can be adjusted.
*Press and hold the [Z+] button for 1second or
longer, then the setting parameter of bassi
treble will be initialized with adisplay
"Z+FLAT".
-B-BOOST
-IMPACT
-EXCITE
-CUSTOM
-Z+ OFF
bass emphasized
bass and treble
emphasized
bass and treble
emphasized mid de-
emphasized
user custom
no sound effect
Note:
• If the rear line level output is set to the full range
"REAR" setting, "S-VOL" will not be shown as a
selection.
Adjusting the bass
(Gain, Frequency, Q-curve)
This adjustment can be performed when the
Z-Enhancer Plus is set to "CUSTOM".
1. Press the [A-M] button and select "BASS".
2. Turning the [ROTARY] knob clockwise
emphasizes the bass; turning it
counterclockwise attenuates the bass.
*The factory default setting is "B<G 0>".
(Adjustment range: -6 to +6)
3. Press the [~ .... ] or [~~] button to select
"B<F 60>".
Turn the [ROTARY] knob to select the
frequency.
*The factory default setting is "B<F 60>".
(Adjustment 60/100/200 Hz)
4. Press the [~ .... ] or [~~] button to select
"B<Q 1>".
Turn the [ROTARY] knob to select the Q-
curve.
*The factory default setting is "B<O 1>".
(Adjustment 1 /1 .25/1 .5/2)
5. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the tone
Press the [A-M] button and select the item to
adjust. Each time you press the [A-M] button,
the item changes as following order:
•When "B-BOOST" is set
"S-VOL 0" .. "B-BOOST" .. "BAL 0" ..
"FAD 0" .. Last function mode.
•When "IMPACT"
is set
"S-VOL 0" .. "IMPACT" .. "BAL 0" ..
"FAD 0" .. Last function mode.
.When "EXCITE" is set
"S-VOL 0" .. "EXCITE" .. "BAL 0" ..
"FAD 0" .. Last function mode.
•When "CUSTOM"
is set
"S-VOL 0" .. "BASS" .. "TREBLE" ..
"BAL 0" .. "FAD 0" .. Last function mode.
.When "Z+ OFF" is set
"S-VOL 0" .. "BAL 0" .. "FAD 0" .. Last
function mode.
16 M455A
Adjusting the treble
(Gain, Frequency)
This adjustment can be performed when the Z-
Enhancer Plus is set to "CUSTOM".
1. Press the [A-M] button and select ''TREBLE''.
2. Turning the [ROTARY] knob clockwise
emphasizes the treble; turning it
counterclockwise attenuates the treble.
*The factory default setting is "T<G 0>".
(Adjustment range: -6 to +6)
3. Press the [~ .... ] or [~~] button to select
"T<F 10>".
Turn the [ROTARY] knob to select the
frequency.
*The factory default setting is "T <F 10>".
(Adjustment 10 kHz/15 kHz)
4. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.

Basic Operations
Adjusting the balance
1. Press the [A-M] button and select "BAL 0".
2. Turning the [ROTARY] knob clockwise
emphasizes the sound from the right
speaker; turning it counterclockwise
emphasizes the sound from the left speaker.
*The factory default setting is "SAL 0".
(Adjustment range: L13 to R13)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Adjusting the fader
1. Press the [A-M] button and select "FAD 0".
2. Turning the [ROTARY] knob clockwise
emphasizes the sound from the front
speakers; turning it counterclockwise
emphasizes the sound from the rear
speakers.
*The factory default setting is "FAD 0".
(Adjustment range: F12 to R12)
3. When the adjustment is complete, press the
[A-M] button several times until the function
mode is reached.
Setting MAGNA BASS EXTEND
The MAGNA BASS EXTEND does not adjust the
low sound area like the normal sound adjustment
function, but emphasizes the deep bass sound
area to provide you with adynamic sound.
*The factory default setting is "OFF".
1. Press and hold the [A-M] button for 1
second or longer to turn on the
MAGNA
BASS EXTEND effect. "M-B EX" lights in
the display.
2. Press and hold the [A-M] button for 1second
or longer to turn off the MAGNA BASS
EXTEND effect. "M-B EX" goes off from the
display.
Radio Operations
Changing the reception area
This unit is initially set to USA frequency intervals
of 1
OkHz for AM and 200kHz for FM. When using
it outside the USA, the frequency reception range
can be switched to the intervals below.
~
u.s.
Other Europe
standard countries standard
(Initial setting)
Frequency 10 kHz 9kHz 9kHz
~ spacing
<t: Frequency 530 to
531 to
531 to
range 1,710 kHz 1,629 kHz 1,602 kHz
Frequency 200 kHz 50 kHz 50 kHz
~ spacing
u.. Frequency 87.9 to 87.0 to 87.5 to
range 107.9 MHz 108 MHz 108 MHz
Setting the reception area
*Any station preset memories are lost when the
reception area is changed.
1. Press the [BND] button and select the
desired radio band (FM or AM).
•U.S. standard (initial setting)
2. While pressing the [DISP] button, press and
hold the number "1" of the [DIRECT] buttons
for 2seconds or longer.
•Other countries (new setting)
2. While pressing the [DISP] button, press and
hold the number "2" of the [DIRECT] buttons
for 2seconds or longer.
•Europe standard (new setting)
2. While pressing the [DISP] button, press and
hold the number "3" of the [DIRECT] buttons
for 2seconds or longer.
Listening to the radio
1. Press the [SRC] button and select the radio
mode. The frequency appears
in the display.
2. Press the [BND] button and select the radio
band. Each time the button
is pressed, the radio
reception band changes
in the following order:
FM1 ~ FM2~ FM3~AM ~ FM1 ...
3. Press the [ ........ ]or [~~] button to tune in the
desired station.
Tuning
There are 3types oftuning mode available, seek
tuning, manual tuning and preset tuning.
M455A 17

Radio Operations
Seek
tuning
1. Press the [BND] button and select the
desired band (FM or AM).
*If "MANU" is lit in the display, press and hold
the [BND] button for 1second or longer.
"MANU"
in the display goes off, and seek
tuning is now available.
2. Press the [~ ..... ]or [~~] button to
automatically seek astation.
When the
[~~] button is pressed, the station
is sought in the direction of higher frequencies;
if the
[~ ..... ]button is pressed, the station is
sought in the direction of lower frequencies.
Manual tuning
There are 2manual tuning methods available:
Quick tuning and step tuning.
When you are
in the step tuning mode, the
frequency changes one step at atime.
In the
quick tuning mode, you can quickly tune the
desired frequency.
1. Press the [BND] button and select the
desired band (FM or AM).
*If "MANU" is not lit in the display, press and
hold the [BND] button for 1second or longer.
"MANU" is lit
in the display and manual tuning
is now available.
2. Tune in astation.
.Quick tuning:
Press and hold the [~ ..... ]or [~~] button for
1second or longer to tune
in astation.
•Step tuning:
Press the [~ ..... ]or [~~] button to manually
tune
in astation.
Recalling a preset station
Atotal of 24 preset positions (6-FM1, 6-FM2, 6-
FM3, 6-AM) exist to store individual radio
stations
in memory. Pressing the corresponding
[DIRECT] button recalls the stored radio
frequency automatically.
1. Press the [BND] button and select the
desired band (FM or AM).
2. Press the corresponding [DIRECT] button to
recall the stored station.
*Press and hold one of the [DIRECT] buttons
for 2seconds or longer to store the current
station into preset memory.
Manual memory
1. Select the desired station with seek tuning,
manual tuning or preset tuning.
18 M455A
2. Press and hold one of the [DIRECT] buttons
for 2seconds or longer to store the current
station into preset memory.
Auto store
Auto store is afunction for storing up to 6
stations that are automatically tuned
in
sequentially. If 6receivable stations cannot be
received, apreviously stored station remains
unoverwritten at the memory position.
1. Press the [BND] button and select the
desired band (FM or AM).
2. Press and hold the [PIA] button for 2
seconds or longer. The stations with good
reception are stored automatically to the
preset channels.
Preset scan
Preset scan receives the stations stored in
preset memory in order. This function is useful
when searching for adesired station
in memory.
1. Press the [PIA] button.
2. When adesired station is tuned in, press the
[PIA] button again to continue receiving that
station.
Note:
•Be careful not to press and hold the [PIA] button
for 2seconds
or longer, otherwise the auto store
function is engaged
and the unit starts storing
stations.
Instant station recall (ISR)
Instant station recall is aspecial radio preset
that instantly accesses afavorite radio station at
atouch of abutton. The ISR function even
operates with the unit
in other modes.
.ISR memory
1. Selectthe station that you wish to store in ISR
memory.
2. Press and hold the [ISR] button for 2seconds
or longer.
•Recalling a station with ISR
In any mode, press the [ISR] button to turn on the
radio function and tune the selected radio station.
"ISR" appears in the display. Press the [ISR]
button again to return to the previous mode.
Note:
•Radio operations are disabled during ISR mode.
Press one
of the [DIRECT] buttons to return to
the previous mode.

CD Operations
Loading aCD
Insert aCD into the center of the [CD SLOT]
with the label side facing
up. "CD" or
"LOADING" appears on the display, the CD
enters into the slot, and play starts.
Scan play
Scan play locates and plays the first 10 seconds
of each track
on adisc automatically. This
function continues
on the disc until it is
cancelled.
*The scan play is useful when you want to select a
desi
red track.
1. Press the [SCN] button.
2. To cancel the scan play, press the [SCN]
button again.
Top function
The top function resets the CD player to the first
track of the disc. Press the [BN
0] button to play
the first track (track
No.1) on the disc.
Fast-forward/fast-rewind
•Fast-forward
Press and hold the [~~] button for 1second or
longer.
•Fast-rewind
Press and hold the [ ......... ]button for 1second or
longer.
2. To resume CD play, press the [~II ]button
again.
Selecting a track
.Track-up
1. Press the [~~] button to move ahead to the
beginning of the next track.
2. Each time you press the [~~] button, the
track advances ahead to the beginning of the
next track.
•Track-down
1. Press the [ ........ ]button to move back to the
beginning of the current track.
2. Press the [ ......... ]button twice to move to the
beginning of the previous track.
For single CD (8 em)
CD SLOT
For CD (12 em)
Ejecting aCD
1. Press the [~] button to eject the CD,
"EJECT" appears on the display, take it out
from the ejected position.
Notes:
•Forcing aCD into the CD mechanism can
damage the CD
or source unit.
The CD will automatically load afterbeingplaced
approximately 1/3rd
of the way into the CD
mechanism.
If aCD (12 cm) is left in the ejectedposition for
15 seconds, the CD is automatically reloaded
(Auto reload).
" 8 cm CDs are notauto reloaded. Be sure to
remove it when ejected.
Notes:
•Never insert foreign objects into the CD SLOT
• If the CD is not inserted easily, there may be
another CD in the mechanism
or the unit may
require service.
•Discs notbearing the
~O~~ mark and CD-ROMs
cannot be played
by this unit.
•Some CDs recorded in CD-R/CD-RW mode may
notbe usable.
Loading 8cm compact discs
* No adapter is required to play an 8 cm CD.
:Insert the 8cm CD into the center of the insertion
slot.
Listening to aCD already inserted
Press the [SRC] button to select the CD mode.
Play starts automatically. If no CD is loaded in
the unit, "NO DISC" appears in the display.
Pausing play
1. Press the [~II ]button to pause play. "PAUSE"
appears
in the display.
Repeat play
Repeat play continuously plays the current
track. This function continues automatically until
it
is cancelled.
1. Press the [RPT] button.
2. To cancel the repeat play, press the [RPT]
button again.
M455A 19

CD Operations
Random
play
Random play selects and plays individual tracks
on adisc in no particular order. This function
continues automatically until it is cancelled.
1. Press the [ROM] button.
2. To cancel the random play, press the [ROM]
button again.
Operations Common to Each Mode
Setting the clock
1. Press and hold the [T] button for 1second or
longer to switch to the adjustment selection
display.
2. Press the [~ ..... ]or [~~] button to select
"CLOCK".
3. Press the ['-11 ]button.
4. Press the [~ ..... ]or [~~] button to select the
hour or the minute.
5. Turn the [ROTARY] knob to set the correct
time.
*The clock is displayed in 12-hour format.
6. Press the ['-11 ]. button to store the time into
memory.
7. Press the [T] button to return to the previous
mode.
Note:
• You cannot set the clock when it is displayed with
only the ignition on.
If you drain or remove the
boat's battery
or take out this unit, the clock is reset.
While setting the clock,
if anotherbutton or
operation is selected, the clock set mode is
canceled.
Turning the screen saver function
on or off
This unit is provided with the screen saver
function which allows you to show various kinds
of patterns and characters
in the Operation
Status indication area of the display in arandom
order.
You can turn on and off this function.
If the button operation is performed with the
screen saver function on, the operation display
corresponding to the button operation is shown
for about 30 seconds and the display returns to
the screen saver display.
*The factory default setting is "OFF".
1. Press and hold the [T] button for 1second or
longer to switch to the adjustment selection
display.
20 M455A
2. Press the [~ ..... ]or [~~] button to select
"SCRN SVR".
3. Press the ['-11] button.
4. Turn the [ROTARY] knob to select the
setting. Each time you turn the [ROTARY]
knob, the setting changes
in the following
order:
OFF
-. SS -. MESSAGE
5. Press the ['-11 ]button to store the setting.
6. Press the [T] button to return to the previous
mode.
Entering MESSAGE INFORMATION
Message up to 30 characters long can be stored
in memory and displayed for any mode.
*The factory default setting is "WELCOME TO
CLARION".
1. Press and hold the [T] button for 1second or
longer to switch to the adjustment selection
display.
2. Press the [~ ..... ]or [~~] button to select
"INPUT".
3. Press the ['-11] button.
4. Press the [BND] button to clear the old message.
5. Press the [~ ..... ]or [~~] button to move the
cursor.
6. Press the [OISP] button to select acharacter.
Each time you press the [OISP] button, the
character changes in the following orders:
Numbers -. Symbols -. Capital letters -.
Numbers ...
7. Turn the [ROTARY] knob to select the
desired character.
8. Repeat step 5to 7to enter up to 30
message characters.
9. Press and hold the ['-11 ]button for 2seconds
or longer to store the message in memory
and cancel the input message.
1O.Press the [T] button to return to the previous
mode.
