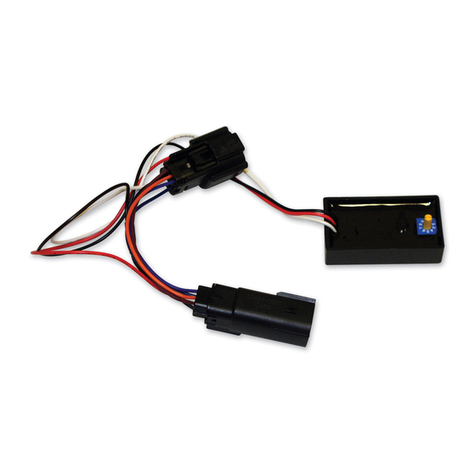

Custom Dynamics® Magic Strobes™ Brake Flasher
Installation Instructions
We thank you for purchasing the Custom Dynamics® Magic Strobes™
Brake Light Flasher! Our products utilize the latest technology and
high quality components to ensure you the most reliable service. We
offer one of the best warranty programs in the industry and we back
our products with excellent customer support, if you have questions
before or during installation of this product please call Custom
Dynamics® at 1(800) 382-1388.
Questions? Call us at: 1 [phone] M-TH 8:30AM-5:30PM / FR 9:30AM-5:30PM EST
09-2018
Part Number: MAGIC-STROBES-BCM
Installation
Package Contents:
- Magic Strobes™ Brake Flasher (1)
- Tie Wraps (5)
Fits 2014-2019 Road King, Road King CVO, Electra Glide Ultra
Classic, Electra Glide Ultra Classic Lo, Electra Glide Ultra Limited,
Electra Glide Ultra Limited Lo, Electra Glide Standard, Road Glide
Ultra, Limited CVO, Road Glide Ultra CVO, Street Glide CVO
(This unit will strobe the lower Brake Light, can be used with our
without MAGIC-STROBES-LTP2, sold separately)
ATTENTION
Please read all Information below before Installation
Important: Module must be secured after installation. Find
safe area away from any moving parts and out of the way of
normal operation of the bike. Use the enclosed tie-wraps to
secure. Custom Dynamics® is not liable for damage as a
result of improperly securing or failing to secure the
module.
Important: Dial and switches should be maneuvered by hand
only. Do not use any tool such as a screwdriver that could
damage waterproof covers.
Important: When Changing settings on Magic Strobes™
module, bike power must be OFF.
Important: Customers using this module with standard incan-
descent bulbs should use patterns 0-3 only. Any other set-
tings selected will result in diminished performance. All
strobe patterns are compatible with the use of LED’s.
Caution: A stuck brake switch may cause this unit to over-
heat and fail. Unplug module immediately if this condition
occurs.
Note: Although this device has been designed to significantly in-
crease your braking visibility, flash/strobe patterns may not be street
legal in your area. This Device is not DOT approved.
1. Secure motorcycle on level surface.
2. Remove seat to gain access to wire harness.
3. Disconnect negative battery cable from the
battery.
4. Locate and unplug the lighting connector to the
rear fender. (See photos page 2)
5. Plug the Magic Strobes™ module, in-line, into
the rear lighting harness and into the bike’s
wiring harness.
6. Re-connect the battery’s negative battery
cable to the negative of the battery.
7. Select Desired Pattern on the dial with power
Off. (See page 2 for Pattern Information)
8. Check Operation.
9. To change pattern, turn bike off and change
dial to desired pattern.
10. Locate a secure place for the Magic Strobes™
unit that will not interfere with the secure
placement of the seat. Secure with the en-
closed tie-wraps so that unit will not move.

Installation Instructions - Page 2
Questions? Call us at: 1 [phone] M-TH 8:30AM-5:30PM / FR 9:30AM-5:30PM EST
09-2018
Harness Connector Location—Top Rear Fender Harness Connector Location—on top of ECM
For: Road King, Electra Glide Ultra Classic, Electra
Glide Ultra Classic Lo, Electra Glide Ultra Limited,
Electra Glide Ultra Limited Lo, Road Glide Ultra CVO
For: Road King CVO, Street Glide CVO
Flash Pattern Information:
8
0
19
2
4
3
6
5
7
Pattern 0: Four Flashes then Solid
Pattern 1: Four Flashes, Solid
for 3 Seconds, Repeat
Pattern 2: Seven Flashes then
Solid
Pattern 3: Seven Flashes, Solid
for 3 Seconds, Repeat
Pattern 4: Quad Strobe then
Solid for 1 Second then Quad
Pattern 5: Quad Strobe, Solid for 1 Sec-
ond, then Quad Strobe, Solid for 3 Sec-
onds, then Repeat
Pattern 6: Blaster X Pattern for 6
seconds, then Solid
Pattern 7: Constant Blaster X
Pattern 8: Constant Fast Strobe 4
Seconds, then Solid
Pattern 9: No Pattern
Incandescent or LED
Incandescent or LED
Incandescent or LED
Incandescent or LED
LED Only
LED Only
LED Only
LED Only
LED Only
LED Only
