Dometic TEC29 EV AUS User manual

TEC29 EV AUS
Generator
Installation and Operating Manual
EN
ENERGY & LIGHTING
TEC
TEC29EV-IO-AUS.book Seite 1 Montag, 6. März 2017 8:37 20

TEC29EV-IO-AUS.book Seite 2 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS
3
Please read this instruction manual carefully before installation and first
use, and store it in a safe place. If you pass on the product to another
person, hand over this instruction manual along with it.
Table of contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
6 Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
7 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
9 Connecting the electrical power to the generator . . . . . . . . . . . . . . . . . . . 20
10 Operating the generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
11 Cleaning the generator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
12 Servicing the generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
13 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
14 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
15 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
16 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
TEC29EV-IO-AUS.book Seite 3 Montag, 6. März 2017 8:37 20

EN
Explanation of symbols TEC29 EV AUS
4
1 Explanation of symbols
!
!
A
I
2 Safety instructions
The manufacturer accepts no liability for damage in the following cases:
•Damage to the product resulting from mechanical influences and excess voltage
•Alterations to the product without express permission from the manufacturer
•Use for purposes other than those described in the operating manual
In particular, the manufacturer will not be liable for any consequential damage,
especially consequential damage caused by failure of the generator.
Note the following basic safety information when using electrical devices to protect
against:
•Electric shock
•Fire hazards
•Injury
WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or
serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair
the function of the product.
NOTE
Supplementary information for operating the product.
TEC29EV-IO-AUS.book Seite 4 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Safety instructions
5
2.1 General safety
!WARNING!
•Electrical devices are not toys
Keep electrical devices out of reach of children or infirm persons. Do
not allow them to use electrical devices without supervision.
•People (including children) whose physical, sensory or mental
capacities prevent them from using this device safely may not be
allowed to operate it without the supervision of a responsible adult.
•Only use the device as intended.
•Do not make any alterations or conversions to the device.
•Installation, maintenance and repairs of the generator may only be
carried out by qualified personnel who are familiar with the risks
involved when handling generators as well as the relevant regulations.
Inadequate repairs may cause serious hazards. For repair service,
please contact the manufacturer's branch office in your country
(addresses on the back page).
•Exhaust fumes contain carbon monoxide which is a highly toxic,
odourless and colourless gas. Do not inhale any exhaust fumes. Do
not leave the generator motor running in a closed garage or in a room
without windows.
!CAUTION!
•The generator may only be used with the front door closed.
•Remove all flammable materials such as petrol, paints, solvents, etc.,
from the vicinity of the generator.
•Ensure that hot parts of the generator do not come in contact with any
flammable materials.
•Only refuel the generator when it is switched off and in a well-
ventilated area. Petrol and liquid gas are highly flammable and can
explode.
•Do not refuel the generator when the vehicle engine is running if the
tank is in the vicinity of the generator.
•If petrol is spilled, wipe it up properly and wait until the fumes have
cleared before turning on the engine.
•Do not touch the generator and the cables with wet hands.
•Replace the fuses using only those with the same technical data.
•Do not switch the generator to automatic mode near any ignition
sources (such as petrol stations, dry areas with risk of forest fires).
TEC29EV-IO-AUS.book Seite 5 Montag, 6. März 2017 8:37 20

EN
Safety instructions TEC29 EV AUS
6
ANOTICE!
•Do not fill up the tank too full. Petrol must not be allowed to fill up to
the neck of the tank. Check the lid is on properly.
2.2 Mounting the device
!CAUTION!
•Fire hazards
Do not install the generator in a box or room without any openings,
but in well-ventilated spaces instead.
•Install the generator on a stable surface.
•Do not tilt the generator more than 20° from the vertical position.
ANOTICE!
•The generator is not suitable for use in water vessels.
2.3 Handling electrical cables
!WARNING!
•The electrical power supply may only be connected by a qualified
electrician.
!CAUTION!
•Attach and lay the cables so that they cannot be tripped over or
damaged. All the wiring must comply to AS3000 and AS3001.
ANOTICE!
•Use cable ducts to lay cables through walls with sharp edges.
•Do not lay loose or bent cables next to electrically conductive
materials (metal).
•Do not pull on the cables.
2.4 Operating the device safely
!WARNING!
•Always disconnect the power supply when working on the device.
ANOTICE!
•Only operate the device if you are certain that the housing and the
cables are undamaged.
TEC29EV-IO-AUS.book Seite 6 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Scope of delivery
7
3Scopeofdelivery
Item in
fig. 1Number Description
1 1 Generator
2 1 Digital control panel

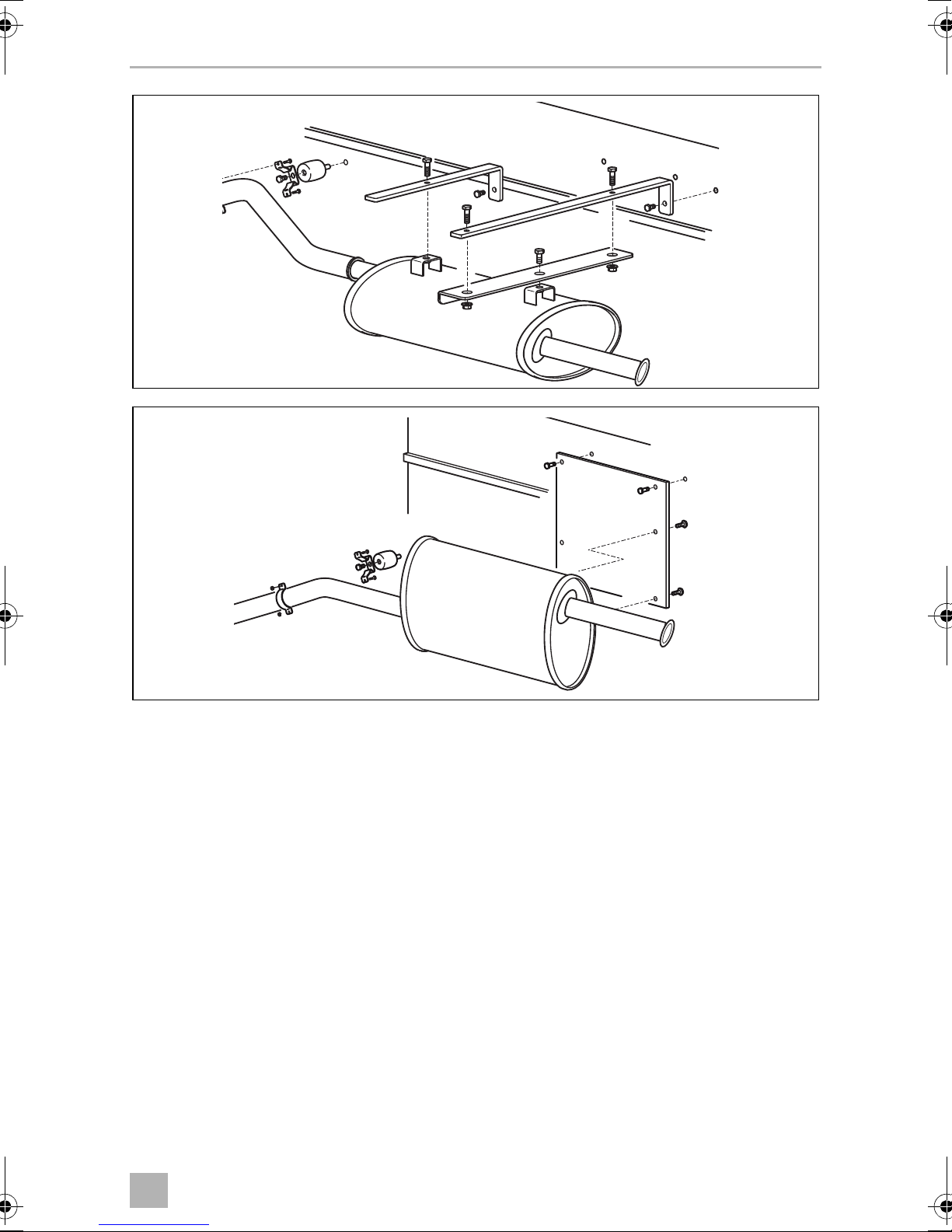

3 1 Silencer with spark arrestor and fixing material
4 1 Exhaust hose, 2 m
5 1 set Mounting bracket for silencer
6 1 set Retaining bracket for external installation
7 2 Holder for internal installation
8 8 Washer
9 1 Extension cable for digital control panel, 8 m
10 1 Hose clamp
11 1 Fuel filter
12 1 Seal AG 128
– 1 Installation and operating manual
2
13
4
9
7
6
8
10 11 12
5
1
TEC29EV-IO-AUS.book Seite 7 Montag, 6. März 2017 8:37 20

EN
Accessories TEC29 EV AUS
8
4Accessories
Available as accessories (not included in the scope of delivery):
5 Intended use
The TEC29 EV AUS (ref. no. 9102900291) generator is designed for use in motor
homes, camper vans and vehicles for commercial use.
The generator is not suitable for installation in water vessels.
The generator produces a pure sine wave voltage of 230 V/50 Hz which can be
connected to the consumer with a total continuous load of 2600 W. The power
quality is also suitable for sensitive consumers (such as PCs).
The generator can charge a 12 V battery (AGM, Gel, lead acid and Dometic eStore
Li-Ion battery).
6Labels
A label is attached to the generator. This label provides the user and fitter with
information on the device specifications.
Part designation Ref. number
AG 101, tank 15 l, plastic 9102900009
AG 100, tank 20 l, stainless steel 9102900011
AG 150, pipe set for AG 100/AG 101
(1 m fuel hose refuelling, 60 mm,
2 m fuel hose breathing,
2 m fuel hose feeding)
9102900003
AG 125, flexible metal pipe for extending exhaust pipe, 5 m 9102900138
AG 163, flexible metal pipe fixing kit 9102900028
Parallel cable 9102900296
TEC29EV-IO-AUS.book Seite 8 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Technical description
9

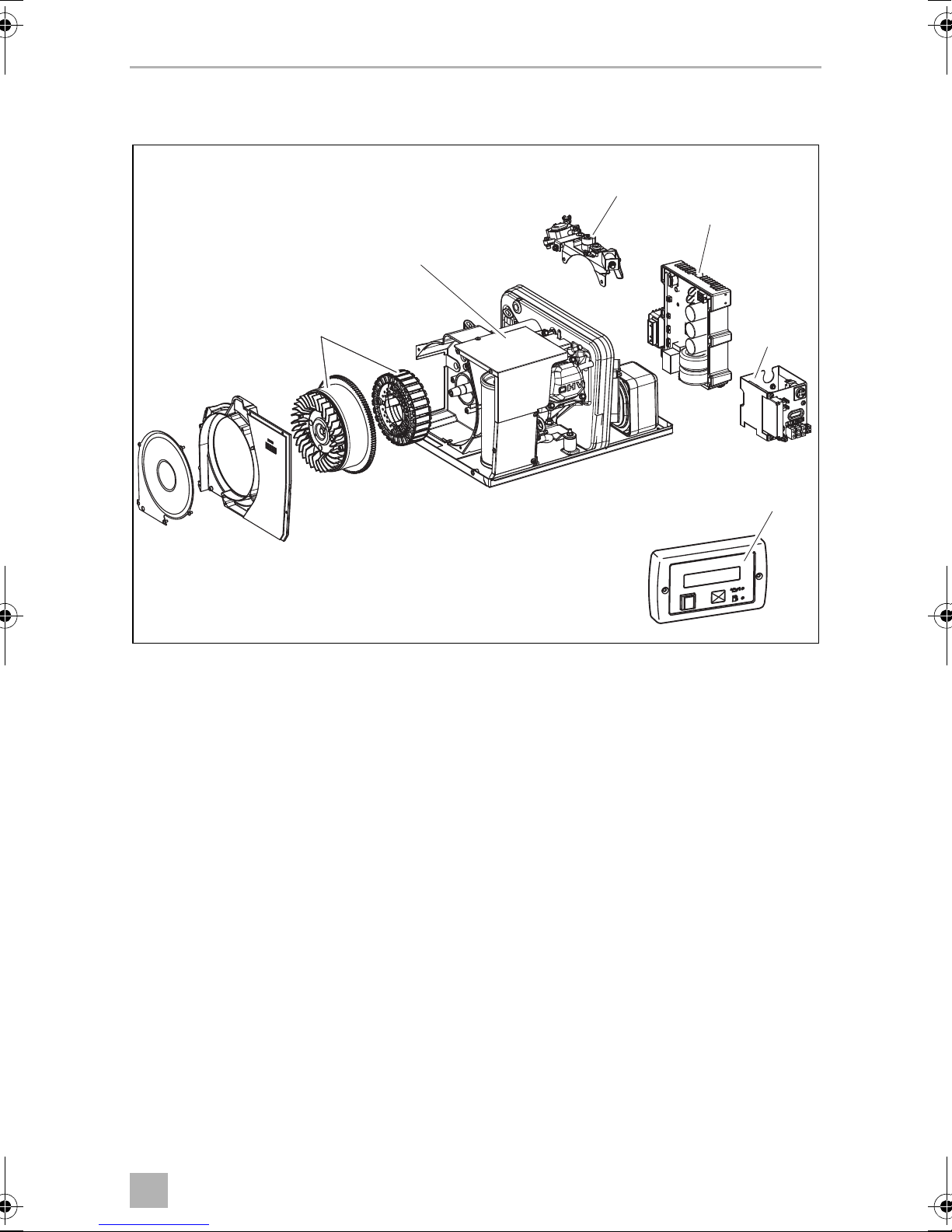

7 Technical description
The TEC29 EV AUS generator consists of the following main parts (fig. 2, page 9):
•Combustion engine (1)
•Alternator (2) with permanent magnets
•Stepper motor (3)
•Inverter (4)
•Internal control panel (5)
•Remote control (6)
The combustion engine (1) drives the alternator (2) connected to it, which in turn
generates AC voltage.
The inverter (4) transforms this AC voltage into a stable voltage of 230 V and 50 Hz.
The terminals, the socket for the connection cable to the digital control panel (6) and
the main switch are installed in the internal control panel (5).
1
5
6
3
4
2
2
TEC29EV-IO-AUS.book Seite 9 Montag, 6. März 2017 8:37 20

EN
Technical description TEC29 EV AUS
10
The generator has the following features:
•Automatic mode for charging the connected battery automatically (must be
configured accordingly when installed, see chapter “Configuring the automatic
mode” on page 25)

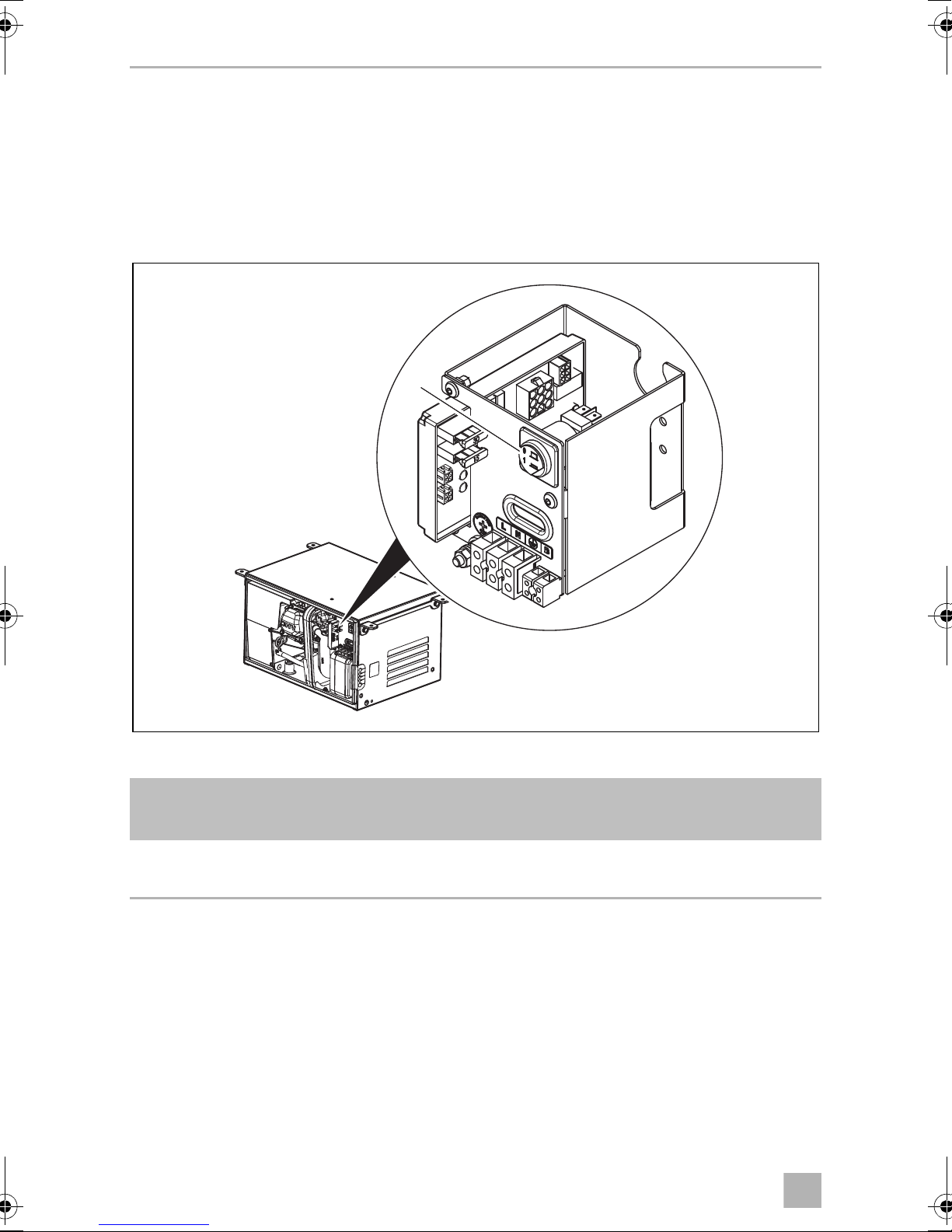

Control elements in the control panel
The control panel is located on the generator behind the cover.
Item in
fig. 3Description
1 Main switch Switches the generator to standby or no
function.
1
3
TEC29EV-IO-AUS.book Seite 10 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Technical description
11

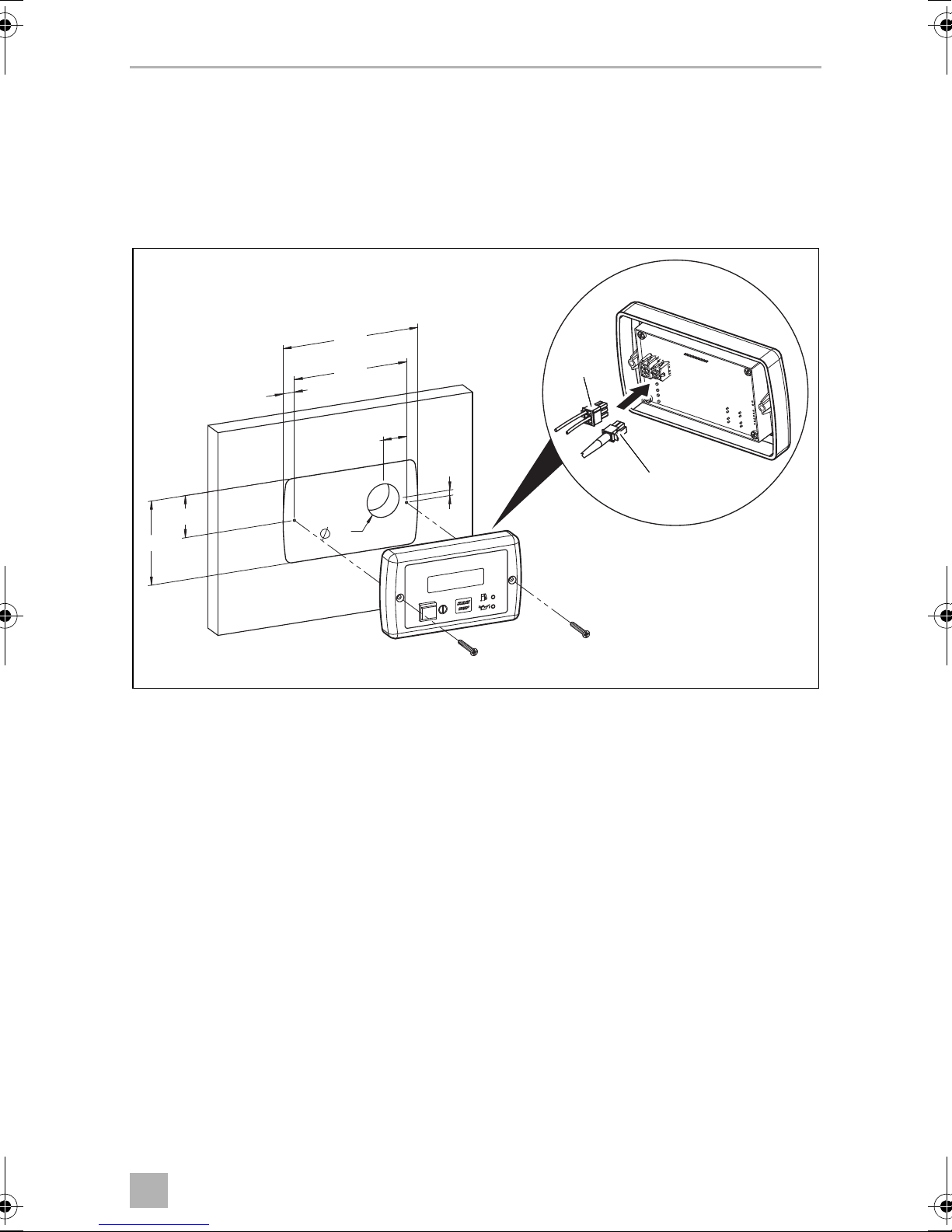

Control elements in the digital control panel
The digital control panel is installed in the vehicle interior.
Item in
fig. 4,
page 11
Description
1 Display Shows the status reports.
2 On/Off switch PSwitches the digital control panel on and off if
the main switch is at “I” or “1”.
Stops the generator.
3 START/STOP button Starts and stops the generator if the digital
control panel is switched on and the main
switch is at “I” or “1”.
4 Oil LED Lights up if the oil level is too low in the
engine.
5 Petrol LED Lights up if the petrol goes into reserve.
5
3
2
1
6
4
7 8
109
4
TEC29EV-IO-AUS.book Seite 11 Montag, 6. März 2017 8:37 20

EN
Installation TEC29 EV AUS
12
Displays
8 Installation
!
8.1 Note on installation
Read the installation manual carefully before you install the generator.
When installing the generator, note the following:
D
!
Item in
fig. 4,
page 11
Description
6 AC supply Approximate voltage (±5 %)
7 Power output Power draw through connected load
8 Operating hours Time the generator is in operation
9 DC voltage Battery voltage
10 Messages Status reports of the generator (see chapter
“Display messages” on page 32)
CAUTION! Beware of injury
The generator may only be installed by qualified personnel from a
specialist company. The following information is intended for
technicians who are familiar with the guidelines and safety precautions
to be applied.
DANGER! Danger of electrocution
Disconnect all power supplies when working on the generator.
CAUTION! Beware of injury
•Improper installation of the generator can result in irreparable
damage to the device and put the safety of the user at risk.
•Always wear the recommended protective clothing (e.g. protective
goggles, gloves).
TEC29EV-IO-AUS.book Seite 12 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Installation
13

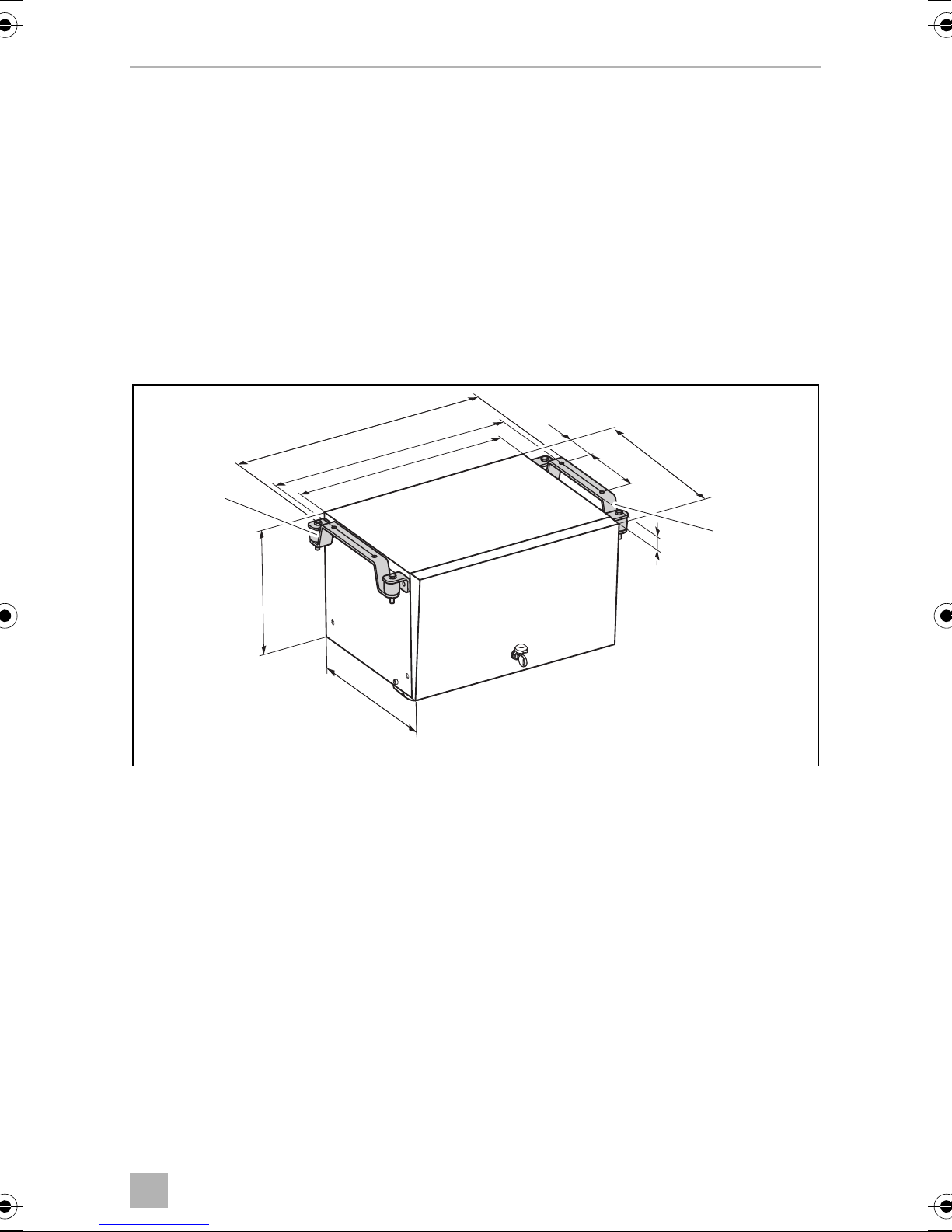

8.2 Securing the generator
Note on installation location
•Make sure that no combustible objects are stored or installed near the air outlet
or the ventilation slots. A distance of at least 50 cm should be kept.
•For safety reasons, note the location of existing wiring harnesses, wires and other
components within the installation area, in particular those which are not visible,
when installing the generator (when drilling or screwing etc.).
You can secure the generator with the holders supplied in two ways:
•External installation (fig. 5):
External installation has the following benefits: lower space requirement, fast
installation, easy access for maintenance work.
– To ensure the generator is attached securely, use the retaining bracket
(fig. 51) supplied.
– If the air intake opening of the generator is located behind a vehicle wheel,
you need to prevent the wheel from splashing any water into the generator
interior when it rains (e.g. by using a splash guard).
10.5
385
160
99
580
548
480
290
360
1
1
5
TEC29EV-IO-AUS.book Seite 13 Montag, 6. März 2017 8:37 20

EN
Installation TEC29 EV AUS
14
•Internal installation (fig. 6):
For internal installation, you need to prepare a sealed compartment against the
vehicle interior which can also be insulated against sound.
– Attach exhaust and air intake openings to the floor and in front of the
generator cover. The air intake openings must have cross-section of at least
240 cm2.
– You must also fit a seal (AG 128; included in the scope of delivery) made of
fire-retardant rubber with a thickness of at least 5 mm between the floor of the
vehicle and the generator.
– Fix the provided 8 washers between the floor and the vibration dampers
(2 pieces each).
•Leave a space of at least 20 mm between the generator hood and surrounding
parts so that sufficient space remains for cooling air to pass through.
548
23
20
35
104
310
295
360
30
2
1
6
TEC29EV-IO-AUS.book Seite 14 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Installation
15
8.3 Securing the silencer
Observe the following instructions when installing the exhaust pipe:
•Do not create any sharp bends which will inhibit the flow of exhaust fumes.
•Align the manifold (fig. 71) along the housing to ensure greater damping of
vibration.
•Use the exhaust pipe extension to extent the exhaust pipe (fig. 72) (see
chapter “Accessories” on page 8).
Secure the extension to the vehicle floor (fig. 73) according to ADR 42.8.
•If cutting the exhaust pipe, wear protective gloves and be careful of sharp edges.

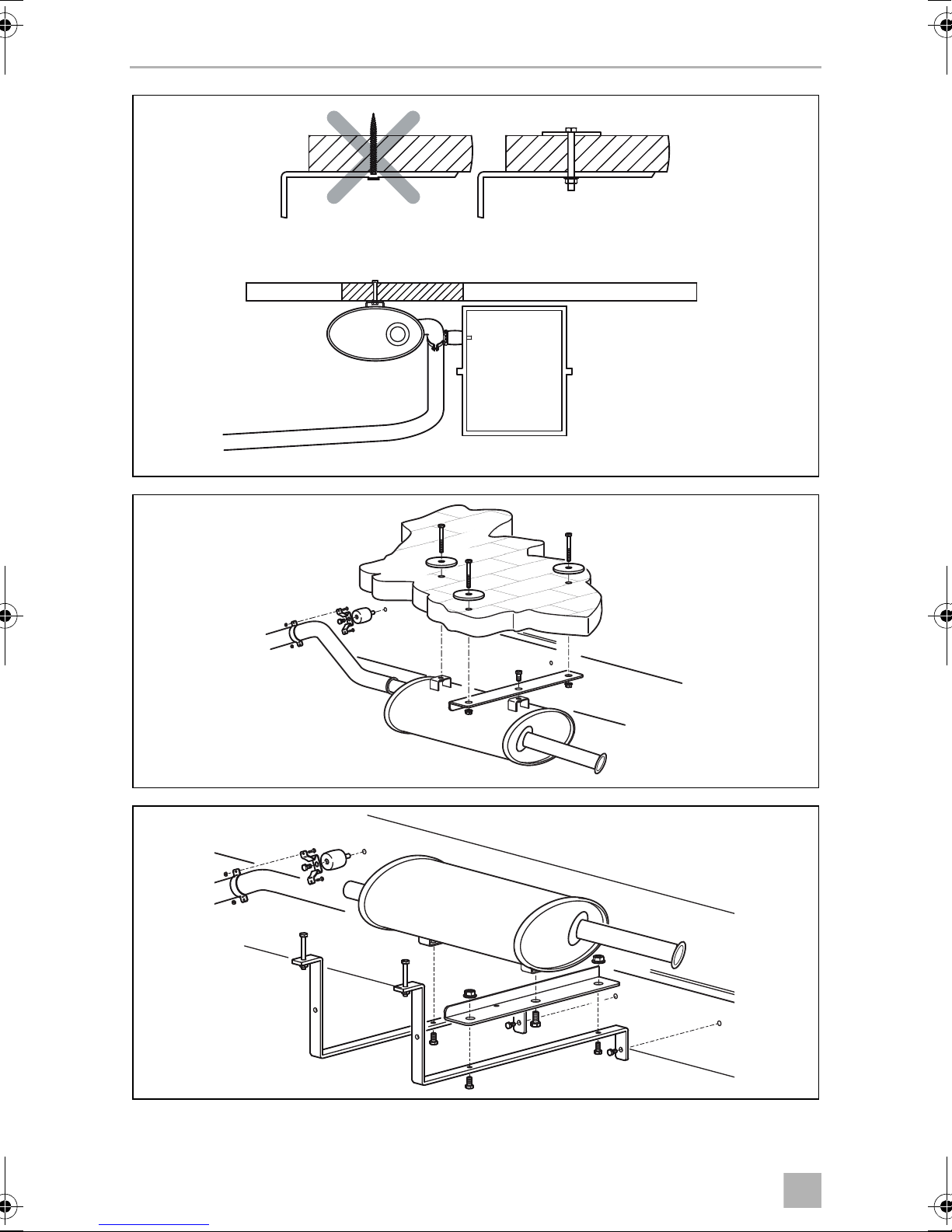

➤Secure the silencer (fig. 74) as in one of the alternatives shown in fig. 8,
page 16 to fig. b, page 17.
Washers, brackets and screws are not included in the scope of delivery.
1
2 3 4
7
TEC29EV-IO-AUS.book Seite 15 Montag, 6. März 2017 8:37 20

EN
Installation TEC29 EV AUS
16
8
9
0
TEC29EV-IO-AUS.book Seite 16 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Installation
17
➤Fix the exhaust pipe to the vehicle using flexible elements to reduce vibrations
(e.g AG 163, available as accessory).
a
b
TEC29EV-IO-AUS.book Seite 17 Montag, 6. März 2017 8:37 20

EN
Installation TEC29 EV AUS
18

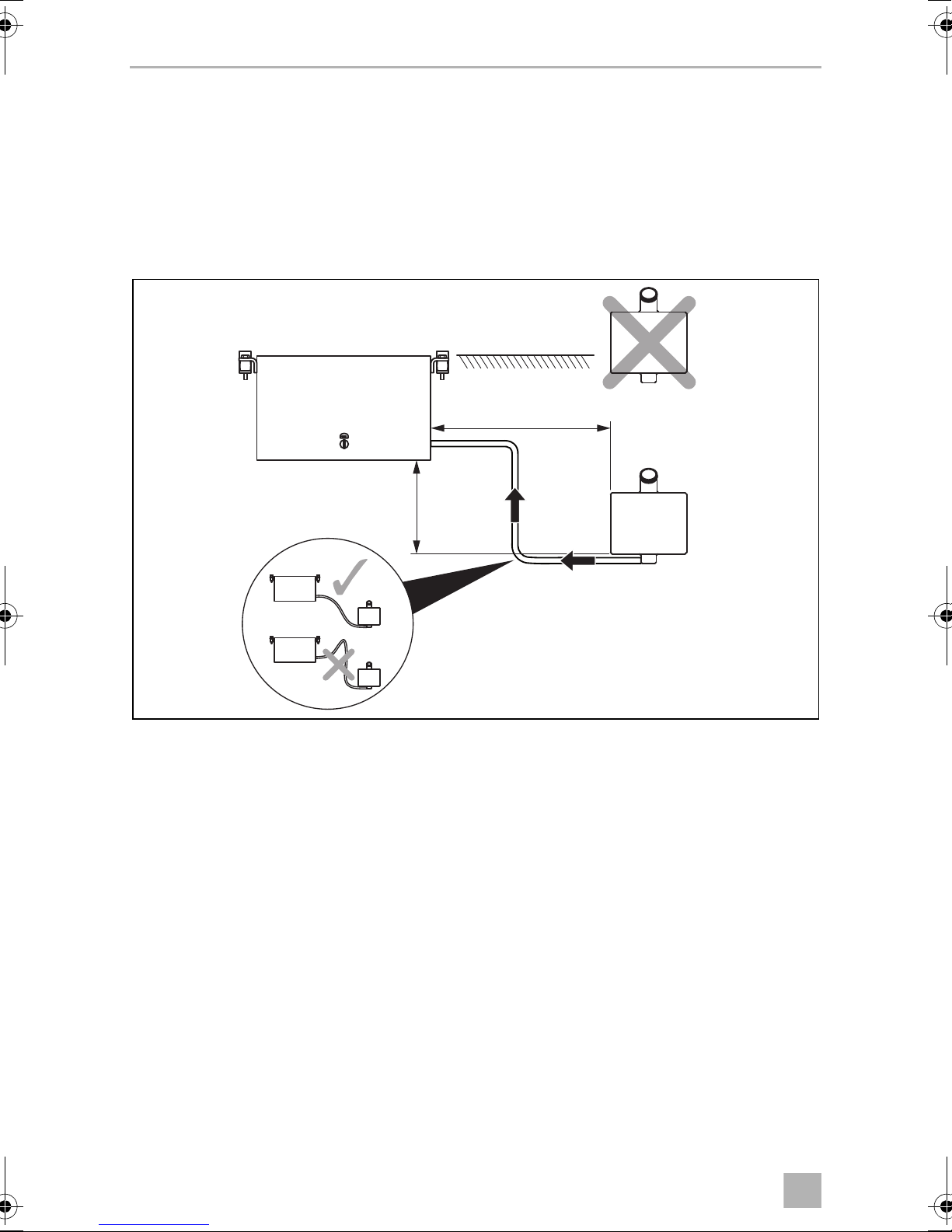

8.4 Installing the tank and fuel supply line
Please observe the following instructions for the installation location:
•The tank bottom must be positioned at a maximum of 0.3 m below the bottom of
the generator.
•The top of the tank must not be higher than the top of the generator.
➤Lay the fuel line as straight as possible.
➤Secure the tank, see fig. cand chapter “Connecting the float” on page 27.
max. 2 m
max. 0.3 m
c
TEC29EV-IO-AUS.book Seite 18 Montag, 6. März 2017 8:37 20

EN
TEC29 EV AUS Installation
19
8.5 Mounting the digital control panel
Please observe the following instructions for the installation location:
•Observe the length of the extension cable from the digital control panel to the
generator.
➤Drill the holes as shown in fig. d.
➤Insert the plug into the digital control panel.
➤Screw on the digital control panel.
76
38
126
10.5
105
22
5
30
2
1
d
TEC29EV-IO-AUS.book Seite 19 Montag, 6. März 2017 8:37 20

EN
Connecting the electrical power to the generator TEC29 EV AUS
20
9 Connecting the electrical power to the
generator
D
A
I
9.1 Important notes on the electrical connection
•Only a qualified electrician should connect the generator to the electrical power.
•Check that the voltage specification on the type plate is the same as that of the
power supply.
•Do not lay the 230 Vwmains cable and the 12 Vgcable together in the same
cable duct.
•Do not lay cables which are loose or bent next to electrically conductive material
(metal).
•Connect the generator to a power circuit which can supply the necessary current
(see chapter “Technical data” on page 46).
•Select the cross-section of the cable as follows:
– 230 V: 2.5 mm²
– Battery connection (length < 6 m): 10 mm²
– Battery connection (length > 6 m): 16 mm²
•Install a manual main switch which can disconnect all the consumers from the
generator with the exception of the battery.
DANGER! Danger of electrocution
Make sure there is no voltage at electrically operated components
before carrying out work on them!
NOTICE!
Protect the system with an RCD breaker according to AS3001
regulation.
NOTE
Observe the applicable guidelines in the country of the consumer.
TEC29EV-IO-AUS.book Seite 20 Montag, 6. März 2017 8:37 20
