Dorma PORTEO Guide

www.dorma.com/porteo
PORTEO
Technical
Documentation
reddot design award
winner 2005
geprüfte
Sicherheit
achieved for:
Ease of Use

2
PORTEO Door Assistant
The PORTEO offers an inno-
vative and convenient way to
open and close doors effort-
lessly. With all the elegance
of the DORMA Contur design,
the PORTEO is specifically
suited to interior doors,
performing all the functions
needed to make life just
that little bit easier for all.
High-quality DORMA tech-
nology makes the PORTEO
particularly easy to operate –
with minimum noise, high
functional reliability and
excellent application adapta-
bility. The PORTEO is an
integrated solution that
comes in a complete package
with slide channel and
mounting backplate. It offers
outstanding convenience
and safety plus fast and
easy installation, thanks to
its impeccable “plug&go”
credentials.
The PORTEO can be further
functionalised with original
DORMA system accessories
to give even more operating
convenience, user-friend-
liness and enhanced safety.
In combination with an
optional pushbutton and an
electric strike, for example,
the door can be simply
opened with fingertip
control. For even greater
opening and closing conve-
nience, there is also a hand-
held transmitter available –
there’s simply no more
flexible a system.
The PORTEO is the inexpen-
sive solution for opening and
closing doors the convenient
way. Safe, reliable and
readily retrofittable.
Certified to ISO 9001
PORTEO –the door assistant
that adds convenience to doors
3Door assistant for swing
doors
3Effortless opening and
closing of swing doors up
to a width of 1100 mm
and a leaf weight of 80 kg.
3Compact dimensions 60 x
530 x 80 mm (H x W x D),
particularly suitable for
use in conjunction with
narrow-stile and standard
profile door systems.
3Extremely low overall
height of just 60 mm.
3One model for all four
fixing options: pull and
push side, transom-fixed
or leaf-fixed
3Easy installation thanks to
“plug&go” supply, with
standard mounting back-
plate
3Near-silent operation
3In DORMA Contur design,
cubic lines, winner of the
2005 red dot award and
“Le Janus de l’Industrie
2007“
3GGT-approved
Benefits point for point
515
20
30
27
160
38
60
11
27
19
80
52 52
530
40 27
Opening time (0°–90°) adjustable 5 to 10 sec.
Closing time (90°–0°) adjustable 5 to 10 sec.
Hold-open time adjustable 5 to 30 sek.*
Opening angle adjustable, max. 110°
* in operating mode PowerLess 0.5 to 30 sek.
Adjustable parameters
Electric strike, e.g. DORMA Basic model $
Hand-held transmitter, e.g.
DORMA RC-T HandHeld $
Pushbutton, e.g. DORMA System 55 devices $
xStandard $Option
Prepared for following accessories
PowerLess x
Push&Go x
PowerMotion x
PermanentOpen x
Obstruction detection x
Anti-tamper safety disconnection x
Standard function modes
Applications
Interior doors, single-leaf
Door leaf width ≤1100 mm
Door leaf weight, max. 80 kg
PORTEO technical data
Transom-fixed/Leaf-fixed
Push-side/Pull-side x
Non-handed x
Latching action with on/off switch x
Dimensions H x W x D 60 x 530 x 80 mm
Weight 3,2 kg
Power supply data 230 V AC, 50/60 Hz
Power supply to external loads 24 V DC, 300 mA
Class of protection IP 20
Low-energy mode x
Compliant with DIN 18650 x
marking x
GS mark, TÜV-approved x

3

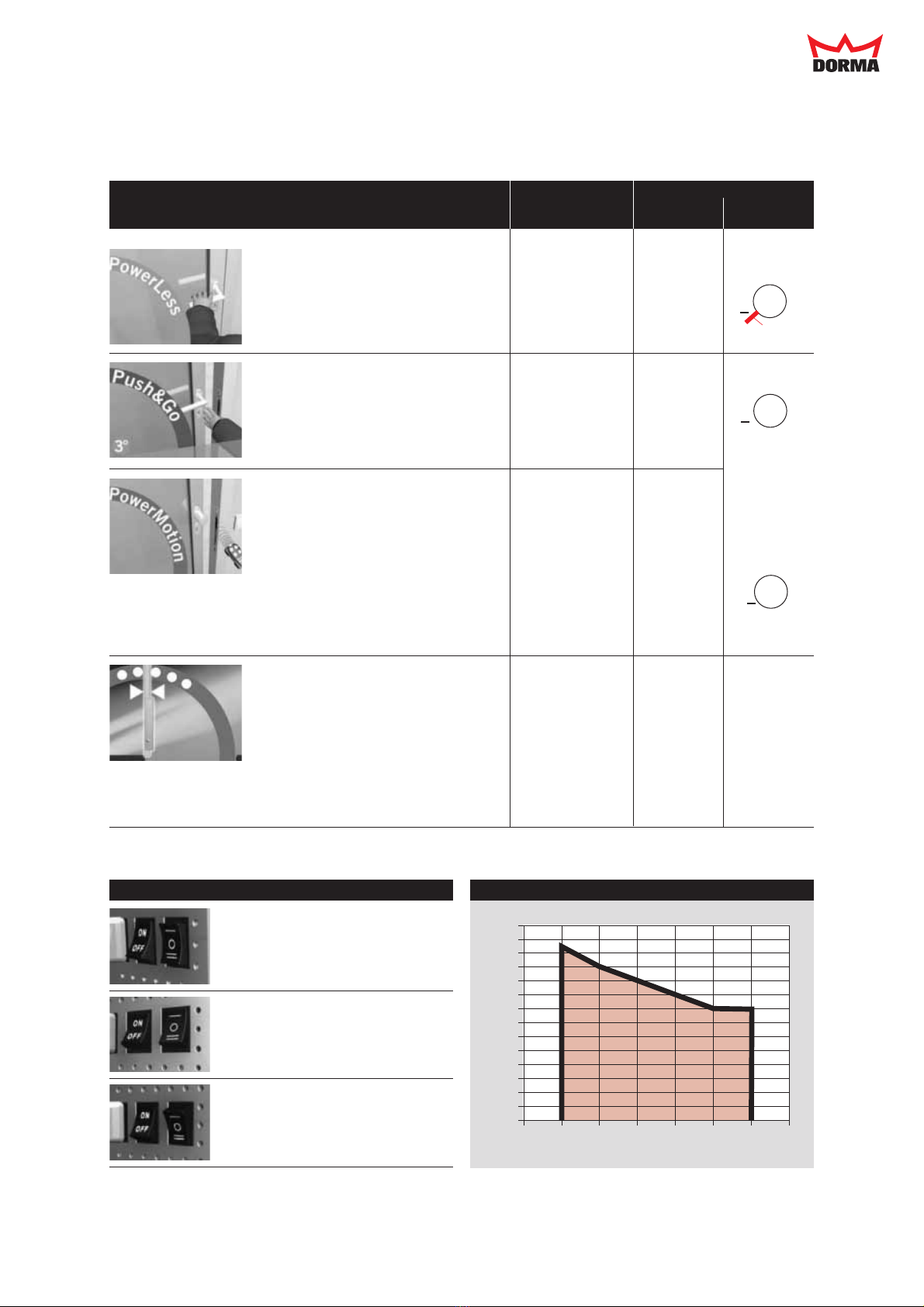

PowerLess
Effortless manual door opening.
Door closes automatically following indivi-
dually preset hold-open time.
PowerMotion
Automatic opening and closing of door in
combination with an electric strike and
external activators such as manual push-
button, radio remote control or transponder.
As soon as signal transmitted and electric
strike released, door automatically opens
and then closes again after pre-set hold-
open time.
Push&Go
Once door opened manually 3°, automatic
door opening function initiated. PORTEO
then closes the door again automatically
after pre-set hold-open time.
PermanentOpen
This function enables the door to be held
open for as long as required. Door closes
again on receipt of new signal, activated
either from the programme switch (door
lock must be disengaged) or by pressing a
pushbutton twice (current impulse relay
function).
Settings
Operating mode Door equipment Programme Potentiometer
switch
Standard functions
– Standard lock
– Lever handle
– Standard lock
– Lever handle
– Standard lock
– Electric strike
– External activator
140
120
100
80
60
40
20
0
600 700 900 1100600 800 1000 1200
Max. permissible door widths and weights
I
I
I
II
PowerLess
Position
+
+
S
p
e
e
d
Programme switch modes
Switch position 0= OFF
Switch position I= PowerMotion
Switch position II = PermanentOpen
Main power switch must be “ON” to activate
operating modes.
1
Opening and
closing time
adjustable.
Factory setting
10 sec. (max.)
2
Hold-open time
adjustable
+
+
S
p
e
e
d
+
+
H
o
l
d
-
o
p
e
n
t
i
m
e
1
Door width (mm)
Door weight (kg)

515
83
28
28
65
27
27 160
11
175
4075 27
max. 3
27
38

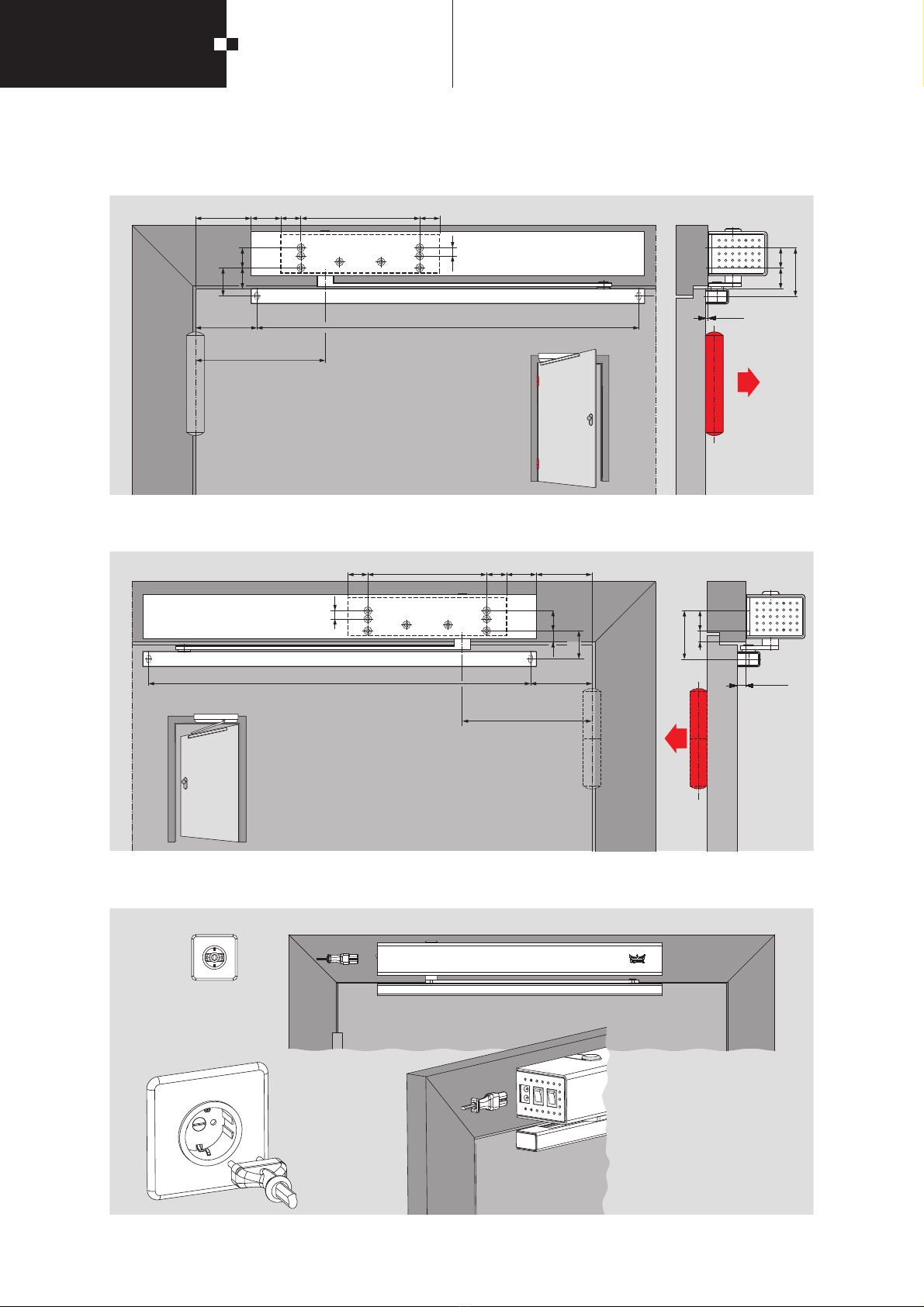

Transom-fixed, pull side
(Example refers to left-hand (ISO 6) door; mirror image applies to right-hand (ISO 5) door)
515 83
15
65
27
27160
11
175
40 7527
max. 30
15 27
38
Transom-fixed, push side
(Example refers to left-hand (ISO 6) door; mirror image applies to right-hand (ISO 5) door)
4
PORTEO Application
and installation
Plug&Go Power connector for mains outlet
(Example refers to left-hand (ISO 6) door; mirror image applies to right-hand (ISO 5) door)

5
515
83
27 160
175
4075 27
11
27
65
27
max. 16
27
38
11

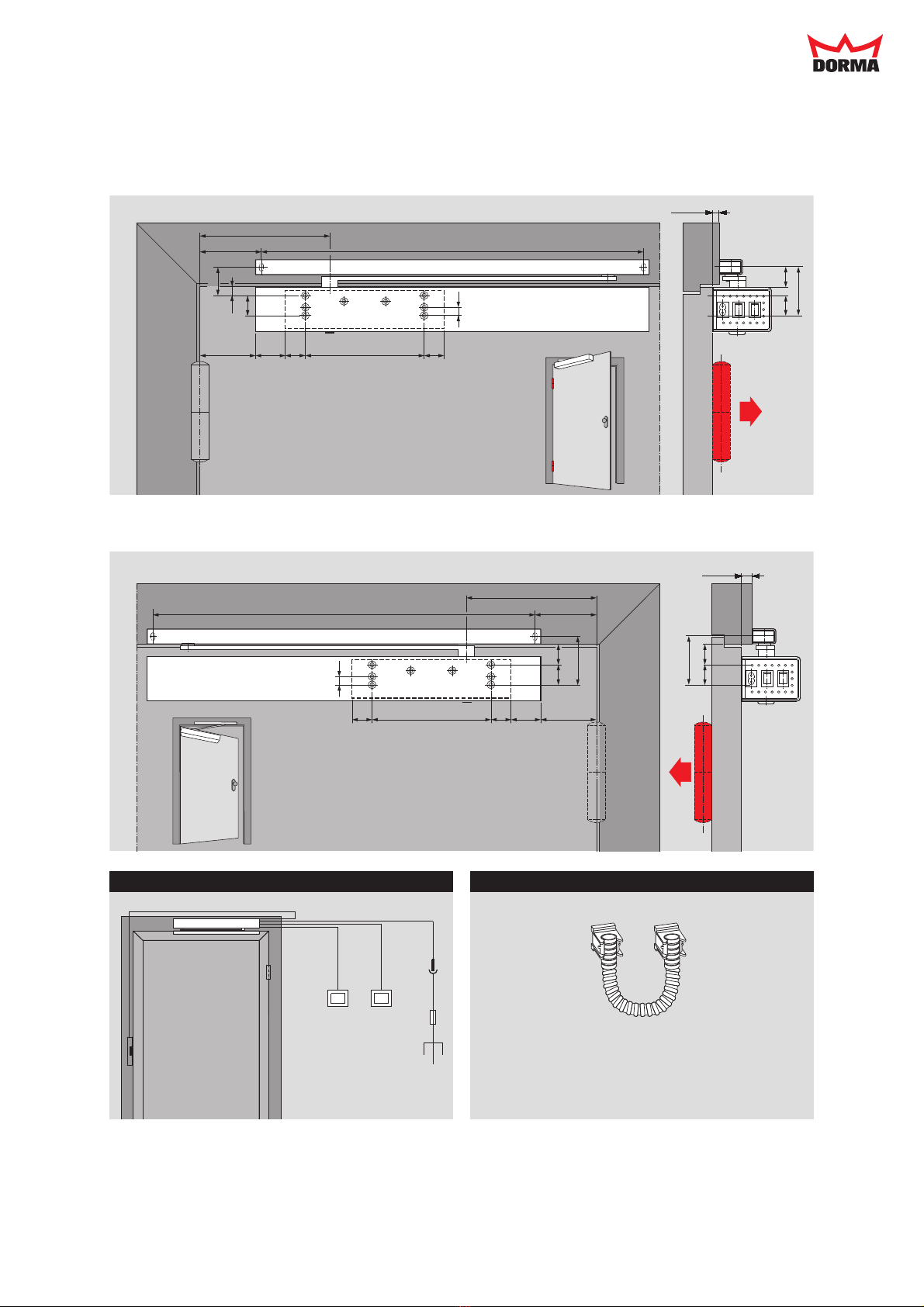

Leaf-fixed, pull side
(Example refers to left-hand (ISO 6) door; mirror image applies to right-hand (ISO 5) door)
515 83
28
65
27
27160
175
40 7527
11
28
27
max. 26
38
Leaf-fixed, push side
(Example refers to left-hand (ISO 6) door; mirror image applies to right-hand (ISO 5) door)
34
2
1
2 x 0,8 mm
2
2 x 0,8 mm
2
NYM 3 x 1,5 mm
2
L1 N
PE
5
10 A
4 x 0,8 mm
2
PORTEO
Cable diagram
1Power feeder, permanent connection
22-pole-and-earth socket
3Internal pushbutton
4External pushbutton
5Electric strike
The safe and reliable solution from DORMA
for protecting the cables required for door-leaf
fixing.
Type 500 flexible cable conduit

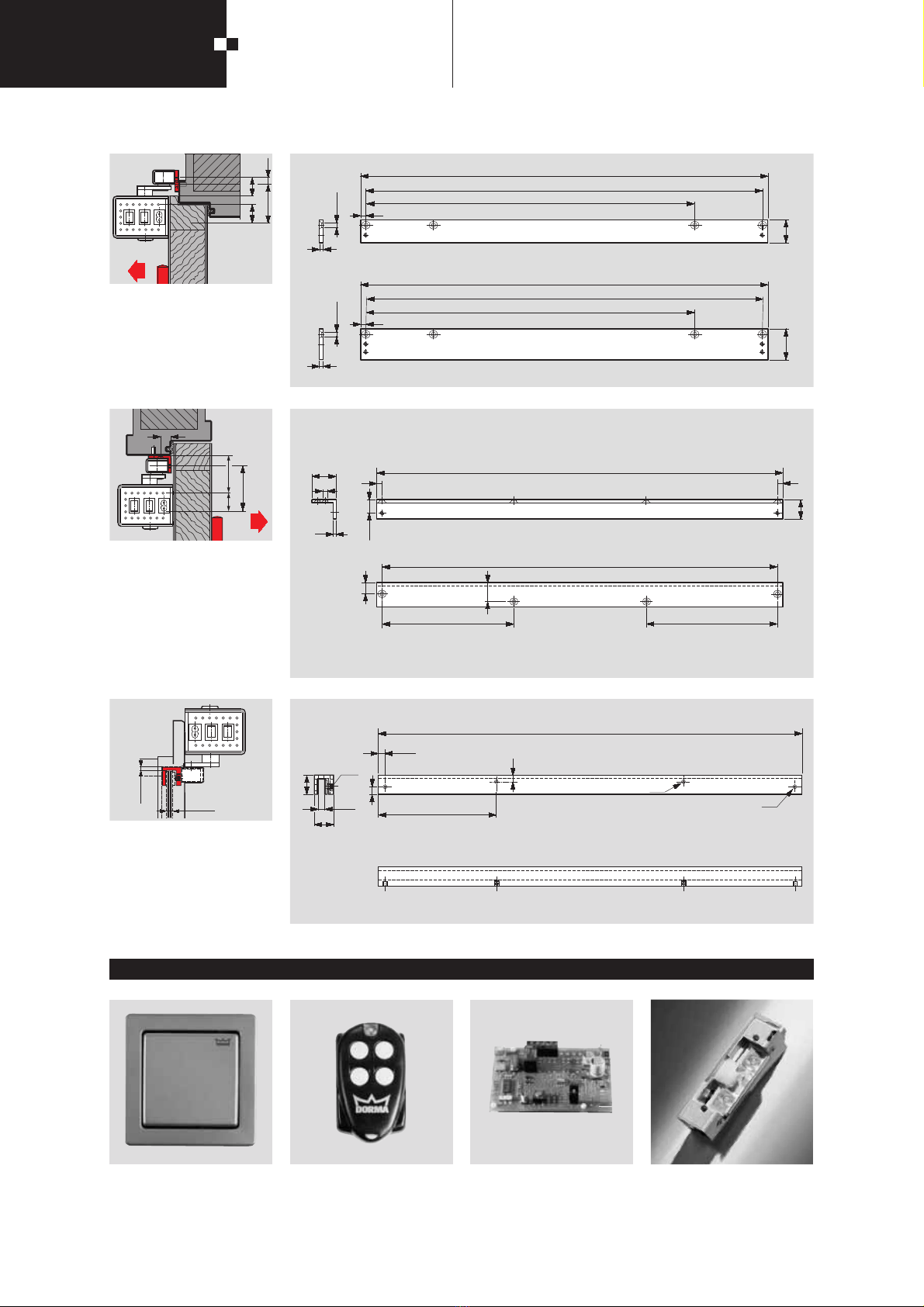

PORTEO Accessories
6
Glass saddle plate
For fixing the slide channel
to all-glass doors – no glass
machining necessary.
Transom-
fixing on the pull
side
only.
8–10
min.5
65
16
27 56
Angle bracket
For fixing the slide channel
to door frames with a deep
top jamb, for push-side
transom fixing.
For top jamb depths of –20
to +200 mm with optional
projecting arm assembly
27 27
55 10
Mounting backplate 30 mm
or 40 mm
For fixing the slide channel
to door frames for which
direct installation is not
possible.
Radio transmitter
RC-T HandHeld
Electric strike
type Basic
l5,5
5
530
516
428
7
30
l5,5
5
530
516
428
7
40
4
32
Ø 5,5
15
25
17,5
25
7
172
530
516
172
7
24
27
8–10
10
8
7,75
530
M6
147,5 M5
SW 3
Manual pushbutton,
System 55
Optional activators, radio receivers, electric strikes
Radio receiver RC-R

Angle
bracket
600410xx
Mounting
backplate
30 mm
600411xx
0
9
7
10
5
Mounting
backplate
40 mm
600412xx
0
9
7
10
5
Glass
saddle plate
600413xx
Flexible
cable conduit
type 500
60041401
0
9
7
10
5
0
9
7
10
5
Fail-secure
type Basic
15117124
Electric strike
Fail-safe
type
Basic-Safe
15137124
Strike plate
FLM 24
15180224
Manual
pushbutton
System 55
19144701170
Radio trans-
mitter
RC-T
HandHeld
16562101170
Radio
receiver
RC-R
16562301170
0
9
7
10
5
7
Specification text for the DORMA PORTEO Door Assistant
Electro-mechanical door
assistant operating in low-
energy mode (for force
limitation) to DIN 18650,
including slide channel and
mounting backplate, with
CE mark, in DORMA Contur
design.
Operating options:
PowerLess (effortless ope-
ning, automatic closing) or
PowerMotion (automatic
opening and closing).
Opening and closing speeds,
hold-open time and opening
angle adjustable.
Latching action as standard.
Non-handed. Mounting
backplate with universal
fixing hole pattern. For
transom or leaf-fixing on the
pull or push side.
Door parameters
2Single-leaf interior doors,
not suitable for fire and
smoke check doors
2Door parameters
2Single-leaf interior doors,
not suitable for fire and
smoke check doors
2Door leaf widths: max.
1100 mm (dependent on
door weight)
2Door leaf weight per leaf:
max. 80 kg (dependent on
door width)
2Opening angle per door
leaf: min. 100° in any
fixing pattern
2Operator dimensions:
60 mm x 530 x 80 mm
(H x W x D)
2Programme switch opera-
ting modes (0 I II):
0 = OFF, I = PowerMotion,
II = PermanentOpen
Extended functional options:
2PowerLess (adjustable via
potentiometer)
2Push&Go (always active in
the PowerMotion mode)
2Power supply data:
230 V AC, 50/60 Hz,
integrated system ready
for connection
Model particulars
YComplete package inclu-
ding slide channel and
mounting backplate
suitable for all four fixing
patterns
Colour
YSilver
YWhite, sim. to RAL 9016
Electric strike options:
YFail-secure; closes when
de-energised;
Type:
YFail-safe, opens when
de-energised;
Type:
Activator options:
YManual pushbutton;
Type:
YHand-held transmitter;
Type:
YReceiver for hand-held
transmitter;
Type:
Tested according to the
“Guidelines for Powered
Windows, Doors and Gates”,
BGR 232, DIN 18650-1/2
(12/2005 issue), EMC
(CE mark), GS mark (TÜV
type approval test) and VDE
regulations, latest issue in
each case. Manufacture
certified to ISO 9001.
Make: DORMA Porteo
bPorteo
Colour xx
Silver 01
White (sim. to RAL 9016) 11
PORTEO 230 V
600100xx
0
9
7
10
5
Standard equipment and accessories

WN 053 306 51532, 08/07, PORTEO, GB, x. DD. xx/07 Subject to change without notice.
4 021226 322017
www.dorma.com/porteo
Door Control
Automatic
Glass Fittings
and Accessories
Security/Time
and Access (STA)
Movable Walls
DORMA worldwide
Central Europe
DORMA GmbH + Co. KG
Breckerfelder Str. 42–48
D-58256 Ennepetal
Phone [phone]
Fax [phone]
Australia
DORMA Door Controls Pty. Ltd.
46-52, Abbott Road
Hallam/Victoria 3803
Australia
Phone [phone]
Fax [phone]
DORMA BWN Automatics Pty. Ltd.
46-52, Abbott Road
Hallam/Victoria 3803
Australia
Phone [phone]
Fax: [phone]
China/Hong Kong
DORMA Door Controls
(Suzhou) Co. Ltd.
No. 9, Hong Feng Road
Suzhou Singapore Industrial Park
Suzhou, 215021
P.R. of China
Phone [phone]
Fax [phone]
DORMA Door Controls Ltd.
Room 701, Technology Plaza
651 King’s Road
North Point
Hong Kong
Phone [phone]
Fax [phone]
Emerging Markets
DORMA GmbH + Co. KG
Breckerfelder Str. 42–48
D-58256 Ennepetal
Phone [phone]
Fax [phone]
DORMA Door Controls (Pty.) Ltd.
Kings Court, 4A Mineral Crescent
ZA-2000 Crown/Gauteng
South Africa
Phone [phone]
Fax [phone]
Far East
DORMA Far East Pte. Ltd.
31 Gul Lane
Singapore 629425
Phone [phone]
Fax [phone]
France
DORMA France S.A.S.
Europarc
42, rue Eugène Dupuis
F-94046 Créteil
Phone [phone]
Fax [phone]
DORMA Accueil S.A.S.
ZAC de l’Echangeur
Rue Saint Eloi
F-73100 GRESY SUR AIX
Phone [phone]
Fax [phone]
Gulf
DORMA Gulf Door Controls FZE
Jebel Ali Free Zone South
Plot No. S 20135
Road No. SW 301 G
P.O. Box 17268
Dubai – United Arab Emirates
Phone [phone]
Fax [phone]
DORMA Arabia Automatic Doors Ltd.
P.O. Box 1633
Dammam 31441
Kingdom of Saudi Arabia
Phone [phone]
Fax [phone]
North America
DORMA Architectural Hardware
DORMA Drive, Drawer AC
Reamstown, PA 17567-0411
Phone [phone]
Fax [phone]
DORMA Automatics, Inc.
924 Sherwood Drive
Lake Bluff, IL 60044 – USA
Phone [phone]
Fax [phone]
Scanbalt
DORMA Sverige AB
Datavägen 20
SE-43632 Askim
Phone [phone]
Fax [phone]
South America
DORMA Sistemas de Controles
para Portas Ltda.
Av. Piracema, 1400
Centro Empresarial Tambore
CEP 06460-933 Barueri/
São Paulo, Brasil
Phone [phone]
Fax [phone]
South-East Europe
DORMA Austria GmbH
Pebering Strass 22
A-5301 Eugendorf
Phone [phone]
Fax [phone]
DORMA AKS Automatic GmbH
Pebering Strass 22
A-5301 Eugendorf
Phone [phone]
Fax [phone]
South Europe
DORMA Italiana S.r.l.
Via. Canova 44/46
I-20035 Lissone (MI)
Phone [phone]
Fax [phone]
DORMA Ibérica, S.A.
Camino San Martín de la Vega, 4
E-28500 Arganda del Rey (Madrid)
Phone [phone]
Fax [phone]
UK/Ireland
DORMA UK Ltd.
Wilbury Way, Hitchin
GB-Hertfordshire SG40AB
Great Britain
Phone [phone]
Fax [phone]
