Dsc Tl280 User manual

TL280(R)

Internet Alarm Communicator -International

Installation Guide V4.1

For installation manual, visit www.dsc.com

Warning: This manual contains information on limitations regarding product use and function and inform-

ation on the limitations as to liability of the manufacturer. The entire manual should be carefully read.

WARNING: Installer please read carefully 3

General 4

Model Information 4

Panel Mounting 4

Features 4

EN50131-1 Installation Requirements 5

Technical Specifications, Ratings and Compatibility 5

Communicator Installation Configuration 5

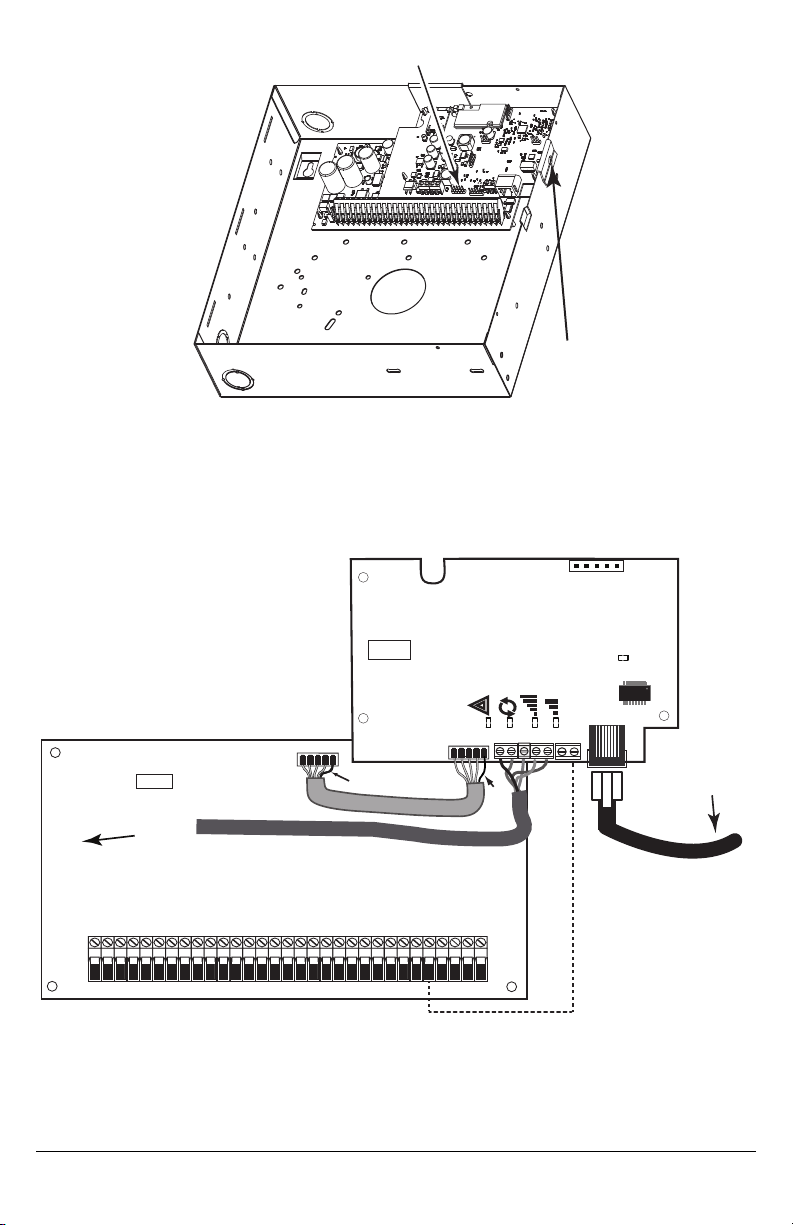

Installing Communicator in Panel 6

Initial Panel Programming 8

Communicator Status LEDs 8

Communicator Troubleshooting 9

Ethernet Programming Options 10

Ethernet Cellular Programming Worksheets 11

Warranty 13

EULA 14

Regulatory Information 15

WARNING: Installer please read

carefully

Note to Installers

The warningson thispage contain vitalinformation. Asthe onlyindividualin con-

tact with systemusers, it isthe installer’sresponsibilityto bring each itemin this

warning to the attention of allusersof thissystem.

System Failures

Thissystemhasbeen carefullydesigned to be aseffective aspossible. There are

circumstances, however, involving fire, burglary, or other types of emergencies

where it may not provide protection. Any alarmsystemof any type may be com-

promised deliberatelyormayfailto operate asexpected for a varietyof reasons.

Some, but not all, of the reasonsmay be:

Access by Intruders

Intrudersmayenter through an unprotected accesspoint, circumvent a sensing

device, evade detection bymoving through an area of insufficient coverage, dis-

connecta warning device, or interfere with or prevent the properoperation of the

system.

Component Failure

Although everyeffort has been made to make thissystemas reliable aspossible,

the systemmayfailto function asintended due to the failure of a component.

Compromise of Radio Frequency (Wireless) Devices

Signalsmaynot reach the receiver underallcircumstanceswhich could include

metalobjectsplaced on or nearthe radio path ordeliberate jamming orother inad-

vertent radio signalinterference.

Criminal Knowledge

Thissystemcontainssecurity featureswhich were known to be effective at the

time of manufacture. It ispossible for personswith criminalintent to develop tech-

niques which reduce the effectivenessof these features. It isimportant that the

security systembe reviewed periodicallyto ensure that itsfeaturesremain effect-

ive and that it isupdated or replaced if it isfound that it does not provide the pro-

tection expected.

Failure of Replaceable Batteries

Thissystem’swirelesstransmittershave been designed to provide severalyears

of batterylife under normalconditions. The expected batterylife isa function of

the device environment, usage, and type. Ambient conditionssuch ashigh humid-

ity, high orlow temperatures, or large temperature fluctuationsmayreduce the

expected batterylife. While each transmitting device hasa low batterymonitor

which identifieswhen the batteriesneed to be replaced, thismonitormayfailto

operate asexpected. Regulartesting and maintenance willkeep the systemin

good operating condition.

Inadequate Installation

Asecuritysystemmust be installed properlyin orderto provide adequate pro-

tection. Everyinstallation should be evaluated bya securityprofessionalto

ensure that allaccesspointsand areasare covered. Locksand latches on win-

dowsand doorsmust be secure and operate asintended. Windows, doors,

walls, ceilingsand other building materialsmustbe of sufficient strength and con-

struction to provide the levelof protection expected. Areevaluation mustbe done

during and after anyconstruction activity. An evaluation bythe fire and/or police

department ishighlyrecommended if this service isavailable.

Inadequate Testing

Most problemsthat would prevent an alarmsystemfrom operating asintended

can be found by regular testing and maintenance. The complete systemshould

be tested weeklyand immediatelyafter a break-in, an attempted break-in, a fire,

a storm, an earthquake, an accident, or anykind of construction activityinside or

outside the premises.The testing should include allsensing devices, keypads,

consoles, alarmindicating devices, and any other operationaldevices that are

part of the system.

Insufficient Time

There may be circumstanceswhen the systemwilloperate as intended, yet the

occupantswillnot be protected froman emergencydue to theirinabilityto

respond to the warningsin a timelymanner. If the systemisremotelymonitored,

the response may not occurin time to protect the occupantsor theirbelongings.

Motion Detectors

Motion detectorscan onlydetect motion within the designated areasasshown in

theirrespective installation instructions.Theycannot discriminate between

intrudersand intended occupants.Motion detectorsdo not provide volumetric

area protection. Theyhave multiple beamsof detection and motion can onlybe

detected in unobstructed areascovered bythese beams. Theycannot detect

motion which occursbehind walls, ceilings, floor, closed doors, glasspartitions,

glassdoorsor windows. Anytype of tampering whether intentionalor unin-

tentionalsuch as masking, painting, or spraying of anymaterialon the lenses, mir-

rors, windowsor anyother part of the detection systemwillimpairitsproper

operation.

Passive infrared motion detectorsoperate bysensing changesin temperature.

However theireffectivenesscan be reduced when the ambient temperature

risesnear orabove bodytemperature orif there are intentionalor unintentional

sources of heat in or near the detection area. Some of these heat sources could

be heaters, radiators, stoves, barbecues, fireplaces, sunlight, steamvents, light-

ing and so on.

Power Failure

Controlunits,intrusion detectors, smoke detectorsand manyother security

devicesrequire an adequate powersupplyforproperoperation. If a device oper-

atesfrombatteries,itispossible forthe batteriesto fail.Even if the batterieshave

not failed, theymust be charged, in good condition and installed correctly. If a

device operates only byAC power, any interruption, however brief, will render

that device inoperative while it doesnot have power. Power interruptions of any

length are often accompanied byvoltage fluctuationswhich maydamage elec-

tronicequipment such asa securitysystem. After a power interruption has

occurred, immediatelyconduct a complete systemtest to ensure that the system

operatesasintended.

Security and Insurance

Regardlessof itscapabilities, an alarmsystem is not a substitute for property or life

insurance. An alarmsystemalso is not a substitute for propertyowners, renters, or

other occupantsto actprudentlyto prevent orminimize the harmfuleffectsof an

emergencysituation.

Smoke Detectors

Smoke detectorsthat are a part of this systemmay not properly alert occupantsof

a fire for a numberof reasons, some of which follow. The smoke detectorsmay

have been improperlyinstalled orpositioned. Smoke may not be able to reach the

smoke detectors, such aswhen the fire isin a chimney,wallsor roofs, oron the

other side of closed doors. Smoke detectors may not detect smoke fromfireson

anotherlevelof the residence orbuilding.

Everyfire isdifferent in the amount of smoke produced and the rate of burning.

Smoke detectorscannot sense alltypes of firesequallywell. Smoke detectorsmay

not provide timelywarning of firescaused bycarelessnessor safetyhazardssuch

assmoking in bed, violent explosions, escaping gas, improper storage of flam-

mable materials, overloaded electricalcircuits,children playing with matches, or

arson.

Even if the smoke detectoroperatesasintended, there maybe circumstances

when there isinsufficient warning to allow alloccupants to escape in time to avoid

injuryor death.

Telephone Lines

If telephone linesare used to transmit alarms, theymaybe out of service or busy

for certain periodsof time. Also an intruder maycut the telephone line ordefeat its

operation bymore sophisticated meanswhich maybe difficult to detect.

Warning Devices

Warning devices such assirens, bells, horns, or strobes may not warn people or

waken someone sleeping ifthere isan intervening wallordoor. If warning devices

are located on a different levelof the residence orpremise, then it islesslikelythat

the occupantswillbe alerted orawakened. Audible warning devicesmaybe

interfered with byother noise sourcessuch as stereos,radios, televisions, air con-

ditioners, other appliances, or passing traffic. Audible warning devices, however

loud, maynot be heard bya hearing-impaired person.

General

IMPORTANT

This installation manual shall be used in conjunction with the control panel. All safety instructions specified within that manual

shall be observed. The control panel is referenced as the “panel” throughout this document. This installation guide provides

the basic wiring, programming and troubleshooting information. Use this guide in conjunction with the Installation Manual avail-

able online from the DSC website at www.dsc.com.

The Ethernet communicator is a fixed, wall-mounted unit, and shall be installed in the location specified in these instruc-

tions.The equipment enclosure must be fully assembled and closed, with all the necessary screws/tabs, and secured to a wall

before operation. Internal wiring mustbe routed in a manner that prevents:

lExcessive strain on wire and on terminal connections,

lInterference between power limited and non power limited wiring,

lLoosening of terminal connections, or

lDamage of conductor insulation.

WARNING: Never install this equipment during a lightning storm!

Safety Information

The installer must instruct the system user on each of the following:

lDo not attempt to service this product. Opening or removing covers may expose the user to dangerous voltages or other

risks.

lAny servicing shall be referred to service persons only.

lUse authorized accessories only with this equipment.

lDo not stay close to the equipment during device operation.

Model Information

This manual covers the following models of alarm communicators:TL280 and TL280R. References to model name TL280 (R)

throughout this manual apply to all specified models unless stated differently. Models ending in “R” include a built-in RS-232

interface for connecting to third-party applications.

The TL280 (R) supports integration over IP and is available with licensed third party product solutions. Specific programming

for the related programming sections is to be provided by the third party. A current list of compatible third party solutions can be

found at www.dsc.com

The TL280 (R) is an Ethernet alarm communicator that sends alarm communication to Sur-Gard System I-IP, II, III (SG-

DRL3IP), IV (SG-DRL4IP), and 5 (SG-DRL5IP) central station receivers through Ethernet/Internet.

The TL280 (R) supports integration over IP and is available with licensed third party product solutions. Specific programming

for the related programming sections is to be provided by the third party. A current list of compatible third party solutions can be

found at www.dsc.com.

The communicator can be used as either a backup or primary communicator. The communicator supports Internet Protocol (IP)

transmission of panel and communicator events over Internet.

Panel Mounting

The TL280 communicator is compatible with HS2016, HS2032, HS2064, and HS2128 panels.

Features

l128-bit AES encryption via Ethernet/Internet (NIST validation certificate number 2645).

lEthernet LAN/WAN 10/100 BASE-T.

lIndividual Internet periodic test transmission.

lIntegrated call routing.

lVisual Verification (requires Sur-Gard System 5 Receiver)

lRemote firmware upgrade capabilityof the communicator and panel firmware via Internet.

lPanel remote uploading/downloading support via Internet.

lPC-LINK connection.

lSIA and Contact ID (CID) formats supported.

lTrouble display LEDs.

lSupervision heartbeats sent via Internet.

lThird Party Integration over IP

EN50131-1 Installation Requirements

For EN50131-1 compliant installations, the following programming options shall be set as described.

Supervision Heartbeat (required for ATS4 and ATS5):

l[851][004] set to 0087h (135s heartbeat).

NOTE: The compatible receiver at ARC location shall have supervision window programmed for 1800s (ATS4) or 180s (ATS

5).

l[851][005] options 1 and 3 shall be enabled

Test transmission (required for ATS3):

l[851] System test options [026] and [027] shall be enabled (FF) for the communication paths available.

l[851][124] and [125] shall be programmed with time of day for test transmission and 1440 minutes (24h) for test trans-

mission cycle

Configuration of communication paths (all ATS classes)

l[300][001] select option 02 for auto routing (this will allow transmission of the events over all available communication

paths in the system)

l[380] enable option 5 (YES) for parallel transmission over all available communication paths (if redundant configuration is

desired)

l[382] enable option 5 (YES) this will enable Alternate communicator

l[384] enable the desired back-up configuration (receiver 2 back-up for receiver 1 or receiver 3 back-up for receiver 1).

Technical Specifications, Ratings and Compatibility

Table 1: Communicator Ratings

Model TL280(R)

Power Supply Ratings

Input Voltage

10.8-12.5 VDC. Power is supplied from the panel’s PC-Link header or a

PCL-422 module in remote cabinet installations.In remote cabinet

installations, the PCL-422 module located with the communicator is

installation instructions for details.

Current Consumption

Current 100mA @ 13.66V

Environmental Specifications

Operating Temperature -10°C to 55°C

Humidity 5% ~ 93% relative humidity, non-condensing

Mechanical Specifications

Board Dimensions (mm) 100 × 150 × 15

Weight (grams) with bracket 290

Table 2: Compatible Receivers and Panels

Communicator Receiver/Panel Description

3G2080(R) Receiver

lSur-Gard System I-IP Receiver, version 1.13+

lSur-Gard System II Receiver, version 2.10+

lSur-Gard SG-DRL3-IP, version 2.30+ (for Sur-Gard System III Receiver)

lSur-Gard SG-DRL4-IP version 1.20+ (for Sur-Gard System IV Receiver)

lSur-Gard SG-DRL5-IP version 1.00+ (for Sur-Gard System 5 Receiver)

TL2803G(R) Panel

lHS2016

lHS2032

lHS2064

lHS2128

NOTE: Enter [*][8][Installer Code][900] at keypad to view the panel version number.

Communicator Installation Configuration

This Ethernet communicator shall be installed by service persons only (service person is defined as a person having the appro-

priate technical training and experience necessary to be aware of hazards to which that person may be exposed to in

performing a task and can also take measures to minimize the risks to that person or other persons). The Communicator shall

be installed and used within an environment that provides the pollution degree max 2, overvoltages category II, in non-haz-

ardous, indoor locations only. This manual shall be used with the installation manual of the panel which is connected to the

communicator. All instructions specified within the panel manual must be observed.

All the local rules imposed by local electrical codes shall be observed and respected during installation.

Installing the Ethernet Cable

A Category 5 (CAT 5) Ethernet cable must be run from a source with Internet connectivity to the communicator module, inside

the panel. The communicator end of the cable must be terminated with an RJ45 plug, which will connectto the communicator’s

RJ45 jack after the communicator is installed. All requirements for installation of CAT5 Ethernet cable mustbe observed for cor-

rect operation of the communicator, including, but not limited to, the following:

lDo NOT strip off cable sheathing more than required for proper termination.

lDo NOT kink/knot cable.

lDo NOT crush cable with cable ties.

lDo NOT untwist CAT5 pairs more than ½ in. (1.2cm).

lDo NOT splice cable.

lDo NOT bend cable at right angles or make any other sharp bends.

NOTE: CAT5 specification requires that any cable bend must have a minimum 2 in. (5 cm) bend radius. Maximum length of

CAT 5 cable is 328 ft. (100 m).

Running the RS-232 Cable (R models only)

When installing the communicator for use with third party applications an RS-232 cable must be connected between the third

party device and the communicator module.

NOTE: Maximum cable length for RS-232 cable is 8 ft. (2.4 m).

Please refer to the installation manual for the third party device for wiring instructions.

Installing Communicator in Panel

Installing Communicator with HS2016, HS2032, HS2064, and HS2128 Panel

1. To assemble supplied mounting bracket, perform the following: (See Figure 1).

a. Remove the 4 white plastic standoffs from the bag provided with the communicator kit.

b. Insert the 4 standoffs through the back of the mounting bracket, into the holes at each corner.

c. Place the bracket on a flat, solid surface. Hold the communicator component side up and orient the 4 holes on the

communicator with the 4 standoffs protruding from the bracket. Push the communicator firmly and evenly onto the

standoffs until it is securely attached to the mounting bracket.

d. Remove the panel front cover.

e. Remove and discard the circular knockout located in the top-right section of the panel.

Figure 1: Communicator Mounting Bracket

Mounting

Holes

Mounting Holes

Mounting Plate

Communicator

Board

Mounting

Plate

Stand Off

2. Install the Communicator into the panel:

a. Attach one end of the PC-LINK cable to the panel PCLINK_2 header on the panel (red wire goes on the right-hand

pin of the panel PCLINK_2 header (see Figure 3)).

b. Insert the assembled communicator into the panel.

c. Locate the screw hole on the right side wall of the panel. See Figure 2 "screw". Line up the assembled com-

municator with the right side wall of the panel and, using the screw provided, secure the mounting bracket to the

panel.

d. Attach the other end of the PC-LINK cable to the communicator (red wire goes on the right-hand pin of the com-

municator PC-LINK header (See Figure 3)).

Figure 2: HS2016/2032/2064/2128 Control Panel

PC-Link cable connector

screw

GSM Radio

RJ-45

UA601

HS2016/2032/2064/2128

WARNING! - Modules are power limited. Do not route any wiring over the circuit board. Maintain at least 1in. (25.4mm)

separation between circuit board and wiring. A minimum of ¼ in. (7mm) separation must be maintained at all points

between non-power limited wiring and power limited wiring.

3. To electrically connect the communicator to the panel, perform the following steps (See Figure 3).

a. Disconnectboth AC power and battery connections from the panel, and disconnect telephone line.

Figure 3: Communicator Wiring Diagram

AUDIO/DEFAULT

DSC

UA601

PC-LINK

COM

TL280(R)

AC Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8

AUX+

BELL +

PGM1 PGM3

RING

T-1

HS2016/2032/2064/2128

UA621

Input Ratings:

+10.8V ~ +12.5 VDC

100mA

DSC Panel min. power requirements:

- 16.5 VAC 40 VA transformer;

- 12 VDC 7Ah battery

Jumper pins 4 and 5

to reset.

From NID

Use only CAT5

Supervised

RJ-45

GRN

YEL

TIP

R-1

BLK

RED

AUX -

BELL -

EGND

TX+

GND

TX-

RX+

RX-

SHLD

Network Link

YELLOW

PGM2 PGM4

Maximum cable length

100 m (328 ft)

PCLINK_2

Red

RS-232

To 3rd party device

4. Install the RS-323 connections (R models only). If using the communicator with a third party device, wire the connections

as per the table below. Maximum cable length for RS-232 cable is 8 ft. (2.4 m).

NOTE: Please refer to the installation manual for the third party device for wiring instructions.

Table 3: RS-232 Connections

Third Party Device Communicator

TX RX+

Unused RX-

RX TX+

Unused TX-

GND GND

Install Network Cable

1. Route the CAT 5 Ethernet cable through back of the panel and plug it into the communicator’s RJ45 jack.

2. Perform the following steps for initial power on of the panel with communicator installed:

a. Observe that the communicator’s red and yellow LEDs are flashing together while it initializes. The red and yellow

LEDs will continue to flash until the communicator has successfully communicated to all programmed receivers. If this

is the first time the communicator has been powered up, the module will not be able to initiate communication until it

has been programmed.

b. Reconnect the AC power, telephone line, and battery + connector to the panel.

(The communicator and panel will power up together).

NOTE: Initialization may take several minutes to complete. Red and yellow LEDs will flash together during initialization. Do not

continue to next step until the red and yellow LEDs have stopped flashing. (If only the yellow LED is flashing, there is a

communicator trouble). Correct trouble indicated by flashes on yellow LED before continuing. (for troubleshooting

assistance see Table 6 ).

3. Mount the panel in location.

Initial Panel Programming

HS2016/2032/2064/2128 Initial Programming

For detailed information, refer to panel manual section ‘Alternate Communicator Set-up’.

1. In panel section [377] ‘Communication Variables’, subsection [002] ‘Communication Delays’, sub-subsection [1] ‘Com-

munication Delay’, program 060 (seconds).

2. In panel section [382] ‘Communicator Option 3’ set option [5] ON.

3. In panel sections [300] subsections [001] to [004], program the subsection with 02 to 06.

Table 4: Communicator Path Programming

Value Communication Method

02 Auto Routing

03 Ethernet 1

04 Ethernet 2

05 Cellular 1

06 Cellular 2

NOTE: Refer to panel manual for additional information

4. In panel section [350] ‘Communication Formats’, program the communication format as: CID (03) or SIA FSK (04).

5. In panel sections [311] - [318] ‘Partition Call Directions’, program the call direction options for the system.

6. In panel section [401]‘DLS/SA Options’, set toggle option [2] ‘User Enable DLS’ to ON in order to perform panel DLS ses-

sion through cellular or Ethernet.

NOTE: Before leaving the premises, the installer should verify all programmed communications paths. See programming

options section [851][901] to send immediate test transmissions.

Communicator Troubles displayed on a HS2016/2032/2064/2128

The communication trouble is the only trouble that will appear on the keypad Liquid Crystal Display (LCD) when encountered

by a communicator installed in a HS2016/2032/2064/2128. For more information about the trouble on the communicator mod-

ule refer to the panel event buffer or by accessing *2 to view the individual trouble types.

Communicator Status LEDs

The communicator has 2 on-board LED indicators:a yellow trouble LED and a red network connection status LED.

Yellow Trouble LED

This yellow LED will flash to indicate a trouble on the unit. The number of flashes indicates the type of trouble. See the table

below for the coded flashes and the conditions which will activate the trouble status LED.

Table 5: Yellow Trouble Status LED

# of

Flashes Trouble # of

Flashes Trouble

2 Panel Supervision Trouble 8 Receiver Supervision Trouble

4 Not Applicable 9 FTC Trouble

5 Not Applicable 10 Not Applicable

6 Ethernet Trouble 12 Module Configuration Trouble

7 Receiver Not Available Trouble

NOTE: Only the highest priority trouble (2 flashes is the highest priority trouble) is indicated. When this trouble is restored, the

next highest trouble will indicate, if present. This will continue until all troubles have been cleared (yellow LED is not

flashing).

Red Network Connection Status LED

BLINKING: Indicates communications in progress.

lOnce quickly for outgoing Ethernet transmission.

lTwice quickly to indicate incoming Ethernet ACK/NACK.

OFF: This is the normal state of the red network connection status LED. There are no network connection issues present.

ON: There is a problem with the Ethernet or the cellular network connection. LED will be ON ifany of the following occur:

lEthernet cable is not connected

lDHCP configuration times out.

Network Activity LED (Red)

lEthernet Activity: Red LED will blink quickly once for transmit, or twice for receive.

Communicator Troubleshooting

Table 6: Trouble Indications

Trouble Indic-

ation

Trouble

Indicator

Digit

Possible

Causes Trouble Possible Solution

No Indication N/A No Power lCheck the power connections between the panel and the communicator.

lConfirm PC-LINK cable is properly installed between communicator and panel.

Yellow LED

–

2 Flashes

Panel

Supervision

Trouble

lCheck section [382] toggle option[5] is ON (Alternate Communicator Enabled).

lEnsure the PC-LINK cable between the panel and communicator is connected

properly (not reversed) and is securely in place.

Yellow LED

–

6 Flashes

06 Ethernet

Trouble

lCheck with the ISP to confirm Internet service is active in the area.

lEnsure the Ethernet cable is securely inserted into the RJ45 jack of the

communicator and the hub/router/switch.

lCheck the link light on the hub/router/switch is ON. If link light is OFF, start the

hub/router/switch.

lIf DHCP is used, ensure that the unit has an assigned IP address from the

server. In Section [851] [992] verify a valid IP address is programmed. If not,

contact the network administrator.

lIf problem persists, replace the Ethernet cable and RJ45 connector.

Yellow LED

–

7 Flashes

07 Receiver Not

Available

lEnsure that the Ethernet path has Internet connectivity.

lIf using a static IP address, confirm that the gateway and subnet mask are

entered correctly.

lIf the network has a firewall, ensure the network has the programmed

loutgoing ports open (default UDP port 3060 and port 3065).

lEnsure that all the receivers are programmed for DHCP or have the proper IP

Trouble Indic-

ation

Trouble

Indicator

Digit

Possible

Causes Trouble Possible Solution

address and port number.

Yellow LED

–

8 Flashes

Receiver

Supervision

Trouble

lThis trouble is indicated when supervision is enabled and the unit is not able to

successfully communicate with the receiver.

lIf this trouble persists, contact the central station.

Yellow LED -

9 Flashes 09 FTC Trouble

lThe unit has exhausted all communications attempts to all programmed

receivers for events generated by the communicator.

lRestart the system, if trouble persists, contact the dealer.

Yellow LED

–

12 Flashes

Module

Configuration

Trouble

lThis indication appears when section [021] system account code or sections

[101] or [111] receiver account code have not been programmed. Ensure that a

valid account code has been entered in these sections.

Red and

Yellow LEDs

flashing

together

N/A

Initialization

Sequence

lThe unit is still initializing please wait while the unit gets its programming and

establishes a connection to all programmed receivers.

NOTE: This process may take several minutes to complete.

Boot Loader

Failed

lIf the initialization sequence is taking more than several minutes, the boot loader

might have failed.

lConfirm that the boot loader has failed by entering communicator programming

[*][8][installer code][851].

lIf access is granted, continue waiting for the initialization sequence to complete.

lIf access is denied (long error tone), disconnect power from, then reconnect

power to the communicator module.

Ethernet Programming Options

The programming sections described in this document can be viewed at the keypad LCD. To start programming enter: [*][8]

[installer code][851][section number], where section number is the 3-digit section number referenced in this section. The pro-

gramming worksheets at the end of this document can be used to record the new values when programming changes have

been made from the default values.

Ethernet Cellular Programming

Worksheets

System Options

[001] Ethernet IP Address

Default (000.000.000.000)

[002] Ethernet IP Subnet Mask

Default (255.255.255.000)

[003] Ethernet Gateway IP Address

Default (000.000.000.000)

[004] Receiver Supervision Interval

Default (0087/135) Valid range: 0000 - FFFF.

[005] System Toggle Options

[1] Ethernet Receiver 1 Supervised Default (OFF).

[2] Reserved.

[3] Supervision Type Default (OFF).

[4] Reserved.

[5] Reserved.

[6] Remote Firmware Upgrade Default (ON).

[7] Alternate Test Transmission Default (OFF).

[8] Reserved.

[006] System Toggle Options 2

[1] Ethernet Receiver 1 Enabled Default (ON).

[2] Ethernet Receiver 2 Enabled Default (ON).

[8] Network Trouble Suppression Default (OFF).

[007] DNS Server IP 1

Default (000.000.000.000)

[008] DNS Server IP 2

Default (000.000.000.000)

Programming Options

[010] System Toggle Options 3

[1] Reserved

[2] Visual Verification Default (OFF).

[3] Reserved

[011] Installer Code

Default (CAFE) Valid range: 0000 - FFFF.

[012] DLS Incoming Port

Default (0BF6/3062) Valid range: 0000 - FFFF.

[013] DLS Outgoing Port

Default (0BFA/3066) Valid range: 0000 - FFFF.

[015] DLS Call-Up IP

Default (000.000.000.000)

[016] DLS Call-Up Port

Default (0000) Valid range: 0000 - FFFF.

[020] Time Zone

Default (00) Valid range: 00 - 99.

[021] Account Code

Default (FFFFFF) Valid range: 000001 - FFFFFE.

[022] Communications Format

Default (04) Program 03 (CID), 04 (SIA).

[023] Panel Absent Trouble

Default (FF); Program 00 disable or FF enable.

[024] Panel Absent Trouble Restore
