TL260GS/TL265GS

Ethernet/Internet and GSM/GPRS Dual-Path Alarm Communicator

Transmetteur d'alarme à double liaison Ethernet/Internet et GSM/GPRS

Comunicador de alarma de doble vía Ethernet/Internet y GSM/GPRS

GS2060/GS2065

GSM/GPRS Wireless Alarm Communicator

Transmetteur d'alarme sans fil GSM/GPRS

Comunicador de alarma inalámbrico GSM/GPRSGSM/GPRS

v1.0

Installation Manual

Manuel d’installation

Manual de instalación

Warning: This manual contains information on limitations regarding product use and

function and information on the limitations as to liability of the manufacturer.

Attention: Ce manuel contient des informations sur les restrictions concernant le

fonctionnement et l’utilisation du produit et des informations sur les restrictions en ce qui

concerne la responsabilité du fabricant. La totalité du manuel doit être lu attentivement.

Advertencia: Por favor consulte el Manual de Instrucciones del Sistema para más

información acerca de las limitaciones conrelación al uso y funcionamiento del producto e

información acerca de las limitaciones como la responsabilidad del fabricante.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installing the GSM/ETHERNET Communicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Connect 24 Activation and Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

TL260GS/GS2060 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation with PC1616/1832/1864 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PC1616/1832/1864 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TL265GS/GS2065 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Establishing a communication channel between the Communicator and the PC9155 Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Installation with PC9155 Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

PC9155 Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Status LEDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Trouble Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Network Connection Status LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Signal Strength LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Network Activity Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

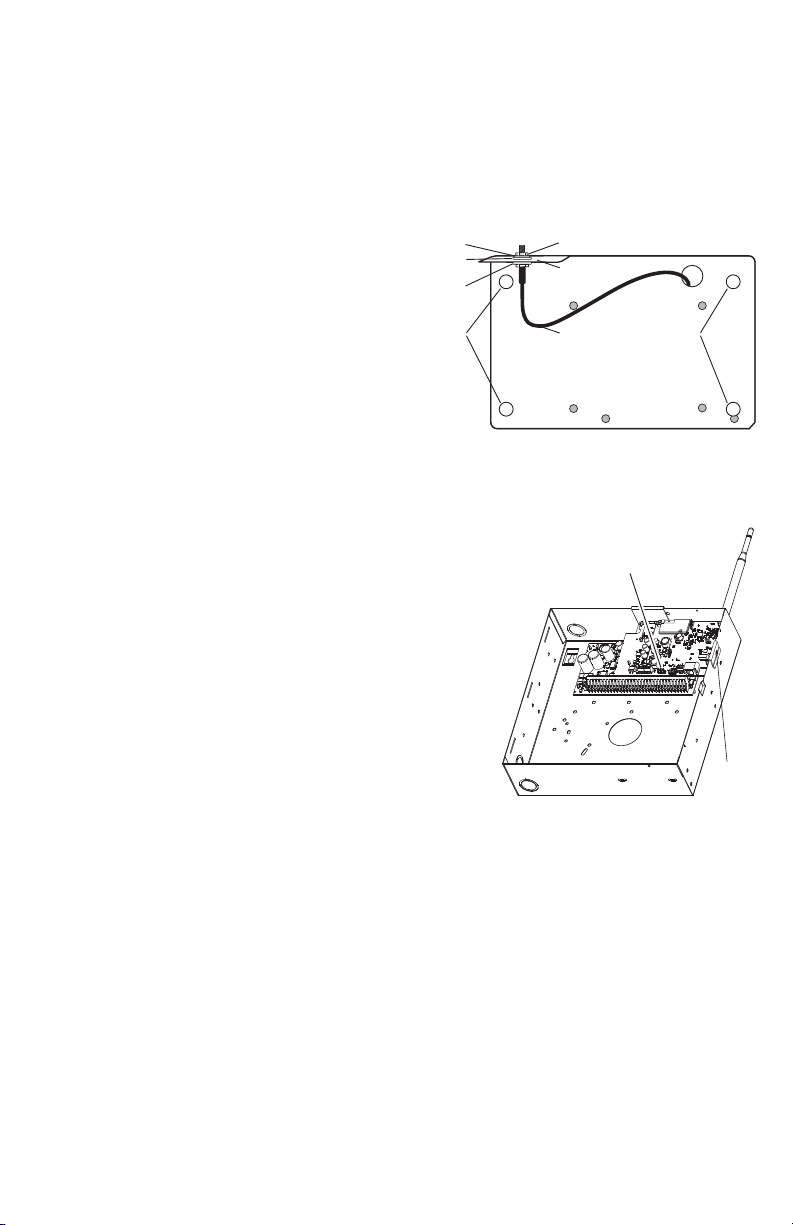

Adding an Antenna Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Hardware Default Jumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Communicator Troubles on a PC1616/1832/1864 Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Communicator Troubles on a PC9155 Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

During the Software Update:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Encryption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Power Save Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Ethernet Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Ethernet Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

GPRS Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

GPRS Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

GPRS Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Reporting Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Programming Worksheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

System Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Programming Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Ethernet Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Ethernet Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

GPRS Receiver 1 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

GPRS Receiver 2 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

GPRS Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Appendix A: Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Français. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

IMPORTANT

The equipment is fixed, wall-mounted and shall be installed in the position specified in these instructions. The equipment enclosure must

be fully assembled and closed, with all the necessary screws/tabs and secured to a wall before operation. Internal wiring must be routed

in a manner that prevents:

• Excessive strain on wire and on terminal connections;

• Loosening of terminal; connections;

• Damage of conductor insulation

WARNING: Never install this equipment during a lightning storm!

Instruct the end-user to:

• Do not attempt to service this product. Opening or removing covers may expose the user to dangerous voltages or other risks. Any

servicing shall be referred to trained service personnel only.

• Use authorized accessories only with this equipment.

• Do not dispose of the battery in fire or water. Disposing of the battery in a fire will cause rupture and explosion;

• Do not dispose of the waste battery as unsorted municipal waste. Consult your local regulations and /or laws regarding recycling with

regard to this battery; Doing so will help protect the environment. Some of the materials that are found within the battery could

become toxic if not disposed of properly and may affect the environment.

TABLE OF CONTENTS

WARNING Please Read Carefully

Note to Installers

This warning contains vital information. As the only individual in

contact with system users, it is your responsibility to bring each item

in this warning to the attention of the users of this system.

System Failures

This system has been carefully designed to be as effective as possi-

ble. There are circumstances, however, involving fire, burglary, or

other types of emergencies where it may not provide protection. Any

alarm system of any type may be compromised deliberately or may

fail to operate as expected for a variety of reasons. Some but not all

of these reasons may be:

Inadequate Installation

A security system must be installed properly in order to provide ade-

quate protection. Every installation should be evaluated by a security

professional to ensure that all access points and areas are covered.

Locks and latches on windows and doors must be secure and operate

as intended. Windows, doors, walls, ceilings and other building

materials must be of sufficient strength and construction to provide

the level of protection expected. A reevaluation must be done during

and after any construction activity. An evaluation by the fire and/or

police department is highly recommended if this service is available.

Criminal Knowledge

This system contains security features which were known to be

effective at the time of manufacture. It is possible for persons with

criminal intent to develop techniques which reduce the effectiveness

of these features. It is important that a security system be reviewed

periodically to ensure that its features remain effective and that it be

updated or replaced if it is found that it does not provide the protec-

tion expected.

Access by Intruders

Intruders may enter through an unprotected access point, circumvent

a sensing device, evade detection by moving through an area of

insufficient coverage, disconnect a warning device, or interfere with

or prevent the proper operation of the system.

Power Failure

Control units, intrusion detectors, smoke detectors and many other

security devices require an adequate power supply for proper opera-

tion. If a device operates from batteries, it is possible for the batteries

to fail. Even if the batteries have not failed, they must be charged, in

good condition and installed correctly. If a device operates only by

AC power, any interruption, however brief, will render that device

inoperative while it does not have power. Power interruptions of any

length are often accompanied by voltage fluctuations which may

damage electronic equipment such as a security system. After a

power interruption has occurred, immediately conduct a complete

system test to ensure that the system operates as intended.

Failure of Replaceable Batteries

This system’s wireless transmitters have been designed to provide

several years of battery life under normal conditions. The expected

battery life is a function of the device environment, usage and type.

Ambient conditions such as high humidity, high or low tempera-

tures, or large temperature fluctuations may reduce the expected bat-

tery life. While each transmitting device has a low battery monitor

which identifies when the batteries need to be replaced, this monitor

may fail to operate as expected. Regular testing and maintenance

will keep the system in good operating condition.

Compromise of Radio Frequency (Wireless) Devices

Signals may not reach the receiver under all circumstances which

could include metal objects placed on or near the radio path or delib-

erate jamming or other inadvertent radio signal interference.

System Users

A user may not be able to operate a panic or emergency switch pos-

sibly due to permanent or temporary physical disability, inability to

reach the device in time, or unfamiliarity with the correct operation.

It is important that all system users be trained in the correct opera-

tion of the alarm system and that they know how to respond when

the system indicates an alarm.

Smoke Detectors

Smoke detectors that are a part of this system may not properly alert

occupants of a fire for a number of reasons, some of which follow.

The smoke detectors may have been improperly installed or posi-

tioned. Smoke may not be able to reach the smoke detectors, such as

when the fire is in a chimney, walls or roofs, or on the other side of

closed doors. Smoke detectors may not detect smoke from fires on

another level of the residence or building.

Every fire is different in the amount of smoke produced and the rate

of burning. Smoke detectors cannot sense all types of fires equally

well. Smoke detectors may not provide timely warning of fires

caused by carelessness or safety hazards such as smoking in bed,

violent explosions, escaping gas, improper storage of flammable

materials, overloaded electrical circuits, children playing with

matches or arson.

Even if the smoke detector operates as intended, there may be cir-

cumstances when there is insufficient warning to allow all occupants

to escape in time to avoid injury or death.

Motion Detectors

Motion detectors can only detect motion within the designated areas

as shown in their respective installation instructions. They cannot

discriminate between intruders and intended occupants. Motion

detectors do not provide volumetric area protection. They have mul-

tiple beams of detection and motion can only be detected in unob-

structed areas covered by these beams. They cannot detect motion

which occurs behind walls, ceilings, floor, closed doors, glass parti-

tions, glass doors or windows. Any type of tampering whether inten-

tional or unintentional such as masking, painting, or spraying of any

material on the lenses, mirrors, windows or any other part of the

detection system will impair its proper operation.

Passive infrared motion detectors operate by sensing changes in tem-

perature. However their effectiveness can be reduced when the

ambient temperature rises near or above body temperature or if there

are intentional or unintentional sources of heat in or near the detec-

tion area. Some of these heat sources could be heaters, radiators,

stoves, barbeques, fireplaces, sunlight, steam vents, lighting and so

on.

Warning Devices

Warning devices such as sirens, bells, horns, or strobes may not warn

people or waken someone sleeping if there is an intervening wall or

door. If warning devices are located on a different level of the resi-

dence or premise, then it is less likely that the occupants will be

alerted or awakened. Audible warning devices may be interfered

with by other noise sources such as stereos, radios, televisions, air

conditioners or other appliances, or passing traffic. Audible warning

devices, however loud, may not be heard by a hearing-impaired per-

son.

Telephone Lines

If telephone lines are used to transmit alarms, they may be out of ser-

vice or busy for certain periods of time. Also an intruder may cut the

telephone line or defeat its operation by more sophisticated means

which may be difficult to detect.

Insufficient Time

There may be circumstances when the system will operate as

intended, yet the occupants will not be protected from the emer-

gency due to their inability to respond to the warnings in a timely

manner. If the system is monitored, the response may not occur in

time to protect the occupants or their belongings.

Component Failure

Although every effort has been made to make this system as reliable

as possible, the system may fail to function as intended due to the

failure of a component.

Inadequate Testing

Most problems that would prevent an alarm system from operating

as intended can be found by regular testing and maintenance. The

complete system should be tested weekly and immediately after a

break-in, an attempted break-in, a fire, a storm, an earthquake, an

accident, or any kind of construction activity inside or outside the

premises. The testing should include all sensing devices, keypads,

consoles, alarm indicating devices and any other operational devices

that are part of the system.

Security and Insurance

Regardless of its capabilities, an alarm system is not a substitute for

property or life insurance. An alarm system also is not a substitute

for property owners, renters, or other occupants to act prudently to

prevent or minimize the harmful effects of an emergency situation.

The GS2060/GS2065 Communicators are GSM/GPRS wireless alarm communicators that send alarm communication to Sur-Gard

SystemI, II and III monitoring station receivers through the GSM/GPRS digital cellular network.

The TL206GS/TL265GS Communicators are dual-path alarm communicators that send alarm communication to Sur-Gard SystemI, II

and III monitoring station receivers through the Ethernet/Internet or the GSM/GPRS digital cellular network.

The performance of the TL260GS/TL265GS/GS2060/GS2065 Communicator depends greatly on GSM network coverage. It should

not, therefore, be mounted without first performing placement tests to determine the best location for reception (minimum of one green

LED On). Optional antenna kits are available.

Models

The following models are compatible with PC1616/PC1832/PC1864 control panels:

• GS2060 (GSM/GPRS only) • TL260GS (Ethernet/Internet + GSM/GPRS dual-path)

The following models are compatible with PC9155 control panel:

• GS2065 (GSM/GPRS only) • TL265GS (Ethernet/Internet + GSM/GPRS dual-path)

Features

• Fully redundant Ethernet/Internet and GSM/GPRS dual-path alarm communication (TL260GS/TL265GS only)

• Back up or primary GSM/GPRS alarm communication

• Ethernet LAN/WAN 10 BaseT or 10/100 BaseT (TL260GS/TL265GS only)

• Integrated call routing

• Panel remote uploading/downloading support via GSM/GPRS and Ethernet/Internet

• Supervision heartbeats via GSM/GPRS and Ethernet/Internet

• 128-bit AES encryption via GSM/GPRS and Ethernet/Internet (NIST Validation Certificate No. 995)

• Full event reporting • PC-Link connection

• SIA format • SIM card included

• Signal strength and Trouble display • Activating, initializing and remote programming through Connect 24

• Individual Ethernet and/or GPRS Periodic test transmission

• Quad-Band: 850 MHz, 1900 MHz, 900 MHz and 1800 MHz

Technical Specifications

The input voltage to the TL260GS/TL265GS/GS2060/GS2065 Communicator can be drawn from the UL/ULC Listed Control Panel or

provided by an external UL Listed power supply rated for the application (external power-limited source).

NOTE: The power supply must be Class II, Power Limited.

UL/ULC Installation Requirements

NOTE: For equipment used at the protected premises and intended to facilitate IP communications (hubs, routers, NID, DSL/Cable

modems) 24h back-up power is required. Where such cannot be facilitated, a secondary (back-up) communication channel is required.

Notes for using Private, Corporate and High Speed Data Networks:

Network access and domain access policies shall be set to restrict unauthorized network access, and ‘spoofing’ or ‘denial of service’

attacks. Select the internet service providers that have redundant servers/systems, back-up power, routers with firewalls enabled and

methods to identify and protect against ‘denial of service’ attacks (i.e. via ‘spoofing’).

Notes for using Public Switched and Wireless Data Networks:

Communication channels shall be facilitated such that the communicator will restrict unauthorized

access, which could otherwise compromise security. Communicators shall be located in secured areas.

• For ULC Residential fire and burglary applications the TL260GS/GS2060/TL265GS/GS2065 can be used as primary communication

channel via either GSM or IP or as a back-up in conjunction with the DACT. Test transmission every 24h shall be enabled on each

channel.

• For ULC Commercial Fire and Burglary applications the TL260GS/GS2060 can be used as a passive communication module with the

Security Levels P1 (each channel GSM or IP independent), P2 (GSM and IP in back-up configuration, panel section [851] section

[005] option [5] OFF) or P3 (GSM and IP in redundant configuration, panel section [851] section [005] option [5] ON). The module

can be also used as an Active communication system with the security Levels A1-A4 (each channel GSM or IP independent or

together in a back-up/redundant configuration). For Active Line Security systems the encryption AES128 bit shall be enabled and the

supervision heartbeat rate shall be selected as 90s (panel section [851], section [004] = 005A). The supervision window at the

SRC's receiver shall be programmed as max. 180s.

• For UL Residential fire and burglary applications the TL260GS/GS2060/TL265GS/GS2065 can be used as primary communication

channel via either GSM or IP (200s supervision enabled is required for burglary applications, using standard/encrypted line security)

or as a back-up in conjunction with the DACT (30 days test transmission required on each channel).

• For UL Commercial Burglary applications the TL260GS/GS2060 module can be used as Dual Signalling Line communication system

(GSM and IP channels used in redundant configuration), Standard Line Security and as Encrypted Line Security. The supervision

heartbeat shall be enabled (panel section [851] section [005] option [1] (IP) and/or option [2] (GSM) shall be ON), option [3] shall be

ON and the supervision heartbeat rate shall be selected as 135s section [004] = 0087. The supervision window at the supervising

station shall be max. 200s ). For Encrypted Line Security systems the encryption AES128 bit shall be enabled.

• For UL Commercial Burglary installations, the TL260GS and GS2060 are listed as a primary (sole) communication means (heartbeat

must be enabled) or for supplementary (back-up) use in conjunction with a POTS line (dialer). When the heartbeat transmission over

the Ethernet or GSM-GPRS network is enabled, using the TL260GS or GS2060 with a compatible control unit listed for standard/

encrypted line security, it can provide line security for the alarm system over the primary line.

• The TL260GS and GS2060 are also suitable to be used with a compatible control unit listed for dual line security transmission when

used in conjunction with a DACT or a PSDN transmitter, where the PSDN provides the line security and is the primary line. In this

mode, alarm signals are required to be sent simultaneously over both communication methods.

INTRODUCTION

Ratings

NOTE: UL/ULC only verified functionality of the product for the range 0°C - 49°C (32°F - 120°F).

Compatibility

Products or components of products, which perform communications functions only shall comply with the requirements applicable to

communications equipment as specified in UL60950 or CAN/CSA-C22.2 No. 950-1, Information Technology Equipment - Safety - Part

1: General Requirements. Where network interfaces, such as the following, are internal to the control unit or receiver, compliance to

CAN/CSA-C22.2 No. 950-1 is adequate. Such components include, but are not limited to Hubs; Routers; Network interface devices;

Third party communications service providers; Digital subscriber line (DSL) modems; and Cable modems.

This GSM/Ethernet Communicator is fixed and shall be installed by Service Persons only (Service Person is defined as a person having

the appropriate technical training and experience necessary to be aware of hazards to which that person may be exposed in performing

a task and of measures to minimize the risks to that person or other persons). It shall be installed and used within an environment that

provides the pollution degree max 2, over voltages category II, in non-hazardous, indoor locations only. This manual shall be used with

the Installation Manual of the alarm control panel which is connected to the GSM/Ethernet Communicator. All instructions specified

within that manual must be observed.

All the local rules imposed by local electrical codes shall be observed and respected during installation.

Connect 24 Activation and Initialization

Installation of the Communicator requires activation with Connect 24 to operate. Dealer application forms and additional information on

the Connect 24 Voice Response Unit (VRU) and web user-interface can be found at www.connect24.com or at the following telephone

numbers: USA 1-888-251-7458 CANADA 1-888-955-5583

IMPORTANT: Prior to installing a GS2060, TL260GS, GS2065 and TL265GS, contact your monitoring station to determine if it is a mas-

ter re-seller or visit www.connect24.com to become an authorized dealer. In both instances, you will acquire a Profile Number, Installer ID

Number and an Installer Password.

NOTE: It is recommended to activate the SIM card and initialize the communicator 24 HOURS BEFORE INSTALLATION.

1. Retrieve the installer account and password from the master reseller, or from Connect 24 directly.

2. Go to the Connect 24 website (www.connect24.com).

3. Log in to the website using the installer account and password.

4. Activate the SIM card and initialize programming:

• Go to the Initialize an account section.

• Select Profile (This will be provided by the master reseller or by Connect 24).

• Select Product Module.

• Enter the SIM card number.

• Click Next then enter in all relevant information as required.

• Confirm all information before submitting.

5. Activate and initialize the programming of another SIM card (i.e. subscriber), or log out from the Connect 24 website.

When you are at the physical installation site to install the Communicator and the control panel, the Communicator will automatically

download its programming from Connect 24 once it is connected and turned on.

Following initial installation, you can log in to the Connect 24 website at any time to re-configure the Communicator remotely. For more

information, see the Connect 24 website (www.connect24.com).

Table 1: Communicator Ratings

MODEL GS2060

GSM/GPRS ONLY TL260GS

ETHERNET & GPRS GS2065

GSM/GPRS ONLY TL265GS

ETHERNET & GPRS

POWER SUPPLY RATINGS

• Input Voltage 11.1 ~ 12.6V DC

(From the Panel Bell output)

Bell output shall be derated (subtract current rating

of TL260GS or GS2060 from the 700mA available

from the panel on Bell output)

11.1 ~ 12.6V DC

(From PC-Link Header)

CURRENT CONSUMPTION

• Standby Current 65mA @ 12V 100mA @ 12V 65mA @ 12V 100mA @ 12V

• Alarm (Transmitting) Current 400mA during transmission

• Operating Frequency 850/1900MHz ~ 900/1800MHz

• Antenna Gain 2db

ENVIRONMENTAL SPECIFICATIONS

• Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)

• Humidity 5% ~ 93% RH non-condensing

MECHANICAL SPECIFICATIONS

• Board Dimensions (mm) 100 × 150 × 15 100 × 150 × 18 100 × 150 × 15 100 × 150 × 18

• Weight 310g 320g 68g 78g

Table 2: Compatible Receivers, Control Panels, and Cabinets

COMMUNICATOR RECEIVER/PANEL DESCRIPTION

GS2060/TL260GS

GS2065/TL265GS Receiver • Sur-Gard System I Receiver, version 1.1+

• Sur-Gard System II Receiver, version 2.0+

• Sur-Gard SG-DRL3-IP, version 2.2+

(for Sur-Gard System III Receiver)

GS2060/TL260GS Control Panel

and Cabinets • Power Series PC1864, version 4.1+

• Power Series PC1832, version 4.1+

• Power Series PC1616, version 4.1+

•Cabinets:PC5003C/PC4050C

GS2065/TL265GS Control Panel • PC9155 version 1.0+

INSTALLING THE GSM/ETHERNET COMMUNICATOR

TL260GS/GS2060

Ethernet Cable

The following requirements for installation of CAT5 Ethernet cable must be observed for correct operation of connected equipment.

•DoNOTstripoffcablesheathingmorethan required for proper termination.

• Do NOT kink or knot cable.

• Do NOT crush cable with cable ties.

• Do NOT splice cable.

• Do NOT bend cable at right angles or make any other sharp bends.

NOTE: All cable bends must have a minimum 5cm (2") radius.

• Do NOT untwist CAT5 pairs more than 1.2cm (½”)

• Do NOT exceed maximum 15cm (6”) from center of ferrite to T-Link Network Connector.

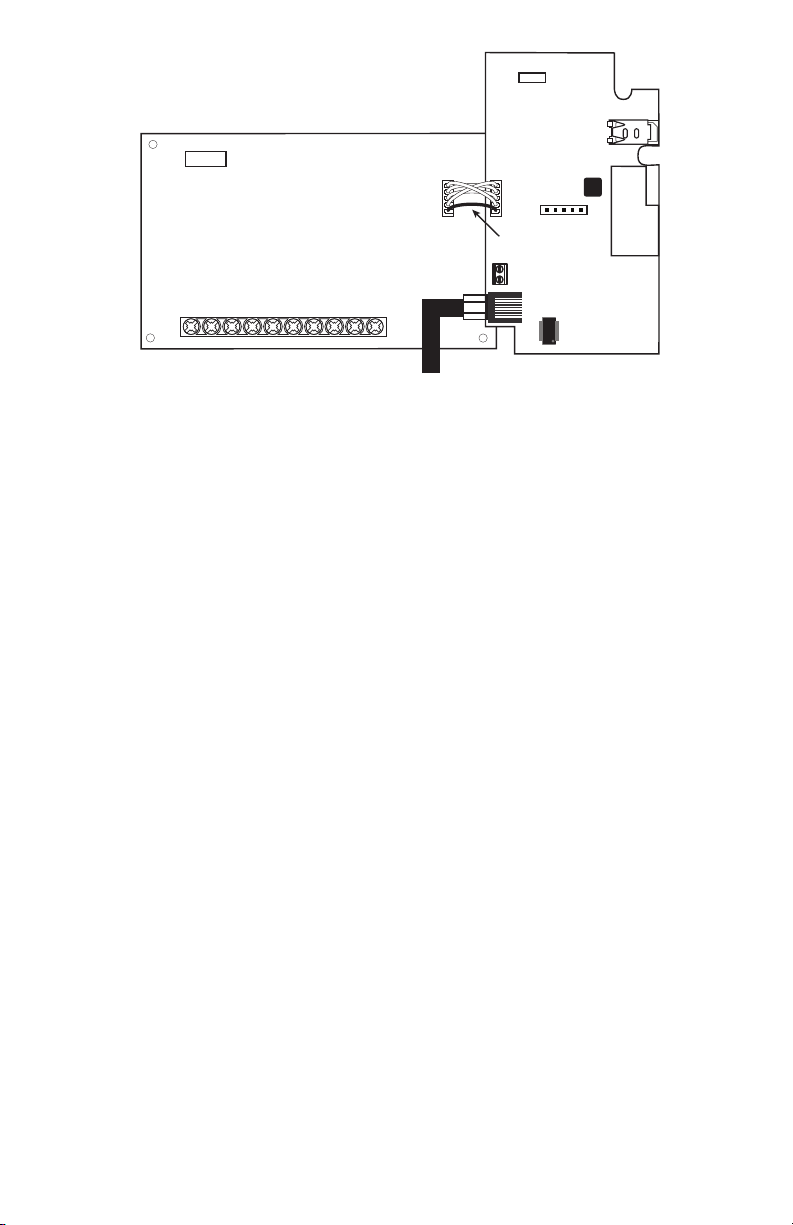

Installation with PC1616/1832/1864 Control Panel

1. Assemble the Communicator

• Remove the four white plastic standoffs from their bag in

the Communicator kit.

• Insert the standoffs in through the back (the antenna

mounting tab will be facing away from you) of the sup-

plied bracket, using the four holes provided for that pur-

pose located at each of the four corners of the bracket.

• Place the bracket on a solid surface. Grasping the edges

of the PCB, keeping the board face up, orient the four

holes on the PCB with the four standoffs protruding from

the bracket. Push the PCB firmly and evenly onto the

standoffs until the PCB is secured to the bracket.

• Remove the antenna cable, white whip antenna, brass

washer, nylon washer with bushing (thick flat washer),

nylon washer (flat), and brass nut from their bag.

• Connect the supplied 12.7cm (5”) antenna cable to the radio by inserting the connector through to the Communicator board from

the back of the bracket, and then pushing the connector firmly into the socket on the radio.

• Place the nylon washer with bushing (thick flat washer) onto the threaded section of the cable. Insert the threaded section up

through antenna mounting tab. Place the second nylon washer (flat), followed by the brass washer and the brass nut, onto the

threaded section of the cable. Tighten the assembly by hand.

NOTE: Ensure the SIM card is inserted on the communicator.

2. Install the Communicator module into the Cabinet.

NOTE: Before installing the TL260GS/GS2060 or inserting/removing the SIM card,

ensure that the system is turned off.

• Remove the cabinet’s front cover.

• Remove the circular knockout located in the top-right section of the cabinet. This

knockout will be used for connection of the supplied antenna.

• Attach the 4-pin PC-Link cable connector to the panel board.

NOTE: Note that the red wire is on the right and the black wire is on the left, whereas

on the Communicator this is reversed.

• Insert the Communicator into the panel cabinet.

• Locate the screw hole in the right hand wall of the panel. Line up the bracket and

the side wall and, using the screw provided, affix the two together (i). Ensure that

the threaded antenna connection point appears through the knockout hole of the

cabinet.

• There are four terminals on the Communicator available for power connection,

labeled PWR PWR GND GND.

• Attach either one of the two PWR terminals to the panel’s BELL+ terminal.

• Attach the other PWR terminal to the positive of the Bell; also, attach the panel’s

BELL-terminal to the negative of the Bell.

• Attach the Communicator’s GND terminal to the panel’s AUX- terminal.

• Locate the 2-terminal block labeled GND SHLD. The SHLD terminal must be wired to the cabinet’s protective earth ground (EGND).

• In the cabinet, locate the plug for the Ethernet cable and affix.

• Reassemble the PC1864 cabinet.

• Attach the supplied antenna onto the antenna connector at the top right-hand side of the cabinet. Care must be taken not to over-

tighten the antenna, as damage to the antenna may occur as a result.

• Ensure the SIM card is inserted on the communicator.

NOTE: The installation procedure for the GS2060 is identical to the above, with the exception that it does not have the Ethernet option.

3. Turn on the panel and check signal strength.

• Power up the unit.

• The red and yellow LEDs will flash together while the communicator is initializing. The red and yellow LED will continue to flash until

the unit has successfully communicated to all programmed receivers. If this is the first time the communicator has been powered

up, the module will request programming from Connect 24. This operation may take several minutes to complete. Do not leave the

installation until the red and yellow LEDs have stopped flashing and there are no troubles indicated by the communicator.

• The green LEDs on the Communicator board will indicate the signal strength. The right-hand green LED must be on and solid - not

flashing - for the location to be acceptable. Please refer to Status LEDs on page 8 for more information.

DG009079

Brass Washer

Nylon washer (flat)

Nylon Washer

with brushing

(thicker flat washer)

Brass nut

Antenna

Mounting Tab

Mounting

Holes

Mounting Holes Antenna

Cable

DG009158

PC-Link Cable Connector

(i)

TL260GS/GS2060 Communicator Wiring Diagram

NOTE: For ULC Commercial Fire Monitoring applications, do NOT connect any devices on the Bell+ terminal other than the TL260GS/

GS2060.

Wiring TL260GS/GS2060 to PC1616/1832/1864 Control Panel

• Remove the circular knock out in the top right-hand corner of the cabinet and mount the TL260GS/GS2060 module in place (secure

using screws supplied).

• Attach the TL260GS/GS2060 antenna to the unit.

• With both the AC and battery disconnected from the DSC control panel, wire the supplied PC-Link cable.

• Wire the Bell+ of the control panel to the TL260GS/GS2060 PWR terminal.

• Wire the AUX- on the control panel to the TL260GS/GS2060 GND.

• Connect the PC-Link Cable

• Insert the connector on the TL260GS/GS2060 with the black wire on Pin 1 of the PC-Link header.

• Insert the other end of the cable on the PC1616/1832/1864 with the red wire on Pin 1 of the PC-Link header.

• Apply AC and DC to the main control panel, the TL260GS/GS2060 and the PC1616/1832/1864 should power up.

• Perform the necessary programming.

NOTE: If a Bell/Siren is not being used, wire the Bell/Siren terminals on the panel with a 1K ohm resistor, then only wire the BELL+ to the

PWR of the TL260GS/GS2060.

Before leaving the premises the Ethernet communication lines must first be connected to an approved (acceptable to local authorities)

type NID (Network Interface Device), (UL installations, UL 60950 listed NID, for ULC installations CAN/CSA C22.2. No. 60950-1 Certified

NID).

Optional Antenna Kits

The TL260GS/GS2060 comes with a standard external GSM radio antenna. If the required GSM signal strength cannot be achieved

using this antenna, the following selection of GSM extension antenna kits are available to the installer:

• GS15-ANTQ - 4.57m (15’) Internal Antenna Extension Kit (suitable for interior mounting only)

• GS25-ANTQ - 7.62m (25’) External Antenna Extension Kit (suitable for exterior mounting only)

• GS50-ANTQ - 15.24m (50’) External Antenna Extension Kit (suitable for exterior mounting only)

Specific instructions for the installation of each extension antenna are included with each kit.

PC1616/1832/1864 Programming

In order that your Communicator and your panel operate correctly together, specific panel options must be set. Take the following steps

to ensure that your Communicator and your panel work together as intended.

These options must be set at the panel keypad.

1. Program the hexadecimal digits (DCAA) in the telephone number that will be used for the GPRS/Ethernet Communicator (panel sec-

tions [301], [302], [303], ‘Telephone Phone Number Programming’).

Panel sections [301], [302], [303]

• If a legitimate telephone number is entered in these options, signal will be communicated using PSTN. If DCAA is entered, signals

will be routed depending on the GS/IP module programming.

• Panel section [301] is Primary communication path, and may be configured either as PSTN or DCAA. Panel section [302] is redun-

dant, and panel section [303] is the backup telephone number to section [301].

NOTE: The leading digit ‘D’ in the telephone number for dial tone detection is pre-programmed.

2. In panel section [350], program the communication format as SIA FSK. If any of the panel telephone numbers have been set to DCAA,

panel section [350] must be set to SIA.

3. In panel sections [351] through [376], program the call direction options for the phone number being used to communicate using the

GPRS/Ethernet Communicator.

DG009161

AUDIO/DEFAULT

DSC

UA557

PC-LINK

GND

PWR

PWR GND GND

SHLD

TL260GS / GS2060

AC AC RED BLK YEL GRN Z1 COM Z2 Z3 COM Z4 Z5 COM Z6 Z7 COM Z8

AUX+ BELL+

AUX- BELL-

PGM1 PGM3 EGND TIP T-1

PGM2 PGM4

RING R-1

PC1616/1832/1864

Radio

SIM Card

Holder

WARNING! All connections to the

TL260GS/GS2060 module are power

limited. Do not route any wiring over the

circuit boards. Maintain at least 1”

(25.4mm) separation between circuit

board and wiring. A minimum of 1/4”

(7mm) separation must be maintained at

all points between non-power limited

wiring and power limited wiring.

UA503

NOTE: For more details, refer to the

control, panel Installation Manual p/n

29007359.

CON 4

See PC-Link wiring

instructionsbelow

To external

antenna

Network Connection

(Available only for model

TL260GS) Use only CAT5

cable (300ft/100m max.)

Supervised

Input Ratings (from Bell Out)

11.1V - 12.6 VDC

100mA standby

400mA Alarm

DSC Panel minimum

power requirements

16 VAC 40 VA transformer

12 VDC 7Ah battery

4. Panel section [382], option [5], ‘T-Link Interface Enabled’ must be set to ON. If this option is OFF, the status LED will indicate the

‘Panel Supervision Trouble’ and the unit could not be programmed via PC-Link cable.

5. Panel section [167]: Set the value to 60 seconds.

6. Panel section [401]: Option [1] must be set to ON in order to perform panel DLS session through GPRS or Ethernet.

TL265GS/GS2065

Establishing a communication channel between the Communicator and the PC9155 Panel

Establishing a communication channel between the Communicator and the panel is critical to ensuring the desired operation of the two

units. These steps must be undertaken during the on-site installation.

1. Proceed to Connect 24 Activation and Initialization on page 3.

2. Wire the telephone line, if available.

3. Wire the PC9155 panel (but not the Communicator).

4. Turn on the PC9155 panel. Program the panel’s telephone number, account code, format, GS/IP module enable, and the communica-

tion path priority (i.e. PSTN ?Ethernet ?GRPS).

5. Turn off the panel.

6. Wire the Communicator through the PC-Link.

Prior to on-site installation, visit the Connect 24 website (www.connect24.com) or telephone the Connect 24 Voice Response Unit

(VRU) at 1-866-910-3865 to activate the SIM card and initialize programming of the Communicator.

NOTE: Keep a record of the SIM card number for future reference.

Due to the nature of the SIM card activation process with GSM network carriers, it can take up to 24 hours for SIM card activation to be

complete.

Installation with PC9155 Control

Panel

1. Attach the Communicator to the inside of the

PC9155 control panel cabinet if not already

present.

NOTES: Install the TL265GS/GS2065 before

turning on the system.

Before inserting or removing the SIM card,

please ensure the unit is turned off.

• Separate the cabinet covers and place the

Communicator in the space provided.

• Attach the 5-pin PC-Link cable to the panel

(see the diagram in this section for orienta-

tion).

• Locate the Ethernet jack on the Communi-

cator and plug in the cable.

• Locate the 2-terminal block (beside the

Ethernet jack) labeled GND SHLD; it is

optional to attach a short wire between

these two terminals for noise reduction if a

shielded network cable is used.

NOTE: Do not attach this wire if the cable

shield is already grounded by the equip-

ment at the other end.

• Ensure the SIM card is inserted on the com-

municator.

2. Turn on the PC9155 cabinet and check signal

strength.

• Power up the unit.

• The red and yellow LEDs will flash together

while the communicator is initializing. The

red and yellow LED will continue to flash

until the unit has successfully communi-

cated to all programmed receivers. If this is

the first time the communicator has been

powered up, the module will request pro-

gramming from Connect 24. This operation

may take several minutes to complete. Do

not leave the installation until the red and yellow LEDs have stopped flashing and there are no troubles indicated by the communi-

cator.

• The green LEDs will indicate the signal strength. The bottom green LED must be On and solid - not flashing - for the location to be

acceptable. Please refer to Status LEDs on page 8 for more information.

FUSEFUSE

3&%

$17(11

3&%

ANTENNA

SIM Card

7RDOWHUQDWHH[WHUQDO

DQWHQQDFRQQHFWLRQ

,QVHUWKHUHILUVW

5('

3&/,1.

3&/,1

1(7:25.

TL265GS/ GS2065

PC9155

SHLGND

BATTERY

DG009156

Red

Wire

Do not disconnect the battery cable from the alarm controller board;

the battery shall be disconnected from the + (PLUS) TERMINAL.

To Remove Connector -

insert small, flat head

screwdriver between cable

and the radio module then

gently pry plug loose.

NOTE: Removal with fingers

may damage the connector.

TL265GS/GS2065 Communicator Wiring Diagram

Optional Antenna Kits

The PC9155 enclosure contains an internal GSM radio antenna. If the required GSM signal strength cannot be achieved using the internal

GSM antenna, the following selection of GSM extension antenna kits are available to the installer:

• GS15-ANTQ - 4.57m (15’) Internal Antenna Extension Kit (suitable for interior mounting only)

• GS25-ANTQ - 7.62m (25’) External Antenna Extension Kit (suitable for exterior mounting only)

• GS50-ANTQ - 15.24m (50’) External Antenna Extension Kit (suitable for exterior mounting only)

Specific instructions for the installation of each extension antenna are included with each kit. Observe all the electrical safety instructions

regarding the installation of the antennas; All the wiring of the equipment shall be fully compliant with the local rules and regulations.

PC9155 Programming

Specific panel sections must be set for the correct operation of the Communicator.

1. With the PC9155 panel, four telephone number are available to backup one another. You can set up these four telephone numbers to

perform in one of two ways: Backup dialling or Alternate dialling.

• In the case of Backup dialling, each of the four telephone numbers will make five dialling attempts in turn, before a FTC (Failure to

Communicate) trouble is generated to the keypad.

• In the case of Alternate dialling, each telephone number makes one dialling attempt before moving on to the next number, cycling

through the four numbers for a total of five times each. At that point, an FTC trouble is displayed on the keypad.

You can choose from among five different paths, according to your particular system requirements:

• DCAA - Internal (Ethernet Receiver 1, Ethernet Receiver 2, GPRS Receiver 1, GPRS Receiver 2)

• DCBB - Ethernet Receiver 1

• DCCC - Ethernet Receiver 2 (backup)

• DCDD - GPRS Receiver 1

• DCEE - GPRS Receiver 2 (backup)

NOTE: Add a single ‘F’ as a suffix to the entry to populate the remainder of the unused field.

Panel sections [301], [302], [303], [305]

• If a legitimate telephone number is entered in these sections, signal will be communicated using PSTN. If DCAA is entered, signals

will be routed depending on the GS/IP module programming. If DCBB, signals will be sent to Ethernet Receiver 1, DCCC = Ethernet

Receiver 2, DCDD = GPRS Receiver 1, DCEE = GPRS Receiver 2.

• Panel sections [301], [302], [303] and [305] can be configured as Primary communication paths. panel sections [302], [303] and

[305] may also be configured for backup or redundant communications by using panel sections [383] or [351] to [376]. Please

refer to PC9155 Installation Manual for more information.

2. Panel section [350]: If any of the panel telephone numbers have been set to DCAA through DCEE, panel section [350] must be set to

SIA.

3. Panel section [382]: option [5], ‘GS/IP Module Enabled’, must be set to ON. If this option is OFF, the status LED will indicate the ‘Panel

Supervision Trouble’ and the unit could not be programmed via PC-Link cable.

4. Panel section [167]: Set the value of this option to 60 seconds.

5. Panel section [401]: Option [1] must be set to ON in order to perform panel DLS session through GPRS or Ethernet.

DG009162

Network Connection

(Available only for model TL265GS)

Use only CAT5 cable (300ft/100m max.)

Supervised.

PC9155D

PC9155G

AUDIO/DEFAULT

DSC

UA557

PC-LINK

GND SHLD

TL265GS / GS2065

T-1 R-1 TIP RING IO2 IO1 -AUX AUX+ AC AC

NOTE: Model PC9155D usesthe dual alarm

communicator GSM-GPRS/IP model TL265GS.

Model PC9155G usesthe GSM-GPRS only

communicator, model GS2065.

NOTE: For wiring detailsfor the PC9155,

refer to Installation Manual p/n 29007510.

UA558

Radio

SIM Card

Holder

RED

Red

Wire

INPUT RATINGS (from PC-Link)

11.1V - 12.6 VDC

100mA standby

400mA Alarm

The module has four onboard LED indicators. These include a Trouble Status LED , a Network Connection Status LED, and two Signal

Strength LEDs.

Trouble Status LED

This Yellow LED will flash to indicate a trouble on the unit. The number of flashes indicates the type of trouble. See the table below for the

types of conditions which will activate the Trouble Status LED.

The following conditions will cause this trouble to indicate:

Panel Supervision Trouble

This trouble will be indicated when communication between the Communicator module and the control panel fails. If for some reason the

module can not communicate with the panel - e.g., loss of power to the panel - the module itself will send a ‘Panel Absent Trouble Event’

message to the central station receiver. When communication returns, a ‘Panel Absent Restore Event’ is sent by the module to the central

station receiver. Its reporting codes are ET0001 for Trouble, ER0001 for Restore. The panel absent event always uses the primary

receiver account code when communicated to the central station.

NOTE: The Panel Supervision Trouble/Restore is an internally generated event by the module. It is the only internal event; all other events

are generated by the control panel.

SIM Lock Trouble

This trouble will signify that the SIM lock feature has been enabled and the unit has not been programmed with the correct PIN for the

SIM card. SIM Card Lockout Trouble equates to SIM Lock Trouble or Network Lock Trouble.

GSM Trouble

This trouble is indicated for any one of the following conditions: Radio Failure, SIM Failure, GSM Network Trouble, Insufficient Signal

Strength.

Ethernet Trouble

This trouble is indicated when the Ethernet link between the transmitter and the local hub or router is absent. In addition, this trouble will

be indicated if the unit fails to receive an IP address from the DHCP server.

Receiver Not Available

This trouble is triggered if the unit is not able to successfully initialize with any of the programmed receivers.

Receiver Supervision Trouble

This trouble is indicated when receiver supervision is enabled and communication between the communicator module and the receiver

fails.

FTC Trouble

This trouble is indicated when the unit fails to communicate module events to the central station.

Connect 24 Configuration SMS Failure

This trouble is indicated when the unit fails to receive programming from Connect 24.

Remote Programming

This indication is displayed during a remote firmware upgrade.

Network Connection Status LED

The normal state of the Red Network Connection Status LED is Off when there are no network connection issues present.

This LED will activate when there is an issue with either the Ethernet or the GPRS network connection. This LED will be triggered:

• If the physical Ethernet cable is not connected

• If the DHCP configuration fails

• If the unit fails to get an IP address from the GPRS network

• When the GPRS connection has been reset

Signal Strength LEDs

The two Green signal strength LEDs are used to display the radio’s signal strength: Green 1 , Green 2

NOTE: If during installation the radio signal strength weakens, the unit must be relocated. Should relocation of the unit be insufficient in

improving the radio signal strength, an antenna extension may be added.

Network Activity Indication

• Ethernet Activity: The Network Connection Status LED will blink quickly once (Ethernet TX) or twice (Ethernet RX).

• GPRS Activity: The Green 2 Signal Strength LED will blink quickly once (GPRS TX) or twice (GPRS RX).

STATUS LEDS

Table 3: Trouble Status LED

# OF FLASHES TROUBLE # OF FLASHES TROUBLE

1 Reserved 7 Receiver Not Available

2 Panel Supervision Trouble 8 Receiver Supervision Trouble

3 Reserved 9 FTC Trouble

4 SIM Lock Trouble 10 Connect 24 Configuration SMS Failure

5 GSM Trouble 11 Remote Programming

6 Ethernet Trouble 12 Remote Firmware Update Pending

Table 4: Radio Signal Strength

SIGNAL STRENGTH DESCRIPTION DB LEVELS RESPONSE

None Green 1 - Off; Green 2 - Off; Yellow - On no signal Check the Antenna Connection

Insufficient Green 1 - Off; Green 2 - Off; Yellow - 5 Flashes -100db to -110db The unit must be relocated

Low Green 1 - Flashing; Green 2 - Off -99db to -92db Relocate the unit, if possible

Medium Green 1 - On; Green 2 - Off -91db to -77db Unit placement is acceptable

Full Green 1 - On; Green 2 - On -76db and higher Unit placement is acceptable

Adding an Antenna Extension

In the case of poor signal strength, an Antenna Extension Bracket kit may be required to rectify it. Take the following steps to install an

antenna extension kit:

1. Turn off the power to the Communicator by physically unplugging the unit from its power supply.

2. Attach one end of the extension cable to the Communicator and the other end to the antenna itself.

3. Reattach the power supply and power up.

4. Move the antenna around until you have received a strong signal.

5. Mount the antenna bracket at that location.

Hardware Default Jumper

You can reset the programming options for the Communicator to the

factory settings. Perform the following steps:

1. Locate the set of five pins in the middle of the Communicator board

labeled AUDIO/DEFAULT.

In the PC1616/1832/1864 panels these pins will be vertically

aligned; In the PC9155 enclosure, these pins will be horizontally

aligned.

Counting from the bottom or the left, the first three pins are reserved

for future use. You may discount these.

The final two pins require a jumper in order to reset the hardware val-

ues.

2. Turn off the power to the Communicator module.

3. Apply the jumper to the two hardware default pins.

4. Turn on the power to the Communicator module. Then wait for the

two green LEDs to flash rapidly.

5. Remove the jumper from the hardware default pins.

The programming options of your Communicator have now been reset to their default values.

Communicator Troubles on a PC1616/1832/1864 Panel

The General System trouble is the sole trouble that will appear on the keypad LCD when encountered by a Communicator on the

PC1616/1832/1864 panel. For more information about the trouble on the communicator module see the panel event buffer.

•T-Link Network Fault/Restore: This log will occur for the following trouble conditions: SIM Lock Trouble, GSM Trouble, Ethernet Trou-

ble, Connect 24 Configuration Trouble.

•T-Link Receiver Trouble/Restore: This log will occur for the following trouble conditions: Receiver Not Available Trouble, Receiver

Supervision Trouble, FTC Trouble.

•T-Link Comm. Fault/Restore: This log will occur when the panel loses communications with the communicator module.

Communicator Troubles on a PC9155 Panel

The following troubles will appear on the keypad LCD when encountered by a Communicator on the PC9155 panel.

During the Software Update:

The firmware of the device can be updated through the DLS IV software.

• When the firmware update begins, all LEDs are On.

• During the firmware update process, the LEDs will be cycled through individually.

• After a successful update the unit will restart.

• Should the update fail, the unit LEDs will turn On, then Off at one-second intervals.

• Should this occur, restart the unit. In the event of consistent update failures, contact your dealer.

Encryption

This device uses 128 Bit AES Encryption. Encryption can only be enabled from the monitoring station receiver. Each receiver can inde-

pendently have encryption enabled or disabled. When encryption is enabled at the central station, the central station will configure the

device to encrypt communications to that receiver the next time the communicator module performs a communication to that receiver.

Note that packets will start being encrypted only after the next event is sent to that receiver, or if the unit is re-started.

Power Save Mode

The TL265/GS2065 models have a power save mode feature. If there is an AC power loss on the PC9155 control panel, the system will

enter power save mode to extend battery duration. During power save mode, the Ethernet functionality is turned off and will only turn on

if an event needs to be transmitted. When in power save mode, incoming DLS connections will not be possible. Outgoing SMS initiated

DLS sessions are possible while the unit is in power save mode. The Link activity LED on the network interface device will also be off

when the unit is in power save mode.

Table 5: Communicator Troubles on a PC9155 Panel

TROUBLE CONDITION DESCRIPTION USER ACTION

Alternate Communicator Trouble GSM trouble, Ethernet trouble, Central station receiver trouble, supervision config

SMS trouble for GS/IP module (if installed). Press < > to scroll through troubles. Call for service. For Ethernet

trouble check LAN connec-

tions.

AUDIO/DEFAULT

DSC

UA557

PC-LINK

DG009054

These options are programmed through Connect 24.

System Options

The system options are programmed through Connect 24. You may review the current programming options in the device by entering

installers section [851] from the control panel.

Note that all sections accessed through the keypad are for display purposes only. The only way to modify configuration of the communi-

cator module is through Connect 24.

[001] Ethernet IP Address

Default (0.0.0.0)

NOTE: If section [001] is set to ‘0.0.0.0’, DHCP will set all values for the Ethernet IP Address, Subnet Mask, and Gateway.

Enter the IP address of the dual communicator. Take care to ensure that the IP address is unique to your communicator on the local

network. The IP address must be entered as a dotted decimal number in 3-digit segments (e.g. 192.168.001.100). Each 3-digit seg-

ment of the IP address must be within a valid range of 000 to 255.

[002] Ethernet IP Subnet Mask

Default (255.255.255.000)

Enter the Ethernet IP Subnet Mask address of the dual communicator. The subnet mask must be entered as a dotted decimal number

in 3-digit segments (e.g. 255.255.255.000). Each 3-digit segment of the address must be within a valid range of 000 to 255.

[003] Ethernet Gateway IP Address

Default (0.0.0.0)

Enter the Ethernet Gateway IP address of the dual communicator. The address must be entered as a dotted decimal number in 3-digit

segments (e.g. 192.168.001.001). Each 3-digit segment of the address must be within a valid range of 000 to 255. The gateway is

used in the event that the destination address is not on the local network in which case the data will need to be sent through a router.

This is the address of that router.

[004] Heartbeat Interval

Default (0087) 135 seconds

When receiver supervision is enabled (section [005], option [1] or [2]) the unit sends heartbeats to Ethernet Receiver 1 or GPRS

Receiver 1 to test the communication path. Use this option to set the interval time in seconds at which heartbeats will be sent. Valid

entries range from 0000 to FFFF seconds.

•Receiver Window: This is the supervision time out that needs to be configured at the central station receiver.

•Recommended Values: This is the recommended heartbeat interval that should be programmed into the communicator module.

NOTE: For ULC passive systems (not using heartbeat supervision) it is required to have enabled the daily test transmission over each

available communication channel.

When programming with Connect 24, the recommended intervals will be programmed automatically by selecting the required win-

dow.

[005] System Toggle Options

[1] Ethernet Receiver 1 Supervision Default (OFF)

ON: Ethernet Receiver 1 will be supervised, heartbeats will be sent to Ethernet Receiver 1 based on the supervision interval

programmed in section [004].

OFF: Ethernet Receiver 1 will not be Supervised.

NOTE: Ethernet Receiver 2 can not be supervised.

[2] GPRS Receiver 1 Supervision Default (OFF)

ON: GPRS Receiver 1 will be supervised, heartbeats will be sent to GPRS Receiver 1 based on the supervision interval pro-

grammed in section [004].

OFF: GPRS Receiver 1 will not be Supervised.

NOTE: GPRS Receiver 2 can not be supervised.

[3] Supervision Type Default (OFF)

ON: Commercial Supervision - This supervision type is suitable for applications where swap detection is required on the

supervisory packet.

OFF: Residential Supervision - This supervision type is suitable for applications where supervision of the communication

path to the receiver is required.

NOTE: Commercial supervision is more data intensive then residential supervision and should only be used when required to

meet the approval for the installation.

[4] Primary Communication Path Default (OFF - TL260GS/TL265GS, ON - GS2060/GS2065)

ON: GPRS channel is the primary path, Ethernet channel is the secondary path.

OFF: Ethernet channel is the primary path, GPRS channel is the secondary path.

NOTE: When the communicator receives an SMS request to connect to DLS, it will use the primary path first to connect to

DLS, and if that fails it will try the secondary path.

[5] Redundant Communications Default (OFF)

ON: Events will be communicated to Ethernet Receiver 1 and GPRS Receiver 1 at the same time. Events will be communi-

cated to Ethernet Receiver 2 and GPRS Receiver 2 at the same time.

OFF: Events will be communicated to receivers individually.

NOTES: When using redundant communications, do not configure Ethernet receiver 1 and GPRS receiver 1 to

communicate using a common receiver configuration (same Receiver IP address and Receiver Remote Port).

PROGRAMMING OPTIONS

Table 6: Window Times

JURISDICTION RECEIVER WINDOW RECOMMENDED SUPERVISION INTERVAL

UL Commercial Burglary 200 seconds 135 seconds

UL Residential Fire 30 days Panel Test Transmission

UL Residential Burglary 30 days Panel Test Transmission

ULC Commercial Burglary Active 180 seconds 90 seconds

ULC Commercial Burglary Passive 24 hours Panel Test Transmission

ULC Commercial Fire Active 180 seconds 115 seconds

ULC Commercial Fire Passive 24 hours Panel Test Transmission

When using redundant communications, do not configure Ethernet receiver 2 and GPRS receiver 2 to communi

cate using a common receiver configuration (same Receiver IP address and Receiver Remote Port).

When redundant communications is enabled the communicator will send events to both receivers at the same

time. As long as the event is successfully communicated to one of the two paths the communicator will move on

to the next event. Therefor redundant communications is not suitable for applications where it is required for

guaranteed message delivery to both receivers.

[6] Remote Firmware Upgrade Default (ON)

ON: The communicator module can be remote firmware upgraded using the Ethernet path

OFF: The communicator module can not be remotely firmware upgraded. Local firmware upgrade is still possible.

[7] Reserved

[8] Reserved

Programming Options

[011] Installer Code

Default (CAFE)

This option is used to program the installer code of the Communicator module. Valid entries range from 0000 to FFFF hexadecimal.

[012] DLS Incoming Local Port

Default (0BF6 / 3062)

The DLS Port is the port DLS IV will use when connecting to the Communicator. The router or gateway must be programmed with a

TCP port forward for this port to the communicator module IP address. Valid entries range from 0000 to FFFF hexadecimal.

[013] DLS Outgoing Local Port

Default (0BF8 / 3066)

The DLS local port is used when the Communicator is connecting to DLS IV after the SMS request has been sent to the communica-

tor. You can use this option to set the value of the local outgoing port. This should be used if the communicator is located behind a fire-

wall and must be assigned a particular port number, as determined by your network administrator. In most cases, changing the

default value or configuring your firewall with this port is not required. Valid entries range from 0000 to FFFF hexadecimal.

[021] System Account code

Default (FFFFFF)

The system account code is used when transmitting any events generated by the communicator. (Panel Absent Trouble, Periodic Test

Report, etc.) It is recommended to program the account code to be the same as the control panel account number. Valid entries range

from 000001 to FFFFFE. If 4 digit account codes are needed the last 2 digits should be programmed as FF; i.e. 1234FF.

[023] Panel Absent Trouble

Default (FF)

Program 00 to disable this event transmission or FF to enable. This event will occur when communications with the control panel has

been lost.

[024] Panel Absent Trouble Restore

Default (FF)

Program 00 to disable this event transmission or FF to enable. This event will occur when communications with the control panel has

resumed.

[025] Radio Activation Restore

Default (FF)

Program 00 to disable this event transmission or FF to enable. This event will occur after any successful Connect 24 programming

session.

[026] Ethernet 1 Test Transmission

Default (FF)

Program 00 to disable this event transmission or FF to enable. The Ethernet 1 test transmission will occur at the programmed time and

interval programmed in sections [124] and [125]. This test transmission will be sent to Ethernet receiver 1, and will backup to Ether-

net receiver 2 if programmed.

[028] GPRS 1 Test Transmission

Default (FF)

Program 00 to disable this event transmission or FF to enable. The GPRS 1 test transmission will occur at the programmed time and

interval programmed in sections [224] and [225].

If GPRS Receiver 1 and GPRS Receiver 2 are programmed with the same APN, the GPRS 1 test transmission will be sent to GPRS

receiver 1, and will backup to GPRS receiver 2 if programmed.

If GPRS Receiver 1 and GPRS Receiver 2 are programmed with 2 different APN's then the GPRS 1 test transmission will be sent to

GPRS receiver 1 only.

[029] GPRS 2 Test Transmission

Default (FF)

Program 00 to disable this event transmission or FF to enable. The GPRS 2 test transmission will occur at the programmed time and

interval programmed in sections [224] and [225].

The GPRS 2 test transmission event will be used when GPRS Receiver 1 and GPRS Receiver 2 are programmed with 2 different

APN's. The GPRS 2 test transmission will be sent to GPRS receiver 2 only.

[030] FTC Restore

Default (FF)

Program 00 to disable this event transmission or FF to enable. This event will occur when an FTC condition on the system restores.

Ethernet Receiver 1 Options

(Required for TL260GS/TL265GS only)

[101] Ethernet Receiver 1 Account Code

Default (0000000000)

The account code is used by the central station to distinguish between transmitters. This account code is used when transmitting

heartbeat signals to the central station receiver. Signals received from the control panel will use the control panel account number.

Valid entries range from 0000000000 to FFFFFFFFFF hexadecimal.

NOTE: If both, Ethernet receiver 1 and GPRS Receiver 1 are the same receiver (IP and port are identical), only Ethernet receiver 1

account will be used for both. Account 0000000000 and FFFFFFFFFF are not considered valid account numbers and can not be used.

[102] Ethernet Receiver 1 DNIS

Default (000000)

The DNIS is used in addition to the Account Code to to identify the Communicator module as the central station. Valid entries range

from 000000 to FFFFFF hexadecimal.

[103] Ethernet Receiver 1 IP Address

Default (127.0.0.1)

Enter the Ethernet receiver 1 IP address. This information will be provided by your central station. Note that when a valid address has

been entered, the Ethernet will be considered to be enabled and will communicate events over the Ethernet channel. The address must

be entered as four 3-digit entries (e.g. 192.168.1.101). Each 3-digit segment of the address must be within a valid range of 000 to

255.

Programming the Ethernet Receiver 1 IP address with 127.0.0.1 enables the Communicator to operate in Unattended Mode. Unat-

tended Mode is used when a receiver is not available and the unit is required to perform DLS sessions. A typical application is an

installation where the customer programs the control panel daily due to access control and still wants to receive alarms without buy-

ing extra hardware (receiver) or software.

Ethernet Receiver 1 and GPRS Receiver 1 may be configured to communicate to the same central station receiver. To configure the

device to operate using this common receiver mode functionality program the Ethernet Receiver 1 and GPRS Receiver 1, IP address

and port with the same values. When operating under this mode the Ethernet Receiver 1 account code will be used for communica-

tions over Ethernet and GPRS.

[104] Ethernet Receiver 1 Remote Port

Default (0BF5 / 3061)

This option determines the port of Ethernet receiver 1. Valid entries range from 0000 to FFFF hexadecimal.

[105] Ethernet Receiver 1 Local Port

Default (0BF4 / 3060)

You can use this option to set the value of the local outgoing port. You can set the value of this port in case your installation is located

behind a firewall and must be assigned a particular port number as determined by your network administrator. Valid entries range

from 0000 to FFFF hexadecimal.

Ethernet Receiver 2 Options

(Required for TL260GS/TL265GS only)

[111] Ethernet Receiver 2 Account Code

Default (0000000000)

The account code is used by the central station to distinguish between transmitters. This account code is used when transmitting

heartbeat signals to the central station receiver. Signals received from the control panel will use the control panel account number.

Valid entries will range from 0000000000 to FFFFFFFFFF hexadecimal.

NOTE: If both, Ethernet receiver 2 and GPRS Receiver 2 are the same receiver (IP and port are identical), only Ethernet receiver 2

account will be used for both.

[112] Ethernet Receiver 2 DNIS

Default (000000)

The DNIS is used in addition to the Account Code to to identify the Communicator module as the central station. Valid entries range

from 000000 to 0FFFFF hexadecimal.

[113] Ethernet Receiver 2 IP Address

Default (0.0.0.0)

Enter the Ethernet receiver 2 IP address. This information will be provided by your central station. Note that when a valid address has

been entered, the Ethernet will be considered to be enabled and will communicate events over the Ethernet channel. The address must

be entered as four 3-digit entries (e.g. 192.168.1.101). Each 3-digit segment of the address must be within a valid range of 000 to

255. Programming the Ethernet receiver 2 IP address as 0.0.0.0 will disable Ethernet.

Ethernet Receiver 2 and GPRS Receiver 2 may be configured to communicate to the same central station receiver. To configure the

device to operate using this common receiver mode functionality program the Ethernet Receiver 2 and GPRS Receiver 2, IP address

and port with the same values. When operating under this mode the Ethernet Receiver 2 account code will be used for communica-

tions over Ethernet and GPRS.

NOTE: Do not program Ethernet Receiver 1 and Ethernet Receiver 2 to communicate to the same receiver.

[114] Ethernet Receiver 2 Remote Port

Default (0BF5 / 3061)

This option determines the port of Ethernet receiver 2. You can set the value of this port in case your installation is located behind a

firewall, and must be assigned a particular port number as determined by your central station system administrator. Valid entries

range from 0000 to FFFF hexadecimal.

NOTE: Do not program Ethernet Receiver 1 Local Port and Ethernet Receiver 2 Local Port with the same values.

[115] Ethernet Receiver 2 Local Port

Default (0BF9 / 3065)

You can use this option to set the value of the local outgoing port. You can set the value of this port in case your installation is located

behind a firewall and must be assigned a particular port number as determined by your network administrator. Valid entries range

from 0000 to FFFF hexadecimal. Do not program Ethernet Receiver 1 Local Port and Ethernet Receiver 2 Local Port with the same

value.

[124] Ethernet Test Transmission Time of Day

Default (9999)

Enter a 4-digit time using the 24-hour clock format (HH:MM) to set the test transmission time of day. Valid entries are from 00 to 23

for the hours (HH) and 00 to 59 for the minutes (MM). To disable the test transmission time of day enter 9999 in this section.

NOTE: The internal date and time will automatically be programmed when it communicates with the primary receiver.

[125] Ethernet Test Transmission Cycle

Default (000000)

This value represents the interval in between test transmissions in minutes. This section can be programmed with

000000 to 999999 minutes. Once the unit has sent the initial periodic test transmission, all future test transmissions will be offset by

the programmed number of minutes.

NOTE: The minimum programmable valid interval is 5 minutes, programming an interval of less then 5 minutes will disable the test

transmission.

GPRS Receiver 1 Options

[201] GPRS Receiver 1 Account Code

Default (0000000000)

The account code is used by the central station to distinguish between transmitters. This account code is used when transmitting

heartbeat signals to the central station receiver. Signals received from the control panel will use the control panel account number.

Valid entries will range from 0000000000 to FFFFFFFFFF hexadecimal.

[202] GPRS Receiver 1 DNIS

Default (000000)

The DNIS is used in addition to the Account Code to to identify the Communicator module as the central station. Valid entries range

from 000000 to 0FFFFF hexadecimal.

[203] GPRS Receiver 1 IP Address

Default (0.0.0.0)

Enter the GPRS receiver 1 IP address. This information will be provided by your central station. Note that when a valid address has

been entered, the GPRS will be considered to be enabled and will communicate events over the GPRS channel. The address must be

entered as four 3-digit entries (e.g. 192.168.1.101). Each 3-digit segment of the address must be within a valid range of 000 to 255.

[204] GPRS Receiver 1 Remote Port

Default (3061)

This option determines the port of GPRS receiver 1. You can set the value of this port in case your installation is located behind a fire-

wall, and must be assigned a particular port number as determined by your central station system administrator. Valid entries range

from 0000 to FFFF hexadecimal.

[205] GPRS Receiver 1 APN

Default ( )

The APN (Access Point Name) identifies the GPRS network the communicator will connect to. This information is available from your

network carrier.

GPRS Receiver 2 Options

[211] GPRS Receiver 2 Account Code

Default (0000000000)

The account code is used by the central station to distinguish between transmitters. This account code is used when transmitting sig-

nals to the central station receiver. Signals received on the control panel will use the control panel account number. Valid entries will

range from 0000000000 to FFFFFFFFFF hexadecimal.

[212] GPRS Receiver 2 DNIS

Default (000000)

The DNIS is used in addition to the Account Code to to identify the Communicator module as the central station. Valid entries range

from 000000 to 0FFFFF hexadecimal.

[213] GPRS Receiver 2 IP Address

Default (0.0.0.0)

Enter the GPRS receiver 2 IP address. This information will be provided by your central station. Note that when a valid address has

been entered, the GPRS will be considered to be enabled and will communicate events over the GPRS channel. The address must be

entered as four 3-digit entries (e.g. 192.168.1.101). Each 3-digit segment of the address must be within a valid range of 000 to 255.

[214] GPRS Receiver 2 Remote Port

Default (3061)

This option determines the port of GPRS receiver 2. You can set the value of this port in case your installation is located behind a fire-

wall, and must be assigned a particular port number as determined by your central station system administrator. Valid entries range

from 0000 to FFFF hexadecimal.

NOTE: Do not program GPRS Receiver 1 and GPRS Receiver 2 to communicate to the same receiver.

[215] GPRS Receiver 2 APN

Default ( )

The APN (Access Point Name) identifies the GPRS network the communicator will connect to. This information is available from your

network carrier.

GPRS Options

[221] GPRS Public APN

Default ( )

When your communicator is operating on a private APN, you can use this option to switch to a public APN for DLS sessions. This

information is available from your network carrier.

The APN (Access Point Name) identifies the GPRS network the communicator will connect to.

[222] GPRS Login User Name

Default ( )

Some network carriers require you to provide login credentials when connecting to an APN. Enter your login user name here.

[223] GPRS Login Password

Default ( )

Some network carriers require you to provide login credentials when connecting to an APN. Enter your login password here.

[224] GPRS Test Transmission Time of Day

Default (9999)

Enter a 4-digit time using the 24-hour clock format (HH:MM) to set the test transmission time of day. Valid entries are from 00 to 23

for the hours (HH) and 00 to 59 for the minutes (MM). To disable the test transmission time of day enter 9999 in this section.

The internal date and time will automatically be programmed when it communicates with the primary receiver.

Table 7: Ethernet Test Transmission Interval

TEST TRANSMISSION INTERVAL PROGRAMMED MINUTES

Daily

Weekly

Monthly

001440

010080

043200

[225] GPRS Test Transmission Cycle

Default (000000)

This value represents the interval in between test transmissions in minutes. This section can be programmed with

000000 to 999999 minutes. Once the unit has sent the initial periodic test transmission, all future test transmissions will be offset by

the programmed number of minutes.

If the unit is configured with 2 different APN's, and a GPRS test transmission occurs, both GPRS receivers will be

tested independently.

• If receiver 3 fails its test transmission attempts, an FTC receiver 3 will be generated.

• If receiver 4 fails its test transmission attempts, an FTC receiver 4 will be generated.

• A successful communication is required over each path for the corresponding FTC trouble to clear.

NOTE: The minimum programmable valid interval is 5 minutes, programming an interval of less then 5 minutes will disable the test

transmission.

System Information

[991] Firmware Version

This section will display the firmware version of the device.

[992] Ethernet IP Address

This section will display the IP address of the Ethernet connection. This is useful when the unit is configured for DHCP and you need

to see what IP address was assigned to the device by the network.

[993] Ethernet Gateway IP Address

This section will display the IP address of the Ethernet Gateway. This is useful when the unit is configured for DHCP and you need to

see what gateway IP address was assigned to the device by the network.

[994] GPRS IP Address

This section will display the current IP address of the GPRS connection.

[995] SIM Number

This section will display the SIM number of the SIM card inserted in the communicator module.

[996] GSM Phone Number

This section will display the GSM telephone number of the device.

[997] IMEI Number

This section will display the IMEI of the radio.

[998] MAC Address

This section will display the MAC address of the device.

[999] Module Default / Module Reset

Default (99)

Enter 00 to default all programming options in the module back to their factory settings. This will erase all existing programming of the

unit.

Enter 55 to reset the module. This is equivalent to power cycling the module.

Reporting Codes

SIA Format - Level 2 (Hard coded)

The SIA communication format used in this product follows the level 2 specifications of the SIA Digital Communication Standard -

October 1997. This format will send the Account code along with its data transmission. The transmission will look similar to the fol-

lowing at the receiver:

Nri0 ET001

N = New Event

ri0 = Partition/Area identifier

ET = Panel Absent Trouble

001 = Zone 001

Reporting Code Identifiers

Event SIA Data Code SIA Address field

Panel Absent Trouble ET 001

Panel Absent Trouble Restore ER 001

Radio Activation Restore RS 001

Ethernet 1 Test Transmission RP 001

GPRS 1 Test Transmission RP 003

GPRS 2 Test Transmission RP 004

FTC Restore YK 001

(GPRS 2 Test Transmission will only be sent when two different APNs are programmed.)

Table 8: Ethernet Test Transmission Interval

TEST TRANSMISSION INTERVAL PROGRAMMED MINUTES

Daily

Weekly

Monthly

001440

010080

043200

System Options

[001] Ethernet IP Address

Default (0.0.0.0); Each 3-digit segment of the IP address must be

within a valid range of 000 to 255.

|____|____|____| |____|____|____| |____|____|____| |____|____|____|

[002] Ethernet IP Subnet Mask

Default (255.255.255.000); Each 3-digit segment of the address must

be within a valid range of 000 to 255.

|____|____|____| |____|____|____| |____|____|____| |____|____|____|

[003] Ethernet Gateway IP Address

Default (0.0.0.0); Each 3-digit segment of the address must be within a

valid range of 000 to 255.

|____|____|____| |____|____|____| |____|____|____| |____|____|____|

[004] Heartbeat Interval

Default (0087) 135 seconds; Valid entries range from 0000 to FFFF

seconds.

|____|____|____|____|

[005] System Toggle Options

|____| [1] Ethernet Receiver 1 Supervised Default (OFF)

|____| [2] GPRS Receiver 1 Supervised Default (OFF)

|____| [3] Supervision Type Default (OFF)

|____| [4] Primary Comms Channe Default (OFF - TL260GS

TL265GS, ON - GS2060/GS2065)

|____| [5] Redundant Communications Default (OFF)

|____| [6] Remote Firmware Upgrade Default (ON)

|____| [7] Reserved Default (OFF)

|____| [8] Reserved Default (OFF)

Programming Options

[011] Installer Code

Default (CAFE); Valid entries range from 0000 to FFFF hexadecimal.

|____|____|____|____|

[012] DLS Incoming Local Port

Default (0BF6 / 3062); Valid entries range from 0000 to FFFF hexadeci-

mal.

|____|____|____|____|

[013] DLS Outgoing Local Port

Default (0BF8 / 3066); Valid entries range from 0000 to FFFF hexadeci-

mal.

|____|____|____|____|

[021] System Account code

Default (FFFFFF); Valid entries range from 000001 to FFFFFE.

|____|____|____|____|____|____|

[023] Panel Absent Trouble
