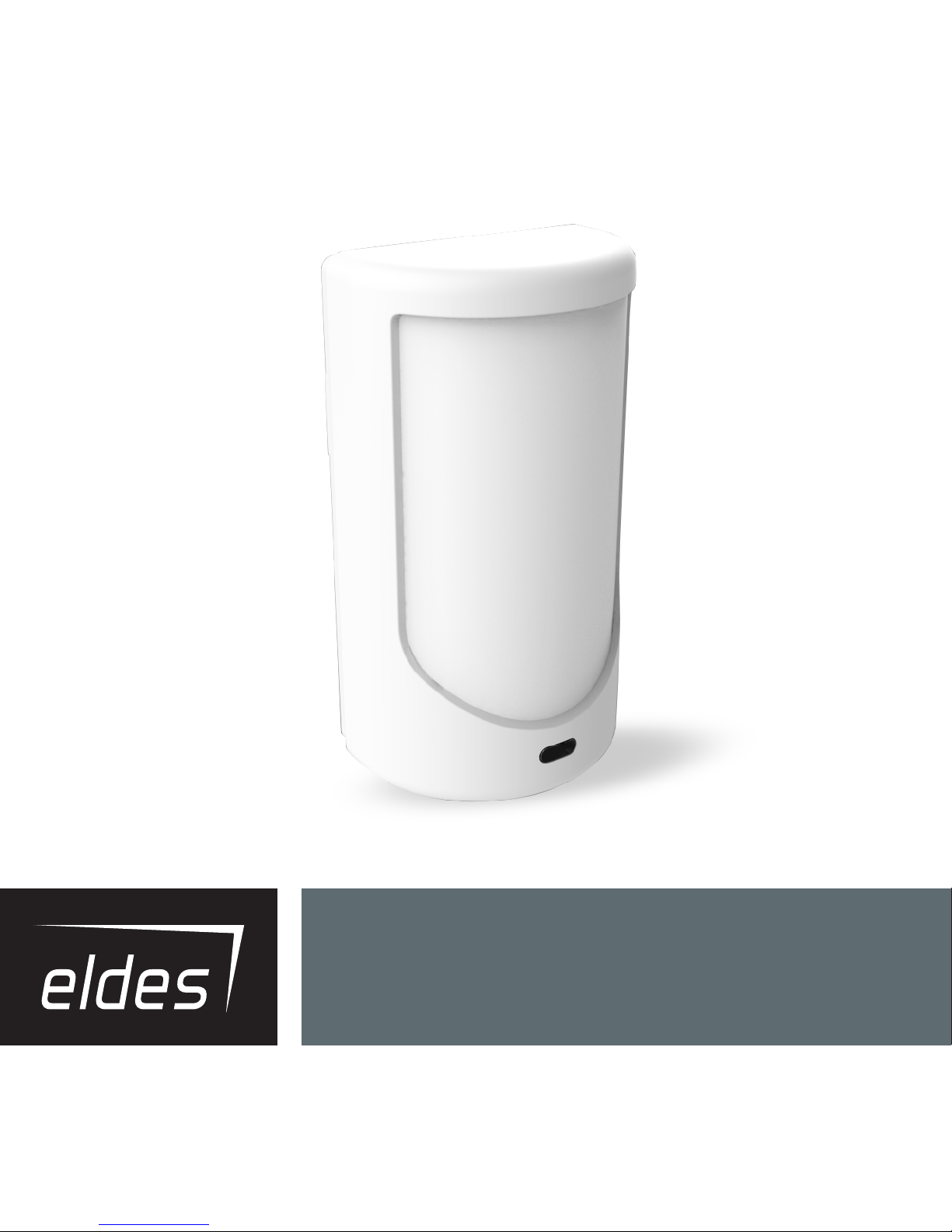

Eldes EPIR3 User manual

EPIR3GSM Alarm System

Contents
Technical Specications............................................................................................................................. 4
Components of the EPIR3 security system .............................................................................................. 5
1. 7-STEP START GUIDE.............................................................................................................................. 6
OVERVIEW ............................................................................................................................................................................. 6
2. QUICK START GUIDE ............................................................................................................................... 9
2.1. How and where to x the holder to the wall.......................................................................................................... 9
2.2. Prepare the SIM card................................................................................................................................................ 12

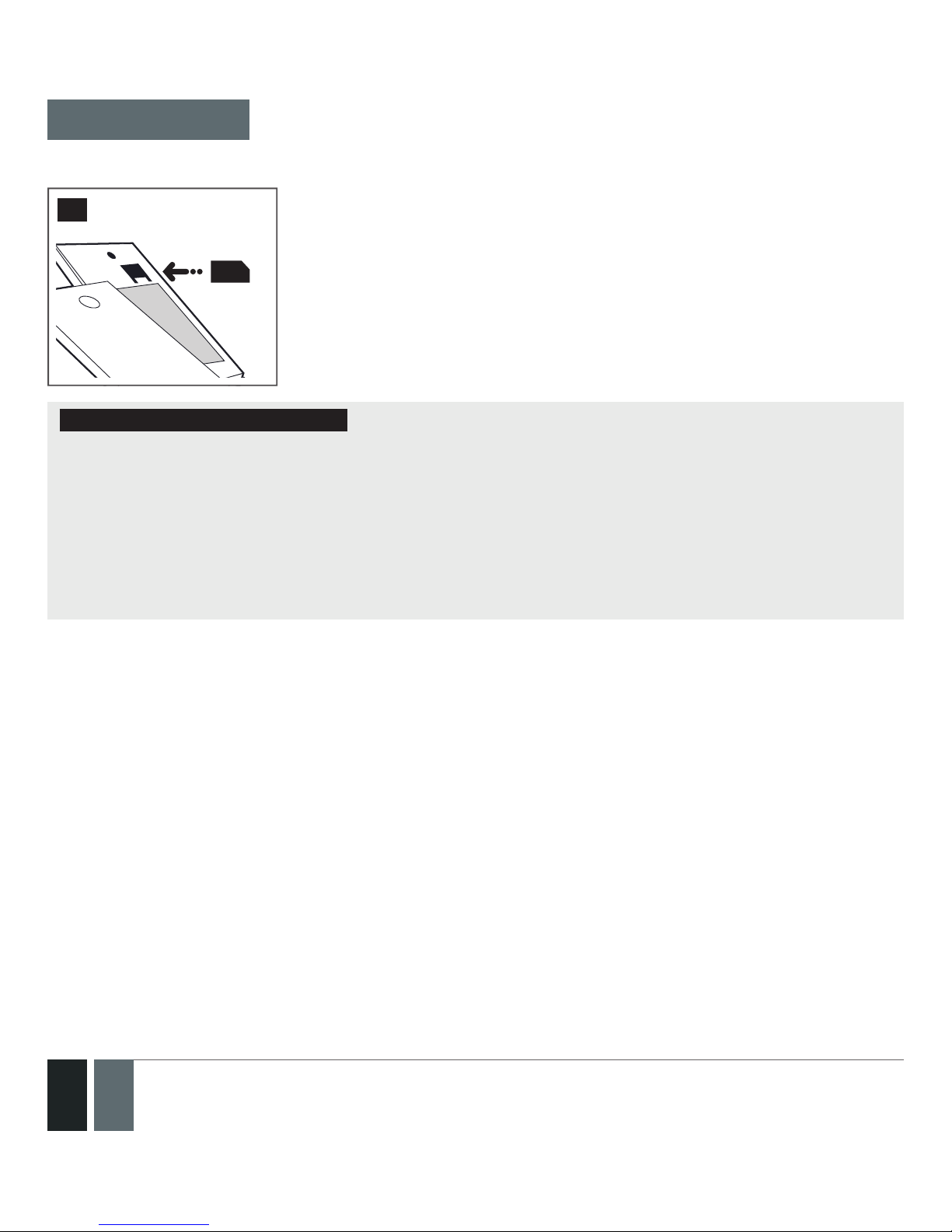

2.3. How to insert the SIM card ...................................................................................................................................... 13
2.4. Plug the power supply connector into the device............................................................................................... 15

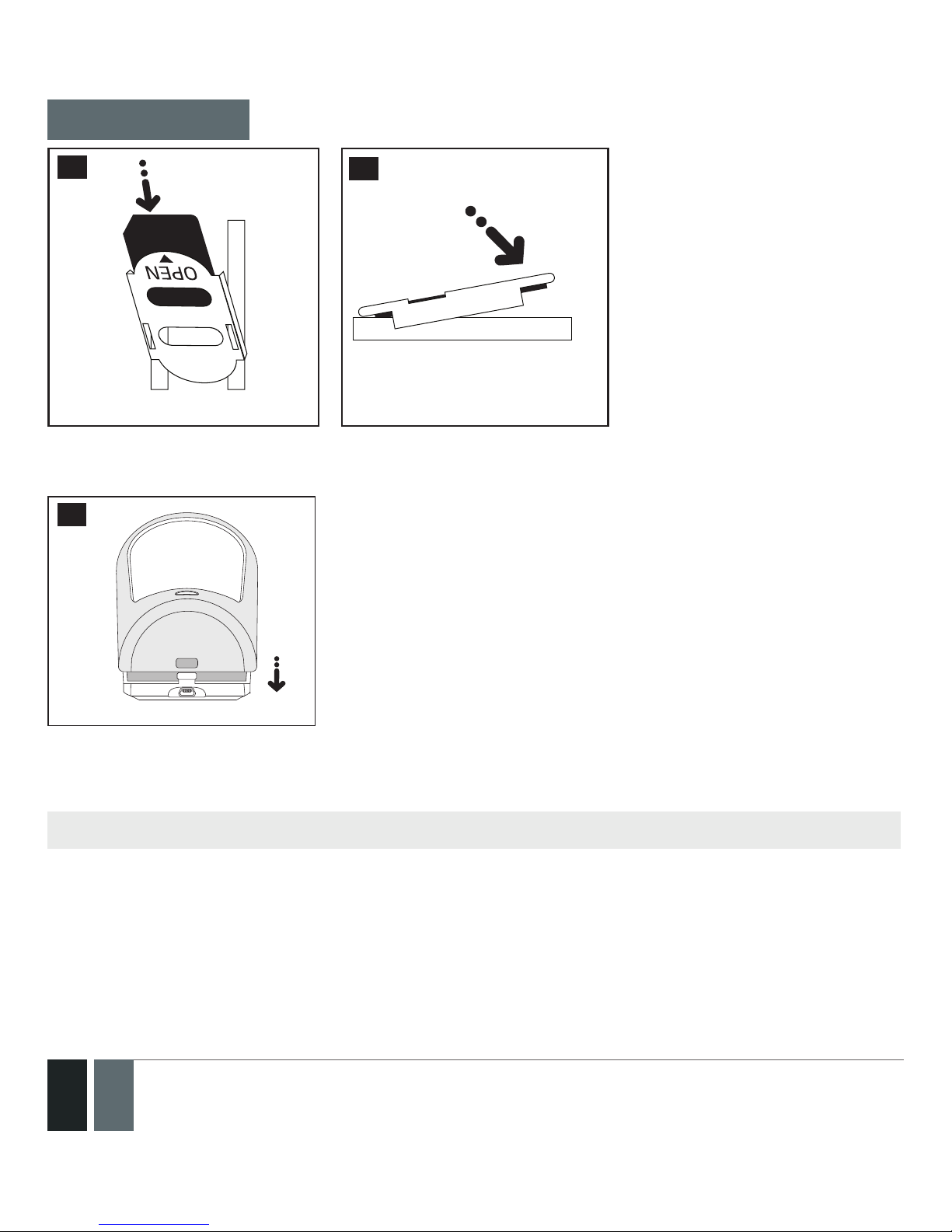

2.5. Place the device into the holder............................................................................................................................. 15
2.6. Slide the device down to x it................................................................................................................................. 15
2.7. Insert the plug into the mains socket.................................................................................................................... 15
2.8. How to check the detector is working................................................................................................................... 15

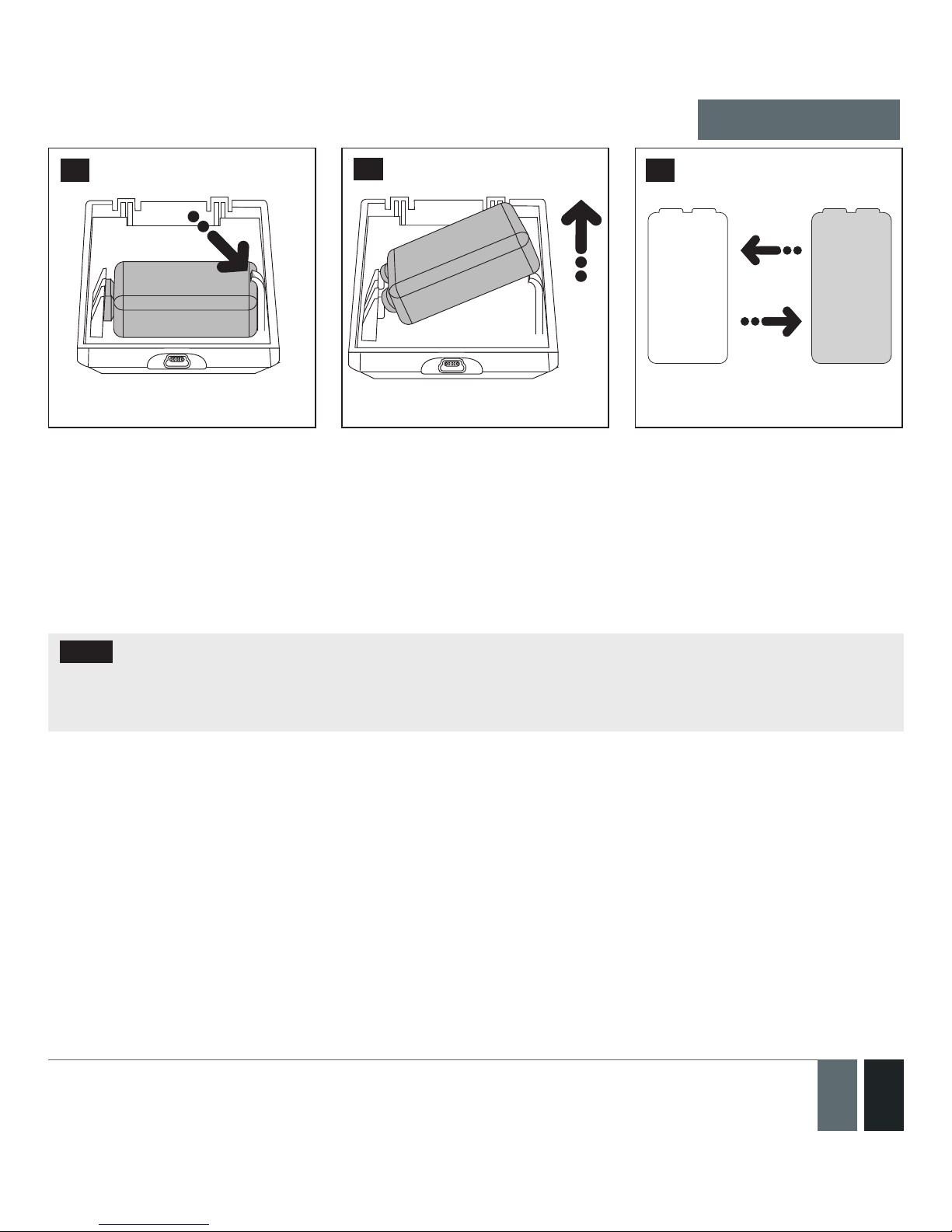

2.9. About the back-up battery and how to replace it ............................................................................................... 16
2.10.How to program EPIR3 system ............................................................................................................................... 17
2.11. How to arm and disarm the system .......................................................................................................................24
2.12.A 15 second delay allows you to leave the premises .......................................................................................... 25
2.13.Receiving an alarm call............................................................................................................................................. 25
2.14.In case of mains power failure ................................................................................................................................ 26
2.15.Receiving an SMS text message when temperature exceeds the set values ............................................... 26
2.16.Additional capabilities.............................................................................................................................................. 26
3. HOW TO MANAGE THE WIRELESS DEVICES ......................................................................................... 27
3.1. How to pair a wireless device with the system ................................................................................................... 28
3.2. How to remove a wireless device from the system ............................................................................................ 32
3.3. EKB3W wireless keypad overview .........................................................................................................................34
3.4. EWK1 and EWK2 wireless keyfob overview ......................................................................................................... 42

3
3EN
EPIR3 User Manual v1.3
Contents
4. HOW TO PROGRAM THE SYSTEM USING YOUR MOBILE PHONE .........................................................44
5. HOW TO PROGRAM THE SYSTEM USING EKB3W WIRELESS KEYPAD ................................................ 57
6. TROUBLESHOOTING.............................................................................................................................80
7. ADDITIONAL INFORMATION FOR ADVANCED USERS .......................................................................... 81
7.1. How to connect a wired siren or a LED indicator to the wired output ............................................................. 81
7.2. How to connect a sensor to the wired zone.........................................................................................................85
7.3. Automatic system arming/disarming....................................................................................................................90
7.4. Zones ..........................................................................................................................................................................90
7.5. Tampers...................................................................................................................................................................... 93
7.6. Programmable (PGM) outputs................................................................................................................................ 93
7.7. Siren ............................................................................................................................................................................ 95
7.8. Alarm indications and notications ...................................................................................................................... 97
7.9. System notications ................................................................................................................................................98
7.10.Back-up battery, mains power supply status monitoring and memory ........................................................101
7.11. Monitoring staton ...................................................................................................................................................102
7.12. System conguration using ELDES Conguration Tool software................................................................... 111
7.13.How to reset the system to default settings ..................................................................................................... 113
7.14. How to upgrade the rmware locally via USB connection .............................................................................. 113
7.15. How to upgrade the rmware remotely via GPRS connection ....................................................................... 114
7.16.ELDES Cloud Services............................................................................................................................................. 116
8. Related products................................................................................................................................ 118
Copyright © “ELDES UAB”, 2014. All rights reserved.
It is forbidden to copy and distribute information in this document without advance written authorisa-
tion from ELDES UAB. We reserve the right to update or modify this document and/or related products
without warning. The EPIR3 GSM Alarm System complies with the essential requirements and relevant
provisions of Directive 1999/5/EC. The declaration of conformity may be viewed at www.eldes.lt

4
4EN EPIR3 User Manual v1.3
Protecting your home and property with the EPIR3 alarm system
Where and how to use the alarm system
The EPIR3 is a convenient, easy to use, remote control security system for houses, cottages, country homes, ga-
rages and other buildings.
It uses an internal SIM card (not supplied by ELDES) and an infra red sensor, and communicates with your mobile
phone so you can:
• Protect your property while you are away from home
• Listen to what is happening in your property following a security alert
• Switch the system on or o from anywhere in the world at no cost
• Receive SMS text messages updating you on the system status
• Include up to ten users to receive system status messages and/or security alerts
• Receive SMS text messages updating you on the temperature of the surrounding area
In addition, the EPIR3 system has a built-in wireless module for system extension capabilities.The wireless mod-
ule easily allows you to pair ELDES-made wireless devices to the system. For more details, please, refer to section
3. HOW TO MANAGE THE WIRELESS DEVICES.
IMPORTANT Please read the user manual before operating the system. The user manual will show you how
to install and operate the EPIR3 alarm security system safely and easily. You’ll nd a quick start guide in section
1 and 2. To learn how to take advantage of additional functions, see sections 3, 4, 5 and 7.
Technical Specications
Supply voltage.........................................................11-15V 500mA max
Current used in idle state.......................................up to 50mA
Back-up battery voltage, capacity.......................8.4V; 250mAh
Back-up battery type .............................................Ni-Mh
GSM modem frequency..........................................850/900/1800/1900 Mhz
Dimensions ..............................................................124x67x58mm (4.88x2.64x2.28in)
Operating temperature range...............................-10…+40 °C
Humidity...................................................................0-90% RH @ 0... +40°C (0-90% RH @ +32... +104°F)
Back-up battery operating time...........................up to 24 hours*
Detection angle.......................................................90°
Maximum motion detection range ......................10m (32.81ft)
Wireless band .........................................................ISM868/ISM915
Wireless communication range ............................up to 30m (98.43ft) in premises;
up to 150m (492.13ft) in open areas
Maximum number of wireless devices................16
Communications .....................................................SMS, Voice Calls, GPRS Network
Supported protocols...............................................Ademco Contact ID, EGR100, Kronos, Cortex SMS
BELL+: siren output commuted values...............Current - 150mA max.; voltage - 15V (EPIR3 on external power
supply) / 7V (EPIR3 on back-up battery)
* - with ELDES Cloud Services disabled; with wireless transmitter-receiver module disabled

5
5EN
EPIR3 User Manual v1.3

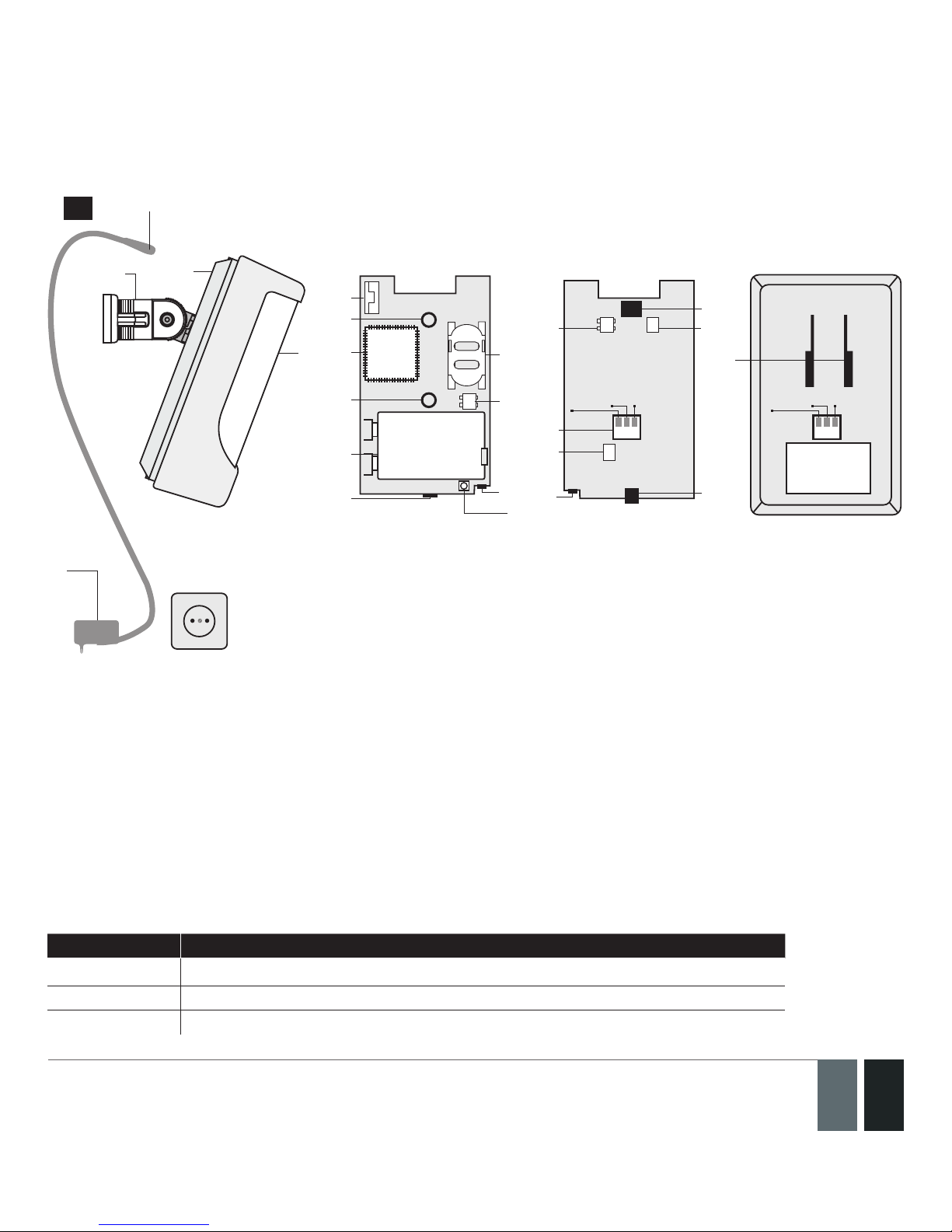

Components of the EPIR3 security system
4
2
3
1
5
7
INSIDE VIEW
GSM
16
12
9
13
10
11
86
12
14
13 17
15
18
3
8
14
BACK SIDE
BELL+ Z2 BELL-/COM BELL+ Z2 BELL-/COM
1
1. EPIR3 holder for xing on the wall
2. Lens for movement detector and LED
3. Power supply socket
4. AC/DC power supply
5. Power supply connection lead
6. Reset button to restore default parameters
7. Holder to x the unit in place
8. Mini-USB connector to allow programming via your PC
9. Holder for SIM card
10. GSM module
11. Back-up battery in case of mains power supply
failure
12. Motion detector to sense possible intruders
13. TAMPER button to alert you if anyone interferes
with the unit
14. Microphone to allow you to listen in to an incident
using your mobile phone
15. Wired zone for wired sensor & output for siren or
indicator connection
16. Built-in GSM antenna
17. Fuse F1 model - MINISMDC050F 0.5A
18. Fuse F2 model - MINISMDC020F 0.2A
Connector Description
BELL- / COM Siren output negative terminal / output terminal / common return terminal
Z2 Security zone terminal
BELL+ Siren output positive terminal

6
6EN EPIR3 User Manual v1.3
1. 7-STEP START GUIDE
OVERVIEW
This section tells you how to install the EPIR3 system quickly by following the very basic instructions consisting of
only 7 steps. For step-by-step device programing using software, please refer to section 2. QUICK START GUIDE.

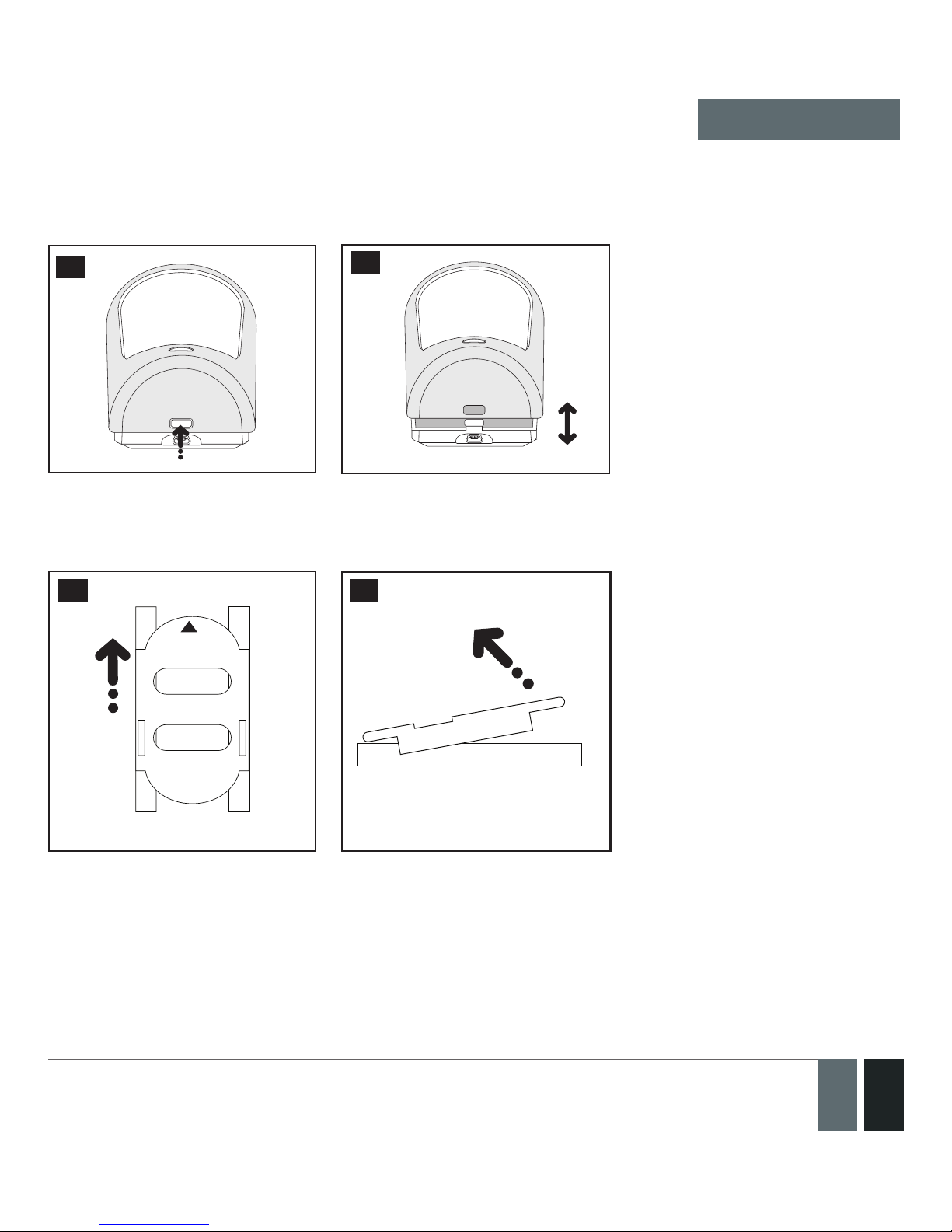

1. Remove the front cover of the
device.
OPEN
2
OPEN
3
2. Open the SIM card holder by rst
sliding the the cover to the right
then hinging it upwards. Then
insert the SIM card with disabled
PIN code request into the holder.
Ensure that gold contacts are
face down when SIM card cover
is ipped back down and slide
the SIM card cover back to lock-
SIM card in place. Close the front
cover afterwards.
45
3. Plug the power supply connec-
tor into the device and insert
the plug into the mains socket
7

7
7EN
EPIR3 User Manual v1.3
4. Wait for 1 minute for the device
to start up. Then using your
mobile phone dial the phone
number of the SIM card inserted
in the device and wait until
the phone call is automatically
rejected by the device. The
device will reply you with SMS
text message conrming that
your phone number has been
successfully stored in the device
memory
9
5. Using your mobile phone type
an SMS text message contain-
ing the following text: 0000
PSW XXXX (replace XXXX with
any 4-digit combination).. The
result should look something
like this: 0000 PSW 2583. Now
send this SMS text message to
your device’s phone number and
wait for a reply conrming that
the SMS password has been
successfully changed.
10
6. Your system is now ready to be
armed and disarmed. Before
arming the system, ensure that
you are not standing in front of
the device.
CALLING
OPEN
CALLING
OPEN
CALLING
SENDING
SMS
ARMED DISARMED
3 RINGS 1 RING
11

8
8EN EPIR3 User Manual v1.3

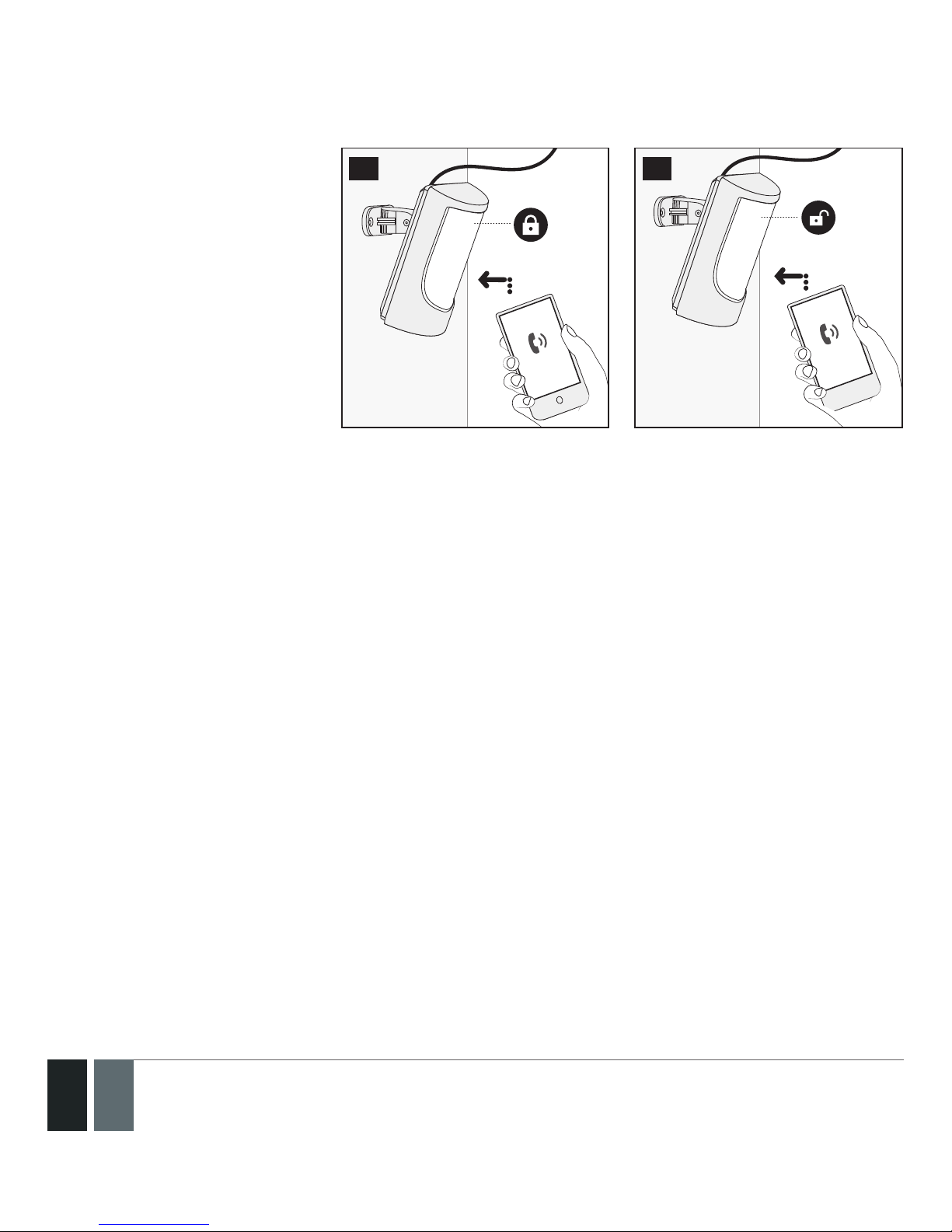

7. To arm your system dial the
device SIM card’s phone number
and wait until it rings three
times and then drops the call.
This means the system is now
successfully armed. To disarm
the system, dial the SIM card
and wait until it rings once and
then drops the call. The system
is now successfully disarmed. In
both cases be sure to wait until
the system automatically drops
your call. Again in both cases
the user will receive a short SMS
text message each time the
system is successfully armed or
disarmed.
x3
x1
12
x3
x1
13

9
9EN
EPIR3 User Manual v1.3
7. To arm your system dial the
device SIM card’s phone number
and wait until it rings three
times and then drops the call.
This means the system is now
successfully armed. To disarm
the system, dial the SIM card
and wait until it rings once and
then drops the call. The system
is now successfully disarmed. In
both cases be sure to wait until
the system automatically drops
your call. Again in both cases
the user will receive a short SMS
text message each time the
system is successfully armed or
disarmed.
x3
x1
12
x3
x1
13 2.QUICK START GUIDE
OVERVIEW
This section tells you how to install the EPIR3 system quickly and easily and covers all the procedures required for
full system operation. The alarm system functions via the GSM network, so you will rst need to purchase a SIM
card so you can ‘talk’ to and program your device via your mobile phone. Due to the dual element technology of
a built-in PIR sensor, the device features the pet immunity against the animals of up to 40 kg weight in order to
prevent them from causing false alarms while moving within the secured premises.
How to expand your system with additional wireless devices
Your EPIR3 system has a built-in wireless module providing expansion capabilities to your system by pairing ad-
ditional ELDES wireless devices to it. However, the EPIR3 system can operate fully without any wireless devices
paired to it.
This section does not cover the procedures for adding wireless devices to the system. If you intend to use the
wireless devices with your EPIR3 system, follow the instructions for setting up the EPIR3 in this section then refer
to section 3: HOW TO MANAGE THE WIRELESS DEVICES.
Step-by-step system installation

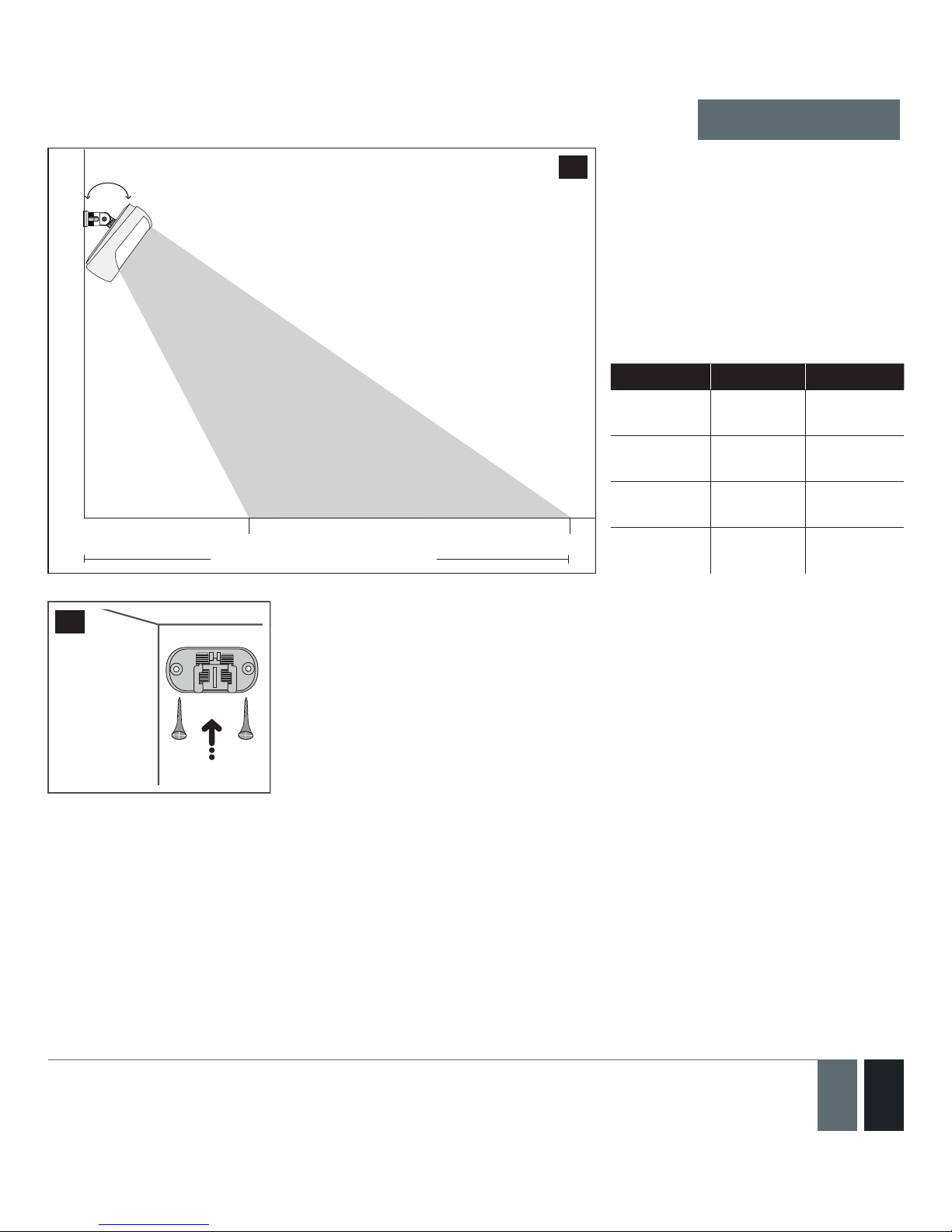

2.1. How and where to x the holder to the wall
The system should be installed indoors, in stationary environment ONLY. Choose a location where unauthor-
ised entry is most likely.
14 15 16
To prevent false alarms, avoid installing the unit in the following locations:
• With the lens facing direct sunshine, for instance in front of windows
• Places with high temperature uctuations, such as near replaces, boilers, ovens etc
• Anywhere with high dust or air ow
• In an area surrounded by metal or thick walls where the GSM connection may be lost
QUICK START GUIDE

10
10 EN EPIR3 User Manual v1.3
height X1 X2
2,5m
(8.20ft)
3,5m
(11.48ft)
11m
(36.09ft)
2,3m
(7.55ft)
3m
(9.84ft)
11m
(36.09ft)
2,1m
(6.89ft)
1,5m
(4.92ft)
11m
(36.09ft)
1,5m
(4.92ft)
0m
(0ft)
11m
(36.09ft)
angle 0º
Height
Secured area
Maximum detection distance, X2
angle - 10º
Secured area
angle - 20º
Secured areaBlind area, X1
Height Height
Blind area, X1
Blind area, X1
Maximum detection distance, X2 Maximum detection distance, X2
17
height X1 X2
2,5m
(8.20ft)
2,5m
(8.20ft)
10m
(32.81ft)
2,3m
(7.55ft)
2,5m
(8.20ft)
8m
(26.25ft)
2,1m
(6.89ft)
1,5m
(4.92ft)
8m
(26.25ft)
1,5m
(4.92ft)
0m
(0ft)
4,5m
(14.76ft)
angle 0º
Height
Secured area
Maximum detection distance, X2
angle - 10º
Secured area
angle - 20º
Secured areaBlind area, X1
Height
Height
Blind area, X1
Blind area, X1
Maximum detection distance, X2
Maximum detection distance, X2
18
QUICK START GUIDE

11
11EN
EPIR3 User Manual v1.3
height X1 X2
2,5m
(8.20ft)
2m
(6.56ft)
5m
(16.4ft)
2,3m
(7.55ft)
1,5m
(4.92ft)
4.5m
(14.76ft)
2,1m
(6.89ft)
1m
(3.28ft)
4.5m
(14.76ft)
1,5m
(4.92ft)
0m
(0ft)
3m
(9.84ft)
angle 0º
Height
Secured area
Maximum detection distance, X2
angle - 10º
Secured area
angle - 20º
Secured areaBlind area, X1
Height
Height
Blind area, X1Blind area, X1
Maximum detection distance, X2
Maximum detection distance, X2
19
20 After a suitable location for
your EPIR3 is chosen, x the
holder to the wall using the
screws supplied.
QUICK START GUIDE

12
12 EN EPIR3 User Manual v1.3
2.2. Prepare the SIM card
3
21 Place the SIM card in your
mobile phone and disable
the PIN code by following the
appropriate menus on your
mobile phone. This will help
ensure that when you install
the SIM card in the EPIR3 it
will operate correctly.
IMPORTANT RECOMMENDATIONS
• We advise you to choose the same GSM SIM provider for your system as for your mobile phone. This will
ensure the fastest, most reliable SMS text message delivery service and phone call connection.
• For maximum system reliability we recommend you do NOT use a Pay As You Go SIM card. Otherwise, in
the event of insucient credit balance on the SIM card, the system would fail to make a phone call or send
messages.
• We also recommend you to disable call forwarding, voice mail/text message reports on missed/
busy calls. Please contact your GSM provider for more details on these services and how to disable them.
QUICK START GUIDE

13
13EN
EPIR3 User Manual v1.3
2.3. How to insert the SIM card
The SIM card must be prepared as described in section 2.2. Prepare the SIM card before being inserted into
the device.
OPEN
22
OPEN
23
To insert the SIM card, rst remove the front cover of the device (contain-
ing the detector lens)
Press
and hold
OPEN
Pull
down
24
OPEN
25
Open the SIM card holder by rst sliding the the cover to the right then
hinging it upwards.
QUICK START GUIDE

14
14 EN EPIR3 User Manual v1.3
OPEN
26
OPEN
27
Then insert the SIM card into the holder. Insert SIM card so that gold con-
tacts are face down when SIM card cover is ipped back down.
28
Fit the front cover
For more information see the diagram of the EPIR3 and the description of components on page <5>.
QUICK START GUIDE

15
15EN
EPIR3 User Manual v1.3
29 30 31
2.4. Plug the power supply
connector into the device
2.5. Place the device into the
holder
2.6. Slide the device down to
x it
32 33 The system will start in 1 - 2 minu-
tes. To test that the system is wor-
king, when the red LED is switched
o move your hand in front of the
EPIR3 lens. The system will detect
the motion and the LED will light up
for a few seconds.
NOTE: Ensure that the device
is properly xed into the holder,
otherwise it will prevent from
using the back tamper switch
for supervision of the enclo-
sure‘s back side. For more
information see the diagram
of the EPIR3 and the description
of components on page <5>.
2.7. Insert the plug into the
mains socket
2.8. How to check the detector
is working
If the LED indicator blinks fast (a few times a second), the SIM card may not be inserted properly or
the PIN code may not have been disabled.
QUICK START GUIDE

16
16 EN EPIR3 User Manual v1.3
2.9. About the back-up battery and how to replace it
The back-up battery should last for at least two years. Its lifespan will largely depend on the surrounding tempe-
rature and the frequency of disruptions to the mains power. During mains failure the battery should power the
system for up to twenty-four hours.
How to replace the battery:
34 35 36
1. Unplug the power supply from
the mains electricity socket.
2. Slide the EPIR3 up. 3. Remove the EPIR3 from its
holder.
37
OPEN
38
OPEN
39
3. Unplug the power supply
connector.
4. Remove the front cover of the device (containing the detector lens)
QUICK START GUIDE

17
17EN
EPIR3 User Manual v1.3
40 41 42
4. Gently push the plastic battery
holder to the right side and hold
5. Pull up the battery 8. Replace the battery with the
type specied in the technical
specications.
2.10. How to program EPIR3 system
Before you continue, you need to program your EPIR3 system. We recommend that you program the EPIR3 system
using your PC and ELDES Conguration Tool software as it’s the quickest, easiest way and oers more options for
your system, such as exible SMS text message management.
NOTE
If you wish to program the EPIR3 system by SMS text message, please refer to section 4. HOW TO PROGRAM
THE SYSTEM USING YOUR MOBILE PHONE. If not, please proceed to section 2.10.1 Download ELDES
Conguration Tool software.
QUICK START GUIDE

18
18 EN EPIR3 User Manual v1.3
2.10.1. Download ELDES Conguration Tool software.
Visit www.eldes.lt , you will nd a link to the Conguration Tool under the menu option
Downloads & Support → Drivers & Software →Eldes CT Eldes Conguration Tool
43
Once you are at Conguration Tool section,
left-click on the ELDES Conguration Tool
v3.x.xx (setup.exe).
44
In the newly popped-up window left-click
on the Save button.
QUICK START GUIDE

19
19EN
EPIR3 User Manual v1.3
45
Specify a location for setup le and left-click on the Save button.
We recommend placing the le on your desktop.
2.10.2. install ELDES Conguration Tool software.
46
Double left-click on the
downloaded setup file to
run it.
QUICK START GUIDE

20
20 EN EPIR3 User Manual v1.3
In the newly popped-up window left-
click on the Next button to continue.
47
In the next window left-click on the
Next button to continue.
48
QUICK START GUIDE
