1Safety Practices and Hazards
The Analytik Jena PlasmaQuant MS (ICP-MS) and accessories have been carefully
designed so that when used properly it is an accurate, fast, flexible, and safe analytical
system. If the equipment is used in a manner not specified by the manufacturer, the
protection provided by the equipment may be impaired. Information on safety
practices appears throughout the documentation provided with all instruments and
accessories. Before using or servicing the instrument or accessories, you must
thoroughly read these safety practices. Observe all relevant safety practices at all
times.
Operation of the ICP-MS involves the use of compressed gases, high voltage radio
frequency energy, and hazardous materials, including corrosive fluids and flammable
liquids. When installed and used properly, the ICP-MS and its accessories provide an
accurate, fast, flexible, and safe analytical system. If you install and use the equipment
in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired. This can cause death or serious injury to personnel, or
severe damage to equipment and property.
This chapter describes the general and specific hazards you will encounter as you
interact with the ICP-MS and prescribes safety practices that can help protect you and
your equipment. Before installing and using the instrument or accessories, you must
thoroughly read these safety practices. Observe all relevant safety practices at all
times.
The safety practices described below are provided to help you operate the instrument
safely.
The spectrometer incorporates interlocks and covers which are designed to prevent
inadvertent contact with any of the potential hazards. It is good practice, however, to
develop safe working habits which do not depend upon the correct operation of the
interlocks for safe operation. It is essential that no interlock is bypassed, damaged, or
removed.
NOTE
The safety information presented in this manual is for the ICP-MS. Refer to the
manuals of the other Products/Accessories to ensure their safe and efficient
operation. Address any questions you have about the safe and proper use of the
instrument to Analytik Jena.
1.1 Safety Messages and Symbols
Safety messages and symbols are on the instrument, accessories, and throughout all
documentation. To prevent injury or equipment damage, pay attention to all labels,
lights, and symbols and read all messages.
The service manual uses the following symbols and signal words to indicate hazards or
instructions.

Safety Practices and Hazards PlasmaQuant MS Series
6
WARNING
Indicates a potentially hazardous situation which might cause fatal or very serious
injuries (deformities).
CAUTION
Indicates a potentially hazardous situation which might cause light or minor
injuries.
NOTICE
Provides indications of potential material and environmental damage.
Notes (without symbol or signal word) are used to give advice or additional
information.
1.1.1 Warning Symbols
Certain specific hazards on and inside the ICP-MS cabinet are directly identified with
labels and multilingual warnings. Observe these precautions when working near the
relevant components.
WARNING
Yellow triangles are used on warnings attached to the instrument. When you see a
warning symbol, refer to the relevant safety information associated with that warning.
1.2 Color Coding
Indicator lights appearing on the ICP-MS instrument and accessories have been color-
coded to represent the status of the instrument or accessory:
Green: Indicates the instrument is in normal or standby condition.
Orange: Indicates a potential hazard is present.
Red: Warns of danger or an emergency.

PlasmaQuant MS Series Safety Practices and Hazards
7
1.3 Information Symbols
The following symbols appear on the ICP-MS instrument to provide additional
information:

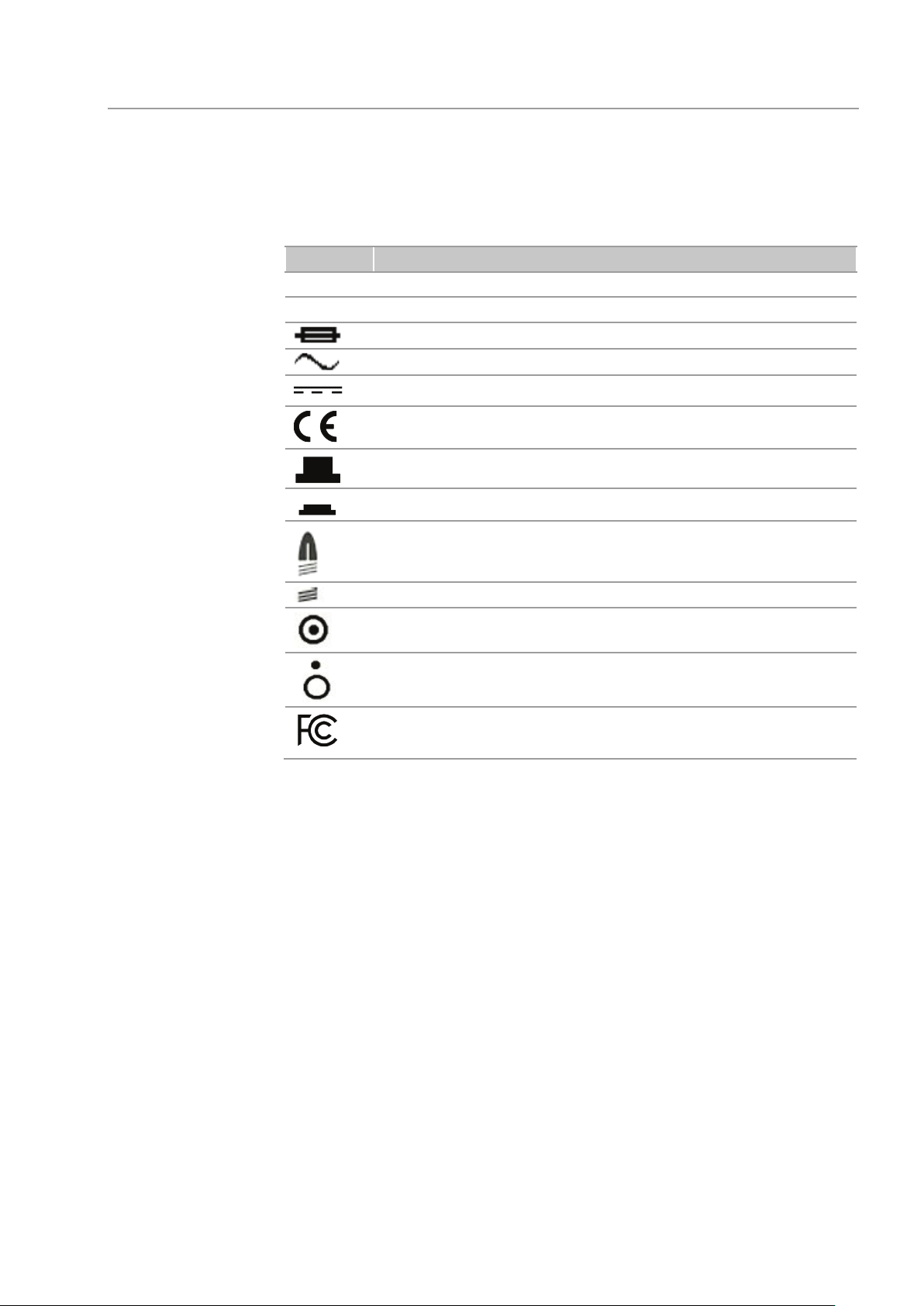

Symbol Information
I Power ON
O Power OFF
Fuse
Single Phase Alternating Current (AC)
Direct Current (DC)
Indicates that the product complies with the requirements of one or more EU
Directives
OUT position of a bi-stable push switch
IN position of a bi-stable push switch
Plasma ON
Plasma OFF
ON for part of equipment.
OFF for part of equipment
Indicates that the product complies with the requirements of the Federal
Communications Commission
Table 1-1 Information symbols
1.4 General Safety Hazards
This section describes the general hazards encountered with the ICP-MS instrument
and the safety practices to observe to avoid harm.
1.4.1 Plasma
The plasma is very hot (>5,000 °C) and radiates dangerous levels of radio-frequency
(RF) and ultraviolet (UV) energy. The work coils operate routinely at 2000 Root Mean
Square Voltage (VRMS) (and even higher at ignition) at 27.12 MHz. Exposure to the
RF and UV energy can cause severe skin damage and cataracts of the eyes, while close
contact with the operating plasma can result in severe heat burns to the skin and an
electrical discharge which can jump a considerable distance and cause death, severe
electric shock, or sub-surface skin burns which will not heal.

Safety Practices and Hazards PlasmaQuant MS Series
8
Shielding around the plasma compartment is designed to reduce UV, visible, and RF
radiation to safe levels while still permitting easy access to the torch when
maintenance is required. The spectrometer has an interlock system which is designed
to extinguish the plasma if either plasma compartment latch is opened or if any of the
cooling water, argon gas, or air flow rates drop below the required minimum level.
DO NOT attempt to bypass the interlock system. Before opening the plasma
compartment lid, ALWAYS extinguish the plasma from the software.
The torch, interface, and their surroundings remain hot for several minutes after
the plasma is extinguished. Touching this area before it has cooled sufficiently may
result in burns. Allow the torch, cones, coils, interface, and torch compartment to
cool before carrying out any work in this area, or wear heat resistant gloves.
The plasma system has been carefully designed to operate safely and effectively
when using torches and related components which conform to Analytik Jena's
design criteria. Use of non-approved components in the plasma compartment may
render the system inoperative and/or hazardous. Use only torches and related
components supplied or authorized by Analytik Jena.
1.4.2 Electricity
The ICP-MS and some accessories contain electrical circuits, devices, and components
operating at dangerous voltages. Contact with these circuits, devices, and components
can cause death, serious injury, or painful electrical shock.
The safety classification is given as Class 1 (EN 61010-1).
Panels or covers which are fastened by screws on the instrument and accessories
must be opened ONLY by an Analytik Jena trained, qualified, or approved field
service engineer. Consult the documentation or product labels supplied with your
accessories, computer, and other peripherals to determine which parts are
operator-accessible.
Application of the wrong supply voltage can create a fire hazard and a potentially
serious shock hazard, and could seriously damage the ICP-MS system, accessories,
and any attached ancillary equipment. Consult the documentation supplied with
your accessories, computer, and other peripherals for their specific voltage
requirements.
Replace blown fuses with fuses of the size and rating as stipulated in the label
adjacent to the fuse holder or in the documentation. Always ensure that the
instrument is turned off and disconnected from the main supply before attempting
any fuse replacement.
NEVER use power cords with faulty or frayed insulation.
Never override or disable the instrument interlocks. Failure to observe this warning
could expose you to high voltage, resulting in death or serious injury.

PlasmaQuant MS Series Safety Practices and Hazards
9
1.4.3 Compressed Gas
All compressed gases (other than air) can create a hazard if they leak into the
atmosphere. Even small leaks in gas supply systems can be dangerous. Any leak
(except that of air) can result in an oxygen deficient atmosphere which can cause
asphyxiation. The area in which cylinders are stored and the area surrounding the
instrument must be adequately ventilated to prevent such gas accumulations.
Gas cylinders must be stored and handled strictly in accordance with local safety
codes and regulations. Cylinders must be used and stored only in a vertical position
and secured to an immovable structure or a properly constructed cylinder stand.
Move cylinders only by securing them to a properly constructed cart.
Use only approved regulator and hose connectors (refer to the gas supplier’s
instructions). Keep gas cylinders cool and properly labeled. All cylinders are fitted
with a pressure relief device that will rupture and empty the cylinder if the internal
pressure is raised above the safe limit by excessive temperatures. Ensure that you
have the correct cylinder before connecting it to the instrument.
The principal gas used by the ICP-MS instrument is argon. The ONLY integrated
collision reaction cell (iCRC) gases to be used by the ICP-MS instrument are
hydrogen and helium. Some models (Elite) may be fitted for N2or O2connections
depending on options selected. Do NOT connect any other gases than those
specified to the correct inlet fittings. Use only instrument-grade gases with your
spectrometer.
If using cryogenic gases (for example, liquid argon), prevent severe burns by
wearing suitable protective clothing and gloves.
Never locate gas cylinders near an ignition source or in a position subjected to
direct heat.
The ICP-MS instruments may be used with hydrogen gas in the iCRC system for certain
applications. Hydrogen gas has several unique safety considerations which all
operators of this instrument should be aware of if this gas is being used.
It is combustible over a wide range of concentrations. At atmospheric pressure,
hydrogen is combustible at concentrations from 4% to 74.2% by volume.
Hydrogen has very low ignition energy, and burns with no luminous flame. A
hydrogen fire may be invisible under bright ambient light.
The temperature increases with gas expansion, and if it is allowed to expand
rapidly from high pressure, hydrogen gas can self-ignite.
There are numerous safety features designed into the ICP-MS instrument to prevent a
serious leak or accumulation of hydrogen gas, but appropriate safety precautions must
always be taken when working with any flammable pressurized gas. Your local
workplace safety authority may have additional requirements and regulations for the
use of combustible gases.
Always test for leaks after any changes to or maintenance of the hydrogen supply
system (e.g., changing the gas cylinder or reconnecting the supply line to the back
of the ICP-MS).
Hydrogen Safety

Safety Practices and Hazards PlasmaQuant MS Series
10
In the event of a power failure, hydrogen gas may continue to flow from the supply
even if the ICP-MS is completely off. Always manually shut off the hydrogen gas
supply valve when there is no power to the ICP-MS.
Instead of using pressurized gas cylinders as a source of hydrogen, consider using a
hydrogen gas generator instead. These devices only produce the required amount of
hydrogen “on demand” while the ICP-MS is in operation, and there is no storage of
hydrogen gas when the system is not being used. Gas generators are available from
Analytik Jena as optional equipment, as well as from most major industrial/scientific
gas suppliers.
The ICP-MS is available with an accessory that introduces a small flow of oxygen into
the plasma for certain specific applications (the direct analysis of organic solvents). As
with hydrogen gas, oxygen has several specific safety precautions that end users
should be aware of.
Oxygen gas is a powerful oxidizer which will rapidly accelerate combustion of many
materials.
Oxygen cylinders should be handled with care because serious explosions have
resulted from contact between oil and high pressure oxygen. Oil or grease should
never be used on connections to an oxygen cylinder or gas line carrying oxygen.
Oxygen is incompatible with all flammable materials and should be stored
separately.
Never allow oil, greases, and other readily-combustible substances to come in
contact with oxygen cylinders, valves, regulators, and fittings.
1.4.4 Heat, Ozone, Vapors, and Fumes
Heat, ozone, vapors, and fumes generated by the plasma can be hazardous, and must
be extracted from the instrument by an exhaust system. Ensure that an exhaust
system of the appropriate type is fitted to the instrument. The system must be vented
to the outside air in accordance with local regulations, and never within the building.
Regularly check the exhaust system to ensure that it is functioning correctly.
Always switch the exhaust fan on BEFORE igniting the plasma.
1.4.5 Hazardous Materials
Use of the ICP-MS and accessories may involve materials, solvents, and solutions
which are flammable, corrosive, toxic, or otherwise hazardous. Careless, improper, or
unskilled use of such materials, solvents, and solutions can cause explosions, fire,
toxicity, and other hazards that can cause death, serious personal injury, and/or
damage to equipment and property.
Always ensure that laboratory safety practices governing the use, handling, and
disposal of hazardous materials are strictly observed. These safety practices should
include the wearing of Personal Protective Equipment (PPE), including appropriate
safety clothing and hand/eye protection.
Oxygen Safety

PlasmaQuant MS Series Safety Practices and Hazards
11
Before attempting any maintenance on the sample introduction system, the field
service engineer must be fully aware of all types of sample matrices and solvents
that have been presented to the system. Field service engineers should wear rubber
gloves to protect their hands whenever working on the sample introduction system.
Contact with the plasma exhaust gas can cause sickness. NEVER operate the
plasma or vacuum pumps unless the outlet is connected to a suitable exhaust
system.
1.4.6 Radio Frequency Radiation
Exposure to high levels of RF radiation can cause death or severe injury. Ensure that all
RF safety covers, shields, and connections are screwed into position before the RF
circuitry is activated. All instrument preventative maintenance, troubleshooting, and
repairs can be performed with the interlocks in place.
Never override or disable the instrument interlocks. Failure to observe this warning
could expose the operator to high RF power levels, resulting in death or serious
injury.
1.4.7 Ultraviolet Radiation
The plasma emits high levels of UV radiation. The viewing window and the UV shield
incorporated into the instrument RF enclosure enables you to view the plasma and
operate the instrument without being exposed to unsafe levels of UV radiation. NEVER
look directly at the plasma or operate it with the plasma compartment lid open.
1.5 ICP-MS Equipment Caution Notices
There are specific caution notices associated with the ICP-MS. Failing to observe the
cautions could result in severe damage to the equipment if the appropriate
instructions are not followed for certain tasks. Reading and complying with the
following precautionary instructions will help ensure the instrument’s safe long term
use, as well as the operator’s personal safety.
The spectrometer weighs approximately 170 kg (375 lbs.). To avoid injury to
personnel or damage to the instrument or property, always use correct handling
procedures if moving the spectrometer.
If at any time you wish to move the spectrometer, contact your local Analytik Jena
office or distributor for technical advice or assistance.
NEVER operate the plasma unless both interface cones are installed. To prevent
damage to the turbo pumps, DO NOT vent the vacuum system or open the gate
valve unless both cones are installed.
Air flow to the cooling fans of the spectrometer and accessories must be
unobstructed. Do not block the ventilation grills on the spectrometer and
accessories.

Safety Practices and Hazards PlasmaQuant MS Series
12
The instrument should never be moved or disturbed while the vacuum system is
running.
Never try to repair or replace an instrument component not described in the
Manual without first consulting Analytik Jena or its authorized representative in
your area.
Use only Analytik Jena supplied spares with your instrument.
1.6 Regulatory Compliance
The ICP-MS instrument has been designed and verified to comply with several
government safety regulations.
1.6.1 Federal Communications Commission Advisory (U.S. Only)
This equipment generates, uses, and can radiate radio frequency energy and if not
installed and operated in accordance with the instruction manual, may cause
interference to radio communications.
It has been tested and found to comply with the limits for a Class A computing device
pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference when operated in a commercial
environment.
Operation of this equipment in a residential area may cause interference in which case
the user (at his or her own expense) will be required to take whatever measures may
be required to correct the interference.
1.6.2 Spurious and Harmonic Radiation Compliance
At the date of manufacture, the ICP-MS instrument has been tested and found to
comply with Subpart C of Part 18 of FCC Rules. Field tests were performed on a
prototype instrument by a qualified independent testing laboratory. Radiation on the
operating frequency of the 27.12 MHz plasma RF generator, its harmonics, and other
spurious frequencies were shown to be below the field intensities specified in part
18.305.
Each production unit may be reasonably expected to meet the above requirements if
operated in accordance with the instructions and manuals which are provided,
including the use of the correct mains voltage, and with all panels, covers, doors, and
grounding devices in place and intact.

PlasmaQuant MS Series Safety Practices and Hazards
13
1.6.3 CE Compliance
The PQMS ICP-MS instrument has been designed to comply with the requirements of
the Electro-Magnetic Compatibility (EMC) Directive and the Low Voltage (electrical
safety) Directive (commonly referred to as the LVD) of the European Union.
Analytik Jena has confirmed that each product complies with the relevant Directives by
testing a prototype against the prescribed EN (European Norm), IEC, or CISPR
standards.
Proof that a product complies with the Directives is indicated by:
The CE Marking appearing on the rear of the product.
The documentation package that accompanies the product containing a copy of the
Declaration of Conformity. This Declaration is the legal declaration by Analytik Jena
that the product complies with the Directives, and also shows the EN standards to
which the product was tested to demonstrate compliance.
It is also signed by Analytik Jena's Authorized Representative in the EU, and by the
representative of the manufacturing plant.
1.7 Maintaining Records
Analytik Jena recommends that records of the system operating conditions be
maintained in a separate logbook that stays with the instrument at all times. This log
book becomes invaluable during service visits and during both internal and external
audits.

Introduction PlasmaQuant MS Series
14
2Introduction
The information outlined in this publication is meant to provide systematic instructions
for installing the ICP-MS. For details concerning installing compatible accessories,
refer to the appropriate accessory operation or service manual.
The ICP-MS system installation should only be performed by, and the instructions in
this section are provided specifically for the guidance of, Analytik Jena Customer
Support Representatives (CSRs) and authorized personnel who have successfully
completed the ICP-MS service training course.
Before accepting a booking to perform an installation, confirm that the site
preparations have been completed in accordance with the ICP-MS pre-installation
instructions and Installation Requirements. A copy of the checklist is contained in the
pre-installation manual.
The most reliable form of confirmation is a pre-installation site visit. If, upon
inspection of the site, you find omissions to the pre-installation requirements or
identify changes that are required to the laboratory, issue a report to the customer
detailing the required changes.
When it is not possible to visit the site before scheduling an installation time, ensure
that the customer provides a completed pre-installation checklist and a verbal
confirmation that the site is ready.
Do not begin installing the instrument until all the pre-installation requirements are
satisfied.
The standard installation time is twelve hours. This includes the installation of the
instrument and the water-cooling system, and performance testing. Installation of
accessories is generally included within this period; however, additional time may be
required depending on the number and type of accessories involved.
WARNING
Any installation attempted by unauthorized personnel will immediately void the
warranty. Unskilled, improper, or careless installation can create the risk of fire,
electric shock, and various other hazards that can cause death or serious injury to
personnel. All users of these systems must be familiar with the correct operating
procedures and safety practices as laid down in the operation manual.

PlasmaQuant MS Series Installation Overview
15
3Installation Overview
The following points provide a brief systematic outline of the recommended
installation procedure.
Visually inspect the laboratory to confirm all pre-installation requirements have
been satisfied. The instrument, accessories, and PC should be unpacked by
inspection of Customer Support Engineer and positioned in the desired locations.
The operating system should already be loaded on the PC.
Re-check the shipping contents against the shipping packing list and sign it, take a
copy.
Set-up the instrument hardware, which involves tasks such as connecting the rotary
pump and fitting the sample introduction components.
Connect the argon, hydrogen, and helium gas supplies; and if exist Nitrox gases.
Connect the water cooling system.
Connect the instrument to mains power.
Connect the instrument to the extraction fan system.
Load the Analytik Jena software onto the PC.
Connect the PC to the instrument via USB cable.
Start the instrument.
Start the vacuum system.
Copy the factory test worksheets from the CD onto the PC or key in the optimization
parameters from the factory test records.
Ignite the plasma.
Check quadrupole resonance and align according to the service manual.
Optimize the instrument settings and run the performance tests according to
Installation Protocol.
After the instrument has passed all calibrations and tests, install the accessories.

System Interconnection PlasmaQuant MS Series
16
4System Interconnection
Figure 4-1 ICP-MS System Interconnection

PlasmaQuant MS Series Unpacking the Instrument
17
5Unpacking the Instrument
It is the customer’s responsibility to unpack the instrument, the accessories, and the
kits and to inspect them for shipping damage before taking final acceptance from the
deliverer. The pre-installation manual contains further information related to
receiving, inspecting for shipping damage, and unpacking the instrument.

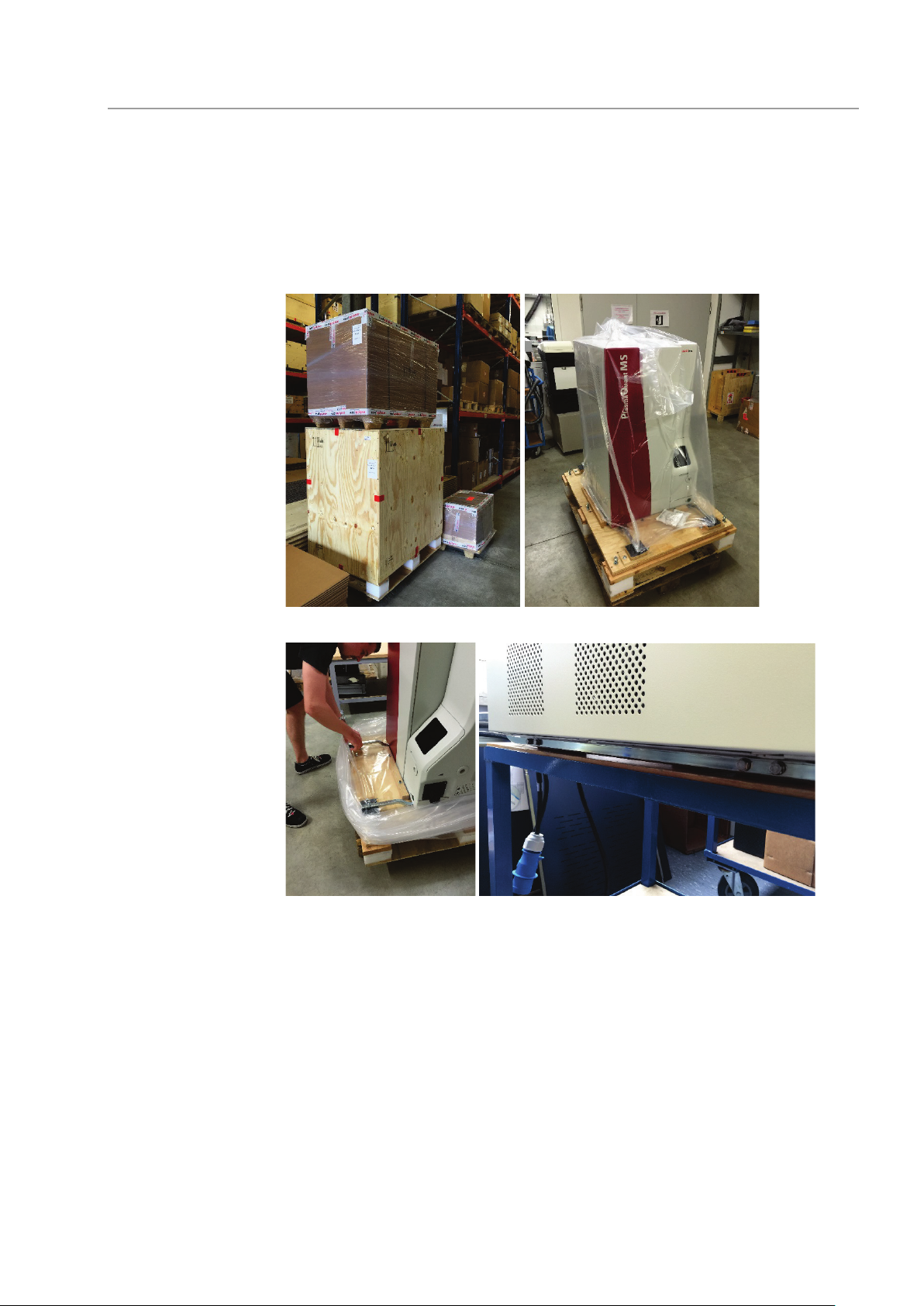

Figure 5-1 Instrument with Packing and Packing Removed
Figure 5-2 Removal of Instrument from Pallet, Lifting Bars after Placement on the Lab Bench
The customer needs a ½ inch box wrench to remove the instrument from the shipping
pallet. After removing the four lift-handle mounting bolts shown in Figure 5-2 (left),
they use the lift handles to place the instrument on a bench capable of supporting the
appropriate weight (375lbs).
Once in place, they can use a 5mm Allen wrench to remove the 8 M6 Allen bolt
(shown in Figure 5-2, right) holding the lifting bars to the instrument chassis.

Unpacking the Instrument PlasmaQuant MS Series
18
5.1 Shipping Kit
The number of additional boxes shipped with the instrument will vary depending on
the number of accessories and additional components ordered. The following items
are included with every instrument:
Item Part Number
Software ASpect MS (10-5000-001-40)
Instrument Logbook (10-404-420)
User Manual (10-5000-002-23 / 10-5000-003-23)
CD with Production Acceptance test protocols
Mousepad Analytik Jena
CEE Surface Socket (334460:051.25)
100 mm clamps for the plasma exhaust duct (x1) (10-405-618)
SV40 PFPE rotary vacuum pump incl. oil (10-406-250)
Vacuum tubing 4m with connections (10-5000-280-11)
Vacuum pump exhaust tubing 4m (10-405-869)
KF Centering Ring DN 40 (10-405-423)
KF Clamping Ring DN 40 (10-405-425)
Sample cone tool, skimmer cone tool, entrance
lens tool, extraction lens tool, coil alignment tool,
and a translator alignment tool
(10-500W-001-25)
Water hoses, with filter (10-5000-281-11)
Gas hoses, 3 m each
argon
helium
hydrogen
nitrox
(10-5000-284-11)
(10-5000-286-11)
(10-5000-288-11)
(10-5000-289-11)
Filter for Helium and for Hydrogen 2 x (10-406-271)
Scott Spray Chamber complete (set with holder
assembly, endcap, tubing and interface cable)
(10-5000-040-25)
Scott Spray chamber (10-500-040-00)
Micromist Nebulizer (0.4 mL/min)
(set with tubing and tubing adapter)
(10-405-280)
Nebulizer gas tubing 6 mm with Tubing Adapter (10-5000-250-11)
Sample Tubing (10-5000-256-10)
Sheath Gas Transfer Tube
with Argon Connection
(10-5000-050-00)
(10-5000-250-11)
Torch (10-5000-030-00)
Glassware clamps 2 x (10-5000-080-12)
Set of PVC Pump Tubing black/black ID 0.765 mm (10-405-229)
Set of PVC Pump Tubing blue/blue ID 1.651 mm (10-405-230)
Waste Tubing PTFE with Tubing Adapter (10-5000-253-11)
Set of O-rings (10-5090-018-20)

PlasmaQuant MS Series Unpacking the Instrument
19
Item
Part Number
USB cable (10-5008-001-91)
USB Adapter (RS232) (11-011.605)
Waste Bottle, 2 L (11-0515-029-10)
Cooling Water Additive
(13-410-540)
(not included in normal shipment)
Tuning Solution (10-405-810)
(not included in normal shipment)

Instrument Setup PlasmaQuant MS Series
20
6Instrument Setup
Setting up the instrument involves installing the rotary pump, sample introduction
system, water chiller, computer, and the tools.
The printed factory test results and a CD containing the factory test worksheets are
enclosed with the instrument logbook. Upon completion of the installation, insert
these results in the customer’s instrument logbook for future reference.
6.1 Installing the Rotary Pump
After the customer has removed the pump from the shipping container and placed it in
a proper location, connect the power cable and vacuum line to the pump (see Figure
6-1).

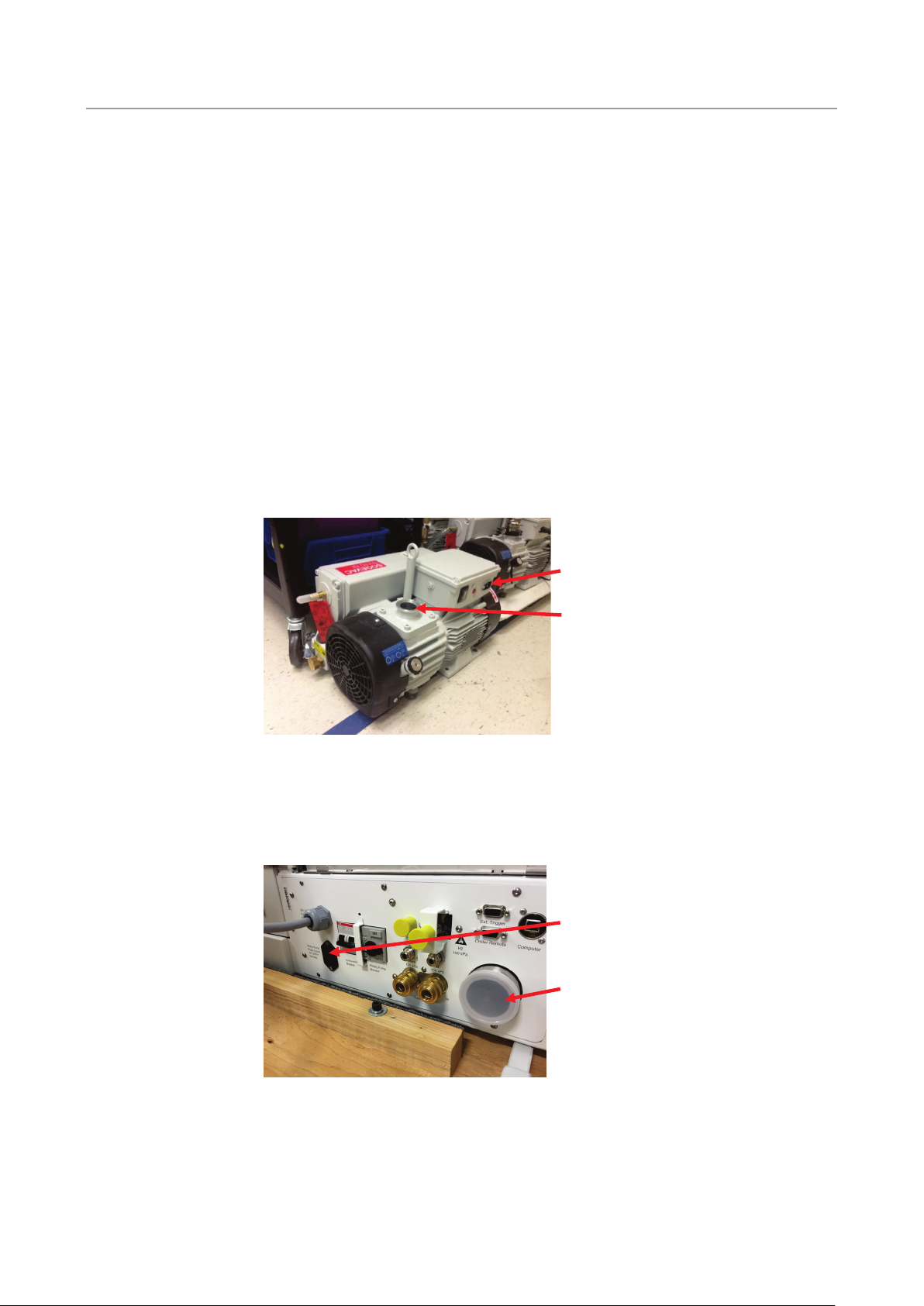

Power connection
Vacuum Connection
Figure 6-1 Rotary Pump
Connect the power and vacuum lines to the rear of the instrument. The power cable
connects to the instrument on the upper-left side of the power distribution panel,
whereas the vacuum line is connected to the vacuum fore line port on the lower-right
(see Figure 6-2).
Rotary pump power
Vacuum fore line
Figure 6-2 Main Power Distribution
The SV40 PFPE is pre-filled with oil from the factory. However, it is always
recommended to verify the pump has the proper amount of oil prior to starting the
instrument.
