Safety Instructions
Levelflex M
FMP41C/45
Ex ia IIC T1...T6
Ex NEPSI GYJ05555
6
8
9
XC012F-B
Safety Instructions for electrical apparatus for explosion-hazardous areas.
爆炸环境中电气仪表的安全指南。

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 3
Levelflex M
FMP41C/45
HART, PROFIBUS PA, FOUNDATION Fieldbus
Safety Instructions XC012F-B
Associated Documentation This document is an integral part of the following Operating Instructions:
– HART: BA276F/00, BA279F/00
– PROFIBUS PA: BA277F/00, BA280F/00
– FOUNDATION Fieldbus: BA278F/00, BA281
The Operating Instructions which are supplied and correspond to the device type apply.
Designation Explanation of the labelling and type of protection can be found in the explosion protection brochure.
Designation of explosion protection Ex ia IIC T1...T6

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
4Endress+Hauser
HART
Fieldbus (PROFIBUS PA / FOUNDATION Fieldbus):
Installation with external overvoltage protection
Electronic insert
Electronic insert
Tank
danger
area
Zone 1
Tank
danger
area
Zone 0
Zone 1
local potential matching system
Certified
associated
apparatus
Explosion-hazardous area Non-explosion-hazardous area

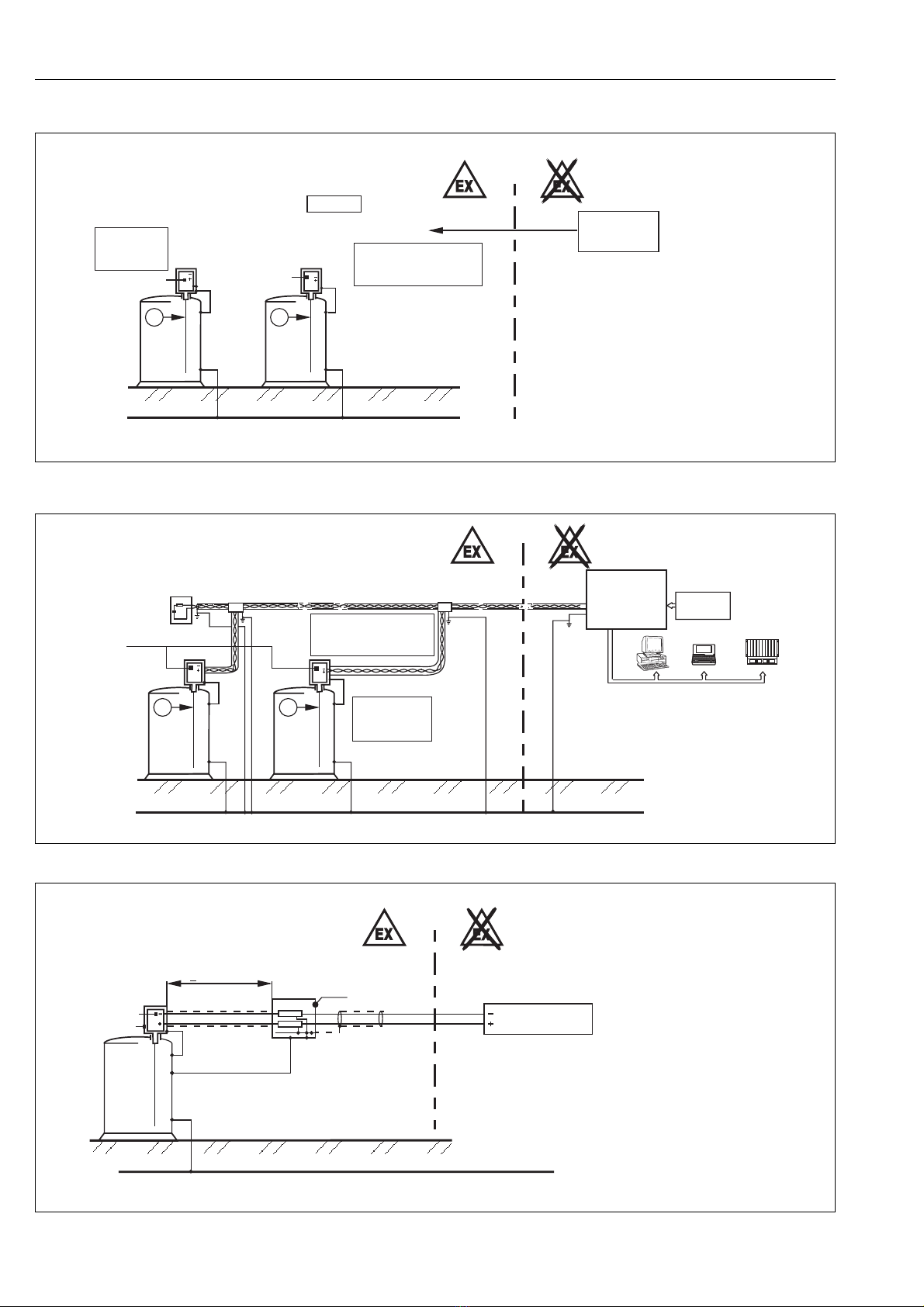

Figure 1
Rod, or
rope or coax
probe
Option: (certified)
-Remote display FHX40
6b 6b
Electronic
insert
Zone 1
Tank
danger
area
Zone 1
Tank
danger
area
Zone 0
Corresponding
permitted
terminal
resistor
Ex ia IIC
Figure 2
Potential matching system
Certified
associated
apparatus Supply
voltage
C
R
Option: (certified)
-Remote Display FHX40
Rod, or
rope or coax
probe
6b 6b
Explosion-hazardous area Non-explosion-hazardous area
2 1
2
1
< 1000 mm *
Figure 3
PAL connection
Metal housing *
Metal housing*
Tank
danger
area
Zone 0
Potential matching line
PAL
connection
Cable with
screening or
metal sheath
Power supply or
switching unit
Separate housing with
overvoltage protector
e.g. HAW262Z
Metal housing *
Potential matching system
* Requirement as per EN60079-14 for intrinsically-safe circuits in Zone 0,
if there is a risk of dangerous potential differences within Zone 0,
e.g. through the occurrence of atmospheric electricity.
Explosion-hazardous area Non-explosion-hazardous area

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 5
Fieldbus Shield connection
Fieldbus Shield connection
Installation with internal overvoltage protection
Distributor / T-box Distributor / T-box
Terminal
resistor
Field device Field device
Power supply
unit /
Segment
coupler
Potential matching secured in high degree
Version 1

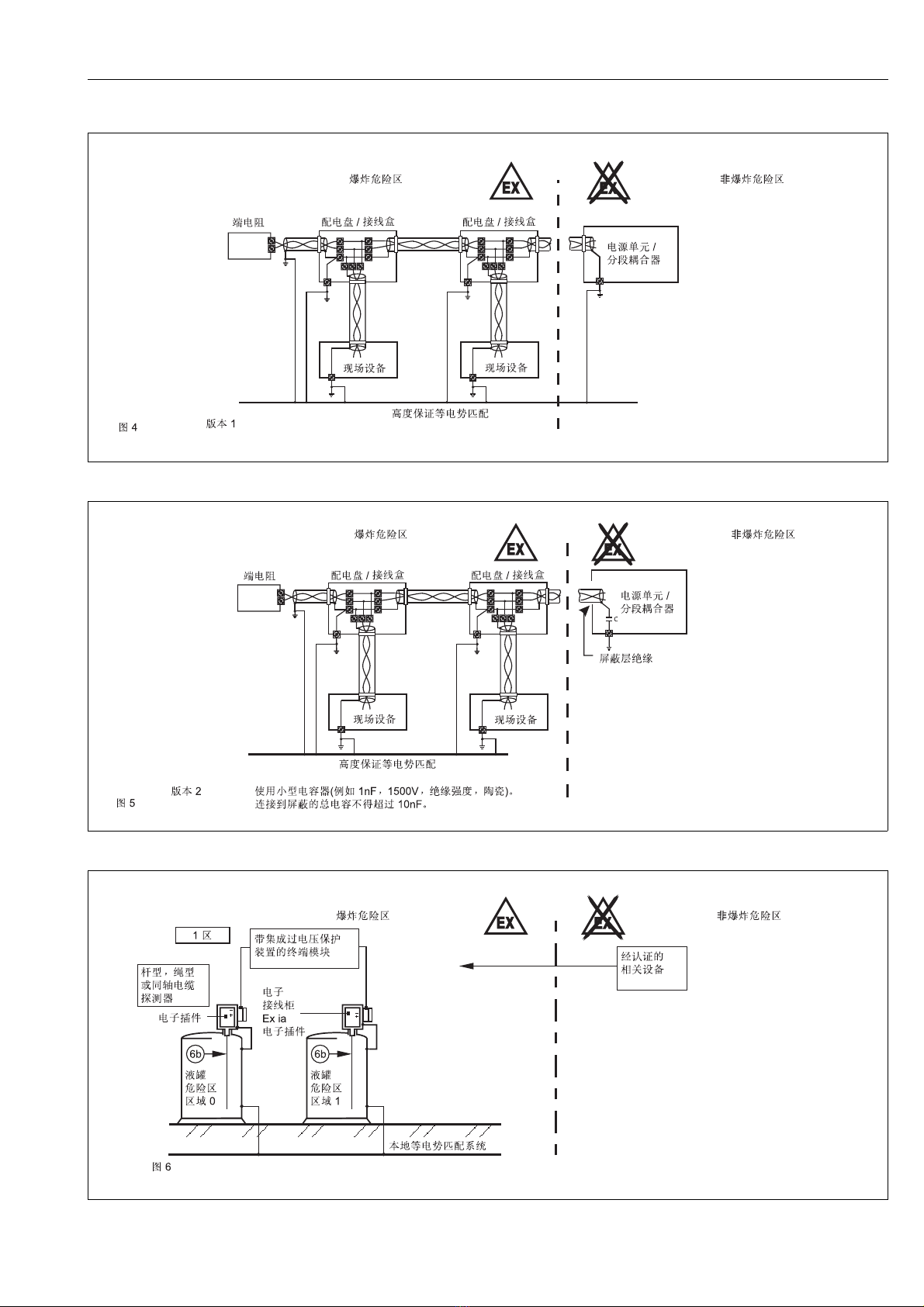

Figure 4
Explosion-hazardous area Non-explosion-hazardous area
C
Distributor / T-box Distributor / T-box
Terminal
resistor
Field device Field device
Power supply
unit /
Segment
coupler
Potential matching secured in high degree
Use small condensers (e.g. 1nF, 1500V, dielectric strength, ceramic).
Total capacitance connected to the screen must not exceed 10nF.
Version 2
Screen insulated
Figure 5
Explosion-hazardous area Non-explosion-hazardous area
Electronic insert
Tank
danger
area
Zone 1
Tank
danger
area
Zone 0
Zone 1
Local potential matching system
Certified
associated
apparatus

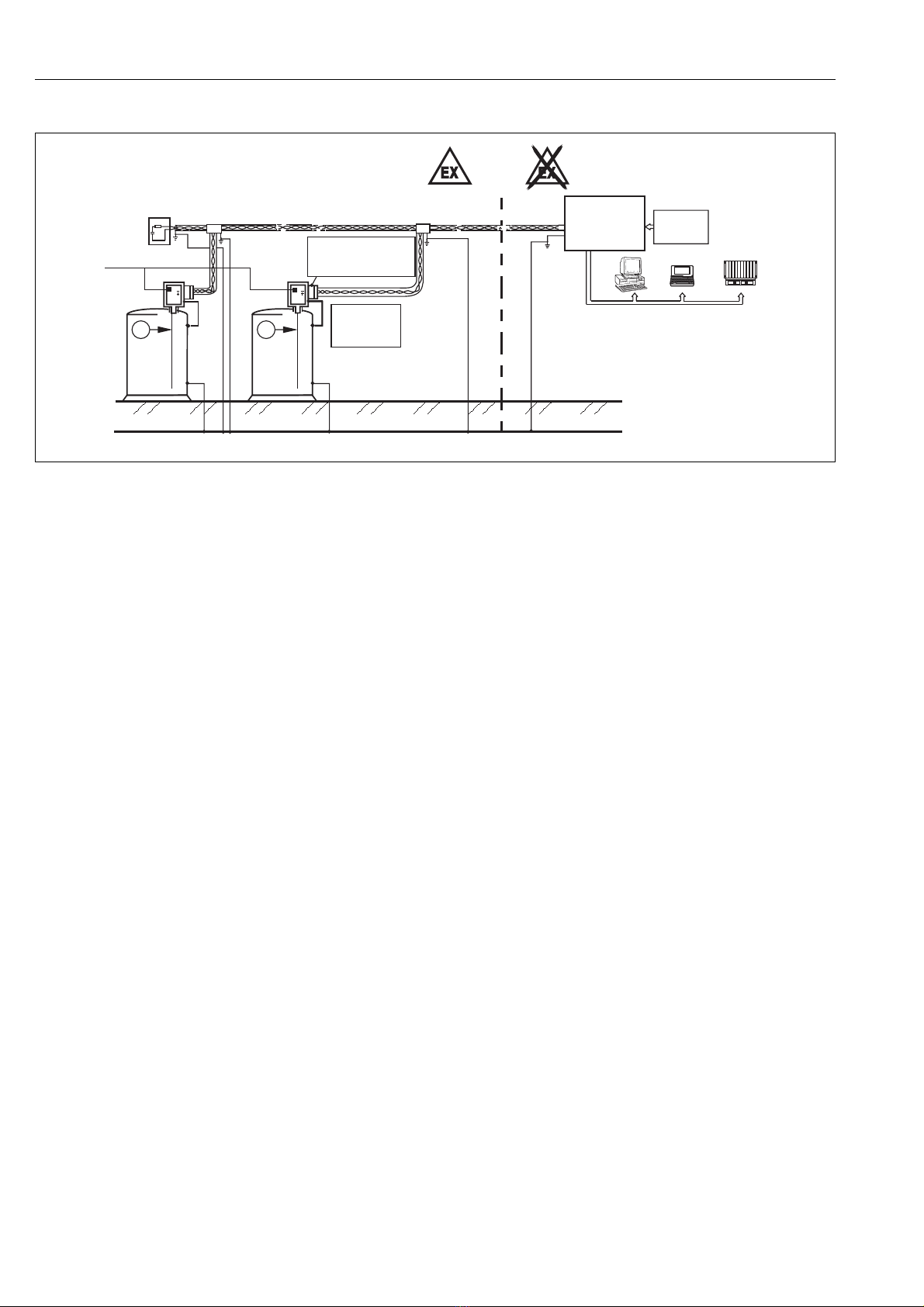

Figure 6
Electronics
compartment
Ex ia
Electronic insert
Terminal module
with integrated
overvoltage protector
Rod, or
rope or coax
probe
Explosion-hazardous area Non-explosion-hazardous area
6b 6b

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
6Endress+Hauser
Installation with external overvoltage protection
Electronic
insert
Zone 1
Tank
danger
area
Zone 1
Tank
danger
area
Zone 0
Corresponding
permitted
terminal
resistor
Ex ia IIC
Figure 7
Potential matching system
Certified
associated
apparatus Supply
voltage
C
R
Terminal module
with integrated
overvoltage protector
Rod, or
rope or coax
probe
6b 6b
Explosion-hazardous area Non-explosion-hazardous area
XC012FEN

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 7
Safety-relevant instructions for installation in explosion-hazardous areas:
Certified
associated
apparatus
HART Uo < 30 V
Io < 300 mA
Po < 1.0 W
[Ex ia] IIC
PROFIBUS PA
FOUNDATION Fieldbus
Uo < 24 V
Io < 250 mA
Po < 1.2 W
PROFIBUS PA or Foundation Fieldbus
[Ex ia] IIC or [Ex ib] IIC
Type of protection Ex ia IIC T1 ~ T6
Process pressure depends on the probe
Process temperature depends on the probe
Housing - F12 -40 °C ≤Tu ≤80 °C optionally with or without VU331 display and
operating module
- T12-OVP / with integrated
overvoltage protector
-40 °C ≤Tu ≤80 °C optionally with or without VU331 display and
operating module
Option e.g. HAW262Z, HAW562Z
1.) Install in accordance with the manufacturer's specifications and the valid standards and regulations.
- Do not operate the level sensor outside of the electrical, thermal and mechanical parameters.
2.) F12: The intrinsically-safe input power circuit of the Levelflex M is isolated from ground potential and has a dielectric strength of at least 500
Vrms with respect to it.
T12-OVP: The intrinsically-safe input circuit of the Levelflex M is isolated from ground potential. The dielectric strength to earth is limited by
600 V electrode arresters.
2.1) Fieldbus PA / FF: For grounding the screen, see figure 2, 4, 5 and 7.
3.) The relationship between the permitted ambient temperature for the electronics housing, dependent on the range of application, and the
temperature classes is shown in the tables Tab. 1a, 1b, 1c and Tab. 3a, 3b.
4.) After aligning (rotating) the housing, retighten the fixing screw (see Operating Instructions).
5.) Use connecting cable for continuous duty temperature > Ta + 5 K
6.a) Install the device to exclude any mechanical damage or friction during the application. Pay particular attention to flow conditions and fittings.
6.b) Special conditions
The probes (rod and rope version) of the level radar Levelflex M type FMP41C-....... have plastic surfaces, which can become electrostatically
charged.
For areas requiring instruments of Zone 0 Zone 1, the electrostatic limits have to be observed.
7.) T12-OVP / With integrated overvoltage protector
The type of protection changes as follows when the transmitter is connected to certified intrinsically-safe circuits of Category ib for Equipment
Groups IIC and IIB: Ex ib IIC T6 and Ex ib IIB T6.
Do not operate the probe in Zone 0 if the transmitter is connected to an intrinsically-safe circuit of Category Ex ib
7.1) The pertinent guidelines must be observed when intrinsically-safe circuits are connected together acc. DIN EN 60079-14 / IEC 60079-14
(Proof of Intrinsic Safety) (e.g. when using the Commubox or DXR275 handheld terminal or other certified apparatus).
7.2) On installations requiring an overvoltage protector to comply with national regulations or standards (e.g. DIN EN 60079-14 / IEC 60079-14),
the devices FMP41C and FMP45 shall be installed using an overvoltage protector (e.g. HAW262Z, HAW562Z from Endress+Hauser).
7.3) Overvoltage protector (e.g. HAW262Z , see figure 3):
- Connect the external overvoltage protector and the measuring device to the local potential matching system.
- The intrinsically-safe circuit is earthed under field conditions, therefore run a potential matching line along the length of the
cable both inside and outside the explosion-hazardous area.
- The cable connecting the overvoltage protector and the measuring device shall be no longer than 1 m,
- Route cable protected (e.g. in an armoured hose).

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
8Endress+Hauser
Tab. 1a FMP41C with F12 or T12-OVP
Note: permitted probe temperature range must be observed
1) functional = limited by maximum permitted probe temperature
Tab. 1b FMP45 with F12
Note: permitted probe temperature range must be observed
1) functional = limited by maximum permitted probe temperature
Zone 1 - Application
Temperature
class with /
without
VU331 display
Maximum permitted
medium temperature
(process connection)
Probe in Zone 1
Maximum permitted ambient temperature at the electronics housing
(electronics housing in Zone 1) dependent on the medium temperature
FMP41C FMP41C with
remote electronics /
spacer tube
FMP41C with remote
electronics / spacer hose
T6 +80 °C
+60 °C
+ 57 °C
+ 60 °C
+ 59 °C
+ 60 °C
+ 60 °C
+ 60 °C
T5 +95 °C
+75 °C
+ 72 °C
+ 75 °C
+ 74 °C
+ 75 °C
+ 75 °C
+ 75 °C
T4 +130 °C
+80 °C
+ 72 °C
+ 80 °C
+ 78 °C
+ 80 °C
+ 80 °C
+ 80 °C
T3
(functional)1)
+150 °C
+80 °C
+ 68 °C
+ 80 °C
+ 77 °C
+ 80 °C
+ 80 °C
+ 80 °C
T3, T2, T1 +195 °C
+80 °C
+ 62 °C
+ 80 °C
+ 76 °C
+ 80 °C
+ 80 °C
+ 80 °C
Zone 1 - Application
Temperature
class with /
without
VU331 display
Maximum permitted
medium temperature
(process connection)
Probe in Zone 1
Maximum permitted ambient temperature at the electronics housing
(electronics housing in Zone 1) dependent on the medium temperature
FMP45
type A,
(XT version)
FMP45
type B
(HT version)
FMP45 with remote
electronics / spacer hose
T6 +80 °C
+60 °C
+ 58 °C
+ 60 °C
+59 °C
+60 °C
60 °C
60 °C
T5 +95 °C
+75 °C
+ 73 °C
+ 75 °C
+ 74 °C
+ 75 °C
75 °C
75 °C
T4 +130 °C
+80 °C
+ 76 °C
+ 80 °C
+ 77 °C
+ 80 °C
80 °C
80 °C
T3
(functional)1)
+150 °C
+80 °C
+ 74 °C
+ 80 °C
+ 76 °C
+ 80 °C
80 °C
80 °C
T3 +195 °C
+80 °C
+ 72 °C
+ 80 °C
+ 75 °C
+ 80 °C
80 °C
80 °C
T2
(functional)1)
+250 °C
+80 °C
+ 69 °C
+ 80 °C
+ 73 °C
+ 80 °C
80 °C
80 °C
T2
(functional)1
+290 °C
+80 °C
280 °C: + 67 °C
+ 80 °C
+ 71 °C
+ 80 °C
80 °C
80 °C
T1
(functional)1
+400 °C
+80 °C
not allowed + 66 °C
+ 80 °C
80 °C
80 °C

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 9
Tab. 1c FMP45 with T12-OVP
Note: permitted probe temperature range must be observed
1) functional = limited by maximum permitted probe temperature
Tab. 2a: HART
Tab. 2b: Fieldbus
Tab. 2c with F12
Zone 1 - Application
Temperature class
with / without
VU331 display
Maximum permitted
medium temperature
(process connection)
Probe in Zone 1
Maximum permitted ambient temperature at the electronics
housing (electronics housing in Zone 1)
dependent on the medium temperature
FMP45
type A,
(XT version)
FMP45
type B
(HT version)
FMP45 with
remote electron-
ics / spacer hose
T6 +80 °C
+60 °C
+ 58 °C
+ 60 °C
+59 °C
+60 °C
60 °C
60 °C
T5 +95 °C
+75 °C
+ 73 °C
+ 75 °C
+ 74 °C
+ 75 °C
75 °C
75 °C
T4 +130 °C
+80 °C
+ 76 °C
+ 80 °C
+ 78 °C
+ 80 °C
80 °C
80 °C
T3
(functional)1)
+150 °C
+80 °C
+ 74 °C
+ 80 °C
+ 74 °C
+ 80 °C
80 °C
80 °C
T3 +195 °C
+80 °C
+ 72 °C
+ 80 °C
+ 75 °C
+ 80 °C
80 °C
80 °C
T2
(functional)1)
+250 °C
+80 °C
+ 68 °C
+ 80 °C
+ 70 °C
+ 80 °C
80 °C
80 °C
T2
(functional)1
+290 °C
+80 °C
280 °C: + 66 °C
+ 80 °C
+ 72 °C
+ 80 °C
80 °C
80 °C
T1
(functional)1
+400 °C
+80 °C
not permitted + 67 °C
+ 80 °C
80 °C
80 °C
Power supply and signal circuit in protection type: intrinsic safety Ex ia IIC or IIB
Ui = 30 V
Ii = 300 mA
Pi = 1 W
effective inner inductance Li = negligible
effective inner capacitance Ci = 13 nF
Power supply and signal circuit in protection type: intrinsic safety Ex ia IIC or IIB
Levelflex M with electronic insert for PROFIBUS PA or FOUNDATION Fieldbus
Ex ia IIC
Ui = 24 V
Ii = 250 mA
Pi = 1.2 W
Li = 10 µH
Ci = 5 nF
Leak current ≤50 µA
Option:
Power supply and signal circuit for remote display, e.g. FHX40, in protection type: intrinsic safety Ex ia IIC
or IIB
Uo = 4.2 V
Io = 34 mA
Po = 36 mW
effective inner inductance Li = negligible
effective inner capacitance Ci = negligible
Characteristic curve: linear
Lo = 5 mH
Co = 4 µF

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
10 Endress+Hauser
Zone 0 Safety Instruction
Tab. 3a FMP41C with F12 or T12-OVP
Tab. 3b FMP45 with F12 or T12-OVP
12.) Do not change any apparatus configuration.
13.) For installing, using and maintaining observe the instruction manual and following standards:
– GB3836.13-1997: "Electrical apparatus for explosive gas atmospheres - Part 13:
Repair and overhaul for apparatus used in explosive gas atmospheres"
– GB3836.15-2000: "Electrical apparatus for explosive gas atmospheres - Part 15:
Electrical installations in hazardous area (other than mines)"
– GB50257-1996: "Code for construction and acceptance of electric device for explosive atmospheres and
fire hazard electrical equipment installation engineering"
8.) In Zone 0, potentially explosive air/vapour mixtures must only occur under atmospheric conditions:
-20 °C < T > +60 °C
0.8 bar < p > 1.1 bar.
If no potentially explosive mixtures are present, the transmitters may be operated under other
atmospheric conditions in accordance with the manufacturer's specifications.
9.) Only install the devices in media for which the wetted materials have sufficient durability.
10.) Associated apparatus with galvanic isolation between intrinsically-safe and non-intrinsically-safe
circuits are preferred.
11.) With T12-OVP
The integrated overvoltage protector meets the requirements as per IEC / EN 60079-14 Section 12.3.
Zone 0 - Application
Temperature class
with / without
VU331 display
Maximum permitted
medium temperature
(process connection)
Probe in Zone 0
(see point 8)
Maximum permitted ambient temperature at the electronics
housing (electronics housing in Zone 1) dependent on the medium
temperature
FMP41C FMP41C with
remote electronics /
spacer tube
FMP41C with
remote electronics /
spacer hose
T6 +60 °C60°C 60 °C 60 °C
T5 +60 °C75°C 75 °C 75 °C
T4, T3, T2, T1 +60 °C80°C 80 °C 80 °C
Zone 0 - Application
Temperature class
with / without
VU331 display
Maximum permitted
medium temperature
(process connection)
Probe in Zone 0
(see point 8)
Maximum permitted ambient temperature at the electronics
housing (electronics housing in Zone 1) dependent on the medium
temperature
FMP45
type A,
(XT version)
FMP45
type B
(HT version)
FMP45 with
remote electronics /
spacer hose
T6 +60 °C 60 °C 60 °C60°C
T5 +60 °C 75 °C 75 °C75°C
T4, T3, T2, T1 +60 °C 80 °C 80 °C80°C

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 11
Levelflex M
FMP41C/45
HART，PROFIBUS PA，
FOUNDATION Fieldbus ( 基金会现场总线 )
安全指南 XC012F-B
相关资料 该文件是下列操作手册的组成部分：
– HART：BA276F/00、BA279F/00
– PROFIBUS PA：BA277F/00、BA280F/00
– FOUNDATION Fieldbus ( 基金会现场总线 )：BA278F/00、BA281
根据用户订购仪 的具体型号所提供的相应操作手册。
名称 防爆标志和防护类型的说明请查询防爆手册。
防爆代号 Ex ia IIC T1...T6

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
12 Endress+Hauser
HART
现场总线 (PROFIBUS PA / FOUNDATION Fieldbus ( 基金会现场总线 ))：
外部过电压保护安装

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 13
现场总线屏 连接
现场总线屏 连接
内部过电压保护安装

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
14 Endress+Hauser
外部过电压保护安装

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 15
在爆炸环境中安装的安全相关说明：
经认证的
相关仪器
HART Uo < 30 V
Io < 300 mA
Po < 1.0 W
[Ex ia] IIC
PROFIBUS PA
FOUNDATION Fieldbus
(基金会现场总线 )
Uo < 24 V
Io < 250 mA
Po < 1.2 W
PROFIBUS PA 或FOUNDATION Fieldbus
(基金会现场总线 )
[Ex ia] IIC 或[Ex ib] IIC
防护类型 Ex ia IIC T1 ~ T6
过程压力 取决于探针
过程温度 取决于探针
外壳 - F12 -40 °C ≤Tu ≤80 °C 可选带有或不带有 VU331 显示屏和操作模块
- T12-OVP / 带集成的
过电压保护器
-40 °C ≤Tu ≤80 °C 可选带有或不带有 VU331 显示屏和操作模块
可选件 如 HAW262Z，HAW562Z
1.) 按制造商技术规范和有效的标准和准则安装。
- 请勿使液位传感器在电气、热 和机械因数之外运行。
2.) F12：Levelflex M 的本安型输入电源电路与地电势是绝缘的，它相对地电势至少有 500 Vrms 的绝缘强度。
T12-OVP：Levelflex M 的本安型输入电路与地电势是绝缘的。对地绝缘强度限制为 600 V 电气放电装置。
2.1) 现场总线 PA / FF：关于接地屏蔽，请参见图 2、图 4、图 5和图 7。
3.) 电子部件外壳的允许环境温度 (取决于应用范围 )与温度等级之间的关系如下表所示 (表1a、1b、1c 和表 3a、3b)。
4.) 在对齐 (旋转 )外壳后，重新拧紧固定螺丝 (参见操作说明 )。
5.) 使用持续工作温度 > Ta + 5 K 的连接电缆
6.a) 安装仪表以排除任何在应用期间出现的机械损伤或磨损。请尤其注意流 状况和液罐装置。
6.b) 特殊条件
液位探测器 Levelflex M 类型 FMP41C 的探头 (杆形和绳形版本 )-....... 具有塑料表面，可能会造成静电积聚。
对于需要 0区、 1区仪器的区域，必须遵守静电限制。
7.) T12-OVP / 带集成的过电压保护器
当变送器连接到 ib 类IIC 和IIB 组的经认证的本安型电路时，防护类型作如下改变：Ex ib IIC T6 和Ex ib IIB T6。
若变送器与防爆类别为 Ex ib 的本安型电路相连时，不可在 0区中使用探头。
7.1) 当本质安全型电路按 DIN EN 60079-14 / IEC 60079-14 ( 本质安全标准 )连接在一起时 (例如当使用 Commubox 或DXR275 手持
式端子或其它经认证的仪器 )，必须遵守相关指南。
7.2) 在按照国家规定或标准 (例如 DIN EN 60079-14 / IEC 60079-14) 要求安装过电压保护器的装置上，FMP41C 和FMP45 设备应使
用过电压保护器 (例如 Endress+Hauser 的HAW262Z，HAW562Z)。
7.3) 过电压保护器 (例如 HAW262Z，参见图 3)：
- 连接外部过电压和测 设备到本地等电势匹配系统。
- 本质安全型电路按现场条件接地，因此沿着防爆区内侧和外测的电缆布线等电势匹配线路。
- 连接过电压保护器和测 设备的电缆不得超过 1米长，
- 布线电缆受保护 (例如带金属外皮的软管 )。

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
16 Endress+Hauser
表1a FMP41C 带F12 或T12-OVP
注意： 必须遵守允许的探头温度范围
1) 实用的 = 受限于最大允许的探测器温度
表1b FMP45 带F12
注意： 必须遵守允许的探测器温度范围
1) 实用的 = 受限于最大允许的探测器温度
区域 1 - 应用
温度等级
带/不带
VU331 显示屏
最 允许的输入温度
(工艺连接件 )
区域 1处的探测器
电子外壳处最 允许的环境温度
(区域 1处的电子外壳 )取决于输入温度
FMP41C FMP41C ，带有
远程电子部件 /
定距管
带远程电子部件 /
定距软管的 FMP41C
T6 +80 °C
+60 °C
+ 57 °C
+ 60 °C
+ 59 °C
+ 60 °C
+ 60 °C
+ 60 °C
T5 +95 °C
+75 °C
+ 72 °C
+ 75 °C
+ 74 °C
+ 75 °C
+ 75 °C
+ 75 °C
T4 +130 °C
+80 °C
+ 72 °C
+ 80 °C
+ 78 °C
+ 80 °C
+ 80 °C
+ 80 °C
T3
(实用的 )1)
+150 °C
+80 °C
+ 68 °C
+ 80 °C
+ 77 °C
+ 80 °C
+ 80 °C
+ 80 °C
T3，T2，T1 +195 °C
+80 °C
+ 62 °C
+ 80 °C
+ 76 °C
+ 80 °C
+ 80 °C
+ 80 °C
区域 1 - 应用
温度等级
带/不带
VU331 显示屏
最 允许的输入温度
(工艺连接件 )
区域 1处的探探测器
电子外壳处最 允许的环境温度
(区域 1处的电子外壳 )取决于输入温度
FMP45
类型 A
(XT 版本 )
FMP45
类型 B
(HT 版本 )
FMP45 带远程
电子部件 /定距软管
T6 +80 °C
+60 °C
+ 58 °C
+ 60 °C
+59 °C
+60 °C
60 °C
60 °C
T5 +95 °C
+75 °C
+ 73 °C
+ 75 °C
+ 74 °C
+ 75 °C
75 °C
75 °C
T4 +130 °C
+80 °C
+ 76 °C
+ 80 °C
+ 77 °C
+ 80 °C
80 °C
80 °C
T3
(实用的 )1)
+150 °C
+80 °C
+ 74 °C
+ 80 °C
+ 76 °C
+ 80 °C
80 °C
80 °C
T3 +195 °C
+80 °C
+ 72 °C
+ 80 °C
+ 75 °C
+ 80 °C
80 °C
80 °C
T2
(实用的 )1)
+250 °C
+80 °C
+ 69 °C
+ 80 °C
+ 73 °C
+ 80 °C
80 °C
80 °C
T2
(实用的 )1)
+290 °C
+80 °C
280 °C: + 67 °C
+ 80 °C
+ 71 °C
+ 80 °C
80 °C
80 °C
T1
(实用的 )1)
+400 °C
+80 °C
不允许 + 66 °C
+ 80 °C
80 °C
80 °C

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 17
表1c FMP45 带T12-OVP
注意： 必须遵守允许的探测器温度范围
1) 实用的 = 受限于最大允许的探测器温度
表2a：HART
表2b：现场总线
表2c 带F12
区域 1 - 应用
温度等级
带/不带
VU331 显示屏
最 允许的输入温度
(工艺连接件 )
区域 1处的探测器
电子外壳处最 允许的环境温度
(区域 1处的电子外壳 )取决于输入温度
FMP45
类型 A
(XT 版本 )
FMP45
类型 B
(HT 版本 )
FMP45 带
远程电子部件 /
定距管
T6 +80 °C
+60 °C
+ 58 °C
+ 60 °C
+59 °C
+60 °C
60 °C
60 °C
T5 +95 °C
+75 °C
+ 73 °C
+ 75 °C
+ 74 °C
+ 75 °C
75 °C
75 °C
T4 +130 °C
+80 °C
+ 76 °C
+ 80 °C
+ 78 °C
+ 80 °C
80 °C
80 °C
T3
(实用的 )1)
+150 °C
+80 °C
+ 74 °C
+ 80 °C
+ 74 °C
+ 80 °C
80 °C
80 °C
T3 +195 °C
+80 °C
+ 72 °C
+ 80 °C
+ 75 °C
+ 80 °C
80 °C
80 °C
T2
(实用的 )1)
+250 °C
+80 °C
+ 68 °C
+ 80 °C
+ 70 °C
+ 80 °C
80 °C
80 °C
T2
(实用的 )1)
+290 °C
+80 °C
280 °C: + 66 °C
+ 80 °C
+ 72 °C
+ 80 °C
80 °C
80 °C
T1
(实用的 )1)
+400 °C
+80 °C
不允许 + 67 °C
+ 80 °C
80 °C
80 °C
电源和信号电路的防护类 ：本安 Ex ia IIC 或IIB
Ui = 30 V
Ii = 300 mA
Pi = 1 W
有效内部电感 Li = 可忽略
有效内部电容 Ci = 13 nF
电源和信号电路的防护类 ：本安 Ex ia IIC 或IIB
带电子插件的 Levelflex M，用于 PROFIBUS PA 或FOUNDATION Fieldbus ( 基金会现场总线 )
Ex ia IIC：
Ui = 24 V
Ii = 250 mA
Pi = 1.2 W
Li = 10 µH
Ci = 5 nF
漏电流 ≤50 µA
可选件：
用于远程显示器的电源和信号电路 (如FHX40) 的防护类 ：本安 Ex ia IIC 或IIB
Uo = 4.2 V
Io = 34 mA
Po = 36 mW
有效内部电感 Li = 可忽略
有效内部电容 Ci = 可忽略
特征曲线：线性
Lo = 5 mH
Co = 4 µF

Ex NEPSI GYJ05555 / XC012F-B Levelflex M
18 Endress+Hauser
区域 0安全说明
表3a FMP41C 带F12 或T12-OVP
表3b FMP45 带F12 或T12-OVP
12.) 请勿更改任何仪器配置。
13.) 安装、使用和维护时需遵守说明手册及下列标准：
– GB3836.13-1997：“用于爆炸性气体环境的电子仪器 - 第13 部分：
爆炸性气体环境中所使用仪器的修理和检修”
– GB3836.15-2000：“用于爆炸性气体环境的电子仪器 - 第15 部分：
危险区中的电子设备安装 (除矿区之外 )”
– GB50257-1996：“爆炸性环境中电子设备的构架和验收及防火灾电子设备安装工程的规定”
8.) 在区域 0，有可能爆炸的空气/蒸气混合物必须满足这样的大气条件：
-20 °C < T>+60 °C
0.8 bar < P> 1.1 bar
如果不存在可能爆炸的混合物，则变送器可在符合制造商技术规范的其它大气条件下运
行。
9.) 当仪表的接触部件具有足够耐久度时，才可将仪表安装于介质中。
10.) 在本安型和非本安型电路间最好采用电气隔离的相关设备。
11.) 带T12-OVP
集成的过电压保护器满足 IEC / EN 60079-14，第 12.3 节的要求。
区域 0 - 应用
温度等级
带/不带
VU331 显示屏
最 允许的
输入温度
(工艺连接件 )
区域 0处的探测器
(参见第 8点)
电子外壳处最 允许的环境温度
(区域 1处的电子外壳 )取决于输入温度
FMP41C FMP41C 带
远程电子部件 /
定距管
FMP41C 带
远程电子部件 /
定距软管
T6 +60 °C 60 °C 60 °C 60 °C
T5 +60 °C 75 °C 75 °C 75 °C
T4, T3, T2, T1 +60 °C 80 °C 80 °C 80 °C
区域 0 - 应用
温度等级
带/不带
VU331 显示屏
最 允许的输入温度
(工艺连接件 )
区域 0处的探测器
(参见第 8点)
电子外壳处最 允许的环境温度
(区域 1处的电子外壳 )取决于输入温度
FMP45
类型 A
(XT 版本 )
FMP45
类型 B
(HT 版本 )
FMP45 带
远程电子部件 /
定距管
T6 +60 °C 60 °C 60 °C 60 °C
T5 +60 °C 75 °C 75 °C 75 °C
T4, T3, T2, T1 +60 °C 80 °C 80 °C 80 °C

Levelflex M Ex NEPSI GYJ05555 / XC012F-B
Endress+Hauser 19

www.endress.com/worldwide
XC012F-B/00/b2/10.06
71035519
CCS/FM+SGML 6.0 71035519
