Operating Instructions
Chemoclean CYR10B
Cleaning injector for spray cleaning and retractable
assemblies
BA01982C/07/EN/01.19
71469878
2019-11-30

Chemoclean CYR10B Table of contents
Endress+Hauser 3
Table of contents
1 About this document ........... 4
1.1 Warnings ........................... 4
1.2 Symbols ............................ 4
1.3 Symbols on the device ................ 5
2 Basic safety instructions ....... 6
2.1 Requirements for personnel ........... 6
2.2 Designated use ...................... 6
2.3 Workplace safety .................... 6
2.4 Operational safety ................... 6
2.5 Product safety ....................... 7
3 Product description ............. 8
3.1 Product design ....................... 8
3.2 Operating principle ................... 9
4 Incoming acceptance and
product identification ......... 11
4.1 Incoming acceptance ................ 11
4.2 Product identification ................ 11
4.3 Scope of delivery .................... 12
4.4 Certificates and approvals ............ 12
5 Installation .................... 13
5.1 Installation conditions ............... 13
5.2 Installation conditions ............... 15
5.3 Mounting the device ................ 16
5.4 Post-installation check ............... 19
6 Electrical connection .......... 20
6.1 Connection conditions ............... 20
6.2 Connecting the device ............... 20
6.3 Mounting the device plug ............ 27
6.4 Ensuring the degree of protection ..... 28
6.5 Post-connection check ............... 28
7 Commissioning ................ 29
7.1 Function check ..................... 29
7.2 Configuring the mixture ratio ......... 29
8 Operation ...................... 32
8.1 Cleaner for cleaning mixture .......... 32
9 Maintenance .................. 33
9.1 Cleaning ........................... 33
10 Repair .......................... 34
10.1 Spare parts ........................ 34
10.2 Repair work ........................ 35
10.3 Return ............................ 42
10.4 Disposal ........................... 42
11 Accessories .................... 43
12 Technical data ................. 45
12.1 Power supply ....................... 45
12.2 Environment ....................... 45
12.3 Process ............................ 45
12.4 Mechanical construction ............. 46
Index ................................. 47

About this document Chemoclean CYR10B
4 Endress+Hauser
1 About this document
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious injury.
LWARNING
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious injury.
LCAUTION
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
If necessary, Consequences of non-
compliance (if applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to property.
1.2 Symbols
Symbol Meaning
Additional information, tips
Permitted or recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
 Result of a step

Chemoclean CYR10B About this document
Endress+Hauser 5
1.3 Symbols on the device
Symbol Meaning
Reference to device documentation

Basic safety instructions Chemoclean CYR10B
6 Endress+Hauser
2 Basic safety instructions
2.1 Requirements for personnel
• Installation, commissioning, operation and maintenance of the measuring system may be
carried out only by specially trained technical personnel.
• The technical personnel must be authorized by the plant operator to carry out the specified
activities.
• The electrical connection may be performed only by an electrical technician.
• The technical personnel must have read and understood these Operating Instructions and
must follow the instructions contained therein.
• Faults at the measuring point may only be rectified by authorized and specially trained
personnel.
Repairs not described in the Operating Instructions provided must be carried out only
directly at the manufacturer's site or by the service organization.
2.2 Designated use
The CYR10B cleaning injector is a spray cleaning system for pH / ORP sensors as well as
oxygen and turbidity sensors. The system is based on the same principle as a Venturi water jet
pump, which is used to mix motive water and cleaning agent. The resulting mixture is used to
clean a sensor in an appropriate assembly.
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Workplace safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations
Electromagnetic compatibility
• The product has been tested for electromagnetic compatibility in accordance with the
applicable European standards for industrial applications.
• The electromagnetic compatibility indicated applies only to a product that has been
connected in accordance with these Operating Instructions.
2.4 Operational safety
Before commissioning the entire measuring point:
1. Verify that all connections are correct.
2. Ensure that electrical cables and hose connections are undamaged.
3. Do not operate damaged products, and protect them against unintentional operation.
4. Label damaged products as defective.

Chemoclean CYR10B Basic safety instructions
Endress+Hauser 7
During operation:
‣If faults cannot be rectified:
products must be taken out of service and protected against unintentional operation.
2.5 Product safety
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
European standards have been observed.

Product description Chemoclean CYR10B
8 Endress+Hauser
3 Product description

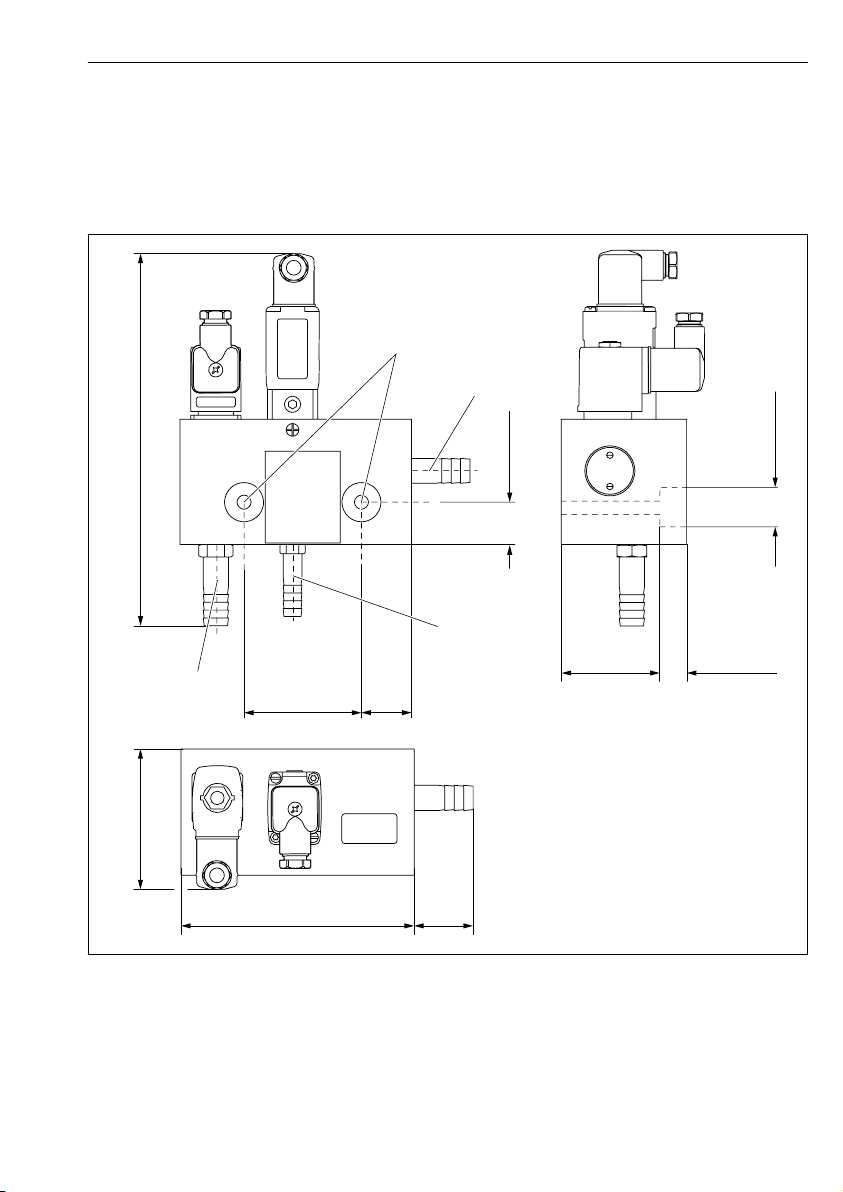

3.1 Product design
1
5
6
7
8
9
2
10 3
4
A0040631

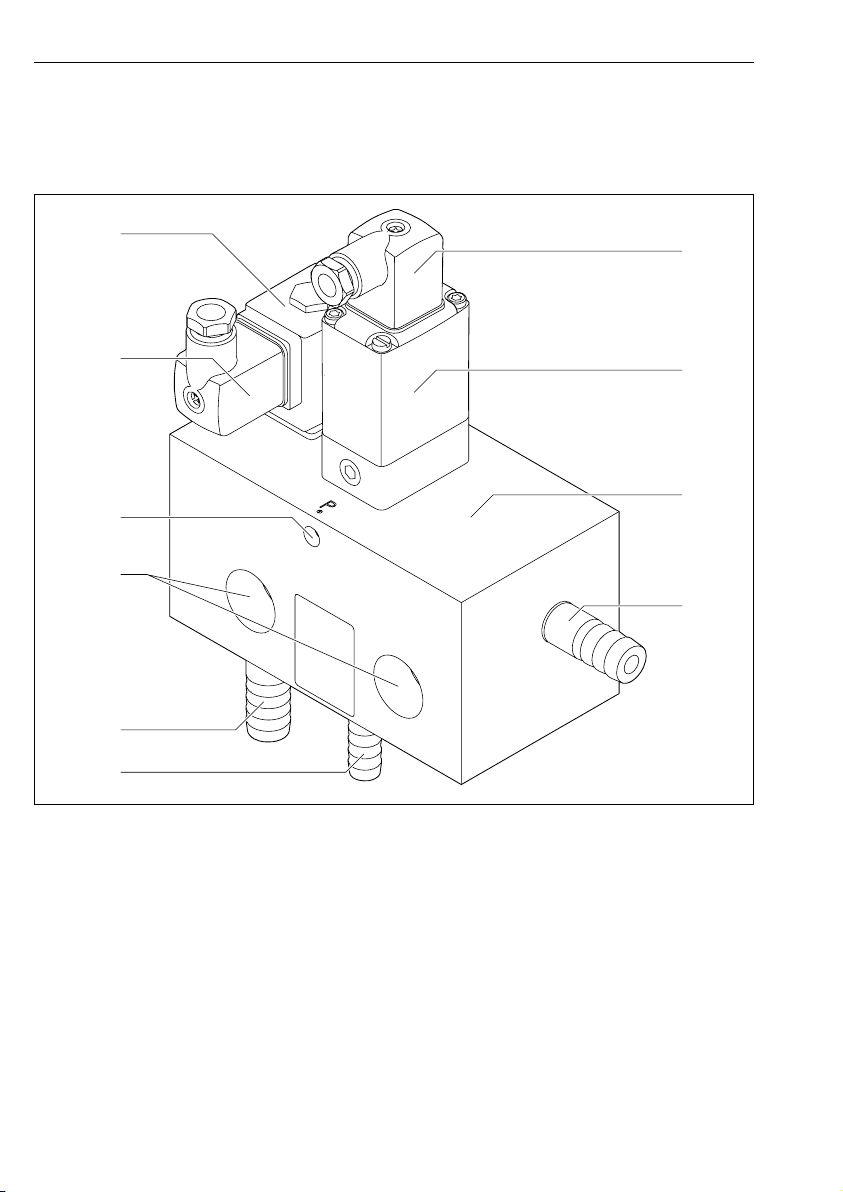

 1 CYR10B injector unit
1 Motive water valve
2 Device plug for cleaner valve
3 Cleaner valve
4 Housing block
5 Connection for cleaning mixture
6 Connection for cleaner (suction line)
7 Connection for motive water
8 Attachments for securing the unit
9 Metering screw
10 Device plug for motive water valve

Chemoclean CYR10B Product description
Endress+Hauser 9
3.2 Operating principle
3.2.1 Function of CYR10B
1
2
3
4
5
6
8
9
7
A0040773

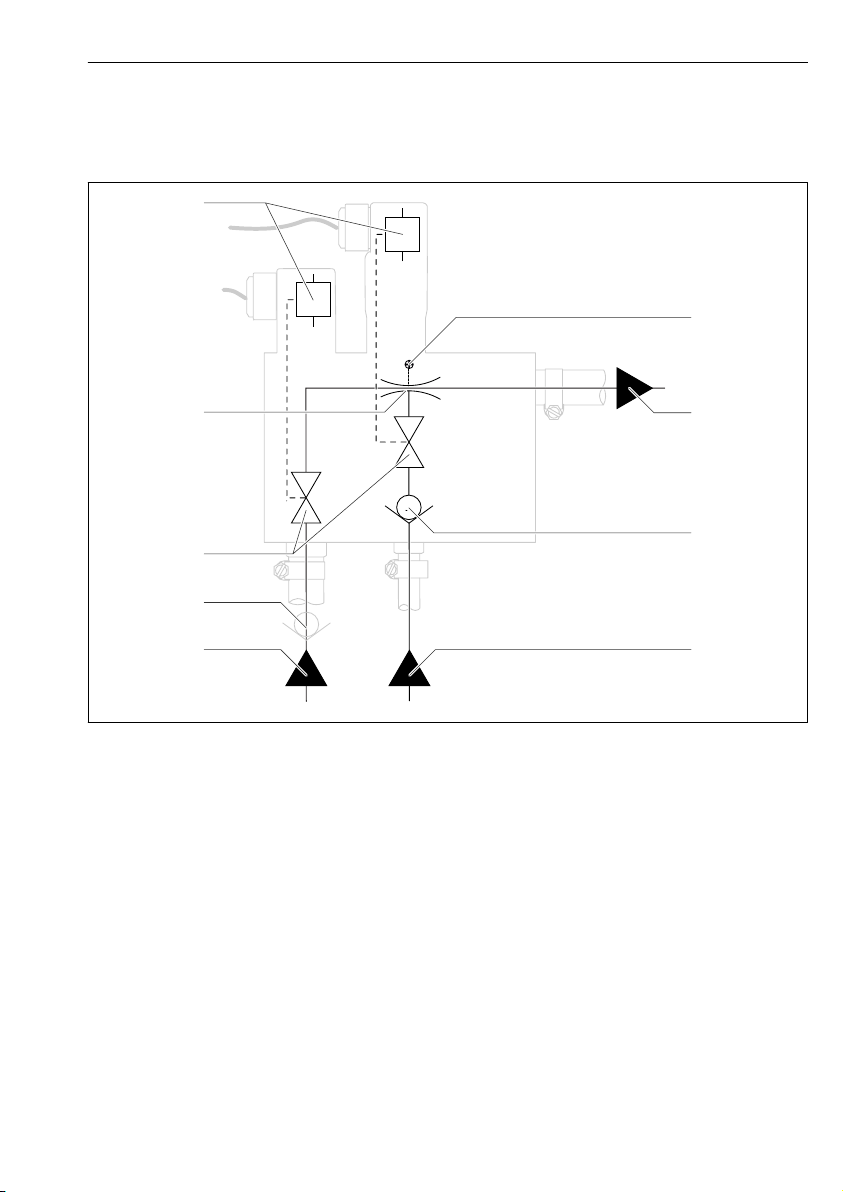

 2 Operating principle
1 Valve controls
2 Metering screw
3 Outlet for cleaning mixture (the installation of a check valve is recommended on the assembly side)
4 Check valve
5 Inlet for cleaner (suction line)
6 Inlet for motive water
7 Check valve (to be provided by customer)
8 Solenoid valves
9 Water jet pump
The cleaning injector uses the Venturi principle to mix motive water and cleaner to form a
cleaning mixture.
In the process, the motive water flows through a water jet pump (injector) to the spray head.
The resulting negative pressure causes the cleaner to be sucked in and mixed with the motive
water.

Product description Chemoclean CYR10B
10 Endress+Hauser

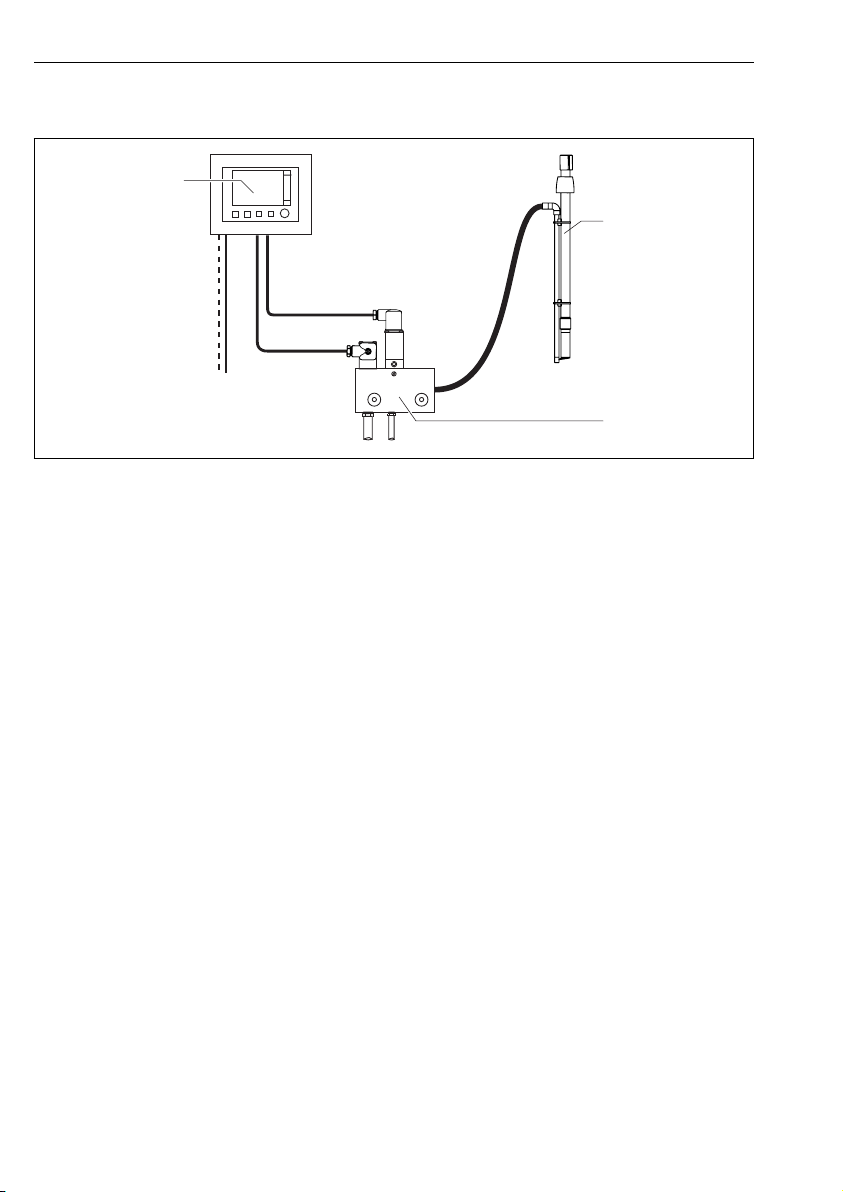

The flow rate of motive water and cleaner is controlled by the Liquiline CM44x via two
solenoid valves in the injector.
The mixture ratio can be configured using a metering screw.→  29

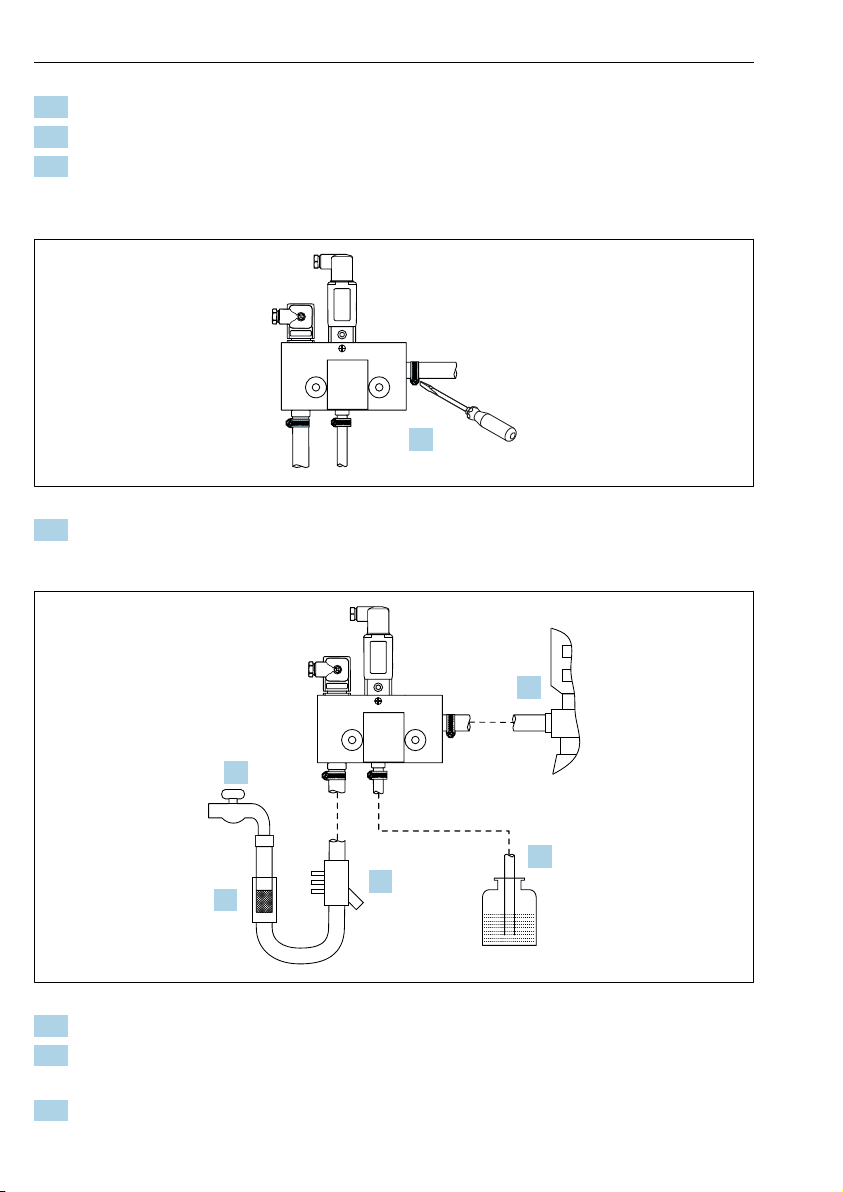

Hose lines are used to supply the motive water and cleaner and to route the cleaning mixture
to the spray head.
3.2.2 Function of water jet pump
A1A2
h
p
l
p
A0041761
 3 How a water jet pump works
The water jet pump installed in the injector functions without mechanical components in
accordance with the Venturi principle.
For this purpose, cross-section A1 of the motive water line within the injector is tapered in
sections to match cross-section A2.
The suction line for the cleaner is attached at the point of the narrowest cross-section. This is
where the speed of the motive water is at a maximum. The high speed induces a negative
pressure in the suction line, causing the cleaner to be sucked in and mixed with the motive
water.
The suction process causes a reduction in pressure downstream from the water jet pump.
