ETC Irideon WLZ User manual

Part Number: 7192M1200-1.0.1 Rev: D
Released: 2019-06
Irideon WLZ
User Manual
Version 1.0

To view a list of ETC trademarks and patents, go to etcconnect.com/ip .
All other trademarks, both marked and not marked, are the property of
their respective owners.
ETC intends this document, whether printed or electronic, to be
provided in its entirety.

Table of Contents
Table of Contents i
Introduction . . . . . . . . . . . . . . . . . . . . . . . 1
Specifications. . . . . . . . . . . . . . . . . . . . . . . 3
Basic Assembly. . . . . . . . . . . . . . . . . . . . . . 4
Installation. . . . . . . . . . . . . . . . . . . . . . . . . 4
Install Track-Mounted Fixture. . . . . . . . . . . . . 4
Install Canopy Fixture (DMX variant) . . . . . . . 5
Install the Voltage Barrier
(DMX variant) . . . . . . . . . . . . . . . . . . . . . . . 5
Connect Canopy Wiring (DMX variant) . . . 6
Install the Mounting Plate and
Complete the Wiring (DMX variant) . . . . . 8
Install Canopy Fixture (0–10 V and DALI
variants) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Install Portable Fixture with C-clamp . . . . . . 13
Install Portable Fixture on Unistrut Track . . 14
Connect Cables to Portable Fixture . . . . . . . 14
Portable Fixture DMX Pinout . . . . . . . . . . 15
Set the DMX Address on the Fixture . . . . . . 15
Alternative DMX Addressing Functions . . 17
Adjust the Local Intensity . . . . . . . . . . . . . 17
Initial Power Up . . . . . . . . . . . . . . . . . . . . . . . 18
Status LED. . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

ii Table of Contents
Adjustments. . . . . . . . . . . . . . . . . . . . . . . 19
Set the Angle with the Yoke . . . . . . . . . . . . . 19
Adjust the Field . . . . . . . . . . . . . . . . . . . . . . . 19
Use the Barn Door Accessory . . . . . . . . . . . . . 20
Use the Integrated Media Holder . . . . . . . . . 20
Install Color Media or Diffusion . . . . . . . . 21
Install Dichroic Glass. . . . . . . . . . . . . . . . . . 21
Clean the Lens . . . . . . . . . . . . . . . . . . . . . 22
RDM Values . . . . . . . . . . . . . . . . . . . . . . . 23

User Manual 1
Introduction
The Irideon WLZ (Wash Light Zoom) is a compact but powerful LED wash light.
It incorporates many of the great features of its companion fixture, the
Irideon FPZ, including local and DMX control, adjustable zoom, and sleek
design.
The Irideon WLZ has three available mounting options:
• Track-mount—For use with the DataTrack track system.
• Portable—Includes a miniature C-clamp and yoke-mounted driver, and
has a permanently installed power cord with 3-prong Edison connector.
Region-specific connectors are available. Contact ETC for available
options. Use L5-15 plugs on branch circuits with L5-15 receptacles only.
• Canopy—Available in three different control variants:
-0–10V
- DALI
-DMX
Note:
The miniature C-clamp for the portable fixture is
available only in non-EU markets. Within the EU, use an
M12 bolt to secure a C-clamp (provided separately) to the
fixture.

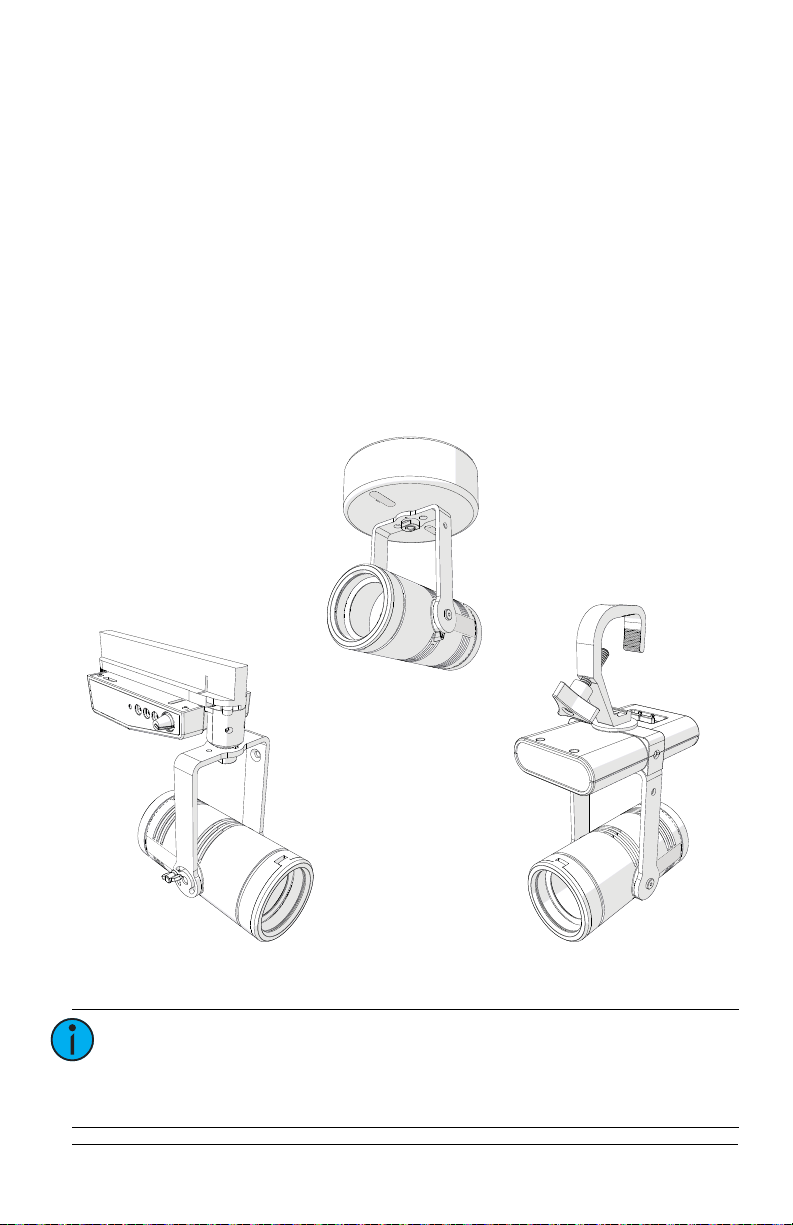

PortableTrack-mount
Canopy

2Irideon WLZ
WARNING:
Please note the following safety warnings before use:
• Do not mount the fixture on or near combustible
surfaces.
• Do not operate the fixture without a lens installed, or
with a scratch or cracked lens. Damaged lenses must be
replaced.
• Use in dry locations only, where humidity does not
exceed 90 percent (non-condensing). These fixtures are
not intended for outdoor use.
WARNING:
For the canopy fixture, turn off power at main fuse or
breaker box and verify that the power is off before
proceeding with installation or maintenance.
The canopy fixture must be installed by a qualified
electrician in accordance with all national and local
electrical and construction codes and regulations.
WARNING:
Use the track-mount fixture with ceiling-mounted track
only.
WARNING:
To reduce the risk of fire and electric shock, use the
track-mount fixture only with the DataTrack (EUTRAC
®
)
track system.
AVERTIR:
Pour éviter le risque d'incendie ou de choc électrique
avec le modèle adaptateur pour rail, utiliser uniquement
avec une alimentation par rail DataTrack (EUTRAC).
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING - To reduce the risk of FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
1) Keep lamp away from materials that may burn.
2) External temperature after 5 minutes of full-brightness operation: 27°C (81°F).
3) External temperature when steady state is achieved: 50°C (122°F).
SAVE THESE INSTRUCTIONS

User Manual 3
Specifications
Physical
• Steel yoke with 0.406” (10.3 mm) diameter
mounting hole
• IP20 rated
• Magnetically held integrated media holder
for 2-11/16” (69 mm) diameter color media
or diffusion or 1.75 mm-thickness dichroic
glass
• Track-mount fixture:
- Compatible and ETL-listed for DataTrack
(EUTRAC) brand track
- DataTrack color matching track adapter
included
• Portable fixture:
- C-clamp (included in non-EU markets)
- Optional accessory for Unistrut®
mounting (order separately, part number
7191K1000)
• Canopy fixture:
- Can be installed directly on 4” and
4-11/16” backboxes, or on backboxes
with round cover plates
- Not for installation on 1-gang backboxes
or trim rings
Electrical
• Power at full intensity: 20 W (typical),
24 W (maximum)
• Input voltage options:
- Track-mount and portable: 100–240 V,
50/60 Hz
- Canopy (0–10 V and DALI): 120–277 V,
50/60 Hz
- Canopy (DMX): 100–277 V, 50/60 Hz
• Portable fixture: 6 ft power cable hard-wired
to fixture with mains connector options of
NEMA 5-15P, Schuko, or UK
• Inrush (first half-cycle) for 0–10 V and DALI
canopy fixtures:
- 120 V: 2 A
- 240 V: 5 A
- 277 V: 6 A
• Inrush (first half-cycle) for all other fixtures:
- 120 V: 11 A
- 240 V: 24 A
- 277 V: 28 A
• All variants require power from a non-
dimmable source
LEDs
• Cree LED source
- Irideon WLZ 2700 K Gallery: 90+ CRI
- Irideon WLZ 3000 K: 80+ CRI
- Irideon WLZ 3000 K Gallery: 90+ CRI
- Irideon WLZ 4000 K: 80+ CRI
- Irideon WLZ 5000 K: 80+ CRI
• Long-life LED: 70,000 hours L70 lumen
maintenance
Optical
• Integrated beam control
(9–78 degree beam-angle)
• Built-in zoom optics
(16–91 degree field-angle)
Thermal
• 0°C to 40°C (32°F to 104°F) ambient operating temperature
Accessories
• Round diffuser for use in integrated media holder (order part number 7192A4025)

4Irideon WLZ
Basic Assembly
Installation
Install Track-
Mounted Fixture
1: Insert the DataTrack
adapter into the track.
The adapter only fits into
the track one way with
the tabs nesting into the
track’s groove.
2: Rotate the locking
mechanisms to lock the
adapter into place.
3: Use the circuit selection
lock to select the circuit.
The desired circuit number should point toward the center of the
adapter.
WARNING:
When using the circuit selection lock, ensure that the
selected circuit is a constant power circuit. Dialing into a
dimmable circuit may cause fixture damage that will void
the ETC warranty.
Yoke
Integrated media
holder
(Illustration shows fixture body only)
Wide/narrow
field
adjustment
Circuit
selection lock
Locking
mechanism

User Manual 5
Install Canopy Fixture (DMX variant)
Install the Voltage Barrier (DMX variant)
The DMX variant of the canopy fixture includes a voltage barrier to separate
the data network from the line voltage inside the backbox. Voltage barriers are
provided for both 4” and 4-11/16” backboxes.
Install the voltage barrier in the backbox with
the provided screw, separating the power
side from the data side (see image at right).
Note:
The canopy fixture can be installed directly on 4” and
4-11/16” backboxes, or on backboxes with round cover
plates. The canopy fixture cannot be installed on 1-gang
backboxes or trim rings.
CAUTION:
• DMX control is a Class 2 circuit. DMX wiring cannot be
run through the same conduit as line voltage power-
supply conductors.
• Separate the line voltage from the data side in the
backbox. Install the voltage barrier provided by ETC.

6Irideon WLZ
Connect Canopy Wiring (DMX variant)
Cable preparation instructions for DMX termination are included in the
termination kits, and are also available for free download at etcconnect.com.
1: Remove the adhesive tape or fasteners securing the mounting plate to
the fixture to free the mounting plate from the canopy enclosure.
2: Are you flush-mounting the fixture or surface-mounting the fixture?
•Flush-mounting: Continue to step 3.
•Surface-mounting:
Position the cover
plate on top of the
mounting plate
before wiring the
fixture. The cover
plate is required
when the interior of the canopy enclosure could be exposed after
installation with only the mounting plate (the mounting surface is
smaller than the canopy enclosure).
3: Terminate DMX/RDM input from the
control source to the backbox.
If using Belden 9729:
a: See the
DMX Cable Preparation
for Screw Termination Setup
Guide
for instructions to prepare
and terminate Belden 9729 for
DMX input cable to the screw
terminal connector.
b: Install the screw terminal
connector with wires terminated
to the DMX/RDM Input receptacle
on the termination board.
WARNING:
RISK OF ELECTRIC SHOCK! Install the cover plate as
directed below for installations where the interior of the
canopy enclosure could be exposed after installation
with only the mounting plate. For example, install the
cover plate when installing to a surface-mount backbox.

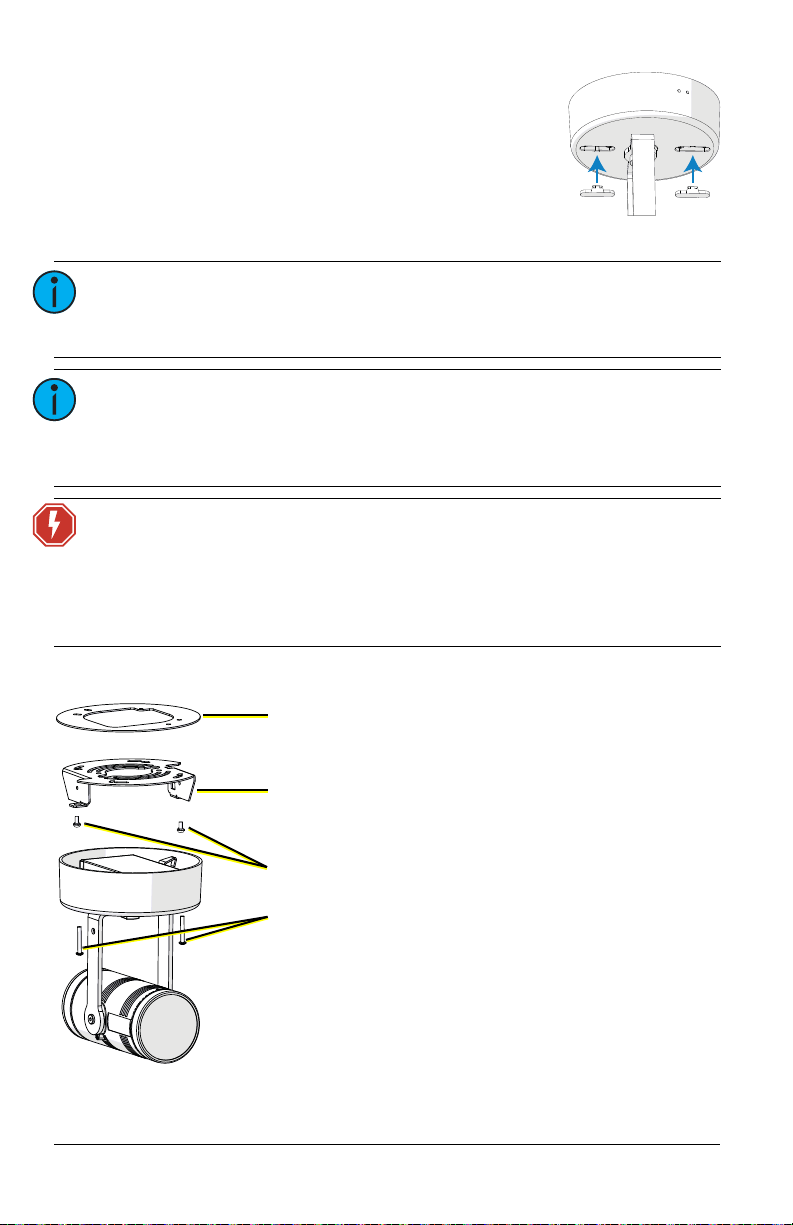

Mounting plate
Cover plate
(if needed for
surface-mounting)

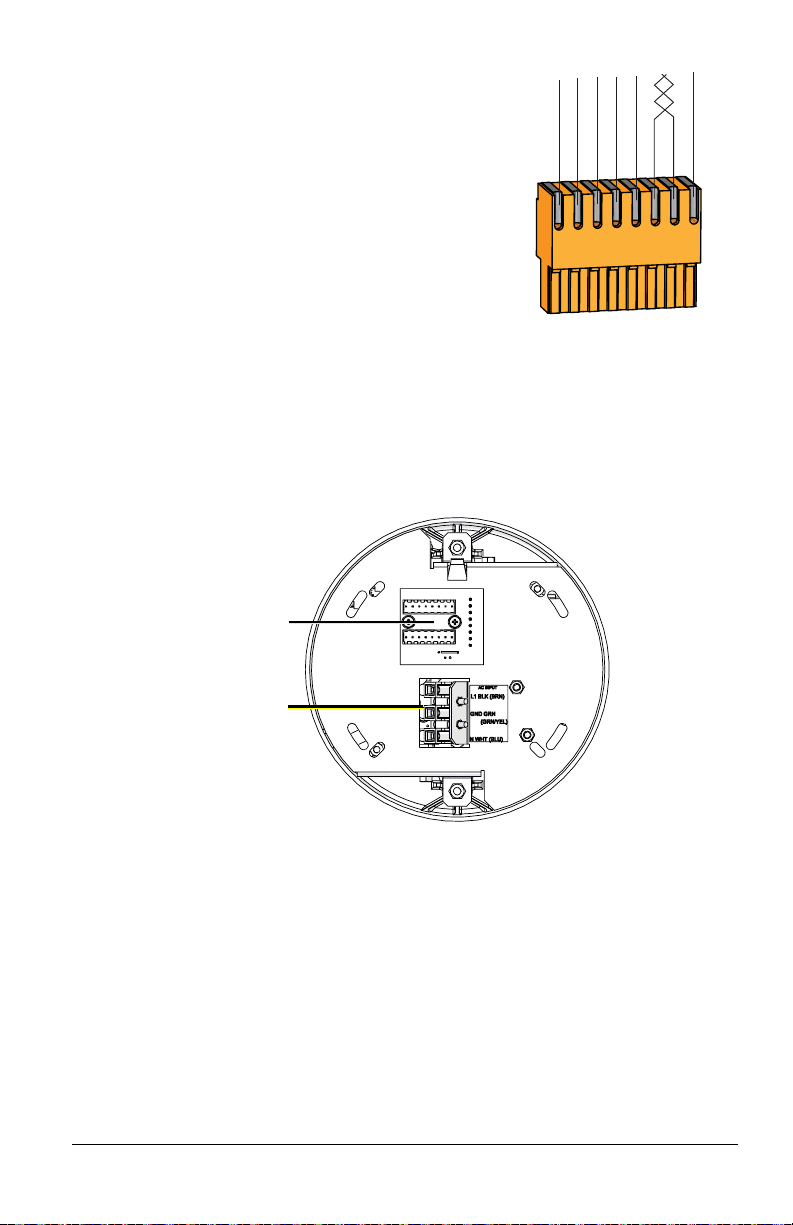

From a DMX/RDM source
Data – (Black)
Data + (Red)
Belden 9729 (or equivalent) wire
termination to screw connector
4 to 8 = n/c
COM

User Manual 7
If using Category 5:
a: See the Cat5 Cable Preparation for
IDC Termination Setup Guide
for
instructions to prepare and
terminate Category 5 for DMX/RDM
input cable to the insulation
displacement connector.
b: Install the IDC connector with wires
terminated to the DMX/RDM Input
receptacle on the termination board.
4: Optionally, terminate DMX/RDM thru to
the next device in the DMX data run.
Up to 32 DMX/RDM devices can be
daisy-chained together per data run.
a: See the specific termination setup guide for the type of cable used
(either Belden 9729 or Category 5) in the installation. Termination
kits are ordered separately.
b: Install the connector with wires terminated to the DMX/RDM Thru
receptacle on the termination board.
5: Connect the building ground wire to the power block on the fixture.
6: Following the label on the mounting plate, attach the power wires to
the power block.
Data – (ORG)
Data + (W/ORG)
Cat5 (or equivalent) wire
termination to IDC connector
COM
BRN
GRN
W/GRN
BLU
W/BLU
DMX
termination
board
Power block

8Irideon WLZ
Install the Mounting Plate and Complete the
Wiring (DMX variant)
1: Secure the mounting plate (or the
combination of mounting plate and
cover plate for surface-mounting) to
the installed backbox, positioning
the plate so that the power side and
data side are separated by the
voltage barrier in the backbox. See
Install the Voltage Barrier (DMX
variant) on page 5 .
For this structure... ...secure mounting plate using:
4-11/16” backbox Large oval slots (see 1 above)
4” backbox Small oval slots (see 2 above)
Mounting
plate
Canopy
screws
Mounting
plate screws
Cover plate
(if needed for
surface-
mounting)
(DMX variant
shown)
Canopy
screw hole
Mounting plate
(DMX variant)
21
2
1

User Manual 9
5: Terminate DMX/RDM data signal for the last DMX/RDM device in the
data run by setting the termination switch to ON (to the right, as shown
below). All other devices in the data run should retain the default
setting for the termination switch (OFF).
6: Following the label on the mounting plate, attach the power wires to
the power block.
7: Use the canopy screws to secure
the fixture to the mounting plate.
CAUTION:
Make sure that the
wiring is clear of the
mounting plate before
you secure the fixture.
Hook
2: Use the hook in the canopy enclosure to hang the
fixture from the mounting plate while you complete
the fixture wiring.
3: If desired, manually set the DMX address on the
fixture using the three addressing dials in the canopy.
See
Set the DMX Address on the Fixture on page 15 .
4: Connect the pre-wired DMX connector on the fixture
to the mated connector on the mounting plate
(shown below).
ON
Mounting plate
DMX connector
Termination switch
Power block
Canopy
screws

10 Irideon WLZ

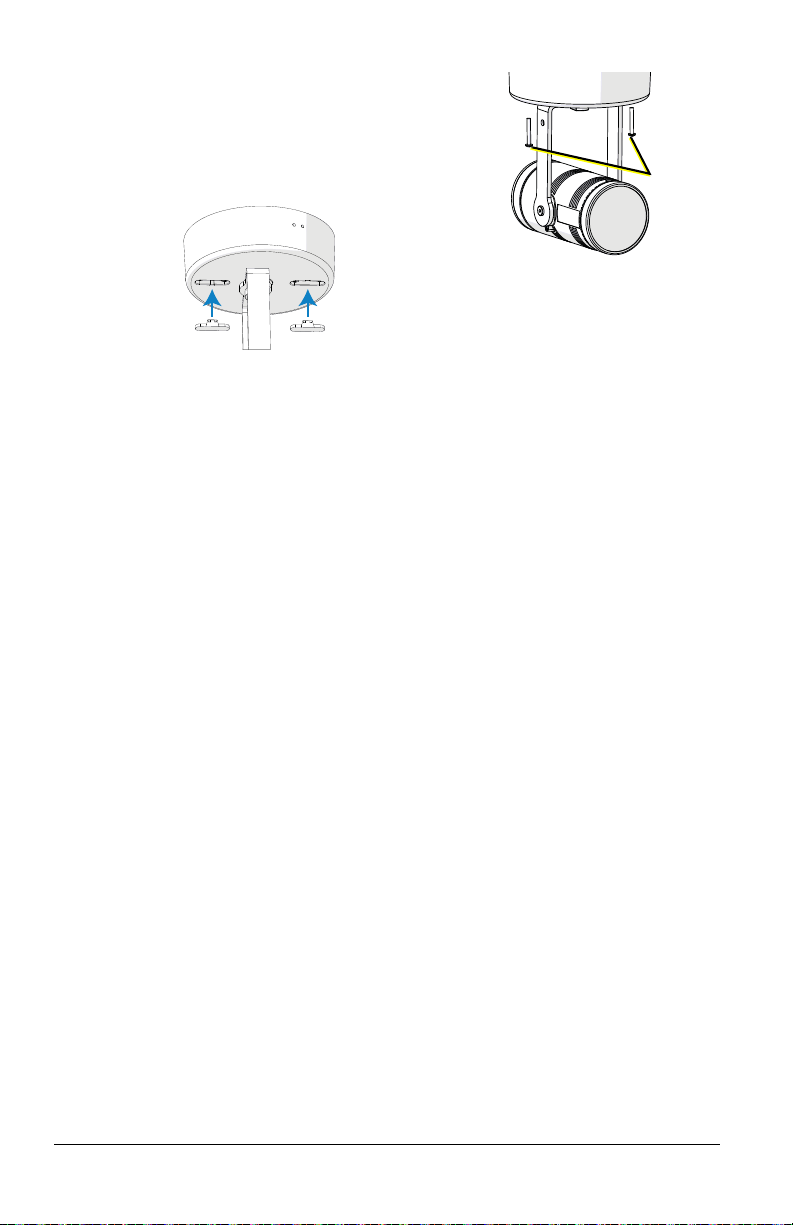

8: Insert the oval-shaped covers into the canopy
enclosure to cover the canopy screw
openings.
9: Restore power at the disconnect device.
Install Canopy Fixture
(0–10 V and DALI variants)
1: Remove the adhesive tape or fasteners
securing the mounting plate to the
fixture to free the mounting plate from
the canopy enclosure.
2: Are you flush-mounting the fixture or
surface-mounting the fixture?
•Flush-mounting: Using the mounting
plate screws, secure the mounting
plate to the installed backbox.
•Surface-mounting: Position the cover
plate on top of the mounting plate,
and use the mounting plate screws
to secure both plates to the
installation surface. The cover plate is
required when the interior of the
canopy enclosure could be exposed
after installation with only the
mounting plate (the mounting
surface is smaller than the canopy
enclosure).
Note:
The 0–10 V driver conforms to IEC 60929 Annex E. Of the
0–10 V range, use 0–1 V to set the minimum level, and
use 1–10 V for continuous dimming.
Note:
The canopy fixture can be installed directly on 4” and
4-11/16” backboxes, or on backboxes with round cover
plates. The canopy fixture cannot be installed on 1-gang
backboxes or trim rings.
WARNING:
RISK OF ELECTRIC SHOCK! Install the cover plate as
directed below for installations where the interior of the
canopy enclosure could be exposed after installation
with only the mounting plate. For example, install the
cover plate when installing to a surface-mount backbox.
Oval-shaped covers
Mounting
plate
Canopy
screws
Mounting
plate screws
Cover plate
(if needed for
surface-
mounting)
(DALI
variant
shown)

User Manual 11
3: Use the hook in the canopy enclosure
to hang the fixture from the
mounting plate while you complete
the fixture wiring.
4: Connect the building ground wire to
the ground wire on the fixture,
following local electrical codes.
5: Connect the supply power wires to the fixture wiring using the included
WAGO®connectors.
• For 120 V fixtures: Connect the black wire to line and the white
wire to neutral.
• For 230 V fixtures: Connect the brown wire to line and the blue
wire to neutral.
6: Connect the data wires to the fixture wiring using the included WAGO
connectors.
• For 0–10 V fixtures: Connect the gray wire to data - and the purple
wire to data +.
• For DALI fixtures: Connect the purple wires to data - and data +.
For this structure... ...secure mounting plate using:
4-11/16” backbox Large oval slots (see 1 above)
4” backbox Small oval slots (see 2 above)
Mud ring and round box Circular slots (see 3 above)
2
1
2
1
Mounting plate
(0–10 V and DALI variants)
3
3
Canopy
screw hole
Hook

12 Irideon WLZ
7: Use the canopy screws to secure the
fixture to the mounting plate.
8: Insert the oval-shaped covers into the
canopy enclosure to cover the canopy
screw openings.
9: Restore power at the disconnect device.
Canopy
screws
Oval-shaped covers

User Manual 13
Install Portable Fixture with C-clamp
The C-clamp attaches the fixture to the mounting pipe and allows you to
adjust the position of the fixture once it is mounted. The C-clamp will fit a
3/4” to 2” pipe. Two different length pipe bolts are provided to accommodate
different pipe sizes.

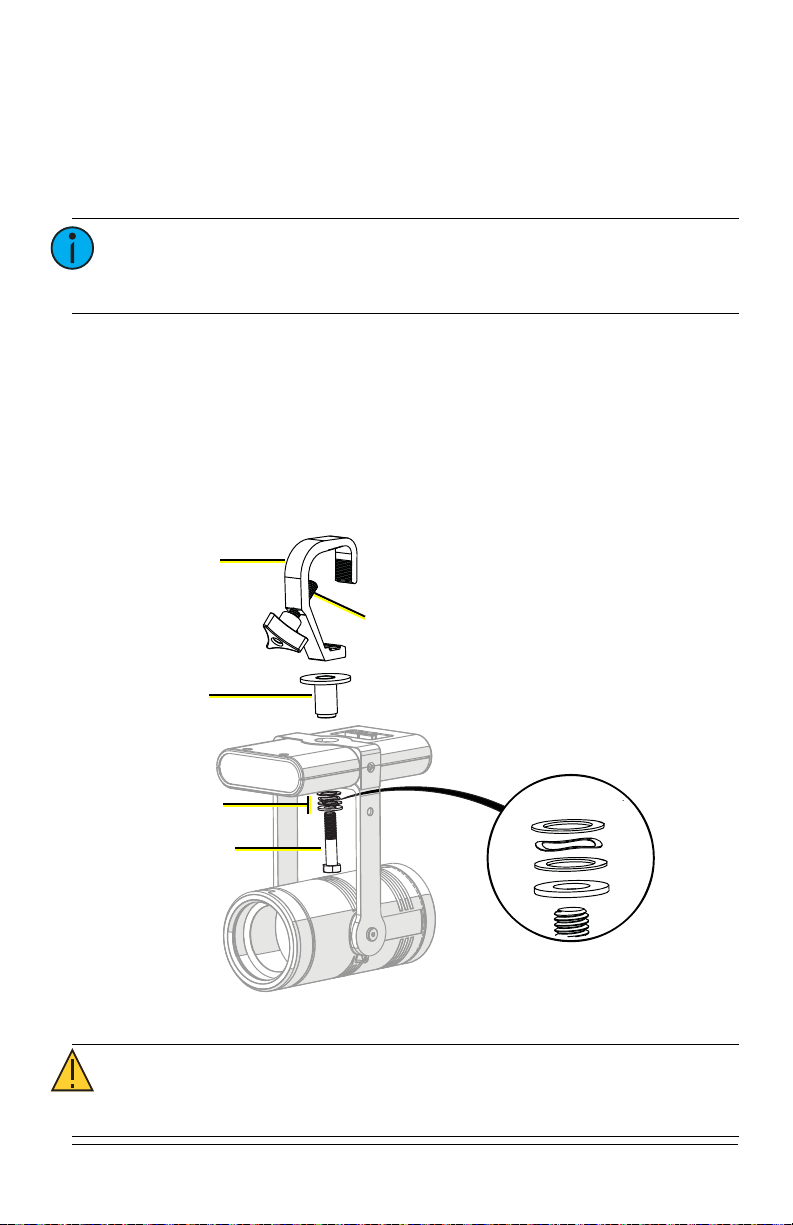

1: Insert the spacer into the driver box through the hole in the top of the
yoke.
2: Tightly fasten the C-clamp to the yoke with the provided yoke bolt and
washers.
3: Place the C-clamp on the mounting pipe, and then tighten the pipe bolt
to secure it. Use the standard pipe bolt to secure the fixture to larger
mounting pipes. If necessary, exchange the standard pipe bolt for the
longer pipe bolt (included) to secure the fixture to smaller mounting
pipes.
Note:
The miniature C-clamp is available only in non-EU
markets. Within the EU, use an M12 bolt to secure a
C-clamp (provided separately) to the fixture.
CAUTION:
Tighten the C-clamp pipe bolt to about 18 in/lb
(approximately finger-tight plus up to one-quarter turn).
Do not use excessive force.
Washers
Pipe bolt
C-clamp
Yoke bolt
Spacer
Detail view
of washers
4: Loosen the C-clamp yoke
bolt and rotate the yoke to
the desired position.
5: Tighten the bolt to lock the
fixture.

14 Irideon WLZ
Install Portable
Fixture on Unistrut
Track
You can install the portable
fixture on Unistrut track using
the Irideon FPZ Unistrut Kit
(7191K1000).

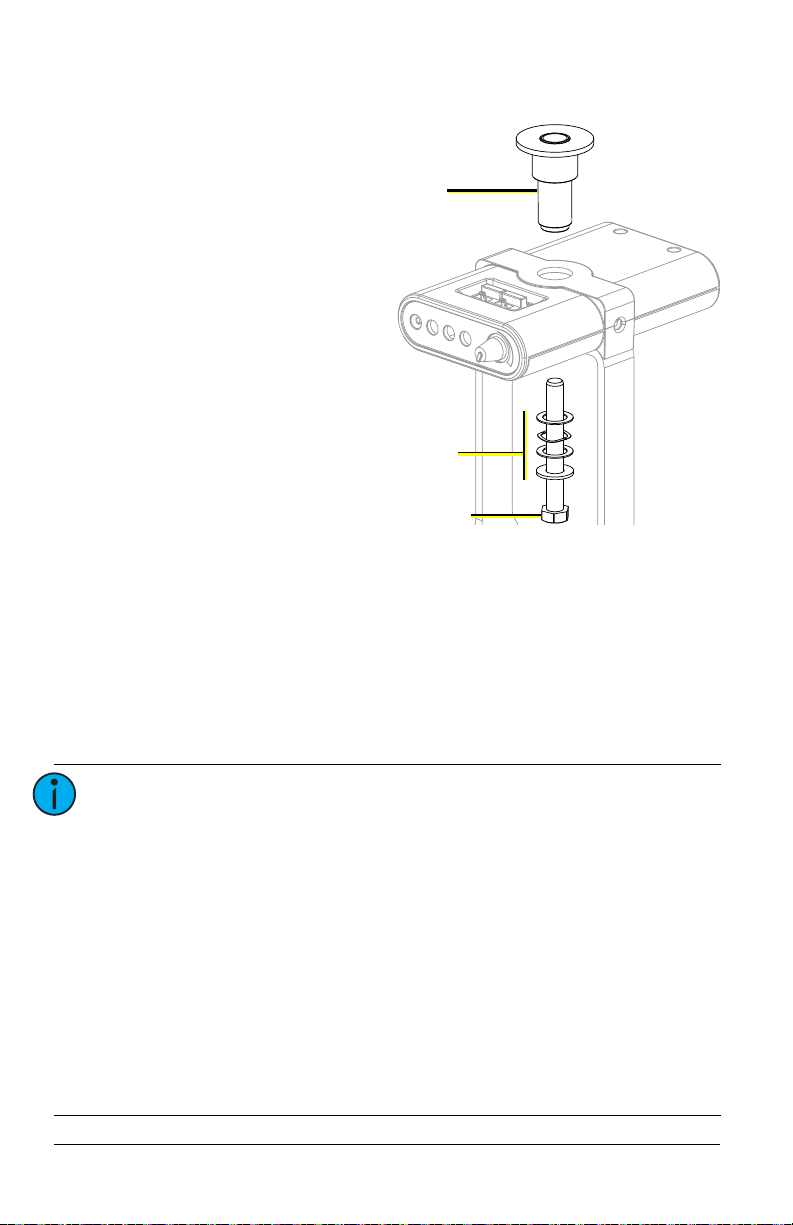

1: Insert the spacer into
the driver box through
the hole in the top of
the yoke.
2: Use the yoke bolt and
washers to fasten the
fixture to the Unistrut
track.
Within the EU, use an
M12 bolt and
appropriate washers in
place of the provided
kit hardware.
Connect Cables to Portable Fixture
1: Connect RJ45 data cables to the top of the driver box, one for data in
and one for data thru (in either position), as needed.
• To order RJ45-to-female XLR adapter, use part number W6538.
• To order RJ45-to-male XLR adapter, use part number W6539.
2: Connect the fixture to the power source.
Note:
• The Irideon WLZ is not self-terminating. You must
terminate the last fixture in line with a 120 Ohm
resistor. Please contact your ETC customer service
representative to purchase part number N4086.
• No more than 32 DMX devices can be daisy-chained
together on a single run. For runs of fixtures totaling
more than 32 DMX devices, use a DMX splitter to split
the DMX runs.
• When using DMX over Cat5, use Cat5e or better. Cable
distance must not exceed 300 m (1000 ft).
• The Irideon WLZ cannot be controlled via network
protocols and should not be connected to a system
network.
Washers
Yoke bolt
Spacer

User Manual 15
Portable Fixture DMX Pinout
Set the DMX Address on the Fixture
You can set the DMX address using RDM, but you can also set the DMX
address on the fixture itself, if necessary. The fixture uses the last address that
you set, regardless of whether you set it via RDM or locally on the fixture.

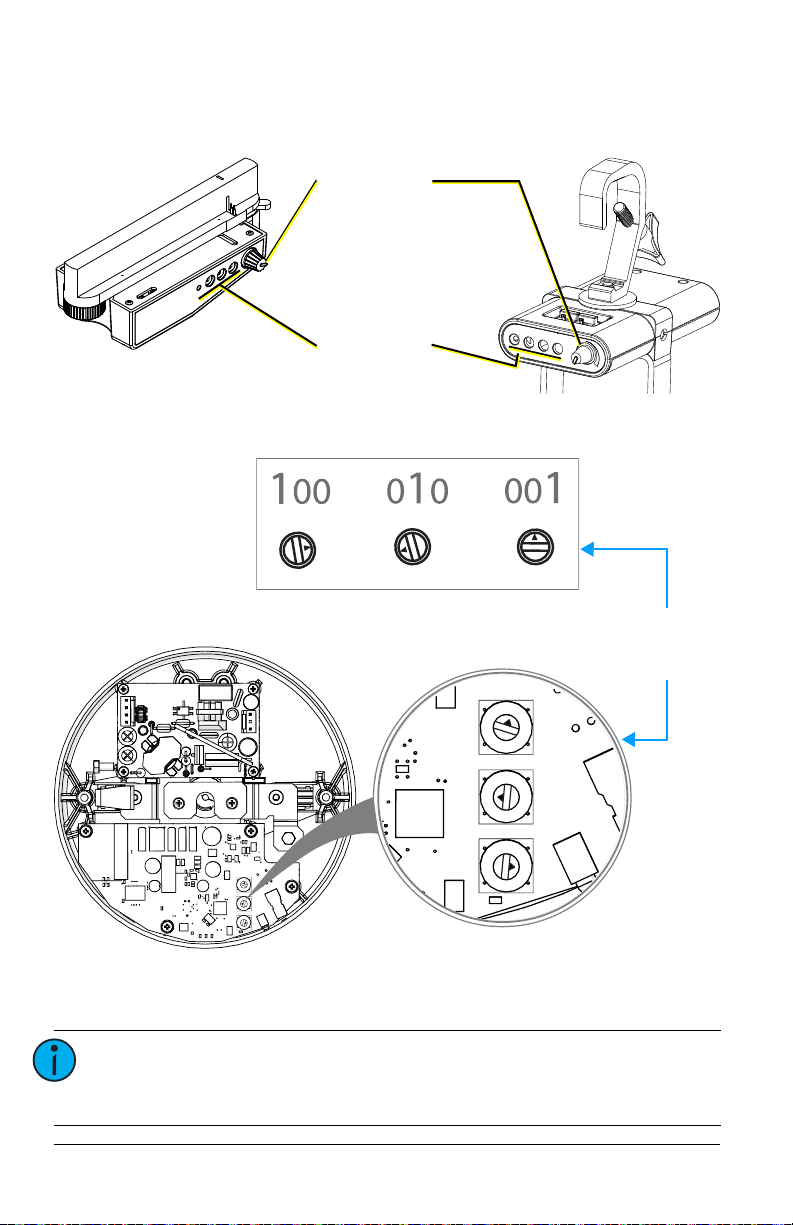

There are three addressing dials on the track adapter (track-mounted fixture),
in the canopy (canopy fixture), or on the driver box (portable fixture). To set
the DMX address, use a small flat-head screwdriver to move the arrow to the
desired address number.
Pin Wire Color Description
1 White/orange DMX1 +
2 Orange DMX1 -
3 White/green DMX2 +
4 Blue Not Connected
5 White/blue Not Connected
6Green DMX2-
7 White/brown Iso Common
8 Brown Iso Common 2

16 Irideon WLZ
DMX addresses must be set between 1 and 512. Each fixture must be
considered a separate DMX device for the purpose of DMX line-loading
calculations. The Irideon WLZ only has an intensity channel.
Note:
When using RDM with track-mounted fixtures, ETC
recommends connecting no more than 20 fixtures on a
single run.
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
Local intensity
control knob
Status LED and
DMX addressing dials
Portable
Track-mount
1'S
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
1'S
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
10'S
100'S
10'S
100'S
Canopy (mounting
plate removed)
In these addressing
examples, the fixture
is addressed to 503.
