ETC Source 4WRD User manual

Part Number: 7067M1200-1.1.0 Rev: C
Released: 2017-07
Source 4 WRD
™
HPL to LED Retrofit
Installation and User Manual
Version 1.1.0

ETC
®
, Source Four
®
, Source 4 WRD
™
, Sensor
®
, and Unison
®
are
either registered trademarks or trademarks of Electronic
Theatre Controls, Inc. in the United States and other countries.
All other trademarks, both marked and not marked, are the
property of their respective owners.
This product is protected by one or more of the following
U.S. Patents: US 9,261,241 and 9,273,831.
ETC intends this document, whether printed or electronic, to be
provided in its entirety. This product is intended for
professional use only. Read this entire document before using
this product.

Table of Contents
Table of Contents i
Introduction . . . . . . . . . . . . . . . . . . . . . . . 1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Sensor dimmer settings . . . . . . . . . . . . . . . . . . 5
Color rendering and quality . . . . . . . . . . . . . . 6
Contacting ETC . . . . . . . . . . . . . . . . . . . . . 7
Retrofit kit installation . . . . . . . . . . . . . . . 8
Remove incandescent lamp housing . . . . . . . 8
Install Source 4WRD retrofit . . . . . . . . . . . . . . . 9
Fixture installation . . . . . . . . . . . . . . . . . 10
Attach C-clamp and safety cable . . . . . . . . . 10
Connect cables . . . . . . . . . . . . . . . . . . . . . . . . 11
DMX pinout . . . . . . . . . . . . . . . . . . . . . . . 12
User interface . . . . . . . . . . . . . . . . . . . . . 12
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Focus the fixture . . . . . . . . . . . . . . . . . . . 13
Set the Z-adjustment . . . . . . . . . . . . . . . . . . . 13
Adjust the yoke position . . . . . . . . . . . . . . . . 14
Change the height position. . . . . . . . . . . 14
Set the angle within the yoke . . . . . . . . . 14
Shape the beam. . . . . . . . . . . . . . . . . . . . . . . 14
Use the color frame . . . . . . . . . . . . . . . . . 14
Use a pattern . . . . . . . . . . . . . . . . . . . . . . 15

ii Table of Contents
Cleaning and maintenance. . . . . . . . . . . 15
Clean the fixture. . . . . . . . . . . . . . . . . . . . . . . 15
Store the retrofit . . . . . . . . . . . . . . . . . . . . . . 16
Clean the lenses . . . . . . . . . . . . . . . . . . . . . . . 16
Clean the reflector . . . . . . . . . . . . . . . . . . . . . 17
Clean 5° and 10° polymer lenses . . . . . . . . . . 18

User Manual 1
Introduction
Congratulations on your purchase of the ETC Source 4WRD LED retrofit kit.
Replacing your existing incandescent burner assembly with the Source 4WRD
LED brings a new tool to your lighting inventory. The Source 4WRD LED
expands the options for existing Source Four®fixtures and adds a new white
LED fixture to the ETC family.
The following Source 4WRD options are available as 80 CRI and 90 CRI (Gallery)
variants:
•Source 4WRD LED retrofit kit: Used to modify an existing Source Four HPL
incandescent fixture to a white LED fixture. The Source 4WRD LED can
also be used with the Source 4WRD PAR or PARNel®Fixture Body to
create a Source 4WRD PAR or PARNel fixture. For more information, visit
etcconnect.com.
•Source 4WRD Light Engine: Combines the Source Four incandescent
fixture body with the Source 4WRD LED.
Note:
Source 4 WRD LED retrofit kit is not compatible with
Source Four LED, Fresnel, PAR, or jr fixtures.
WARNING:
The Source 4 WRD LED is not user serviceable. Field
modification of the Source 4
WRD LED will void your ETC
warranty.

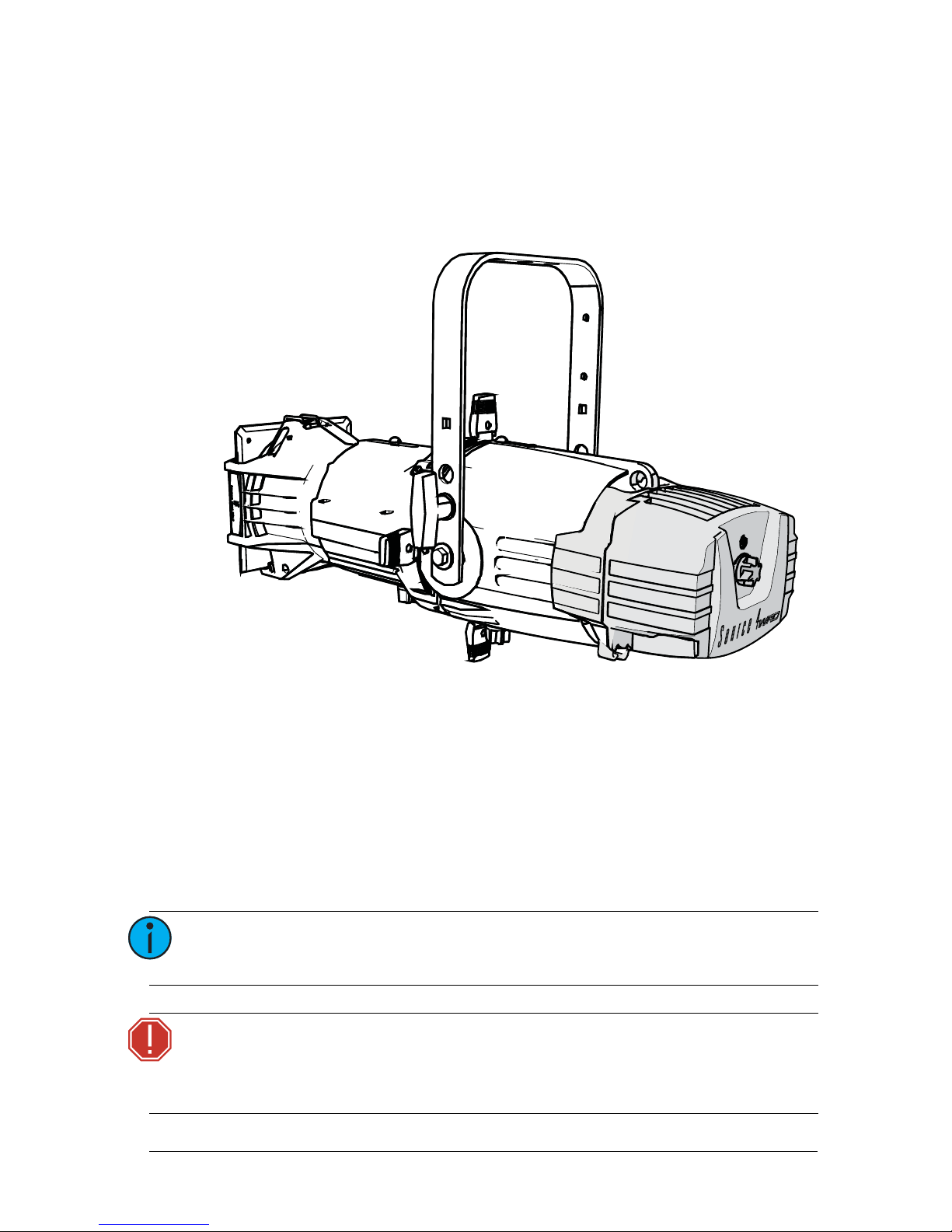

Source 4WRD LED
retrofit kit shown
installed on a Source
Four fixture

2Source 4 WRD
Safety
The Source 4WRD fixture is intended for professional use only. Read the entire
manual before using this equipment.
WARNING:
Note the following safety warnings before use:
• Do not mount the Source 4 WRD fixture on or near a
flammable surface.
• Do not use the Source 4
WRD fixture below 5°C (41°F).
• Minimum storage temperature is 5°C (41°F). When the
fixture has been stored or transported in cold
temperatures, allow it to warm to room temperature for
a minimum of 1 hour before applying power. Applying
power to a cold fixture will cause damage to the fixture
and void the ETC warranty.
• Do not use this fixture with a damaged power lead. If
the power lead (cord set) is damaged, it must be
replaced.
• Do not use this fixture if glass lens is deeply scratched or
cracked. Damaged lenses must be replaced.
• To prevent wiring damage, or abrasion, do not expose
wiring to edges of sheet metal or other sharp objects.
• Use the Source 4
WRD fixture in dry locations only, where
humidity does not exceed 90 percent (non-condensing).
These fixtures are not intended for outdoor use.
• Mount and support the fixture only by the primary
suspension holes in the yoke.
• Suspend the fixture from a suitable structure using only
hardware rated for the weight of the fixture.
• In addition to primary suspension, attach a safety cable
(ETC Model 400SC or other approved safety cable or
device) to the fixture housing. An appropriate
attachment point (hole) is provided in the protruding
tab on the fixture housing.
• Disconnect the unit from power and DMX and allow the
fixture to cool before removing or installing the shutter
barrel or other adapters, and for performing all cleaning
and maintenance.

User Manual 3
Note:
• Maximum recommended ambient operating
temperature: Ta=50°C (122°F)
• Maximum anticipated external surface temperature:
Tmax=63°C (145°F) at Ta=50°C (122°F)
• External Temperature (steady state achieved) at
25°C (77°F) ambient: 38°C (100°F)

4Source 4 WRD
Specifications
Typical Power Consumption
Idle Power / Current DMX Mode: 1.2W/.046A; AC Mode: 0W
Full Intensity Power / Current 155.7W/1.35A
Physical • Rugged die-cast aluminum construction
• Advanced thermal management systems for long LED life
• Ambient operating temperature: 5°–50°C (41°F–122°F)
• Minimum storage temperature: 5°C (41°F)
•Weight:
- Source 4WRD LED retrofit kit only: 3.65 lb (1.66 kg)
- Source 4WRD LED installed on 26° fixture with yoke and
C-clamp:14 lb (6.35 kg)
Electrical • 114–125VAC 60Hz power input
• 155W draw at full (182W theoretical max. draw)
• Recommended two (2) fixtures per dimmed circuit
(D20 module)
• Max of 14 fixtures per non-dimmed circuit (R20 module)
• If using in DMX mode: Connect fixture to relay, constant
power, or dimmer with regulation off and parked at full
LEDs • 4 CREE LED modules
• 30,000 hour estimated L70 rating (life-test in progress,
results pending)
Optical • Compatible with all ETC Source Four lens tubes
Control • DMX512-A compliant
• DMX in and thru via two RJ45 connectors
• AC power for line-dimmed operation
• Simple seven-segment display and two-button user
interface includes local dimming control
Note:
Connecting both power and data from a SmartBar 1 to a
Source 4 WRD fixture may cause flickering.

User Manual 5
Sensor dimmer settings
The Source 4WRD fixture can be dimmed from a DMX source, an existing
dimmer, or locally on the fixture.
When powering a fixture with a CEM classic, CEM+, or CEM3 for DMX
dimming or AC level setting, set the parameters as shown below to ensure
that the dimmer is out of regulated mode.
The following tables apply to ETC Sensor®control modules including CEM,
CEM+, and CEM3.
Note:
You may need to adjust dimmer settings for optimal
fixture control.
Note:
In CEM+, set Max Scale to 140V to guarantee that
regulation is off.
CEM+ and CEM3
Parameter Value
Curve Mod Square
Threshold 1%
Min Scale 6V
Max Scale 140V
Regulation OFF
Preheat Disabled
DC Prevent OFF
Inrush Protect OFF
Scale Load 100
CEM Classic v2.x CEM Classic v3.x
Parameter Value Parameter Value
Mode Normal Mode Normal
Boost 117 Curve Mod-Square
Scale 140
Threshold Normal

6Source 4 WRD
You may need to increase the SCR Off Time from the default setting. Contact
ETC for assistance in changing the SCR Off Time, or any other CEM classic,
CEM+, or CEM3 settings.
For the most current information on additional dimmer performance testing
for both ETC and non-ETC dimmers, please visit the ETC website:
etcconnect.com/Support/Articles/Dimmer-Settings-for-Use-with-Source-4wrd.aspx
Color rendering and quality
Source 4WRD fixtures are evaluated for Color Rendering Index (CRI) and Color
Quality Scale (CQS) performance using measured output spectrum. These
numbers may fluctuate slightly from fixture to fixture. This is a normal
characteristic of white LEDs, and this kind of variation is highly unlikely to be
apparent in most applications.
Note:
With AC dimming (line-dimmed) mode, performance
may vary based on the control settings of the dimmer
used. For this reason, ETC recommends using AC dimming
for level-setting or for architectural quality dimming
situations. ETC recommends testing the Source 4
WRD
fixture on all existing dimmers you wish to use.
Use DMX mode when high-performance, live, dynamic
dimming is required.
Fixture CRI CQS Color Fidelity Duv
Source 4WRD LED
(80 CRI) at 3000K ≥80 80 80 0.001
Source 4WRD LED Gallery
(90 CRI) at 3000K ≥90 90 90 0.001

User Manual 7
Contacting ETC
If you are having difficulties, your most convenient resources are the
references given in this user manual. To search more widely, try the ETC
website at etcconnect.com. If none of these resources is sufficient, contact
ETC Technical Services directly at one of the offices identified below.
Emergency service is available from all ETC offices outside of normal business
hours.
When calling for help, please have the following information handy:
• Product model
• Dimmer manufacturer and installation type
• Other components in your system (Unison®, other consoles, etc.)
Americas United Kingdom
ETC, Inc. ETC Ltd
Technical Services Department Technical Services Department
3031 Pleasant View Road 26-28 Victoria Industrial Estate
Middleton, WI 53562 Victoria Road,
800-775-4382 (USA, toll-free) London W3 6UU England
[phone] [phone]
[email protected] [e-mail]
Asia Germany
ETC Asia ETC GmbH
Technical Services Department Technical Services Department
Room 1801, 18/F Ohmstrasse 3
Tower 1, Phase 1 Enterprise Square 83607 Holzkirchen, Germany
9 Sheung Yuet Road [phone]
Kowloon Bay, Kowloon, Hong Kong [e-mail]
[phone]
[email protected]

8Source 4 WRD
Retrofit kit installation
Remove incandescent lamp housing

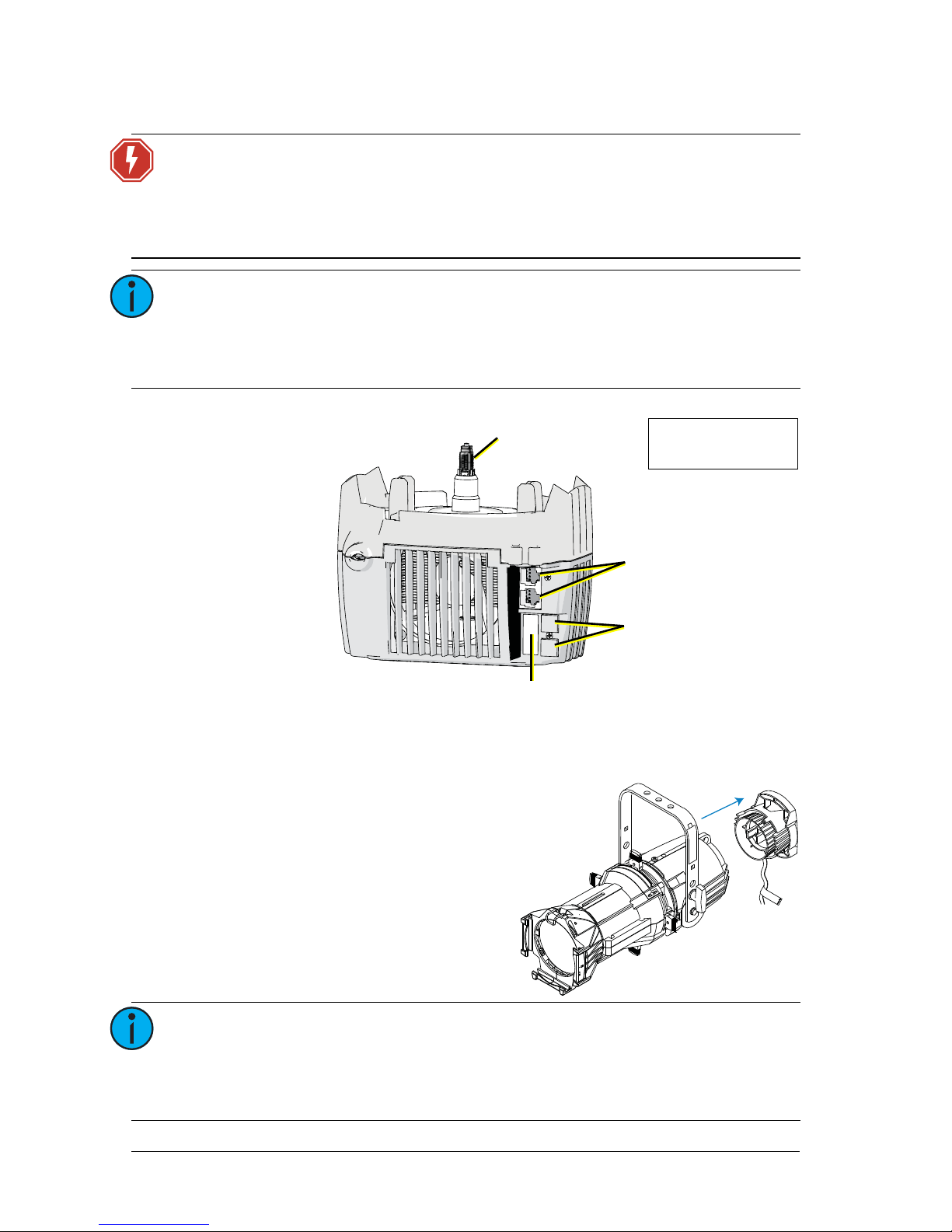

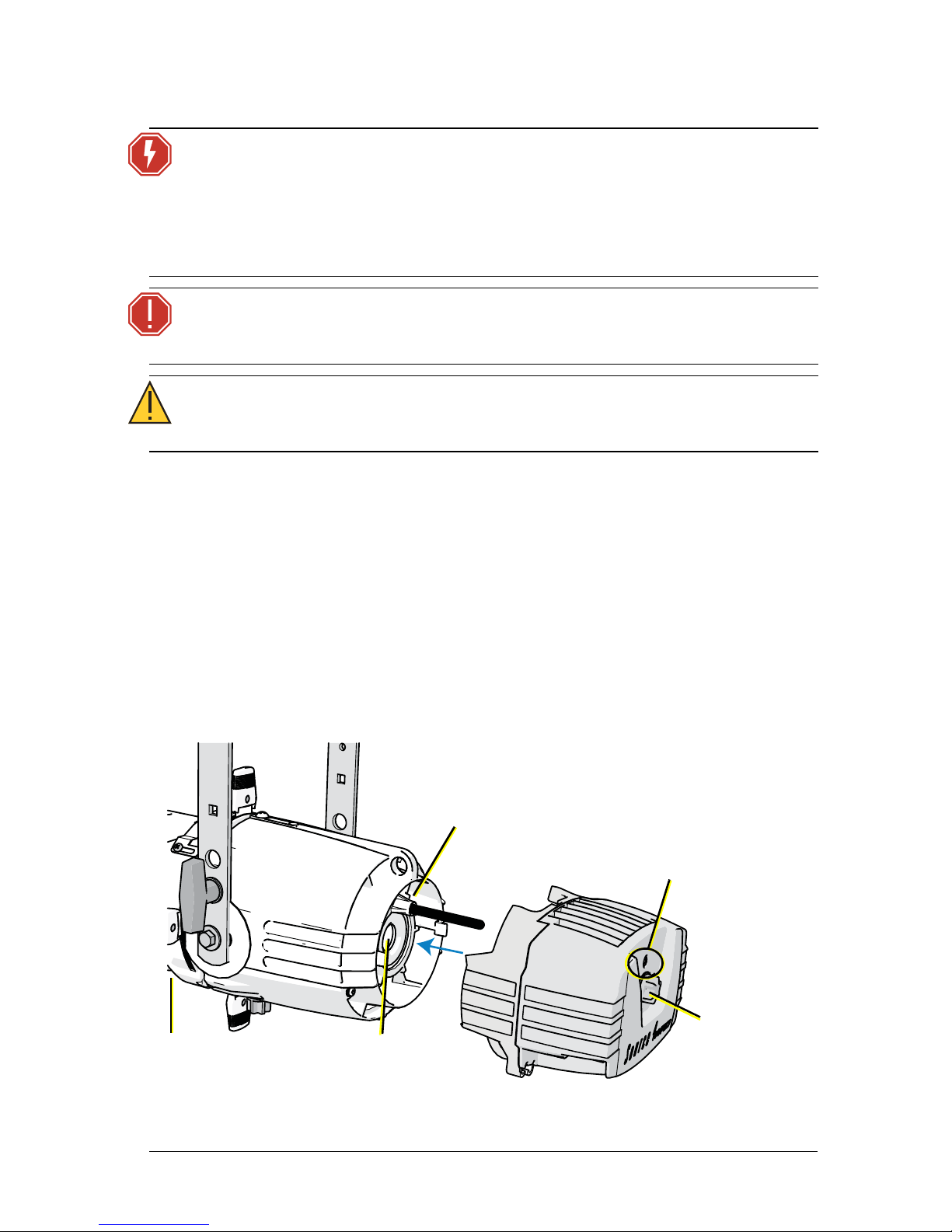

1: Unplug the Source Four
incandescent fixture and
place it on a flat, stable
surface.
2: Loosen the brass thumb
screw located above the
beam adjustment knob. The
lamp housing is now loose
and can be removed.
WARNING:
RISK OF FIRE OR ELECTRIC SHOCK: Source 4 WRD LED
retrofit kit installation requires knowledge of luminaire
electrical systems. If not qualified, do not attempt
installation. Contact a qualified electrician.
Note:
THE RETROFIT KIT IS ACCEPTABLE AS A COMPONENT OF
A LUMINAIRE WHERE THE SUITABILITY OF THE
COMBINATION SHALL BE DETERMINED BY AUTHORITIES
HAVING JURISDICTION.
Note:
The burner assembly is no longer needed. If you would
like ETC to recycle the burner assembly, contact ETC
Technical Services for more information. See Contacting
ETC on page 7.
LEDs
Up and down
navigation
RJ45 data in
and through
User interface
Source 4WRD LED
Retrofit Kit
A #2 Phillips
screwdriver is
needed for kit
installation

User Manual 9
Install Source 4 WRD retrofit
1: Use oil-free canned air to clean the LED domes prior to installation.
2: With the fixture resting securely on a flat surface, attach the supplied
threaded post to the back end of the fixture body. Use a crescent
wrench to tighten the threaded post one-quarter turn past finger tight.
3: Gently slide the Source 4WRD LED onto the fixture body and threaded
post while guiding the LED tower into the lamp housing hole, as shown
below. Take care to prevent contact between the LEDs and the
reflector.
4: Use a #2 Phillips screwdriver to tighten the screw located on the back
end of the Source 4WRD LED, directly above the Z-adjustment knob.
5: Pull gently to verify secure attachment.
WARNING:
RISK OF FIRE OR ELECTRIC SHOCK: Install this kit only
onto luminaires that have the construction features and
dimensions shown in the images in this document and
where the input rating of the retrofit kit does not exceed
the input rating of the luminaire.
WARNING:
Do not make or alter any open holes in an enclosure of
wiring or electrical components during kit installation.
CAUTION:
Do not touch or clean LED optic domes with anything
other than oil-free canned air.
Insert threaded
post here
Tighten
screw
Z-adjustment
knob
Source Four
fixture body
Lamp housing
hole

10 Source 4 WRD
Fixture installation
The Source 4WRD Light Engine combines the classic form factor of the Source
Four incandescent fixture with an LED light source. The Source 4WRD Light
Engine includes an adjustable yoke, C-clamp, and attached power lead.
Attach C-clamp and safety cable
The C-clamp attaches the fixture to the mounting pipe and allows you to
adjust the position of the mounted fixture. ETC recommends using
1.5” schedule 40 pipe.
1: Tightly fasten the C-clamp to the yoke with the provided yoke bolt and
lock washer.
2: Place the C-clamp on mounting pipe, then tighten the pipe bolt to
secure it.
3: Loosen the C-clamp pan screw and rotate the yoke to the desired
position.
4: Tighten the pan screw to lock the fixture.
5: Connect the safety cable.
6: Tighten C-clamp pipe bolt to 15–20 ft lbs (20–27 Nm), approximately
finger tight plus up to one-quarter turn.
7: Tighten the yoke pivot bolt to 5–10 ft lbs (6–7 Nm), approximately
finger tight plus up to one-eighth turn.
CAUTION:
Do not exceed 25 ft lbs (33 Nm) while tightening the
C-clamp pipe bolt. Do not use excessive force.
CAUTION:
Do not exceed 15 ft lbs (20 Nm) while tightening the yoke
pivot bolt. Do not use excessive force.
Source 4WRD LED
Retrofit
Attached power lead
Adjustable yoke
Source Four lens tube
(not included)
Shutters (x4)
Yoke locking
knob
Cat5 cable
strain relief

User Manual 11
Connect cables
The fixture can be controlled by AC power or DMX. The fixture responds to the
control method selected using the user interface. For more information, see
User interface on page 12 .
1: If using DMX control: Connect one RJ45 data cable for data-in and one
for data-thru, as needed.
• To order RJ45 to female XLR adapter, use ETC part number W6538.
• To order RJ45 to male XLR adapter, use ETC part number W6539.
2: When connecting data, consider the following:
• Two strain reliefs are built in to the bottom of the Source 4WRD
fixture and should be used to support the fixture’s data cable.
• When using DMX over Cat5, use Cat5e or better. Cable distance
must not exceed 300 m (1000 ft).
• The Source 4WRD fixture cannot be controlled via network protocols
and should not be connected to a system network.
• Up to 32 fixtures can be connected together into a daisy chain.
3: Connect fixture to power source.
Note:
Make sure your dimmer is out of regulated mode for
optimum performance. See Sensor dimmer settings on
page 5 for recommended dimmer settings.
Note:
Connecting both power and data from a SmartBar 1 to a
Source 4 WRD fixture may cause flickering.
WARNING:
Do not use or store the Source 4 WRD fixture below
5°C (41°F). When the fixture has been stored or
transported in cold temperatures, allow it to warm to
room temperature for a minimum of 1 hour before
applying power. Applying power to a cold fixture will
cause damage to the fixture and void ETC warranty.
Note:
The fixture is not self terminating. You must terminate
the last fixture in line with a 120 Ohm resistor. Please
contact your ETC customer service representative to
purchase ETC part number N4086.

12 Source 4 WRD
DMX pinout
User interface
The two-button, seven-segment display shows the DMX address, AC mode, or
the manually-set level.
•Set a DMX address: Use the up and down arrows to navigate to the
desired DMX address number (1–512).
•Set the fixture to AC mode: Use the down arrow to navigate one
number below DMX address 1. The display will read .
•Manually set a level: Use the down arrow to navigate one number
below . The display will read  (Level = Full). Use the down arrow
to decrease the level to a percentage of full ( = 99%,  = 98%,
etc.). You can set levels from 0%–100% (full).
Pin Description Pin Description
1 DMX + 5 Not Connected
2 DMX - 6 Not Connected
3 Not Connected 7 Iso Common (Shield)
4 Not Connected 8 Not Connected

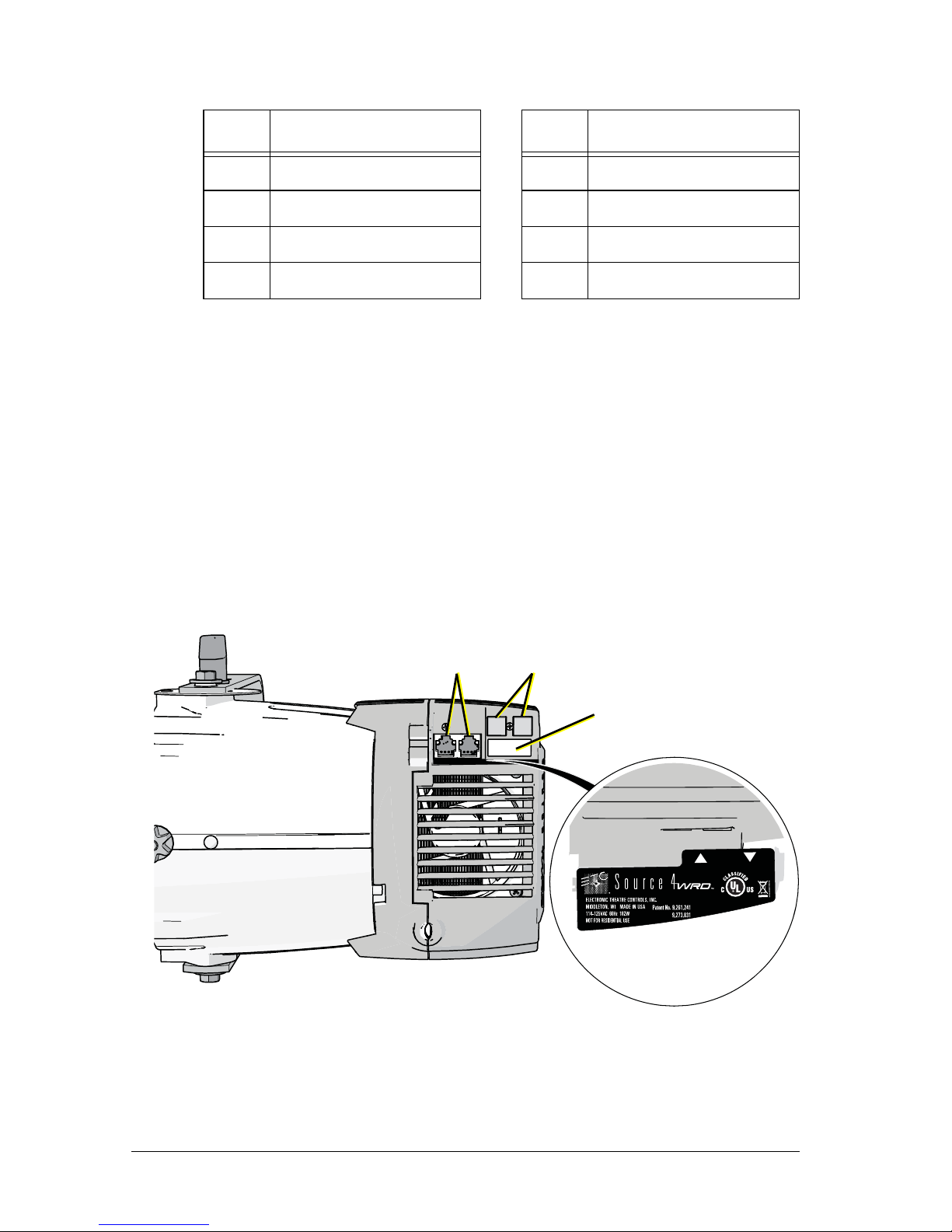

User
interface
Up and down
navigation buttons
RJ45 data
connections

User Manual 13
Error codes
The following error codes may be seen on the Source 4WRD user interface.
• indicates the fixture has gone into over-temperature protection.
Reset the fixture to clear the code.
-For DMX mode: Return the DMX control to 0.
-For AC mode: Remove the fixture from power for five seconds and
then restore power.
• indicates the fixture has gone into under-temperature protection.
Allow the fixture to warm to a minimum of 5°C (41°F).
•Flashing DMX address indicates loss of DMX.
•Dark screen indicates loss of power or fixture time-out. In the event of
time-out, press any button to wake the user interface.
Focus the fixture
Set the Z-adjustment
Use the Z-adjustment knob located on the rear of the Source 4WRD fixture to
adjust the field of the LED light for specific applications.
1: Turn on the Source 4WRD fixture and aim it at a flat surface.
2: Slide the fixture barrel towards or away from the Source 4WRD LED to
create a hard-edged beam of light.

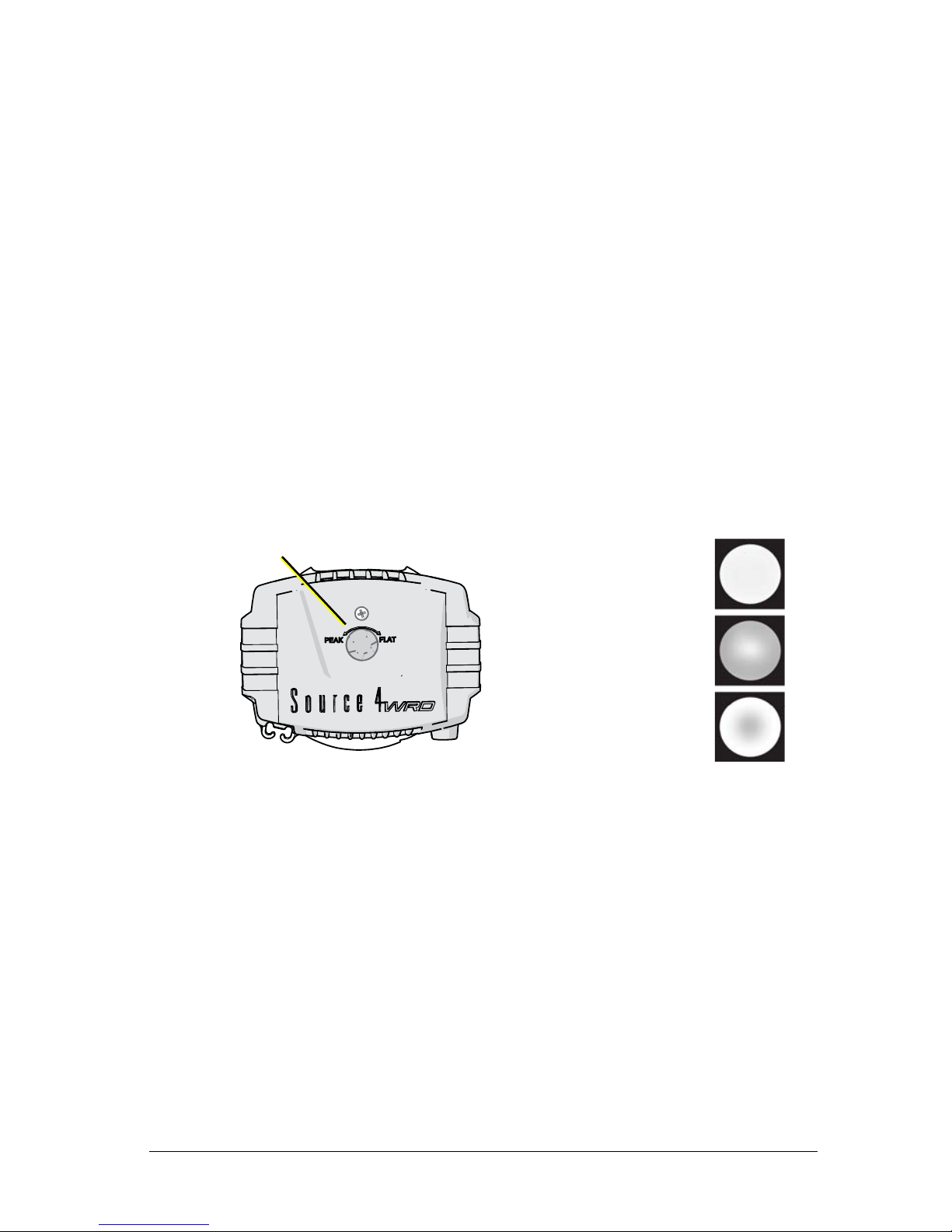

3: Turn the knob toward PEAK or FLAT until the desired field is obtained.
This shows an ideal beam
of uniform light
Adjust towards PEAK to
blend overlapped beams
Adjust towards FLAT to
improve sharp focus
Adjustment knob

14 Source 4 WRD

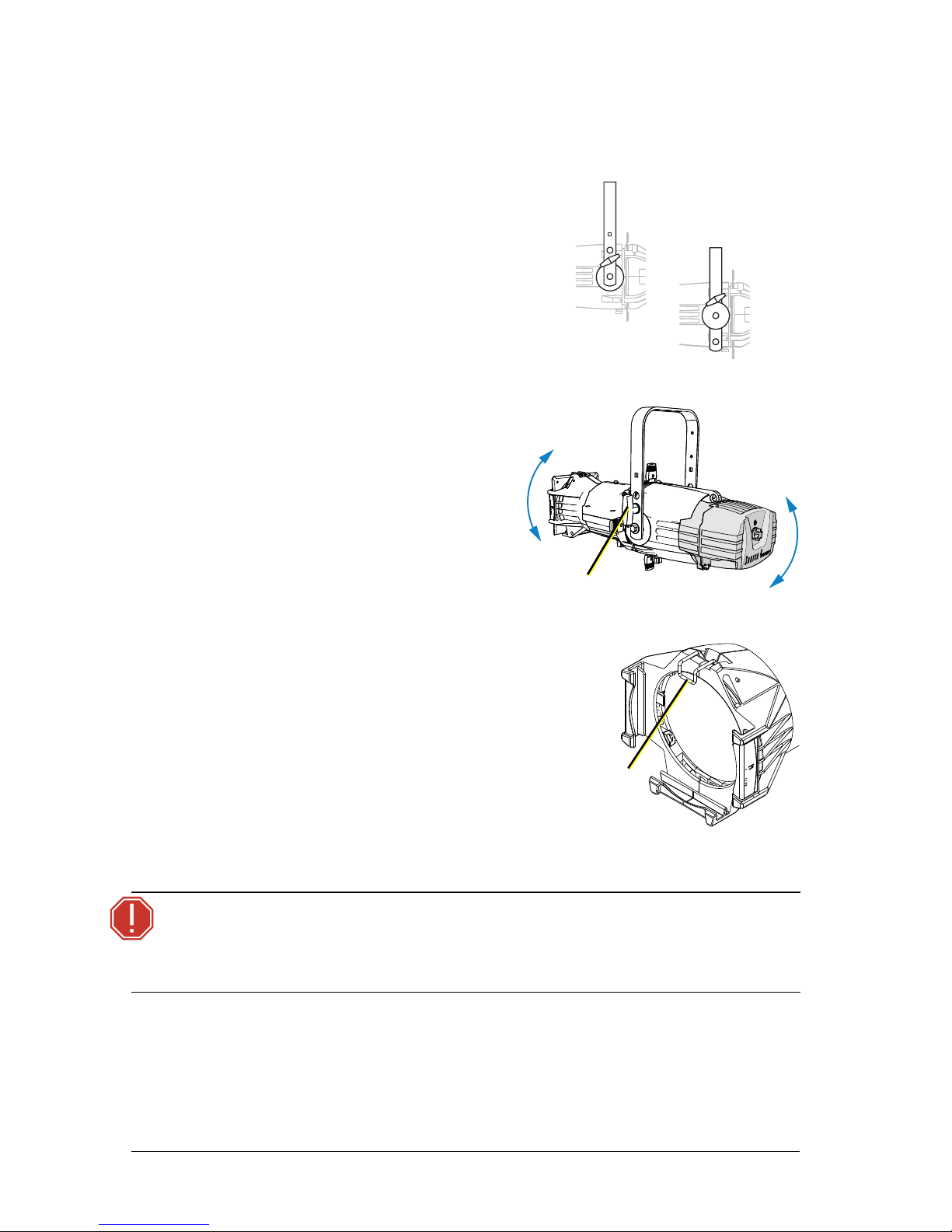

Adjust the yoke position
Change the height position
1: Remove the yoke locking knobs,
washers, and hex bolts from either
side of the fixture.
2: Raise or lower the fixture to the
desired position within the yoke.
3: Reinstall the yoke’s hex bolts,
washers, and locking knobs.
4: Tighten the yoke knobs to secure in
position.
Set the angle within the
yoke
1: Loosen the yoke locking knob.
Do not remove the knob.
2: Tilt the fixture to the desired
position.
3: Tighten the yoke locking knob
to secure in position.
Shape the beam
You can shape the beam by using the
shutters, a pattern, an optional drop-in iris,
and by rotating the barrel.
Use the color frame
The color frame holder is equipped with a
spring-loaded retaining clip that prevents
color frames and accessories from falling out.
1: Release the retaining clip by pushing it sideways while gently pulling
backwards.
2: Insert the color frame.
3: Lock the retaining clip by pushing sideways while gently pushing
forward.
WARNING:
Make sure all color frame accessories are locked in
position with the retaining clip before hanging the
Source 4
WRD fixture.
Low clearance
position
General use
position
Yoke locking
knob
Retaining
clip

User Manual 15
Use a pattern

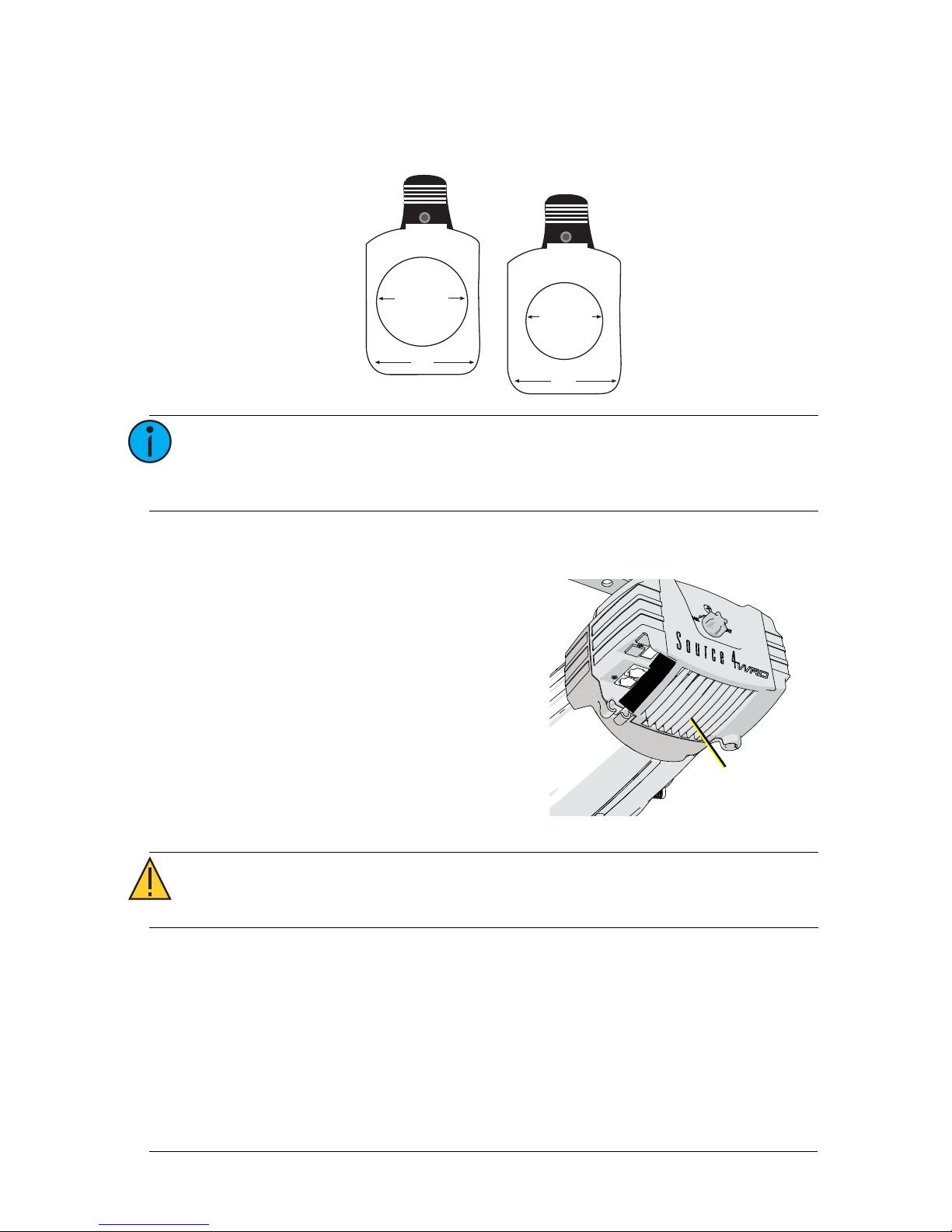

The pattern holder slot is on the top side of the barrel and in front of the
shutters. It accommodates A-size, B-size, and glass pattern holders.
Cleaning and maintenance
Clean the fixture
• Use oil-free canned air to clean the
LED domes prior to installation and
prior to storage.
• Use oil-free canned air to clean the
fan and fin stack as part of regular
fixture maintenance.
• When not installed on the fixture,
store the Source 4WRD LED in its
original packaging or in a dust-
resistant plastic bag.
Note:
Because the Source 4 WRD aperture is 3 inches wide, ETC
recommends using A-size patterns for maximum pattern
effectiveness.
CAUTION:
Do not touch or clean LED optic domes with anything
other than oil-free canned air.
3.12" Diameter
3.70"
2.75" Diameter
3.70"
A-size pattern
holder: Holds 3”
diameter patterns
B-size pattern holder:
Holds 2.5” and 2.75”
diameter patterns
Fan and
fin stack

16 Source 4 WRD
Store the retrofit
• Store the Source 4WRD LED at temperatures of
5°C (41°F) or higher.
• If you must store the Source 4WRD LED below
5°C (41°F), make sure it is in an upright position as
shown to the right. Allow it to warm to room
temperature for a minimum of one hour before
applying power.
Clean the lenses
Replace lenses if they contain visible damage (cracks or deep scratches) that
may impair their effectiveness.
1: Remove the lens tube from the fixture barrel:
a: Remove the beam focus knob and retainer bolt from the top of the
barrel and set aside.
b: Slide the lens tube out of the barrel.
2: Remove any dust from inside the lens tube with a blast of oil-free air or
wipe with a clean, lint-free cloth. Isopropyl alcohol, distilled water, or a
50%-50% mixture of each can be used to clean the glass surface.
3: Slide the lens tube back into the barrel with the color frame retaining
clip on top. Reinstall the beam focus knob and retainer bolt.
Note:
After shipping or storing the Source 4 WRD LED below
5°C (41°F), visually inspect the unit to ensure the low
temperatures have not caused cracking of the LED array.
WARNING:
Do not use ammonia-based or other harsh commercial
cleaners. Clean lens and reflector only as directed.
Commercially available glass cleaning agents should be
avoided as they may contain ammonia, other harsh
chemical detergents or abrasive agents. These cleaners
may damage the glass surface and the Anti-Reflective
coatings. Do not immerse or soak the glass in any
cleaning solution.
Note:
To clean the inside of lenses, you must remove the lenses
from the lens tube. For instructions on removing the
lenses, see the
Source Four Assembly Guide , which is
available for download at etcconnect.com.
Store with LED
dome up
