Exor eTOP605 User manual

Exor International S.p.A.
MANUGENETOP6xx
Ver. 1.03
eTOP Series 600
Operating Instructions
Basic User’s Manual for eTOP Series 600
Touchscreen Products

2
MANUGENETOP6xx
Operating Instructions
VER 1.03
Copyright © 2015-2016 Exor International S.p.A. – Verona, Italy
Subject to change without notice
The information contained in this document is provided for informational purposes only. While eorts were made
to verify the accuracy of the information contained in this documentation, it is provided “as is” without warranty
of any kind.
Third-party brands and names are the property of their respective owners.
www.exorint.net

3
MANUGENETOP6xx
Operating Instructions
VER 1.03
Table of Contents
Table of Contents
Introduction 4
Safety Guide 5
1Product Overview 6
2Standards and Approvals 7
3 Technical Specications 9
4Technical Data 10
4.1 Dimensions 12
4.2 Installation Environment 14
4.3 Safety instruction 15
4.4 Installation Procedure 15
5Connections 16
5.1 Serial Port 18
5.2 Ethernet Port 18
5.3 Optional plugin module 19
5.4 Optional plugin module installation procedure 23
6Power Supply, Grounding and Shielding 24
7Battery 25
8Cleaning Faceplates 26
9Getting Started 26
10 System Settings 27
12 Unpacking and Packing Instructions 30

4
MANUGENETOP6xx
Operating Instructions
VER 1.03
Introduction
The operational guidelines described below is information which relates to the device, installation, tran-
sportation, storage, assembly, use and maintenance.
This Operating Instruction describes the main features of the Exor operator panels. The Manual refers
to the following models:
eTOP605 Operator interface with TFT color 5” widescreen display touchscreen
eTOP607M Operator interface with TFT color 7” widescreen display touchscreen, 1GHz CPU
eTOP610 Operator interface with TFT color 10.1” widescreen display touchscreen
Introduction

5
MANUGENETOP6xx
Operating Instructions
VER 1.03
Safety Guide
The manual contains safety standards that must be respected for the personal safety and to avoid damage.
Indications of attention are divided into three levels of severity:
DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries.
ATTENTION: indicates a failure to observe safety rules and that deciency may cause damage.
CAUTION: indicates a failure to observe safety rules and that deciency may cause defects to the
equipment or inconsistencies.
CAUTION
ATTENTION
DANGER

!
!
Safety Guide

6
MANUGENETOP6xx
Operating Instructions
VER 1.03
1 Product Overview
The Exor eTOP Series 600 HMI products combine state-of-the-art features and top performance with
an oustanding design. They are the ideal choice for all demanding HMI applications including factory
and building automation.
The eTOP Series 600 HMI panels have been designed to run the JMobile software.
• Designed for use with JMobile HMI software.
• Full vector graphic support. Native support of SVG graphic objects. Trasparency and alpha
blending.
• Full object dynamics: control visibility and transparency, move, resize, rotate any object on screen.
Change properties of basic and complex objects.
• TrueType fonts.
• Multilanguage applications. Easily create and manage your applications in multiple languages to
meet global requirements. Far East languages are supported. Tools available in JMobile Studio
support easy third-party translations and help reducing development and maintenance costs of the
application.
• Data display in numerical, text, bargraph, analog gauges and graphic image formats.
•Rich set of state-of-the-art HMI features: data acquisition, alarm handling, scheduler and timed
actions (daily and weekly schedulers, exception dates), recipes, users and passwords, RSS feeds,
rotating menus.
• Includes support for a wide range of communication drivers for Factory systems.
• Multiple drivers communication capability.
• Remote monitoring and control. Client-Server functionality.
• On-line and O󰀨-line simulation with JMobile Studio.
• Powerful scripting language for automating HMI applications. Script debugging improves e󰀩ciency
in application development.
• Rich gallery of vector symbols and objects.
• Optional plug-in modules for eldbus systems, I/O and controllers.
Product Overview

7
MANUGENETOP6xx
Operating Instructions
VER 1.03
2 Standards and Approvals
The products have been designed for use in an industrial environment in compliance with the 2014/30/
EU EMC Directive.
The products have been designed in compliance with:
EN 61000-6-4 EN 55011 Class A
EN 61000-6-2 EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN60945
EN 60079-0
EN 60079-15
EN 60079-31
IECEx IECEx: IECEx ULD 16.0007X
IEC 60079-0, Ed.6 Ex nA IIC T4 Gc -20<Tamb<+60°C (0≤Tamb≤+50°C for PLIO03)
IEC 60079-15, Ed.4 Ex tc IIIC T105°C Dc
IEC 60079-31, Ed.2
ATEX DEMKO 16 ATEX 1683X
EN 60079-0: 2012+A11:2013 II 3G Ex nA IIC T4 Gc -20<Tamb<+60°C (0≤Tamb≤+50°C for PLIO03)
EN 60079-15: 2010 II 3D Ex tc IIIC T105°C Dc
EN 60079-31: 2014
The installation of these devices into the residential, commercial and light-industrial environments is allo-
wed only in the case that special in measures are taken in order to ensure conformity to EN 61000-6-3.
The products are in compliance with the Restrictions on Certain Hazardous Substances (RoHS) Directive
2002/95/EC
In compliance with the above regulations the products are CE marked.
Special instruction for use
- The equipment shall only be used in an area of not more than pollution degree 2, as dened in IEC/
EN 60664-1.
- The equipment shall be installed in an enclosure that provides a degree of protection not less than IP
54 in accordance with IEC/EN 60079-15.
- Transient protection shall be provided that is set at a level not exceeding 140 % of the peak rated vol-
tage value at the supply terminals to the equipment.
- Care shall be taken not to allow layers of dust to form on the graphic panel in a way that might cause
the accumulation of static charges.
Standards and Approvals

8
MANUGENETOP6xx
Operating Instructions
VER 1.03
Standards and Approvals
Product Identication

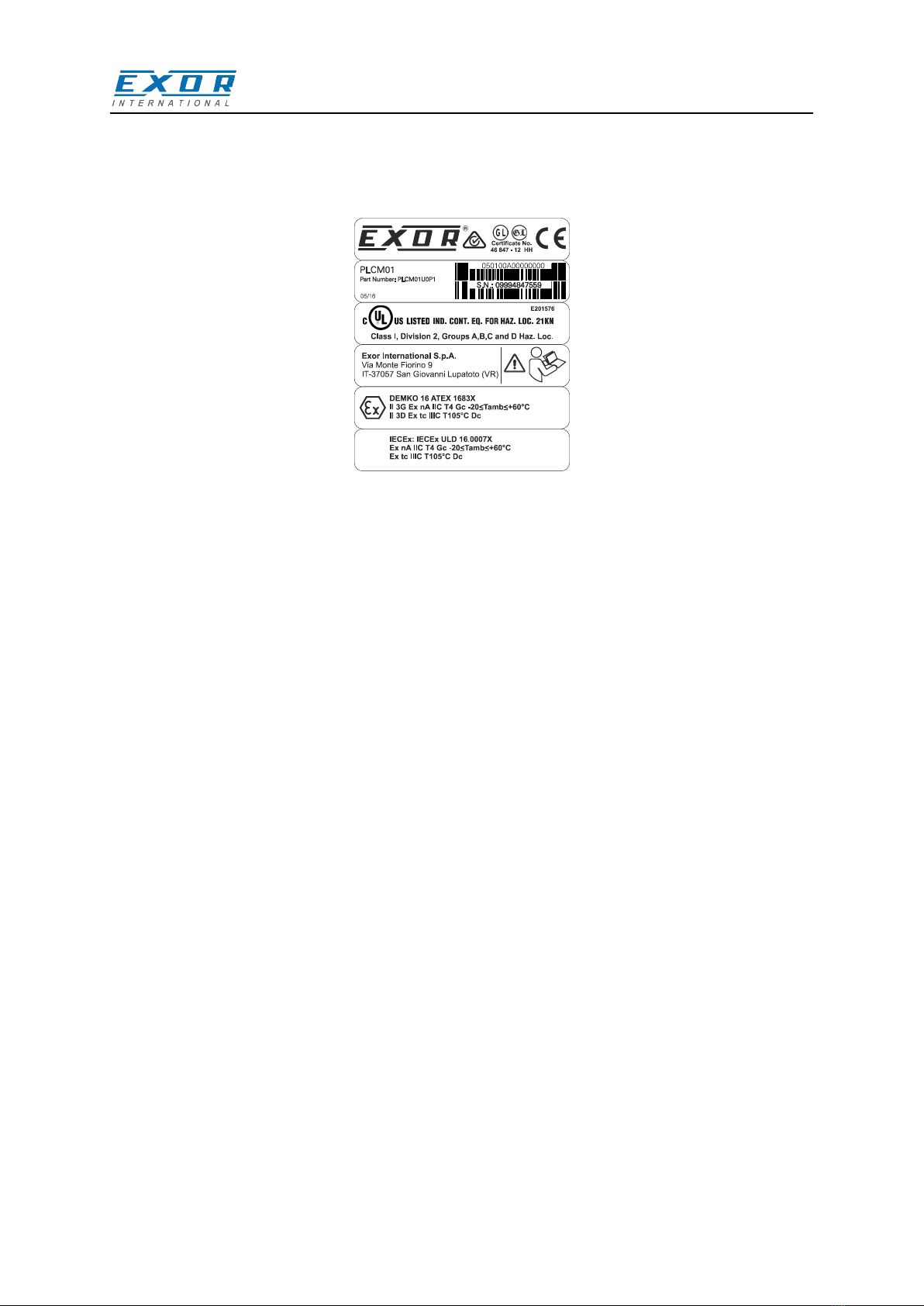

The product may be identied through a plate attached to the rear cover. You will have to know the type of
unit you are using for correct usage of the information contained in the guide.
An example of this plate is shown in the gure below:
Note: the eTOP607M label is used as an example for eTOP600 Series
product model name eTOP607M
product part number ETOP607MU5P1
month/year of production 05/16
serial number 09994847559
version id of the product 091003B03101000
manufacturer address and Exor International S.p.A.
read instruction warning Via Monte Fiorino 9
IT-37057 San Giovanni Lupatoto (VR)
ATEX Marking DEMKO 16 ATEX 1683X
II 3G Ex nA IIC T4 Gc -20<Tamb<+60°C
II 3D Ex tc IIIC T105°C Dc
IECEx Marking IECEx: IECEx ULD 16.0007X
Ex nA IIC T4 Gc -20<Tamb<+60°C
Ex tc IIIC T105°C Dc

9
MANUGENETOP6xx
Operating Instructions
VER 1.03
Standards and Approvals
Durability information
Backlight service life 40000 Hrs. or more
(LED type) (Time of continuos operation until the brightness of the
backlight reaches 50% of the rated value when the
sorrounding air temperature is 25°C) - see Note 1
Note 1: Extended use in environments where the surrounding air temperature is 40°C or higher may
degrade backlight quality/reliability/durability.
Electromagnetic Compatibility (EMC)
Radiated disturbance test Class A EN 55011
Electrostatic discharge immunity test 8 kV (air electrostatic discharge) EN 61000-4-2
4 kV (contact electrostatic discharge)
Radiated, radio-frequency, 80 MHz ÷ 1 GHz, 10V/m EN 61000-4-3
electromagnetic eld immunity test 1,4 GHz ÷ 2 GHz, 3 V/m
2 GHz ÷ 2.7 GHz, 1 V/m
Burst immunity test ± 2 KV dc power port EN 61000-4-4
± 1 KV signal line
Surge immunity test ± 0,5 KV dc power port (line to earth) EN 61000-4-5
± 0,5 KV dc power port (line to line)
± 1 KV signal line (line to earth)
Immunity to conducted disturbances
inducted by radiofrequency eld 0.15 ÷ 80 MHz, 10V EN 61000-4-6
Voltage dips, short interruptions and
voltage variations immunity test Port: AC mains; Level:
100% duration: 1 cycle and 250 cycles (50Hz);
40% duration: 10 cycles (50Hz);
70% duration: 25 cycles (50Hz);
Phase: 0°-180°
Test executed on the 230Vac side of the Exor International S.p.A. Power Supply EN 61000-4-11
Operating and storage humidity 5 ÷ 85 % RH not-condensing EN 60068-2-30
Vibrations 5 ÷ 9 Hz, 7 mm p-p EN 60068-2-6
9 ÷ 150 Hz, 1 g
Shock ± 50 g, 11 ms, 3 pulses per axis EN 60068-2-27
Protection class Front panel IP66, Rear IP20 EN 60529
Environmental conditions
Operating temperature (surrounding -20 ÷ +60°C (vertical installation) EN 60068-2-14
air temperature) Plug-in modules and USB devices
may limit max temperature to +50°C
Storage temperature -20 ÷ +70°C EN 60068-2-14
3 Technical Specications
Touchscreen technology Projected capacitive
Back-up battery 3V 50mAh Lithium, rechargeable, not user-replaceable,
model VL2330.
Fuse Automatic
Serial Port RS-232, RS-485, RS-422 software congurable
User memory Flash 128MB for eTOP605
Flash 256MB for eTOP607M, eTOP610
Recipe memory Flash
Hardware clock Clock/Calendar with back-up battery
Accuracy RTC (at 25°C) <100ppm

10
MANUGENETOP6xx
Operating Instructions
VER 1.03
4 Technical Data
Technical Data
Model eTOP605 eTOP607M
Display / Backlight TFT Color / LED TFT Color / LED
Colors 64K 64K
Resolution 800X480 800X480
Diagonal (inches) 5” widescreen 7” widescreen
Dimming yes yes
User memory ash 128MB 256MB
SD card slot yes yes
Recipe memory Yes. Flash memory storage
limited only by available memory
Yes. Flash memory storage
limited only by available memory
Serial Port RS-232,RS-485, RS-422 DB9
female software congurable
RS-232,RS-485, RS-422 DB9
female software congurable
Ethernet port 2 10/100 Mbit with integrated
switch
2 10/100 Mbit with integrated
switch
USB port 1 Host interface version 2.0 and
1.1
2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
Expansion slot 1 Optional Plugin 2 Optional Plugin
Battery rechargeable rechargeable
Real Time Clock yes yes
Voltage 24Vdc (*) 24Vdc (*)
Current rating (at 24VDC) 0.6A 0.6A
Weight 1 Kg 1.3 Kg
(*) 10-32Vdc
For applications requiring compliance with EN 61131-2 and specically in reference to 10 ms voltage dips, the
power supply range voltage is 18-32Vdc.
