Introduction
The operational guidelines described below is information which relates to the device, installation, tran-
sportation, storage, assembly, use and maintenance.
This Operating Instruction describes the main features of the Exor operator panels. The Manual refers
to the following models:
eTOP507G Operator interface with TFT color 7” widescreen display touchscreen
eTOP507MG Operator interface with TFT color 7” widescreen display touchscreen, 1GHz CPU
eTOP510G Operator interface with TFT color 10.1” widescreen display touchscreen
eTOP515G Operator interface with TFT color 15” display touchscreen
Introduction
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

5
MANUGENETOP5xxG
Operating Instructions
VER 1.00
Safety Guide
The manual contains safety standards that must be respected for the personal safety and to avoid damage.
Indications of attention are divided into three levels of severity:
DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries.
ATTENTION: indicates a failure to observe safety rules and that deciency may cause damage.
CAUTION: indicates a failure to observe safety rules and that deciency may cause defects to the
equipment or inconsistencies.
CAUTION
ATTENTION
DANGER

!
!
Safety Guide
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

6
MANUGENETOP5xxG
Operating Instructions
VER 1.00
1 Product Overview
The Exor eTOP Series 500 Glass HMI products combine state-of-the-art features and top performance
with an oustanding design. They are the ideal choice for all demanding HMI applications including
factory energy and marine applications.
The eTOP Series 500 Glass features a high-brightness, contrast-enhanced ruggedized TFT display
with a fully dimmable LED backlight. The product has been designed for use in harsh environments
and outdoor applications.Glass bonding assembly and anti-reective (AR) glass surface treatment
provide for superior optical performance. The durable glass touchscreen requires the human touch,
eliminating false activations, and offers high reliability and durability; it will continue to work even
surface is scratched or contaminated.
The eTOP Series 500 Glass HMI panels have been designed to run the JMobile software.
• Designed for use with JMobile HMI software.
• Full vector graphic support. Native support of SVG graphic objects. Trasparency and alpha
blending.
• Full object dynamics: control visibility and transparency, move, resize, rotate any object on screen.
Change properties of basic and complex objects.
• TrueType fonts.
• Multilanguage applications. Easily create and manage your applications in multiple languages to
meet global requirements. Far East languages are supported. Tools available in JMobile Studio
support easy third-party translations and help reducing development and maintenance costs of the
application.
• Data display in numerical, text, bargraph, analog gauges and graphic image formats.
• Rich set of state-of-the-art HMI features: data acquisition, alarm handling, scheduler and timed
actions (daily and weekly schedulers, exception dates), recipes, users and passwords, RSS feeds,
rotating menus.
• Includes support for a wide range of communication drivers for Factory systems.
• Multiple drivers communication capability.
• Remote monitoring and control. Client-Server functionality.
• Remote maintenance and support with VNC-based functionality.
• On-line and Off-line simulation with JMobile Studio.
• Powerful scripting language for automating HMI applications. Script debugging improves efciency
in application development.
• Rich gallery of vector symbols and objects.
• Optional plug-in modules for eldbus systems, I/O and controllers.
• Display backlight dimmable to 0%.
Product Overview
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

7
MANUGENETOP5xxG
Operating Instructions
VER 1.00
2 Standards and Approvals
The products have been designed for use in an industrial environment in compliance with the 2004/108/
EC EMC Directive.
The products have been designed in compliance with:
EN 61000-6-4 EN 55011 Class A
EN 61000-6-2 EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
EN60945
EN 60079-0
EN 60079-15
EN 60079-31
The installation of these devices into the residential, commercial and light-industrial environments is allo-
wed only in the case that special in measures are taken in order to ensure conformity to EN 61000-6-3.
The products are in compliance with the Restrictions on Certain Hazardous Substances (RoHS) Directive
2002/95/EC
In compliance with the above regulations the products are CE marked.
Standards and Approvals
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

8
MANUGENETOP5xxG
Operating Instructions
VER 1.00
Product Identication
The product may be identied through a plate attached to the rear cover. You will have to know the type
of unit you are using for correct usage of the information contained in the guide.
An example of this plate is shown in the gure below:
eTOP507G product model name
ETOP507U5P1 product part number
01/12 month/year of production
09994847559 serial number
040100A01000000 version id of the product
3 Technical Specications
Touch screen technology Projective Capacitive
Back-up battery 3V 50mAh Lithium, rechargeable, not user-replaceable,
model VL2330.
Fuse Automatic
Serial Port RS-232, RS-485, RS-422 software congurable
User memory Flash 128MB eTOP507G
Flash 256MB eTOP507MG, eTOP510G, eTOP515G
Recipe memory Flash
Hardware clock Clock/Calendar with back-up battery
Accuracy RTC (at 25°C) <100ppm
Environmental conditions
Operating temperature (surrounding -20 ÷ +60°C (vertical installation) EN 60068-2-14
air temperature) -20 ÷ +50°C (horizontal installation)
Storage temperature -40 ÷ +85°C EN 60068-2-14
Operating and storage humidity 5 ÷ 85 % RH not-condensing EN 60068-2-30
Vibrations 5 ÷ 9 Hz, 7 mm p-p EN 60068-2-6
9 ÷ 150 Hz, 1 g
Shock ± 50 g, 11 ms, 3 pulses per axis EN 60068-2-27
Protection class IP69K (front panel) EN 60529
IP20 (rear)
Standards and Approvals
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

9
MANUGENETOP5xxG
Operating Instructions
VER 1.00
Immunity to conducted disturbances
inducted by radiofrequency eld 0.15 ÷ 80 MHz, 10V EN 61000-4-6
Voltage dips, short interruptions and
voltage variations immunity test Port: AC mains; Level:
100% duration: 1 cycle and 250 cycles (50Hz);
40% duration: 10 cycles (50Hz);
70% duration: 25 cycles (50Hz);
Phase: 0°-180°
Test executed on the 230Vac side of the Exor International S.p.A. Power Supply EN 61000-4-11
Standards and Approvals
Durability information
Backlight service life 40000 Hrs. or more
(LED type) (Time of continuos operation until the brightness of the
backlight reaches 50% of the rated value when the
sorrounding air temperature is 25°C) - see Note 1
Note 1: Extended use in environments where the surrounding air temperature is 40°C or higher may
degrade backlight quality/reliability/durability.
Surface Chemical Resistance:
Alcohol, Acetone, Methylene Chloride, Isopropanol, Hexane, Methyl ethyl ketone, Turpentine, Mineral
Spirit, Unleaded Gasoline, Diesel Fuel, Coal oil, Motor oil, Transmission Fluid, Antifreeze, 10% NaClO,
6% Hydrochloric Acid, 40% Sulfuric Acid, 70% Nitric Acid, 5% Ammonia, 10% Sodium Hydroxide, 3%
Hydrogen Peroxide, Toluene, Ammonia-based Glass Cleaner, Laundry Detergents, Cleaner, Black Tea,
Coffee, Vinegar, Coca Cola, Grease, Cooking Oil, Salt, Bleach
Electromagnetic Compatibility (EMC)
Radiated disturbance test Class A EN 55011
Electrostatic discharge immunity test 8 kV (air electrostatic discharge) EN 61000-4-2
4 kV (contact electrostatic discharge)
Radiated, radio-frequency, 80 MHz ÷ 1 GHz, 10V/m EN 61000-4-3
electromagnetic eld immunity test 1,4 GHz ÷ 2 GHz, 3 V/m
2 GHz ÷ 2.7 GHz, 1 V/m
Burst immunity test ± 2 KV dc power port EN 61000-4-4
± 1 KV signal line
Surge immunity test ± 0,5 KV dc power port (line to earth) EN 61000-4-5
± 0,5 KV dc power port (line to line)
± 1 KV signal line (line to earth)
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

10
MANUGENETOP5xxG
Operating Instructions
VER 1.00
Technical Data
4 Technical Data
(*) For applications requiring compliance with EN 61131-2 and specically in reference to 10 ms voltage dips, the
minimum power supply voltage is 18Vdc.
Model eTOP507G eTOP507MG
Display / Backlight TFT Color / LED TFT Color / LED
Colors 64K 64K
Resolution 800X480 800X480
Diagonal (inches) 7” widescreen 7” widescreen
Dimming yes yes
User memory ash 128MB 256MB
SD card slot yes yes
Recipe memory Yes. Flash memory storage
limited only by available memory
Yes. Flash memory storage
limited only by available memory
Serial Port RS-232,RS-485, RS-422 DB9
female software congurable
RS-232,RS-485, RS-422 DB9
female software congurable
Ethernet port 2 10/100 Mbit with integrated
switch
2 10/100 Mbit with integrated
switch
USB port 2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
Expansion slot 2 Optional Plugin 2 Optional Plugin
Battery rechargeable rechargeable
Real Time Clock yes yes
Voltage 10-32Vdc (*) 10-32Vdc (*)
Current rating (at 24VDC) 0.8A 0.9A
Weight 1 Kg 1 Kg
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

11
MANUGENETOP5xxG
Operating Instructions
VER 1.00
(*) For applications requiring compliance with EN 61131-2 and specically in reference to 10 ms voltage dips, the
minimum power supply voltage is 18Vdc.
Model eTOP510G eTOP515G
Display / Backlight TFT Color / LED TFT Color / LED
Colors 64K 64K
Resolution 1280X800 1024X768
Diagonal (inches) 10.1” widescreen 15”
Dimming yes yes
User memory ash 256MB 256MB
SD card slot yes yes
Recipe memory Yes. Flash memory storage
limited only by available memory
Yes. Flash memory storage
limited only by available memory
Serial Port RS-232,RS-485, RS-422 DB9
female software congurable
RS-232,RS-485, RS-422 DB9
female software congurable
Ethernet port 2 10/100 Mbit with integrated
switch
2 10/100 Mbit with integrated
switch
USB port 2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
2 Host interface, 1 version 2.0, 1
version 2.0 and 1.1
Expansion slot 2 Optional Plugin 2 Optional Plugin
Battery rechargeable rechargeable
Real Time Clock yes yes
Voltage 10-32Vdc (*) 10-32Vdc (*)
Current rating (at 24VDC) 1.0A 1.4A
Weight 1.7 Kg 4 Kg
Technical Data
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

12
MANUGENETOP5xxG
Operating Instructions
VER 1.00

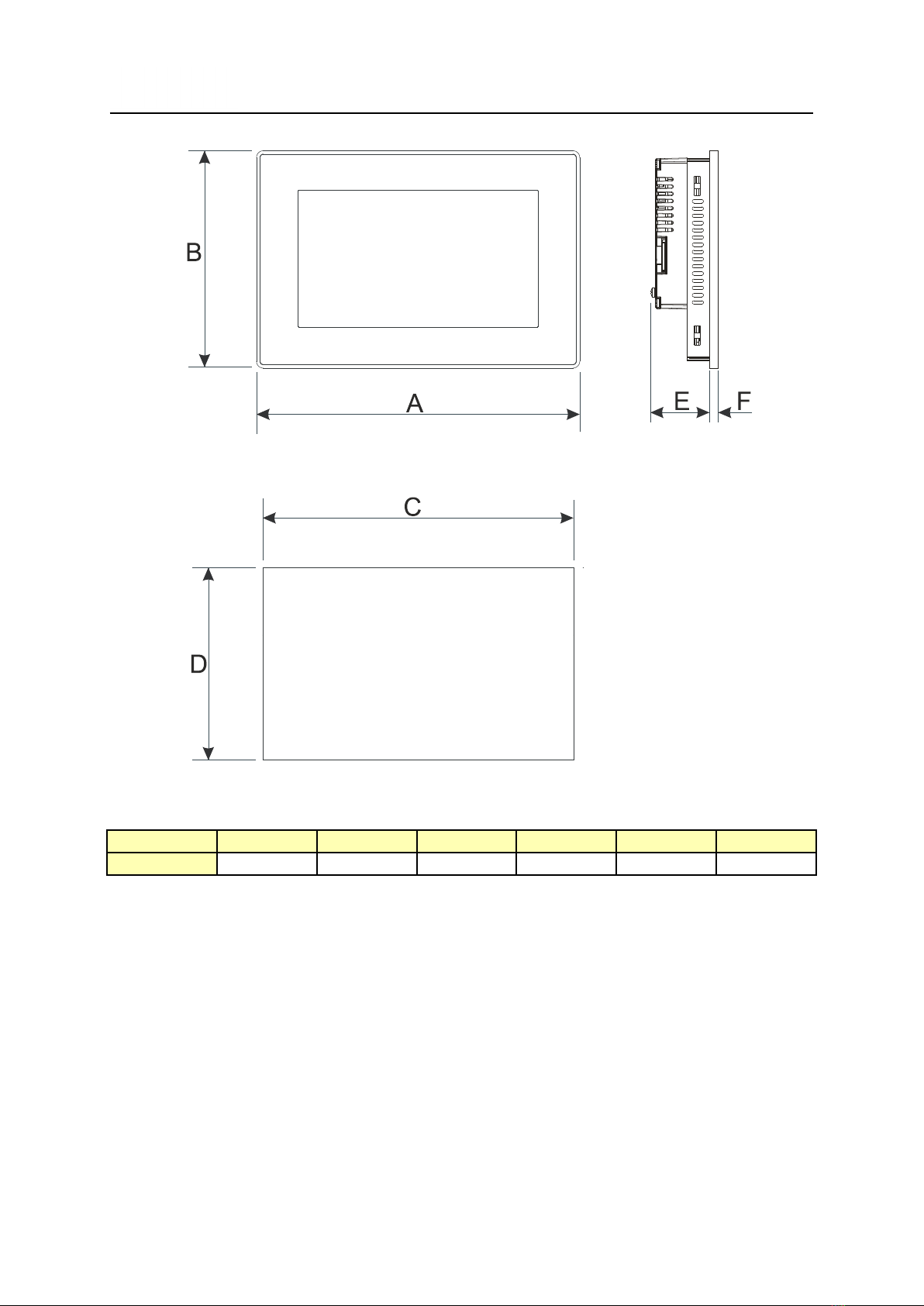

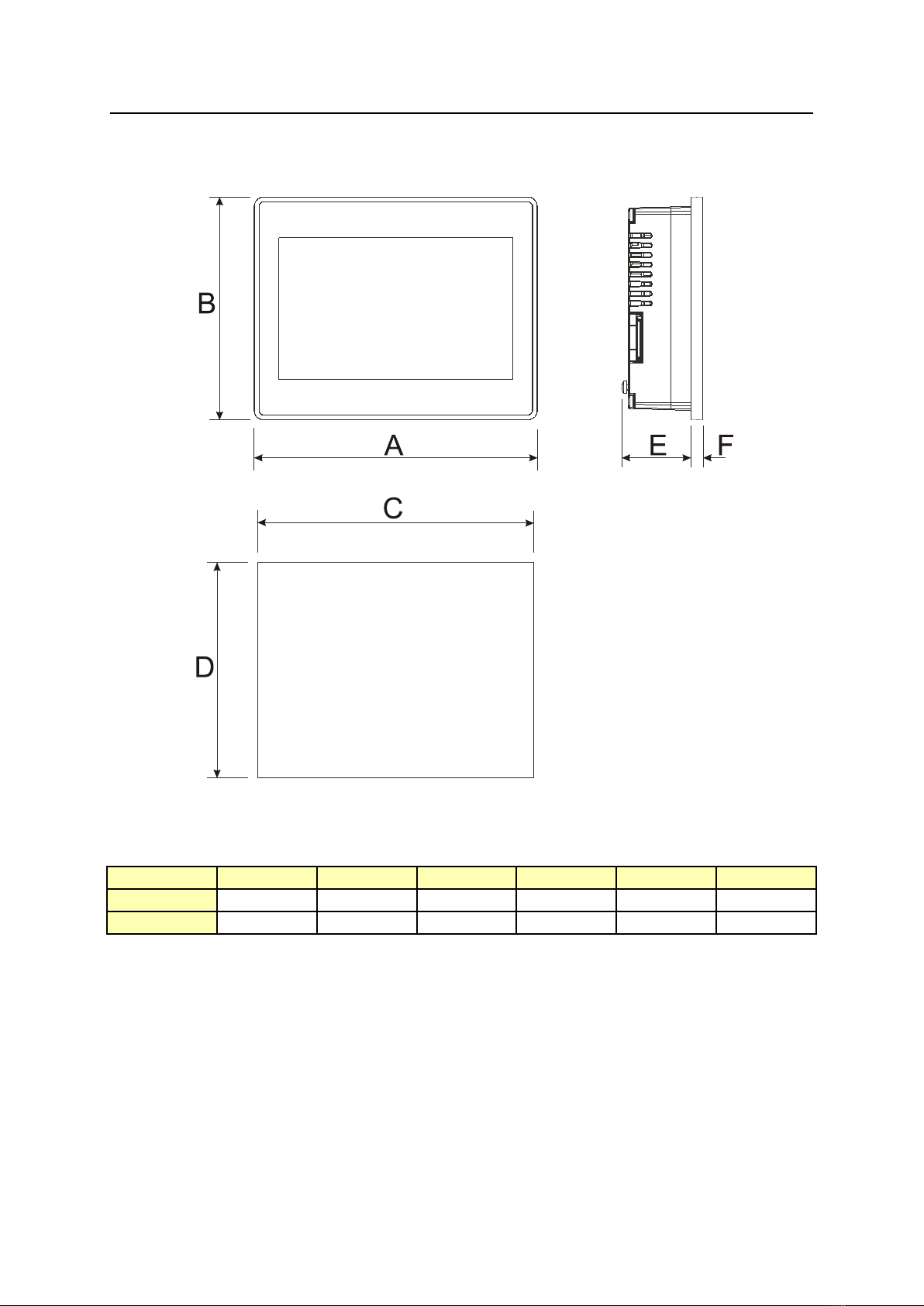

4.1 Dimensions
Technical Data
Cut out
MODEL A B C D E F
eTOP507G 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31”
eTOP507MG 187mm/7.36” 147mm/5.79” 176mm/6.90” 136mm/5.35” 47mm/1.85” 8mm/0.31”
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

13
MANUGENETOP5xxG
Operating Instructions
VER 1.00
Cut out
MODEL A B C D E F
eTOP510G 282mm/11.10” 197mm/7.80” 271mm/10.67” 186mm/7.32” 56mm/2.20” 8mm/0.31”
Technical Data
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

14
MANUGENETOP5xxG
Operating Instructions
VER 1.00
Cut out

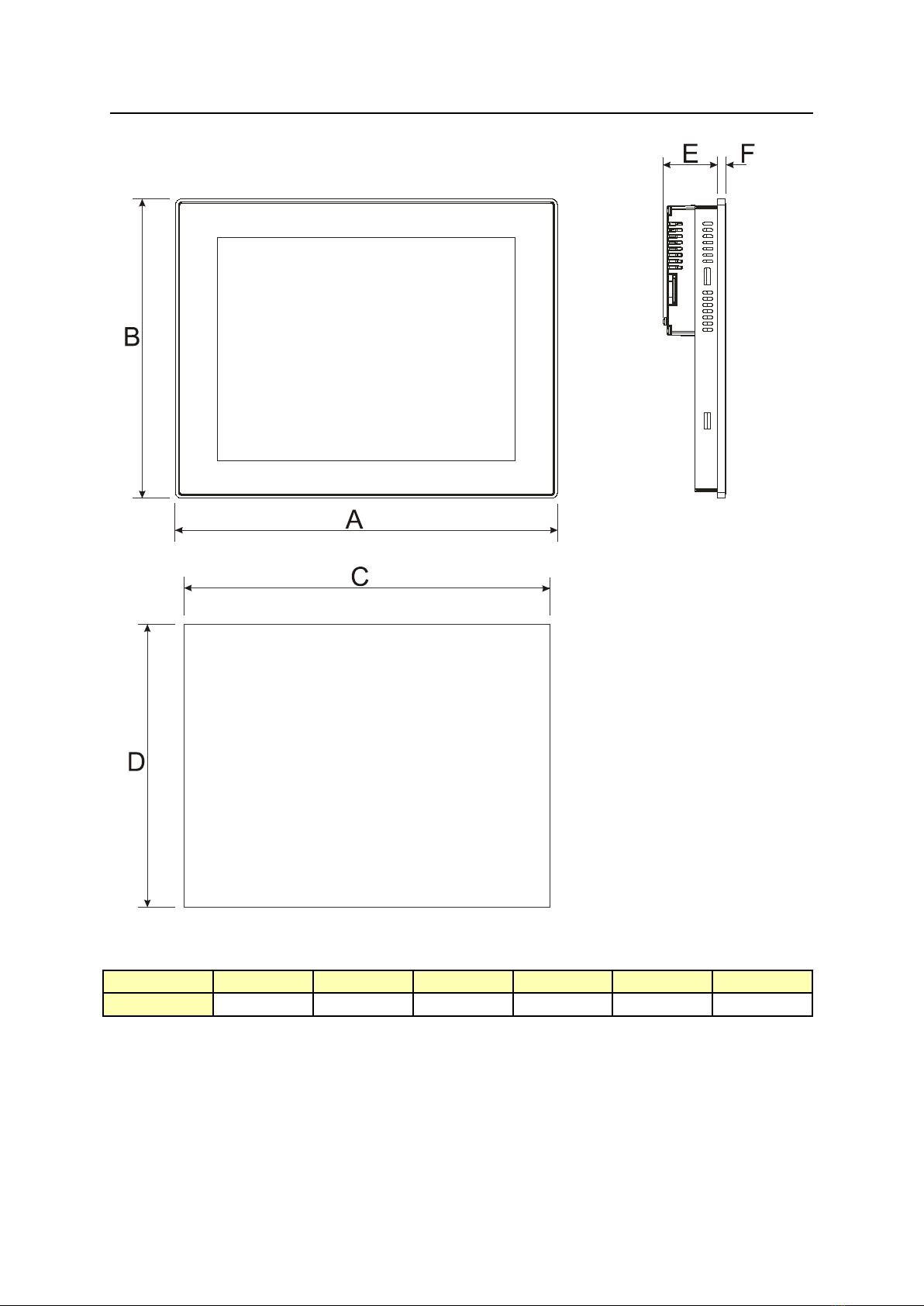

MODEL A B C D E F
eTOP515G 392mm/15.43” 307mm/12.08” 381mm/15” 296mm/11.65” 56mm/2.20” 8mm/0.31”
Technical Data
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

15
MANUGENETOP5xxG
Operating Instructions
VER 1.00
4.2 Installation Environment
Avoid prolonged exposition to direct sunlight to avoid the risk of overheating the device.
The equipment is not intended for installation in contact with corrosive chemical compounds. Check the
resistance of the front panel to a specic compound before installation.
Do not use tools of any kind (screwdrivers, etc.) to operate the touch screen of the panel.
In order to meet the front panel protection classications, proper installation procedure must be followed:
• the borders of the cutout must be at
• screw up each xing screw until the bezel corner get in contact with the panel.
•the cutout for the panel must be of the dimensions indicated in this manual.
The IP69K is guaranteed only if:
• max deviation from the plane surface to the cut-out: O0.5mm
•thickness of the case where is mounted the equipment: from 1,5mm to 6mm
•max surface roughness where the gasket is applied: O120 um

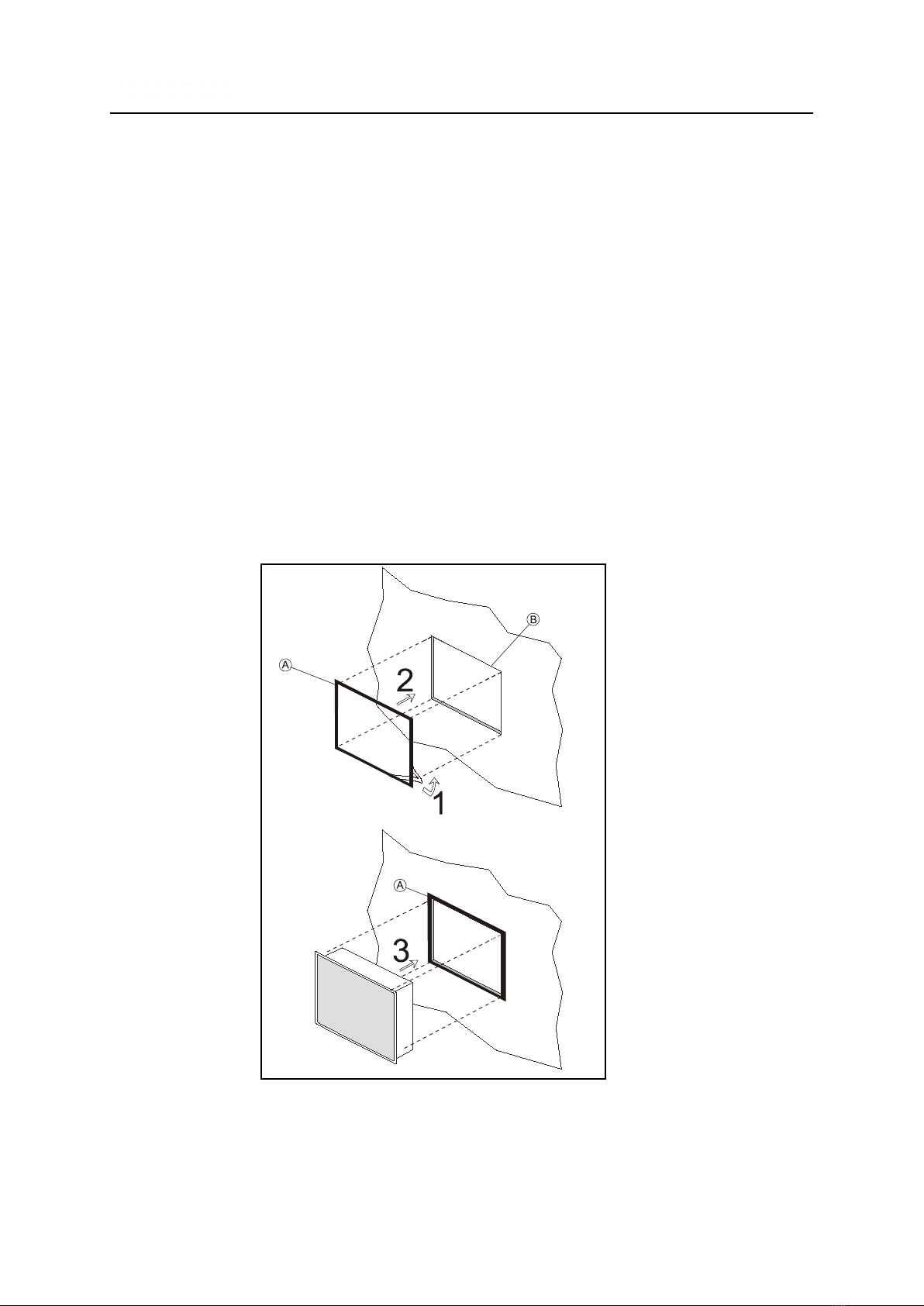

Applying the gasket
A. Gasket
B. Installation cut-out
Technical Data
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

16
MANUGENETOP5xxG
Operating Instructions
VER 1.00
4.3 Installation Procedure
Place the xing brackets as shown in gure.
CAUTION
Screw each xing screw until the bezel corner gets in contact with the panel.

Technical Data
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

17
MANUGENETOP5xxG
Operating Instructions
VER 1.00

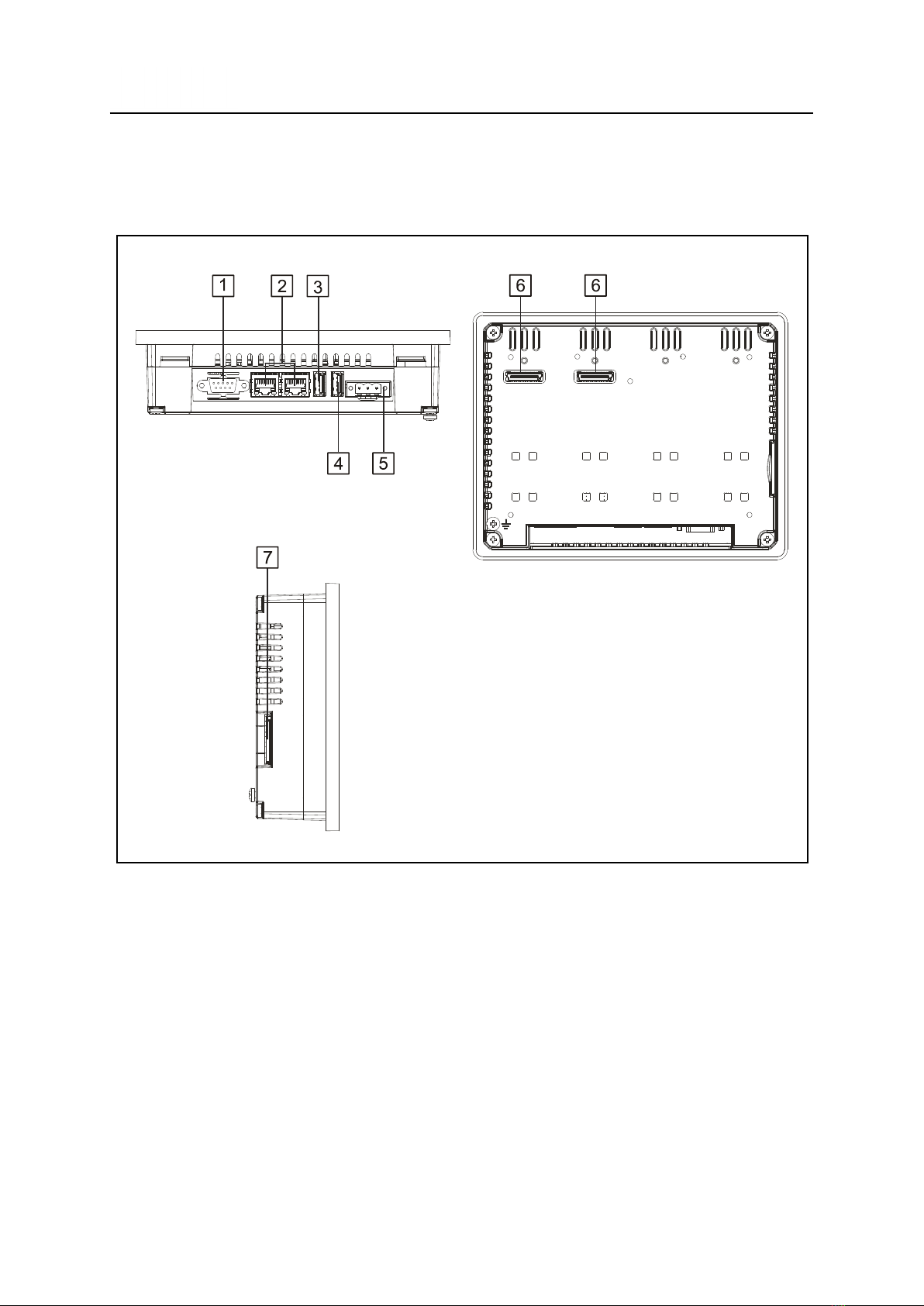

5 Connections
1. Serial Port
2. 2x Ethernet Port
3. USB Port (version 2.0 - 1.1)
4. USB Port (version 2.0 High speed only)
5. Power Supply
6. Expansion slot for Plugin module
7. SD Card Slot
Connections
eTOP507G, eTOP507MG
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

18
MANUGENETOP5xxG
Operating Instructions
VER 1.00
1. Serial Port
2. 2x Ethernet Port
3. USB Port (version 2.0 - 1.1)
4. USB Port (version 2.0 High speed only)
5. Power Supply
6. Expansion slot for Plugin module
7. SD Card Slot
eTOP510G, eTOP515G
Connections
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

19
MANUGENETOP5xxG
Operating Instructions
VER 1.00
5.1 Serial Port
The serial port is used to communicate with the PLC or with another type of controller.
Different electrical standards are available for the signals in the PLC port connector: RS-232, RS-422,
RS-485.
The serial port is software programmable. Make sure you select the appropriate
interface in the programming software.
The communication cable must be chosen for the type of device being connected.
Connections

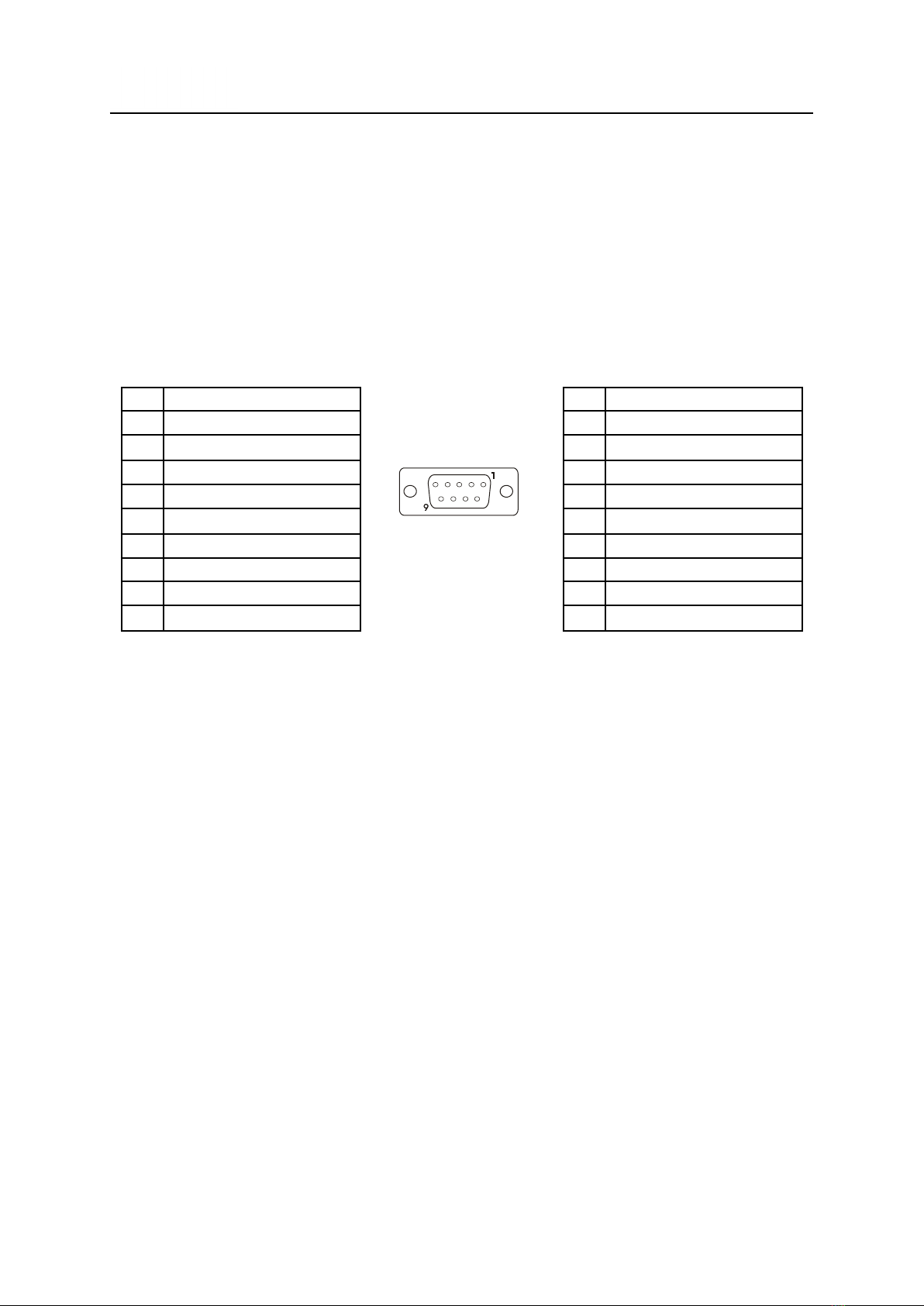

SERIAL PORT
RS-232 RS-422, RS-485
To operate in RS485 pins 4-3 and
8-7 must be connected externally.
Pin Description
1 GND
2
3TX
4RX
5
6 +5V output
7 CTS
8RTS
9
Pin Description
1 GND
2
3 CHA-
4 CHB-
5
6 +5V output
7 CHB+
8CHA+
9
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com

20
MANUGENETOP5xxG
Operating Instructions
VER 1.00
5.2 Ethernet Port
18
OFF: Valid link has NOT been detected
ON: Valid link has been detected
Connections
ON: No activity
BLINKING: Activity
The Ethernet port have two status indicators. Please see description in gure.
Courtesy of CMA/Flodyne/Hydradyne ▪Motion Control ▪Hydraulic ▪Pneumatic ▪Electrical ▪Mechanical ▪[phone] ▪www.cmafh.com
