Festo Compact Performance System Guide

Compact Performance
CP system
Installation and commissioning

Author: S. Breuer
Translation: Douglas Smith
Editors: H.-J. Drung, M. Holder
Layout: Festo, Dept. PV-IDM
Type setting: PV-IDM
Edition: 9806A
Festo AG & Co. 73726 Esslingen 1998
Federal Republic of Germany
The copying, distribution and utilization of this docu-
ment as well as the communication of its contents to
others without expressed authorization is prohibited. Of-
fenders will be held liable for the payment of damages.
All rights reserved, in particular the right to carry out
patent, utility model or ornamental design registration.
Printed on 100 % recycled paper
CP... 9806A I

Part no.: 165 226
Title: Manual
Designation: P.BE-CPSYS-GB
II CP... 9806A

Contents
Designated use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V
Target group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI
Important user instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VI
Information on this manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VIII
Product-specific terms and abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . X
1. System overview
1.1 Structure of CP systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.1.1 CP system module functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.2 CP fieldbus node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.3 Address range of the CP system. . . . . . . . . . . . . . . . . . . . . . . . 1-11
1.3.1 Basic rules of addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
1.3.2 Address assignment after extension or conversion. . . . . . . . . . 1-20
2. Fitting
2.1 Fitting the CP modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
2.2 Fitting the CP fieldbus node onto a wall . . . . . . . . . . . . . . . . . . . 2-5
2.3 Fitting the CP fieldbus node onto a hat rail. . . . . . . . . . . . . . . . . 2-6
2.3.1 Mounting the node in standard housing. . . . . . . . . . . . . . . . . . . . 2-6
2.3.2 Node in compact design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11
3. Installation
3.1 General instructions on installation . . . . . . . . . . . . . . . . . . . . . . . 3-3
3.1.1 Connecting cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
3.1.2 Selecting the power unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
3.1.3 Configuring the CP system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10
3.2 Connections on the CP fieldbus node . . . . . . . . . . . . . . . . . . . . 3-11
3.2.1 Connecting the CP modules . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12
3.2.2 Connecting the operating voltage . . . . . . . . . . . . . . . . . . . . . . . 3-14
3.2.3 Connecting the fieldbus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
CP... 9806A III

4. Commissioning
4.1 The commissioning procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
4.2 Preparing the CP system for commissioning. . . . . . . . . . . . . . . 4-4
4.2.1 Saving the string assignment. . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
4.3 Reaction of the CP system when switched on . . . . . . . . . . . . . 4-8
4.4 Reaction of the CP system to operating faults . . . . . . . . . . . . 4-11
4.5 Correcting string assignment errors. . . . . . . . . . . . . . . . . . . . . 4-16
A. Technical appendix
A.1 Cable length and cross section . . . . . . . . . . . . . . . . . . . . . . . . . A-3
A.2 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
IV CP... 9806A

Designated use
The CP system, consisting of a CP node, CP valve ter-
minals and CP input/output modules, referred to in the
following as CP modules, is designed to be fitted into a
machine or automation system. Depending on the CP
node used, the system can be connected to a special
fieldbus system and can be used for scanning sensor
signals and for controlling pneumatic and electric actua-
tors.
The individual CP modules of the CP system are do-
cumented in specific manuals. It is absolutely essential
that you observe the safety instructions listed therein,
as well as the designated use of the relevant CP mo-
dule. The CP modules and cables may only be used:
– as designated
– in their original condition
– without unauthorized modifications
– in faultless technical condition.
If used in conjunction with commercially-available com-
ponents such as sensors and actuators, the specified
limit values for pressures, temperatures, electrical data,
moments etc. must be observed. Please comply also
with national and local safety laws and regulations.
CP... 9806A V

Target group
This manual is directed exclusively at technicians who
are trained in control and automation technology.
Important user instructions
This manual contains instructions on the possible
dangers which may occur if the CP modules are not
used correctly. These instructions are always printed in
italics, are framed and signalled by pictograms.
Danger
categories
A distinction is made between the following:
WARNING
This means that personal injury or damage to
property may occur if these instructions are not
observed.
CAUTION
This means that damage to property may occur if
these instructions are not observed.
PLEASE NOTE
This means that this instruction must also be
observed.
VI CP... 9806A

Pictograms and symbols complement the danger warn-
ings and draw attention to the nature and conse-
quences of dangers.
Pictograms
The following pictograms are used:
Uncontrolled movements of loose tubing.
Unintentional movements of the connected actuators.
High voltages or undefined switching states of the elec-
tronic components which may influence connected cir-
cuits.
Electrostatically vulnerable components.
These will be damaged if you touch the contact sur-
faces.
•This mark indicates activities which can be carried
out in any order.
Text
markings
1. Figures indicate activites which must be carried out
in the numerical order of the figures.
– Hyphens indicate general items.
CP... 9806A VII

Information on this manual
This manual contains specific information on the
method of operation, fitting, installation and com-
missioning of the CP system.
Special information on commissioning, programming
and diagnosis of a CP system with the fieldbus node
which you are using can be found in the relevant ma-
nual for the fieldbus node.
Information on further CP modules can be found in the
manual for the relevant module. The following table
gives a summary.
VIII CP... 9806A

Manuals for the CP system Peripherals
Manual "CP system, installation and commissioning"
Contents General, basic information on operating, fitting, installing
and commissioning CP systems.
Manual "CP fieldbus node,
programming and
diagnosis"
"CPV valve
terminal,
CPA valve
terminal
pneumatics"
"CP modules,
electronics"
Contents Special information
on commissioning,
programming and
diagnosing related to
the node used.
Information on
fitting, installing
and commission-
ing CP valve
terminals
Information on
fitting,
installing and
commissioning
CP I/O modules
Fig. 0/1: Manuals on the CP system
CP... 9806A IX

Product-specific terms and abbreviations
The following product-specific terms and abbreviations
are used in this manual.
Term/
abbreviation Meaning
O Digital output
O-module CP output module
CP Compact Performance
CP valve terminal CPV valve terminal type 10 or CPA valve terminal type 12
CP system Complete system consisting of CP fieldbus node and CP modules
CP modules Common term for various modules which can be incorporated in
a CP system
CP connection Plug or socket on the CP modules which enables the modules
to be connected with the CP cable.
CP cable Special cable for coupling the various CP modules
I Digital input
I/O module Common term for the CP modules which make available digital
inputs and outputs (CP input modules and CP output modules)
I-module CP input module
I/Os Digital inputs and outputs
Node CP fieldbus node with/without fieldbus connection, to which the
I/O modules are connected
PLC/IPC Programmable logic controller / industrial PC
String Total number of I/O modules which can be connected together
on a CP connection of the fieldbus node.
XCP... 9806A

Chapter 1
System overview
1. System overview
CP... 9806A 1-1

Contents
1. System overview
1.1 Structure of CP systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
1.1.1 CP system module functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1.2 CP fieldbus node . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1.3 Address range of the CP system. . . . . . . . . . . . . . . . . . . . . . . 1-11
1.3.1 Basic rules of addressing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
1.3.2 Address assignment after extension or conversion. . . . . . . . . 1-20
1. System overview
1-2 CP... 9806A

1.1 Structure of CP systems
Festo can assist you in solving your automation tasks
at the machine level by means of valve terminals. Due
to their modular structure, valve terminals and I/O
modules from Festo can be incorporated to the best
advantage in your machines and systems.

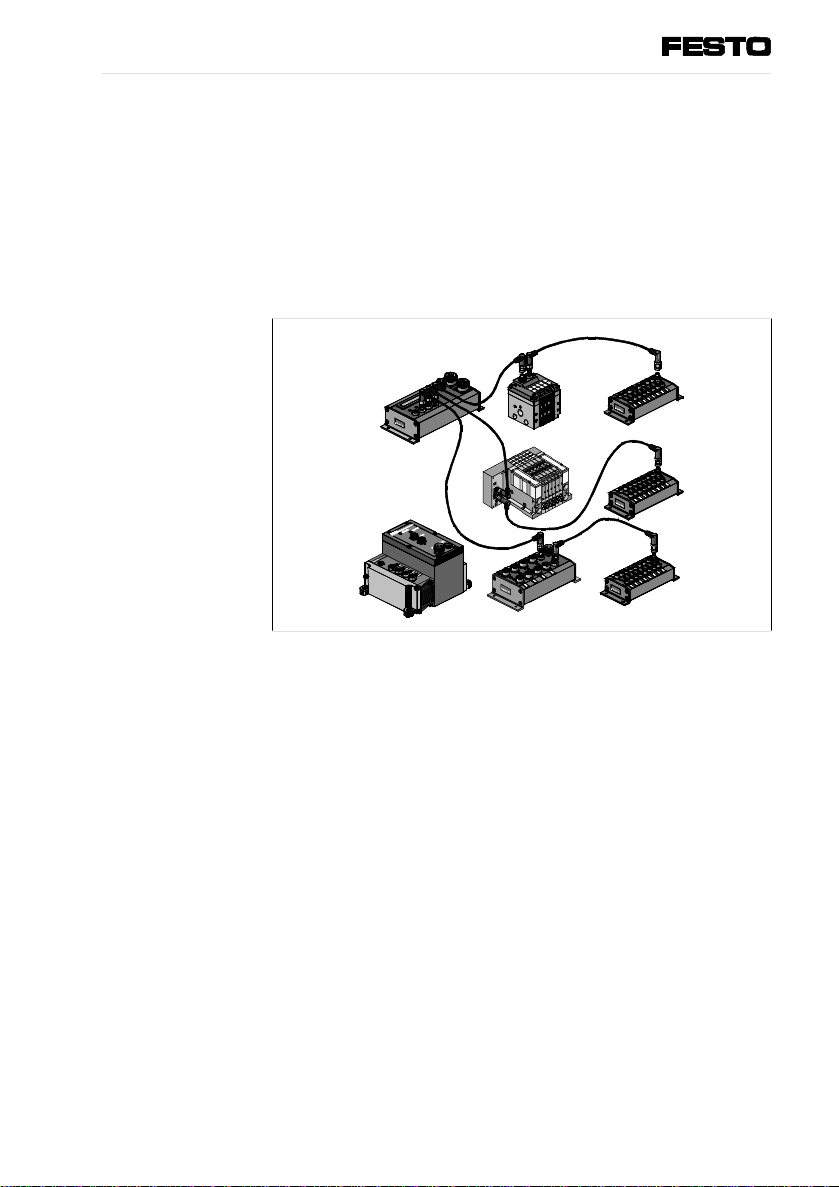

Fig. 1/1: Structure of a CP system
1. System overview
CP... 9806A 1-3

The CP system consists of individual modules which
are connected by means of the CP cable. This permits
a decentralized arrangement of the CP system. The
compact CP valve terminals can be mounted very close
to the cylinders which are to be actuated, thereby enab-
ling short compressed air tubing to be used.
Short compressed air tubing minimizes the loss of air
flow and the times required for pressurizing and ex-
hausting the tubing.
This permits the use of smaller valves with sufficient
flow and thereby helps to reduce costs.
1. System overview
1-4 CP... 9806A

1.1.1 CP system module functions
CP systems consists of the following modules:
CP module Function
CP node There are special CP fieldbus nodes for the
various fieldbuses.
– They provide the connection to certain
fieldbuses
– They offer connections for up to 4 strings
to which I/O modules and valve terminals
can be connected
– They transmit control signals to the
connected modules and monitor their
functioning
CP valve
terminals – These provide various valve functions via valve plates for controlling
pneumatic actuators
– Relay plates, pressure isolating plates and
blanking plates can be used here as well
Input modules There are various special designs for
various types of connections.
– These provide inputs for connecting
sensors and permit e.g. the
scanning of cylinder positions
Output modules – These provide universally usuable electrical
outputs for actuating low current
consuming devices (further valves,
bulbs etc.)
1. System overview
CP... 9806A 1-5

Depending on type, the CP nodes control the transfer
of data to a wide variety of control systems via the
various fieldbuses. Some nodes have an integrated
PLC. This enables the CP system to be operated au-
tonomously without being coupled to a fieldbus.
1
2
3
4
Fieldbus (incoming)
Fieldbus (continuing)
CP valve terminal
CP input module
5
6
7
8
Sensor
Cylinder
CP output module
CP fieldbus node
Fig. 1/2: CP system functions
When operated with a fieldbus, the control signals arriv-
ing from the fieldbus will be sent continuously by the
node to the connected CP modules. The CP modules
ensure that programmed output signals are transmitted
and that the appropriate valves are switched.
2
14
7
3
5
6
8
1. System overview
1-6 CP... 9806A

1.2 CP fieldbus node
Special CP fieldbus nodes are available for connecting
a CP system to the various fieldbus systems. These are
in one of the following designs:
Designs of
CP node
Design *) Explanation
Standard design
Node in standard
housing
1 with adapter 2
for connecting the four strings
Compact design
Extremely compact
integrated version
*) Diagram examples, different types of fieldbus connections
1
2
1. System overview
CP... 9806A 1-7

The following diagrams show the general operating, dis-
play and connecting elements of the CP nodes.
Layout of the
CP nodes
PLEASE NOTE
Special information on the layout of the node you are
using can be found in the appropriate node manual.
1
2
3
4
SAVE button
String error LEDs
Further LEDs depending on design of node
Fieldbus connection (design depending on
type used, see node manual)
5
6
7
8
Label fields
Fuse
Operating voltage connection
CP connections for up to 4 strings
(0...3)
Fig. 1/3: General operating, display and connecting elements
(fieldbus node in standard housing)
4
8
2
7
3
6
1
5
1. System overview
1-8 CP... 9806A

1
2
3
4
5
6
7
Operating voltage connection
Fieldbus connection (design depending on type used, see node manual)
Further LEDs depending on design of node
CP connections for up to 4 strings (0...3)
String error LEDs
Label fields
SAVE button
Fig. 1/4: General operating, display and connecting elements
(fieldbus node in compact design)
2
4
5
1
3
7
6
1. System overview
CP... 9806A 1-9
