Festo CP-FB5-E User manual

Description
165 205
en 0112a
Compact Performance
Description
Electronics
CP fieldbus node 5
Programming and
diagnosis
Type CP-FB5-E
Fieldbus protocols:
- Festo fieldbus
-ABBCS31
- Moeller SUCOnet K

Contents and general instructions
I
Festo P.BE-CP-FB5-E-EN en 0112a
Author H.-J. Drung.................................
Editors H.-J. Drung, M.Holder........................
Original de.......................................
Translation transline Deutschland GmbH...............
Layout Festo AG & Co., Abtl. KG-GD...................
Type setting DUCOM................................
Edition en 0112a..................................
Title MANUAL-EN.................................
Designation P.BE-CP-FB5-E-EN........................
Order no. 165 205.................................
E(Festo AG & Co., D-73726 Esslingen, Federal Republic of
Germany 2001)
Internet: http://www.festo.com
E-Mail: [e-mail]
The copying, distribution and utilization of this document as
well as the communication of its contents to others without
expressed authorization is prohibited. Offenders will be held
liable for the payment of damages. All rights reserved, in
particular the right to carry out patent, utility model or
ornamental design registration.

Contents and general instructions
II Festo P.BE-CP-FB5-E-EN en 0112a

Contents and general instructions
III
Festo P.BE-CP-FB5-E-EN en 0112a
Contents
Designated use V........................................................
Target group VI..........................................................
Service VI...............................................................
Notes on the use of this manual VI...........................................
Important user instructions VII..............................................
1. Installation 1-1...................................................
1.1 General instructions 1-3.............................................
1.2 Setting the DIL switches 1-4..........................................
1.2.1 Setting the field bus address 1-6......................................
1.2.2 Setting the field bus baud rate 1-9....................................
1.2.3 Setting the field bus protocol 1-10.....................................
1.3 Connecting the CP modules 1-11.......................................
1.4 Connecting the operating voltage 1-12..................................
1.5 Connecting the field bus interface 1-13..................................
1.5.1 Selecting the cable 1-13..............................................
1.5.2 Connecting the field bus interface 1-13..................................
1.5.3 Connecting the bus 1-16.............................................
2. Commissioning 2-1................................................
2.1 Preparing the CP system for operation on the field bus 2-3................
2.1.1 Operating voltage 2-3...............................................
2.1.2 Saving the string assignment 2-3.....................................
2.2 Festo fieldbus 2-4.................................................
2.2.1 Configuration 2-4..................................................
2.2.2 Addressing 2-6....................................................
2.3 ABB CS31 2-8.....................................................
2.3.1 CS 31 central processing unit as bus master 2-9.........................
2.3.2 T200/07CS61 as bus master 2-11......................................
2.4 Moeller SUCOnet K 2-15..............................................
2.4.1 Addressing inputs/outputs 2-17.......................................

Contents and general instructions
IV Festo P.BE-CP-FB5-E-EN en 0112a
3. Diagnosis 3-1.....................................................
3.1 LED displays on the bus node LEDs 3-3................................
3.1.1 Normal operating status 3-4.........................................
3.1.2 Diagnostic operating voltage POWER or POWER V 3-5....................
3.1.3 Diagnosis LED BUS ERROR 3-6.......................................
3.2 Testing the valves 3-7...............................................
3.2.1 Starting the test routine 3-8..........................................
3.2.2 Concluding the test routine 3-8.......................................
3.3 Diagnosis of the field bus 3-9........................................
3.3.1 Festo fieldbus 3-10..................................................
3.3.2 ABB CS31 3-11.....................................................
3.3.3 Moeller SUCOnet K 3-16..............................................
3.4 Error treatment 3-17.................................................
3.4.1 Reaction of the CP valve terminal to faults 3-17...........................
3.4.2 Short circuit/overload at an output module 3-18..........................
3.4.3 Short circuit in sensor supply at an input module 3-19.....................
A. Technical Appendix A-1.............................................
A.1 Technical specifications of the field bus node CP FB5-E A-3................
A.2 Index A-5.........................................................

Contents and general instructions
V
Festo P.BE-CP-FB5-E-EN en 0112a
Designated use
The CP field bus node type CP-FB5-E described in this manual
has been designed exclusively for use as a slave on the field
bus systems Festo Fieldbus, ABB CS31 and Moeller SU-
COnet K. CP modules from Festo can be connected to CP field
bus node CP-FB5-E. The CP node may only be used as fol-
lows:
– in accordance with designated use
– in its original state
– without any modifications by the user
– in faultless technical condition.
If additional commercially-available components such as sen-
sors and actuators are connected, the specifiedlimits for pres-
sures, temperatures, electrical data, torques, etc. must not
be exceeded.
Please observe the standards specified in the relevant
chapters and comply with technical regulations, as well as
with national and local regulations.
Warning
If to be used as an explosion-protected operating device,
make sure that:
Selectrical contacts are not disconnected under tension
Sthe completely fitted product with all plugs, adapters
and protective caps complies at least with protection
class IP 64.

Contents and general instructions
VI Festo P.BE-CP-FB5-E-EN en 0112a
Target group
This manual is intended exclusively for technicians trained in
control and automation technology, who have experience in
installing, commissioning, programming and diagnosing the
slaves for the field bus systems above.
Service
Please consult your local Festo repair service if you have any
technical problems.
Notes on the use of this manual
This manual contains specific information on installing, com-
missioning, programming and diagnosing CP field bus node
FB5.
Information on further CP modules can be found in the man-
ual for the relevant module. A summary is shown in fig. 0/1.

Contents and general instructions
VII
Festo P.BE-CP-FB5-E-EN en 0112a
Important user instructions
Danger categories
This manual contains instructions on the possible dangers
which may occur if the product is not used correctly. These
instructions are marked (Warning, Caution, etc), printed on a
shaded background andmarked additionally with a picto-
gram. A distinction is made between the following danger
warnings:
Warning
... This means that failure to observe this instruction may
result in serious personal injury or damage to property.
Caution
... This means that failure to observe this instruction may
result in personal injury or damage to property.
Please note
... This means that failure to observe this instruction may
result in damage to property.
The following pictogram marks passages in the text which
describe activities with electrostatically sensitive compo-
nents.
Electrostatically sensitive components may be damaged if
they are not handled correctly.

Contents and general instructions
VIII Festo P.BE-CP-FB5-E-EN en 0112a
Marking special information
The following pictograms mark passages in the text contain-
ing special information.
Pictograms
Information:
Recommendations, tips and references to other information
sources.
Accessories:
Information on necessary or sensible accessories for the
Festo product.
Environment:
Information on environment-friendly use of Festo products.
Text markings
SThe bullet indicates activites which may be carried out in
any order.
1. Figures denote activities which must be carried out in the
numerical order specified.
– Hyphens indicate general activities.

Contents and general instructions
IX
Festo P.BE-CP-FB5-E-EN en 0112a

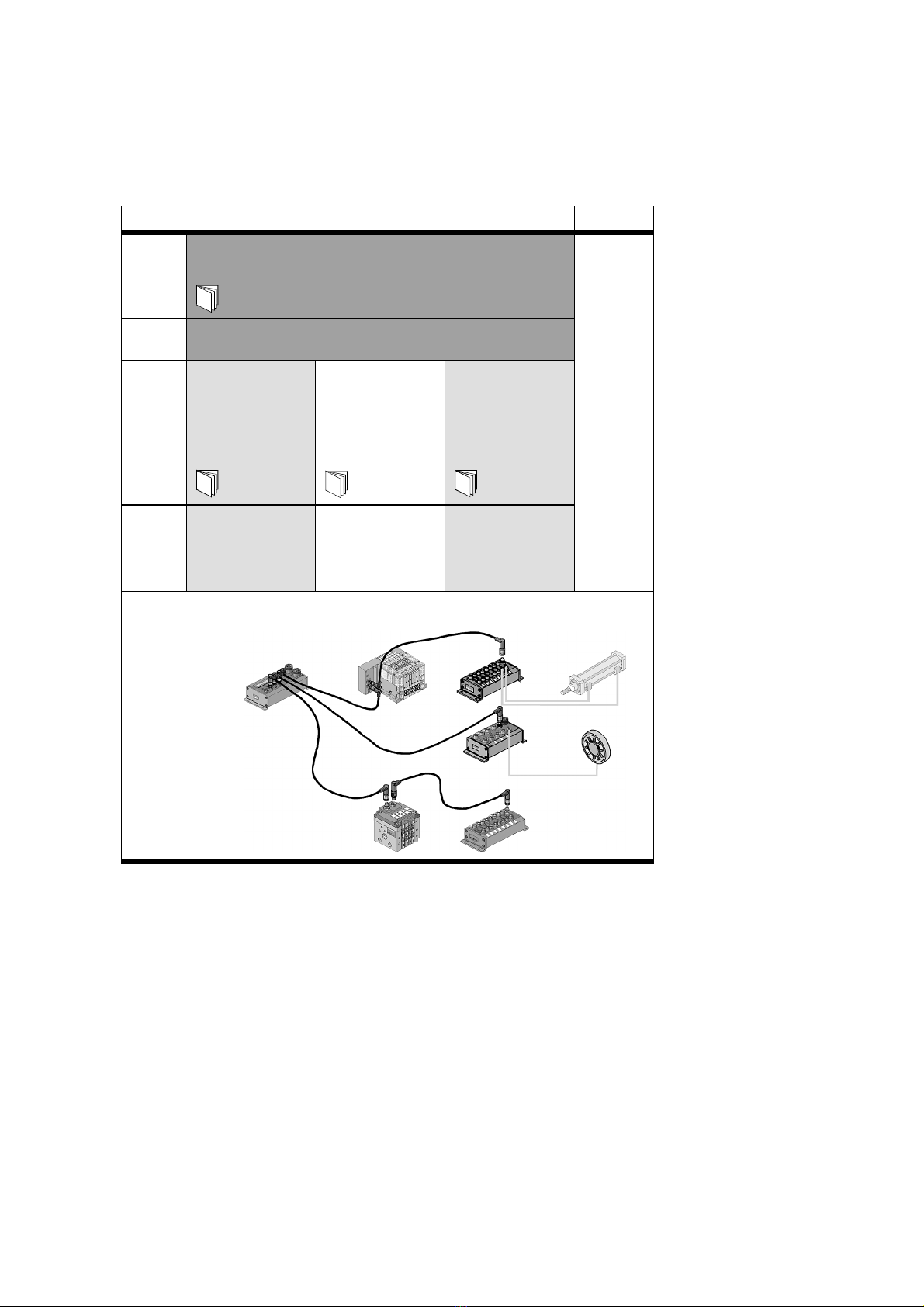

Manuals for the CP system Peripherals
Manual “CP system, installation and commissioning”
type: P.BE-CPSYS-...
Contents General, basic information on operating, fitting, installing and
commissioning of CP systems.
Manual “CP fieldbus node,
programming and
diagnosis”
type: P.BE-CP-FB...
or P.BE-VIFB...-10...
“CPV valve terminal
pneumatics” or
“CPA valve terminal
pneumatics”
type: P.BE-CPV-...
or P.BE-CPA-...
“CP modules,
electronics”
type: P.BE-CPEA-...
Contents Special information on
commissioning,
programming and
diagnosing related to
the node used
Information on fitting,
installing and commis-
sioning CPA or CPV
valve terminals
Information on fitting,
installing and commis-
sioning CP I/O
modules
b
b
b
b
Fig. 0/1: CP system manuals

Contents and general instructions
XFesto P.BE-CP-FB5-E-EN en 0112a
The following product-specific terms and abbreviations are
used in this manual:
Term/abbreviation Meaning
Adigital output
Busy bit Enable bit, for analysing data exchange with the CP system
CP cable Special cable for coupling the various CP modules
CP connection Plug or socket on the CP modules which enables the modules to be
connected with the CP cable
CP modules Common term for various modules which can be incorporated in a CP
system
CP system Complete system consisting of CP field bus node and P modules
Edigital input
I/O modules Common term for the CP modules which provide digital inputs and
outputs (CP input modules and CP output modules)
I/Os digital inputs and outputs
Node CP field bus node with/without field bus connection to which the I/O
modules are connected
Octet Number of address bytes assigned by the CP system
PLC/IPC Programmable logic controller/industrial PC
SAVE button: Save the current string assignment (connected I/Os);
When the CP system is restarted, the last saved string assignment will
be compared with thecurrent string assignment. Deviations will be
indicated by flashing LEDs.
String Total number of I/O modules connected together on one CP connection
of the field bus node
String assignment Total number of all the I/O modules connected via strings to a CP field
bus node (0...3)

Installation
1-1Festo P.BE-CP-FB5-E-EN en 0112a
Chapter 1

1. Installation
1-2 Festo P.BE-CP-FB5-E-EN en 0112a
Contents
1. Installation 1-1...................................................
1.1 General instructions 1-3.............................................
1.2 Setting the DIL switches 1-4..........................................
1.2.1 Setting the field bus address 1-6......................................
1.2.2 Setting the field bus baud rate 1-9....................................
1.2.3 Setting the field bus protocol 1-10.....................................
1.3 Connecting the CP modules 1-11.......................................
1.4 Connecting the operating voltage 1-12..................................
1.5 Connecting the field bus interface 1-13..................................
1.5.1 Selecting the cable 1-13..............................................
1.5.2 Connecting the field bus interface 1-13..................................
1.5.3 Connecting the bus 1-16.............................................

1. Installation
1-3
Festo P.BE-CP-FB5-E-EN en 0112a
1.1 General instructions
Warning
Before undertaking installation and maintenance work,
switch of the following:
Sthe compressed air supply
Sthe operating voltage at the field bus node (pins 1 and 2)
Sthe operating voltage at the CP output modules
You thereby avoid:
– uncontrolled movements of loose tubing
– undesired movements of the connected actuators
– undefined switching states of the electronic components
Caution
The node of the CP system contains electrostatically
vulnerable components.
SDo not therefore touch any components.
SObserve the regulations for handling electrostatically
vulnerable components.
You thereby avoid damage to the electronic components of
the node.
General information on installing CP modules can be found in
the manual “CP system.”

1. Installation
1-4 Festo P.BE-CP-FB5-E-EN en 0112a
1.2 Setting the DIL switches
TheDILswitchesaresituatedunderthecoverofthefieldbus
node.
Warning
SBefore commissioning:
make sure that the protocol and, if necessary, the baud
rate are correctly set on DIL switch elements 1 .. 6.
SDuring operation:
do not change the DIL switch settings.
You thereby avoid undesired reactions of the connected
actuators.
1DIL switch
1
POWE R POWE R V
Fig. 1/1: Position of the DIL switch

1. Installation
1-5
Festo P.BE-CP-FB5-E-EN en 0112a
Dual inline switch Set the following functions on the DIL switch:
– the field bus protocol
– the field bus baud rate ( only required with Festo proto-
col)
DIL switch
(factory set-
ting)
Switch
element
Description of function
1Festo protocol:
– Field bus baud rate
see “Setting the field bus
ABB CS31 or SUCOnet K:
– Switch setting without mean-
ing; any desired position
2
s
e
e
S
e
t
t
i
n
g
t
h
e
f
i
e
l
d
b
u
s
baud rate”
i
n
g
;
a
n
y
d
e
s
i
r
e
d
p
o
s
i
t
i
o
n
3
4
Field bus protocol
s
e
e
“
S
e
t
t
i
n
g
t
h
e
f
i
e
l
d
b
u
s
p
r
o
t
o
c
o
l
”
5
see
“
S
ett
i
ng t
h
e
f
i
e
l
d
b
us
p
rotoco
l
”
6

1. Installation
1-6 Festo P.BE-CP-FB5-E-EN en 0112a
1.2.1 Setting the field bus address
Please note
The field bus addresses of the CP system cannot be modi-
fied by the master. The CP system can only be addressed
by the field bus address set on the address selector
switch.
1Address selector
switch UNITS
figure
2Address selector
switch TENS
figure
1
2
Fig. 1/2: Setting the field bus address on the address selec-
tor switches
Set the field bus address of the CP system with the two round
address selector switches. The switches are numbered from
0..9. The arrow indicates the units or tens figure of the field
bus address which is set.

1. Installation
1-7
Festo P.BE-CP-FB5-E-EN en 0112a
Summary of the possible field bus addresses
Please note
Field bus addresses may only be assigned once per
master.
Observe any possible limitations regarding the assignment
of field bus addresses by the master.
Recommendation Assign the field bus addresses in ascending order. Where
necessary, assign the field bus addresses to suit the machine
structure of your system.
Possible field bus addresses
PLC Address designation Addresses
Festo Field bus address 1; 2; ...; 98
ABB Procontic CS31 module address 0; 1; ...; 60*)
Moeller 2; ...; 98
*) depends on controller and on equipment fitted on the CP system
(see chapter 2.3)

1. Installation
1-8 Festo P.BE-CP-FB5-E-EN en 0112a
Proceed as follows:
1. Switch off the operating voltage.
2. Assign an unused field bus address to the CP system.
3. Use a screwdriver to set the arrow on the relevant ad-
dress selector switch to the units and tens figures of the
desired field bus address.

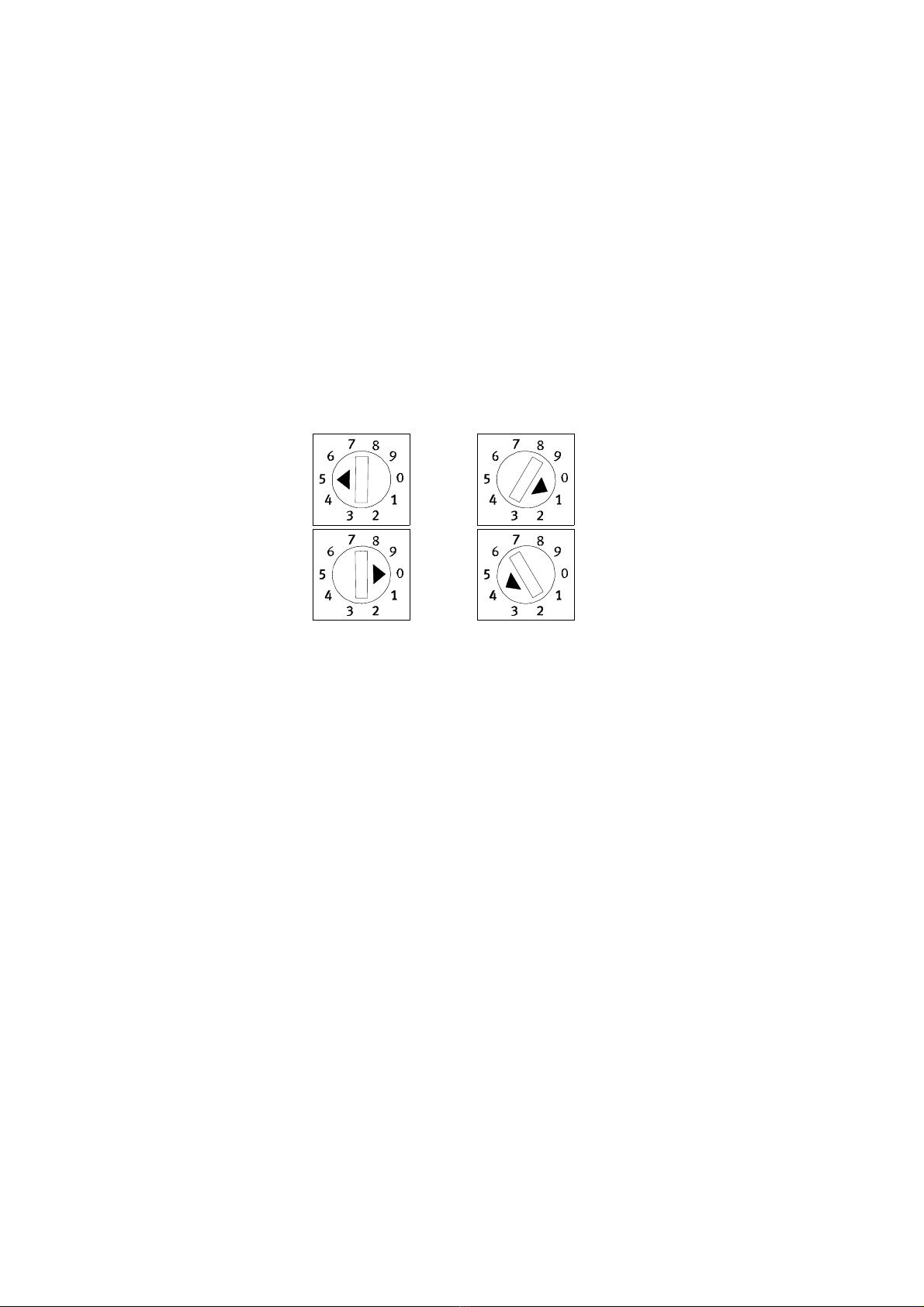

Examples
Set field bus address: Set field bus address:
05 41
Fig. 1/3: Example of set field bus addresses
