FIOR & GENTZ NEURO SWING User manual

Systemknöchelgelenk
System Ankle Joint
Druckdatum: 2018-11
Der Inhalt dieser Produktbeilage wird regelmäßig aktualisiert und ist beim Einsatz des Produktes unbedingt zu beachten.
Sie finden diese Produktbeilage auch im Download-Bereich unserer Website unter www.fior-gentz.de/downloads. Seite 2
Date printed: 2018-11
This manual is regularly updated and should be strictly followed.
You can also find this manual in the download section on our website at www.fior-gentz.com/downloads. Page 18
Nota:
Il presente manuale è disponibile anche in lingua italiana nella sezione download del nostro sito www.fior-gentz.com/downloads.
DE
GB
IT

18
GB
Content Page
1. Declaration of Conformity 19
2. Warranty 19
3. Safety Information 19
4. Safety Instructions 19
4.1 Classification of the Safety Instructions 19
4.2 All Instructions for a Safe Handling of the NEURO SWING System Ankle Joint 20
5. Application 22
6. Joint Function 22
7. Scope of Delivery 22
8. Load Capacity 23
9. Tools for Assembling the System Joint 23
10. Assembly/Lamination Dummies 24
11. Assembly Instructions 24
11.1 Mounting the Cover Plate 24
11.2 Mounting the System Stirrup 25
11.3 Checking the System Joint's Free Movement 26
11.4 Mounting the Spring Units 26
11.5 Basic Alignment 26
11.6 Securing the Screws 26
12. Adjustment Options on the Orthosis 27
12.1 Adjustable Alignment 27
12.2 Adjustable Range of Motion 27
12.3 Variable Spring Force 28
12.4 Reading Joint Angles 28
13. Advice on Production Techniques 28
13.1 Parallel Alignment of System Joints 28
13.2 Mounting to the System Side Bar/System Anchor 28
14. Maintenance 29
14.1 Repairing the Bearing Nut Bore 29
14.2 Replacing the Sliding Washers 30
14.3 Cleaning 30
15. Disposal 30
16. Spare Parts 31
17. Information for the Treatment Documentation 35

19
1. Declaration of Conformity
We declare that our medical devices as well as our accessories for medical devices are in conformity with the
requirements of the Medical Devices Directive 93/42/EEC. Therefore, the FIOR &GENTZ products bear the CE marking.
2. Warranty
The warranty only applies if the product is used under the described conditions and for the intended purpose. The
warranty expires if the product is used differently, if it is combined with other system components or materials or
if it is mounted according to a different production technique than the one recommended by the FIOR&GENTZ
Orthosis Configurator. A combination with products from other manufacturers requires a written consent by the
seller. The warranty and guarantee expire if the product is mounted several times. For further information, we
refer to our General Terms and Conditions of Business Transactions, Sales, Delivery and Payment.
3. Safety Information
This manual is addressed to orthotists. That is why the content basically confines to features of the product. It
does not contain any notes about dangers which are obvious to orthotists. Please note that the product is not
supposed to be combined with other components or materials than with those recommended by the FIOR&GENTZ
Orthosis Configurator.
To achieve maximum safety, please show the patient and/or the care team how to use and maintain the product
correctly. Enclosed to this manual you will find a patient information which has to be given to the patient and/
or the care team.
For information reasons and for the safety of your patient, please note all information provided in this manual
including notes, tables and illustrations. In particular, note the safety instructions indicated by DANGER, WARNING,
CAUTION and NOTICE that are listed and explained in the following paragraph. Ignoring this information may
lead to patient injuries and property damage.
4. Safety Instructions
4.1 Classification of the Safety Instructions
DANGER
Important information about a possible dangerous situation which,
if not avoided, leads to death or irreversible injuries.
WARNING
Important information about a possible dangerous situation which,
if not avoided, leads to reversible injuries that need medical treatment.
CAUTION
Important information about a possible dangerous situation which,
if not avoided, leads to light injuries that do not need medical treatment.
NOTICE
Important information about a possible situation which,
if not avoided, leads to damage of the product.
All serious incidents connected to the product shall be reported to the manufacturer or the responsible
authorities.

20
4.2 All Instructions for a Safe Handling of the NEURO SWING System Ankle Joint
DANGER
Potential Trac Accident Due to Limited Driving Ability
Advise the patient to gather information about all safety and security issues before driving
a motor vehicle with orthosis. The patient should be able to drive a motor vehicle safely.
WARNING
Risk of Falling Due to Improper Handling
Inform the patient about the correct use of the system joint and potential dangers especially
with regards to:
- moisture and water as well as
- excessive mechanical stress (e.g. due to sports, increased activity or weight gain).
WARNING
Risk of Falling Due to Loosely Attached Cover Plate
Mount the cover plate to the system joint according to the assembly instructions in this
manual. Secure the screws with the specified torque and the corresponding adhesive and make
sure that no sliding washers are damaged in the process.
WARNING
Risk of Falling Due to Permanent Higher Load
If patient data has changed (e.g. due to weight gain, growth or increased activity), recalculate
the load capacity of the system joint. For this purpose, use the Orthosis Configurator or
contact Technical Support.
WARNING
Risk of Falling Due to Improper Shoe
Advise the patient to wear a shoe to which the orthosis is adjusted in order to avoid joint
dysfunction.
WARNING
Risk of Falling Due to Excessive Readjustment of the Spring Unit
Adjust the spring unit according to the information in this manual. Do not readjust more
than 10°. Use the laser markings on the system stirrup and the joint’s upper part to check the
readjustment.
WARNING
Damage to the Anatomical Joint Due to Incorrect Position of the Joint’s Mechanical Pivot
Point
Determine the mechanical pivot points correctly in order to avoid a permanent incorrect
load on the anatomical joint. Please refer to the online tutorials on our website or contact
Technical Support.

21
WARNING
Jeopardising the Therapy Goal Due to Lack of Free Movement
Check if the system joint moves freely in order to avoid restrictions of the joint function.
Use suitable sliding washers according to the information in this manual.
WARNING
Jeopardising the Therapy Goal Due to Incorrectly Filed System Stirrup
Do not file the system stirrup too far. This applies especially to the dorsiflexion stop, otherwise
the forefoot lever is not activated. As a result, the patient is only stabilised insuciently by the
orthosis and the gait worsens. In order to avoid this, always file the system stirrup:
- gradually up to the required stop angles and
- only so far that no more than a 10° fine adjustment is possible.
WARNING
Jeopardising the Therapy Goal Due to Incorrectly Adjusted Spring Units
Screw in the spring unit up to the system stirrup and do not preload the spring unit. If the
stops are reached too early or too late, either the range of motion is restricted or the patient
is not suciently stabilised by the orthosis, which impairs the gait.
NOTICE
Limitation of the Joint Function Due to Improper Processing
Errors in processing can impair the joint function. Pay particular attention to:
- correctly connecting the system side bar/system anchor with the system case in accordance
with the production technique;
- greasing the joint components only slightly and
- adhering to the maintenance intervals.

22
5. Application
The NEURO SWING system ankle joint is exclusively for use for orthotic fittings of the lower extremity. It must
be handled by a professionally trained user. You will find more information about this product under paragraph
6 Joint Function.
Every mechanical joint influences the orthosis' function and thus also the function of the leg. All FIOR &GENTZ
system joints were developed for everyday life activities such as standing, walking and running but not for
extreme loads due to sports such as climbing and parachuting.
Depending on the type of orthotic fittings and the patient’s individual physical abilities, driving a motor vehicle
safely should be guaranteed. This is subject to national laws and checked by authorised medical bodies. It is
recommended to modify the motor vehicle to the patient’s special needs (e.g. automatic transmission) so that
the driving ability is given even without a functioning orthosis.
6. Joint Function
The basic function of the NEURO SWING system ankle joint is to dynamically bring the patient from a bent into
an upright position as well as to stabilise the patient when walking and standing by balancing the body. Spring
units of different strengths, that are mounted to the system ankle joint, offer the maximum range of motion in
plantar flexion and dorsiflexion. This range of motion can be reduced by a motion limiting screw. The posterior
spring unit enables a controlled and dynamic foot dropping in loading response. Moreover, the system joint
provides motion control with an integrated dorsiflexion assist.
7. Scope of Delivery
The scope of delivery includes the following articles:
Description Quantity
NEURO SWING system ankle joint (fig. 1) 1
cover plate pressing aid (pressing screw and washer;
fig. 2) 1
AGOMET F330, 5g (fig. 3) 1
orthosis joint grease, 3g (fig. 4) 1
assembly/lamination dummy (fig. 5) 1
Corresponding spring units and system stirrups in different designs and
for different production techniques have to be ordered separately. In our
product catalogue System Joints and Articulated System Side Bars you
can find a handy case with a set of our spring units. You can also order
the spring unit case empty and equip it according to your own needs. fig. 1
fig. 2 fig. 3 fig. 4 fig. 5

23
8. Load Capacity
You can find all relevant patient data for your selected system joint in the configuration you performed with the
Orthosis Configurator and/or on your completed orthotic treatment sheet.
9. Tools for Assembling the System Joint
System Width
Tools 10mm 12mm 14mm 16mm 20mm
T10 hexalobular screwdriver
as well as T10 hexalobular bit x----
T15 hexalobular screwdriver
as well as T15 hexalobular bit - x - - -
T20 hexalobular screwdriver
as well as T20 hexalobular bit - - x x x
torque screwdriver 1-6Nm xxxxx
screwdriver for slotted screws with the blade
size 3.5 x 0.6mm xxxxx
screwdriver for slotted screws with the blade
size 6.5 x 1.2mm x----
screwdriver for slotted screws with the blade
size 8.0 x 1.2mm -xxxx
pliers xxxxx
System Width
Tools for Pressing Screw 10mm 12mm 14mm 16mm 20mm
T10 hexalobular screwdriver
as well as T10 hexalobular bit x----
T20 hexalobular screwdriver
as well as T20 hexalobular bit - x - - -
T25 hexalobular screwdriver
as well as T25 hexalobular bit - - x x x

24
10. Assembly/Lamination Dummies
Assembly/lamination dummies are included in the scope of delivery of the system joint. You can find the article
numbers as well as the corresponding tools for the parallel alignment in our product catalogue System Joints
and Articulated System Side Bars.
11. Assembly Instructions
The system joint is delivered fully assembled (fig. 7). All functions are checked
beforehand. You have to disassemble the system joint for mounting it in the ortho-
sis and for maintenance. When disassembling the system joint, make sure not to
interchange the different parts with each other or with parts of other system joints.
Clean all system components. To clean the threads in the cover plate, use Super Clean
LOCTITE® 7063 (article no.: WZ7063) in order to remove any insulating wax residues.
To ensure optimum functionality, please follow the assembly instructions below.
11.1 Mounting the Cover Plate
Start the assembly of the NEURO SWING system ankle joint by mounting the cover
plate. Proceed as follows:
1. Apply spray adhesive on one side of the first sliding washer and adhere
it to the cover plate (fig. 8). Grease the other side of the sliding washer
slightly with the delivered orthosis joint grease.
Place the sliding washer in a way that prevents it from being damaged
when mounting the cover plate. If you have nevertheless placed the
sliding washer incorrectly (fig.9-10), remove the particles and place a
new sliding washer.
fig. 8
fig. 7
fig. 10fig. 9
The shaping dummy increases the fibre volume ratio in the joint area
and facilitates mounting the cover plate. For more detailed information
please refer to section “5 – Laminating the AFO” of the online tutorial
“AFO in Joint Lamination Technique” on our website www.fior-gentz.com.
Jammed sliding washer particles cause lateral play in the system joint and a damaged sliding washer
could lead to restrictions of the joint function.
fig. 6

25
2. Make sure that the metal surface around the two
grooves of the joint's upper part (fig. 11) is free of
resin residues and other contaminants.
3. Put some LOCTITE® 638 high strength in the grooves
of the joint's upper part (fig. 11).
4. Adhere the cover plate to the joint's upper part.
5. Press the cover plate on the joint's upper part by
using the pressing screw and the washer and screwing
together cover plate and joint's upper part (fig.12).
6. Tighten the pressing screw according to the torque
for S1 given in the table (see paragraph 11.6).
7. Remove pressing screw and washer.
8. Screw in the first countersunk flat head screw
(S1;fig.13) according to the torque given in the
table (see paragraph 11.6).
9. Make sure that there is no opening left between
the cover plate and the joint's upper part (fig. 14).
11.2 Mounting the System Stirrup
Mount the system stirrup corresponding to the system width and production technique to
the NEURO SWING system ankle joint. Proceed as follows:
1. Grease the axle bore of the system stirrup as well as the friction surfaces of the bearing
nut and the second sliding washer with the delivered orthosis joint grease.
2. Place the second sliding washer slightly greased on both sides onto
the system stirrup (fig. 15).
3. Place the system stirrup from below between the cover plate and the
joint's upper part (fig. 16). Make sure that the sliding washer remains
in the correct position.
4. Put the bearing nut into the intended opening of the joint's upper
part. The bearing nut has to be placed completely into the opening.
- correct position of the bearing nut (fig. 17);
- incorrect position of the bearing nut (fig. 18).
5. Screw in the second countersunk flat head screw (axle screw, S2;
fig.19) according to the torque given in the table (see paragraph 11.6).
fig. 15
fig. 16
fig. 13 fig. 14
fig. 12
fig. 11
fig. 17 fig. 18

26
fig. 21
fig. 20
S1
S2
fig. 19
11.3 Checking the System Joint's Free Movement
If the system joint does not move freely, some of the spring force will be wasted by
overcoming the friction forces. As a consequence, the joint function is restricted
and the treatment goal might not be achieved.
Check if the system joint moves freely. If the system joint runs with lateral play,
mount the next thicker sliding washer. If it does not move freely (it is jammed),
mount the next thinner sliding washer. For more information about the sliding
washers see paragraph 14.2.
11.4 Mounting the Spring Units
After having checked if the system joint moves freely and taken the corresponding actions,
you can continue by mounting the spring units. Proceed as follows:
1. Stick the screw unit onto the spring unit. The integrated O-ring fixes the spring unit
so that it does not tilt during walking (fig. 20).
2. Insert the sub-assembly counteracting dorsiflexion that consists of spring unit and
screw unit in the anterior spring duct (fig. 21). Screw in the spring unit until the
required alignment of the orthosis is achieved.
3. Screw in the sub-assembly counteracting plantar flexion in the posterior spring duct
until it touches the system stirrup. It should still move freely. If you turn in the sub-
assembly too far, the spring unit is preloaded too much and the maximum pos-
sible range of motion is restricted.
11.5 Basic Alignment
When mounting the system ankle joint, mind the correct adjustment of the dor-
siflexion stop as it is decisive for the entire alignment of the orthosis. Correct the
dorsiflexion stop, if necessary.
11.6 Securing the Screws
After the orthosis has been produced and tried on and before it is given to the
patient, secure the screws for the cover plate with a torque which corresponds
to the system width (see table and cover plate of the system joint) and LOCTITE®
243 medium strength (article no.:KL2000). Let the adhesive harden (final strength
after approx. 24 hours).
Position of the Screw (Fig. 19)
System Width
10mm 12mm 14mm 16mm 20mm
S1 (screw 1) 2.5Nm 4Nm 6Nm 6Nm 6Nm
S2 (screw 2, axle screw) 1.5Nm 3Nm 4Nm 4Nm 4Nm
The screws of the cover plate are not secured with the necessary torque at delivery.

27
12. Adjustment Options on the Orthosis
The NEURO SWING system ankle joint can be individually adjusted to the
patient's pathological gait with the help of three adjustment options (fig. 22):
-adjustable alignment using the alignment screw (1);
-adjustable range of motion using the motion limiting screw (2);
-interchangeable spring units:
-spring unit with disc springs (3),
-spring unit with pressure spring (4).
The system joint adjustments do not influence each other. Therefore, they can be changed separately and
independently.
12.1 Adjustable Alignment
The alignment of the orthosis can or has to be adjusted
to the patient's pathological gait, using the alignment
screw. Furthermore, changes in the pathological gait
can be treated flexibly.
To adjust the alignment of the orthosis, unscrew only
one alignment screw until you achieve the required
angle between lower leg and foot (fig.23). Only then,
you can turn in the other screw until it touches the
system stirrup (see paragraph 11.4). Make sure that
the alignment of the orthosis must not be readjusted
by more than 10° in dorsiflexion or 10° in plantar
flexion starting from the centre of the degree marking.
If you turn in the sub-assembly too far, the spring unit is preloaded too much and the maximum possible range
of motion is restricted. The position of the alignment screw will not change due to the O-ring that is mounted
at the external thread of the alignment screw (fig. 24).
12.2 Adjustable Range of Motion
The range of motion in plantar flexion or dorsiflexion
is infinitely adjustable using the motion limiting
screws (fig. 25). When the motion limiting screw is
turned in down to the spring unit, the system joint
is locked and no movement is possible. The more the
motion limiting screw is unscrewed, the more motion
is possible in plantar flexion or dorsiflexion. However,
the maximum available range of motion is set by the
spring unit. The position of the motion limiting screw
will not change due to the O-ring that is mounted at
the internal thread of the alignment screw (fig. 26).
fig. 22
1
2
3
1
2
4
fig. 23 fig. 24
fig. 25 fig. 26
For more detailed information about the adjustment of the range of motion please refer to the
publications in the download section on our website at www.fior-gentz.com/downloads.

28
fig. 30fig. 29 fig. 31
12.3 Variable Spring Force
The spring force in plantar flexion and dorsiflexion can be changed with-
out great effort by using spring units of different strengths. There are
five spring units with spring forces ranging from normal to extra strong
(fig.27). Each spring unit determines the maximum range of motion. They
are available for 5°, 10° and 15° range of motion.
12.4 Reading Joint Angles
The lasered degree markings on the system stirrup and the lasered line
on the cover plate (fig.28) show the angle of the system joint towards
the system stirrup. When handing over the orthosis, you can check the
individual normal posture and the orthosis' basic alignment by the mark-
ings. You can read as well as record the joint angle indicated at this time.
By doing so, you can easily compare later adaptations or deviations of
the individual normal posture with your documentation.
The distances between the degree markings for each system width can
be seen in the following table.
Degree Marking
System Width 10mm 12mm 14mm 16mm 20mm
Degree 5° 5° 2° 2° 2°
13. Advice on Production Techniques
Use the system components determined by the Orthosis Configurator when producing an orthosis and mind the
recommended production technique.
13.1 Parallel Alignment of System Joints
You will find the necessary tools for the parallel alignment of the system joints on the positive cast in our
latest product catalogue System Joints and Articulated System Side Bars.
13.2 Mounting to the System Side Bar/System Anchor
Depending on the production technique, the system
side bar/system anchor must be adhered and screwed
or sewed together with the system joint (fig.29-31).
You will find further information concerning the dif-
ferent production techniques on the internet or in
the manual System Side Bars and System Anchors
(articleno.: PB1000-SA).
fig. 27
fig. 28
You will find more information about the individual normal posture on our website www.fior-gentz.com.
You will find detailed information about our production techniques in the section “Orthosis Production”
under “Online Tutorials” and “Producing the Orthosis” on our website www.fior-gentz.com.

29

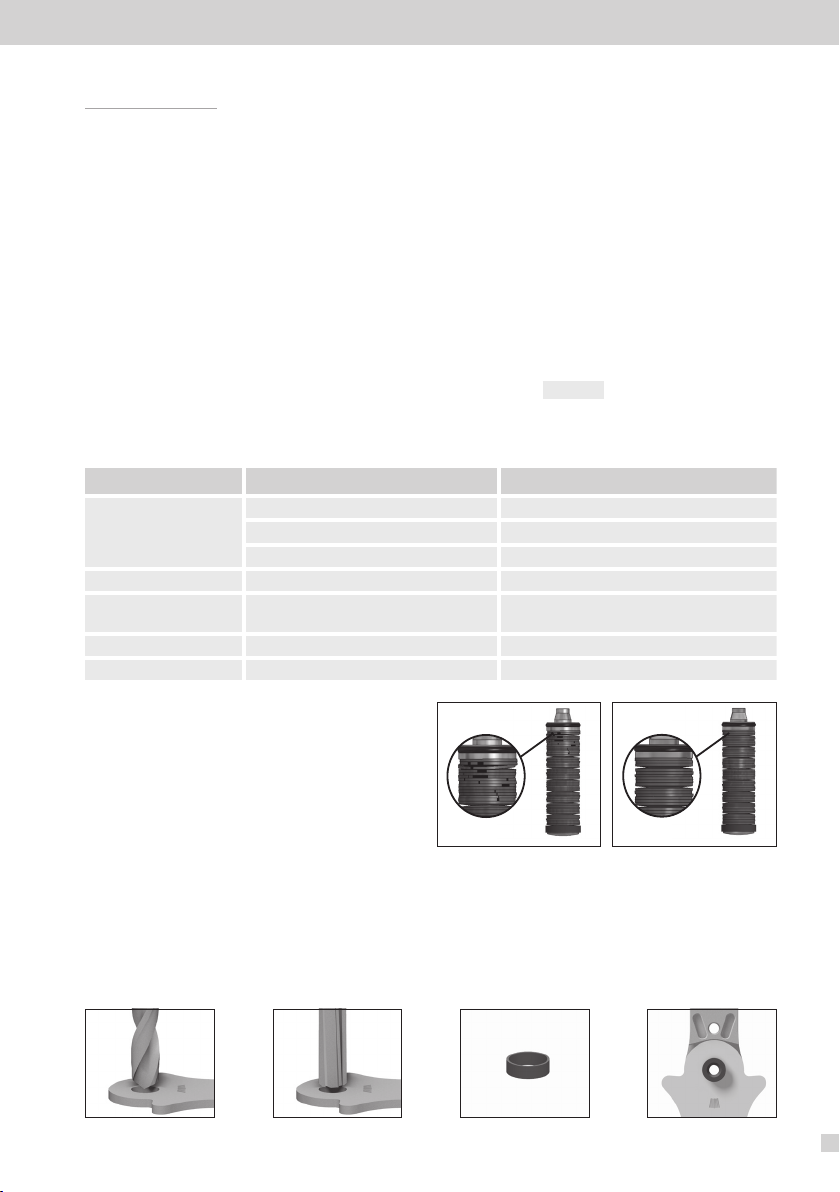

14. Maintenance
When mounting and demounting the system joint too often, the bars of the cover plate can deform due to the
elasticity of the material and thus cause lateral play in the system joint. In this case, the acting force of the spring
units can increase the play. Consequently, the bars of the cover plate can become progressively smaller and the
clearance larger. To prevent the screws for the cover plate from loosening, we recommend to use LOCTITE® 243
for the screw retention as well as LOCTITE® 638 to adhere the cover plate to the joint's upper part.
In order to avoid noise (loud creaking) caused by play between screw and cover plate, we generally recommend
to re-adhere the cover plate at every maintenance. This is explicitly valid for 16 and 20mm system joints.
In case of repeated maintenance of already adhered system joints, make sure that all adhesive residues are
removed from the bars of the cover plate and the grooves of the joint's upper part before reassembling the
system joint and fixing the cover plate with LOCTITE®638. For this purpose, heat the affected parts locally to
about 250°C or use a suitable solvent. Remove the residues with a pointed tool such as an awl. Continue the
assembly as described in paragraph 11.
We recommend checking the system joint’s functionality and wear every 6 months.
Note and respect in particular if the alignment of the orthosis, the range of motion and the spring force still
correspond to the required adjustments. If you notice any changes in adjustment, check the joint components
listed below, and, if necessary, carry out the following measures.
Joint Part Problem Measure
spring unit
breakage of springs replacing
radial move of disc springs (fig. 33) aligning with pliers
squeaking of pressure springs greasing with orthosis joint grease
O-rings wear replacing
bore for bearing nut of
system stirrup oversize inserting repair bushing, see paragraph 14.1
sliding washers wear replacing, see paragraph14.2
bearing nut wear replacing
During maintenance, check the disc springs in detail, for
example for any breaking points (fig. 32). If you notice
a breakage, it is absolutely necessary to exchange the
spring units. A radial move of the disc springs is quite
normal (fig.33). To increase the service life of the spring
units, realign the displaced disc springs with pliers. If
the pressure springs are damaged, you must replace
the spring units.
14.1 Repairing the Bearing Nut Bore
If the bore for the bearing nut is worn out at the system stirrup, bore (fig.34) and ream (fig.35) it with a reamer
(see product catalogue System Joints and Articulated System Side Bars) in order to insert a repair bushing
(boring and reaming measurements see table). For a centred boring and reaming, clamp the system stirrup
firmly. After inserting the repair bushing (fig. 36), the bore has the specified size again. The joint system is now
free of play (fig.37).
fig. 32 fig. 33
fig. 37fig. 36fig. 35fig. 34

30
Boring and Reaming Measurements [mm]
System
Width
Bearing Nut
Outer Ø
Repair
Bushing
Inner Ø
Repair
Bushing
Outer Ø
Ø Measure-
ment for
Boring
Ø Measure-
ment for
Reaming
Art. No.
Repair
Bushing
10mm 6.0 6.0 7.0 6.7 7.0 H7 BP0706-L020
12mm 7.0 7.0 8.0 7.7 8.0 H7 BR0807-L020
14mm 8.5 8.5 9.6 9.3 9.6 H7 BR1009-L025
16mm 9.6 9.6 10.5 10.2 10.5 H7 BR1110-L030
20mm 10.5 10.5 11.5 11.2 11.5 H7 BR1211-L030
14.2 Replacing the Sliding Washers
If the premounted sliding washers wear out, they have to be replaced by new ones with the same thickness. The
article numbers of the premounted sliding washers are on the back page of this manual. The last three digits of
the article number stand for the thickness of the sliding washer, e.g. GS1407-040. The thickness of this sliding
washer is 0.40mm. In total, the sliding washers are available in five dierent thicknesses. The thickness of a sliding
washer is indicated by the markings. For example, a sliding washer with two grooves is 0.40mm thick, whereas a
sliding washer with one notch is 0.55mm thick (fig.38). Note and respect that when reordering.
0.45mm 0.50mm 0.55mm 0.60mm0.40mm
fig. 38
14.3 Cleaning
While using the orthosis, the system joint has to be cleaned if needed and during regularly carried out mainte-
nance. For this purpose, disassemble the system joint and clean the soiled system components with a dry cloth.
15. Disposal
Dispose of the system joint and its individual parts properly. The product must not be disposed
of with the residual waste (fig.39). Please comply with the applicable national laws and
local regulations for the proper recycling of recyclable materials.
For proper disposal, it is necessary to demount the system joint from the orthosis.
fig. 39

31
16. Spare Parts
Article Number for System Width
Item 10mm 12mm 14mm 16mm 20mm Description
1
SB6039-L0530 SB7049-L0540 SB8559-L0580 SB9669-L0710 SB1069-L0810
bearing nut
2 SF0310-ST SF0311-ST SF0312-ST SF0313-ST SF0315-ST upper part,
straight, steel
2-SF0311-TI SF0312-TI SF0313-TI SF0315-TI upper part,
straight, titanium
2 SF0330-ST SF0331-ST SF0332-ST SF0333-ST SF0335-ST upper part, bent
inwards, steel
2-SF0331-TI SF0332-TI SF0333-TI SF0335-TI upper part, bent
inwards, titanium
2SF0330-8/ST SF0331-8/ST SF0332-8/ST SF0333-8/ST SF0335-8/ST upper part, bent
outwards, steel
2- SF0331-8/TI SF0332-8/TI SF0333-8/TI SF0335-8/TI upper part, bent
outwards, titanium
3 GS1206-* GS1407-* GS2009-* GS2210-* GS2611-* sliding washer*
4 SC9609-L13 SC9611-L14 SC9612-L15 SC9614-L17 SC9618-L17 screw unit
4a VE3771-06/11 VE3771-08/15 VE3771-09/15 VE3771-11/15 VE3771-125/15
O-ring for securing
the alignment
screw
4b
SC9609-L13/S SC9611-L14/S SC9612-L15/S SC9614-L17/S SC9618-L17/S
alignment screw,
steel
4c VE3771-03/10 VE3771-04/10 VE3771-04/10 VE3771-04/10 VE3771-07/10
O-ring for securing
motion limiting
screw
4d SC9606-L05 SC9607-L06 SC9607-L06 SC9607-L06 SC9611-L06 motion limiting
screw
5 SF0560-AL SF0561-AL SF0562-AL SF0563-AL SF0555-AL cover plate
fig. 40
6
3
5
3
4a
4b
48
7
4c
4d 9
2
1

32
When reordering, note and respect the thickness of the sliding washers (explanation see paragraph14.2).
Article Number for System Width
Item 10mm 12mm 14mm 16mm 20mm Description
6 SC1403-L08 SC1404-L10 SC1405-L11 SC1405-L12 SC1405-L12
countersunk
flat head screw,
hexalobular socket
7 SC1403-L08 SC1404-L10 SC1405-L11 SC1405-L12 SC1406-L12
countersunk
flat head screw,
hexalobular socket
(axle screw)
8 VE3771-045/10 VE3771-06/10 VE3771-07/10 VE3771-08/10 VE3771-11/10
O-ring for securing
the spring unit
9 SF5800-15/02 SF5801-15/03 SF5802-15/05 SF5803-15/07 SF5805-
15/18**
spring unit, blue,
normal, max. 15°
range of motion
9 SF5800-15/04 SF5801-15/06 SF5802-15/11 SF5803-15/15 SF5805-
15/25**
spring unit, green,
medium, max. 15°
range of motion
9 SF5800-10/06 SF5801-10/12 SF5802-09/16 SF5803-10/21 SF5805-
10/40**
spring unit, white,
strong, max. 10°
range of motion
9 SF5800-10/09 SF5801-10/19 SF5802-10/29 SF5803-10/31 SF5805-
10/60**
spring unit, yellow,
very strong, max.
10° range of
motion
9 SF5800-05/17 SF5801-05/33 SF5802-05/53 SF5803-05/63 SF5805-
05/99**
spring unit, red,
extra strong, max.
5° range of motion
** For all 20mm system joints, that you have purchased before May 2016, you need the spring unit for the 16mm
system width!
* Sliding Washers
Article Number for System Width
10mm 12mm 14mm 16mm 20mm
Ø = 12mm Ø = 14mm Ø = 20mm Ø = 22mm Ø = 26mm
GS1206-040 GS1407-040 GS2009-040 GS2210-040 GS2611-040
GS1206-045 GS1407-045 GS2009-045 GS2210-045 GS2611-045
GS1206-050 GS1407-050 GS2009-050 GS2210-050 GS2611-055
GS1206-055 GS1407-055 GS2009-055 GS2210-055 GS2611-050
GS1206-060 GS1407-060 GS2009-060 GS2210-060 GS2611-060

35
17. Informationen für die Versorgungsdokumentation/Information for the Treatment
Documentation
Bitte heften Sie diese Produktbeilage zu Ihrer Versorgungsdokumentation!
Add this manual to your treatment documentation!
Patientendaten/Patient´s Data
Name
Name
Straße
Address
PLZ, Wohnort
Postcode, City
Telefon privat
Home Telephone
Telefon geschäftlich
Telephone at Work
Kostenträger
Insurance
Mitgliedsnummer
Insurance No.
Behandelnder Arzt
Attending Physician
Diagnose
Diagnosis
Die Angaben der Produktbeilage beziehen sich auf den aktuellen Stand bei Drucklegung. Produktangaben sind
Richtwerte. Technische Änderungen vorbehalten.
Alle Urheberrechte, besonders die Rechte der Verbreitung, Vervielfältigung und Übersetzung, bleiben aus-
schließlich der FIOR &GENTZ Gesellschaft für Entwicklung und Vertrieb von orthopädietechnischen Systemen
mbH vorbehalten. Nachdrucke, Kopien sowie sonstige Vervielfältigungen elektronischer Art dürfen auch aus-
zugsweise nicht ohne schriftliche Genehmigung der FIOR &GENTZ Gesellschaft für Entwicklung und Vertrieb
von orthopädietechnischen Systemen mbH vorgenommen werden.
The information in this manual is valid at the date of printing. The contained product information serves as a guideline. Subject
to technical modifications.
All rights, particularly the distribution, copy and translation of this manual or any part of it, in paper or as electronic document,
must be authorised in writing by FIOR &GENTZ Gesellschaft für Entwicklung und Vertrieb von orthopädietechnischen Systemen
mbH. Reprints, copies and any other electronic reproduction, even partial, must be authorised in writing by FIOR &GENTZ
Gesellschaft für Entwicklung und Vertrieb von orthopädietechnischen Systemen mbH.

PB5000-SF-11/2018
Gesellschaft für Entwicklung und Vertrieb
von orthopädietechnischen Systemen mbH
Dorette-von-Stern-Straße 5
21337 Lüneburg (Germany)
info@fior-gentz.de
www.fior-gentz.com
[phone]
[phone]
Der Qualitätsstandard der Firma FIOR & GENTZ ist durch eine unabhängige Zertifizierungsgesellschaft nach den
internationalen Normen ISO 9001 und ISO 13485 geprüft und bescheinigt worden.
The quality standard of the FIOR & GENTZ company has been controlled and certified by an independent certification organisation
according to the international standards ISO 9001 and ISO 13485.
Beinseite
Leg Side
links/left rechts/right
Montierte Gleitscheiben-Version
Mounted Sliding Washer Version
1. GS ____________ - _________
2. GS ____________ - _________
