Bounce ‘n Go™Coupe
Please read these instructions carefully and identify all parts before assembly.
Refer to the parts and fasteners pages for identification.
Keep this instruction sheet for future reference, as it contains important information.
Adult assembly is required.
Ages 18 months – 5 years.
Maximum weight: 50 lbs. (23 kg).
Tools needed for assembly: Hammer, Phillips Screwdriver and Scrap Block of Wood (not included).
This product requires three “AAA” (LR03) alkaline batteries (not included) for sound box operation.
If you have any questions about this product, or are missing a part, please contact Fisher-Price®
(online at www.service.mattel.com or call toll-free at 1-800-432-5437) rather than return this product to the store.
www.fisher-price.com
Stationary
Bouncy-Car Action
1
2Push’n Pedal Car 3Pedal Car

2

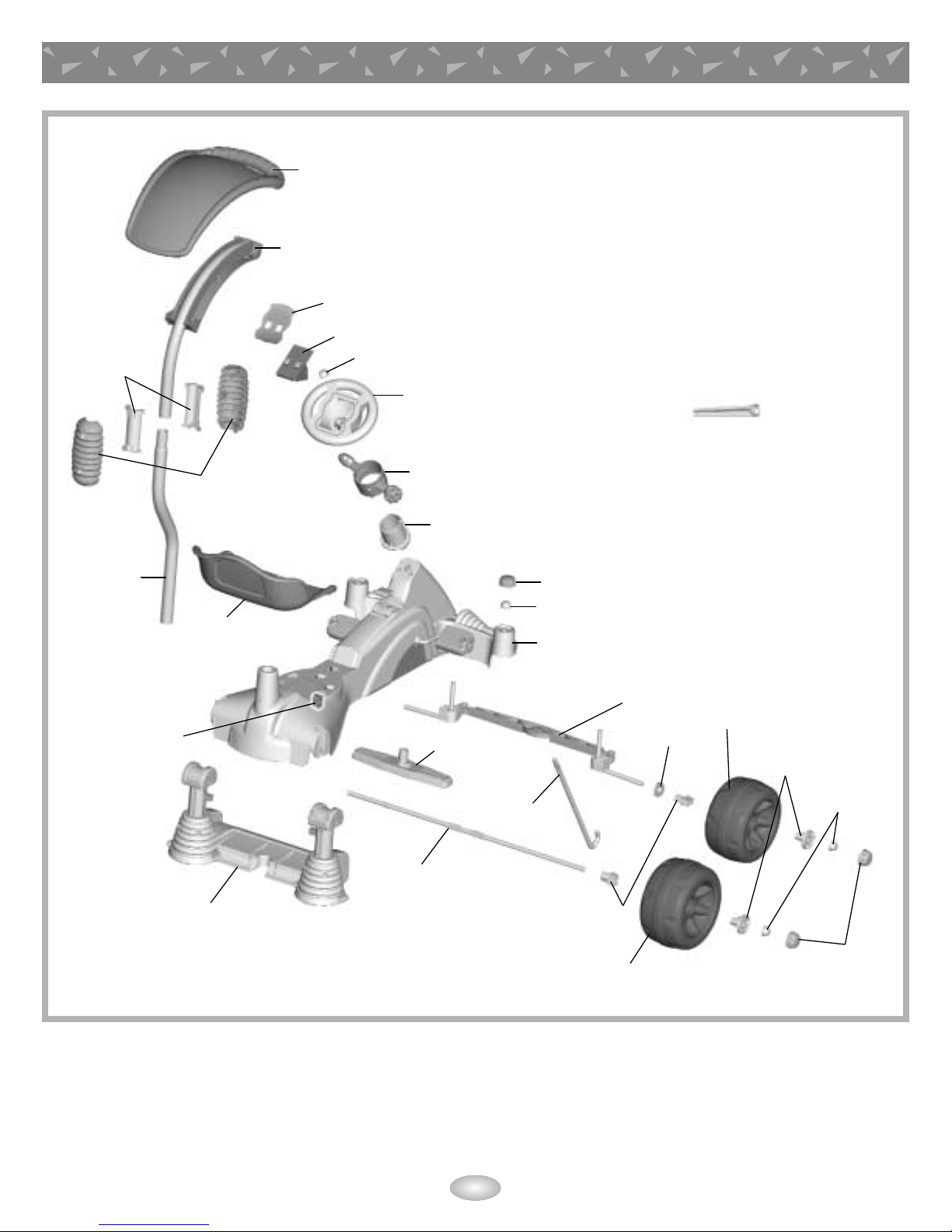

Parts
Handle/Canopy Notes:
•Some parts shown are assembled to
both sides of the coupe.
• Please save all packaging material until
assembly is complete to ensure that no
parts are discarded.
• Please wipe each part with a clean, dry
cloth before assembling this product.
• Part not shown: label sheet.
Upper Post
Sound Box Cover
Sound Box
.354" Cap Nut
Steering Wheel
Turn Signal
Steering Wheel Base
2 Axle Covers
2 .354" Cap Nuts
Frame
Latch Halves
Grip Halves
Seat
Lower Post
Rear Axle
Footrest
Steering
Column
Steering Linkage Assembly - Fitted to Frame
(with Front Axles)
2 5/16" Washers
2 Frame Bushings
2 Small Front Wheels
4 Wheel
Bushings
4 – .354"
Cap Nuts
Assembly Tool
Bouncing Base/Spoiler 4 Axle Bushings
4 Axle
Covers
2 Large Rear Wheels

3
Warning and Caution
CAUTION
WARNING
To avoid serious injury:
• Adult supervision required.
• Never use near cars and other motor vehi-
cles, near streets, steps, sloped driveways,
hills, roadways, alleys, swimming pools, or
other bodies of water.
• Always wear shoes or sneakers
• Never allow more than one (1) rider.
#10 x 21/8" Bolt – 1
ALL SHOWN ACTUAL SIZE
5/16" Washer - 2
.354" Cap Nut - 7
#6 x 1/2" Screw – 6
1/4" x 11/4" Screw – 1
#8 x 3/4" Screw – 11
.354"
Note: Tighten and loosen all screws and the bolt with a
Phillips screwdriver. Do not over-tighten the screws and bolt.
This product contains small parts in its
unassembled state.
Adult assembly is required.
Fasteners
Note: We’ve included extra fasteners for your convenience!

4
1

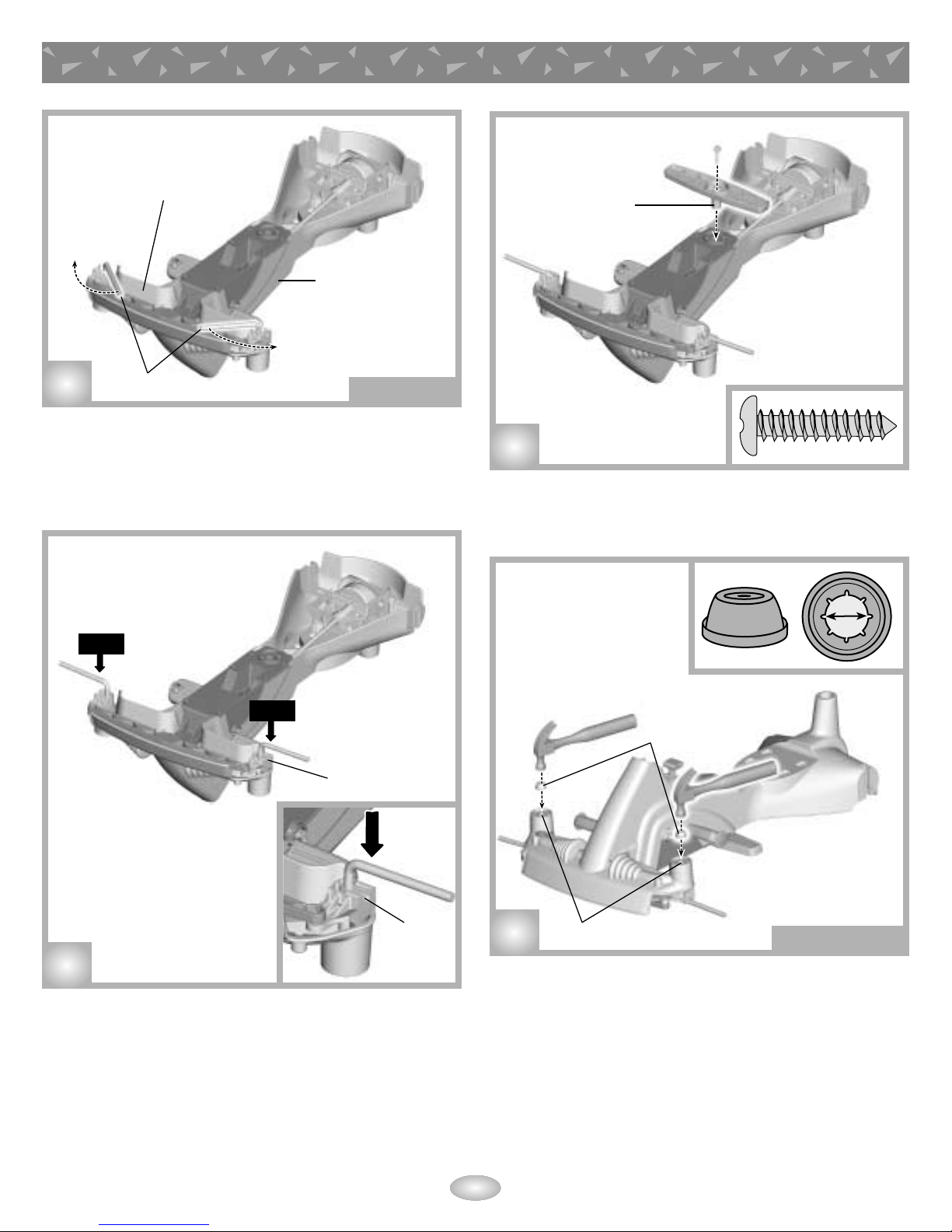

• Place the frame upside down on a flat surface. Make sure the steering
linkage assembly is fitted to the front end of the frame.
• Remove the tape holding the front axles to the frame. Rotate the front
axles out.
2
• Push the front axles down into the groove in each end of the
steering linkage.
3
• Fit the peg on the footrest into the hole inside the frame.
• Insert the 1/4" x 11/4" screw into the footrest and tighten.
PUSH
Assembly
Steering Linkage
Assembly
Frame
Front Axles
Groove
Groove
PUSH
Footrest Peg
4
• While holding the steering linkage assembly in place, carefully turn
the frame upright.
• Fit a .354" cap nut onto the upright end of a front axle.
• While holding the front axle in place, tap the cap nut with a hammer
to secure it to the front axle. Pull up on the cap nut to be sure it
is secure.
Hint: You may need the help of another adult to hold the front axle
in place while you tap the cap nut with a hammer.
• Repeat this procedure to assemble another cap nut to the other
front axle.
.354"
Cap Nuts
Front Axles
.354"
Bottom View
Front Side View

5
5
• Fit an axle cover over the cap nuts and to the front end of the frame.
Push down on the axle covers to “snap” them into place.
Hint: You may need to carefully tap the axle covers with a hammer
to secure in place.
Axle Covers
6
• Slide a 5/16" washer onto a front axle.
• Next, fit an axle bushing, barrel side first, onto a front axle.
7
• Locate both small, front wheels.
• Slide a small, front wheel, flat side first, onto the front axle.
Assembly
5/16" Washer
Axle
Bushing
Front Axle
Small
Front Wheel
8
• Fit a wheel bushing, peg side first, into the small, front wheel and onto
the front axle.
Wheel
Bushing

6
9
• Fit a .354" cap nut onto the end of the front axle.
• Cover the cap nut with the assembly tool. Tap the cap nut assembly
tool with a hammer to secure the cap nut to the front axle.
• Pull on the small, front wheel to be sure it is secure on the front axle.
10
11
• Lift the back end of the
frame up slightly.
• Position the bouncer
base/spoiler so that the
columns are upright and
the “U” shaped cut-out is toward the back of the vehicle.
• Now, lower the back end of the frame onto the bouncer base/spoiler
tabs. Make sure the tabs on the bouncer base/spoiler fit into the
grooves in the frame.
Assembly
.354"
.354"
Cap Nut
Assembly Tool
Axle Cover
• Fit an axle cover to the small, front wheel, as shown.
• Push the axle cover to “snap” it into place.
Hint: You may need to carefully tap the axle covers with a hammer
to secure in place.
• Repeat assembly steps 6-10 to assemble a 5/16" washer, axle
bushing, small, front wheel, wheel bushing, .354" cap nut and axle
cover to the other front axle.
Back End of Frame
Groove
Tabs Bouncer Base/Spoiler
12
• Fit the frame bushings into the slots in the back end of the frame.
Hint: The frame bushings are designed to fit in the slots one way!
If the frame bushing does not fit in the slot, turn it around and try again.
Frame Bushing
“U” Shaped Cut-Out
Back View
Frame Bushing
Rear Side View

7
13
• Slide the smooth end of the rear axle into the hole in one side of the
bouncer base/spoiler, a frame bushing, the frame, the other frame
bushing and out through the hole in the other side of the bouncer
base/spoiler.
Hint: You may need to turn the pedals to align the gears in the back
end of the frame and allow the rear axle to easily pass through all parts.
14
• Slide an axle bushing, barrel side first, onto the end of the rear axle.
• Slide a large rear wheel, flat side first, onto the rear axle.
15
• Fit a wheel bushing, peg side first, into the large, rear wheel and onto
the rear axle.
Assembly
Rear Axle
Axle
Bushing
Wheel
Bushing
Rear Axle
Large
Rear Wheel
16
• Fit a .354" cap nut onto the end of the rear axle.
• Cover the cap nut with the assembly tool.
• While supporting the other end of the rear axle, tap the assembly tool
with a hammer to secure the cap nut to the rear axle.
Hint: You may need the help of another adult to hold the rear axle
in place while you tap the cap nut with a hammer onto the rear axle.
• Pull on the large, rear wheel to be sure it is secure on the rear axle.
.354"
Cap Nut
Assembly Tool
Insert Rear Axle
through these Parts
.354"
Front Side View

8
17
• Fit an axle cover to the large, rear wheel, as shown.
• Push the axle cover to “snap” it into place.
Hint: You may need to carefully tap the axle cover with a hammer to
secure in place.
• Repeat assembly steps 13-17 to assemble an axle bushing, large,
rear wheel, wheel bushing, .354" cap nut and axle cover to the other
end of the rear axle.
Assembly
18
• Fit the seat onto the frame.
Hint: Please refer to the Seat Adjustment instructions on page 13 to
place the seat in either of two positions (front or back), depending on
the size of your child.
• Insert three #8 x 3/4" screws into the seat and tighten.
19
• Fit the steering wheel base to the front end of the frame.
• Insert two #8 x 3/4" screws into the steering wheel base and tighten.
Frame
Seat
Frame
Steering Wheel Base
Axle Cover
20
• Position the turn signal so that the rounded side is upright.
• Fit the turn signal onto the steering wheel base.
Turn Signal
Steering Wheel
Base
Back View

9
Assembly
21
• Lift the front end of the vehicle.
• Insert the straight end of the steering column up through the hole in
the frame. 23
• Fit the steering wheel onto the turn signal and the steering column.
24
• Fit a .354" cap nut onto the end of the steering column.
• Cover the cap nut with the assembly tool.
• While supporting the other end of the steering column, tap the
assembly tool with a hammer to secure the cap nut to the
steering column.
Hint: You may need the help of another adult to complete this
assembly step.
• Pull the steering wheel to be sure it is secure.
Steering Column
Steering Wheel
Cap Nut
Frame Hole
Steering Column
Turn Signal
.354"
Assembly Tool
22
• Fit the curved end of the steering column into the hole in the
steering linkage.
Hint: You may need to turn the front wheels slightly to align the holes
and insert the steering column.
• Lower the front end of the vehicle.
Steering Column Curved End Steering LInkage Hole
Bottom View
Back View
.354" Cap Nut

10
26
• Fit the sound box inside the center of the steering wheel.
Assembly
27
• Fit the top edge of the sound box cover into the groove in the
steering wheel.
•“Snap” the sound box cover into the center of the steering wheel.
Sound Box
Sound Box Cover
• Loosen the screws in the sound box battery compartment door.
Remove the battery compartment door.
• Insert three, new, alkaline “AAA” (LR03) batteries into the
battery compartment.
Hint: We recommend the use of alkaline batteries for longer battery life.
• Replace the battery compartment door and tighten the screws.
Battery Safety Information
Batteries may leak fluids that can cause a chemical burn injury or ruin your
toy. To avoid battery leakage:
• Do not mix old and new batteries or batteries of different types:
alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always remove
exhausted batteries from the toy. Dispose of batteries safely. Do not
dispose of batteries in a fire. The batteries may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type, as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the toy before charging.
• If removable, rechargeable batteries are used, they are only to be
charged under adult supervision.
1.5V x 3
"AAA" (LR03)
SHOWN ACTUAL SIZE
25
Back View

11
Assembly
30
• Insert the upper post into the lower post.
31
• Fit the grip halves to the post assembly, over the latch halves.
• Insert three #6 x 1/2" screws into the grip halves to join all three parts
together. Tighten the screws.
Upper Post
Lower Post
Grip Halves
Latch

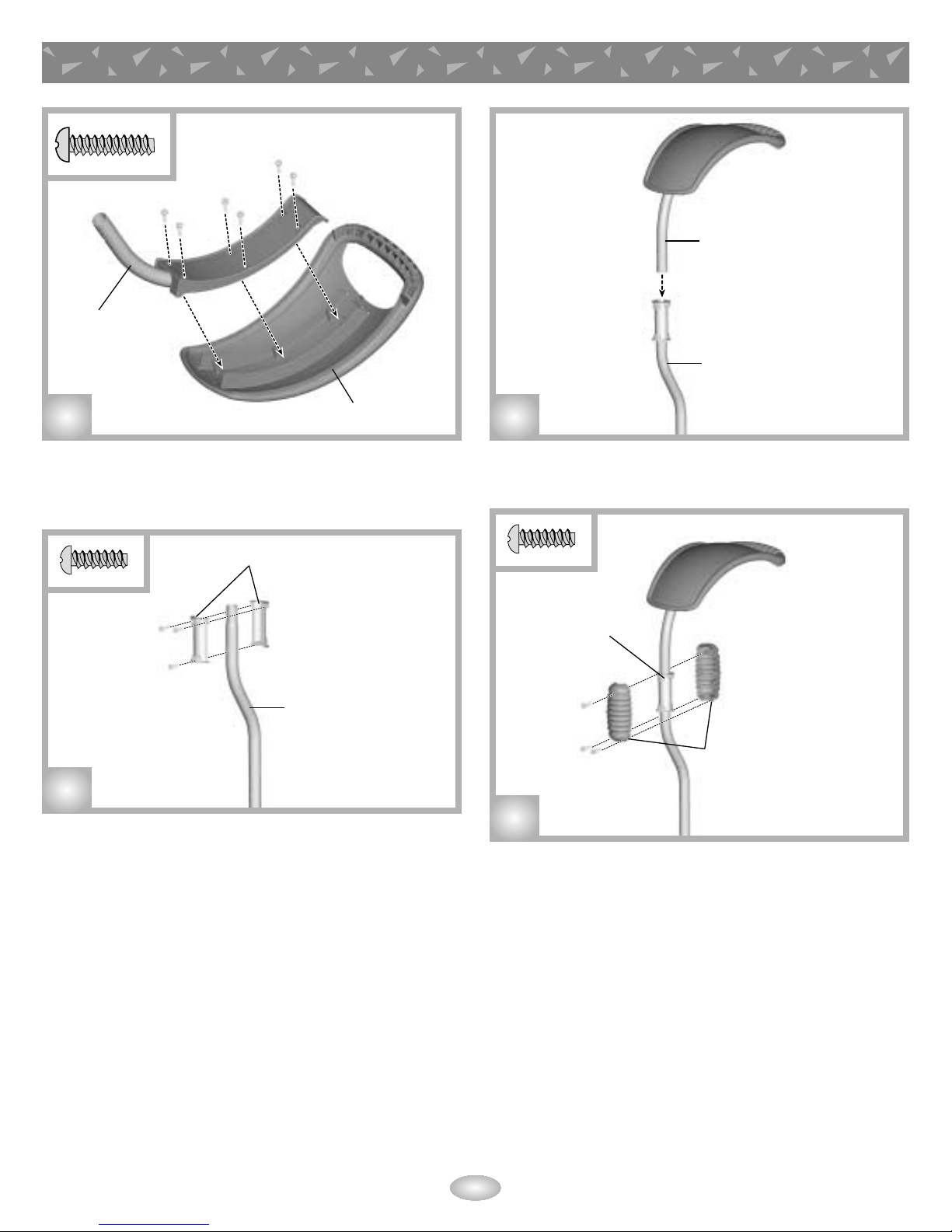

28
• Fit the upper post to the handle/canopy.
• Insert six #8 x 3/4" screws into the upper post and tighten.
29
• Fit the latch halves to the end of the lower post.
• Insert three #6 x 1/2" screws into the latch halves to join all three
parts together. Tighten the screws.
Upper Post
Handle/Canopy
Latch Halves
Lower Post

12
32
• Position the post so that the lower bend is toward the front end of
the coupe.
• Insert the post into the column on the back of the coupe.
33
• Insert the #10 x 21/8" bolt into the column on the back of the coupe.
• Tighten the bolt.
Hint: The handle/canopy assembly is designed to be removed for Pedal
Car use. Simply remove the #10 x 21
/8" bolt and the handle/canopy
assembly. Store the handle/canopy in a safe place for future use.
Replace the #10 x 21
/8" bolt into the column on the back end of the coupe.
Back View
Lower Bend
in Post
Column
Column
Assembly Label Decoration
Proper label application will help to keep the labels looking their
best! When applying labels, keep the following guidelines in mind:
• Wash your hands before applying the labels.
• Before applying the labels, wipe the surface of the vehicle with a
clean, dry cloth to remove any dust or oils.
• Place the labels exactly as shown in the illustrations.
• For best results, avoid repositioning a label once it has been applied
to the vehicle.
• After applying a label, rub the label firmly with a clean, dry cloth to
make sure the label is adhered to your vehicle. Start at the center of
a label, and smooth towards the outer edges to remove air bubbles.
Front View
Back View
1
3
2
Front

13
Seat Adjustment
• Place the seat onto the coupe into either of two positions – front
or back .
• Have your child sit on the seat and check the distance between
your child’s feet and the pedals. Now, move the seat closer to
or further from the pedals .
Frame
Seat
2 1
IMPORTANT!
It is a good practice to start training children very young regarding the
importance of helmet use. When children are older and riding bicycles and
faster vehicles, it is important that they use a helmet each and every time
they ride. For this reason, even while riding a tricycle (or pedal car), it is
a good idea to familiarize your child with helmet use, so that it becomes
a habit for life. Choose a helmet that complies with requirements of the
applicable certifying agency for bicycle helmets.
1
2
1
2
• Insert three #8 x 3/4" screws into the seat and tighten.
2
1

14
• Locate the sliding latches inside the bouncing base/spoiler. While
lifting both sliding latches on the bouncing base/spoiler , rotate
the bouncing base/spoiler down . Continue to rotate the bouncing
base/spoiler down until it “snaps” into place.
• Lift the grip on the post and turn it so that the handle/canopy is
over the seat . Lower the grip on the post to secure in place.
• You’re ready for bouncy-car action. Press a button on the steering
wheel for “real” car sounds.
Learn-to-Ride Stage Learn-to-Ride Stage
• Locate the sliding latches inside the bouncing base/spoiler. While
pushing both sliding latches on the bouncing base/spoiler down ,
rotate the bouncing base/spoiler up . Continue to rotate the
bouncing base/spoiler up until it “snaps” into place.
• Lift the grip on the post and turn it so that the handle/canopy is
over the bouncing base/spoiler . Lower the grip on the post to
secure in place.
• Use the parent-assist handle to guide your child along. Press a
button on the steering wheel for “real” car sounds.
4
2
3
1
1
1
2
3
41
2
3
4
4
3
2
1
1
Stationary Bouncy-Car Action Push’n Pedal Car with Parent-Assist Handle
12
Buttons
Buttons

15
• Locate the sliding latches inside the bouncing base/spoiler. While
pushing both sliding latches on the bouncing base/spoiler down ,
rotate the bouncing base/spoiler up . Continue to rotate the bouncing
base/spoiler up until it “snaps” into place.
• Locate the screw under the bouncing base/spoiler. Using a Phillips
screwdriver, remove the #10 x 21/8" bolt .
• Lift to remove the handle/canopy .
• Turn the footrest under the coupe .
Hint: Store the handle/canopy in a safe place for future use. Replace the
#10 x 21/8" bolt into the column on the back end of the coupe.
• Your child can turn the coupe pedals to “motor” around. Press a button
on the steering wheel for “real” car sounds.
Learn-to-Ride Stage
1
2
3
Pedal Car Fun with or without Canopy!
4
5
3
4
5
2
1
1
3
Buttons

Care
• Wipe this toy with a clean cloth dampened with a mild soap and
water solution. Do not immerse this toy.
• Do not leave this toy outside in the rain. Water inside the soundbox
could cause it to malfunction.
• This toy has no consumer replaceable parts. Do not take this
toy apart.
• Check all screws, cap nuts and their protective coverings regularly
and tighten as required.
• Check plastic parts on a regular basis for cracks or broken pieces.
Dispose of them properly.
FCC Statement (United States Only)
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio o television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Note: Changes or modifications not expressly approved by the
manufacturer responsible for compliance could void the user's
authority to operate the equipment.
Questions? We’d like to hear from you!
Call Fisher-Price®Consumer Relations, toll-free at 1-800-432-5437,
8 AM - 6 PM EST Monday through Friday. Hearing-impaired
consumers using TTY/TDD equipment, please call 1-800-382-7470.
Visit us online at www.service.mattel.com.
Or, write to:
Fisher-Price®Consumer Relations
636 Girard Avenue
East Aurora, New York 14052, U.S.A.
Consumer Information
©2004 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
Fisher-Price, Inc., a subsidiary of Mattel, Inc. East Aurora, New York 14052, U.S.A.
PRINTED IN MEXICO G4815pr-0920
For countries outside the United States:
CANADA
Questions? 1-800-432-5437, Mattel Canada Inc., 6155 Freemont Blvd.,
Mississauga, Ontario L5R 3W2; www.service.mattel.com.
GREAT BRITAIN
Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB. Helpline: 01628 500302.
AUSTRALIA
Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870, Richmond,
Victoria 3121 Australia. Consumer Advisory Service 1300 135 312.
NEW ZEALAND
16-18 William Pickering Drive, Albany 1331, Auckland.
ASIA
Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City,
Tsimshatsui, HK, China.
