Flyer L885 User manual

FLYERTM L885 OWNER’S MANUAL

Welcome to the Flyer™ Fleet
Congratulations on your purchase of the Flyer™ L885 electric bike!
Designed for adult riders, the Flyer™ line is an extension of the Radio Flyer®
brand created with the same beautiful design and quality that has inspired
our work for over a century. Our electric bikes deliver a fun, sustainable, and
convenient way to get out and explore your world. From urban commuters to
on-the-go families, your Flyer™ eBike is an everyday solution that infuses fun
and function into micromobility.
For every kid at heart, Flyer™ is your favorite set of wheels reimagined.
We can’t wait to see where your new ride takes you.
Cheers,
The Radio Flyer Team
Time Flies. Enjoy the Ride.®
ABOUT THIS MANUAL
This owner’s manual contains details of your Flyer™ eBike including instructions for
assembly, operating, and maintenance. To ensure safe use and prevent injury, please
carefully read all information in this manual before use. Take time to familiarize
yourself with your Flyer™ eBike before use.
While this owner’s manual is meant to introduce you to your Flyer™ eBike, it is
impossible to guide owners on every possible scenario when using a bicycle. There
are inherent risks using any bicycle and it is the owner’s sole responsibility to ensure
safe riding. Always take responsibility for your own safety.
Please keep this manual for future reference. If you have any questions about your
eBike, contact the Radio Flyer Customer Service Team. Our award-winning service
team is committed to providing you with world class support, right from Chicago.
Phone: [phone]
Email: customerservice@radioflyer.com
Customer Service Hours: 8am – 5pm CST, Monday through Friday
Flyer™ Service Website: flyer.radioflyer.com/customer-service

5
TABLE OF CONTENTS
Important Safety Instructions
Getting Started
Assembly Instructions
Accessories
Adjusting Bike Fit
Operating Instructions
Handlebar Display
FlightspeedTM Battery
Motor Control
Riding & Safe Operating Guidelines
Ride Safety Checklist
Maintenance
Moving and Storage
Troubleshooting
Warranty
7
8
8
20
20
24
24
26
31
32
32
34
35
36
38

7
Important Safety Instructions
SAFETY WARNINGS
• Read all safety warnings and instructions before using the product.
Failure to follow warnings and instructions may result in serious injury or
death.
• To reduce the risk of injury, close supervision is necessary when the
product is near children.
• Do not put fingers or hands near spokes or moving parts.
• The Flyer™ eBike is intended for persons 16 years of age and older.
Always ensure riders have the physical coordination and skill to navigate
the bicycle safely while managing road conditions, trac and adhering
to all laws for bicycle use.
• Please check local laws to confirm legal requirements for using your
eBike. The Flyer™ eBike is meant for paved roads and sidewalks, not
o-road conditions.
• Do not use the Flyer™ eBike at ambient temperatures less than 14°F
(-10°C) or above 104°F (40°C)
SAVE THESE INSTRUCTIONS
WARNING! When using this product, basic precautions should
always be followed including the following:

8
Getting Started
ASSEMBLY INSTRUCTIONS
The following steps provide a general overview of the assembly process for
your eBike. It is recommended to consult a professional bicycle mechanic for
assistance with your eBike’s assembly, maintenance, and repair.
Visit flyer.radioflyer.com or contact customerservice@radioflyer.com for
additional assistance assembling, using, repairing or maintaining your eBike.
WARNING! Incorrect assembly, maintenance, or use of your Flyer™ eBike can cause
component failure, loss of control, serious injury, or death. Please note, the assembly
and first fit of your Flyer™ eBike require special tools and mechanical skills. It is highly
recommended that the assembly and adjustment are completed by a reputable bicycle
mechanic when possible.
The following items are required for assembly:
• 5mm allen wrench (included)
• 4mm allen wrench (included)
• 15mm open-ended wrench (included)
• Scissors or flat-sided cutters
Step 1: Unpack your bike
Remove the bike from the outer carton and set it on a flat, clean surface. Deploy
the kickstand and place the bike upright, resting on the kickstand and rear wheel.
Remove all protective packaging material and carefully cut all zip-ties to avoid
damaging the paint. Verify that you have all of the components listed below.
Contact Radio Flyer Customer Service if any components are missing.
• Front Wheel
• Front Fender
• Pedals
• Headlight
• Running Boards (Left & Right)
• Charger
• Tool Kit
• Keys
• Steering Assist Spring
• Tire pump
• Pedal grease (recommended)
• Torque wrench (recommended)

9
Step 2: Rotate the handlebar stem
The handlebar stem is rotated 180 degrees for shipping purposes. It must be rotated
to the proper orientation to complete assembly.
A. Remove the rubber cover and loosen the handlebar stem cover bolt using the
provided 5mm allen wrench.
B. Using the provided 4mm allen wrench, loosen the two stem clamp bolts
C. Rotate the handlebar stem 180 degrees ensuring the stem is aligned with the
front fork.
D. Tighten the stem clamp bolts to 6 Nm using a torque wrench with 4mm hex bit.
E. Tighten the stem cover bolt to 6 to 8 Nm using a torque wrench with 5mm hex
bit. Reinstall rubber cover on stem cover.
A
C
B
D
E

10
Step 3: Adjust handlebar stem
Your Flyer™ eBike’s handlebar stem is designed to be adjusted for optimal comfort.
A. Using the provided 5mm allen wrench, loosen the bolt.
B. Rotate the stem to your preferred height
C. Re-tighten the bolt to 16 Nm using a torque wrench with 5mm hex bit.
ABC
WARNING! Overtightening the stem bolt can damage the handlebar stem assembly which
can lead to risk of injury. To avoid overtightening, use a torque wrench and tighten to 16 Nm.

11
Note: Complete assembly of the bike per the steps below. The stem and handlebar angle can
be adjusted as needed based on rider preference. Always re-tighten bolts to the specified
torque values prior to riding.
Step 4: Install the handlebar
A. Using the provided 4mm allen wrench, loosen the four bolts and remove the
stem clamp.
B. Align and center the handlebar in the stem using the markings as guides.
Check the handlebar orientation matches the image below and that the cables
are not twisted.
C. Reinstall the stem clamp and four bolts using the 4mm allen wrench. Evenly
tighten the bolts to 6 to 8 Nm using a torque wrench.
B
A
C

12
Step 5: Install the front fender
A. Loosen the eye bolt at the top of the fork by hand. Remove eye bolt and washer
and set aside.
B. Using the provided 4mm allen wrench, remove the screws on either side of the
fork. Set aside.
C. Position the fender inside the fork, lining up the bracket to the threaded hole in
the top of the fork. Reinstall the eye bolt and washer. Tighten by hand.
D. Align the fender frame with the threaded holes in the fork.
Re-install the screws and washers using the provided 4mm allen wrench.
A
D
B
C

13
1

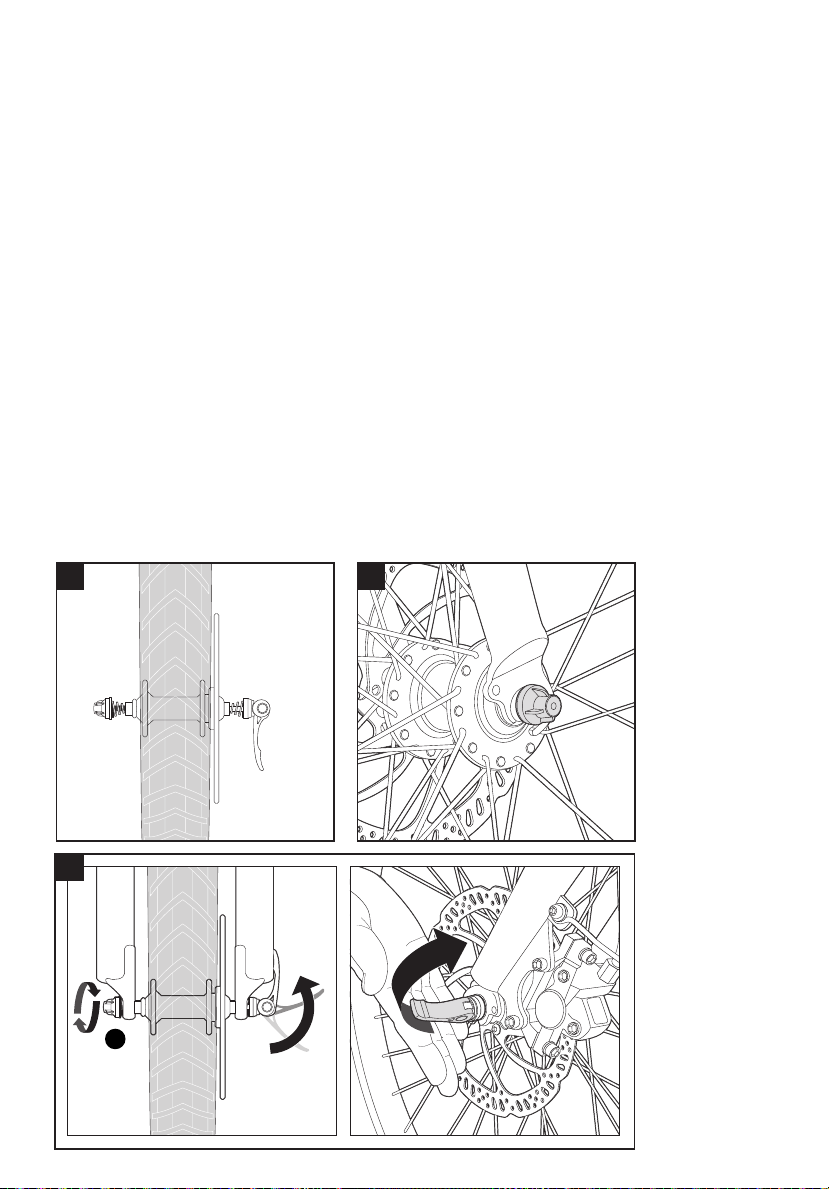

Step 6: Install the front wheel
The bike is shipped with an aluminum spacer installed in the fork dropouts to
prevent damage during shipment. Prior to installing the front wheel, this spacer
must be removed by first disassembling and removing the quick release skewer
assembly. Once removed, the aluminum spacer can be discarded. Do not discard
the quick release skewer assembly as it is needed to install the front wheel.
A. Install the quick release skewer through the front wheel. Ensure the orientation
of the conical springs matches the illustration below. The smaller end of the
conical spring will point in towards the wheel hub.
B. Align the wheel to the fork so that the fork dropouts rest on the axle. Ensure the
fork is fully seated on the axle, the wheel is centered on the fork, and the brake
rotor is centered in the caliper assembly.
C. Holding the lever, tighten the nut into place. Rotate the quick release lever to
secure the front wheel to the fork.
Note: Closing the quick release lever should require enough pressure that it leaves an imprint
in your hand. If it’s too easy or too dicult to close, adjust the lever tension by turning the
adjustment nut (“1” in the “Front wheel” illustration) opposite the quick release lever.
BA
C

14
Step 7: Install steering spring
A. Install one side of the spring in the eyebolt on the frame.
B. Using some force, extend the spring and install the opposite side in the eyebolt
on the front fork. You will hear an audible snap when the spring is properly
seated in the eyebolt. Install plastic protective sleeve around the spring.
WARNING! An improperly secured front wheel or handlebar stem can cause serious
injury or death. Always check that the front wheel and handlebar stem are secured to the
bike before each ride.
AB

15
Step 8: Install headlight
A. Using the provided 4mm allen wrench, remove the screw and washers from the
front of the fork. Set aside.
B. Align the headlight bracket with the fork and reinstall the screw with washers
using the 4mm allen wrench.
C. Fully install the connector to the rear of the headlight housing.
D. Adjust the angle of the headlight beam to illuminate the road ahead, while ensuring the
light will not blind or obscure the vision of oncoming trac or pedestrians.
Note: It is not recommended to ride at night. If riding at night cannot be avoided, ensure the
headlight is always on and functioning correctly while you are riding.
A
C
B
D

16
Step 9: Install pedals
A. Identify the right and left pedals before assembling. The right pedal will have a
smooth axle while the left pedal will have notches on the axle.
B. Install the right pedal to the crank arm by turning the axle clockwise by hand.
C. Install the left pedal to the crank arm by turning the axle counter-clockwise by
hand.
D. Use the provided 15mm wrench to torque both pedals to 35 Nm.
Note: We recommend applying pedal grease to the threads prior to installation
A
RIGHTLEFT

17
D
B
C

18
Step 10: Install running boards
A. Identify the right and left running boards before assembling using the stickers
on the underside of the wood boards.
B. Using the provided 5mm allen key, remove the screw and washers from the
rear frame. Set aside.
C. Align the running board brackets with the threaded inserts on the frame.
D. Reinstall the screws and washers using the provided 5mm allen key.
Tighten the screw to 10Nm.
B
D
C

19
Step 10: Check fastener torque values
Area of Bike Hardware Torque (Nm)
Handlebar Stem Clamp Bolts 6
Brake Lever Clamp Bolts 6
Stem Faceplate Bolts 6 to 8
Stem Cover Bolt 6 to 8
Seat Post Seat Mounting Bolts 10
Kickstand Kickstand Bolt 30
Front/Rear
Brakes
Disc Brake Rotor to Hub 8
Caliper Adapter to Frame 6 to 8
Caliper to Adapter 6 to 8
Rear
Dropout
Rear Axle Nuts 50
Chain Tensioner Mounting Bolt 6
Bottom
Bracket
Crank Arm Bolt 40
Pedal into Crank Arm 35
Chain Ring Bolts 8
Step 11: Inflate tires to 30 psi
WARNING! It is important to maintain proper air pressure in
the tires while riding. Do not overinflate or underinflate the tires.
Overinflated tires may burst. Inflate your tires using an air source
with a pressure gauge to avoid overinflation. Underinflated tires
may impair the control of the eBike and cause a safety hazard.

20
ACCESSORIES
Radio Flyer carries a full line of custom accessories to enhance the usability
of the L885. Please refer to the instruction sheets provided with each
accessory to ensure proper assembly. Visit flyer.radioflyer.com or contact
customerservice@radioflyer.com for additional assistance assembling, using,
or repairing your accessories.
WARNING! Incorrect installation of accessories can cause
damage to the bike frame, loss of control, serious injury, or death.
WARNING! The seat post must be inserted to the minimum insertion mark. Do not
raise the seat post beyond the minimum insertion marking on the seat post tube. If the
seat post is not inserted properly, the seat may be loose which can lead to serious injury
or death.
ADJUSTING SEAT HEIGHT
The seat height should be set based on your personal preference. The initial seat position
can be set by first placing the ball of your foot on the pedal with the crank arm in its
lowest position. In this position, your leg should be almost fully extended with a slight
bend in your knee. The proper seat position is important to avoid strain and potential
injury during riding. Consult a trusted, reputable bike mechanic or contact Flyer
customer service for any questions related to the seat position and fit of your bike.

21
A. Open the quick release lever located under the saddle. Rotate the lever fully open to
allow the seat post to slide easily.
B. Move the seat up and down by sliding the seat post in or out of the seat tube. Set the
saddle to the desired height based on rider preference. Ensure that the seat post does
not extend beyond the “minimum seat post insertion” markings on the seat post.
C. Close the quick release lever fully against the seat post tube. This should take some
force to ensure the seat post will stay firmly in place while riding.
A
C
B

22
ADJUSTING HANDLEBAR STEM ANGLE
Following assembly of the bike, the handlebar stem angle can be adjusted to fit the
individual rider.
A. Using the provided 5mm allen wrench, loosen the bolt
B. Rotate the stem to your preferred height.
C. Re-tighten the bolt to 16 Nm using a torque wrench.
AB
C

23
ADJUSTING HANDLEBAR ROTATIONAL POSITION
Following any adjustment of the handlebar stem angle, the handle bar rotational
position should also be adjusted. Ensuring that the handgrips and brake levers are
in the correct position will avoid any strain or discomfort while riding.
A. Using the provided 4mm allen wrench, loosen the four stem clamp bolts.
B. Rotate the handlebar until the preferred position is achieved checking to ensure
the handlebar is centered left-to-right within the stem clamp.
C. Evenly tighten the bolts to 6 to 8 Nm using a torque wrench.
AB
C
