Friant LUNE FCTTB-MOD.72 User manual

PART# NAME QUANTITY
A Allen Wrench 1
B Set Screw 4
C Wood Screw
Ø4.2*20
7
D Support Screw
Ø3.5*12
2
EPad 1
F Top Support 1
G Worksurface Bolt
M6*20
8
H Bar Support 2
I Adjustable Leaver Cap 1
J Locking Caster 4
O Cable Clips 2
K Fixed Support Bar 1
L Worktop 1
M Modesty 1
N Base Kit 1
Parts List

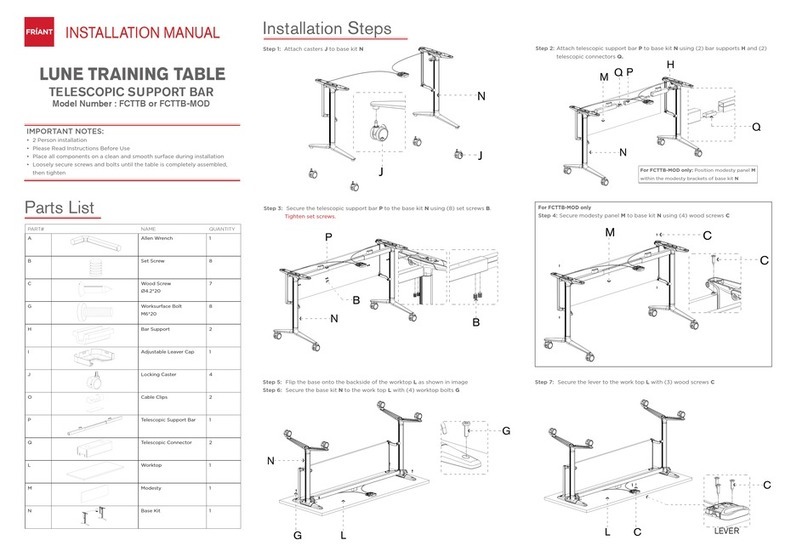

Installation Steps
IMPORTANT NOTES:
• 2 Person installation
• Please Read Instructions Before Use
• Place all components on a clean and smooth surface during installation
• Loosely secure screws and bolts until the table is completely assembled,
then tighten
Step 1: Attach casters Jto base kit N
LUNE TRAINING TABLE
FIXED SUPPORT BAR
Model Number : FCTTB-MOD.72
INSTALLATION MANUAL
Step 2: Attach fixed support bar Kto base kit Nusing (2) bar supports H
Position modesty panel Mwithin the modesty brackets of base kit N
Step 3: Secure the fixed support bar Kto the base kit Nusing (4) set screws B.
Tighten set screws
Step 4: Secure modesty panel Mto base kit Nusing (4) wood screws C
Step 5: Secure top support Fto fixed support bar Kusing support screws D
and top with pad E
Step 6: Flip the base onto the backside of the worktop Las shown in image
Step 7: Secure the base kit N to the work top Lwith (4) worktop bolts G

Completed Installation:
1980 West Avenue, 140th, San Leandro CA 94577 TEL: [phone] http://www.friant.com 1.09.23
Step 8: Secure the lever to the work top Lwith (3) wood screws CStep 9: Fold the base kit N by pulling on the lever.
Step 10: Secure the base kit N to the work top L with (4) work top bolts G
LEVER
Step 11: Secure cords with cord clip O, and cap o leaver with leaver cap I
Step 12: Turn table right side up
Step 13: Check all 4 casters lock properly
Step 13: Check the flip top mechanism works properly
