Geutebruck GSD-200 User manual

MINISPEEDDOMECAMERA
MINI SPEED DOME CAMERA
UserMANUAL
GSD-200

TABLE OF CONTENTS
1. CATION ------------------------------------------------------- 3
2. INTRODUCTION OF PRODUCT -------------------------------5
1). DESCRIPTION AND FEATURES -----------------------------5
2). INSTALLING AND CONNECTING ---------------------------- 6
2-1. NAME AND FUNCTION OF EACH PART -------------------6
2-2. INSTALLATION --------------------------------------7
2-3. CONNECTION DIAGRAM --------------------------------8
3. DIRECTIONS FOR USE -----------------------------------------9
1). DIP SWITCH SETTING ---------------------------------------9
2). HOW TO CHANGE PROTOCOL -------------------------------10
3). HOW TO SET ADDRESS DIP SWITCHES ----------------------11
4). HOW TO USE OSD MENU ----------------------------------12
4-1. HOW TO CONTROL OSD MENU --------------------------12
4-2. FUNCTIONAL DESCRIPTIONS ON EACH MENU ------------13
4-3. SETTING FUNCTIONS BY KEYBOARD---------------------23
4-4. OSD MESSAGE DESCRIPTION ---------------------------27
4. TROUBLE SHOOTING ------------------------------------------29
5. DIMENSIONS & ASSEMBLES------------------------------------30
6. CONFIGURALTION ---------------------------------------------31
7. SPECIFICATIONS ----------------------------------------------33

1. CAUTION
Thank you for purchasing mini speed dome camera GMS-200.
Please operate the product after being fully aware of the manual.
Pease contact us if you have any queries or face any problems.
DO NOT CONTROL PAN, TILT BY FORCE
Do not move the inside Pan/Tilt motor by force
after removing dome cover.
It can cause damages.
HANDLE WITH CARE OF CAMERA LENS AND DOME
Be careful of handle with dome cover
Please use a soft fabric due to a scratch when you
clean the cover.
EXTERNAL SHOCK
Damages can be occurred through the carelessness
Or shock when you take out the module.
Dimensions
UNIT:mm

CAUTION IN USE.
Do not disassemble the unit and put alien substances in the unit.
It can cause troubles.
Ensure power switch-off before the installation.
Ensure power switch-off and check the voltage the camera before the installation.
Do not give the unit a shock and an operation.
Giving a strong shock or an excessive power on the button, terminal can cause troubles.
This product has been designed and manufactured in accordance with the harmonized European
standards, following the provisions of the below stated directives.
Electromagnetic Compatibility Directive 89/336/EEC(EN61000-3-2:1995, EN61000-3-3:1995,
EN50081-1:1992, EN50082-1:1997)
This devise complies with part 15 of the fcc rules operation is subject to the following two
conditions: (1) This device may not cause harmful interference and (2) This device must accept
any interference received including interference that may cause undesired operation

2. INSTRUCTION OF PRODUCT
1) DESCRIPTION AND FEATURES
- Description -
This camera has been designed elegantly for buildings, department stores that need to be
in harmony with the interior as a high speed dome camera, including various observation
functions. It moreover is effective for true Day & Night.
- Features -
High magnification zoom lens
Max 100 times zoom
(optical x10 zoom, digital x10 zoom)
Horizontal resolution min. 520 TVL
Color: min.520 TVL, B/W: min.570 TVL
horizontal resolution
Low light and Day & Night
The result of improving sensitivity
0.0007Lux (DSS Control)
ICR Day & Night allows the filter to change
B/W mode (0.1 Lux) in the night.
Additional functions
PTZ trace:
Memorize P/T/Z move for 120 seconds then
operate the registered trace.
Auto swing:
Repeat pan and tilt between two preset
positions.
Group:
12 Preset positions are chained in one Group.
(Max 12 Groups available)
Tour:
Max 12 Groups are bound.
410k Pixel CCD CAMERA
SONY CCD chip with high resolution and low
illumination condition.
250 Preset positions
A maximum of 250 preset positions can be
programmed. The preset function enables to set
where you want on monitor at any time.
4ch alarm inputs
It can be directly connected to sensor and used
with presets owing to built-in 4-channel
sensor input terminals.
It can be also operated together with other
equipment owing to built-in alarm output.
Auto Tilt move
The unit can track the object moving automatically
until 180° in vertical.
OSD (On Screen Display)
Provides character information displayed on the
monitor, such as the camera ID address,
camera name, preset number, sequence status,
and sets various functions of camera easily on
the OSD menu screen.
Privacy Zones
For the privacy, it can be programmed for
masking zone up to 4 locations on the
OSD menu screen.
Audio out (Option)
Built-in mono microphone without Amplifier.

2). INSTALLATION AND CONNECTION
2-1. NAME AND FUNCTION OF EACH PART
104 ¢ BUBBLE
CAMERA COVER
CAMERA BASE
P/T BASE
MAIN BASE
BOTTOM COVER
CAMERA BODY
CAMERA BODY COVER

2-2. INSTALLATION
Make 4 holes after attaching
ceiling guide where the
came
ra is set.
Take apart 4 bands of camera body
cover
Set up DIP switch
(Reference to XXP)
Connect with cables.
Tighten 4 screws. Attach the camera
body cover
Completion
Take out the cables
from the ceiling.

2-3. CONNECTION DIAGRAM
AC24V/500mA(GMS-200iS)
DC12V/1A (GMS-200S)
VIDEO IN AUDIO IN
CAMERA 1~128
DC JACK
RS-485 Sensor 1
4 ALARM INPUT
VIDEO INPUT Sensor 4
AUDIO
CAMERA 129
~CAMERA 255
Violet(N/O)
Gray(COM)
Black(GND)
Brown(CH1)
Red(CH2)
Yellow(CH3)
Green(CH4)

3. DIRECTIONS FOR USE
1) DIP SWITCH SETTING
Set the camera numbers in the state of
ADDR, set communication speed, protocol
in the state of INIT.
-This part is each address of camera.-
It shows the status of Power
On/Off. Green LED is On while
power is alive. In the status of
operation, red LED is off.
-TERMINALATION RESISTOR (DIP SW NO1)
~Turn the last camera on the data line as a
switch to turn on/off the terminal resistor on.
Turn the DIP SW of some of the farthest
cameras on in the case of the data lines
distributed to several directions.
* The first default is off.
-ADDRESS/ INITIAL SELECT (DIP SW NO3)
~Set ADDRESS DIP SW in the status of ADDRESS
(*Reference to next page*)
(.*** The first default is ADDRESS.**)
-Set the communication speed and Protocol
(Demand for the technical inquiry) up in the
state of the INITAIL.
-Select PAL / NTSC system.
-POWER ON/OFF (DIP SW NO4)
Set DIP SW only in the status of Power off.
Then turn on the power after setting DIP SW.

2) HOW TO CHANGE PROTOCOL
Set up this part.
The switch that selects Protocol. The switch that selects Baud Rate.
.
Change No.3 at S2 to INIT if want to change Protocol.
①Please make Power off.
②Switch Protocol that wants to change on as above table.
③Make Power on, then set Protocol and Baud rate are appealed.
④Make Power off, if every setting is right. Then it is done.
⑤Change No.3 of S2 to ADDR before Power on, then make Power on after setting the
address of the camera.
⑥Try it again with the information as above the table, if something is wrong.

3) HOW TO SET ADDRESS DIP SWITCHES
Use DIP switches No.1 to No.8 for address, it can be set 1 program to 255 program.
DIP SWITCH (HEX) DIP SWITCH (HEX)
RX NO
1
2
3
4
5
6
7
RX NO
(DEC)
1
2
3
4
5
6
7
1
ON
OFF
OFF
OFF
OFF
OFF
OFF
33
ON
OFF
OFF
OFF
OFF
ON
OFF
2 OFF ON OFF OFF OFF OFF OFF 34 OFF ON OFF OFF OFF ON OFF
3 ON ON OFF OFF OFF OFF OFF 35 ON ON OFF OFF OFF ON OFF
4 OFF OFF ON OFF OFF OFF OFF 36 OFF OFF ON OFF OFF ON OFF
5 ON OFF ON OFF OFF OFF OFF 37 ON OFF ON OFF OFF ON OFF
6 OFF ON ON OFF OFF OFF OFF 38 OFF ON ON OFF OFF ON OFF
7 ON ON ON OFF OFF OFF OFF 39 ON ON ON OFF OFF ON OFF
8 OFF OFF OFF ON OFF OFF OFF 40 OFF OFF OFF ON OFF ON OFF
9 ON OFF OFF ON OFF OFF OFF 41 ON OFF OFF ON OFF ON OFF
10 OFF ON OFF ON OFF OFF OFF 42 OFF ON OFF ON OFF ON OFF
11 ON ON OFF ON OFF OFF OFF 43 ON ON OFF ON OFF ON OFF
12 OFF OFF ON ON OFF OFF OFF 44 OFF OFF ON ON OFF ON OFF
13 ON OFF ON ON OFF OFF OFF 45 ON OFF ON ON OFF ON OFF
14 OFF ON ON ON OFF OFF OFF 46 OFF ON ON ON OFF ON OFF
15 ON ON ON ON OFF OFF OFF 47 ON ON ON ON OFF ON OFF
16 OFF OFF OFF OFF ON OFF OFF 48 OFF OFF OFF OFF ON ON OFF
17 ON OFF OFF OFF ON OFF OFF 49 ON OFF OFF OFF ON ON OFF
18 OFF ON OFF OFF ON OFF OFF 50 OFF ON OFF OFF ON ON OFF
19 ON ON OFF OFF ON OFF OFF 51 ON ON OFF OFF ON ON OFF
20 OFF OFF ON OFF ON OFF OFF 52 OFF OFF ON OFF ON ON OFF
21 ON OFF ON OFF ON OFF OFF 53 ON OFF ON OFF ON ON OFF
22 OFF ON ON OFF ON OFF OFF 54 OFF ON ON OFF ON ON OFF
23 ON ON ON OFF ON OFF OFF 55 ON ON ON OFF ON ON OFF
24 OFF OFF OFF ON ON OFF OFF 56 OFF OFF OFF ON ON ON OFF
25 ON OFF OFF ON ON OFF OFF 57 ON OFF OFF ON ON ON OFF
26 OFF ON OFF ON ON OFF OFF 58 OFF ON OFF ON ON ON OFF
27 ON ON OFF ON ON OFF OFF 59 ON ON OFF ON ON ON OFF
28 OFF OFF ON ON ON OFF OFF 60 OFF OFF ON ON ON ON OFF
29 ON OFF ON ON ON OFF OFF 61 ON OFF ON ON ON ON OFF
30 OFF ON ON ON ON OFF OFF 62 OFF ON ON ON ON ON OFF
31 ON ON ON ON ON OFF OFF 63 ON ON ON ON ON ON OFF
32 OFF OFF OFF OFF OFF ON OFF 64 OFF OFF OFF OFF OFF OFF ON
-No.1 is changed to No.64 and the last No.64 is changed No.128 when No.7 DIP SW is on.
-No.1 is changed to No.129 when No.7 DIP SW is off and No.8 DIP SW is on.
-No.1 is changed to No.193 and user can set up to maximum 255 ADDRESS when No.7, 8 DIP SW
are on.

4) HOW TO USE OSD MENU
4-1. HOW TO CONTROL OSD MENU

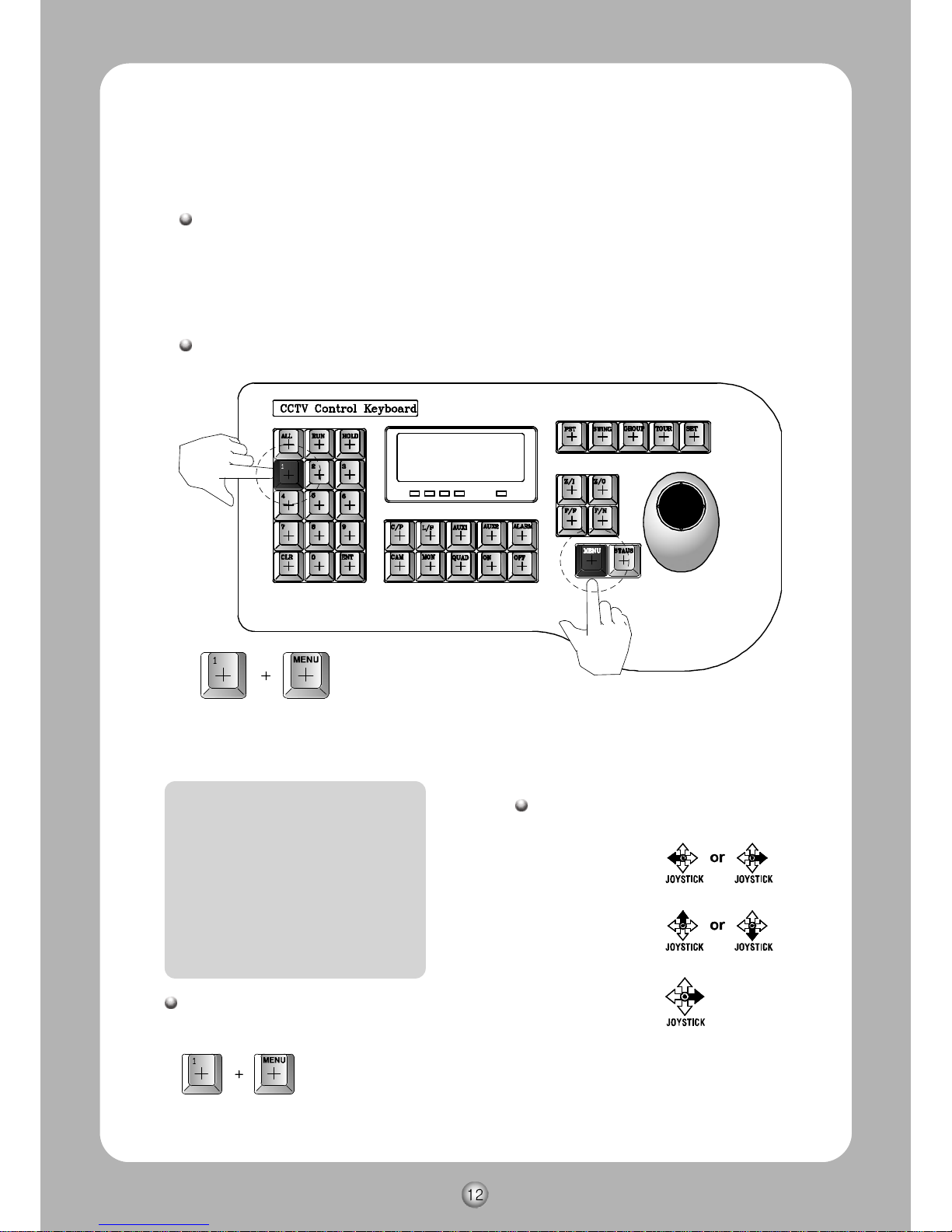

OSD (ON SCREEN DISPLAY) CONTROL
It is the function to call up the Menu
＊User can not only set Preset, Group, Tour, Swing, Trace functions of the camera
up by the menu, but also set them up by shortening keys. (Refer to 4-3 content)
ACCESSING OSD MENU
①
②
1) The menu is displayed on the screen with the key tone when user presses No.1
and menu key.
OSD Menu Control
Cursor Moving :
Feed Letters :
Select Menu :
Changing Setting :
RELEASE OSD MENU
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE

4-2. FUNCTIONAL DESCRIPTIONS ON EACH MENU
1. ID SET
It is the function to set ID of the camera.
Move to No.1 menu and the screen moves as following when user presses F/F key.
2. OSD DISPLAY
Set up whether sets ID and STATUS to display on the screen in normal operating.
3. Back Light
Set up backlight compensation mode.
User can choose letters that they want, if user
control a joystick up / down / right / left, and
user can reselect the previous letters, if user
presses Z/I, Z/O or turn the head of the joystick
to right/left.
" ●"” is not displayed on the screen as a
blank letter, user can input letters in Japanese
and in Chinese if user moves the joystick down
continuously.
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
►ID + Status: ‘ID’ and ‘Status’ displayed on the screen
►ID only: Only ‘ID’ displayed on the screen.
►Status only: Only ‘Status’ displayed on the screen
►All off: Nothing displayed on the screen.
Ex).
►On: It compensates a dark subject to a light
object by BACK LIGHT function.
(Low, Middle, High)
►Off: Release BACK LIGHT compensation mode

4. AGC level
AGC(Automatic Gain Control)- It adjusts the
amount of video amplification to maintain a
full 1-volt peak-to-peak video signal output
automatically.
►Range: Low, Middle, High
5. Shutter speed
As a setting shutter speed mode, it can be
distinguished a fast moving subject easily by
means of shutter speed up.
* The illumination of the camera decreases if shutter
speed is getting up.
* The default value is ‘AUTO’
* It can be worked in the status of Flickerless ‘off’.
Range: AUTO, 1/120, 1/250, 1/500,....1/60000
6. Sharpness level
Compensation of the shape of a object.
►Rage: 0 ~ 10 , Default value : 03
7. Brightness
Control brightness of the screen.
►Range: 0 ~ 99 , Default value: 50
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE

8. Flickerless
Tremble on the screen is removed in the status
of Flickerless ‘ON’, the shutter speed, at the
same, is Fixed in 1/120 sec in NTSC and in
1/100 sec in PAL.
Move the joystick down then choose “NEXT
MENU PAGE” on the screen to move next page.
9. SSNR level
It can remarkably reduce noise of minimum
illumination by super noise removable techni-
que and also file size becomes smaller while
DVR is being recorded by the effective reduce-
tion of noise.
►Range: Off, Low, Middle, High
10. White balance
It prevents from that white color is changed
as illumination, user can set it up in 2 ways.
►INDOOR, OUTDOOR
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p1 >>
1. ID Set : Press F/F Key
2. OSD Display : ID + Status
3. Back Light : Off
4. AGC level : Low
5. Shutter speed : Auto
6. Sharpness level : 003
7. Brightness : 005
8. Flickerless : Manual
-NEXT MENU PAGE
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE

11. Focus mode
Change Focus mode to hand-worked or
Auto.
►OneShot : Auto Focusing mode works during
non-working after zoom is worked..
►Auto : It adjusts the focus automatically
As it monitors the screen.
►Manual : User can control the focus by hand-
worked..
12. Zoom MAX Limit
It is used when user corrects and limits the
extensional range of the focus as a function
to set the maximum value of zoom.
► Off, x20 ~ x100
The camera is reset when user is out of Menu
mode after end the setting, and the changed
magnification is registered in the camera.
13. DSS CONTROL
An object becomes clear as the field value
gets higher in illumination, whereas a moving
object becomes dim.
►Default value: Off, 2 ~ 128 field
14. DAY & NIGHT
The function is used to distinguish an object
In the dark condition.
►Auto : Day & Night mode is worked automa-
tically, if it is dark.
►On : Change into DAY & NIGHTY mode by
hand-worked
►Off : Set DAY & NIGHTY mode ‘Off’
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p2 >>
9. SSNR level : Middle
10. White balance : Outdoor
11. Focus mode : Oneshot
12. Zoom MAX Limit : x20
13. DSS CONTROL : Off
14. DAY & NIGHT : Auto
- PREV MENU PAGE
- NEXT MENU PAGE

15. Select Alarm
It selects whether it moves the preset point
automatically or it moves by MOTION function
when being alarmed.
►Motion, Sensor
16. Motion Detection
Set Motion ‘On’ after move the camera where
user wants. It displays the message
‘Motion Detected’ on the screen when the moving
of an object is sensed on the same screen.
17. PRESET & RUN PAGE
It is a function to set and operate Preset,
Group,Tour.
User can see the screen when moves the joystick
to Right/Left after fixing the cursor on the menu.
<< PRESET SETUP PAGE>>
①Preset set CH:
Set Preset No. and title.
- Preset No.: Set it by moving the joystick to Right/Left
- Preset Title: It displays “SET ID” when presses F/F key after setting Preset No.
* The setting steps are the same as “ID Set” at the part 4-2-1.
▷▶
<< CAMERA SETUP p3>>
15. Select Alarm : Sensor
16. Motion Detection : Off
17. PRESET & RUN PAGE
18. TRACE SET PAGE
19. ALARM CH ON/OFF
20. ALARM PRESET SET PAGE
21. PRIVACY ZONE SET PAGE
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p3 >>
15. Select Alarm : Sensor
16. Motion Detection : Off
17. PRESET & RUN PAGE
18. TRACE SET PAGE
19. ALARM CH ON/OFF
20. ALARM PRESET SET PAGE
21. PRIVACY ZONE SET PAGE
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p3 >>
15. Select Alarm : Sensor
16. Motion Detection : Off
17. PRESET & RUN PAGE
18. TRACE SET PAGE
19. ALARM CH ON/OFF
20. ALARM PRESET SET PAGE
21. PRIVACY ZONE SET PAGE
- PREV MENU PAGE
- NEXT MENU PAGE
<< PRESET SET & RUN PAGE >>
- Preset set CH : 001
- Preset PTZ SET
- Preset Swing SET
- Group SET CH : 001
- Tour SET Group
- Run Function : UNDEF
- RETURN MENU PAGE
Press F/F Set Mode
<< SET CH:001[PRESET:001] >>
●!#$%&()*+`-./0123456789
:;<=>?@ABCDEFGHIJKLMNOPQ
RSTUVWXYZ[\]^_,abcdefghijkl
mnopqrstuvwxyz
Zoom In/Out , OSD Shift
Press SAVE F/F , ESC F/N

▷▶
②Preset PTZ: Set preset points.
Select the main menu with the joystick, then
press F/F key for next page. Select [SAVE] with
F/N key after setting the Preset point by using the
joystick and In/Out function, then the data is saved
if user presses F/F key, then it is moved to the
previous screen automatically from the menu.
＊Repeat the same way after changing the number of Preset, if user set another Preset.
▷▶
③Preset Swing SET : Set Preset Swing.
Move next SWING page for the setting,
when pressing F/F key in the state of
selection of the menu.
▪The preset must be set before the setting because
Swing is a function to repeat an auto observation
of 2 Preset points user select in Preset set
▷▶
PRESET : 001
[SAVE] [DELETE] [ESC]
F/F Save Return, F/N Select
<< PRESET SET & RUN PAGE >>
- Preset set CH : 001
- Preset PTZ SET
- Preset Swing SET
- Group SET CH : 001
- Tour SET Group
- Run Function : UNDEF
- RETURN MENU PAGE
Press F/F Set Mode
①Set preset point ②Move to menu ③Check
●[SAVE]: Previous screen after saving
[DELETE]: Remove
[ESC]: Cancel
<< PRESET SET & RUN PAGE >>
- Preset set CH : 001
- Preset PTZ SET
- Preset Swing SET
- Group SET CH : 001
- Tour SET Group
- Run Function : UNDEF
- RETURN MENU PAGE
Press F/F Set Mode
<< SWING SETUP PAGE >>
- P/T Swing : Undef (TILT/PAN)
- Start Preset : 000 (1~250)
- End Preset : 000 (1~250)
- Swing Time : 000 (1~127)
- Swing Speed : 000 (1~64)
Press F/F Save, F/N(ESC)
<< PRESET SET & RUN PAGE >>
- Preset set CH : 001
- Preset PTZ SET
- Preset Swing SET
- Group SET CH : 001
- Tour SET Group
- Run Function : UNDEF
- RETURN MENU PAGE
Press F/F Set Mode
<< GROUP SET CH:01 >>
[P] [S] [T] [P] [S] [T]
000 000 000 000 000 000
000 000 000 000 000 000
000 000 000 000 000 000
000 000 000 000 000 000
000 000 000 000 000 000
000 000 000 000 000 000
Press F/F Save, F/N(ESC)
•P/T Swing: TILT - Observe up and down,
PAN - Observe right and left
•Start Preset: Preset number of the location to be
started an observation
•End Preset: Preset number of the location to be
ended an observation
•Swing Time: Dwell time after moving
•Swing Speed: Moving speed
: Selection of
Up/down menu
: Change of
A setting

④GROUP SET: User can set maximum 12 groups
Select a channel then move to next page after
pressing F/F key
• The Preset point in the Group that 12 Preset
points are set is observed repeatedly and in
order with regular speed and time.
▷▶
⑤Tour SET Group : User can set continual Group
motion that can be put 12 Groups in 1 Tour
Move to the setting page if user presses F/F key
on this menu.
▪The Group user wants to set must be set first.
Setting is only possible when Preset is set first
in the state of setting of Swing, Group, Tour,
otherwise, it displays the message “Sorry Undefined”.
⑥Run Function: Operate one of SWING/ GROUP/
TOUR/ TRACE. (It is operated automatically after
the end of OSD menu.)
▪User can look at how to set TRACE at “18. TRACE SET PAGE”
⑦RETURN MENU PAGE : Move to a higher menu
page when control the joystick Right/Left in the
selection of this menu.
<< PRESET SET & RUN PAGE >>
- Preset set CH : 001
- Preset PTZ SET
- Preset Swing SET
- Group SET CH : 001
- Tour SET Group
- Run Function : UNDEF
- RETURN MENU PAGE
Press F/F Set Mode
<< TOUR SETUP PAGE >>
T01:01 T02:00 T03:00 T04:00
T05:00 T06:00 T07:00 T08:00
T09:00 T10:00 T11:00 T12:00
Press F/F Save, F/N(ESC)
Set the value of “00” part of T01~T12 to Group
channel that User wants, then the setting is saved
when user is out of the menu after pressing F/F key.
①Select Group ②Set next ③Out of menu saving
channel Channel after channel
＊Set / Stop order with a control keyboard without
menu on the screen.
<< PRESET SET & RUN PAGE >>
- Preset set CH : 001
- Preset PTZ SET
- Preset Swing SET
- Group SET CH : 001
- Tour SET Group
- Run Function : UNDEF
- RETURN MENU PAGE
Press F/F Set Mode
RUN STOP
Preset
Swing
Group
Tour
1~250 +
1(PAN)
or +
2(TILT)
1~12 +
or
or
or
●[P]: Set Preset points (1~250)
●[S]: Moving speed (1~64)
●[T]: Dwell time
①Set Preset ②Next setting ⑥Out of menu
③Set moving speed ④Next setting after saving
⑤Set dwell time

18. TRACE SET PAGE
Set TRACE.
User can regenerate and save a change of
The unrestricted location of ZOOM In/Out
and a position of the camera by hand-worked
control with a joystick
▪It displays the screen when moves the joystick to
Right/Left after fixing the cursor on the menu
▪How to set TRACE.
Move to [SET] after pressing .
Check – Control scenes that user wants by hand-
worked with a joystick after the message ∇
“Set Trace: OO%” on the middle of the
screen. If user finishes this part
Move to [SAVE] with
It goes a higher menu after being saved data when
pressing
with a display of the message “Save TRACE”.
▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬
19. ALARM CH ON/OFF
■What is ALARM function?: It operate to observe
the location of the camera which is memorized previo-
usly in the situation of the warning signal or trespass-
ers by using a sensor.
-CH On/Off: Alarm Input – Each channel can be ON/OFF
- Alarm Relay: It can be set On or not when ALARM OUTPUT
PORT operate wrong.
- Active Alarm: It selects ACTIVE OPEN or ACTIVE CLOSE
by tangency when something is wrong. It is ACTIVE when
ALARM INPUT is OPEN in ACTIVE OPEN, it is ACTIVE when
ALARM INPUT is CLOSE in ACTIVE CLOSE.
-Resume Time Set :
It can select the waiting time that the camera move to the
Place alarming to observe where wrong signal is sensed.
User can set it for 1sec to 180sec and operate GROUP,
TOUR, SWING again in a preset time. SWING, GROUP,
TOUR are operated in a preset time when user stops the
operating joystick in the case of not connecting with the
ALARM. Press SWING, GROUP, TOUR keys without stopping
of the joystick to stop the operating completely.
(*Stopping the operating with the joystick affects the
SET function.)
<< CAMERA SETUP p3 >>
15. Select Alarm : Sensor
16. Motion Detection : Off
17. PRESET & RUN PAGE
18. TRACE SET PAGE
19. ALARM CH ON/OFF
20. ALARM PRESET SET PAGE
21. PRIVACY ZONE SET PAGE
- PREV MENU PAGE
- NEXT MENU PAGE
<< CAMERA SETUP p3 >>
15. Select Alarm : Sensor
16. Motion Detection : Off
17. PRESET & RUN PAGE
18. TRACE SET PAGE
19. ALARM CH ON/OFF
20. ALARM PRESET SET PAGE
21. PRIVACY ZONE SET PAGE
- PREV MENU PAGE
- NEXT MENU PAGE
<< P/T/Z TRACE SET >>
[SET] [SAVE] [DELETE] [ESC]
F/F Save Return, F/N Select
<< ALARM CHANNEL ON/OFF >>
- CH1 :Off -CH2 :Off
- CH3 :Off -CH4 :Off
- Alarm Relay :Off
- Active Alarm :Close
- Resume timeset :Off
- RETURN MENU PAGE
