Goldmedal 3043 000 Series User manual

© 2022 Gold Medal Products Co.
Part No. 110313
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Compact Bag Blower
Model Series: 3043 (000)

Compact Bag Blower Model Series: 3043 (000)
Page 2
gmpopcorn.com
Table of Contents
SAFETY PRECAUTIONS ...................................................................................................................................3
INSTALLATION INSTRUCTIONS ...................................................................................................................5
Inspection of Shipment .......................................................................................................................................5
Manual.......................................................................................................................................................................5
Model Description.................................................................................................................................................5
Items Included with this Unit ...........................................................................................................................5
Setup (Mounting Bracket assembly required)...........................................................................................5
Electrical Requirements .....................................................................................................................................6
Before You Plug In Machine ..............................................................................................................................6
OPERATING INSTRUCTIONS .........................................................................................................................7
Controls and Their Functions...........................................................................................................................7
Operating Instructions ........................................................................................................................................7
Bagging Cotton Candy....................................................................................................................................8
Care and Cleaning .......................................................................................................................................8
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY ...............9
MAINTENANCE INSTRUCTIONS ...................................................................................................................9
ORDERING SPARE PARTS............................................................................................................................10
Cabinet Exterior –Parts Breakdown ..........................................................................................................11

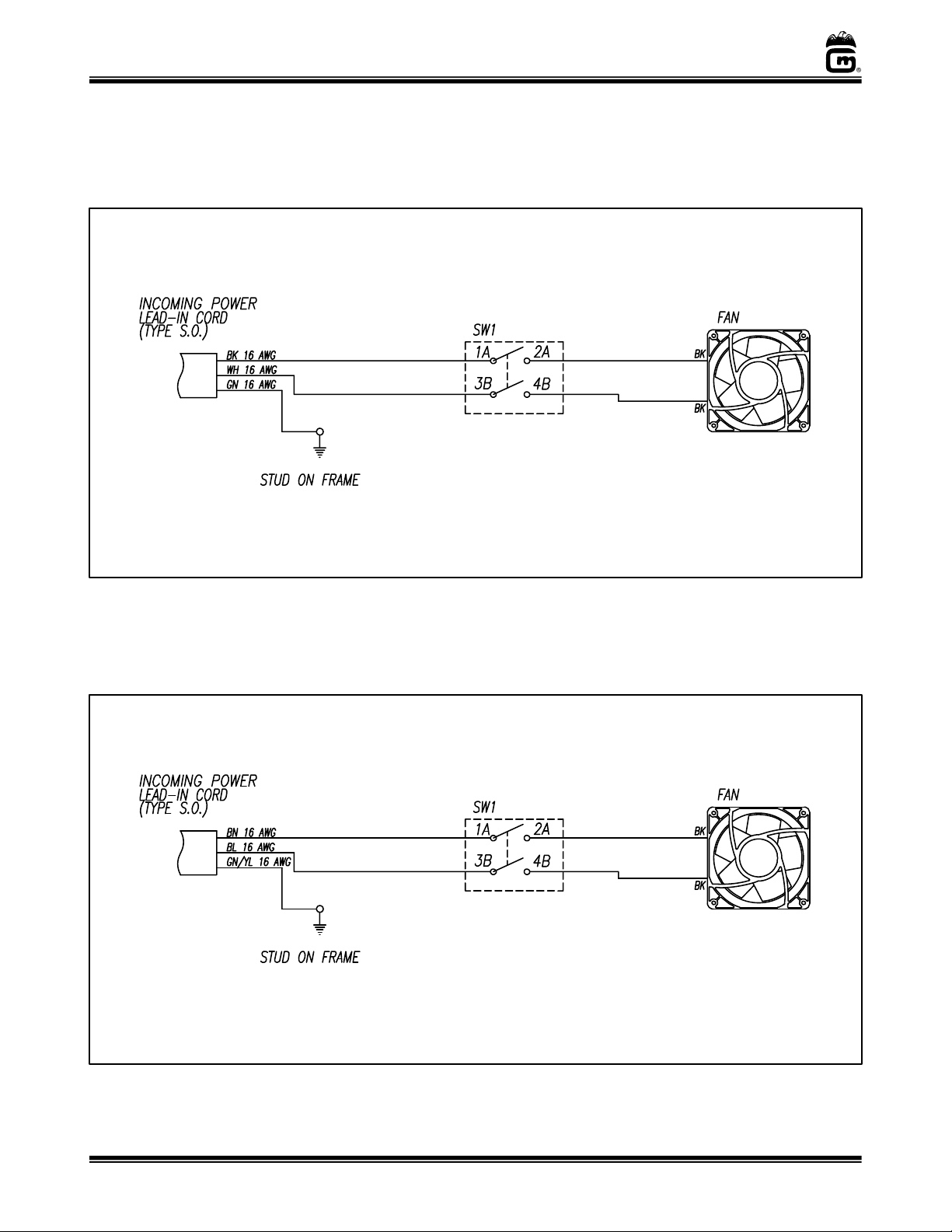

Wiring Diagram ........................................................................................................................................12
WARRANTY...................................................................................................................................................... 13

Compact Bag Blower Model Series: 3043 (000)
Page 3
gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914

Compact Bag Blower Model Series: 3043 (000)
Page 4
gmpopcorn.com
WARNING
This machine is NOT to be operated by minors.
007_010914
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
DO NOT install equipment in an area where a water jet is used.
Unit to be installed in locations where ambient temperatures are between a minimum of
5°C (41°F) and a maximum of 55°C (131°F).
Unit to be installed in locations where it can be overseen by trained personnel.
Install unit on a level surface.
Unit is a bag blower.
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at 1-800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Compact Bag Blower Model Series: 3043 (000)
Page 5
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description
The Compact Bag Blower is designed for use on the countertop or in a hanging position—the
mounting bracket/feet (included) must be installed accordingly, see Setup section below.
Items Included with this Unit
Mount Bracket (PN 105028); Suction Cup Foot (PN 114410) (x4); Bag Holder Knob (PN 12793) (x2);
Instruction Manual and Warranty Registration Card.
Setup (Mounting Bracket assembly required)
1. Tools needed (not included): Phillips head screwdriver and 5/16” socket
2. Remove all packaging and tape prior to operation.
3. Install Mount Bracket on unit for countertop or under-counter use (see below).
4. Install Bag Holder Knobs on front of unit.
5. After setup, the unit should be cleaned (see Care and Cleaning section).
1. Remove bottom acorn nuts.
2. Install bracket as shown.
3. Reinstall acorn nuts to
secure bracket.
Mount Bracket for Countertop Use
4. Install Suction
Cup Feet.
Mount Bracket for Hanging Installation
1. Remove (2) screws on
top panel (screwdriver
not incl.)
2. Install bracket as shown.
3. Reinstall screws to
secure bracket.
Top Panel Screw
Use 5/16” socket (not incl.)
Use holes to bolt unit under
a counter (bolts not incl.)

Compact Bag Blower Model Series: 3043 (000)
Page 6
gmpopcorn.com
Electrical Requirements
The following power supply must be provided (reference unit Data Plate for Wattage requirement):
3043-00-000: 120 V~, 60 Hz
3043-01-000: 220-230 V~, 50/60 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage
requirements). We recommend this equipment be on a dedicated and protected circuit. Failure
to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal
Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of
extension cords is not recommended due to safety concerns, and may cause sacrificed and/or
reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
1. Make sure all machine switches are OFF before plugging equipment into receptacle.
2. Make sure wall outlet can accept the grounded plugs (where applicable) on the power
supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Compact Bag Blower Model Series: 3043 (000)
Page 7
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
POWER SWITCH: ON/OFF lighted rocker switch, supplies power to the blower.
Operating Instructions
1. Position the unit, so bags hang flat when installed (bags sold separately). For countertop
use, use the suction cup feet to secure unit to a smooth, flat surface (see image above).
2. With unit OFF, install a packet of bags:
a. Remove the (2) Bag Holder Knobs.
b. Mount a packet of bags on the posts.
c. Reinstall knobs.
3. Turn the Power Switch ON;
blower opens the front bag.
See next page to bag cotton candy.
Power Switch
Suction Cup Feet (use on
a smooth flat surface)
Bag Holder
Knob
Bag Packet
Bag Holder Knob

Compact Bag Blower Model Series: 3043 (000)
Page 8
gmpopcorn.com
Bagging Cotton Candy
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jet or steam
cleaner. Always unplug the equipment before cleaning or servicing. 025_051321
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners).
For surfaces needing further cleaning or degreasing, Watchdog Stainless Cleaner (Item No. 2088)
or Watchdog Concession Equipment Degreaser (Item No. 2580) is available for use accordingly.
For any cleaning products used, follow the manufacturer’s instructions on the product. DO NOT
use oven cleaners or abrasive materials as they will damage parts of machine.
1. Turn machine OFF and unplug the unit.
2. Clean outside of unit with a soft cloth, SLIGHTLY dampened with soap and hot water,
then wipe again with a clean damp cloth to remove any remaining soap.
3. Allow unit to dry completely.
1. Hold bag open with one hand—rotate a
serving of floss down into the bag.
Blower
Unit
Rotation
Floss Bag
2. After cone and floss are inside,
remove bag and twist bag top.
3. Tie bag closed; then display.

Compact Bag Blower Model Series: 3043 (000)
Page 9
gmpopcorn.com
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning. 008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Compact Bag Blower Model Series: 3043 (000)
Page 10
gmpopcorn.com
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700
Medallion Drive, Cincinnati, Ohio 45241-4807
or place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [email protected]
Web Page: gmpopcorn.com

Compact Bag Blower Model Series: 3043 (000)
Page 11
gmpopcorn.com
Cabinet Exterior –Parts Breakdown
Item
Part Description
Part Number
3043-00-000
3043-01-000
1
8-32 X 3/8 PAN HD PH M/S
12389
12389
2
SWITCH, LIT ROCKER DPST
42532
42532
3
REAR/TOP BRKT STUD ASSY
105028
105028
4
1.5IN SUCTION CUP (4 required)
114410
114410
5
KNOB BLACK 1/4-20
12793
12793
6
8-32 X 2 PH PAN M/S 18-8
39012
39012
7
8-32 ACORN NUT SS
12385
12385
8
EXHAUST BLOWER
48018
48037
9
EXHST BLOWER PLUG & CORD
47199
47199
10
HEX NUT #8-32 STAINLESS (ground fastener)
89129
89129
11
WASHER #8 INTERNAL TOOTH (ground fastener)
74150
74150
12
STRAIN RELIEF SR-6P3-4
76026
76026
13*
POWER SUPPLY CORD
22038
42369
14
WARNING LABEL CORD (not shown)
68720
68720
*CAUTION: If supply cord is damaged, it must
be replaced by Gold Medal Products Co.,
its service agent, or similarly qualified
persons in order to avoid a hazard.
3
4
2
1
6, 7
Blower
Fasteners
12
13*
10, 11
9
8
14
Cord Warning Label
(not shown)
5

Compact Bag Blower Model Series: 3043 (000)
Page 12
gmpopcorn.com
Wiring Diagram
Model No. 3043-00-000
Model No. 3043-01-000

Compact Bag Blower Model Series: 3043 (000)
Page 13
gmpopcorn.com
WARRANTY
© 2022 –The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of
Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website
display, without its express written consent.
WARRANTY
Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to
be free of defects in workmanship and material under normal use and service. Gold Medal
Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,
f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and
which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.
Except for “Perishable Parts” on specific machines, the above warranty applies for a period
of two (2) years from the date of original sale to the original purchaser of equipment when
recommended operating instructions and maintenance procedures have been followed. These
are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR
IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,
INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE
NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE
HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or
consequential damages. No claim under this warranty will be honored if the equipment covered
has been misused, neglected, damaged in transit, or has been tampered with or changed in any
way. No claim under this warranty shall be honored in the event that components in the unit at
the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty
is effective only when electrical items have been properly attached to city utility lines only at
proper voltages. This warranty is not transferable without the written consent of Gold Medal
Products Co.
The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,
firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,
or their authorized distributor for the equipment.
THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL
PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO
DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,
AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR
REPLACEMENT OF PARTS.
NOTE: This equipment is manufactured and sold for commercial use only.
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
gmpopcorn.com
Phone: [phone] Fax: [phone]
[phone] [phone]
