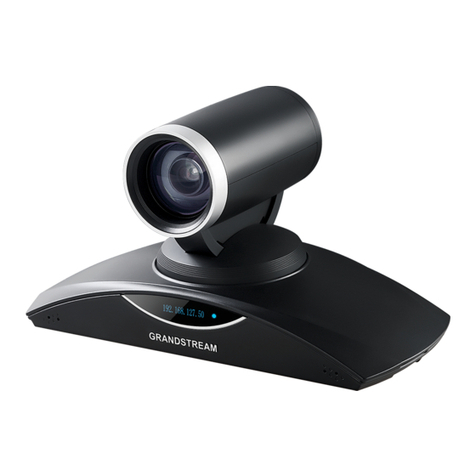

GVC3200 Video Conferencing System for AndroidTM
Installation Examples

GVC3200 Installation Examples
Page 1 of 7
GVC3200 Installation Examples
Index
DOCUMENT PURPOSE.............................................................................3
USING GVC3200 WITHOUT MOUNTING KIT...........................................4
PLACING GVC3200 ON CONFERENCE TABLE .................................................................................4
PLACING GVC3200 ON PORTABLE STAND.......................................................................................4
USING GVC3200 WITH MOUNTING KIT...................................................5
INSTALLATION WITH ONE TV.............................................................................................................5
SCENARIO 1..................................................................................................................................5
SCENARIO 2..................................................................................................................................5
SCENARIO 3..................................................................................................................................5
INSTALLATION WITH TWO TVs...........................................................................................................6
SCENARIO 1..................................................................................................................................6
INSTALLATION WITH THREE TVs.......................................................................................................6
SCENARIO 1..................................................................................................................................6
SCENARIO 2..................................................................................................................................7

GVC3200 Installation Examples
Page 2 of 7
Table of Figures
GVC3200 Installation Examples
Figure 1: One TV –Scenario 1 .....................................................................................................................5
Figure 2: Two TVs –Scenario 1....................................................................................................................6
Figure 3: Three TVs –Scenario 1.................................................................................................................7
Figure 4: Three TVs –Scenario 2.................................................................................................................7

GVC3200 Installation Examples
Page 3 of 7
DOCUMENT PURPOSE
The Grandstream GVC3200 Video Conferencing System can be installed in various ways, depending on
the scenario the GVC3200 is used with the display device. This document provides a few common
installation scenarios as examples.

GVC3200 Installation Examples
Page 4 of 7
USING GVC3200 WITHOUT MOUNTING KIT
PLACING GVC3200 ON CONFERENCE TABLE
The GVC3200 can be placed on the conference table directly, without mounting kit used. The TV(s) can
also be placed on the same conference table, behind the GVC3200.
PLACING GVC3200 ON PORTABLE STAND
The GVC3200 can be placed on a portable stand, without mounting kit used. The TV(s) can be mounted
on wall or the portable stand (if supporting mounting a TV). This set up is normally used in demo room or
show room.

GVC3200 Installation Examples
Page 5 of 7
USING GVC3200 WITH MOUNTING KIT
INSTALLATION WITH ONE TV
SCENARIO 1
1. Place the TV at one end of the conference table or a portable stand. It is recommended to put the TV
about 5cm to 10cm above the table or stand for a comfortable conference view.
2. Install the GVC3200 on the top of the TV. Usually it’s placed in the center of the top if possible.
Figure 1: One TV –Scenario 1
SCENARIO 2
1. The TV that has been placed on one end of the conference table is against wall of the conference
room.
2. Install the GVC3200 on the wall and position it on the top center of the TV.
SCENARIO 3
1. Mount the TV on the wall. It is recommended to mount the TV about 1m to 1.6m above the ground for
a comfortable conference view.
2. Install the GVC3200 on the wall and position it on the top center of the TV.

GVC3200 Installation Examples
Page 6 of 7
INSTALLATION WITH TWO TVs
SCENARIO 1
1. Mount the two TVs on the wall side by side. It is recommended to mount the TV about 1m to 1.6m
above the ground for a comfortable conference view.
2. Install the GVC3200 on the wall and position it on the top center of the two TVs.
Figure 2: Two TVs –Scenario 1
INSTALLATION WITH THREE TVs
SCENARIO 1
1. Mount the three TVs on the wall, one on the top and the other two on the bottom. It is recommended to
install the two bottom TVs about 1m to 1.6m above the ground.
2. Keep about 1m distance between the two TVs on the bottom so that the GVC3200 can fit in.
3. Install the GVC3200 on the wall and position it between the bottom two TVs.

GVC3200 Installation Examples
Page 7 of 7
Figure 3: Three TVs –Scenario 1
SCENARIO 2
1. Mount the three TVs on the wall horizontally. It is recommended to install them about 1m to 1.6m
above the ground.
2. Install the GVC3200 on the wall and position it on the top center of the center TV.
Figure 4: Three TVs –Scenario 2
Note:
When the TV is mounted on the wall, it is possible to mount the GVC3200 on the TV directly only if there is
enough space between the TV and the wall.
