Guldmann Gh3 twin User manual

GB/US . . . .GH3 Twin Ceiling Hoist

Vers. 4.00

23W1

GH3 Lifting modules, version type nomenclature

Guldmann

hoist type

Product

line

Load in

Number

of lifting

straps

Number

of lifting

motors

Number of

horizontal

drive

motors

Scale

module

CLM

module

Service

module

User

interface

GH3 (x) xxx x x x x x x x

GH3 200 1 1 1

250 1 1 1

+ 250 1 1 1 None : 0

Scale : 1

None : 0

CLM : 1

Cong : 2

None : 0

Service: 1

Cong : 2

Hand

control: 0

IR : 1

300 1 2 2

350 1 2 2

Twin 250 2 2 0

500 2 2 0

GH3 X Y Z Z Z Q Q Q Q

GH3 Twin Ceiling Hoist

Item nos:

xxxx

1.00.........Purposeanduse..............................................6

1.01.........Manufacturer..................................................6

1.02.........Purpose......................................................6

1.03.........Important/Precautions...........................................6

1.04.........LoadlimitsonGH3system.......................................7

1.05.........UnpackingandPreparation.......................................7

1.06 . . . . . . . . . Placing a new GH3 Hoist in an existing rail system . . . . . . . . . . . . . . . . . . . . 7

1.07.........Powersupply..................................................8

1.08 . . . . . . . . . Installation of GH3 Cross lifting hanger and Horizontal lifter. . . . . . . . . . . . . . 9

1.09.........Liftingsling...................................................11

2.00.........Descriptionoffunctions.......................................12

2.01.........Pictograms...................................................13

2.02 . . . . . . . . . Indicator lamps and audio signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2.03.........Operation....................................................14

2.04.........Supplementarymodules,GH3....................................16

. . . . . . . . . . . . . Menu structure, Supplementary modules GH3 . . . . . . . . . . . . . . . . . . . . . . . 16

2.05 . . . . . . . . . Conguration of supplementary modules, GH3.......................18

2.06 . . . . . . . . . Scale module (GH3 with integrated scale module) . . . . . . . . . . . . . . . . . . . 19

2.07 . . . . . . . . . CLM module (GH3 with statistical function for management use) . . . . . . . . 22

2.08 . . . . . . . . . Service module (GH3 with service module) . . . . . . . . . . . . . . . . . . . . . . . . . 24

2.09.........Safetyfunctions...............................................26

2.10.........Charging/connection...........................................28

2.11.........Accessories..................................................28

3.00.........Transportandstorage.........................................29

4.00.........Maintenanceandstorage......................................30

4.01.........Cleaning.....................................................30

4.02.........Storage .....................................................30

4.03 . . . . . . . . . How to prevent/avoid corrosion? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.04 . . . . . . . . . The owner’s daily maintenance duty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

4.05 . . . . . . . . Disposal of the GH3 including batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

5.00 ........Serviceandlifetime...........................................31

5.01.........Lifetime .....................................................31

5.02.........Safety/serviceinspections.......................................31

5.03.........Troubleshooting...............................................32

6.00 . . . . . . . . . Classication ................................................32

7.00 . . . . . . . . . Certicates ..................................................34

8.00 . . . . . . . . . Technical specications .......................................34

9.00 . . . . . . . . . EC-Declaration of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

. . . . . . . . . . . . . USA and countries outside the EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

A............Usersguide..................................................39

B. ..........Warranties...................................................39

1.00 Purpose and use

1.01 Manufacturer

V. Guldmann A/S

Graham Bells Vej 21-23A

DK-8200 Århus N

Tel. + 45 8741 3100

Fax + 45 8741 3131

www.guldmann.com

1.02 Purpose

The GH3 Twin (hereafter called GH3) is a ceiling-mounted hoist, which

covers the requiments for heavy and special lifting or moving of persons in

hospitals, nursing homes, institutions, swimming pools, riding schools and

private homes.

Conditions for use

The use of the GH3 is subject to the following:

• The GH3 should only be used by trained personnel.

• The maximum nominal load, 250 kg (550 lbs), 500 kg (1100 lbs), respectively,

must not be exceeded.

• The instruction offered by Guldmann to all customer groups in connection

with the purchase of a ceiling-mounted hoist has been received.

• The helper pays attention to the well-being of the user when using the

hoist.

• The hoist is used in rail systems which are installed, tested and approved

according to Guldmann’s stipulation.

• Only technicians who have been certied by Guldmann may install and

test the rail systems.

• The hoist is used with the Guldmann lifting hanger or with other suitable

hanger (section 1.08).

• The hoist is used with a Guldmann lifting sling or with other suitable slings

(section 1.09).

1.03 Important/Precautions

• Read the instructions carefully before using the GH3 and in connection

with cleaning and service of the hoist.

• The GH3’s maximum load must never be exceeded.

• The GH3 may only be used to lift a person.

• The red strap for the emergency stop and the emergency lowering must

be adjutsed to the helpers reach, and must not be removed.

• The GH3 must not be used where there is a risk of it being splashed with

water.

• If a defect appears during use of the GH3, stop using the hoist and contact

the Guldmann Service Team for repairs. The GH3 is controlled by a micropro-

cessor PCB, which can be damaged by static electricity if touched without the

necessary precautions, (see point 1.07) The electronics may only be serviced

by Guldmann approved service technicians.

Electromagnetic compatibility (EMC)

In case of electromagnetic interference between the GH3 hoist and other

products, these must not be used together.

1.04 Load limits on GH3 system

Read the label which indicate the maximum load limits for each component.

The components, e.g. lifting hanger, lifting sling, etc. labelled with the lowest

load limit determines the maximum load limit for the entire system.

This maximum load limit must not be exceeded.

Please note that the max load may change when different components are

used, such as lifting hangers, lifting slings, etc.

1.05 Unpacking and Preparation

Visual check of the GH3.

If the GH3 is thought to be damaged upon reception, the GH3 must not be

used before it has been checked and approved by a qualied person or the

Guldmann Service Team.

Contents of the box

1. GH3 hoist (leader)

2. GH3 hoist (follower)

3. Hand control

4. Transformer

5. Connector bar and cable

6. Manual (not illustrated)

7. Label for rail system

(not illustrated)

1.06 Placing a new GH3 Hoist in an existing rail system

Please notice, placing a new GH3 hoist in an existing rail system it must

be ensured that:

• The rated max load of the rail system, must be equal or higher than the

max load of the new hoist.

– If there is no max load mentioned on the rail system, the rail system

must then be checked according to the guideline in the Installation

guide (distance between bracket according to max load)

– If the brackets are not visible, then a load test with 1,5 x max load of

the hoist must be performed minimum 20 min. The deection of rails must

not be higher than 1/200 of the length of the rail.

– If it is not possible to do any of the above mentioned, please contact

Guldmann or their representative.

• If the rail system can not be rated to the same max load as the hoist,

then extra brackets must be installed according to the Installation

guide (distance between bracket according to max load).

Class I equipment

Fixed rail systems are class I equipment and must be installed by a qualied

technician or by Guldmann Service Team.

Equipment is disconnected from Supply Mains by breaking the mains breaker

switch.

Class II equipment

Mobile equipment is class II epuipment (marked with double-encassed

symbol) and can be connected to the mains direct by the user.

Equipment is disconnected from Supply Mains by detaching the mains plug

from the wall outlet.

Emergency stop device

The emergency stop device must be reset in order to connect power to the

product. To do this, push the yellow reset button (see point 2.09).

1.07 Power supply

GH3 is equipped with batteries that require regular recharging. The power

supply for charging and the battery charging point must be connected by a

qualied engineer or by Guldmann Service Team.

The transformer supplied must always be used.

Safety concerning static electricity (ESD)

Service technicians and installers must use an ESD-safety package

consisting of a mat, a ground wire, and a bracelet. The technician/installer

connects the mat to a grounding point. The technician/installer must then

put on the bracelet and connect it to the mat. If it is not possible to nd a

grounding point, the mat and the bracelet must be used as a minimum.

Only then is it allowed to work with the PCB Board or components where it is

possible to come into contact with the PCB Board.

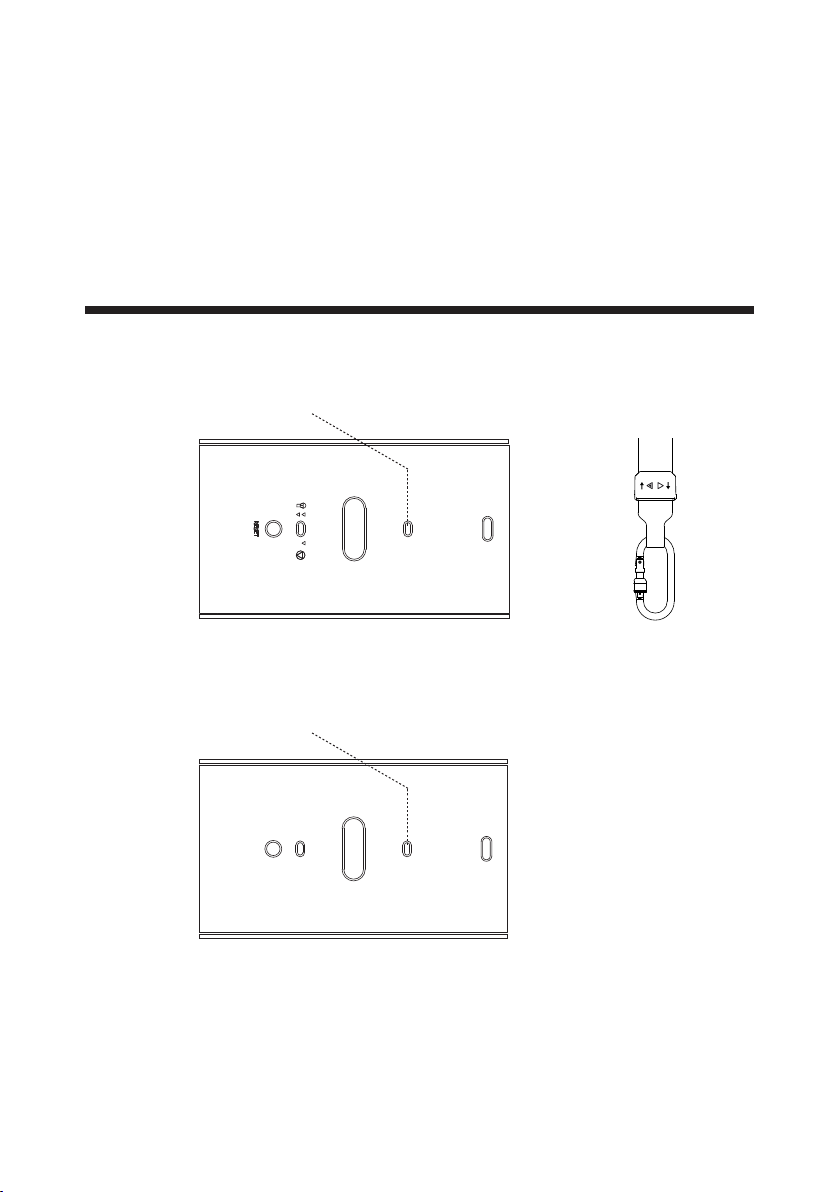

Fig. 1

Fig. 2

1.08 Installation of GH3 Cross hanger and Horizontal lifter

Lifting hangers from other manufacturers

Guldmann shall not be liable for faults or accidents that may occur as a result

of using lifting hangers made by other manufacturers.

If there is any doubt about the selection or use of a lifting hanger,

please contact your supplier.

The lifting hanger can be installed to the lifting strap without the use of any

tools.

Installation of GH3 Cross

lifting hanger

1. Start with the installation of the GH3 lifting

beam. Place each of the lifting straps oval

hook in the eye of the GH3 lifting beam,

one on each side (Fig. 1 and 2).

Important:

Check that none of the lifting straps

are twisted after the installation of the

lifting beam!

Fig. 5

Fig. 3

Fig. 4

2. Hold the GH3 Cross lifting hanger and

press the yellow button using the thumb

with the same hand that holds the hanger.

(Fig. 3)

3. Insert the hook on the lifting beam in the

slot on the Cross hanger’s top cover with

the open side facing upward (Fig. 4) and

release the yellow button.

4. Rotate the Cross lifting hanger downward

(Fig. 5). Check that the yellow button has

returned to its locked position by checking

that it is ush with the cover of the hanger

and that the Cross hanger can rotate

freely.

Other manuals for GH3 Twin

This manual suits for next models

Table of contents

Other Guldmann Mobility Aid manuals

Guldmann

Guldmann Evocare 553000 User manual

Guldmann

Guldmann GL5 .2 User manual

Guldmann

Guldmann Stepless LP11 Operating instructions

Guldmann

Guldmann Twin Turner II User manual

Guldmann

Guldmann 28355 User manual

Guldmann

Guldmann GH User manual

Guldmann

Guldmann GTP1 User manual

Guldmann

Guldmann GLS5.2 User manual

Guldmann

Guldmann GH1 User manual

Guldmann

Guldmann Active Micro Plus User manual

Guldmann

Guldmann BASIC HAMMOCK User manual

Guldmann

Guldmann Stepless Plain Series User manual

Guldmann

Guldmann GL5.1 User manual

Popular Mobility Aid manuals by other brands

Drive DeVilbiss

Drive DeVilbiss GoLite 200 operating instructions

Invacare

Invacare 8153-J user manual

Clearwell Mobility

Clearwell Mobility Brandon User instructions

Handicare

Handicare 1100 user manual

NRS Healthcare

NRS Healthcare M11090 User instructions

Alber

Alber Scalamobil iQ operating instructions

Ferno

Ferno CCT-PX user manual

Medline

Medline MDS86835DSHEC User Instructions & Warranty

Ferno

Ferno 35-ITA user manual

Drive

Drive ROOMBA Operation manual

Gate

Gate Balder operating instructions

Decon wheel

Decon wheel TNS Notos Assembly instructions

ExoAtlet

ExoAtlet ExoAtlet-II user manual

Invacare

Invacare Storm Series parts catalog

Rhythm Healthcare

Rhythm Healthcare B3800F manual

AMF-BRUNS

AMF-BRUNS PROTEKTOR installation manual

Drive DeVilbiss Healthcare

Drive DeVilbiss Healthcare OTTER Instructions for use

Rhythm Healthcare

Rhythm Healthcare C500U Assembly and Fitting Instructions

Guldmann GH3 Twin User manual

Popular Mobility Aid manuals by other brands
