Hailo ProfiStep Duo User manual

Aluminium ladder scaffolding
Echafaudage échelles aluminium
Ponteggio in alluminio
Andamio de escaleras de aluminio
Aluminium steigerladder
Instructions for erection and use
Instructions de montage et d'utilisation
Istruzioni di montaggio e d'uso
Instrucciones de montaje y utilización
Opbouw- en gebruiksvoorschrift
ProfiStep®multi GB
F
I
E
NL

ProfiStep®multi aluminium ladder scaffolding
DIN EN 1004,
2005 edition
Construction employer’s
liability insurance
association April 2000
Scaffolding category 2
Permitted load for
working platform: 135 kg
Load for working area:
max. 150 kg/m2
Working height:
max. 5.00 m in the open
and in enclosed areas
Instructions for erection and use
Hailo is certificated to
DIN EN ISO 9001
The finishes for the Hailo
aluminium ladder scaffolding
models 9476 and 9477
satisfy the requirements of
DIN EN 1004 (2005 edition)
and the latest regulations of the
German construction employer’s
liability insurance association,
dated April 2000 Basic scaffold 9476
+ Extension scaffold 9477
Basic scaffold 9476
GB
EN 1298 - I - de
Aluminium scaffolding
DIN EN 1004:2005 - 2 - 3,01/3,01 - XXXD

4
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
Please take time to familiarise yourself
with the individual elements and assembly
components.
In particular, please take note of the safe-
ty advice given in these instructions.
Do not begin working at height without prior pre-
paration, but familiarise yourself section by section
with operating at the higher levels, in order to
develop the necessary sense of safety for working
at height.
If you still have any questions or suggestions
regarding our aluminium ladder scaffolds,
please contact us.
We look to hearing from you.
[phone]
[phone] + 82300
www.hailo.de
E-mail: [email protected]
Foreword
Dear Hailo customer,
In purchasing your Hailo aluminium scaf-
folding, you have acquired an adaptable
and robust scaffold.
The finishes for the Hailo aluminium lad-
der scaffolding models 9476 and 9477
satisfy the requirements of the
DIN EN 1004 (version 2005) and the
latest regulations of the German
construction employer’s liability insurance
association for:
- Small scaffolds BGR 173, and for
- oveable scaffolds BGR 172 dated April 2000.
In order to guarantee safe working on
and with the aluminium scaffolding, the
item must be erected, used and dismant-
led in accordance with these “Instructions
for erection and use”.
Before using the aluminium scaffolding,
please read these instructions through
carefully.
They reflect the latest rules and require-
ments for drawing up instructions for erec-
tion and use, in accordance with
EN 1298 - IM - de, version dated 1996.

5
GB
Table of contents
Foreword ..................................... 4
Table of contents .......................... 5
General instructions....................... 6
Checking, care and
maintenance ................................. 6
Safety advice ................................ 7
Ballasting instructions ................... 11
Overview of models ....................... 12
Components of
basic scaffold 9476........................ 14
Components of
basic scaffold 9476 +
extension scaffold 9477.................. 18

6
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
General instructions
The employer responsible for the work to
erect the scaffolding is responsible for pro-
viding the instructions for erection and use
to the specialist staff who erect, use or
supervise working with the aluminium lad-
der scaffolding.
As a minimum, 2 persons are required to
erect and dismantle the aluminium scaffol-
ding. The persons carrying out the erection
work must have sufficient knowledge and
experience for this task.
The erection work must be managed by
supervisors with appropriate expertise in
this area, who are also able to guarantee
the work is carried out in accordance with
the regulations.
All instructions and safety advice similarly
apply for private users. The private user is
to take care, in accordance with the instruc-
tions, that the respective regulations are
similarly observed.
The aluminium scaffolding is intended to
enable users to reach high-level working
areas in buildings and in the open.
Permitted works on the aluminium scaffol-
ding are, for example, inspections, servi-
cing works, cleaning works or light restora-
tion works.
Checking, care and maintenance
Never allow parts of the aluminium scaffol-
ding to fall from a height to the ground.
Clean the aluminium scaffolding regularly,
in particular the moveable parts, to remove
paint, plaster, mortar and other residues, in
order to safeguard their technical safety
functions.
Before and after each use, check the alumi-
nium scaffolding to see that all components
are present and function correctly, and also
check for broken parts, cracks, wear and
tear or other damage.
In particular, check the working platform and
its laminated wood covering for damage.
Check to see that the running wheels are
in perfect condition.
Do not use force, e.g. striking with a ham-
mer, to assemble or dismantle the scaffol-
ding. When transporting the scaffolding,
the components are to be stowed correctly
and fastened securely.
If the individual parts are to be stored for a
longer period, they should be kept in a dry
environment either standing upright or lying
flat.

7
GB
•The aluminium scaffolding should only
be erected and dismantled by persons
familiar with the instructions for erection
and use.
•Damaged components must not be used.
•Only the original components are to be
used, in accordance with the manufac-
turer’s instructions. Before being erected,
all parts are to be checked to ensure
that they are in a fault-free condition. A
check is similarly to be made to ensure
that all construction components and
safety equipment are complete and
available for use.
•The surface on which the aluminium
scaffolding is being erected must be
capable of bearing the permitted total
weight of the scaffold.
e.g. basic scaffold 9476
+ extension scaffold 9477
max. load 135 kg
+ max. own weight 65 kg
+ max. ballast load 100 kg
= 300 kg
The site must be level and free of
obstacles. Wind conditions must also
be taken into account for this.
It must be possible to align the
aluminium ladder scaffolding to within
an incline of 1% from the vertical.
•The scaffolding is to be erected in
accordance with the instructions for
erection and use.
For model 9477, at least 2 persons are
required to erect and dismantle the
aluminium scaffolding.
•These persons must be equipped with
suitable work clothing and safety shoes.
Where applicable, excessive leaning
out beyond the edge of the platform is
to be avoided when erecting and when
using the aluminium scaffolding.
•The diagonal stays and the platform
stays on the working platform must
always be fastened to the rungs on the
ladder or the rung stays, as shown in
the instructions for erection and use.
•The wing nuts must be screwed hand-
tight during erection.
Safety advice

8
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
•Before use, it should be ensured that all
necessary safety provisions to prevent
tipping have been carried out.

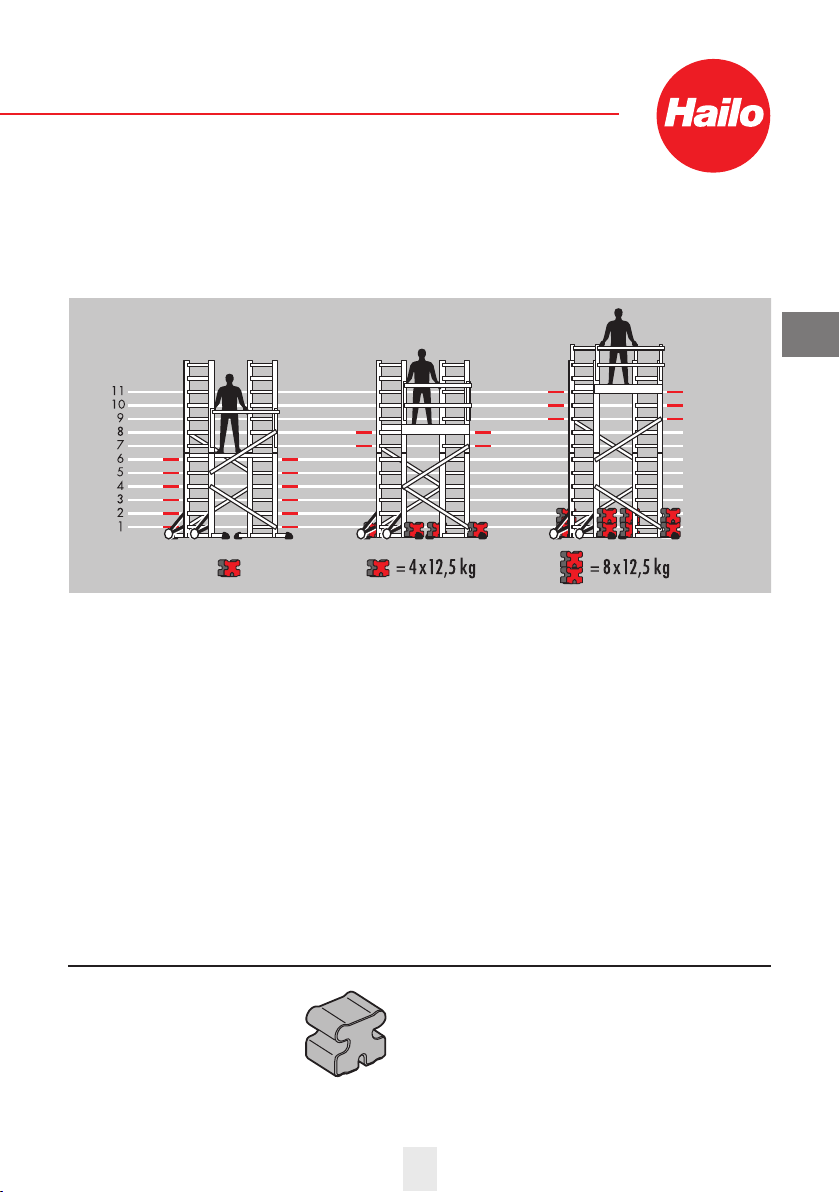

Note: if specified, ballast weights are to be
applied to the stabilizer bars.
•A working scaffold is not intended to
serve as tower stairs, used to access
other constructions. It is not designed to
be lifted up or attached.
•When moving the aluminium scaffol-
ding, no materials and no person or
persons should be on it.
The aluminium scaffolding must only be
moved by hand, and only on a firm,
even, obstacle-free surface.
When moving the scaffolding, care must
be taken to ensure that normal walking
pace is not exceeded, and that the
scaffold must only be moved in the
direction of its longer side.
•Vertical positioning in the crosswise and
lengthwise direction is to be checked
during erection using a spirit level.
If the scaffolding needs to be raised on
one side in order to be positioned verti-
cally, then the stabilizer bars must be
secured to ensure they do not drop
away.
Note: this applies especially to grassed areas
of ground!
•Care must be taken with regard to hori-
zontal forces which could cause the scaf-
folding to tip – e.g. as a result of addi-
tional wind stresses, such as the tunnel
effects of buildings forming a wind corri-
dor, or when working on unclad
buildings or the corners of buildings.
•Before use, a check should be made to
see that the aluminium scaffolding has
been properly and fully erected in
accordance with the specifications of
these instructions for erection and use,
and is standing vertically.

9
GB
•Attaching and using lifting equipment
and devices is not permitted.
Movement of tools and materials is only
permitted via the access openings provi-
ded on the scaffolding, i.e. through the
opened access hatch.
When not in use, the access hatch is to
be kept closed.
•Jumping on the working platform is not
permitted.
•The maximum permitted load on the
working platform is 135 kg.
•The height of the laminated working
platform is not to be increased by using
ladders, boxes or other devices or
equipment.
When erected parallel to a wall, the
scaffolding must only be moved in a
lengthwise direction. In doing so, care
must be taken over obstacles at height.
To move the aluminium scaffolding in
its assembled state, the stabilizer bar
should only be lifted so far that the feet
of the stabilizer bars are a maximum of
3 cm above the ground. The scaffol-
ding should not be crashed into any
obstacle.
It is not permitted to move the scaffol-
ding on an inclined surface.
When moving the scaffolding, wind
conditions must be taken into account.
•Attaching bridging elements between
the aluminium scaffolding and a buil-
ding is not permitted.
•Leaning out over the side protection or
bracing oneself against the side protec-
tion is not permitted.

10
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
•If the aluminium scaffolding is being
used on the outside of buildings, then
as far as possible it is to be safety
secured onto the building or onto
another solidly-constructed element.
•If being used in the open or on open
buildings, work is to be stopped if the
wind increases and/or at the end of the
shift the aluminium scaffolding is to be
moved to an area protected from the
wind, or secured against tipping over
using other suitable measures.
•The scaffolding is not to be used during
storms, nor in proximity to power-lines.
•Dismantling of the respective aluminium
ladder scaffolding is carried out in the
reverse sequence to that for erection.
•Accessing and coming down from the
working platform is not permitted via
any access route other than the access
hatch provided. Accordingly, one should
only go up using the inside of the ladder
sections on the aluminium scaffolding.
The hatch to the working platform should
only be opened in order to climb
through, and should be kept closed at
all other times.
•No attempt should be made to attach
several aluminium scaffolds together to
create a single scaffold to cover an area
or space, or to act as a load-bearing
element.
•The aluminium scaffolding must not be
used for works on parts under tension
and on machinery being operated.
•The aluminium scaffolding must not be
exposed to any aggressive liquids or
gases.

11
GB
Ballasting instructions
Note:
The ballast weights are for your own safety.
The ballast weights must be applied at certain
heights as described and illustrated.
Ballast weights
(12.5 kg/item)
are available as
accessory items.
To secure the aluminium ladder scaffolding
against tipping and to ensure that it sits
securely, ballast weights are to be applied
to the stabilizer bars when the working
platform is at certain given heights.
Rungs 1 to 6 = no ballast weights
required
Rungs 7 and 8 = 50 kg (4 x 12.5 kg)
Rungs 9 to 11 = 100 kg (8 x 12.5 kg)

12
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
Overview of models

13
GB

14
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
Components of basic scaffold 9476

15
GB
1
2
Insert sleeves into the
stabilizer bars.
Then screw the pre-
assembled stabilizer bars
to the scaffolding ladder.
Attaching the
stabilizer bars
Assembling the wheels
First assemble the ladder
rungs with the threaded
rod and the guide stops.
On both sides, attach one
short and one long wheel
stay respectively to the
rungs on the ladder using
wing-nuts, as shown.
Attach the two wheels to
the wheel stays using
screws.

16
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
4
11
4
2.
1.
M10 x 56 0
2x
1.
M10x560
2x
2x
1835
2. 3.
4x
2x
4x
2x
First assemble two ladder
rungs with the threaded rods
and the guide stops.
Hang the working platform
from the pre-assembled
ladder rungs, and fasten
with the U-shaped washers
and wing nuts.
3
4
5
Attaching the
working platform
Attaching the
diagonal stays
Insert the capping feet into
the top of the ladder
uprights, and insert the
Hailo disc as shown into
the rung.
First assemble a ladder
rung with a threaded rod
and the guide stops.
Equip both diagonal stays
with end caps.
Attach the diagonal stay in
the position shown using
wing-nuts (inserting an
additional U-shaped
washer on the opposite
side to the stay).

17
GB
1.
M10 x5 60
M10x600
1.
4x
4x
2x
1627 mm
3.
2x
2.
8x
2.
4x
First assemble the four
upper ladder rungs with
threaded rods and guide
stops.
Insert end caps into four
rung stays.
Mount the rung stays and
fasten using wing nuts.
6
7
First assemble two threaded
rods with a spacer tube in
the highest position on the
rung stays.
Insert end caps into two
platform stays.
Mount the platform stays
and fasten using wing nuts.
Attaching the
platform stays
Assembling the
rung stays
Dismantling the
basic scaffold
The aluminium ladder
scaffolding is dismantled in
the reverse sequence to
erection.

18
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
Components of basic scaffold 9476 + extension scaffold 9477

19
GB
1
2
Attaching the
stabilizer bars
Insert sleeves into the
stabilizer bars.
Then screw the pre-
assembled stabilizer bars
to the scaffolding ladder.
First assemble the ladder
rungs with the threaded rod
and the guide stops.
On both sides, attach one
short and one long wheel
stay respectively to the
rungs on the ladder using
wing-nuts, as shown.
Attach the two wheels to the
wheel stays using screws.
Assembling the wheels

20
ProfiStep®multi aluminium ladder scaffoldingProfiStep®multi aluminium ladder scaffolding
First assemble three ladder
rungs with threaded rods
and guide stops.
Equip both diagonal stays
with end caps. Attach the
diagonal stays using wing-
nuts (inserting an additional
U-shaped washer on the
opposite side to the stay).
3
4
5
Attaching the
diagonal stays
Insert the capping feet into
the top of the ladder up-
rights, and insert the Hailo
disc as shown into the rung.
Ballast
Preparing the upper
sections of the scaffold
To secure the scaffold,
attach 2 weights (12.5 kg
each), as shown, to both
sides of each stabilizer
bar.
Total ballast = 100 kg.

21
GB
First assemble two ladder
rungs with threaded rods
and guide stops (3rd rung
from the top).
Hang the working platform
from the pre-assembled
ladder rungs, and apply
the U-shaped washers.
Screw long side profiles to
angle profiles and secure
to the working platform
using the U-shaped washer
and wing nut.
Insert short side profiles
and lock in place with con-
necting pins.
6
7
Attaching the
working platform
First assemble the four
upper ladder rungs with
threaded rods and guide
stops.
Insert end caps into four
rung stays.
Mount the rung stays and
first fasten using wing nuts
only to the lower rungs.
Assembling the
rung stays
