SERVICE MANUAL EN

Puma 20/402
© 2011 Handicare
All rights reserved.
The information provided herein may not be reproduced and/or published in any form, by print, photo print, microfilm or any other
means whatsoever (electronically or mechanically) without the prior written authorisation of Handicare.
The information provided is based on general data concerning the constructions known at the time of the publication of this
manual. Handicare executes a policy of continuous improvement and reserves the right to changes and modifications.
The information provided is valid for the product in its standard version. Handicare cannot be held liable for possible damage
resulting from specifications of the product deviating from the standard configuration.
The available information has been prepared with all possible diligence, but Handicare cannot be held liable for possible errors in
the information or the consequences thereof.
Handicare accepts no liability for loss resulting from work executed by third parties.
Names, trade names, etc. used by Handicare may not, as per the legislation concerning the protection of trade names, be
considered as being available.

Puma 20/40 Table of content 3
1 Introduction........................................................................................................................................................... 5
1.1 This manual 5
1.2 Identification of the product 5
1.3 Symbols used in this manual 6
2 Safety ................................................................................................................................................................... 7
2.1 Maximum User weight reduction when Puma 20 options are installed on a Puma 40! 7
2.2 Personnel qualification 7
2.3 Cautions and warning statements 7
2.4 Used decals on the wheelchair 8
3 Tools, parts and components ............................................................................................................................. 10
3.1 Tools 10
3.2 Tools electronics 10
4 Spare parts......................................................................................................................................................... 11
4.1 Use of the parts lists 11
4.2 Carrier and seat adjustments 12

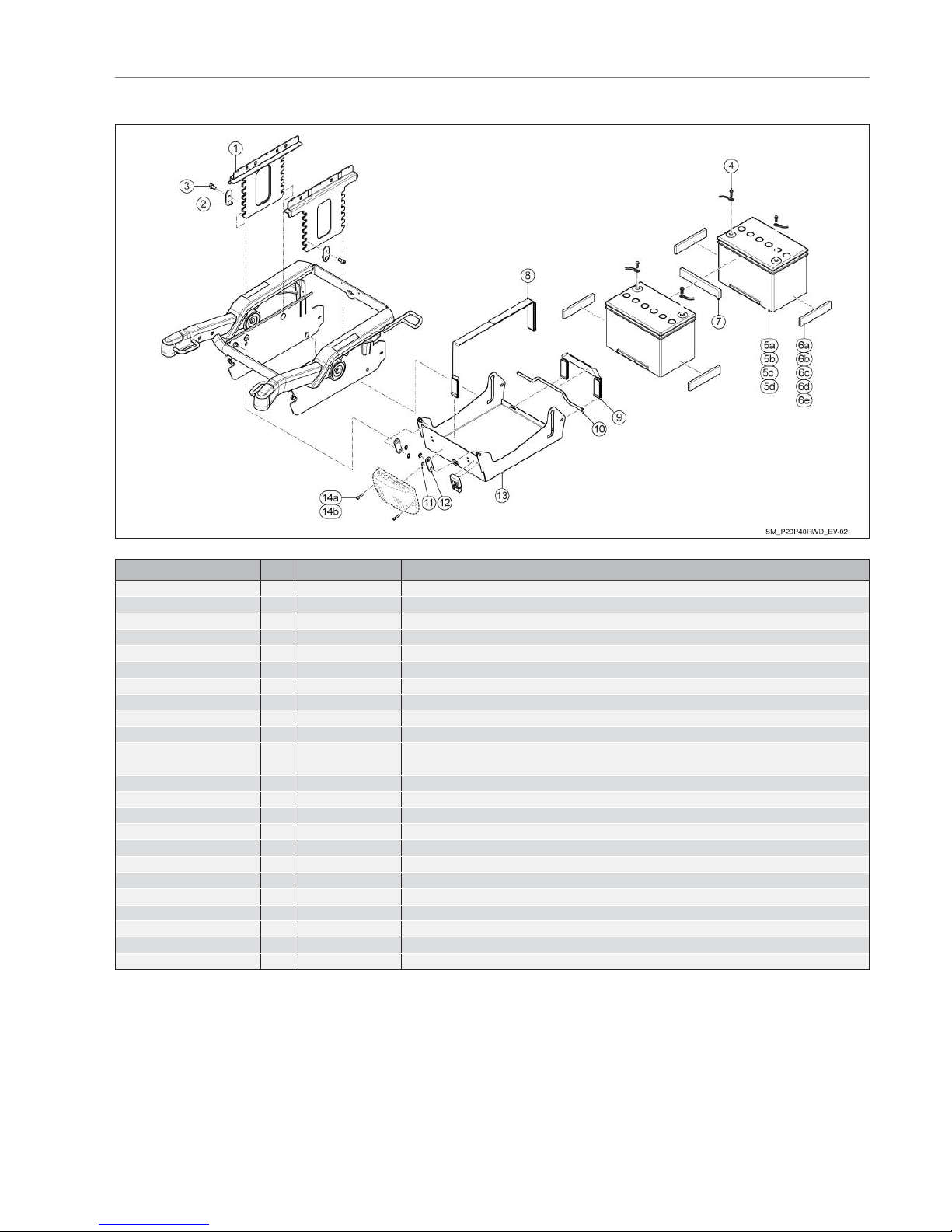

1 Battery tray and suspension and chair interface Puma 20/40 13
2 Dahl car docking system Puma 40 FWD 14
3 Dahl car docking system Puma 40 RWD 15
4 Suspension arm and motors Puma 20 16
5 Suspension arm and motors Puma 40 17
6a Castor forks and wheels Puma 20, Handicare 18
6b Castor forks and wheels Puma 20 19
7a Castor forks and wheels Puma 40, Handicare 20
7b Castor forks and wheels Puma 40 21
8 Covers Puma 20 22
9 Covers Puma 40 23
10 Tilt modules Puma 20 24
11 Tilt and lift modules Puma 40 25
12 Kerb climber Puma 20/40 26
13 Direct access Puma 20/40 27
14 Attendant steering on backrest frame EasyFit 28
15 Attendant Z-steering EasyFit / Sedeo Pro+ 29
4.3 Wiring and modules Shark 30
4.4 Wiring and modules R-net 32
4.5 Wiring and modules DX2 35
5 Service instructions ............................................................................................................................................ 40
5.1 Maintenance plan 40
5.2 Assembly, replacement and adjustment instructions 41
5.2.1 Replacing Puma 20 motors 41
5.2.2 Puma 20 / Puma 40 Carrier 42
Converting Puma 20/40 front wheel drive (FWD) to rear wheel drive (RWD) and vice versa. 42
Mounting the kerb climber (Puma 20/40 – RWD) 51
Replacing the carbon brushes (Puma 20/40) 53
5.2.3 Driving wheels (Puma 20/40) 57
Replacing the drive wheel, indoor/outdoor 57
Replacing the tube and/or tyre of a drive wheel, indoor/outdoor 60
5.2.4 Castor wheels 64
Replacing the castor wheel 64
Replacing the tyre and/or tube of the castor wheel 66
Replacing the castor fork 69
5.2.5 Mounting the direct access 71
Table of content

Puma 20/404 Table of content
5.2.6 Mounting the attendant steering 72
Mounting the attendant steering on backrest frame EasyFit 72
Mounting the attendant Z-steering mechanisme EasyFit / Sedeo Pro+ 73
5.2.7 Replacements 75
Replacing the batteries 75
Replacing the power module 79
Replacing the mudguards 82
Replacing the coloured covers (only Puma 40) 84
Replacing the anti-tip wheels and bracket 86
5.2.8 Seat adjustments 87
Adjusting the seating height 87
Adjusting the centre point of gravity 92
Adjusting the mechanical seat tilt 95
Adjusting the electrical seat tilt 0 - 25° 96
Adjusting the electrical seat tilt 0 - 45°, the minimum tilt angle (0 – 9°) 97
Adjusting the electrical seat tilt 0 - 45°, the maximum tilt angle (< 45°) 99
5.2.9 Seat tilt configuration tables 101
5.2.10 Guidelines to solve shimmy problems 109
6 Trouble shooting............................................................................................................................................... 110
6.1 Shark faultfinding table 110
6.2 R-net faultfinding table 111
6.3 DX2 faultfinding table 115
6.4 VR-2 faultfinding table 119
7 Technical product information........................................................................................................................... 122
7.1 CE Declaration and standards 122
7.2 Technical information 122
7.3 Electrical diagrams 126
8 Warranty........................................................................................................................................................... 136
8.1 Definitions of terms 136
8.2 Warranty period table 136
Power wheelchairs 136

Puma 20/40 Introduction 5
1 Introduction
1.1 This manual
This manual contains the instructions for repairs and general maintenance of the Puma 20/40 motor driven wheelchair.
Mechanics who do repairs on this wheelchair must be well trained and familiar with the repair methods and the maintenance of
the Puma 20/40 wheelchair.
Always make sure that the work is carried out safely, particularly with respect to procedures requiring the wheelchair to be lifted
up.
We advise that you contact our service department before doing repair work on a wheelchair that has been involved in an
accident.
The following specifications are important when ordering parts:
• Model
• Year of manufacture
• Colour
• Identification number
• Part number
• Name of the part concerned
This information is provided on the identification plate. See 'Identification of the product'.
Available documentation
The following technical documentation is available / required to service this wheelchair:
• User manual
• Service manual
Service and technical support
For information concerning specific settings, maintenance or repair works please contact your supplier. He is always prepared to
help you.
Ensure you have at hand:
• Model
• Year of manufacture
• Identification number
This information is provided on the identification plate. See 'Identification of the product'.
1.2 Identification of the product
The identification plate contains the following data:
A. Model
B. Year of manufacture
C. Identification number
D. Use area indoors or outdoors
E. Maximum load in kg

Puma 20/406 Introduction
1.3 Symbols used in this manual
Warning symbol
Follow the instructions next to this symbol closely.
Not paying careful attention to these instructions could result in physical injury or damage to the wheelchair or the
environment.
Reference symbol
The symbol refers to a separate user manual. This reference will indicate the specific user manual and the section
to which is being referred.
Pull the charge cord out of the battery charging connection of the electric wheelchair before carrying out any maintenance on the
wheelchair.

Safety 7Puma 20/40
2 Safety
2.1 Maximum User weight reduction when Puma 20 options are installed on a Puma 40!
In case one of the following Puma 20 options is installed on a Puma 40 carrier, the maximum user weight is reduced to 136 kg:
• Sedeo Lite Seating System (or any Sedeo Lite component)
• Puma 20 motors
• Puma 20 Comfort suspension
• Puma 20 Electrical tilt adjustment (0 - 25º)
2.2 Personnel qualification
Service technicians:
Repairs may only be carried out by trained and authorised service technicians.
During the execution of their work, they are at all times fully responsible for the fulfilment of locally applicable safety guidelines
and standards.
Temporary employees and persons in training may only carry out repair and replacement work under the supervision of an
authorised service technician.
2.3 Cautions and warning statements
Safety
Safety information is indicated with the warning symbol.
• Follow the instructions carefully next to these warning symbols! Not paying careful attention to these instructions could result
in physical injury or damage to the wheelchair or the environment. Where ever possible, safety information is provided in the
relevant chapter.
Temperature
• Avoid physical contact with the wheelchair’s motors at all times. Motors are continuously in motion during use and can reach
high temperatures. After use, the motors will cool down slowly. Physical contact could cause burns.
• If you do not use the wheelchair, ensure that it is not exposed to direct sunlight for lengthy periods of time. Certain parts of the
wheelchair, such as the seat, the back and the armrests can become hot if they have been exposed to full sunlight for too long.
This may cause burns or allergic reactions to the skin.
Interference precautions
Precautions in combining seat adjustment settings
When fitting and optimizing different seating settings and functions, professionals should be aware that not all settings can be
combined over the full range. There are limitations to take into account when using electrical tilt, although unlikely in average
fitting situations*. Combining extremer settings can cause the back of the seat frame to touch the carrier when tilting. This should
be avoided since it could damage the wheelchair and can be avoided by making some concessions to one or more settings.
Practical guidelines
When fitting a Puma 20/40 with electrical tilt to the needs of a specific client, professionals should check that the seat frame can
tilt freely without the covers with reflector at the back interfer with the carrier.
When to expect interference?
Interference is most likely to occur at low seat heights, especially in combination with large seat depth and centre of gravity set to
the rear of the wheelchair. For detailed information, please refer to the seat tilt configuration tables.
How to avoid interference?
You can resolve interference by:
• Making the seat depth smaller (see seat adjustments, backrest adjustment)
• Positioning the center of gravity forward (see seat adjustments, centre of gravity setting)
• Increasing the seat height (see seat adjustments, seat height adjustment)
• Choosing a different tilt module, an alternative mounting of the 0- 25° tilt module (see seat adjustments, adjusting the electrical
seat tilt) or no tilt at all.
• Also see the seat tilt configuration tables.
* In practice this rarely leads to problems. Firstly because interference mainly occurs when combining a low seat height and large seat depth, settings that rarely
coincide in practice. Usually a low seat height means 'small under leg length', 'small person' so small seat depth. Secondly, in most cases a satisfactory solution can
be created all the same.

8 Safety Puma 20/40
Seat adjustment factory settings
Handicare will deliver a Puma wheelchair with default factory settings. These settings depend on the options ticked on the order
form. When a configuration is ordered that causes interference, Handicare applies modified factory settings and informs the
customer of this via a note included in the wheelchair delivery. The seat tilt configuration tables also provide detailed information
about factory settings.
Moving parts
• A wheelchair has moving and rotating parts. Contact with moving parts may result in serious
physical injury or damage to the wheelchair. Contact with the moving parts of the wheelchair
should be avoided.
• Wheels (turning and castor)
• Electric tilt in space adjustment
• Electric high/low option
• Electric backrest adjustment
• Electric elavating legrests
Electromagnetic radiation
The standard version of your electric wheelchair has been tested on the applicable requirements
with respect to electromagnetic radiation (EMC requirements) In spite of these tests:
• it cannot be excluded that electromagnetic radiation may have an influence on the wheelchair. For example:
• mobile telephony
• large-scale medical apparatus
• other sources of electromagnetic radiation
• it cannot be excluded that the wheelchair may interfere with electromagnetic fields.
For example:
• shop doors
• burglar alarm systems in shops
• garage door openers
In the unlikely event that such problems do occur, we request that you notify your supplier immediately.
Decals and instructions on the wheelchair
Decals and instructions on the wheelchair
• The signs, symbols and instructions affixed to the wheelchair comprise part of the safety facilities. They must never be covered
or removed. They must remain present and clearly legible throughout the entire lifespan of the wheelchair.
• Replace or repair all illegible or damaged signs, symbols and instructions immediately. Please contact your supplier for
assistance.
2.4 Used decals on the wheelchair
Check manual before using
Freewheel switch in ‘Drive’ mode
Freewheel switch in ‘Push’ mode.
Don’t put the freewheel switch in ‘Push’ mode on a slope
Battery charging connection
Attachment point of the tie-down system for transportation in a vehicle.

Safety 9Puma 20/40
Danger of crushing!
Use caution when swinging the controller aside to avoid getting anything crushed.
Trap danger. Danger of getting fingers jammed.

10 Tools, parts and components Puma 20/40
3 Tools, parts and components
3.1 Tools
The tools below are needed for various mechanical settings and maintenance:
Quantity Description Size (mm)
1 Screwdriver, medium 5
1 Screwdriver, crosshead -
1 Hammer (plastic) -
1 Chaser -
1 Pair of wire cutters -
1 Circlip pliers -
1 Water pump pliers -
2 Open ended spanner 10, 13
2 Ring spanner 10, 13
1 Torque wrench, socket 10, 13
1 Torx key T30
1 Allen key 2, 4, 6, 8
1 Loctite 243 -
1 Loctite 270 -
# Tie wraps
Remark Size: the EU key width (of the relevant tool).
Use only high-quality tools for the adjustment(s) described.
Make sure that the hexagon of the spanner is attached securely to the hexagon of the fastening article. This prevents the 'rotation'
of hexagons of fastening articles and spanners that may affect proper adjustment.
3.2 Tools electronics
The following tools are needed for various electronic settings:
Article
numbers Description
DX2 DX Shark Rnet Pilot+ VR-2 PC Hand
Brand
1001893 Shark Programming adaptor (DK-ADAPT) X X Dynamic
00355.0440 Hand Held Programmer (DX-HHP-GDW) X X X X Dynamic
1009567 Programming adaptor for DX2, Shark, A-series and R-series
(DWIZ-ADAPT) X X X* X X Dynamic
00355.0469 Wizard programming cable (GSM61171) X X X X Dynamic
1003236 Dynamic Wizard USB set (DWIZ-KIT + DWD-OEM-U) X X X X Dynamic
9006857 R-net Diagnostic Test Tool (D50996) X X PGDrivesTechnology
9006858 R-net Programming cable for R-net DTT (SA79174) X X PGDrivesTechnology
PR0111 Pilot+ Hand Held Programmer PP1B (D49511) X X X PGDrivesTechnology
9006859 VR-2 Programming cable for R-net DTT (SA79176) X X PGDrivesTechnology
PR0200 Pilot+ PC Programmer A (D50144) X X X PGDrivesTechnology
PR0210 PG Pilot+ PC Programmer B (D50145) X X X PGDrivesTechnology
9003295 R-net PC Programmer OEM (D50611) X X PGDrivesTechnology
9003296 R-net PC programmer Dongle OEM X X PGDrivesTechnology
X* = except the Hand Help Programmer

Spare parts | 11Puma 20/40
4 Spare parts
4.1 Use of the parts lists
This document is meant as a reference book to be used to order parts for the wheelchair that is shown on the front cover.
How to order:
When ordering parts, please specify:
• Serial number (see the identification plate)
• Group (to which the relevant part belongs)
• Article number
• Number of parts required
• Description (in the relevant language)
• Dimensions (if applicable)
Remark:
• If a part does not have a position number, it means that the part concerned cannot be purchased separately. The part
concerned is part of the assembly shown. This assembly must be ordered as one piece. It has to be replaced in its entirety.
• Boxed position numbers refer to the relevant drawing.
Order address:
Please mail or fax your orders to your supplier.
Service technicians:
Repairs may only be carried out by trained and authorised service technicians.
During the execution of their work they are at all times fully responsible for the fulfilment of locally applicable safety guidelines and
standards.
Temporary employees and persons in training may only carry out repair and replacement work under the supervision of an
authorised service technician.

12 | Spare parts Puma 20/40
Pos Description Page
4.2 Carrier and seat adjustments
01 Battery tray and chair interface Puma 20/40 13
02 Suspension arm and motors Puma 20 14
03 Suspension arm and motors Puma 40 15
04 Castor forks and wheels Puma 20 16
05 Castor forks and wheels Puma 40 17
06 Covers Puma 20 18
07 Covers Puma 40 19
08 Tilt and lift modules Puma 20 20
09 Tilt and lift modules Puma 40 21
10 Kerb climber Puma 20/40 22

Puma 20/40 Spare parts | 13
Pos Qty Article number Description
1-3 1 9005935 Chair Interface set
4,5a 2 9002758 Battery MK M40-12 Gel (40Ah C20)
4,5b 2 9006051 Battery MK M50 AGM (50Ah C20)
4,5c 2 9002759 Battery MK M34-12 Gel (60Ah C20)
4,5d 2 1001453 Battery MK M24-12 Gel (74Ah C20)
- 2 9002752 Set battery connection covers
6a,6b,6c,6d,7 4 9005956 Battery spacer set universal
6a,6b,7 4 9005957 Battery spacer set MK (40/50A)
6c,6d,7 4 9005958 Battery spacer set MK (60/74A)
6,7* 1 9005959 Battery spacer set Sonnenschein
*= spacers needed if equiped with Sonnenschein Batteries (not a standard
Handicare item)
8,9 1 9005931 Battery straps
8-13 1 9005930 Battery box
14a 2 1007080 Socket head screw DX2
14b 2 9006237 Socket head screw Shark
14c 2 00000.4042 Socket head screw R-net 120
14d 2 00000.4035 Socket head screw R-net 90 / VR2
- 1 1015808 Battery charger 24V 5A CTE
- 1 1011502 Battery charger 24V 8A CTE
- 1 1017038 Battery charger Staubo AS EC-buddy ECB 801 (IP44)
- 1 1017039 Battery charger Swede electronics WPC-500 (IP65)
- 1 1017040 Battery charger Defa MC 5051 (IPX4)
1 Battery tray and suspension and chair interface Puma 20/40

14 | Spare parts Puma 20/40
Pos Description Page
1
2
3
4
6
5
8
9
10
7
11
12
13
14 15
16
2 Dahl car docking system Puma 40 FWD
1,12-16 1 1017025 Battery Box Car Docking FWD
2-11 1 1017123 Dahl cardocking, set
3,4 1 1017124 Plate and bolts Dahl cardocking system
9 1 - O-ring 7x2,5 NBR 70
10 1 - Washer Pa Di/Do 10.6/20 S=2.2

Puma 20/40 Spare parts | 15
Pos Qty Article number Description
1
2
3
4
6
5
8
9
10
7
11
12
13
14
15
16
3 Dahl car docking system Puma 40 RWD
1,12-16 1 1017026 Battery Box Car Docking RWD
2-11 1 1017123 Dahl cardocking, set
3,4 1 1017124 Plate and bolts Dahl cardocking system
9 1 - O-ring 7x2,5 NBR 70
10 1 - Washer Pa Di/Do 10.6/20 S=2.2

16 | Spare parts Puma 20/40
Pos Qty Article number Description
SM_P20_RWD_03
A
A
A
A
Loctite 243
B
Loctite 270
C
25Nm
A
B
A
ARWD
FWD
32
37
13
26
30
19
21
20
29
25
28
27
23
31
11
1
5
10
15 8
7
18
6 3 4
38
2
14
12
16
17
9
33a, 34a, 35a, 36a
33b, 34b, 35b, 36b
24a
24b
C
1-9 2 9005963 Anti tip complete FWD
1,3,4,6 2 9002896 Anti tip wheel FWD
10-18 2 9005962 Anti tip complete RWD
10,12,13,15 2 9002897 Anti tip wheel RWD
19-21,23 1 9005964 Rubber suspension set
24a,25-29 1 9005939 Motor bracket right
24b,25-29 1 9005938 Motor bracket left
28-32,33,37,38 1 9007478 Motor set, 6 km/h DX, Puma 20
28-32,33a,37,38 1 9007479 Motor RWD right/FWD left, 6 km/h DX, Puma 20, see paragraph 5.2.1.
28-32,33b,37,38 1 9007480 Motor RWD left/FWD right, 6 km/h DX, Puma 20, see paragraph 5.2.1.
28-32,34,37,38 1 9007481 Motor set, 6 km/h PG, Puma 20
28-32,34a,37,38 1 9007482 Motor RWD right/FWD left, 6 km/h PG, Puma 20, see paragraph 5.2.1.
28-32,34b,37,38 1 9007483 Motor RWD left/FWD right, 6 km/h PG, Puma 20, see paragraph 5.2.1.
28-32,35,37,38 1 9007484 Motor set, 10 km/h DX, Puma 20
28-32,35a,37,38 1 9007485 Motor RWD right/ FWD left, 10 km/h DX, Puma 20, see paragraph 5.2.1.
28-32,35b,37,38 1 9007486 Motor RWD left/FWD right, 10 km/h DX, Puma 20, see paragraph 5.2.1.
28-32,36,37,38 1 9007487 Motor set, 10 km/h PG, Puma 20
28-32,36a,37,38 1 9007488 Motor RWD right/FWD left, 10 km/h PG, Puma 20, see paragraph 5.2.1.
28-32,36b,37,38 1 9007489 Motor RWD left/FWD right, 10 km/h PG, Puma 20, see paragraph 5.2.1.
30-31 2 9005644 Freewheel lever
32 2 9002784 Brake Release Sticker
37 1 9006360 Puma 20 Motor Brushes 4pc service
38 2 9006452 Puma 20 Motor Brake Cover service
4 Suspension arm and motors Puma 20

Puma 20/40 Spare parts | 17
Pos Qty Article number Description
1-12 1 9005965 Rubber suspension + bridge
8-12 1 9005966 Rubber suspension set
13-21 2 9005963 Anti tip complete FWD
13,15,16,18 2 9002896 Anti tip wheel FWD
22-30 2 9005962 Anti tip complete RWD
22,24,25,27 2 9002897 Anti tip wheel RWD
31a,32-36 1 9005939 Motor bracket right
31b-36 1 9005938 Motor bracket left
31c 1 9006782 Motor bracket 4 pole, right
31d 1 9006781 Motor bracket 4 pole, left
35-39, 40a, 44a 1 9006783 Motor 4-pole RWD left/FWD right, 6 km/h DX, Puma 40
35-39, 40b, 44a 1 9006784 Motor 4-pole RWD right/FWD left, 6 km/h DX, Puma 40
35-39, 41a, 44a 1 9006785 Motor 4-pole RWD left/FWD right, 6 km/h PG, Puma 40
35-39, 41b, 44a 1 9006786 Motor 4-pole RWD right/FWD left, 6 km/h PG, Puma 40
35-39, 42a, 44a 1 9006787 Motor 4-pole RWD left/FWD right, 10 km/h DX, Puma 40
35-39, 42b, 44a 1 9006788 Motor 4-pole RWD right/FWD left, 10 km/h DX, Puma 40
35-39, 43a, 44a 1 9006789 Motor 4-pole RWD left/FWD right, 10 km/h PG, Puma 40
35-39, 43b, 44a 1 9006790 Motor 4-pole RWD right/FWD left, 10 km/h PG, Puma 40
35-39, 45a, 44b 1 9008626 Motor 4-pole RWD left/FWD right, 12,5 km/h DX, Puma 40
35-39, 45b, 44b 1 9008629 Motor 4-pole RWD right/FWD left, 12,5 km/h DX, Puma 40
35-39, 46a, 44b 1 9008630 Motor 4-pole RWD left/FWD right, 12,5 km/h PG, Puma 40
35-39, 46b, 44b 1 9008631 Motor 4-pole RWD right/FWD left, 12,5 km/h PG, Puma 40
37-38 2 9005644 Freewheel lever
39 2 9002784 Brake Release Sticker
44a 2 9005107 4PHT 8 mm motor brushes service
44b 2 9008819 4PHT 5 mm motor brushes service
5 Suspension arm and motors Puma 40

18 | Spare parts Puma 20/40
Pos Qty Article number Description
A
A
B,C Loctite 243
C
7Nm
B
25Nm
A
13
15 17 14
1
4
5
8
6
11
9
12e
12f
12g
12h
16a
16b
16c
16d
3
2
7a
7b
10a
10b
12a
12b
12c
12d
16e
1-6 2 9005934 Anti shimmy + bearings, set, HC
7a,8,9,10a 2 9005932 Castor fork, HC
7b,8,9,10b 2 9007752 Castor fork 60 mm, HC
8,9,10a,11,12a 2 1016986 Castor wheel indoor 2.80/2.50-4, air, HC
8,9,10b,11,12a 2 1016987 Castor wheel 200x50, grey air, HC
8,9,10b,11,12a 2 1016988 Castor wheel 200x50, grey punctureproof, HC
8-11,12b 2 1016989 Castor wheel indoor 2.80/2.50-4, punctureproof, HC
8-11,12c 1 1016990 Castor wheel outdoor 3.00-4, grey air, right, HC
8-11,12d 1 1016991 Castor wheel outdoor 3.00-4, grey air, left, HC
8-11,12e 2 1016992 Castor wheel outdoor 3.00-4, grey punctureproof, right, HC
8-11,12f 2 1016993 Castor wheel outdoor 3.00-4, grey punctureproof, left, HC
8-11,12g 2 1017041 Castor wheel black outdoor 3.00-4, grey puntureproof, All Weather, right, HC
8-11,12h 2 1017042 Castor wheel black outdoor 3.00-4, grey puntureproof, All Weather, left, HC
13-15 2 9006792 Drive wheel mounting, set, HC
13-15,16a,17 2 1016994 Drive wheel Indoor 12 1/2 x 2 1/4, air, HC
13-15,16b,17 2 1016995 Drive wheel Indoor 12 1/2 x 2 1/4, punctureproof, HC
13-15,16c,17 2 1016996 Drive wheel outdoor 3.00-8, grey air, HC
13-15,16d,17 2 1016997 Drive wheel outdoor 3.00-8, grey punctureproof, HC
13-15,16e,17 2 1017043 Drive wheel black outdoor 3.00-8, grey punctureproof, All Weather, HC
6a Castor forks and wheels Puma 20, Handicare

Pos Qty Article number Description
Puma 20/40 Spare parts | 19
A
A
B,C Loctite 243
C
7Nm
B
25Nm
A
13
1514
1
4
5
8
6
11
9
12a
12b
12c
12d
12e
16a
16b
16c
16d
3
2
7a
7b
10a
10b
6b Castor forks and wheels Puma 20
1-6 2 9005934 Anti shimmy + bearings, set
7a,8,9,10a 2 9005932 Castor fork
7b,8,9,10b 2 9007752 Castor fork 60 mm
8,9,10a,11,12a 2 9005986 Castor wheel indoor 2.80/2.50-4, air
8,9,10b,11,12a 2 9007753 Castor wheel 200x50, grey air
8,9,10b,11,12a 2 9007754 Castor wheel 200x50, grey punctureproof
8-11,12b 2 9005989 Castor wheel indoor 2.80/2.50-4, punctureproof
8-11,12c 1 9005987 Castor wheel outdoor 3.00-4, grey air, right
8-11,12d 1 9006820 Castor wheel outdoor 3.00-4, grey air, left
8-11,12e 2 9005990 Castor wheel outdoor 3.00-4, grey punctureproof
13-15 2 9006792 Drive wheel mounting, set
13-15,16a 2 9005992 Drive wheel Indoor 12 1/2 x 2 1/4, air
13-15,16b 2 9005995 Drive wheel Indoor 12 1/2 x 2 1/4, punctureproof
13-15,16c 2 9005993 Drive wheel outdoor 3.00-8, grey air
13-15,16d 2 9005996 Drive wheel outdoor 3.00-8, grey punctureproof

20 | Spare parts Puma 20/40
Pos Qty Article number Description
A
Loctite 243
C
7Nm
B
25Nm
A
B,C
A18 19
10 20 21 22
1
5
8
6
9
3
7
2
23, 24, 25, 26, 27, 28, 29
11, 12
4a, 4b
30
13a, 14a, 15a, 16a, 17a
13b, 14b, 15b, 16b, 17b
1-3,4a,5,6 2 9005934 Anti shimmy + bearings, set, HC
1-3,4b,5,6 2 9008818 Anti shimmy XT + bearings, set, HC
7-10 2 9005932 Castor fork, HC
8-11 2 1016998 Castor wheel indoor 2.80/2.50-4, air, HC
8-10,12 2 1016999 Castor wheel indoor 2.80/2.50-4, punctureproof, HC
8-10,13a 1 1017000 Castor wheel outdoor, 3.00-4, grey air, right, HC
8-10,13b 1 1017001 Castor wheel outdoor 3.00-4, grey air, left, HC
8-10,14a 1 1017002 Castor wheel outdoor, 3.00-4, grey punctureproof, right, HC
8-10,14b 1 1017003 Castor wheel outdoor, 3.00-4, grey punctureproof, left, HC
8-10,15a 1 1017044 Castor wheel silver-grey outdoor 3.00-4, grey puntureproof, All Weather, right, HC
8-10,15b 1 1017045 Castor wheel silver-grey outdoor 3.00-4, grey puntureproof, All Weather, left, HC
8-10,16a 1 1017004 Castor wheel outdoor 3.00-4, black air, right, HC
8-10,16b 1 1017005 Castor wheel outdoor 3.00-4, black air, left, HC
8-10,17a 1 1017006 Castor wheel outdoor 3.00-4, black punctureproof, right, HC
8-10,17b 1 1017007 Castor wheel outdoor 3.00-4, black punctureproof, left, HC
18-22 2 9006008 Drive wheel mounting, set, HC
18,20-23,30 2 1017008 Drive wheel indoor 12 1/2 x 2 1/4, air, HC
18,20-22,24,30 2 1017009 Drive wheel indoor 12 1/2 x 2 1/4, punctureproof, HC
18-22,25,30 2 1017010 Drive wheel outdoor 3.00-8, grey air, HC
18-22,26,30 2 1017011 Drive wheel outdoor 3.00-8, grey punctureproof, HC
18-22,27,30 2 1017046 Drive wheel silver-grey outdoor 3.00-8, grey puntureproof, All Weather, HC
18-22,28,30 2 1017012 Drive wheel outdoor 3.00-8, black air, HC
18-22,29,30 2 1017013 Drive wheel outdoor 3.00-8, black punctureproof, HC
7a Castor forks and wheels Puma 40, Handicare
