Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
PH-CERONA
Models: CERONA-IFT Series
Passive Heat Kit Installation Instructions
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
Introduction
The Passive Heat (PH-CERONA) Heat Management
System conveys warm air from the replace into the same
room through either one front discharge slot, two side dis-
charge heat registers or an open top discharge.
Installation of the Passive Heat kit must be done in con-
junction with the appliance installation. Installation of this
kit MUST be performed by a qualied service technician.
WARNING! Risk of Fire! DO NOT install the Passive
Heat (PH-CERONA) Heat Management System with
models that are not approved. Overheating will occur.
Side Discharge Passive Heat systems require the use of
the Register Cover Kit (PH-SIDETRIM), which must be
purchased separately, to complete the installation. Contact
your dealer to order the kit.
Passive Heat Trim Kits are also available for installation
with the Front Discharge Passive Heat system which must
be purchased separately. Contact your dealer to order
the appropriate kit: PH-FRTTRIM-36 or PH-FRTTRIM-42.
Follow instructions included with the trim kit to complete
installation of the Passive Heat system.
The Passive Heat kit is tested and safe when installed in
accordance with this installation manual. It is your respon-
sibility to read all instructions before starting installation
and to follow these instructions carefully during installation.
The Passive Heat kit is carefully engineered and must
be installed only as specied. If you modify it or any of
its components you will void the warranty, and you may
possibly cause a re hazard. Installation must be done
according to applicable local, state, provincial, and/or
national codes.
Table of Contents
Introduction .......................................1
Preparation .......................................1
Kit Contents.......................................2
Clearances .......................................3
Good Faith TV Guidelines ............................4
Framing Dimensions- Passive Heat Front Discharge . . . . . . . 5
Framing Dimensions - Passive Heat Side Discharge ....... 6
Framing Dimensions - Passive Heat Open Top Discharge ..7
Adapter Installation - Front, Side and Open Top Discharge ..8
Passive Heat Template - Front and Side Discharge ........ 9
Finishing ........................................10
Mantel Projections.................................12
Installation of Passive Heat with Other Optional Heat
Management Systems ...........................12
Maintenance .....................................12
Preparation
Plan the location of the appliance.
Determine whether front, open top or side discharge is
to be installed and follow instructions for the appropriate
application.
CAUTION! Risk of Burns!
• The appliance should be turned o and cooled before
kit is installed.
• Shut o gas supply.

2Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Figure 1 Passive Heat Kit Components
DESCRIPTION SERVICE PART NO. QTY
Passive Heat Adapter 2617-302 2
Screw 030-860/8 1
Passive Heat Template 2617-137 4
Kit Contents
PH-CERONA
Kit Contents
Remove and verify contents from packaging before
beginning installation. See Figure 1.
2617-302
Passive Heat Adapter
030-860/8
Screw
Power Vent Option
If an optional power vent will be installed in conjunction
with the Passive Heat Kit (PH-CERONA), Hearth & Home
Technologies recommends the PVLP-SLP or PVV-SLP
power vent options. If the application does not allow for the
PVLP-SLP or PVV-SLP to be used, the PVI-SLP-B may be
used. The PVI-SLP-B must be mounted outside the chase
due to the higher noise level created.
2617-137
Passive Heat Template

3
Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Clearances
Ensure all clearances are maintained.
• Maintain minimum distance from top of appliance
opening to the room ceiling. Refer to the gures in the
Framing section of this instruction.
• An open space, or “cavity,” is allowed up to three inches
above the top of the passive heat discharge opening. A
chase ceiling is required when the open space “cavity”
exceeds three inches above the discharge opening.
Construct the false ceiling from material such as metal,
drywall or plywood.
WARNING! Risk of Fire! Maintain clearances to
combustibles as specied.
INTERIOR WALL
FLOOR
CEILING
36 IN.
36 IN.
6 IN.
18 IN.
18 IN.
PASSIVE HEAT FRONT DISCHARGE OPENING
(Clearances for front and side discharge installations)
APPLIANCE
*CEILING
INTERIOR WALL
6 IN.
36 IN.
= SPRINKLER HEAD
PASSIVE HEAT OPEN TOP DISCHARGE OPENING
Clearance - Sprinkler to Passive Heat
Figure 2 references the clearances that must be adhered
to when installing a sprinkler head near a passive heat
discharge opening.
* If the distance from the top of the passive heat front
discharge opening to the ceiling is 36 inch or greater,
then there is no 36 inch clearance requirement. This is
for a ceiling sprinkler head installation only.
Note: When installing a sprinkler head near a heat
discharge opening, it is recommended to use
a sprinkler head with an Extra High sprinkler
activation temperature rating.
• When installing a sprinkler head exterior of the chase,
maintain the following clearances to discharge openings
(convection slots, passive heat registers, heat zone
registers, etc.): 36 inch top, 18 inch sides and 6 inch
bottom.
• DO NOT install a sprinkler head inside a chase that is
set up for passive heat.
Figure 2 Sprinkler Head Clearance

4Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Good Faith TV Guidelines
Figure 3
Minimum Dimensions
A B C D
Min Max 2 in. 4 in. 1 in.
6 in. 18 in.
Figure 3.A Clearances to mantels or other combustibles
above appliance with Passive Heat installed
NON-COMBUSTIBLE
FACING MATERIAL
COMBUSTIBLE
FACING MATERIAL
1 in.
TYPICAL
D
APPLIANCE HEADER
1"
2"- 3"
4" - 6"
7"- 9"
10" - 12"
TOP OF ARCH OPENING
CEILING
A
B
C
MAXIMUM
A B C D
CERONA-36-IFT in. 44-3/4 16-3/4 16 2
mm 1137 425 406 51
CERONA-42-IFT
in. 44-3/4 16-3/4 16 2
mm 1137 425 406 51
Measurement from top edge
of opening to bottom of appliance =
CERONA-36-IFT = 34-1/2 in.
CERONA-42-IFT = 38-5/8 in.
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
FRONT DISCHARGE = 2 IN. MIN.
TV
A
*Wire mesh required for front discharge or open top discharge passive heat installations with discharge
opening of 3 in. or greater.
APPLIANCE
OPENING
2 X 4 FRAMING
2 X 4 OR 2 X 6
CHASE CEILING - SEE FIGURES 5 and 6
(FRONT AND SIDE DISCHARGE ONLY)
1/2 IN. X 1/2 IN. WIRE MESH*
SEE FIGURES 4, 5 and 6
(MINIMUM CLEARANCE TO
DISCHARGE OPENING)
NOTE: The TV installation requirements are the same regardless of whether the Passive Heat kit is installed with a
top discharge, side discharge or open top discharge.
Good Faith Guidelines for TV Installations
Above a Appliance with Passive Heat Option
FRAMING
This diagram specific to these models: CERONA-36-IFT , CERONA-42-IFT
WARNING! Risk of Fire! Mesh screen required on bottom of discharge opening when discharge
opening is greater than 3 in. Secure mesh to top of framing.
B
D
C
See Figure
3.A
Letter D
MANTEL
= NON-COMBUSTIBLE ZONE

5
Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23

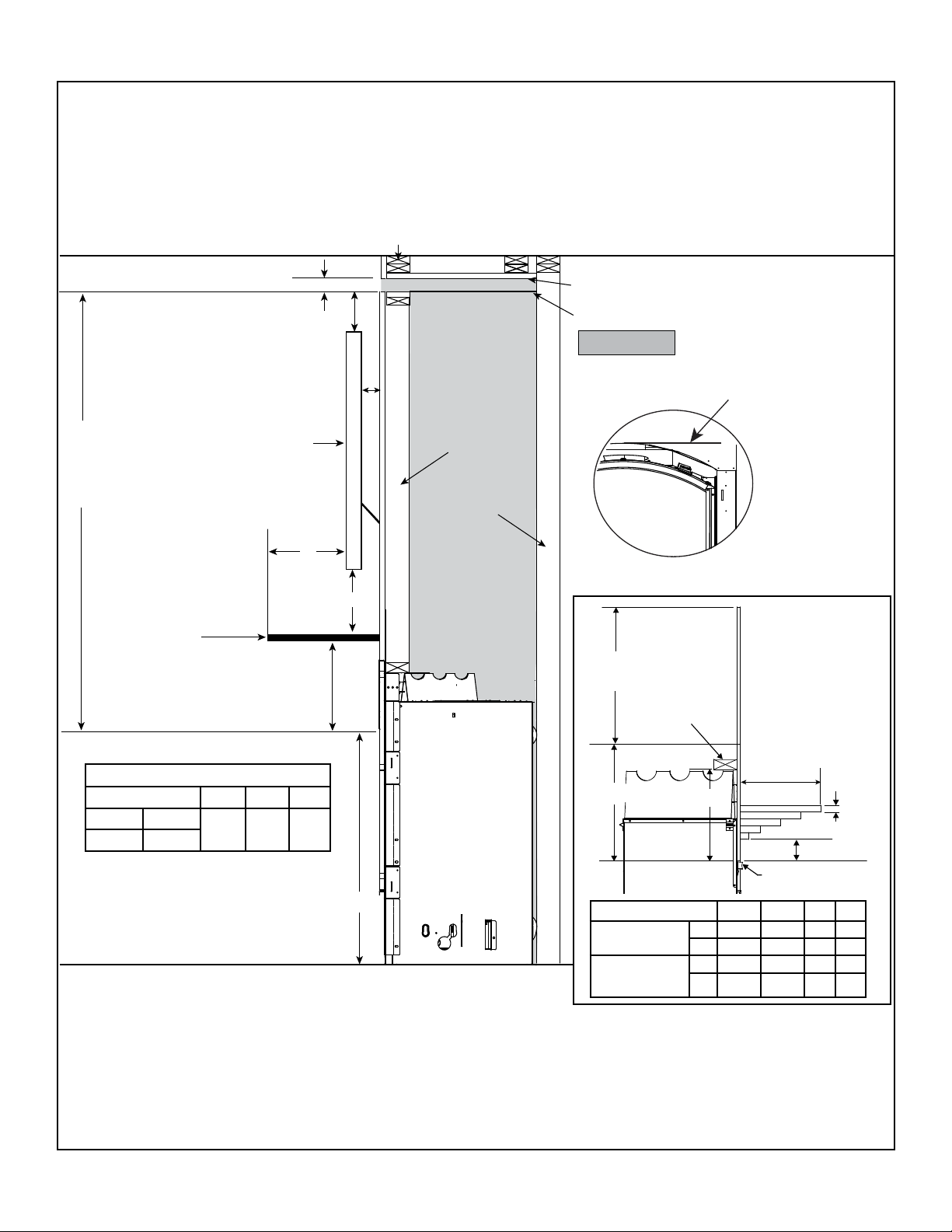

Figure 4 Passive Heat Front Discharge Framing Dimensions With and Without a Trim Kit
Framing Dimensions- Passive Heat Front Discharge
Front Discharge: Air conveyed into the room through one front discharge slot.
WARNING! Risk of Fire! Wire mesh required on
bottom of discharge opening (Dimension A) when
nished discharge opening is greater than 3 inch
Secure mesh to top of framing.
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
2 IN. MIN.
TV
1/2 IN. X 1/2 IN.
WIRE MESH**
CHASE CEILING REQUIRED
WITHIN 3 IN. OF TOP
OF OPENING
WIRE MESH**
= PASSIVE HEAT
DISCHARGE OPENING
0-3 IN.
= CHASE CEILING ZONE
CHASE DETAIL
* Measurement for Trim Kit = 3-1/2 inch + Additional Finishing Material Thickness
** Measurement without Trim Kit = 2 inch + Additional Finishing Material Thickness. If nished discharge opening
height is greater than 3 inch, wire mesh is required.
A
EB
D
C
FRONT DISCHARGE MINIMUM FRAMING DIMENSIONS
A
B C D E
TRIM KIT*
INSTALLED
(PH-FRTTRIM)
NO TRIM
KIT**
Required Height of
Discharge Opening
Height of
Discharge
Opening
Clearance to
Top of
Discharge
Opening
Width of
Discharge
Opening
Clearance to
Top of Discharge
Opening From
Bottom of
Appliance
Clearance to
Bottom of Discharge
Opening from
Bottom of Appliance
CERONA-36-IFT Inches 3-1/2 2 48 36-1/2 82-1/2 80-1/2
millimeters 89 51 1219 927 2096 2045
CERONA-42-IFT
Inches 3-1/2 2 48 42-3/8 86-5/8 84-5/8
millimeters 89 51 1219 1076 2200 2150

6Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23

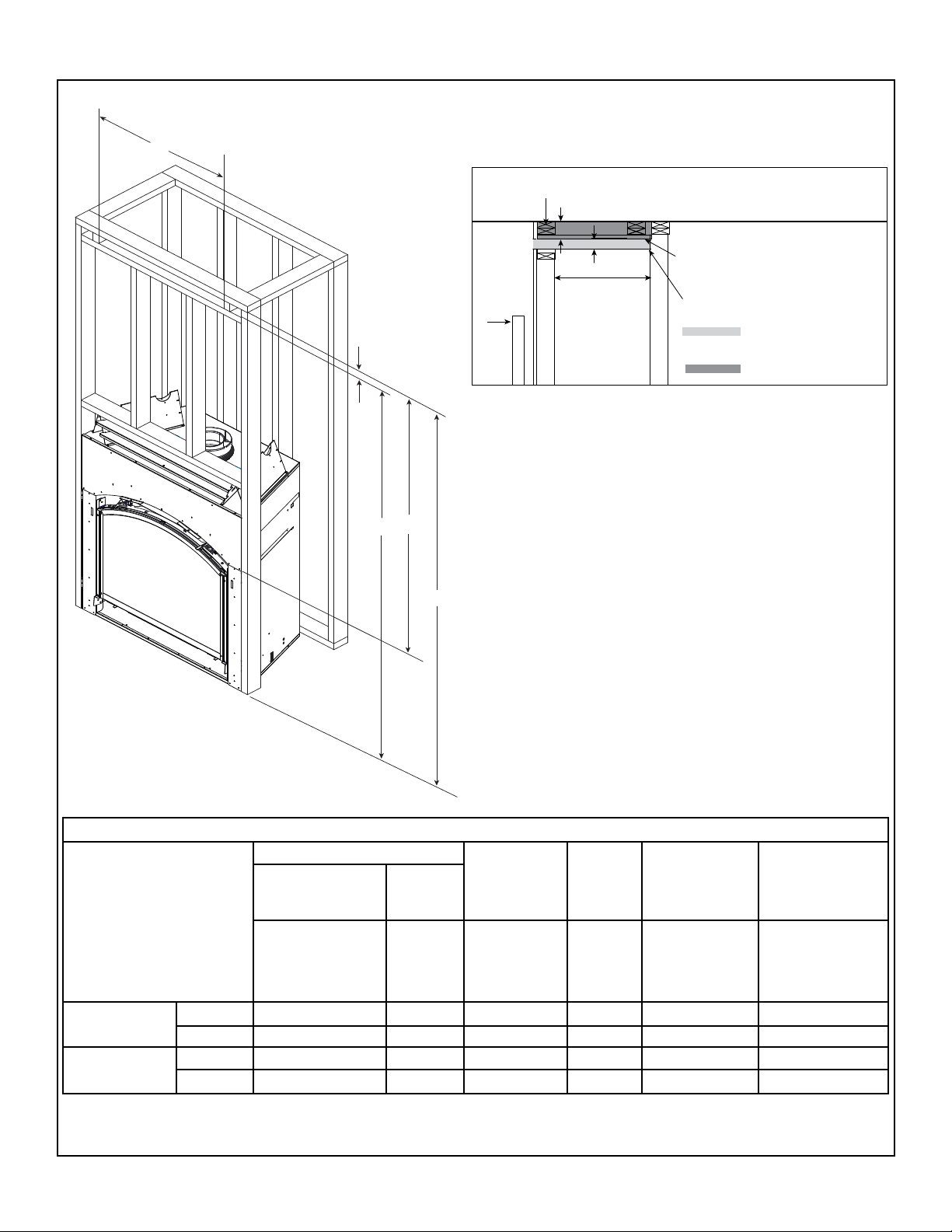

Figure 5 Passive Heat Side Discharge Framing Dimensions
Framing Dimensions - Passive Heat Side Discharge
Side Discharge: Air conveyed into the room through two discharge registers,
one on each side of appliance.
WARNING! Risk of Fire! DO NOT place combustible
objects or combustible materials in non-combustible
zone. Appliance and combustible materials will overheat.
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
= PASSIVE HEAT
DISCHARGE OPENING
0-3 IN.
= CHASE CEILING ZONE
DISCHARGE OPENING
CHASE CEILING ZONE
CHASE CEILING REQUIRED WITHIN 3 IN.
OF TOP OF OPENING
CHASE DETAIL
A
D
C
E
B
APPLIANCE MAY BE
INSTALLED OFF OF FLOOR
SIDE DISCHARGE FRAMING DIMENSIONS
A B C D E
Height of
Discharge
Opening
Width of
Discharge
Opening
Minimum
Clearance to
Discharge Opening From
Bottom of Appliance
Minimum Clearance to
Ceiling from Bottom of
Appliance
Minimum
Clearance to
Combustible
Materials
CERONA-36-IFT Inches 12-1/4 8-3/4 70-1/4 84 18
millimeters 311 222 1784 2134 457
CERONA-42-IFT Inches 12-1/4 8-3/4 74-3/8 88-1/8 18
millimeters 311 222 1889 2238 457

7
Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Figure 6 Passive Heat Minimum Framing Dimensions Open Top Discharge
*Mesh screen required for front discharge or open top discharge passive heat installations with discharge
opening of 3 inch or greater.
Framing Dimensions - Passive Heat Open Top Discharge
WARNING! Risk of Fire! Mesh screen required on bottom of discharge opening when discharge
opening is greater than 3 inch Secure mesh to top of framing.
Open Top Discharge: Both sides and the top are open allowing air to be conveyed into the room.
OPEN TOP DISCHARGE MINIMUM FRAMING DIMENSIONS
A* B C
Height of Discharge
Opening
Clearance to
Discharge Opening
Width of Discharge
Opening
CERONA-36-IFT Inches 2 48 45-1/8
millimeters 51 1219 1146
CERONA-42-IFT
Inches 2 48 52-1/8
millimeters 51 1219 1324
A
B
C

8Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Adapter Installation - Front, Side and Open
Top Discharge
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
1. Remove both top knockouts from outer wrap as
shown in Figure 7. Discard knockout piece and
ensure no other material or debris is blocking the hole
created by removing the knockout.
2. Remove both insulation plugs from insulation blanket
visible through top knockout openings. Discard
insulation plugs and ensure no other material or
debris is blocking the hole created when removing
insulation plug.
3. Center adapter over opening with the solid portion
facing the front of the appliance. Attach both adapters
to appliance by installing three screws per adapter.
See Figure 8.
Note: If installing an additional Heat Management
System, refer to the instructions included with the kit for
further installation instructions.
REMOVE
KNOCKOUTS
Figure 7 Remove Knockouts
Figure 8 Attach Adapters
FRONT OF APPLIANCE
SOLID PORTION

9
Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Passive Heat Template - Front and Side
Discharge
Install the passive heat templates to prevent nishing
material from being installed over passive heat discharge
openings. Use two templates for front discharge and four
templates for side discharge.
1. Hand bend templates as shown in Figure 9.
2. Place one template into the top left corner of the
discharge opening as shown in Figure 10. Align the
outside edge of the framing with the notch in the
template as shown in Figure 11. Attach to framing
using wood screws.
3. Place the second template into the bottom right
corner and attach using the same method as in
Step 2. If installing templates on framing for a side
discharge kit, repeat the process for the additional
two templates on the other side discharge opening.
4. Once the wall nishing material has been installed,
remove the templates and discard. After the
templates have been removed, the trim kit, register,
or other nishing options may be installed.
TEMPLATES INSTALLED
(FRONT DISCHARGE SHOWN)
HAND BEND LINE

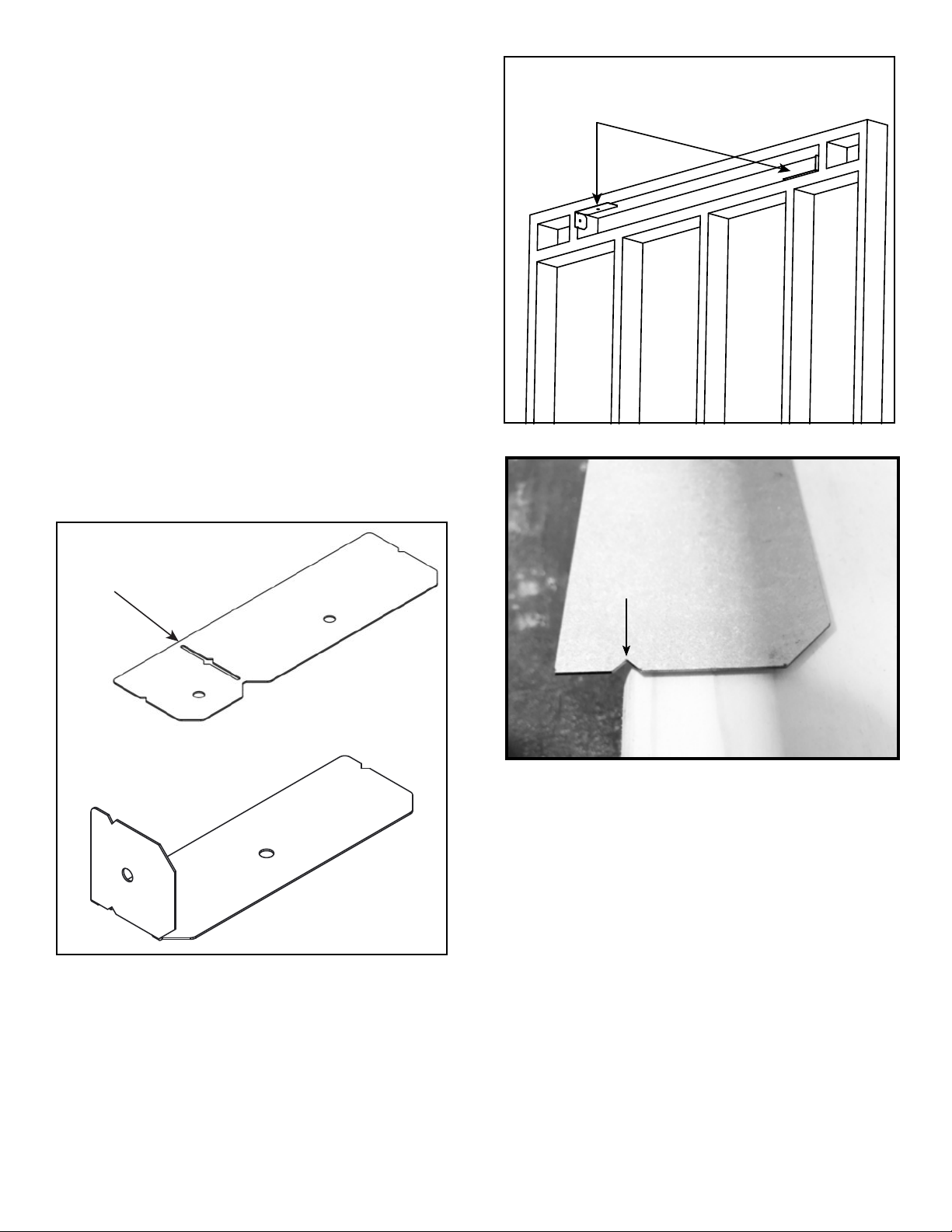

Figure 9 Hand Bending the Template
Figure 10 Template Installation
Figure 11 Template Notch Alignment
ALIGN NOTCH WITH
EDGE OF FRAMING

10 Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Finishing
1. Apply wall sheathing material, such as drywall up to
1/2 in. (13mm) thick up to the edge of the discharge
opening.
WARNING! Risk of Overheating! DO NOT apply wall
sheathing past the edge of discharge opening or nishing
templates. Remove nishing templates before appliance
operation. Overheating of appliance and combustible
materials will occur.
2. Facing Material with Front Trim Kit (PH-FRTTRIM)
1 Inch Thick or Less: When using Non-Combustible fac-
ing material in this thickness range, the Overlap Fit meth-
od may be used. Place facing materials up to the edge of
the discharge opening and install trim kit as instructed.
Facing must not interfere with the air ow through the trim
kit.
Greater than 1 Inch: Non-Combustible facing material
in this thickness range must use the Inside Fit method.
Place facing materials up to ½ in. (13mm) away from the
edge of the trim kit to allow for proper removal of the vent
cover. Install trim kit as instructed. Consult the appliance
Installation Manual to determine maximum facing mate-
rial thickness.
3. Facing Material with Side Discharge (PH-SIDETRIM)
1 Inch Thick or Less: When using Non-Combustible
facing material in this thickness range, the Overlap Fit
method may be used. Place facing materials up to the
edge of the discharge opening and install register covers
as instructed. Facing must not interfere with the air ow
through the trim kit.
Greater than 1 Inch: Non-Combustible facing material
in this thickness range must use the Inside Fit method.
Place facing materials up to the edge of the register cov-
ers. Install register covers as instructed. Consult the units
Installation Manual to determine maximum facing mate-
rial thickness.
4. Install trim kit (PH-FRTTRIM or PH-SIDETRIM) as in-
structed.
Side Discharge: The PH-SIDETRIM kit is required to
complete installation.
Front Discharge: The PH-FRTTRIM kit is an optional
nishing method. Other standard nishing methods may
be used as well.
PAINT FRAMING AROUND
PASSIVE HEAT OPENING
PAINT CEILING FIRESTOP
PAINT VENT PIPE
Figure 12 Painting Visible Components
Painting
The location of the Passive Heat discharge opening could
allow for venting and other construction materials to be
visible. It is recommended to paint the vent pipe, restop,
and other visible construction materials, as shown in
Figure 12, using a high temperature paint with a minimum
of 300 °F continuous exposure rating. Hearth & Home
Technologies recommends using black touch up paint (part
number TUP-GBK-12) available from your Hearth & Home
Technologies dealer.

11
Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
2 IN. MIN. *
DO NOT INSTALL
FINISHING MATERIAL
ON THIS SURFACE.
2 IN. (51 mm) MIN.
OPENING MUST
NOT BE BLOCKED
CEILING
CEILING
2 IN. MIN. *
DO NOT INSTALL
FINISHING MATERIAL
ON THIS SURFACE.
2 IN. (51 mm) MIN.
OPENING MUST NOT
BE BLOCKED
CEILING
12-1/4 IN.
(311 mm)
8-3/4 IN.
(222 mm)
SIDE DISCHARGE
(DISCHARGE SLOTS ON BOTH SIDES OF APPLIANCE)
FRONT DISCHARGE
OPEN TOP DISCHARGE
= COMBUSTIBLE MATERIAL ALLOWED
* = Mesh screen required for front discharge or open top discharge passive heat installations with
discharge opening of 3 in. (76 mm) or greater.
(51 mm) (51 mm)
Figure 14 Finishing Material Installed
NON-COMBUSTIBLE
FINISHING MATERIAL
INSIDE FIT = GREATER THAN
1 IN. THICK
1/2 IN. THICK WALL
SHEATHING
NON-COMBUSTIBLE
FINISHING MATERIAL
OVERLAP FIT = 0-1 IN. THICK
1/2 IN. THICK WALL
SHEATHING
INSIDE FIT OVERLAP FIT
Figure 13 Finishing Material Installed

12 Hearth & Home Technologies • PH-CERONA Instructions • 2558-970 Rev. C • 1/23
Passive Heat Kit Installed with Optional Heat-Zone-Gas
• Only one Heat-Zone-Gas kit may be installed and used
in conjunction with the Passive Heat Heat Manage-
ment System.
Passive Heat Kit Installed with Optional Heat-Out-Gas
• One Heat-Out-Gas kit may be installed and used in
conjunction with the Passive Heat Heat Management
System.
There are other heat management options available for
use with the CERONA-IFT models. Consult the appliance
manual for compatible options.
Installation of Passive Heat with Other
Optional Heat Management Systems
Please contact your Hearth & Home Technologies dealer
with any questions or concerns.
For the location of your nearest Hearth & Home
Technologies dealer,
please visit www.hearthnhome.com.
Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
Maintenance
Service and maintain the gas appliance per instructions.
Keep the air register(s) clean and free of any blockage.
Mantel Projections
NOTICE: Cap must be removed from adapter prior to
attaching venting for the heat management kit. Heat-
Zone®-Gas and Heat-Out-Gas system will not function
properly if cap remains attached.
Figure 16 Adapter Prepared for Venting to be Attached
ATTACH
VENTING
HERE
ADAPTER
• Remove cap from the Passive Heat adapter and dis-
card the cap. The venting for the Heat-Zone-Gas kit
will attach directly on top of the Passive heat adapter.
See Figure 16.
• Refer to the instructions included with the Heat-Zone-
Gas kit for more information.
WARNING! Risk of Overheating! Be sure the venting
does not extend past the rib on Passive Heat adapter. If
venting or insulation is blocking holes in the Passive Heat
adapter overheating of chase could occur.
• Remove cap from the Passive Heat adapter and dis-
card the cap. The venting for the Heat-Out-Gas kit will
attach directly on top of the Passive heat adapter. See
Figure 16.
• Refer to the instructions included with the HEAT-OUT-
GAS kit for more information.
WARNING! Risk of Overheating! Be sure the venting
does not extend past the rib on Passive Heat adapter. If
venting or insulation is blocking holes in the Passive Heat
adapter overheating of chase could occur.
If installing a television (TV) above the appliance, see
Section 3 of the appliance Owner’s Manual.

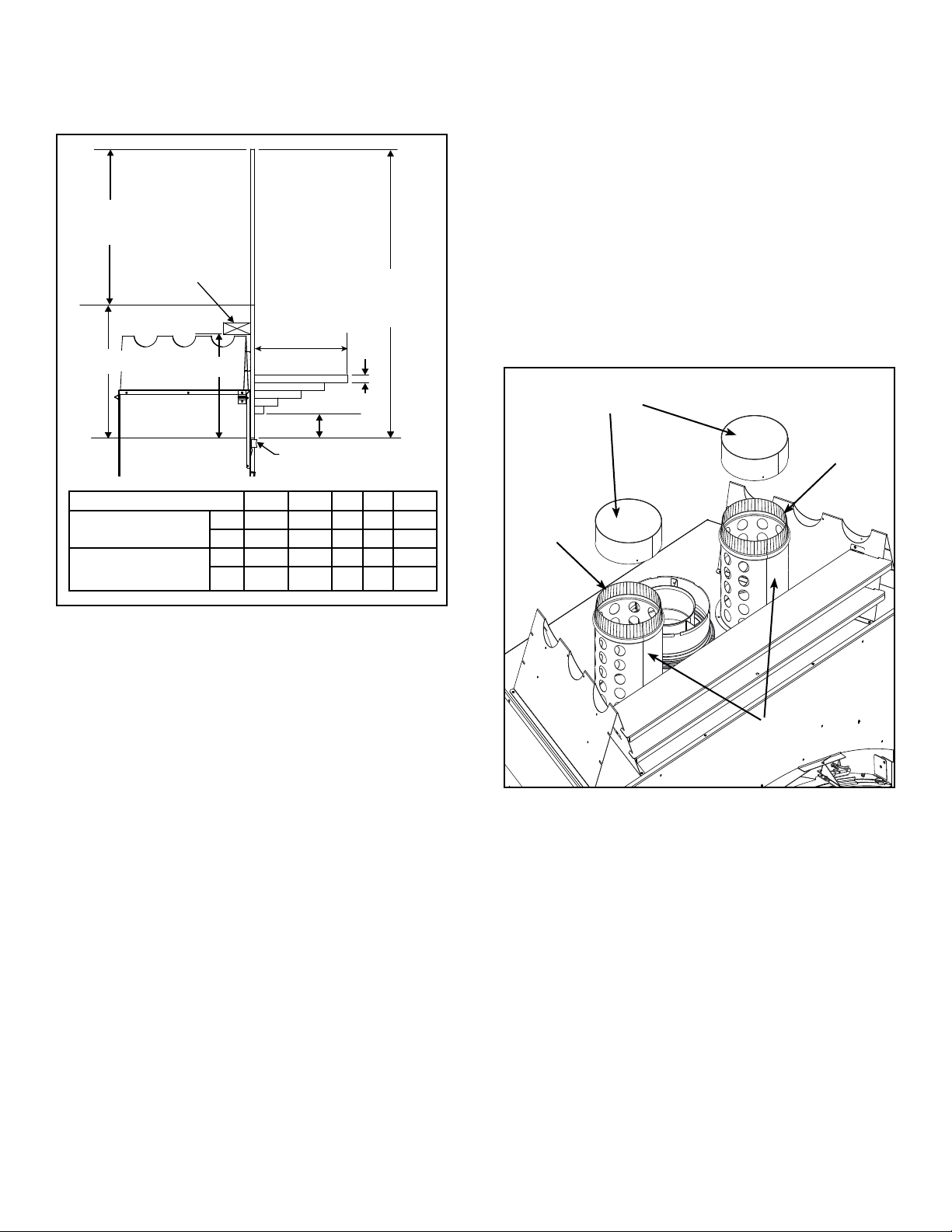

Figure 15 Clearances to mantels or other combustibles
above appliance with Passive Heat installed
NON-COMBUSTIBLE
FACING MATERIAL
COMBUSTIBLE
FACING MATERIAL
1 in.
TYPICAL
D
E
MINIMUM
FROM TOP OF ARCH
OPENING TO CEILING
APPLIANCE HEADER
1"
2"-
3"
4" - 6"
7"- 9"
10" - 12"
TOP OF ARCH OPENING
CEILING
A
B
C
MAXIMUM
A B C D E
CERONA-36-IFT in. 44-3/4 16-3/4 16 2 61-1/2
mm 1137 425 406 51 1562
CERONA-42-IFT
in. 44-3/4 16-3/4 16 2 61-1/2
mm 1137 425 406 51 1562
VENT CAP
ATTACH
VENTING
HERE
