1-07-0420-3
Componentes del Producto / Product Components
[email protected]
Original Spare Parts:
Consultancy and Technical
01(55)53339431
01800 909 2020 01 (55) 53 33 94 00
Refacciones Originales:
Asesoría y Servicio Técnico:
Ext. 5068, 4815 y 5913
Service:
53 33 94 21
01 800 890 0594
[email protected]
Para disminuir el riesgo de lesiones o daños a la propiedad, lea todas las instrucciones antes de instalar el
producto. Utilice gafas de seguridad. En obras de construcción, instalación, modificación, ampliación y
reparación deben cumplir con el reglamento de construcción y obras de su localidad. El producto ilustrado
puede sufrir cambios de aspecto como resultado de la mejora continua a la que está sujeto.
Agradecemos su elección por los productos HELVEX.
Estamos seguros de que su confiabilidad por el producto excederá sus más altas expectativas, cuya
funcionalidad, estética, durabilidad, respaldo integral y alta calidad le otorgarán plena satisfacción por años,
reflejando el compromiso con la calidad, innovación y el medio ambiente que forman parte de Helvex.
To reduce the risk of injury or property damage, read all instructions before installing the product. Please
remember to use safety glasses. In construction, installation, alteration, extension and repair, the rules of
constructions must be applied. As result of continuous improvement, the illustration product may change in
appearance.
ADVERTENCIA / WARNING
Esta guía de instalación aplica al producto en cualquier acabado. / This installation
guide applies to the product in any finish.
Thank you for choosing HELVEX products.
We are confident that the product reliability will exceed your maximum expectations. The functionality,
aesthetics, durability, quality and support will grant you full satisfaction for years, it is Helvex commitment to
the quality, innovation and the environment.
*120 cm
(47,2")
*Recommended Dimensions
*Medidas Recomendadas
INSTALLATION GUIDE INSTALLATION GUIDE
GUÍA DE INSTALACIÓN
/ General DimensionsDimensiones Generales
12
TR-039
Brazo y chapetón angular para
regadera. / Arm and angular
escutcheon for shower.
Cromo / Chrome
TR-039-S
Satín / Satin
No. Descripción / Description
Hola soy Fluxy, te
ayudaré a instalar
tu producto.
Hi I'm Fluxy, I'll
help you to install
your product.
Nota: Se recomienda que la
instalación sea rígida.
Note: It is recommended
that the installation be rigid.
*90 cm
(35,4")
1 Base Deslizable / Sliding Base
2 O´ring / Oring
3 Conector / Connector
Herramienta Requerida
llave allen 3/8” teflón
/ Required Tools
plumber tape
3/8” allen wrench
4 Brazo con Soporte / Arm with Support
4
1
2
3
Utilice esta sección
para apoyarse y enroscar
Use this section
to support and screw
codo de
cobre
copper elbox
*30 cm min.
(11,8") min.
NPT
FFL (Nivel de Piso Terminado)
(Finished Floor Level)
3

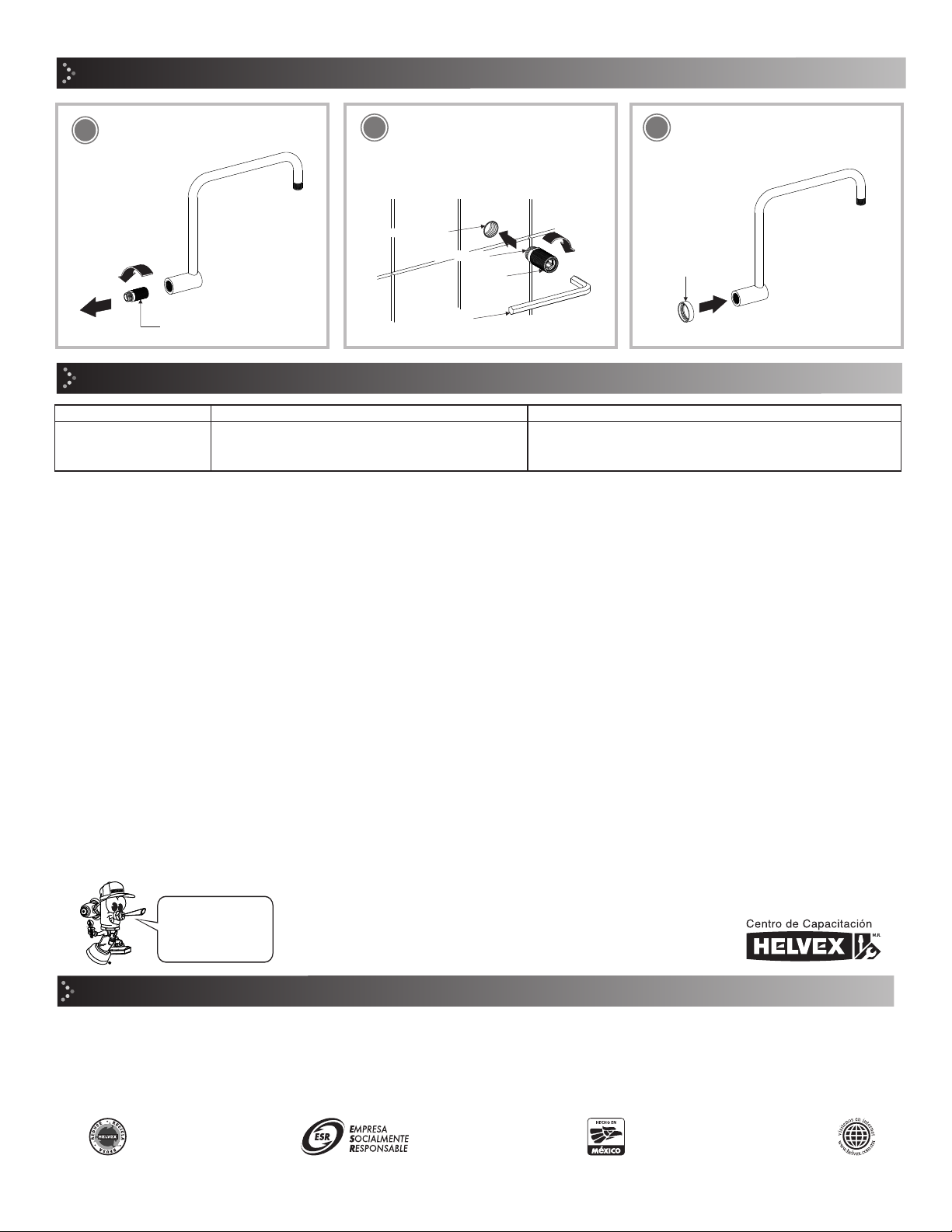

Retire el conector del brazo angular. /
Remove the connector from the angle
arm.
Instalación General / General Installation
45
2
Es muy importante seguir las siguientes instrucciones para conservar los
acabados de los productos HELVEX, con brillo y en perfecto estado:
1. Utilice únicamente agua y un paño limpio.
2. No utilice fibras, polvos, abrasivos, ni productos químicos.
3. No utilice objetos punzo-cortantes para limpiar los acabados.
4. Se recomienda realizar la limpieza de su producto diariamente.
Visite nuestras páginas www.helvex.com.mx para México y www.helvex.com
para el mercado Internacional
It is very important to follow the instructions below to preserve HELVEX products
finishes, shiny and in perfect condition:
1. Use only water and a clean cloth.
2. Do not use fibers, powders, abrasives, or chemicals.
3. Do not use sharp objects to clean the finish.
4. It is recommended to clean your product daily.
Visit our pages www.helvex.com.mx for Mexico and www.helvex.com
for the International market.
Recomendaciones de Limpieza / Cleaning Recommendations
In Guadalajara:
Contact:
Enter our free
training courses.
In Monterrey:
En la Ciudad de México:
In Mexico City:
En Monterrey:
En Guadalajara:
01 55 53 33 94 00
Ext. 5804, 5805 y 5806 (0133) 36 19 01 13
Comunícate:
Participa en nuestros
cursos gratuitos
de capacitación.
(0181) 83 33 57 67
(0181) 83 33 61 78
Posibles Causas y Soluciones / Troubleshooting
Problema / Problem Causas / Causes Solución / Solutions
No se colocó cinta teflón en las uniones. /
No place teflon tape on the joints.
Colocar cinta teflón en las uniones (Pag. 2, paso 2 y 6). /
Place plumber tape on the joints. (Page 2, step 2 and 6).
Hay fuga en las conexiones.
/ There are leaks in the
connections.
HELVEX, S. A. DE C. V. Calzada Coltongo # 293, Col. Industrial Vallejo, Del. Azcapotzalco, C. P. 02300, Ciudad de México.
Coloque cinta teflon en la union y
enrosque el conector a la tubería de
alimentación. / Place teflon tape on the
joint and screw the connector to the
feed pipe.
Coloque el chapetón con o´ring al brazo.
/ Place the escutcheon with oring on the
arm.
conector
connector
alimentación
conector
llave allen de ½”(no
incluida)
1/2”-14 NPT chapetón
escutcheon
