Hioki 9263 User manual

Warranty
Warranty malfunctions occurring under conditions of normal use
in conformity with the Instruction Manual and Product Precau-
tionary Markings will be repaired free of charge. This warranty is
valid for a period of three (3) years from the date of purchase.
Please contact the distributor from which you purchased the
product for further information on warranty provisions.
Introduction
Thank you for purchasing the HIOKI 9263 SMD TEST FIX-
TURE. To obtain maximum performance from the product,
please read this manual first, and keep it handy for future
reference.
This HIOKI 9263 SMD TEST FIXTURE can be directly
connected to the measurement terminals (UNKNOWN) of
the HIOKI LCR and Z HiTESTERs for testing a SMD com-
ponent. The component can be clamped with a single
knob action.
Please check a HIOKI catalog for instruments to which this
product can be connected.
Initial Inspection
When you receive the product, inspect it carefully to en-
sure that no damage occurred during shipping. If damage
is evident, or if it fails to operate according to the specifi-
cations, contact your dealer or HIOKI representative.
Preliminary Checks
• Before using the product the first time, verify that it
operates normally to ensure that the no damage
occurred during storage or shipping. If you find any
damage, contact your dealer or Hioki representative.
Maintenance and Service
• To clean the product, wipe it gently with a soft cloth
moistened with water or mild detergent. Never use sol-
vents such as benzene, alcohol, acetone, ether,
ketones, thinners or gasoline, as they can deform and
discolor the case.
• If the product seems to be malfunctioning, contact your
dealer or Hioki representative. Pack the product care-
fully so that it will not be damaged during shipment, and
include a detailed written description of the problem.
Hioki cannot be responsible for damage that occurs
during shipment.
Follow these precautions to ensure safe operation and to
obtain the full benefits of the various functions.
Safety Symbol
The following symbols in this manual indicate the relative
importance of cautions and warnings.
nto the measurement terminals (UN-
, with the product name up. Fasten
th the left and right fixing levers.
Put the sample (figure below) on the clamping portion, and
clamp it by turning the knob.
• Samples whose width are 1 to 10 mm can beclamped.
• Be careful to keep dirt away from the clamping portion.
• Make sure the sample is firmly clamped. If not,accurate
measurements cannot be obtained.
To enhance the accuracy of measurement, perform the
open and short circuit compensation.
The method of operation depends on the tester to which the test
fixture is connected. Refer to the Instruction Manual for the tes-
ter.
Open circuit compensation
Turn the knob to open the high and low clamping portions
(with no connection between the two ends of the
clamping) in width of the sample to be measured.
Short circuit compensation
Turn the knob to short the high and low clamping portions.
Overview
Specifications
Measurement frequency
range DC to 8 MHz
Maximum apply voltage ±40 VDC
Width of sample to be
tested 1 mm to 10 mm
Residual resistance
Short-circuited 5 mmax. (at 100 Hz)
Floating capacitance
between terminals 1 pF max. (at 5 MHz)
Dimensions and Mass Approx.86W x 22H x 40D mm
(3.39”W x 0.87”H x 1.57”D)
(excluding protrusions)
Approx.100 g (3.5 oz.)
9263
SMD TEST FIXTURE
Instruction Manual
Dec. 2018 Revised edition 4
9263A980-04 18-12H
Operating temperature
and humidity range 0°C to 40°C (32
°F to 104 °F) ,
80% RH or less
(with no condensation)
Storage temperature and
humidity range -10°C to 55°C (14
°F to 131 °F) ,
80% RH or less
(with no condensation)
Operating environment Indoors, altitude up to 2000 m
(6562-ft.)
Product warranty period 3 years
Inspection and Maintenance
Safety
Mishandling during use could result in injury or
death, as well as damage to the product. Be certain
that you understand the instructions and precau-
tions in the manual before use. We disclaim any
responsibility for accidents or injuries not resulting
directly from product defects.
In the manual, the symbol indicates particu-
larly important information that the user should
read before using the product.
Indicates that incorrect operation presents a sig-
nificant hazard that could result in serious injury or
death to the user.
Indicates that incorrect operation presents a pos-
sibility of injury to the user or damage to the prod-
uct.
Advisory items related to performance or correct
operation of the product.
Notes
se the product where it could be ex-
ct sunlight, high temperature or humidity,
tion. Under such conditions, the product
damaged and insulation may deteriorate so
ger meets specifications.
theproductwhere it may be exposed to cor-
mbustible gases. The product may be dam-
damage to the product, protect it from vibra-
during transport and handling, and be es-
ul to avoid dropping.
uct is not designed to be entirely water- or
avoid damage, do not use it in a wet or
ent. ously wet, oily, or dusty,
nd send it for service at an approved
e facility.
refer to the instruction manual for the instrument
is product is connected for how to use the in-
ment and apply direct current voltage.

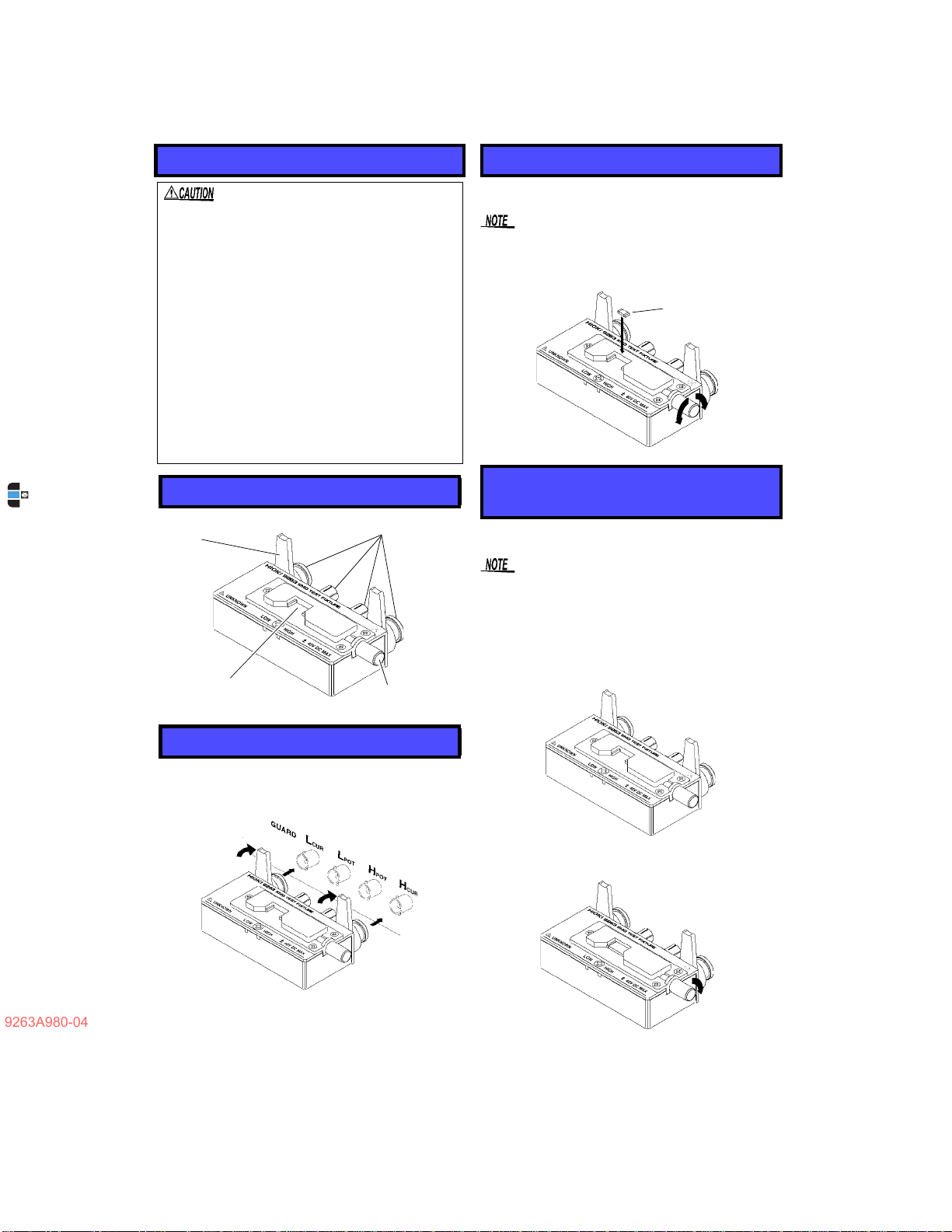

Names
the Test Fixture
Connecting terminals
ng portion Knob
Fixing the Samples
Open and Short Circuit Com-
pensation
Sample
Fix
Remove
HIOKI 9263A980-04
www.calcert.com [e-mail]1.888.610.7664 0
5
10
15
20
25
30

Warranty
Warranty malfunctions occurring under conditions of normal use
in conformity with the Instruction Manual and Product Precau-
tionary Markings will be repaired free of charge. This warranty is
valid for a period of three (3) years from the date of purchase.
Please contact the distributor from which you purchased the
product for further information on warranty provisions.
Introduction
Thank you for purchasing the HIOKI 9263 SMD TEST FIX-
TURE. To obtain maximum performance from the product,
please read this manual first, and keep it handy for future
reference.
This HIOKI 9263 SMD TEST FIXTURE can be directly
connected to the measurement terminals (UNKNOWN) of
the HIOKI LCR and Z HiTESTERs for testing a SMD com-
ponent. The component can be clamped with a single
knob action.
Please check a HIOKI catalog for instruments to
product can be connected.
Initial Inspection
When you receive the product, inspect it ca
sure that no damage occurred during
is evident, or if it fails to operate accordin
cations, contact your dealer or HIOKI rep
Preliminary Checks
• Before using the product the first
operates normally to ensure that the n
occurred during storage or shippi
damage, contact your dealer or Hioki
Maintenance and Service
• To clean the product, wipe it gently wi
moistened with water or mild deterge
vents such as benzene, alcoho
ketones, thinners or gasoline, as they
discolor the case.
• If the product seems to be malfun
dealer or Hioki representative. Pack the produ
fully so that it will not be damaged duri
include a detailed written descripti
Hioki cannot be responsible for d
during shipment.
Follow these precautions to ensure safe ope
obtain the full benefits of the various
Safety Symbol
The following symbols in this manua
importance of cautions and warnings
Plug the fixture into the measurement terminals (UN-
KNOWN) of the tester, with the product name up. Fasten
it in place with the left and right fixing levers.
Put the sample (figure below) on the clamping portion, and
clamp it by turning the knob.
• Samples whose width are 1 to 10 mm can beclamped.
• Be careful to keep dirt away from the clamping portion.
• Make sure the sample is firmly clamped. If not,accurate
measurements cannot be obtained.
To enhance the accuracy of measurement, perform the
open and short circuit compensation.
The method of operation depends on the tester to which the test
fixture is connected. Refer to the Instruction Manual for the tes-
ter.
Open circuit compensation
Turn the knob to open the high and low clamping portions
(with no connection between the two ends of the
clamping) in width of the sample to be measured.
Short circuit compensation
Turn the knob to short the high and low clamping portions.
Overview
Specifications
Measurement frequency
range DC to 8 MHz
Maximum apply voltage ±40 VDC
Width of sample to be
tested 1 mm to 10 mm
Residual resistance
Short-circuited 5 mmax. (at 100 Hz)
Floating capacitance
between terminals 1 pF max. (at 5 MHz)
Dimensions and Mass Approx.86W x 22H x 40D mm
(3.39”W x 0.87”H x 1.57”D)
(excluding protrusions)
Approx.100 g (3.5 oz.)
9263
SMD TEST FIXTURE
Instruction Manual
Dec. 2018 Revised edition 4
9263A980-04 18-12H
Operating temperature
and humidity range 0°C to 40°C (32 80% RH or le
(with no condensation)
Storage temperature and
humidity range -10°C to 55°C
80% RH or le
(with no condensation)
Operating environment Indoors, altitud
(6562-ft.)
Product warranty period 3 years
Inspection and Maintenance
Safety
Mishandling during use could result in in
death, as well as damage to the pro
that you understand the instructio
tions in the manual before use. W
responsibility for accidents or injuries not
directly from product defects.
In the manual, the sym
larly important information
read before using the produc
Indicates that incorrect operatio
nificant hazard that could result in
death to the user.
Indicates that incorrect operatio
sibility of injury to the user or
uct.
Advisory items related to perfo
operation of the product.
Usage Notes
• Do not store or use the product where it could be ex-
posed to direct sunlight, high temperature or humidity,
or condensation. Under such conditions, the product
may be damaged and insulation may deteriorate so
that it no longer meets specifications.
• Do not use the product where it may be exposed to cor-
rosive or combustible gases. The product may be dam-
aged.
• To avoid damage to the product, protect it from vibra-
tion or shock during transport and handling, and be es-
pecially careful to avoid dropping.
• This product is not designed to be entirely water- or
dust-proof. To avoid damage, do not use it in a wet or
dusty environment.
• If the fixture has gotten seriously wet, oily, or dusty,
stop using it and send it for service at an approved
HIOKI service facility.
•Please refer to the instruction manual for the instrument
to which this product is connected for how to use the in-
strument and apply direct current voltage.
Parts Names
Connecting the Test Fixture
Fixing lever Connecting terminals
Sample
clamping portion Knob
Fixing the Samples
Open and Short Circuit Com-
pensation
Sample
Fix
Remove
HIOKI 9263A980-04
