HRS FH67 Series User manual

1
2019.10
0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
FH67 Series
One Action Lock (Dimension diagram : 30pos.)
Fig.1
3.57mm
21.08mm
5.2mm
High FPC retention force FPC/FFC can be checked from the top surface after mating.
Fig.4Fig.5
Insert FPC/FFC without opening the lock
lever before insertion!
Two-point contact design for dust prevention
Two-point independent spring contact Fig.2
Supports FPC/FFC/Shield FFC
Fig.3
Ground contact and FFC Ground plate contact at multiple points.
Shield FFC
Ground
contact
Viewing section Cannot see viewing section Robust lock firmly retains FPC/FFC.
○：Mated condition ×： Insufficient insertion condition
NEW
In cases where the application will demand a high level of reliability, such as automotive,
please contact a company representative for further information.
■Features
1. Automatic one action lock design
One action locking by simply inserting FPC after
mounting contributes to enhanced workability. (Fig.1)

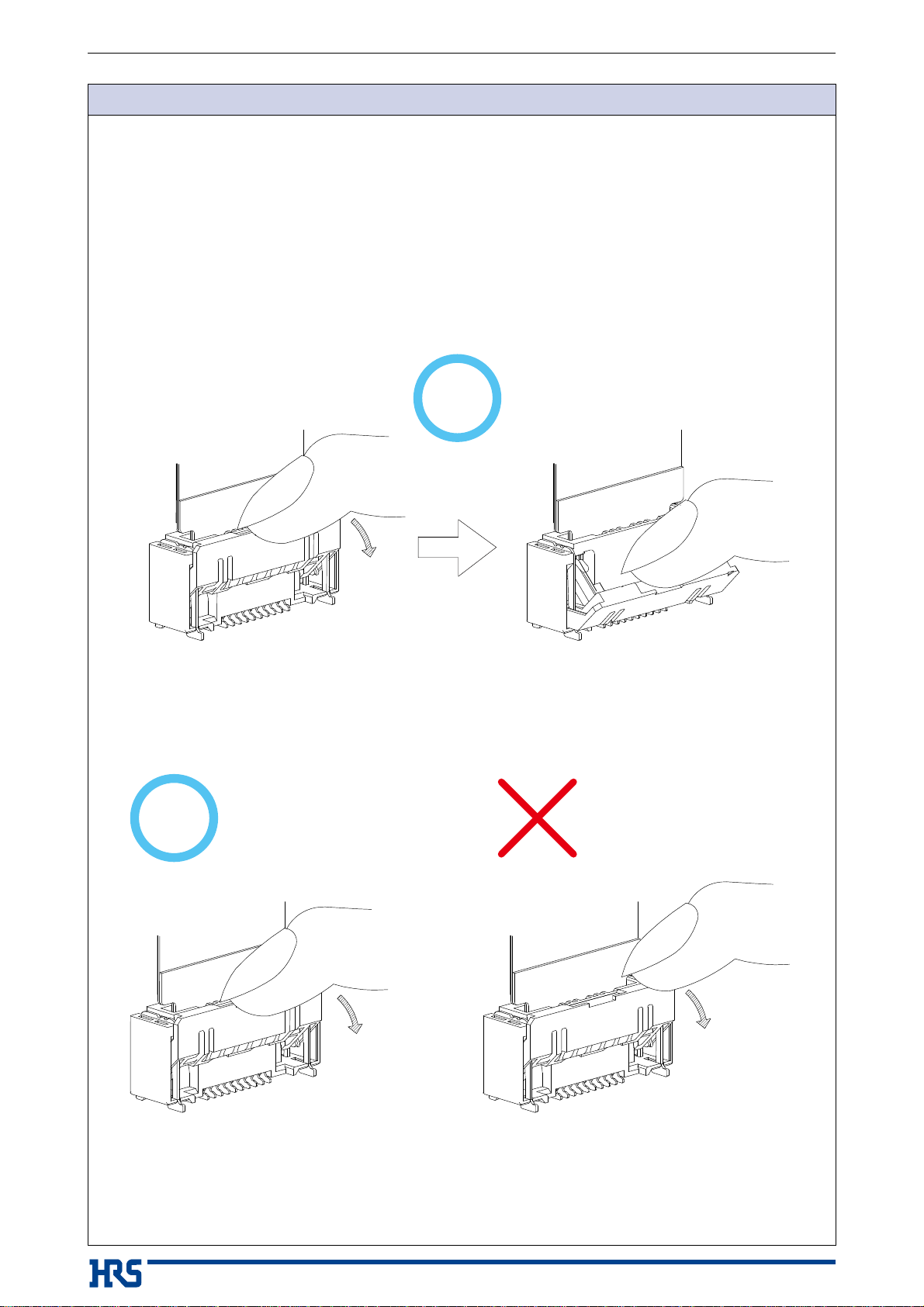

(Lock release by operating the lock lever when
removing.)
· Operation of the lock lever is not required at the time of
mating FPC. Can be inserted with one hand.
Contributes to reduced assembly time.
The lock lever will not be damaged by operation.
Mating failure due to FPC displacement does not occur
during lock lever operation.
2. Two-point contact prevents contact
failure by dust
· High contact reliability by independent spring two-point
contact design, preventing contact failure due to dust.
(Fig.2)
3. Supports FPC/FFC/Shield FFC
· FH67 allows you to choose from FPC/FFC/Shield FFC.
· Shielded FFC is acceptable for EMI prevention. (Fig.3)
4. High FPC retention force
· The circuit is automatically locked after FPC/FFC is
inserted by a one action. The notches on both sides of
FPC are held by the lock lever, generating a high FPC
retention force in spite of the small contact. (Fig.4)
5. Visual inspection on the mated status
of FPC/FFC is possible
· Insufficient insertion during assembly is prevented due
to lock lever protrusion after FPC/FFC insertion. (Fig.5)
6. Environmental
·Halogen free
*As defined by IEC 61249-2-21.
Br : 900ppm max, Cl : 900ppm max, Br+Cl : 1,500ppm
max
Shielded FFC is acceptable for EMI prevention
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

2
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
FH 67 − 30S − 0.5 SV (99)
❹❺ ❻
■Product Specifications
Rating
Rated Current 0.5A Operating temperature range -55 to +125°C (Note 1) Storage temperature range -10 to +60°C (Note 2)
Rated voltage
50V
AC/DC
Operating humidity range
Relative humidity 90% max.
(No condensation)
Storage humidity range
Relative humidity 90% max.
(No condensation)
Adaptive FPC
contact specifications Thickness : = 0.33 ± 0.03mm Signal layout : Gold plated, GND plate : Tin plated
Item Specification Condition
1. Insulation resistance 500Mø min. 100V DC
2.
Withstanding voltage No flashover or insulation breakdown 150V AC rms / 1minute
3. Contact resistance
[FPC] First cycle : 60mø max., After testing : 80mø
max. (Including FPC 8mm conductor resistance)
[FFC] First cycle : 80mø max. After testing : 100mø
max. (Including FFC 26mm conductor resistance
1mA AC
4. Durability
(Insertion/withdrawal)
Contact resistance : 80mø max. (FPC)
100mø max. (FFC)
No damage, cracks, or parts dislocation
10 cycles
5. Vibration
No electrical discontinuity of 1µs or more
Contact resistance : 80mø max. (FPC)
100mø max (FFC)
No damage, cracks, or parts dislocation
Frequency : 10 to 55Hz, single amplitude
of 0.75mm, 10 cycles in each of the 3
directions
6. Shock
No electrical discontinuity of 1µs or more
Contact resistance : 80mø max.(FPC)
100mø max.(FFC)
No damage, cracks, or parts dislocation
Acceleration of 981m/s2, duration of 6 ms,
sine half-wave waveform, 3 cycles in
each of the 3 axes
7. Damp heat (Steady state)
Contact resistance : 80mø max.(FPC)
100mø max.(FFC)
Insulation resistance: 50Mø min.
No damage, cracks, or parts dislocation
96 hours at temperature of 60°C and
humidity of 90% to 95%
8. Temperature cycle
Contact resistance : 80mø max.(FPC)
100mø max.(FFC)
Insulation resistance : 50Mø min.
No damage, cracks, or parts dislocation
Temperature : -55→+15 to +35 →+125
→+15 to +35°C
Time : 30 →2 to 3 →30 →2 to 3 (Minutes)
5 cycles
9. Resistance to soldering
heat
No deformation of components affecting
performance

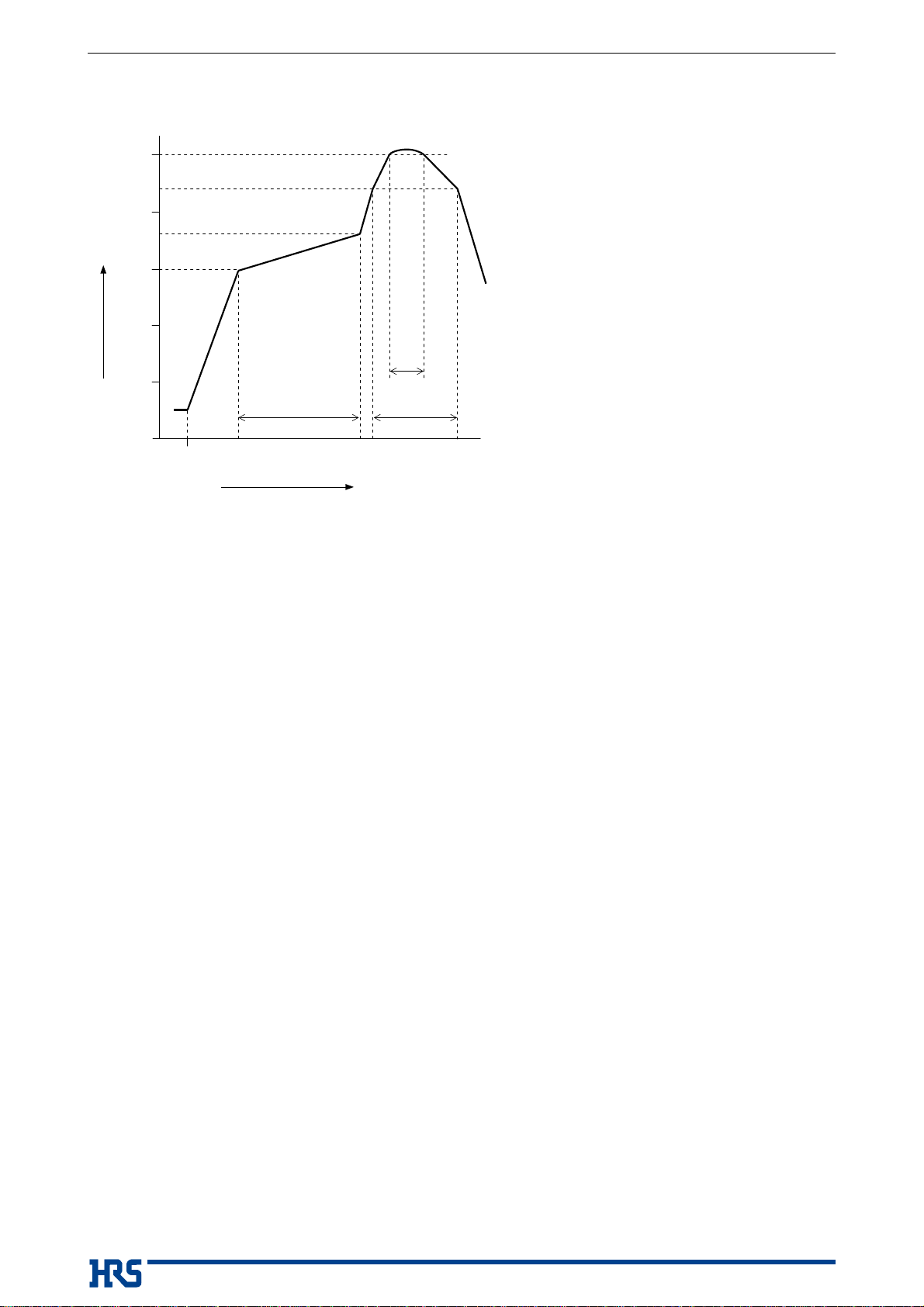

Reflow : Recommended Temperature
Profile
Manual soldering : 350 ± 10°C for 5
seconds
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term “storage” refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity Range covers non-conducting condition of installed connectors in storage, shipment or during
transportation.
■Materials / Finish
Part Materials Finish UL standard
Insulator LCP Grey UL94V-0
LCP Black
Signal contact Copper alloy Nickel barrier gold plated ーーー
Ground contact Copper alloy Pure tin reflow plated ーーー
Reinforcing metal tabs Copper alloy Pure tin reflow plated ーーー
■Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
❺Terminal type
SV…SMT vertical mounting type
❻Specification
Blank : Standard 1,000pcs/reel
(99) : 500pcs/reel
❶Series Name : FH
❷Series No. : 67
❸No. of Contacts : 30
❹Contact Pitch : 0.5mm
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

3
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector

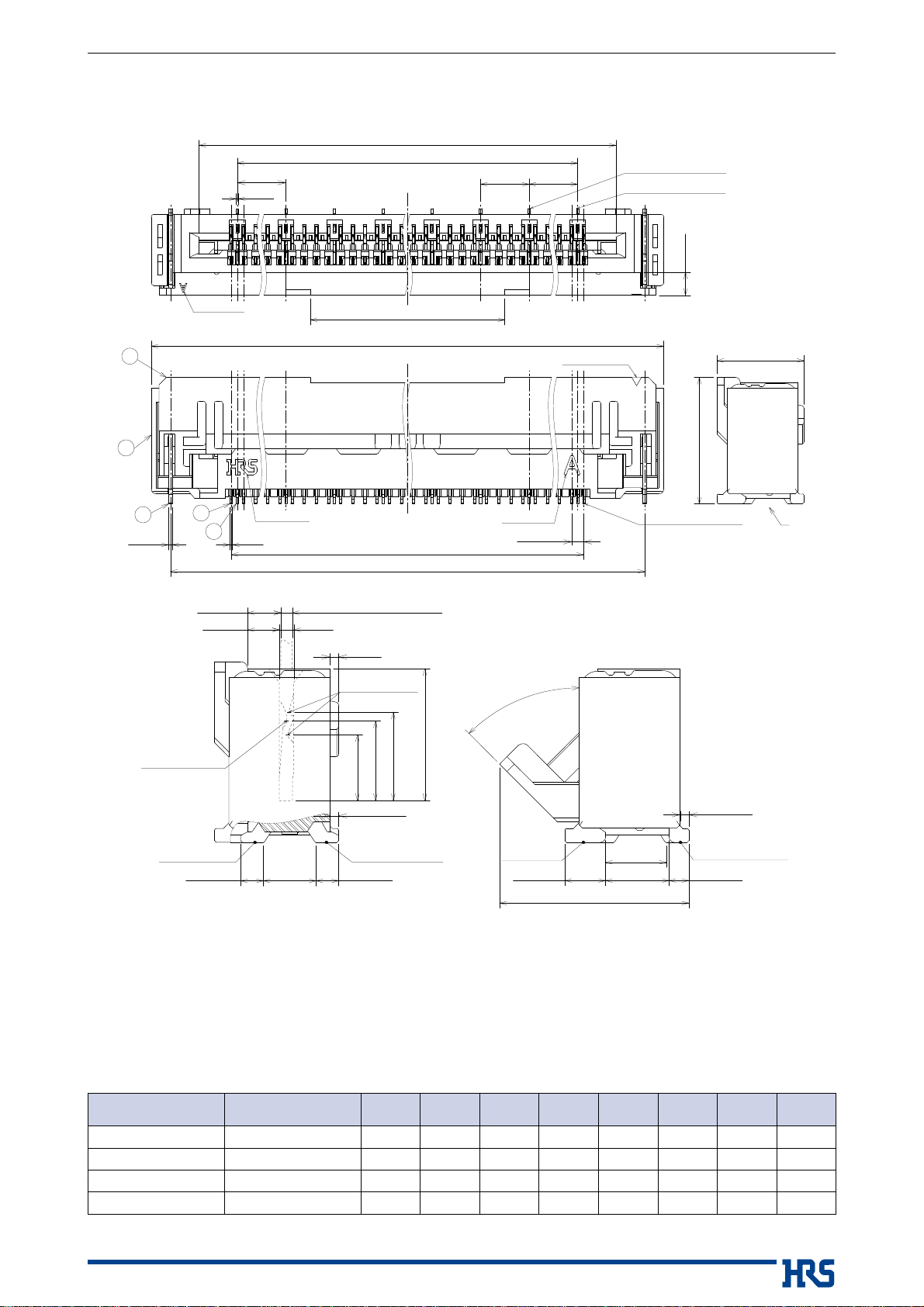

■Connector Dimensions
Unit : mm
Part No. HRS No. No. of
Contacts ABCDEFG
FH67-10S-0.5SV
Under planning (Note 1) 10 7.15 4 5 2 11.08 4.5 9.5
FH67-20S-0.5SV
Under planning (Note 1) 20 12.15 9 7.5 1.5 16.08 9.5 14.5
FH67-30S-0.5SV 580-4901-0 ** 30 17.15 14 8 2 21.08 14.5 19.5
FH67-40S-0.5SV 580-4903-0 ** 40 22.15 19 8 1.5 26.08 19.5 24.5
Note 1 : Contact positions without HRS No. are currently under planning.
Please contact HRS for detailed information about product variations.
Ground contact No.2
Polarity mark
Cavity No.
Cavity No.
HRS mark
D±0.1
D±0.1 2±0.1
B±0.15
0.5±0.1
F±0.15
1.75±0.15
1.83±0.1 0.57±0.1
0.25±0.15
1.17±0.1
Lead of reinforcing metal tabs
Lead of reinforcing
metal tabs
0.65±0.1 0.65±0.1
0.25±0.15
1.52±0.15
G±0.15
E±0.15
3.57±0.15
5.2±0.2
a
（A）
（C）
（0.1）
（0.1）
（0.955）FPC/FFC/Shield FFC t=0.33
Ground contact point
Signal contact point
Signal contact lead
Ground contact lead
a（10 : 1）a（10 : 1）
（0.91）（0.42）
（0.25）
（5.45）
（45°）
（1.9）
（2.3）
（2.55）
（3.8）
（0.15）
（0.95）
Ground contact No.1
Signal contact No.1
2
1
53
4
Note
1 : The dimension in parentheses are for reference.
2 : Lead co-planarity including lead of reinforcing metal tabs shall be 0.1mm max.
3 : To be delivered with tape and reel packages.
See the packaging specifications for details.
4 : Note that preventive hole for sink mark or slit could be added for improvement.
5 : The quality remains good, even with the dark spots, which could occasionally occur on molded plastic.
6 : This product satisfies halogen free requirements defined as 900ppm maximum chlorine,
900ppm maximum bromine, and 1500ppm maximum total of chlorine and bromine.
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

4
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
0.6±0.02
1.25±0.02
1.13±0.03
1.9±0.02
0.82±0.03
1.25±0.02
（±0.02）
（0.25）
（±0.02）
0.3±0.02
0.6±0.02
1.25±0.02
0.22±0.03
0.3±0.02
F±0.02
0.5
G
（±0.02）
（0.35）
G
B
DD2
0.02
2×
Z
0.02
2×
Z
Z
0.02
n×
Z
0.02
H×
Z
0.6±0.01
1.25±0.01
1.13±0.01
1.9±0.01
0.95±0.01
1.1±0.01
（±0.02）
（0.25）
（±0.02）
0.28±0.01
0.6±0.01
1.35±0.01
0.22±0.01
0.28±0.01
F±0.02
0.5
G
（±0.02）
（0）
G
B
DD2
0.02
2×
Y
0.02
2×
Y
Y
0.02
n×
Y
0.02
H×
Y
󱽧Recommended PCB Mounting Pattern
󱽧Recommended Stencil Pattern
󱽧Recommended Dimensions of PCB Mounting Pattern and Stencil Pattern
Note 7 : 'n' shows the number of contacts.
Unit : mm
Part No. HRS No. No. of
Contacts BDEGH
FH67-10S-0.5SV
Under planning (Note 1) 10 4 2 11.08 9.5 3
FH67-20S-0.5SV
Under planning (Note 1) 20 9 1.5 16.08 14.5 6
FH67-30S-0.5SV 580-4901-0 ** 30 14 2 21.08 19.5 8
FH67-40S-0.5SV 580-4903-0 ** 40 19 1.5 26.08 24.5 11
Note 1 : Contact positions without HRS No. are currently under planning.
Please contact HRS for detailed information about product variations.
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

5
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
（K）
J±0.05
J±0.05
L±0.01
1.3±0.05
0.5
0.8±0.05
1.3±0.07
R0.1±0.1
R0.1±0.1
R0.2
R0.2
R0.2
R0.2
R0.2
0.8±0.05
1.3±0.07
1.3±0.07
0.33±0.03
1.25±0.1
2.9±0.1
4.15±0.1
4.75±0.3
1MIN（overlapping amount）
6MIN（reinforcing film）
0.4±0.03
F±0.02
0.02
n×
X
X
0.8±0.05
R0.2
R0.2
R0.2
R0.2
R0.2
R0.1±0.1
1.3±0.08
R0.1±0.1
0.8±0.05 0.33±0.3
1.1±0.3
1.1±0.3
0.5±0.3
1.3±0.08 1.3±0.08
1.3±0.08
0.32±0.03
0.5
（K）
（M）
W
J±0.05
J±0.05
L±0.1
1.25±0.1
F±0.05
0.05
n×
W
2.9±0.1
4.15±0.1
4.75±0.3
1MIN（overlapping amount）
6MIN（reinforcing film）
Ground plate
Shield tape
8
󱽧Recommended FPC/FFC Dimensions
󱽧Recommended Shield FFC Dimensions
󱽧Recommended Dimensions of FPC/FFC/Shield FFC
Note 7 : The value 'n' indicates the number of pos.
8 Overlap the shield on the grounding plate.
Unit : mm
Part No. HRS No. No. of
Contacts FJKLM
FH67-10S-0.5SV
Under planning (Note 1) 10 4.5 7.1 5.5 9.1 4.9
FH67-20S-0.5SV
Under planning (Note 1) 20 9.5 12.1 10.5 14.1 9.9
FH67-30S-0.5SV 580-4901-0 ** 30 14.5 17.1 15.5 19.1 14.9
FH67-40S-0.5SV 580-4903-0 ** 40 19.5 22.1 20.5 24.1 19.9
Note 1 : Contact positions without HRS No. are currently under planning.
Please contact HRS for detailed information about product variation.
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

6
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector

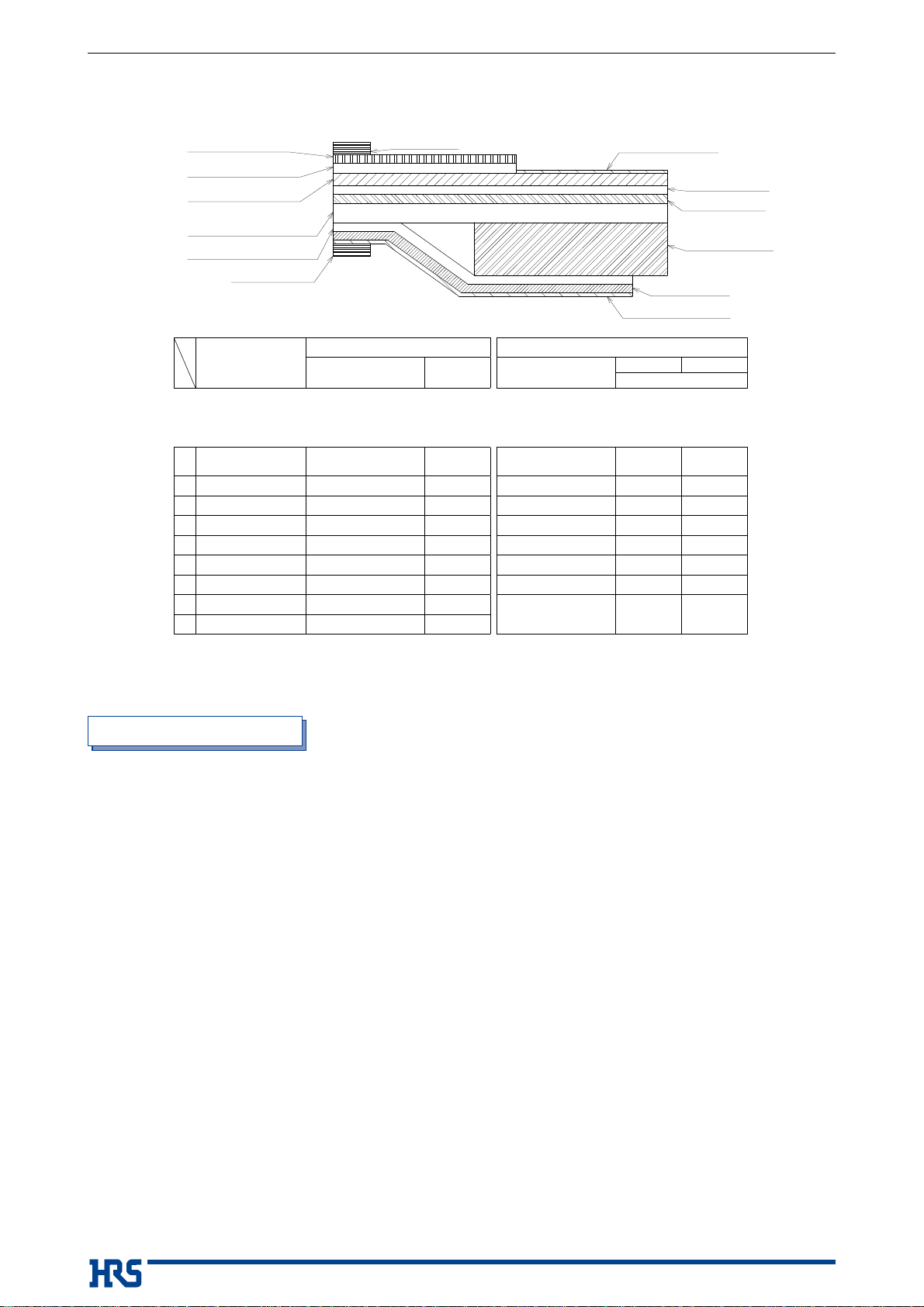

󱽧Material composition of FPC/FFC/Shield FFC (Recommended specifications)
Caution
1. This specification is recommendation for the construction of the FH67 series FPC/FFC/Shield FFC (t=0.33±0.03mm)
2. For details about the construction, please contact FPC/FFC/Shield FFC manufactures.
①Shield tape ④Surface treatment
⑥Base adhesive
⑦Base material
⑨Reinforcing film
⑪Ground plate
⑫Surfacetreatment
②Cover lay film
⑤Pattern copper foil
⑧
Reinforcing film adhesive
⑩Ground plate adhesive
⑬Shield tape
③Cover lay adhesive
Material name
FPC FFC
Materials Thickness
（µm）Materials Shield FFC FFC
Thickness (µm)
①Shield tape ―― ―― ――
②Cover lay film Polyimide 1mil 25 Polyester 25 25
③Cover lay adhesive
Thermosetting adhesive 28 Adhesive 25 25
④Surface treatment
Nickel foundation 1 to 6µm
+Gold plated 0.2µm
（3.7）
Nickel foundation 0.5 to 5µm
+Gold plated 0.05 to 1µm
（3.275）（
3.275）
⑤Pattern copper foil Rolled copper 1oz 35 Annealed copper foil 35 35
⑥Base adhesive
Thermosetting adhesive 8Adhesive2525
⑦Base material Polyimide 1mil 25 Polyester 25 50
⑧
Reinforcing film adhesive Thermosetting adhesive 55 Adhesive 30 30
⑨Reinforcing film Polyimide 8mil 200 Polyester 150 188
⑩
Ground plate adhesive
―― ―― Adhesive 30 ――
⑪Ground plate ―― ―― Copper foil
Tin plated 1 to 5µm 37 ――
⑫Surface treatment ―― ――
⑬Shield tape ―― ―― ――
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

7
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
（5.4）（2）
（0.95）（Automotive mounting suction surface）
（C）（Automotive mounting suction surface）
（0.4）
7
6
8
9
（5.4）
（0.4）
7
6
9
Ø1.5
+0.1
0
Ø1.5
+0.1
0
8±0.1 4±0.1
S±1
（Reel outer width）
（Ø13）
U±1
（Reel inner width）
1.75±0.1
（2）
8±0.1 4±0.1
1.75±0.1
P±0.3
R±0.1
P±0.3
Q±0.1
R±0.1
Unreeling direction
（0.95）（Automotive mounting suction surface）
（C）（Automotive mounting suction surface）
100mm min.
(empty components)
400mm min. (Leader)
160mm min.
(Trailer, empty
components)
Top cover tape
Embossed carrier tape
Unreeling direction
Unreeling direction
Unreeling direction
Ø380±2
Ø80±1

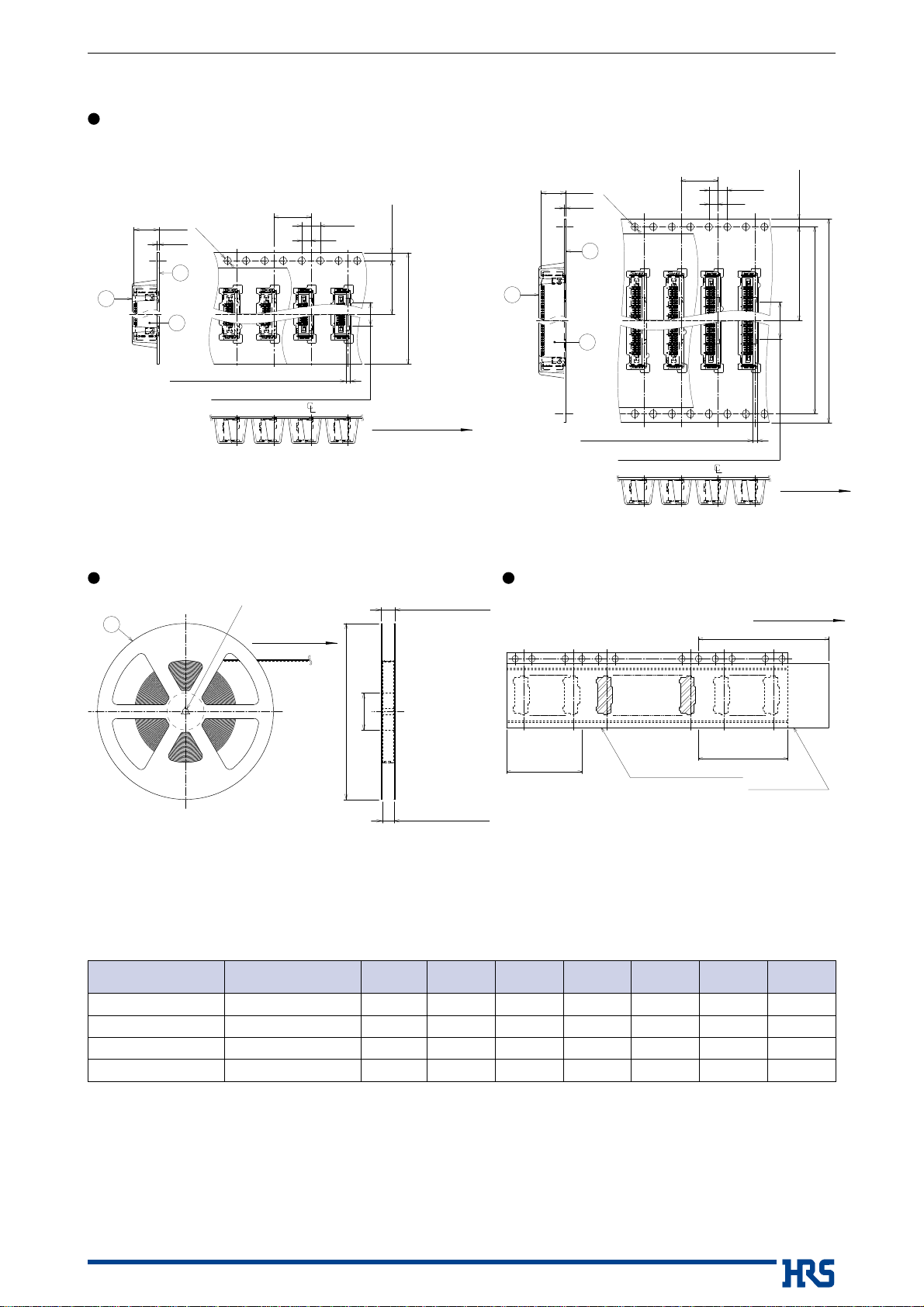

Embossed Carrier Tape Dimensions
Tape width : 24mm or less Tape width : 32mm or less
Reel Dimensions Leader, Trailer Dimensions
󱽧Packaging Specifications
Note 9 : 1000 pieces packaged in one reel. (For standard products)
Note 10 : The package complies with JIS C 0806 and IEC 60286-3 (Packaging of automotive mounting parts) standards.
Unit : mm
Part No. HRS No. No. of
Contacts CPQRSU
FH67-10S-0.5SV
Under planning (Note 1) 10 5 24 ―― 11.5 29.4 25.4
FH67-20S-0.5SV
Under planning (Note 1) 20 7.5 32 28.4 14.2 37.4 33.4
FH67-30S-0.5SV 580-4901-0 ** 30 8 44 40.4 20.2 49.4 45.4
FH67-40S-0.5SV 580-4903-0 ** 40 8 44 40.4 20.2 49.4 45.4
Note 1 : Contact positions without HRS No. are currently under planning.
Please contact HRS for detailed information about product variation.
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

8
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
󱽧Temperature Profile
Applicable Conditions
Reflow method : IR/Hot air
Reflow environment : Room air
Solder : Paste type Sn/3.0Ag/0.5Cu
(M705-GRN360-K2-V made by
Senju Metal Industry Co.)
Test PCB : PCB material and size
Glass epoxy 45×25×1mm
Land size, per recommended on
page 4.
Metal mask : Thickness and opening size
Per recommendation on page 4.
This temperature profile is based on the above conditions.
It may vastly depending on solder paste type,
manufacturer, PCB size and mounting materials. Please
use only after checking the mounting conditions.
MAX 250°C
25°C 60 to 90 sec.
20 to 40
sec.
120±5 sec.
Preheating time Soldering time
Peak temperature
0
50
100
150 150°C
180°C
220°C
200
245
Start
Temperature（°C）
Time (sec.)
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

9
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
[Operation Method]
Top surface
(suction surface)
(FPC insertion port)
Bottom surface
(mounting surface)
Reinforcing
metal tabs
Signal contact
Ground contact
Insulation case
Lock lever
NG
1. Delivered state
This product is delivered with the lock lever closed. The lock lever does not need to be operated before
inserting FPC.
[Caution]
· Do not open the lock lever when FPC is not inserted.
Additionally, the lock lever does not need to be opened except to remove the FPC. (Example 1)
· Do not operate the connector until it is mounted on the board. (Example 1)
(Example1)
Care needs to be taken when handling this connector. In order to prevent the damage and contact
failure etc. (incorrect mating, disconnection of FPC pattern) of connectors and FPC, please use
after confirming the following contents.
This connector supports FPC/FFC/Shield FFC, however, for convenience, the description is made
only for FPC.
FPC not inserted
Lock lever (open)
Lock lever (closed)
Unmounted
―  Deliveredstate  ―
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.

10
FH67 Series ● 0.5mm Pitch, 3.57mm depth One Action Lock, Vertical connection FPC/FFC/Shield FFC connector
[Operation Method]

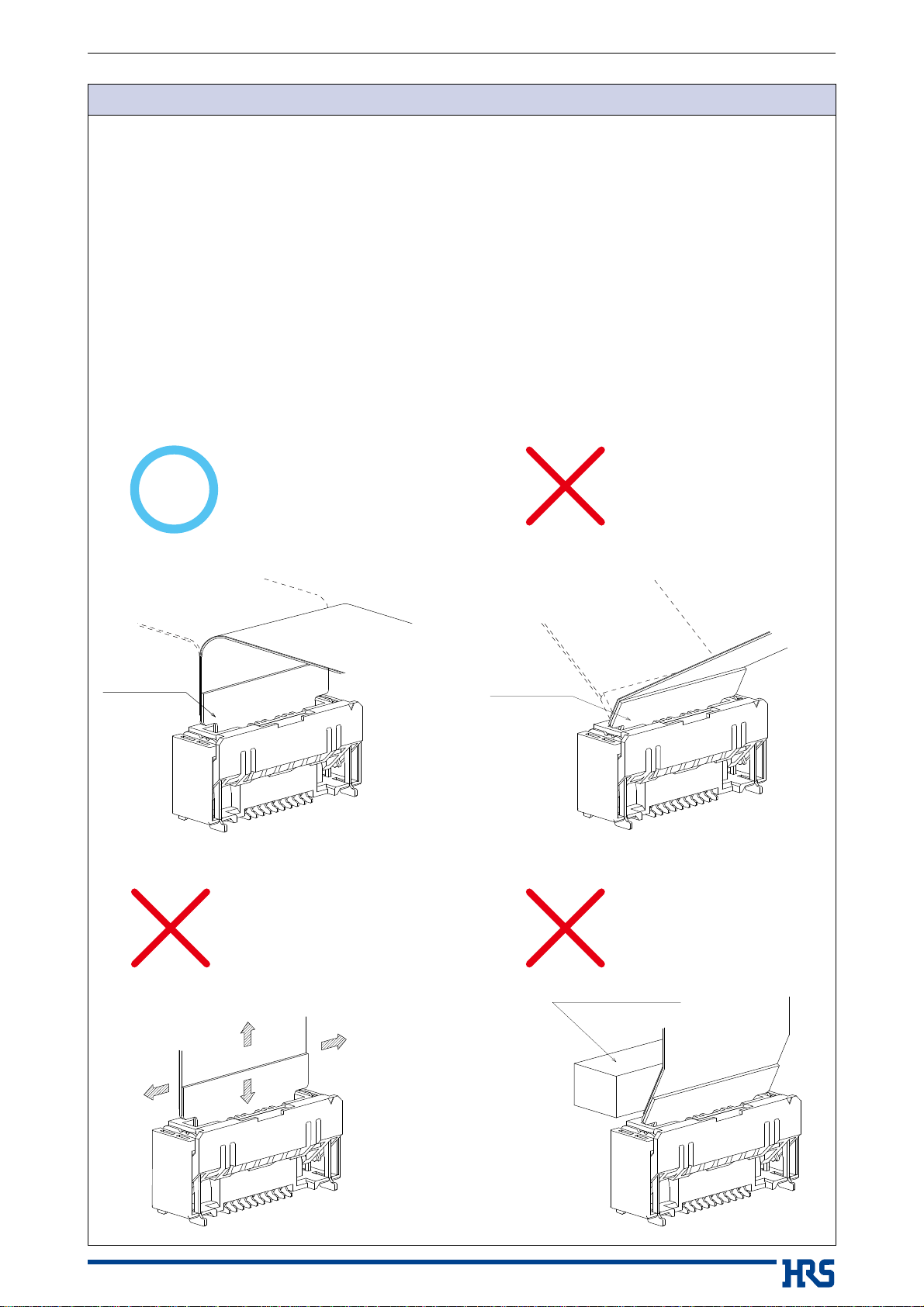

2. How to insert FPC
Insert FPC to the end correctly (Example 2) vertical to the board surface.
[Caution]
· Please confirm that the lock lever is closed when you insert FPC.
Do not insert FPC while the lock lever is open. (Example 3)
Product is designed so that the FPC cannot be inserted when the lock lever is opened. However forcing
insertion is a cause of damage.

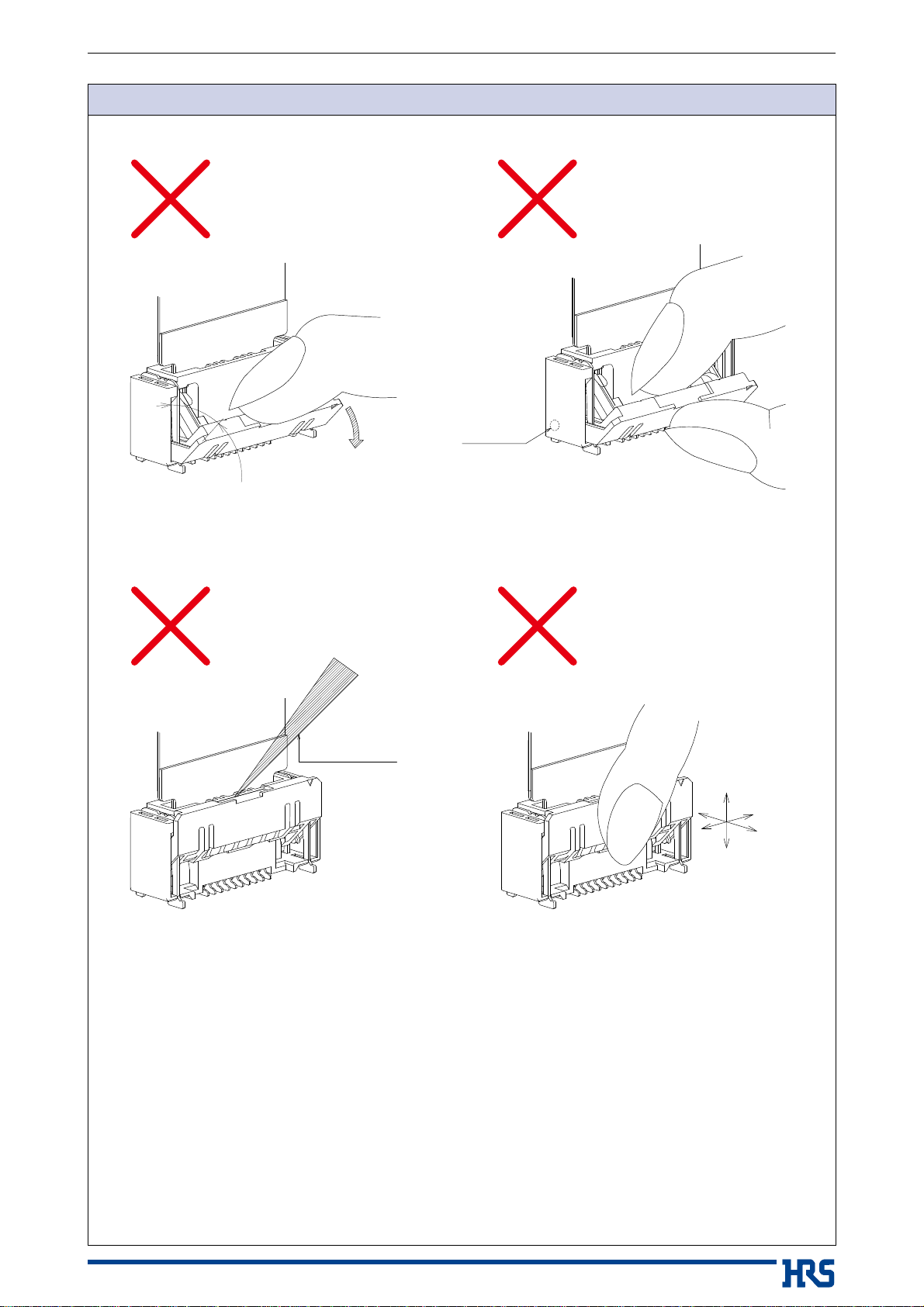

· Do not FPC while at the same time pressing the lock lever. (Example 4)
· Insert FPC pattern side facing opposite of the lock lever operation part. (Example 5)
· Insert FPC straight after positioning its tip end vertically in reference to the guides on both ends of the
connector mating port. (Example 6)
· Do not insert diagonally. (Example 7)
· When inserting, do not move the FPC in a vertical, lateral or diagonal direction. (Example 8)
(Recommended Insertion Angle ±2.5°)
· Refrain from opening the lock level with a finger when inserting the FPC. (Example 9)
Lock lever (open)
Lock lever (open)
PC (vertical)
FPC pattern side
FPC (vertical)
Lock lever (open)
Lock lever
operation part
Insert FPC straight after positioning both its
ends vertically in reference to the guides on
both ends of the connector mating port.
NG NG
(Example6)(Example5)
OKOK
(Example2) (Example3) (Example4)
Sep.1.2020Copyright2020HIROSEELECTRICCO.,LTD.AllRightsReserved.
