Htek UC9xx SERIES SIP PHONE
Auto Provision User Guide
Nanjing Hanlong Technology Co., Ltd.
0086-25-84658050
www.htek.com
[email protected]

Table of Contents
Table of Contents
1. Introduction..........................................................................................................................................1
2. Manage Configuration..........................................................................................................................1
2.1 Obtain configuration files................................................................................................................3
2.2 Obtain phone information...............................................................................................................3
2.3 Manage configuration files .............................................................................................................3
2.4 How to edit cfg000x.xml file............................................................................................................3
2.5 How to edit cfg$mac file.................................................................................................................3
2.6 How to edit cfgMAC.xml file ...........................................................................................................6
3. Encrypt Configuration Files..................................................................................................................9
3.1 How to encrypt the XML configuration file......................................................................................9
4. Customize Resource Files.................................................................................................................10
4.1 Customize ring tone.....................................................................................................................10

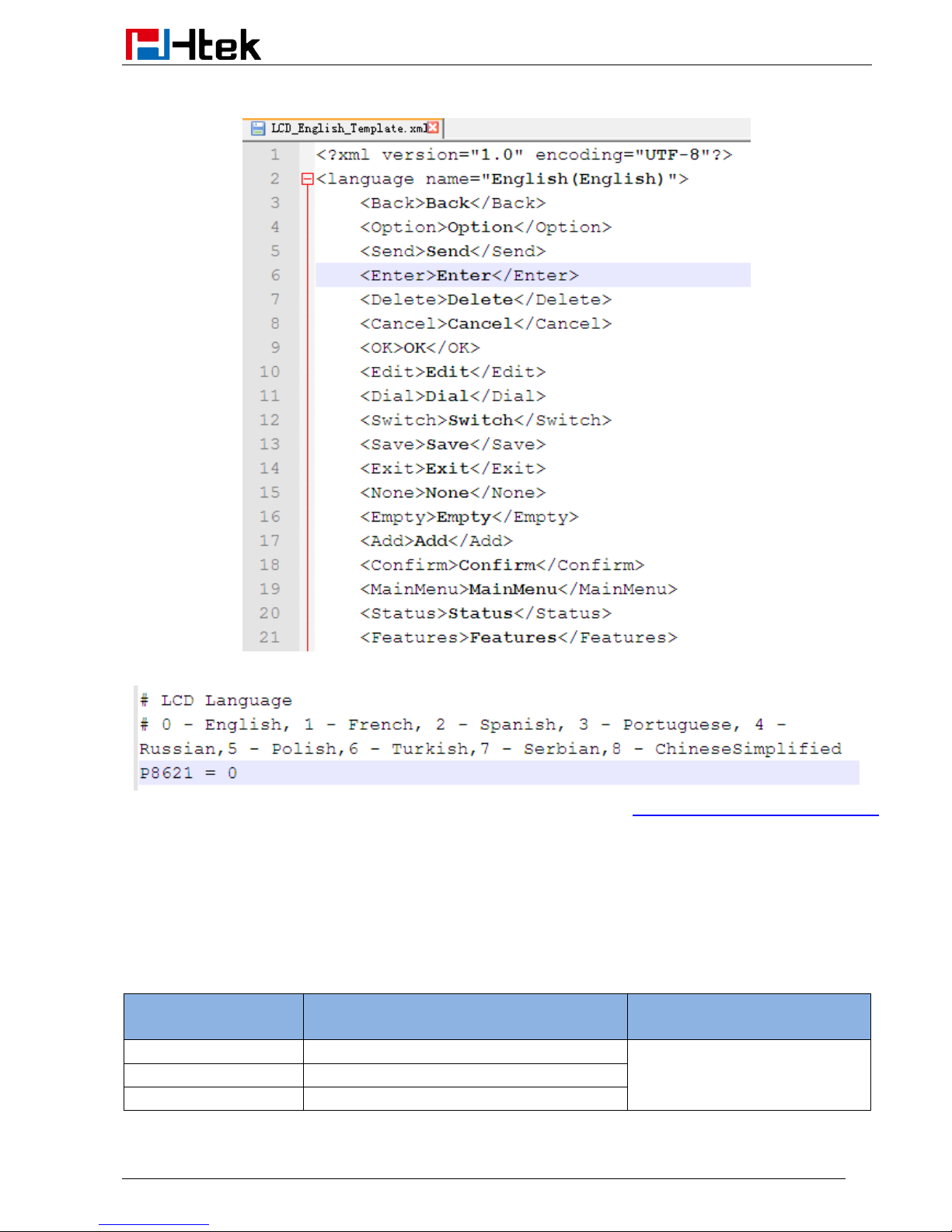

4.2 Customize LCD language ............................................................................................................10

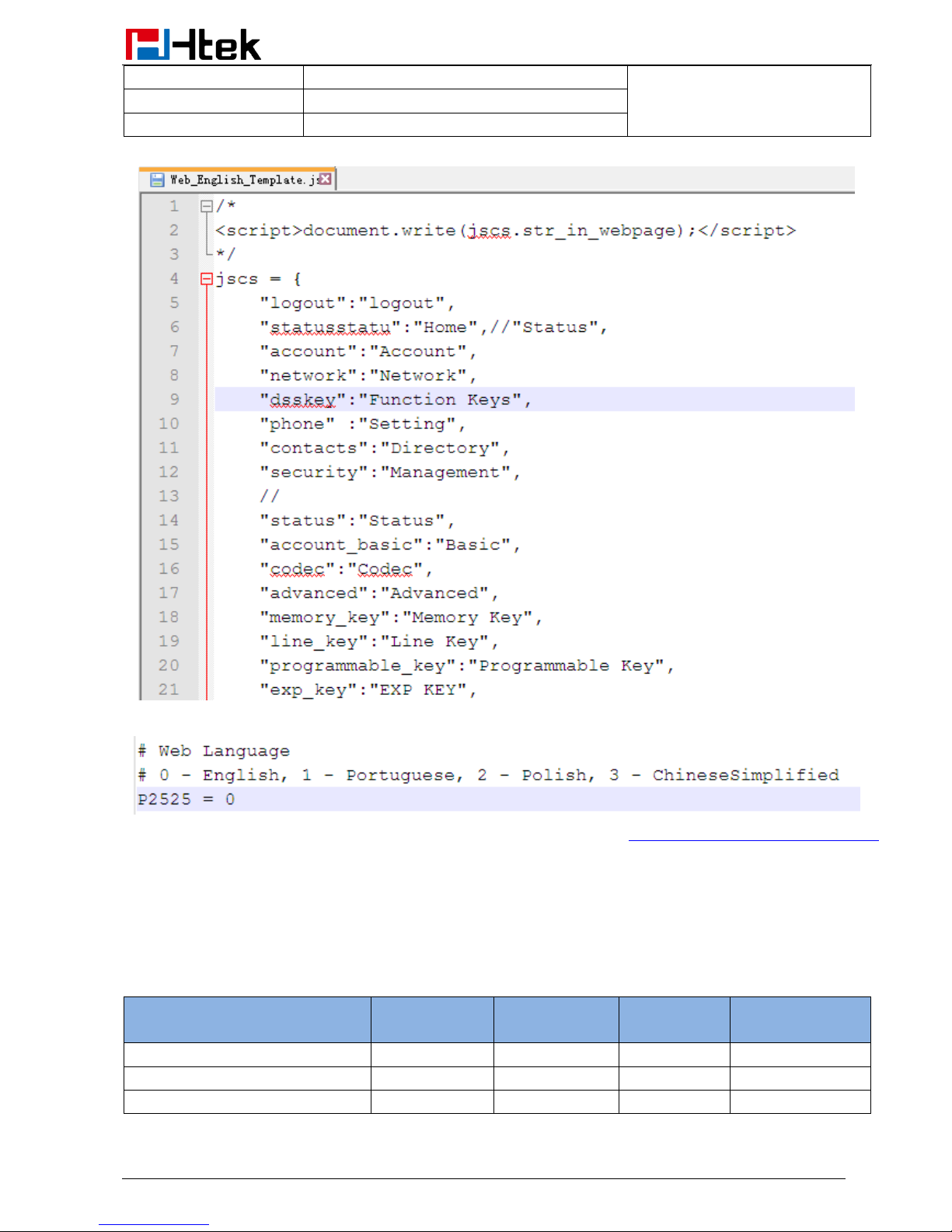

4.3 Customize web language.............................................................................................................11

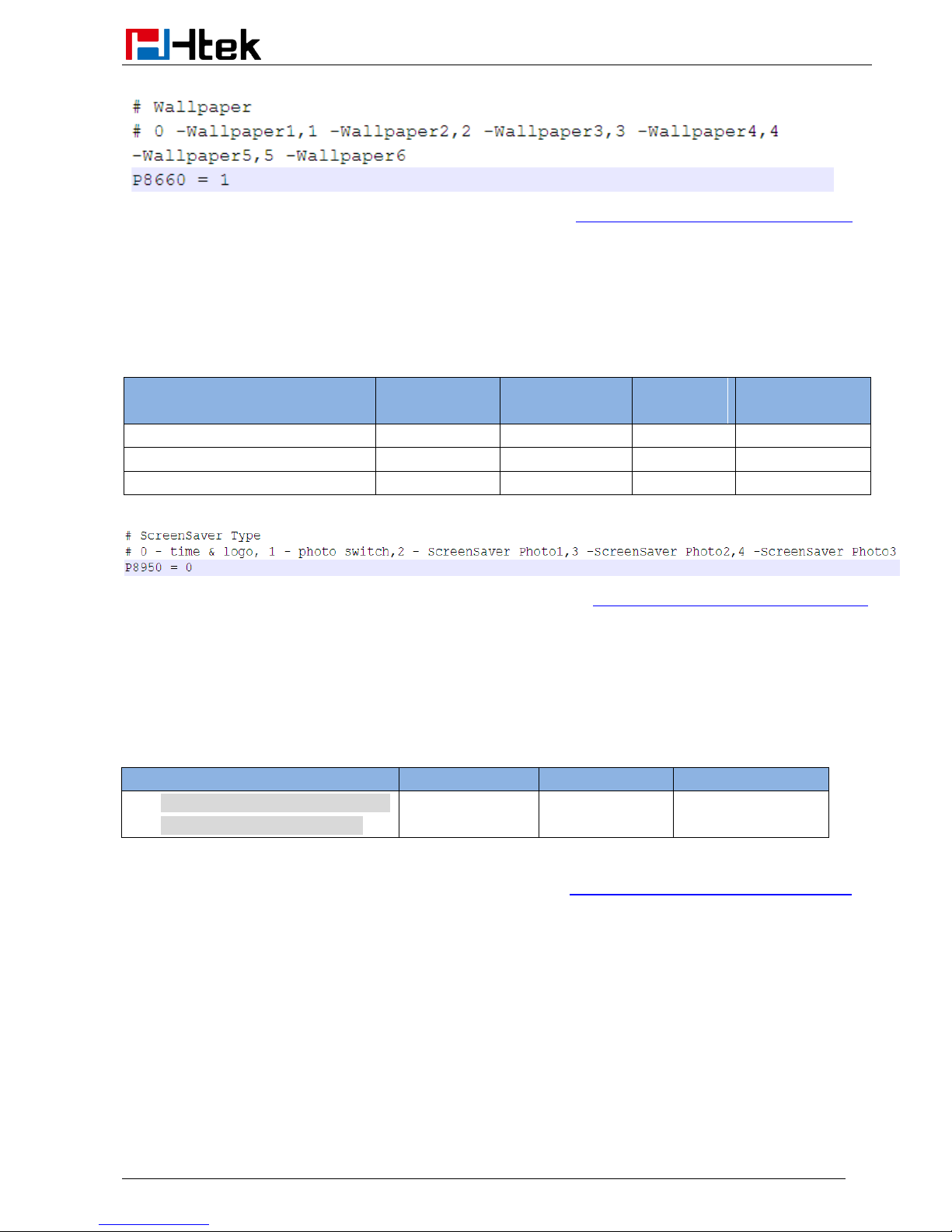

4.4 Customizing wallpaper.................................................................................................................12
4.5 Customizing screensaver.............................................................................................................13
4.6 Customizing weblogo...................................................................................................................13
5. Upgrade resource files.......................................................................................................................13
5.1 How to configure URL for hlpres.tar.............................................................................................14
5.2 How to configure URL for Language.tar.......................................................................................14
5.3 How to configure URL for exp_pres.tar ........................................................................................14
5.4 How to configure Path for ringx.bin ..............................................................................................14
5.5 How to configure URL for Screensaver........................................................................................14
5.6 How to configure URL for Wallpaper............................................................................................14

Table of Contents
6 Upgrade Firmware..............................................................................................................................15

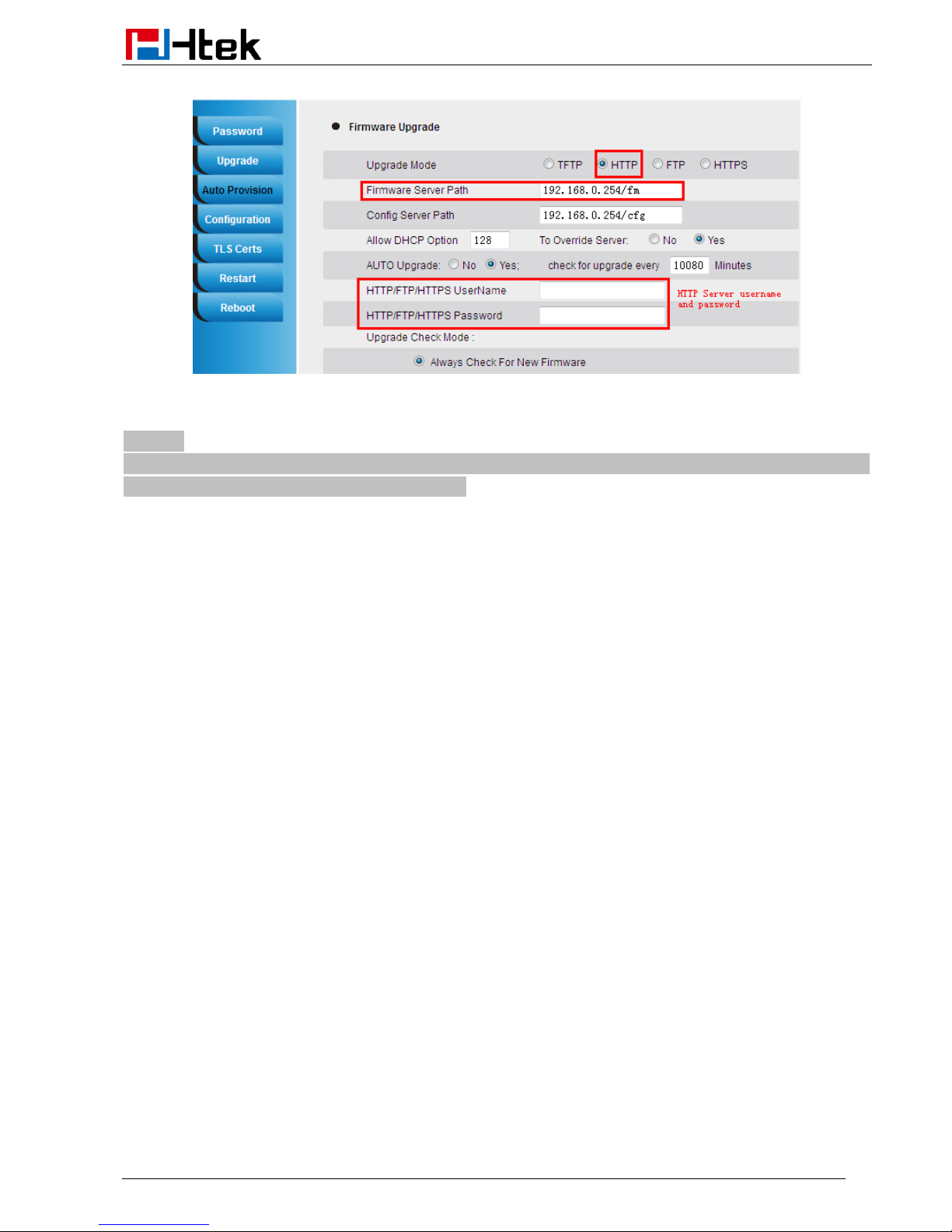

6.1 Configuring HTTP Server.............................................................................................................15
6.2 How to Configuring HTTP Server.................................................................................................15
7. Obtain Provisioning Server's Address ................................................................................................17
8. Update mode.....................................................................................................................................19
9. Download and Verify Configurations..................................................................................................21
9.1 Download configuration files ........................................................................................................21
9.2 Resolve and Update configurations..............................................................................................21
9.3 Verify configurations.....................................................................................................................21
10. Firmware and Configuration File Prefix and Postfix..........................................................................23
11. Firmware Server and Configuration File Server................................................................................24
12. Manage Firmware and Download Configuration File........................................................................24
13. Pre_Configuration and Configuration Redirection ............................................................................25
14. Automatic Provisioning Within LAN..................................................................................................26
15. Troubleshooting ...............................................................................................................................27
16. Glossary ..........................................................................................................................................29
17. How to Edit cfg000x.xml...................................................................................................................30
18. Generate Configuration File with HLLiteTool and Upgrade the Configuration File via
HTTP/HTTPS/FTP/TFTP.......................................................................................................................34
18.1 Generate the configuration file for Htek IP Phones.....................................................................34
18.1.1 Select manual mode to generate CFG file...........................................................................34
18.1.2 Select File Input mode to generate CFG file ........................................................................36
18.2 Upgrade cfgMAC file via HTTP/TPFP/FTP/HTTPS....................................................................40
19.Making Ringtone Notes.....................................................................................................................43
20.LCD and Web Language custom Guide............................................................................................45
20.1.LCD Language custom guide.....................................................................................................45
20.2.Web Language custom guide.....................................................................................................46
21.LCD and Web GUI custom Guide .....................................................................................................48

Table of Contents
21.1 How to custom the wallpaper1-wallpaper6?...............................................................................49
21.2 How to custom the screensaver1- screensaver3?......................................................................49
21.3 How to custom the weblogo?.....................................................................................................49
21.4 How to customthe eights meuns(.png)in the main menu?..........................................................49
21.5 How to customthe ...Icon.png?...................................................................................................49
21.6 How to custom the lcdlogo_color.png?.......................................................................................49
21.7 How to customthe lcdlogo_bw.png?...........................................................................................49
22.Firmware Upgrade............................................................................................................................51
22.1. Upgrade through TFTP .............................................................................................................51
22.2. Upgrade through FTP ...............................................................................................................53
22.3. Upgrade through HTTPS...........................................................................................................54
23.Parameter List ..................................................................................................................................55

Introduction
1
1. Introduction
Please note: 9xx including all models:
UC601/UC901/UC902/UC903/UC913/UC923/UC924/UC926/
Htek IP Phone could be plugged directly into an IP network and be used without any manual
configuration.
This guide provides instructions on how to provision Htek IP Phone with the minimum settings. Htek
IP Phone supports FTP, TFTP, HTTP, and HTTPS for auto provisioning and are configured by default
to use the HTTP.
This guide is a basic guidance for provisioning on Htek IP phones, including the models: Htek
UC601/UC901/UC902/UC903/UC913/UC923/UC924/UC926
Note: The auto provision just applies to FW 1.0.3.70 or FW after 1.0.3.70. For the latest FW, please
download from our website http://www.htek.com
2. Manage Configuration
Htek IP Phone could be configured via Web Interface and via Configuration File that download
through TFTP/FTP/HTTP/HTTPS. All devices support a configuration file in proprietary binary
format. Products like UC9xx, Unicorn3xxx and Unicorn6xxx accept configuration files in XML
format in legacy proprietary binary format. The XML provisioning implementation also allows
generic XML configuration file on top of the MAC based configuration file.
When Htek IP Phone boots up or reboots, it will issue a request for these configuration files
named “factory000x.bin” --> “cfg000x.xml” -->” cfgMAC” --> “cfgMAC.xml “, in which “000x” is the
Device Code. Take UC924 for example, the configuration file name should be factory0012.xml.
You can refer to the <<Device Type and file list>>. This “MAC” is
the device Mac address, for example “cfg001fc10608ab”. The configuration file name should be
in lower case. The file “cfgMAC” is a proprietary binary format configuration file that must be
generated by Htek configuration tools.
Device type, Device code and file list:
Device Type
Device Code
Device file
UC601
0019
factory0019.bin/cfg0019
.xml
UC901
0018
factory0018.bin/cfg0018
.xml
UC902
0017
factory0017.bin/cfg0017
.xml

Manage Configuration
2
UC903
0016
factory0016.bin/cfg0016
.xml
UC913
0015
factory0015.bin/cfg0015
.xml
UC923
0013
factory0013.bin/cfg0013
.xml
UC924
0012
factory0012.bin/cfg0012
.xml
UC926
0010
factory0010.bin/cfg0010
.xml
Process of Htek products are as follows:
factory000x.bin -----used for factory default configuration for ODM/OEM
cfg000x.xml ----- used for update the common configuration which doesn’t include the account
information.
cfg001fc1xxxxxx ---- this file is a private format for each device
cfg001fc1xxxxxx.xml------used for configuration for each device. xml format

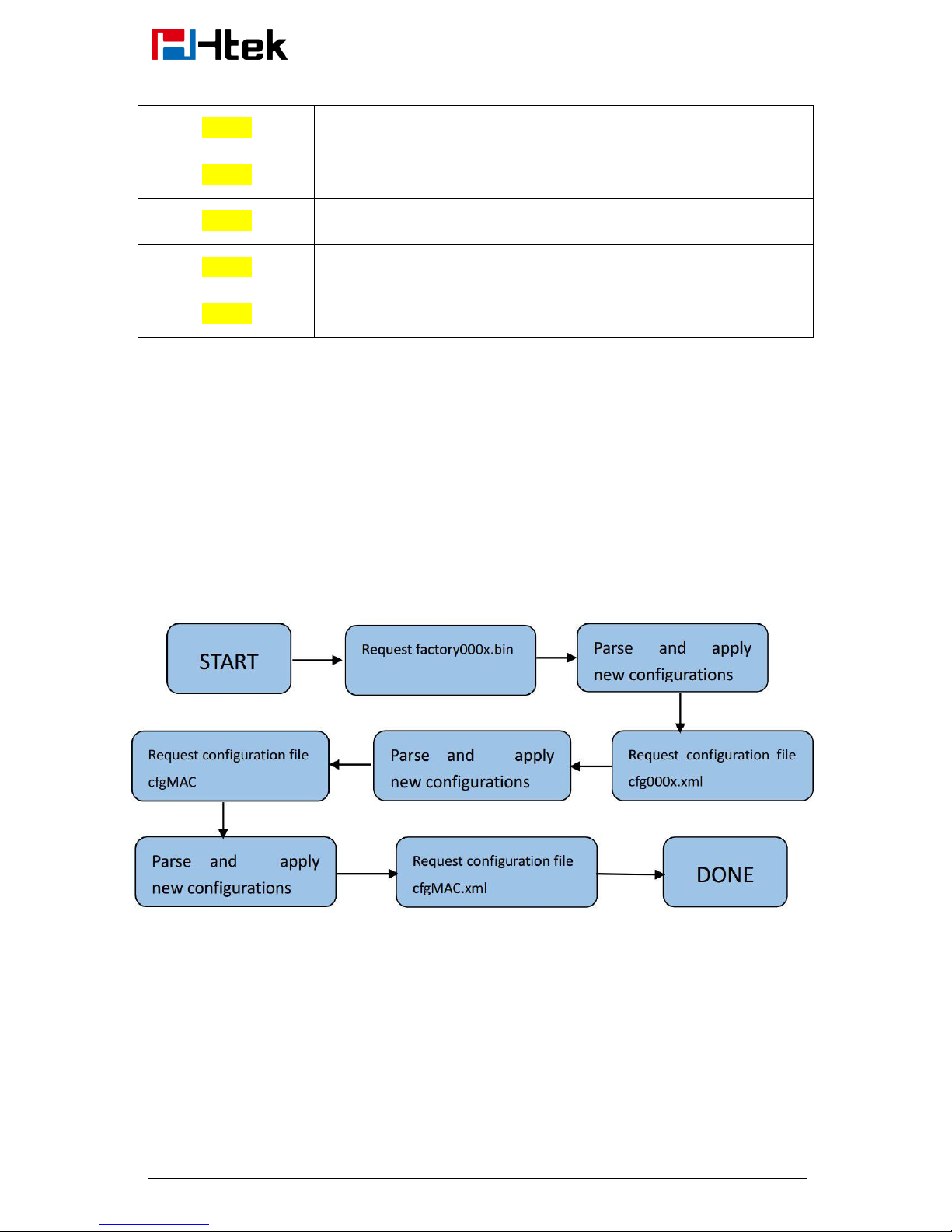

Provisioning Flow Chart:
Picture 1: Provisioning Flow Chart
Note: The provisioning program will apply and reload the settings after downloading the new
configuration files. It means that a provision/re-direction server can redirect the device to a provision
server without reboot. It can also be used to send the XML encryption password.
If factory000x.bin file does not download successfully, the provision program will download the
cfg000x.xml file, or download the cfgMAC file. If the cfgMAC file does not download successfully,
the provision program will download the cfgMAC.xml file.

Manage Configuration
3
2.1 Obtain configuration files
Before provisioning, first you need to obtain the configuration file. There are three CFG template files,
cfg000x.xml, cfg$mac and cfgMAC.xml. The cfg000x.xml is a common configuration file which
doesn’t include the account information. The “mac” only takes effect for specific phone. The file name
is the 12-digit mac address of phone. For example, if the phone's mac address is 001fc11a0012, the
cfg$mac file name must be cfg001fc11a0012; The cfgMAC.xml file name must be
cfg001fc11a0012.xml.
The phone will try to download these CFG files from the server during provisioning.
Note: The IP Phones that in FW 1.0.3.70 or FW after 1.0.3.70 would only recognize CFG files which
use UTF-8 or ANSI encoding.
2.2 Obtain phone information
Before provisioning, you need the phone information, like MAC address, SIP account of the
phone.
MAC Address: The unique 12-digit serial number of the phone. You can obtain it from the back
of the phone.
SIP Account Information: It may include SIP credentials, like user name, password and IP
address of the SIP server. Contact your system administrator for SIP account information.
2.3 Manage configuration files
Auto provision enables Htek IP Phone to update automatically via downloading configuration
files. Before provisioning, you may need to edit and customize your configuration file which is
composed of many configuration parameters. A configuration parameter is associated with
particular field in the web configuration page.Aparameter consists of a Capital letter Pand 2 to 5
digit numeric numbers. i.e., P2 is associated with “Admin Password” in the Advanced Page. For
detailed parameter list, please refer to <<parameter list>> in page 68.
2.4 How to edit cfg000x.xml file
You can customize configuration parameters by editing XML configuration file “cfg000x.xml”, and
different device would use different file name. you can refer to << How to Edit cfg000x.xml>> in page
40.
2.5 How to edit cfg$mac file
Cfg$mac file is a binary format configuration. It contains configuration parameters which apply to
all phone models.
The line beginning with “#” is considered to be the annotation, and easy to understand each P

Manage Configuration
4
value.
The parameters commonly edited in the cfg$mac file are described as follows:
############################################################################
########
## Configuration template for UC924 firmware version 1.0.3.70
############################################################################
########
############################################################################
########
# Account Settings
############################################################################
########
#---------------------------------------
# Account 1--basic setting
#---------------------------------------
# Account Active (In Use). 0 - No, 1 - Yes
# Number: 0, 1
# Mandatory
P271 = {$line_active. line.1|1}
# Primary SIP Server(eg:sip.mycompany.com or IP address)
# String
P47 = {$server_host. line.1}
# Failover SIP Server (Optional, used when primary server no response)
# String
P967 =
# Second Failover Sip Server (Optional, used when Failover SIP Server no response)
P8851 =
# Prefer Primary SIP Server (Yes-will register to Primary SIP Server if Failover registration
expires)
# Prefer Primary SIP Server (In Use). 0 - No, 1 - Yes
# Number: 0, 1
# Mandatory
P4567 = 0
# Outbound Proxy(proxy.myprovider.com, or IP address, if any)
# string
P48 =
# Backup Outbound Proxy (This is Usually Set as IP addr)

Manage Configuration
5
P20047 =
# SIP Transport
# 0 - UDP, 1 - TCP, 2 - TLS
P130 = 0
# NAT Traversal. 0 - No, 1 - STUN 2 - No,but send keep alive
#Number: 0-2
# Mandatory
P52 = 2
# SIP User ID
P35 = {$username. line.1}
# Authenticate ID
P36 = {$username. line.1}
# Authenticate password
P34 = {$secret. line.1}
# Name
P3 = {$displayname. line.1}
# DNS Mode. 0 - A Record, 1 - SRV, 2 - NAPTR/SRV
# Number: 0-2
# Mandatory
P103 = 0
# User ID Is Phone Number.0 - No, 1 - Yes
# Number:0, 1
P63 = 0
# SIP Registration. 0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P31 = 1
# Unregister On Reboot.0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P81 = 1
# Register Expiration (in minutes. default is1 hour, max 45 days)
P32 = 15

Manage Configuration
6
# Outgoing Call Without Registration.0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P109 = 1
# Local SIP Port (default 5060)
P40 = 5060
# Use Random Port.0 - No, 1 - Yes
# Number:0, 1
# Mandatory
P78 = 0
# Voice Mail UserID (UserID for voice mail system)
P33 =
# RPort.0 - No, 1 - Yes
P136 = 0
# RFC 2543 Hold.0 - No, 1 - Yes
P1100 = 1
We offer free Configuration File generator software in both Linux/Unix and Windows platform.
You can refer to << Generate Configuration Files with HLLiteTool >> in the page 45.
2.6 How to edit cfgMAC.xml file
General XML syntax consists of a list of name-value pairs. P-Value is the element and value of
the element represents the value for a particular configuration which P-Value represents
corresponding.
Method 1:
You need to download cfg.xml file from IP Phone
webpage(Management->Configuration->Download xml file) or download this cfgMAC.xml file
from website www.htek.com, then change the file name to cfgMAC.xml (mac is IP Phone

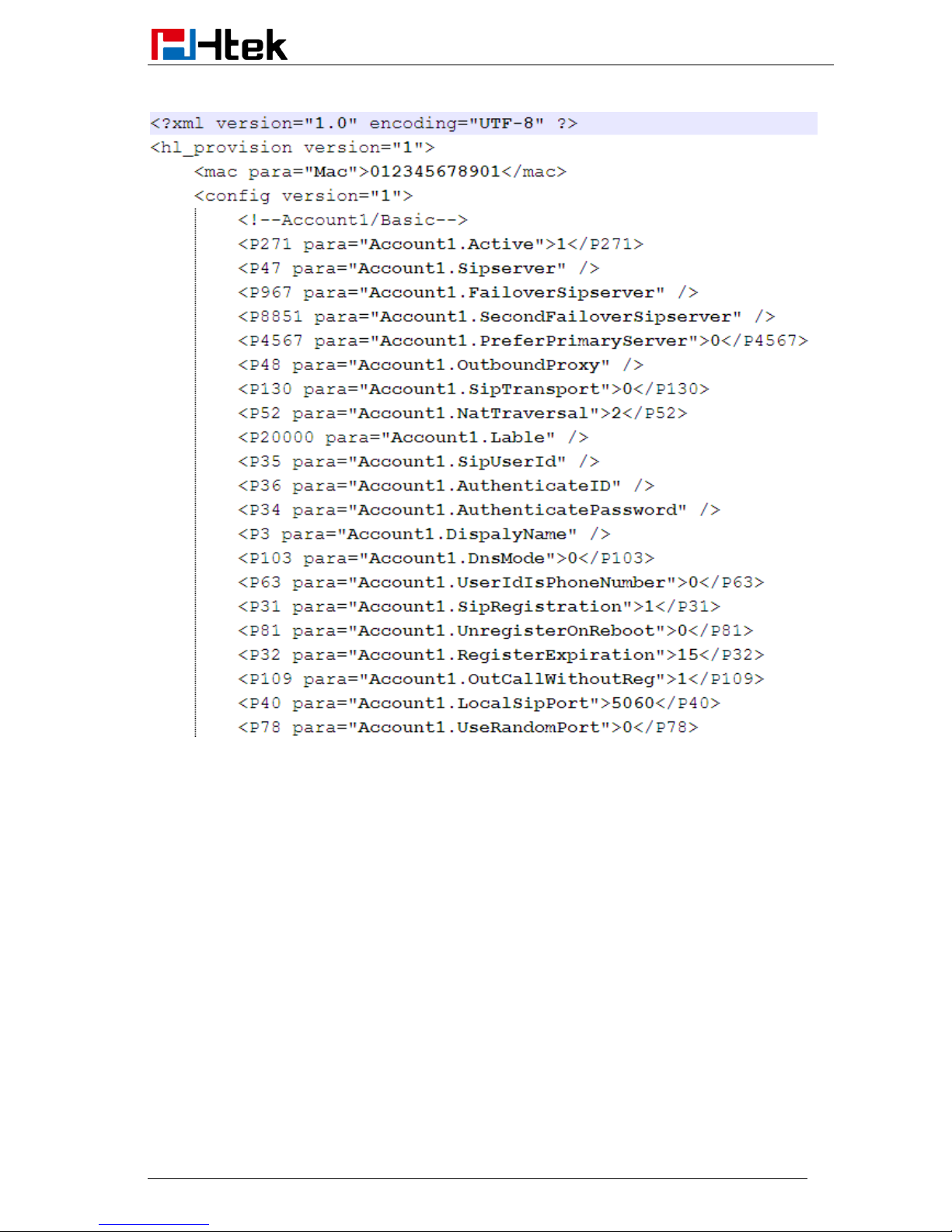

address), and open the cfgMAC.xml, See the below screen shot:
