Huawei IP Phone eSpace 7810
Qucik Start
Welcome to Huawei IP Phone eSpace 7810 (eSpace 7810 for short).
The eSpace 7810 is a cost-effective network phone that enables you to enjoy
convenient and high-quality voice communication.
Product appearances and screen shots in this document are for reference only.
For details about eSpace 7810, see the Huawei IP Phone eSpace 7810 User Manual in
the CD-ROM.

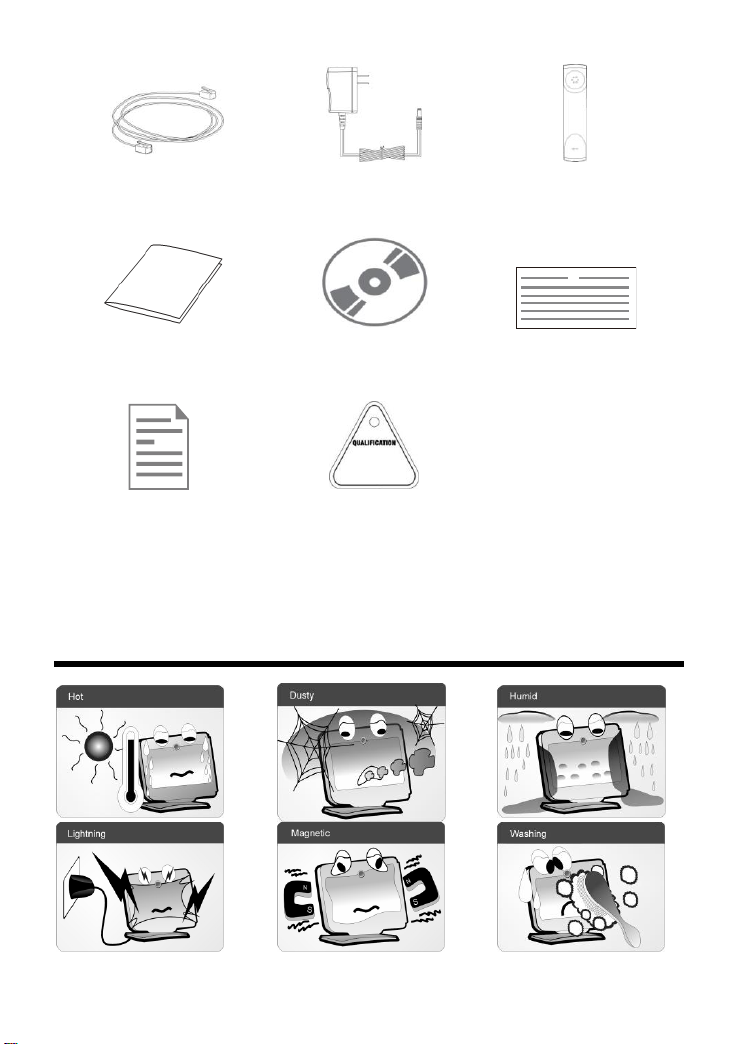

1Packing List
Verify that the following components are contained in the product package. If any of
them are lost, contact the distributor.
Main case (1)
Phone stand (1)
Handset cord (1)

2
Straight-through network
cable (1)
Power adapter (1)
Handset (1)
Quick start (1)
CD-ROM (1)
Environment
declaration (1)
Warranty card (1)
Quality certificate (1)
2Security Precautions

3
3Installing the eSpace 7810
Installing the Phone Stand
To place eSpace 7810 on the desktop, install the phone stand in the forward
direction and connect it to related slots on eSpace 7810's back panel.
To hang eSpace 7810 on the wall, install the phone stand in the backward direction
and connect it to related slots on eSpace 7810's back panel.
Connecting the Handset and Headset
Connect the handset and headset to related ports on the eSpace 7810.
Note: The headset is not attached to the product package and you can buy one from the
distributor.

4
Connecting Cables
Before powering on the eSpace 7810, connect required external cables. The following
figure shows the typical cable connection.
The following table lists related ports.
Port
Description
Connects the power supply.
Internet
Connects the Local Area Network (LAN) or the public network.
PC
Connects a computer.
To connect required external cables to the eSpace 7810, proceed as follows:
Step 1 Use a straight-through network cable to connect the Internet port on the
eSpace 7810 and to an externalnetworkport, for example, the network port in
office or at home.

5
If you have only one external network port but want to connect the computer
and the eSpace 7810 at the same time, perform Step 1 and use another
straight-through network cable to connect the computer to the PC port on the
eSpace 7810.
Step 2 Connect the power adapter to the power supply port on the eSpace 7810 and
to a power socket.
You must use the power adapter that is intended for the eSpace 7810.
Starting the eSpace 7810
After you power on the eSpace 7810, the power indicator at the upper-right corner is
green.
4Registering the eSpace 7810
Registering an Account
If an eSpace 7810 has no account, the Login Wizard screen is displayed after it is
started successfully.
To register an account, proceed as follows:
Step 1 Set Extension, Password, and Server.
During the startup of the eSpace 7810, a message is displayed asking you to
perform basic configurations. Click <X> or waits 5 minutes for the phone to
automatically log in.

6
The value of Extension and Password are the registration account and
password provided by the system administrator. The value of Server is the IP
address or domain name of the SIP server.
Step 2 Press the <OK> key.
After the login is successful, the standby screen is displayed, and the account can be
used to make calls.
Checking the Configuration
The account displayed on the LCD indicates that the network connection is normal
and that the account register is correct, that is, you can use the account normally.
The message "No Service" indicates that the account failed to be registered. Check
whether the network and account settings of the eSpace 7810 are the same as the
settings provided by the administrator. If they are both correct but the account still
failed to be registered, contact the system administrator.
5Using the eSpace 7810

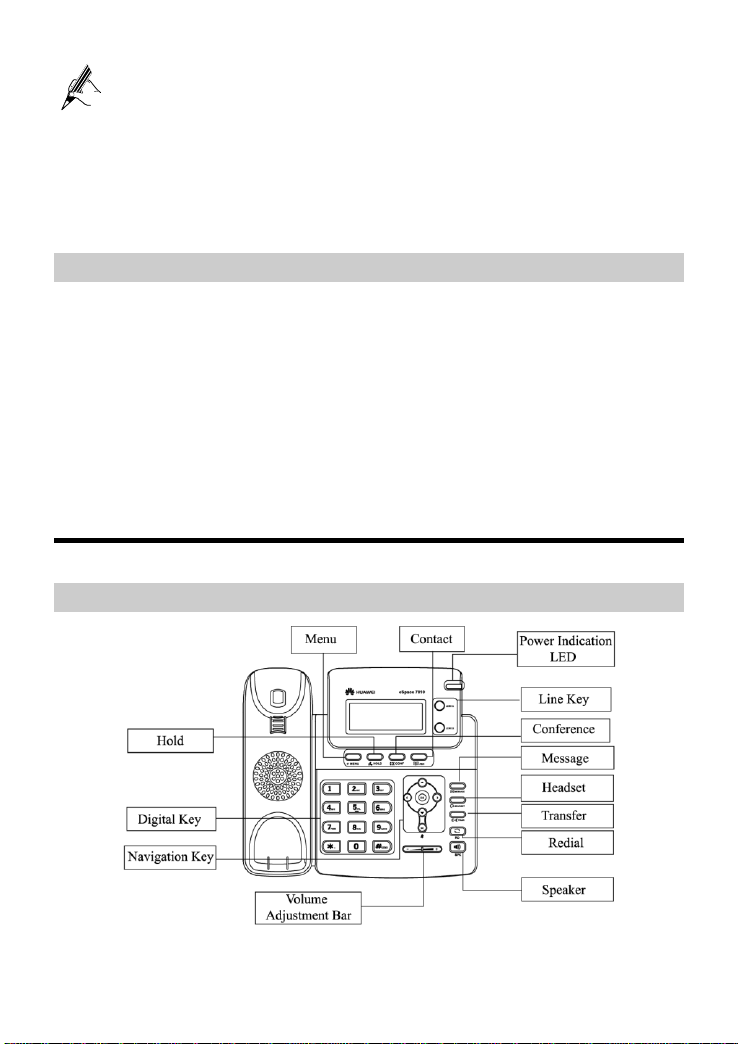

The eSpace 7810 Keys and Indicators

7
The eSpace 7810 keys and indicators are described as follows:
Key and Indicator
Description
Menu
On the standby screen, press this key to display the
main menu.
On any other screen, press this key to return to the
previous menu.
During a call, press this key to end the call.
Contact
Press this key to display the contact list.
Power Indication LED
This indicator indicates the power supply status.
When eSpace 7810 is powered on, the indicator is on.
When eSpace 7810 is powered off, the indicator is
off.
When eSpace 7810 has an incoming call or when it is
muted during a call, the indicator blinks.
Line Key
Line keys indicate the status of the two accounts. You can
set line keys to Direct Station Selection (DSS) keys for
other use.
Conference
Press this key to create a multi-party conference.
Message
When you receive a new voice message, the indicator
blinks.
If you have set Account No., the voice mailbox is
automatically connected after you press this key.
If there is no new voice message, the page for setting
voice mailbox connection code for the default
account is automatically displayed afteryou press this
key.
Headset
On the dialing page or conversation page, press this key
to change the conversation mode.
In a conversation with a handset, press this key to
access the headset mode, and press this key again to
restore the handset mode.
In a conversation in the hand-free mode, press this
key to access the headset mode, and press this key
again to restore the hand-free mode.

8
Transfer
Press this key to transfer a call to another party.
Redial
In the standby state, press this key to access the page
displaying numbers that you have dialed.
Select a record and press this key again to initiate a call.
Speaker
Press this key to answer an incomingcall in the hand-free
mode.
On the dialing page or conversation page, press this key
to change the conversation mode.
In a conversation with a handset, press this key and
put down the handset to access the hand-free mode.
To restore the handset mode, press this key again.
In a conversation with a headset, press this key to
access the hand-freemode, and press this key again to
restore the headset mode.
Volume Adjustment
Bar
Adjusts the receiving volume for the handle, headset, and
ring tone, and the receiving volume in the hand-free
mode.
Navigation Key
Navigation keys include four arrow keys (up, down, left,
and right), one <OK> key, and one <X> key.
Arrow keys: move the cursor on pages.
<OK> key: access the menu that is selected or
confirm an operation, or answer an incoming call if
any.
<X> key: cancel an operation, return to the
upper-level menu, reject an incoming call (in the
ringing state), or mute a call (in the conversation
state).
Digital Key
Enters alphanumeric and special characters.
To enter digits, lowercase letters, uppercase letters, and
special characters, switch the entering mode.
Hold
Press this key to hold or unhold a call.

9
Making a Call
To access the dialing page, press the SPK key or related line key, or pick up the
handset.
Direct dial: Enter a number and press the <OK> key.
Redial: Press the <RD> key to access the page displaying numbers that you have
dialed. Select a record and press the <RD> key again.
Answering a Call
To answer an incoming call in the standby state, press the <SPK> key, pick up the
handset, or press the <Headset> key.
Rejecting a Call
To reject a call, directly press the <X> key.
Holding a Call
To hold an ongoing call, press the <Hold> key. If you want to cancel the holding,
proceed as follows:
When only one call is held, press the <Hold> key again.
When multiple calls are held, press the up or down key to select a callthat you want
to unhold, and press the <Hold> key again.
Transferring a Call
The eSpace 7810 supports the following call transfer modes: blind transfer,
semi-consultation transfer, and consultation transfer.
Assume that user A wants to transfer user B's call to user C. The procedure is as
follows:
Step 1 During the conversation with user B, user A presses the <Transfer> key to
hold the call with user B.
Step 2 User A dials user C's number.
Step 3 User A performs call transfer.
Blind transfer

10
User A presses the <Transfer> key to initiate the call. After that, user C's
phone rings. After user C picks up the phone, user A's phone hangs up
automatically to complete the transfer.
Semi-consultation transfer
User A presses the <OK> key to initiate the call. When user C's phone
rings, user A presses the <Transfer> key, and user A's phone hangs up
automatically. The transfer is complete when user C picks up the phone.
Consultation transfer
User A presses the <OK> key to initiate the call.After user C picks up the
phone, user A asks user C whether user C wants to answer user B's call. If
user C wants to answer, user A presses the <Transfer> key to complete
the transfer.
Step 4 User B talks with user C.
Forwarding a Call
You can forward calls after configuring the call forward function. The eSpace 7810
supports automatic forwarding (including Always Forward, Busy Forward, and No
Answer Forward) and manual forwarding.
If you enable the automatic forwarding function, the eSpace 7810 automatically
forwards incoming calls based on the preset forward type. If you enable the manual
forwarding function, you can forward an incoming call by pressing the soft key
<Transfer> and entering the forward-to number.
Creating a Conference
User A and user B in a call can create a three-party conference. Assume that user A
wants to create a conference. The procedure is as follows:
Step 1 User A presses the <Conference> key. User B is held, and user A hears the
dial tone.
Step 2 User A dials user C's number and presses the <OK> key.
Step 3 When user C picks up the phone, user A can only talk with user C. To
establish a three-party conversation, user A must press the <Conference>
key.
When user A hangs up the phone, the other two parties' conversation ends
automatically.

11
6FAQ
Q: Why is there neither display nor backlight on the LCD after the eSpace 7810 is
powered on? How do I solve the problem?
A: Verify that the power connection is correct and that the power adapter is
appropriate.
Q: Why is the network unavailable after the eSpace 7810 is powered on? How do I
solve the problem?
A: Verify that the network connection is normal and that connection parameters
such as the IP address are set correctly.
Q:After connecting to the external network and a computer, the eSpace 7810 can be
powered on and be used to make calls. The computer's network, however, is
unavailable. How do I solve the problem?
A: Verify that the straight-through network cable between the computer's network
port and the eSpace 7810's PC port is normal.
Q: How do I to check the basic information about the eSpace 7810, such as the IP
address and software version?
A: In the standby state, press the <OK> key to access the phone status page.
Q: How do I to log in to the eSpace 7810's Web page?
A:Start the Web browser, enter the eSpace 7810's IP address in the address box, and
enter the correct account and password.
A: How do I obtain details about the methods of configuring and using the eSpace
7810?
A: See the Huawei IP Phone eSpace 7810 User Manual in the CD-ROM.

12
Copyright © Huawei Technologies Co., Ltd. 2011. All rights
reserved.
Trademarks and Permissions
, , and
are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Notice
The information in this document is subject to change without notice. Every
effort has been made in the preparation of this document to ensure accuracy
of the contents, but all statements, information, and recommendations in this
document do not constitute a warranty of any kind, express or implied.
Issue: 01 (2011-09-07)
