Huawei EchoLife ET323 User manual

EchoLife ET323 IP Phone
User Manual
HUAWEI TECHNOLOGIES CO., LTD.

Huawei Technologies Proprietary
EchoLife ET323 IP Phone
V100R001
User Manual
Issue 01
Date 2007-09-10

Huawei Technologies Proprietary
Huawei Technologies Co., Ltd. provides customers with comprehensive
technical support and service. Please feel free to contact our local office
or company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://www.huawei.com
Email: Suppo[email protected].
Copyright © Huawei Technologies Co., Ltd. 2007. All
rights reserved.
No part of this document may be reproduced or transmitted in any form or
by any means without prior written consent of Huawei Technologies Co.,
Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei
Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the
property of their respective holders.
Notice
The information in this document is subject to change without notice.
Every effort has been made in the preparation of this document to ensure
accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute the warranty of any
kind, express or implied.

EchoLife ET523 IP Phone User Manual Contents
i
Contents
1Installation................................................................................................. 1
Packing List.........................................................................................................1
Cable Connections of the ET523.........................................................................2
Wall Mounting.....................................................................................................3
ET523 Extension Board.......................................................................................4
Starting the Phone.......................................................................................4
Safety Compliance...............................................................................................5
Warranty..............................................................................................................5
2Product Overview...................................................................................... 6
3Using the IP Phone.................................................................................. 11

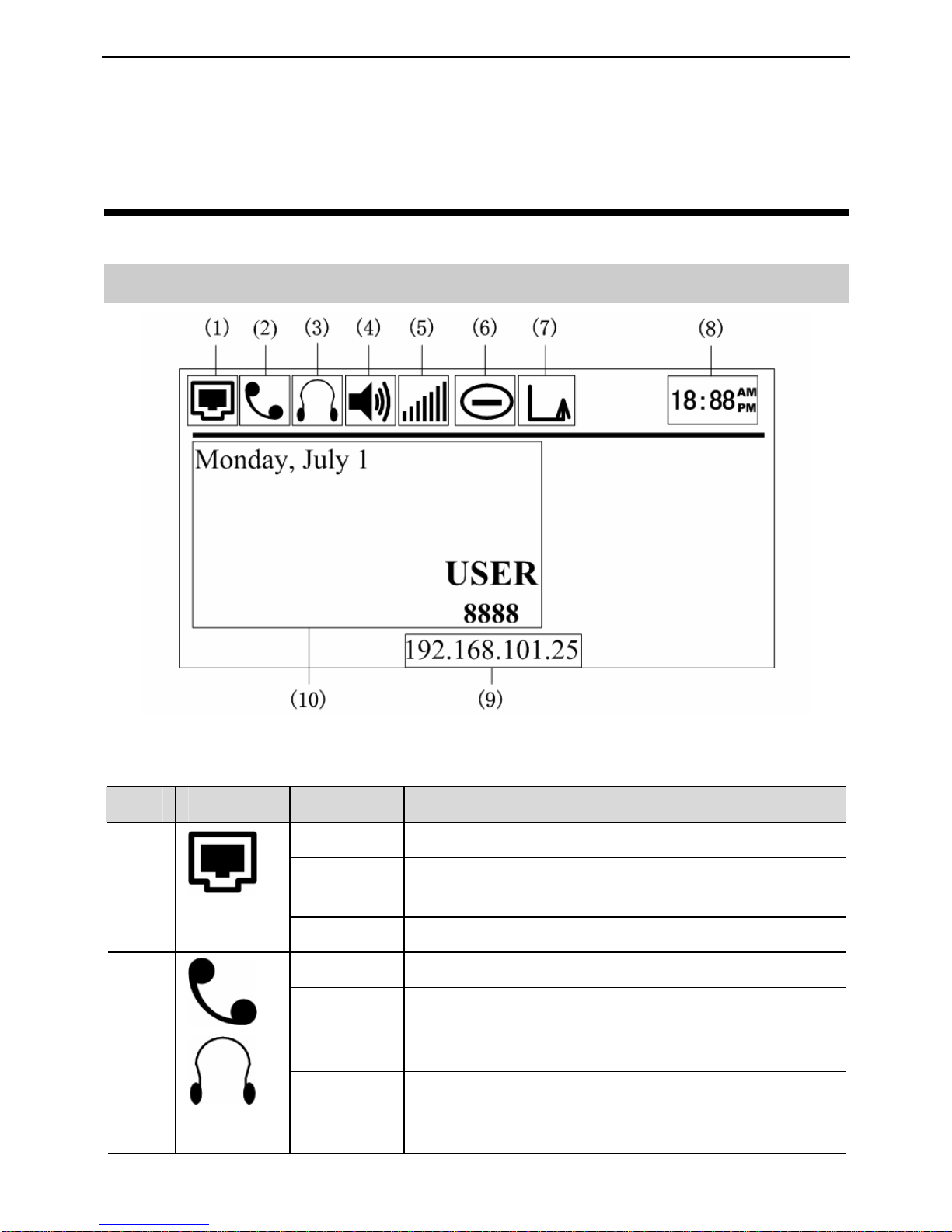

Getting to Know the LCD..................................................................................11
Making and Answering a Call ...........................................................................15
Handset, Speakerphone and Headset Mode..............................................15
Multiple SIP Accounts and Lines.............................................................15
Making a Call...........................................................................................16
Speed Dialing...........................................................................................18
Making a Call by Using an IP-Address ....................................................18
Quick IP Call Mode..................................................................................18
Answering a Call ...............................................................................................19
Answering a Call......................................................................................19
Do-Not-Disturb.........................................................................................19
Phone Functions During a Phone Call ...............................................................20
Call Waiting/Call Holding........................................................................20

EchoLife ET523 IP Phone User Manual Contents
ii
Muting/Deleting .......................................................................................20
Call Transferring ......................................................................................20
Three-Way Conference Call.....................................................................20
BLF/Presence ...........................................................................................21
Extension Board or Unit...........................................................................21
Call Features......................................................................................................21
Customized LCD Screen & XML......................................................................23
4Configuration Guide............................................................................... 24
Configuring the Phone Through the Keypad .....................................................24
Configuring the Phone Through Web Browser..................................................28
Accessing the Web Configuration Menu..................................................28
Configuration Page............................................................................................29
Advanced User Configuration ...........................................................................34
Individual Account Settings...............................................................................43
Saving the Configuration Changes ...........................................................50
Rebooting the Phone Remotely ................................................................50
5Software Upgrade & Customization...................................................... 51
Firmware Upgrade Through TFTP/HTTP .........................................................51
Keypad Menu ...........................................................................................51
Web Configuration Interface....................................................................51
Solution for No Local TFTP Server..........................................................52
Configuring the Local TFTP Server.........................................................52
Downloading the Configuration File .................................................................53
Managing Firmware and Downloaded Configuration File .......................53
6Restore Factory Default Setting............................................................. 54
7FAQs......................................................................................................... 55
8Safety Precautions................................................................................... 56

EchoLife ET523 IP Phone User Manual 1 Installation
1
EchoLife ET523 IP Phone
User Manual
Thank you for purchasing the EchoLife ET523 IP Phone (the ET523 for short).
ET523 is an affordable and high-quality IP phone designed for the small and large
business enterprises.
1Installation
Packing List
The following items are included in the ET523 package. Verify the packing items.
Contact your reseller immediately if any one is missing.
Table 1-1 Packing items of the ET523
Item Quantity
Main case 1
Handset 1
Coiled handset cord 1
Specialized power adapter 1
Straight-through cable 1
ET523 Quick Start 1
CD 1
Warranty Card 1
Certificate of Quality 1

EchoLife ET523 IP Phone User Manual 1 Installation
2
Cable Connections of the ET523
Figure 1-1 Connecting the ET523
Table 1-2 Descriptions of the ET523 connectors
No. Connector Description
(1) Extension board
interface Connect the EXT directly to the main case of the
ET532 through the provided connection cable. Draw
power from the outlet or PoE power of the. ET523
main case.
(2) LAN interface 10/100 Mbps RJ45 ports for the LAN (network)
connections.
Support PoE (802.3af), drawing power from both
spare lines and signal lines.
(3) PC interface 10/100 Mbps RJ45 ports for PC connections.
(4) Power interface 5 V DC power socket.
(5) Headset interface 2.5 mm headset socket.

EchoLife ET523 IP Phone User Manual 1 Installation
3
Wall Mounting
The ET523 can be wall mounted. To position the phone on the wall, make a wood
sustaining frame on the wall and place two fixed hangers on the frame. Hang the back of
the phone on the fixed hangers.
.
To prevent the handset from falling down, pull out the handset retaining clip (extension
downwards) from the slot, rotate the tab and plug it back with the extension upwards.

EchoLife ET523 IP Phone User Manual 1 Installation
4

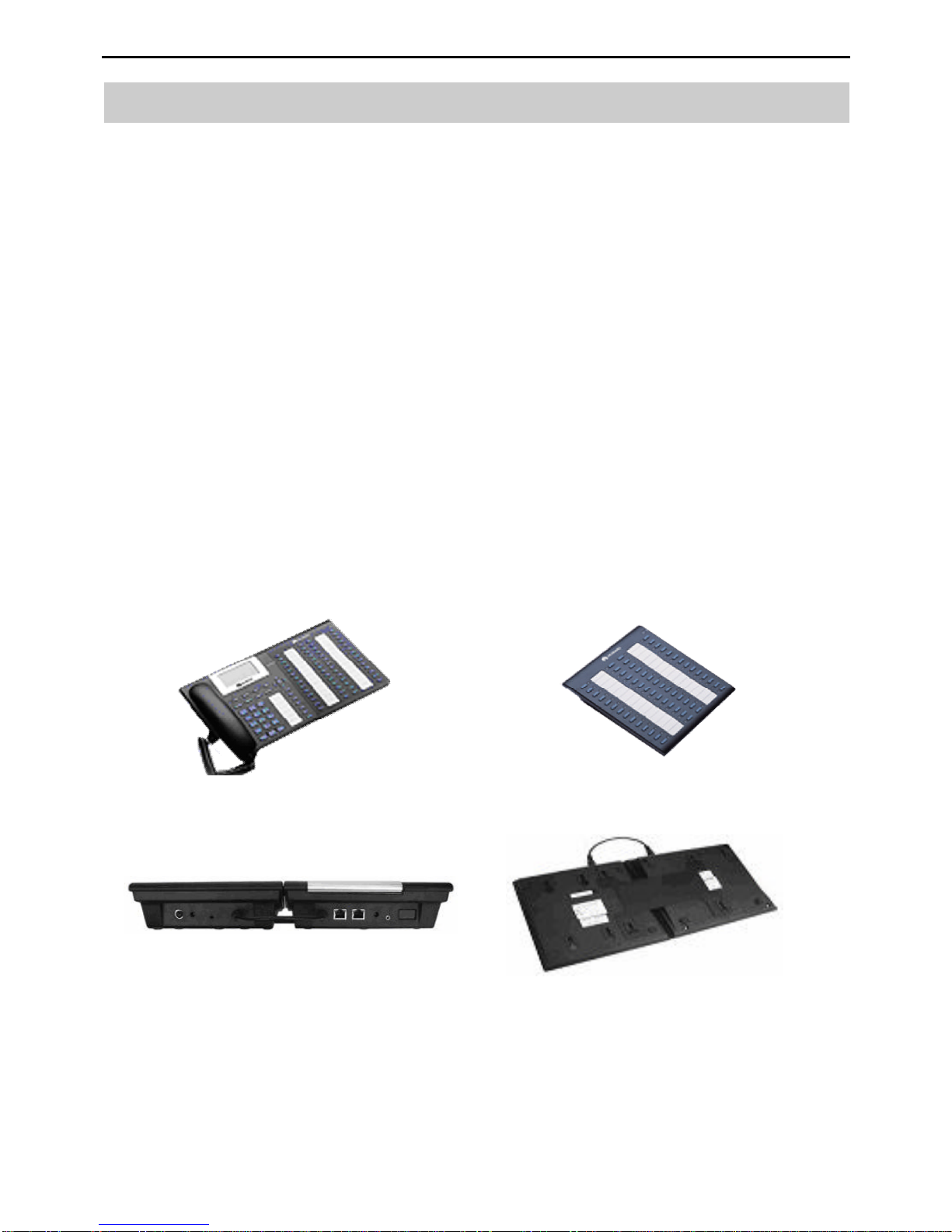

ET523 Extension Board
The ET523 supports two extension boards (EXTs), which provides up to 112 additional
programmable extensions. Each extension board has 56 multifunctional keys, dual
color LEDs (red/green) and supports busy lamp field (BLF) and bridged line
appearance (BLA) for specific platforms. Connect the first EXT to the phone with the
PS2 cable supplied with extension board package. The first EXT draws power directly
from the phone. Connect the second EXT to the phone with the PS2 cable. The ET523
will automatically reboot and power up the EXTs. Huawei recommends you to use an
extra power supply for the second EXT.
Starting the Phone
The ET523 will boot up first.
The status light in the upper right corner of the EXT blinks in red.
All of the LED indicators flash three times.
The status light at the upper right corner of the EXT is steady on in green.
Table 1-3 Connecting the ET523 with the EXT
ET523 and EXT EXT
Connecting the ET523 with the EXT Connection of two EXTs

EchoLife ET523 IP Phone User Manual 1 Installation
5
Safety Compliance
The ET523 phone complies with the FCC/CE/CCC and various safety standards. The
ET523 power adaptor is compliant with the UL standard. Only use the universal power
adapter provided with the ET523 package. The manufacturer’s warranty does not cover
damages to the phone caused by unsupported power adaptors.
Warranty
If you purchased the ET523 from a reseller, contact the reseller for replacement, repair
or refund. If you purchase the product directly from Huawei, contact Huawei sales and
service representatives for a Return Materials Authorization (RMA) number before you
return the product. Huawei reserves the right to remedy the warranty policy without
prior notification.
Use a power adaptor provided with the ET523 or the extension board;
otherwise, damages can be caused to the products and the manufacturer
warranty is void.

EchoLife ET523 IP Phone User Manual 2 Product Overview
6

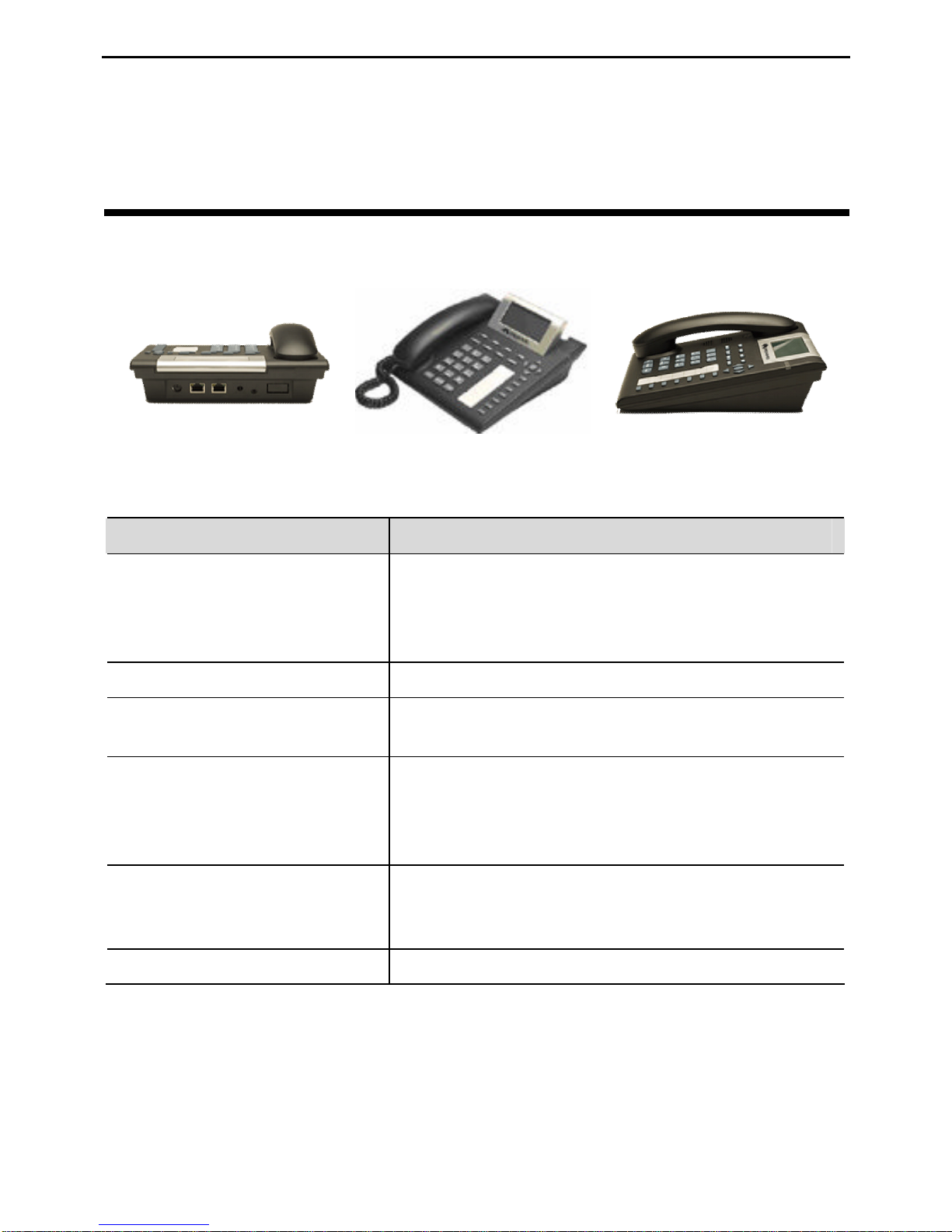

2Product Overview
Back view Desk view Side view
Table 2-1 key features of the ET523
Feature Description
Open standard compatibility SIP 2.0, TCP/IP/UDP, RTP/RTCP/SRTP,
HTTP/HTTPS, ARP/RARP, ICMP, DNS (A
record and SRV), DHCP (only client), PPPoE,
TFTP, NTP
Network interfaces Two full/half duplex 10/100Mbit/s Ethernet ports
High audio quality Advanced DSP, silence suppression, VAD, CNG,
AGC
Traditional features Standard voice features including caller ID
display, call waiting, call holding, call transferring,
call forwarding, call blocking, call rejecting, mute,
autodial, and off-hook auto dial
Advanced functions Supporting multi-lines, multiparty conference call,
up to 112 additional extensions, headset enabled,
intercom, AES encryption
Advanced features Customized ringtones, MLS, XML enabled, SRTP

EchoLife ET523 IP Phone User Manual 2 Product Overview
7
Feature Description
Note:
DSP = Digital Signal Processing
VAD = voice activity detection
CNG = comfort noise generation
AGC = automatic gain control
MLS = multi-language support
NTP = Network Time Protocol
Table 2-2 Hardware specifications of the ET523
Item Specification
LAN interface (Ethernet ports) Providing two 10/100 full/half duplex Ethernet
ports. Ethernet polarity can be auto detected.
Either the straight through or twist cable can be
used
Graphic LCD display 8 lines ×22 characters; The pixel is 131 ×64
Extension board support Yes
Headset interface 2.5 mm headset port
LED 11 LEDs with different light patterns in two
colors (green/red)
PoE Built-in auto-sensing IEEE 802.3af standard
PoE
Universal switching Input: 100–240 V AC 50–60 Hz
Power adaptor Output: +5 V DC, 1200 mA, UL certified
Dimension (W ×H ×D) 215 mm ×82.1 mm ×215 mm
Weight 0.8 kg
Temperature 0°C to 45°C
Humidity 10% to 90% (non-condensing)
Compliance FCC/CE/CCC

EchoLife ET523 IP Phone User Manual 2 Product Overview
8
Table 2-3 Technical specifications of the ET523
Item Specification
Lines 4 direct lines with 7 speed dial keys and up to 11
concurrent calls.
Additional 112 speed dial keys are expanded through
connecting two ET523 EXTs.
SIP 2.0, TCP/UDP/IP, PPPoE, RTP/RTCP, SRTP by
SDES, HTTP, ARP/RARP, ICMP, DNS, DHCP,
NTP/SNTP, TFTP, SIMPLE/PRESENCE protocols.
Supporting multiple SIP accounts and up to 11 media
channels at the same time.
Supporting SIP PUBLISH method (RFC 3903), SIP
Presence package (RFC 3856, 3863) for the use of 7 MFKs
and ET523 EXT, SIP Dialog package (RFC 4235).
Supported protocol
Supporting SIP MESSAGE method (RFC 3428).
Up to 100 incoming IM messages can be stored (drops the
latest IM message).
Display 8 lines ×22 characters; The pixel is 131 ×64.
Function keys Seven dedicated keys: MSG (message), Hold,TRNF
(transfer), CONF (conference), SPEAKER,SEND,
MUTE/DEL
One menu key and four navigation keys
LED indicators that can be on in two colors.
Supporting the upgrade of the NAT-friendly remote
software (through TFTP/HTTP) for deployed devices
including behind the firewall/NAT, auto/manual
provisioning system, GUI interface, and address book.
Supporting Layer 2 (802.1Q, VLAN, 802.1p) and Layer 3
QoS (ToS, DiffServ).
Device management
Supporting the ET523 extension board and diagnostic
mode for keys on ET523 extension board.
Hands-free, handset and headset modes in full duplex.
Advanced DSP.
Dynamic negotiation of codec and voice payload length.
Audio features
Supporting the G.723,1 (6.3K), G.729A/B, G.711 µ/A,
G.726-32K, G.722 (wideband), GSM and iLBC CODECs.

EchoLife ET523 IP Phone User Manual 2 Product Overview
9
Item Specification
In-band and out-of-band DTMF (in audio, RFC2833, SIP
INFO).
Silence suppression, VAD, CNG, and AGC.
AEC with AGC for headset, handset and speakerphone
modes.
Supporting the sidetone, adaptive jitter buffer control
(patent-pending) and packet delay & loss concealment.
Telephony features Intuitive GUI, download of the phonebook (XML), MLS,
voice mail indicator, download of custom ringtones.
Call holding, call transferring (attended/blind),
Do-Not-Disturb, call forwarding, call waiting, call waiting
caller ID display, mute, redial, call log and volume control,
caller ID display or block, multi-party conference call,
dialing with a prefix, off-hook autodial, auto answer, early
dialing and speed dialing.
Supporting anonymous call by using privacy header.
Through the keypad/LCD, web browser, or secure (AES
encryption) central configuration file, manual or DHCP
network setup.
Support NAT traversal by using IETF STUN and
symmetric RTP.
Network and
provisioning
Supporting the IEEE 802.1p/Q tagging (VLAN), Layer 3
TOS.
Supporting firmware upgrade through the TFTP or HTTP;
Supporting authentication of configuration files before
changing.
Firmware upgrade
Providing the specific URL for users to download
configuration files and upgrade firmware files.
Advanced server
features Message waiting indicator.
Supporting DNS SRV query and the Fail Over function of
the SIP server.
Supporting the customized idle screen by downloading
XML through HTTP/TFTP.
Security DIGEST authentication and encryption by using MD5 and
MD5-sess, SRTP.

EchoLife ET523 IP Phone User Manual 2 Product Overview
10
Item Specification
Note:
ACE = Acoustic Echo Cancellation
AGC = Acoustic Gain Control
GUI = graphic user interface
DHCP = dynamic host configuration protocol

EchoLife ET523 IP Phone User Manual 3 Using the IP Phone
11
3Using the IP Phone
Getting to Know the LCD
Table 3-1 LCD icons
No. Icon Status Meaning
Blinking The network connection fails.
Solid The IP address is received and the SIP server is
registered successfully.
(1)
blank SIP proxy/server is not registered.
ON The handset is off-hook.(2)
OFF The handset is on-hook.
ON The headset is enabled.(3)
OFF The headset is disabled.
(4) ON The speaker is enabled.

EchoLife ET523 IP Phone User Manual 3 Using the IP Phone
12

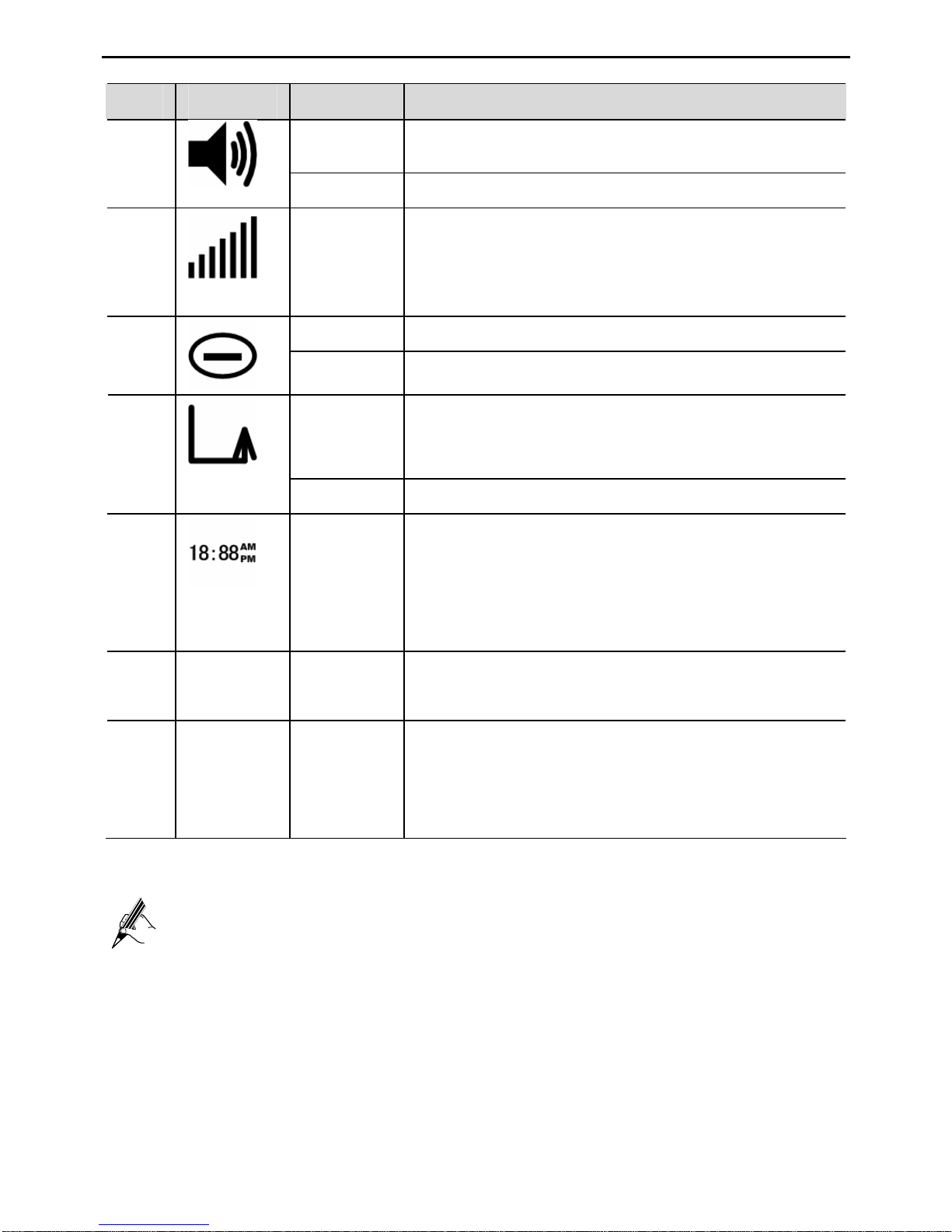

No. Icon Status Meaning
Blinking The phone rings.
OFF The speaker is disabled.
(5) ON The volume is indicated with the bars shown on
the left. From low to high, the volume can be set
as 0–7 level. You can adjust the volume by
pressing UP/DOWN.
Blinking The Do not Disturb function is enabled.(6)
OFF The Do not Disturb function is disabled.
ON The icon indicates calls are forwarded. It is
displayed on the LCD only when call
forwarding-unconditional is enabled.
(7)
OFF The call forwarding function is disenabled.
(8) ON Real-time clock:
If you correctly set the IP address of the NTP
server, the clock is synchronized to time server of
Internet; otherwise it will show the power-on
duration since the last reboot.
(9) 192.168.1
01.25 ON Phone IP address, which is gained after the ET523 boots up.
(10) Monday,
July 1
USER
8888
ON User number:
It displays the date, name/EXT name and SIP
user ID of primary account (Account 1) if you
have set these through the web browser.
The NTP server and time zone needs to be configured through the web
browser.

EchoLife ET523 IP Phone User Manual 3 Using the IP Phone
13
Figure 3-1 Getting to know the keypad
Table 3-2 ET523 keypad
NO Key Description
(1) LINE1–LINE4 Four line keys with multi-color LED line indicators.
Each line key supports one individual SIP account.
(2) UP Move the cursor up in the menu.
Increase the speaker or handset volume when the
phone off-hook. You can only adjust the
counterpart's volume (maximum 7 bars).
If you missed a call, press UP to enter Missed Call.

EchoLife ET523 IP Phone User Manual 3 Using the IP Phone
14
NO Key Description
DOWN Move the cursor down in menu.
Decrease the speaker or handset volume when the
phone is off-hook. You can only adjust the
counterpart’s volume (maximum 7 bars).
Press DOWN to access Phone Book in the idle
mode.
LEFT Move the cursor left.
When you browse the menus, press LEFT to
return to previous menu.
RIGHT Move cursor right.
OK The round key among navigation keys.
In the idle mode, press OK to enter the user
menu.
Press OK to select an item displayed in the user
menu.
(3) Speed
Dial/BLF/Presence
Indicator
Seven keys located on the lower right corner of the
keypad with multi-color line indicators.
Programmable speed-dial keys.
BLF or presence indicator.
HOLD Keep the current call on hold, and press the
corresponding LINE key to resume the call.
SPEAKER Hands-free key: Press the key to enter the hands-free
mode; press it again to exit the hands-free mode.
(4)
SEND Confirm/Send key: press the key to send a call
after you have dialed phone numbers.
Note:
If you do not press SEND, the number will be sent
after a pre-configured time delay.
Redial function: After the phone is off-hook,
press the key to redial the last dialed number.
(5) 0–9, *, # Standard phone pad: 10 digits, 26 alphanumeric
letters, and special characters for context sensitive
applications.
TRNF Transfer the current call to another number.(6)
CONF Set up a conference call for the caller and callee.

EchoLife ET523 IP Phone User Manual 3 Using the IP Phone
15
NO Key Description
MSG Receive the voice mails.
MUTE/DEL Mute the call (the other party cannot hear your
voice).
Ignore (reject) an incoming call.
Enable/disable the Do-not-Disturb function
when the phone is idle.
Delete the incorrect inputs.
Making and Answering a Call
Handset, Speakerphone and Headset Mode
The call can be switched between the handset and speaker/headset modes. To switch
between handset and speaker/headset mode, press the hookswitch or SPEAKER.
Multiple SIP Accounts and Lines
The ET523 can support up to four independent SIP accounts. Each of the four line keys
(LINE1–LINE4) is mapped to one SIP account. In off-hook state, when you press the
corresponding Line key or continuously press the same line key, the phone will switch
among the four accounts. If the name of an account is configured, then it is displayed on
the LCD and a dial tone is heard.
For example: configure Account Name of the four SIP accounts as AAA,BBB,CCC
and DDD. Ensure each account is activated and registered on the VoIP server or
IP-PBX. When LINE1 is pressed, you will hear a dial tone and see AAA on the LCD
display; when LINE2 is pressed, you will hear a dial tone and see BBB on the LCD
display, and the operation result is as same as pressing LINE3 and LINE4. The same
function can also be performed when you press any idle Line key continuously. The
LCD displays the used account and the dial tone can be heard.
To make a call, select the line you wish to use. The LED of the corresponding line will
light up. Switch lines before dialing by pressing the same LINE key continuously until
the desired account is displayed on the LCD and the dial tone is played.
For example: when LINE1 is pressed, the LCD displays AAA; If LINE1 is pressed
twice, the LCD displays BBB and the subsequent call will be made through SIP account
2BBB.
When the phone is idle, press the corresponding key to answer the incoming call
designated to a specific account. If the corresponding line is occupied, the ET523 will
